BOOM ARM MINI

COMPACT LOW NOISE MICROPHONE BOOM ARM

TABLE OF CONTENTS

VERSION 1.0, 2022/12/15

INTRODUCTION 01

ABOUT THE NZXT BOOM ARM MINI 02

PACKAGE CONTENTS & DESCRIPTION 03

SETTING UP BOOM ARM MINI 06

BASIC TROUBLESHOOTING.... 13

NZXT GLOBAL WARRANTY POLICY.... 15

SUPPORT AND SERVICE.... 18

REGULATORY STATEMENT 20

HAZARDOUS SUBSTANCES.... 21

INTRODUCTION

INTRODUCCIÓN

INTRODUCTION

EINLEITUNG

INTRODUZIONE

INTRODUÇÃO

소개

はじめに

简介

簡介

INTRODUCTION

Congratulations on your purchase of the NZXT Boom Arm Mini! Whether you are a professional streamer, a casual player, or a hardcore gamer; we'd like to welcome you to the NZXT family of high-end gaming peripherals.

INTRODUCCIÓN

Line drawing of a robotic arm with articulated joints and base mount (no text or symbols)

ABOUT THE NZXT BOOM ARM MINI

INFORMACIÓN SOBRE EL BOOM ARM MINI DE NZXT À PROPOS DU BOOM ARM MINI NZXT ÜBER DEN NZXT SCHWENKARM MINI INFORMAZIONI SUL BRACCETTO BOOM ARM MINI DI NZXT SOBRE A MINI HASTE NZXT

NZXT 붉암 미니 소개 NZXT BOOM ARM MINI について 关于 NZXT 迷你悬臂支架 關於 NZXT 迷你懸臂支架

Simple line drawing of a robotic arm with three circular joints and a base (no text or symbols)

ABOUT THE NZXT BOOM ARM MINI

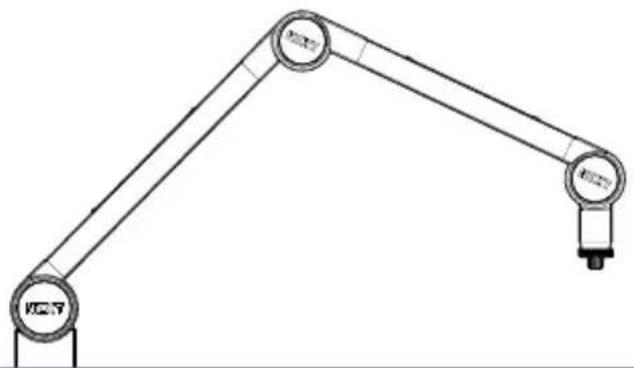

The Boom Arm Mini fits into any battlestation seamlessly. Smooth moving arms make adjusting simple while hidden cable management neatly organizes USB and XLR cables. Game uninterrupted with hidden springs providing quiet operation.

A Cable Channel Covers
B TOP Hinge
C Microphone Connection Point
D Female 3/8" to Male 5/8" Adapter
E Middle Hinge
F Bottom Hinge
G Desk-clamp Connection Point

Technical line drawing of a mechanical linkage or support structure (no text or symbols)

A. Cache-câble

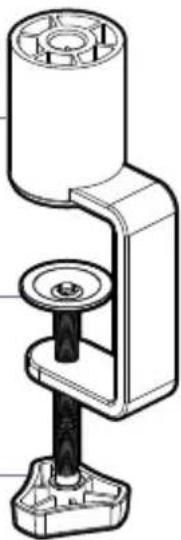

DESK-CLAMP MOUNTING SYSTEM

H Boom Arm Mini Connection Point

I Desk Clamp Mechanism

J Rotate Counter-clockwise to tighten

Technical line drawing of a mechanical clamp or holder assembly (no text or symbols)

SETTING UP BOOM ARM MINI

INSTALACIÓN DEL BOOM ARM MINI INSTALLATION DU BOOM ARM MINI MONTAGE DES SCHWENKARMS MINI CONFIGURAZIONE DEL BRACCETTO BOOM ARM MINI CONFIGURAR AS SUAS COLUNAS RELAY

Mechanical device with rotating shaft and base, no visible text or symbols

Technical diagram showing a mechanical assembly with numbered annotations indicating rotational or movement steps.

STEP 1

ATTACH DESK TOP MOUNTING SYSTEM TO DESK

Boom Arm Mini Comes With A Desk-Top Mounting System For Easy Installation.

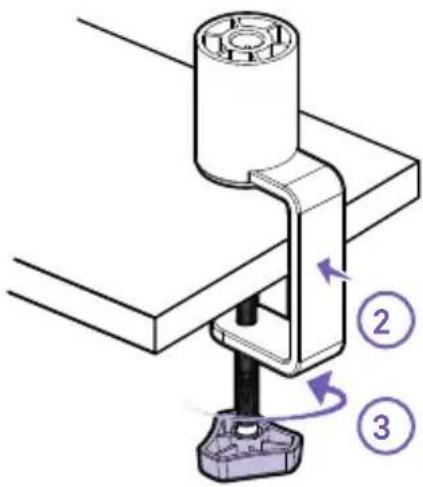

1. Loosen The Clamping Mechanism By Turning The Handle Clockwise.
2. Place The Mechanism On Its Desired Location On Your Desk. Make Sure The Boom Arm Connection Point Is Laying Flat On The Top Of The Desk.
3. Tighten The Clamping Mechanism By Turning The Handle Counterclockwise. The Bottom Of The Mechanism Should Be Lying Flat Against The Underside Of Your Desk.

ACOPLAR SISTEMA DE MONTAJE DE ESCRITORIO AL ESCRITORIO

Mechanical assembly diagram showing a cylindrical component being inserted into a clamping bracket (no text or symbols)

STEP 2

ATTACHING BOOM ARM MINI TO DESK-TOP MOUNTING SYSTEM

Insert the male end of Boom Arm Mini's desk-top mounting pole into the female end of the desk-top clamp.

- The Maximum Desktop Thickness For The Desk-Top Mounting System Is 5cm.

ACOPLAR EL BOOM ARM MINI AL SISTEMA DE MONTAJE DE ESCRITORIO

Diagram of a handheld device with a cylindrical component and a connected arm, showing no text or symbols.

STEP 3-1

BOOM ARM MINI IS THREADED FOR MALE 3/8" CONNECTIONS.

If using NZXT Capsule or Capsule Mini USB Microphone, insert included male 1/4" to female 3/8" adapter into bottom of microphone, then attach the microphone with adapter onto Boom Arm Mini's male 3/8" connection.

EL BOOM ARM MINI TIENE UNA ROSCA PARA CONEXIONES MACHO DE 3/8".

Technical line drawing of a robotic arm with a labeled component (D) and dashed alignment line, no text or symbols present.

STEP 3-2

If your microphone is threaded to US standard female 5/8", attach the female 3/8"to male 5/8" adapter included with Boom Arm Mini.

Technical line drawing of a robotic arm with no visible text or symbols

STEP 3-3

1. Remove the cable channel covers.
2. Insert USB cable and headset cable or XLR cable into microphone.
3. Retira las cubiertas de los canales de cables.

4. Inserta el cable USB y el cable de los auriculares o el cable XLR en el micrófono.

5. Retire les cache-câbles.

6. Insère le câble USB et le câble du casque ou le câble XLR dans le microphone.

7. Entfernen Sie die Abdeckungen des Kabelkanals.

8. Schließen Sie das USB- und das Headset-Kabel oder das XLR-Kabel am Mikrofon an.

9. Rimuovere le coperture dei canali dei cavi.

10. Inserire il cavo USB e il cavo auricolare o il cavo XLR nel microfono.

11. Remover as coberturas dos canais para cabos.

12. Inserir o cabo USB e o cabo dos auscultadores ou o cabo XLR no microfone.

1.케이블 채널 커버를 제거합니다.

Technical line drawing of a mechanical device with no visible text or symbols

STEP 3-4

1. Place the cables inside of the exposed cable channels.
2. Carefully re-insert the cable channel covers in the cable channels.
3. Coloca los cables dentro de los canales de cables expuestos.

4. Con cuidado, vuelve a insertar las cubiertas en los canales de cables.

5. Place les câbles à l'intérieur des canaux de câbles apparents.

6. Réinsère avec précaution les cache-câbles dans les canaux de câbles.

7. Legen Sie die Kabel in die freiliegenden Kabelkanäle.

8. Bringen Sie die Kabelkanalabdeckungen vorsichtig wieder an den Kabelkanälen an.

9. Posizionare i cavi all'interno dei canali dei cavi esposti.

10. Reinserire con cautela le coperture dei canali dei cavi.

11. Colocar os cabos dentro dos canais agora expostos.

12. Reinserir cuidadosamente as coberturas nos canais para cabos.

After the microphone is securely attached to Boom Arm Mini, position the microphone to its desired location.

- If necessary or desired, tighten the hinge points

BASIC TROUBLESHOOTING

RESOLUCIÓN DE PROBLEMAS BÁSICOS DÉPANNAGE ÉLÉMENTAIRE EINFACHE FEHLERBEHEBUNG RISOLUZIONE DEI PROBLEMI DI BASE RESOLUÇÃO DE PROBLEMAS BÁSICA

• Make sure the clamping mechanism is securely tightened and flat against both top side and under side your desk.

If Your Microphone Is Drooping

- Tighten hinge points slightly more, especially the bottom and middle hinge.

Support

• If you have an issue and you need further help to resolve, please contact us via email at: [e-mail]

BASIC TROUBLESHOOTING

RESOLUCIÓN DE PROBLEMAS BÁSICOS DÉPANNAGE ÉLÉMENTAIRE EINFACHE FEHLERBEHEBUNG RISOLUZIONE DEI PROBLEMI DI BASE RESOLUÇÃO DE PROBLEMAS BÁSICA

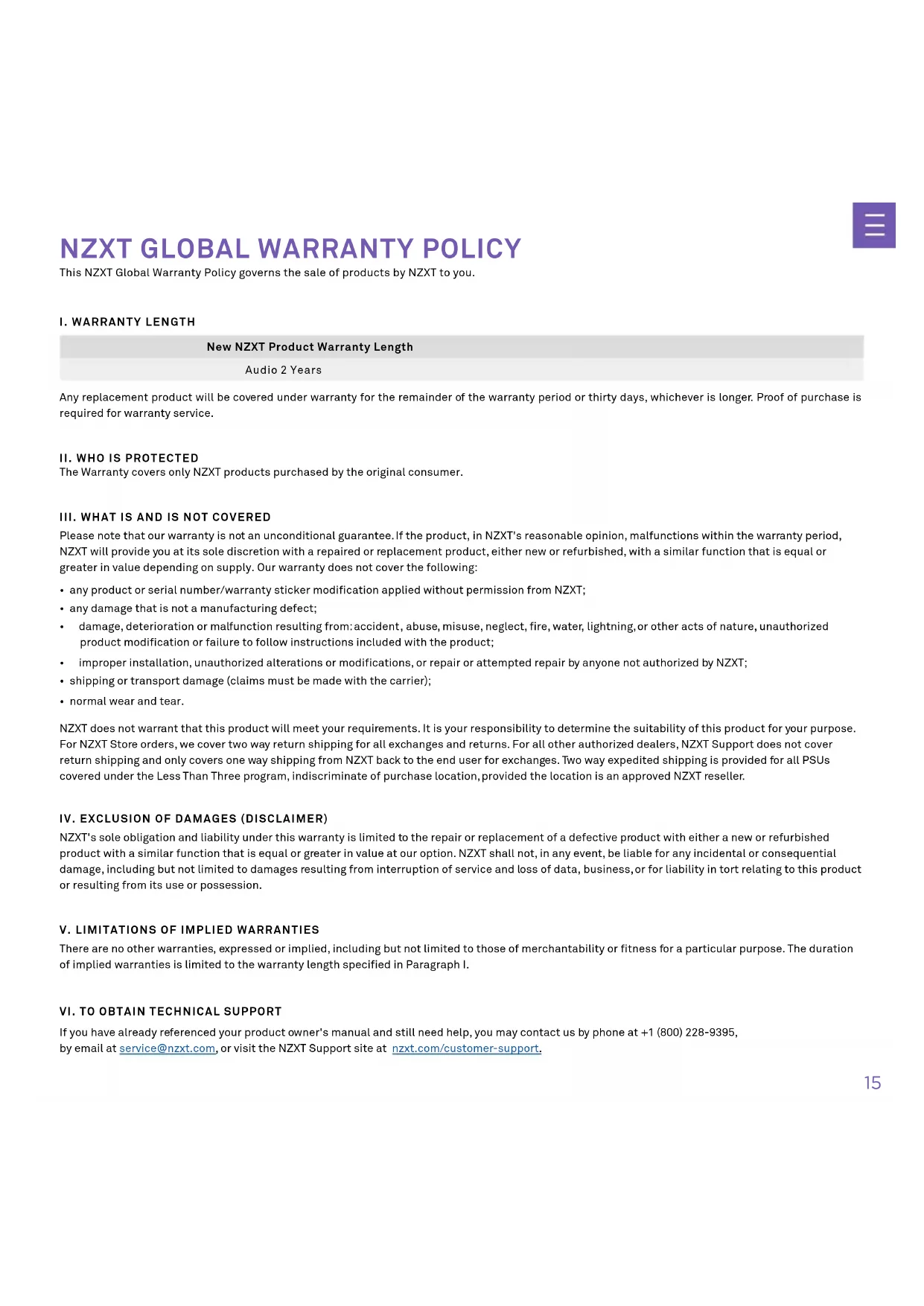

This NZXT Global Warranty Policy governs the sale of products by NZXT to you.

I. WARRANTY LENGTH

New NZXT Product Warranty Length

Audio 2 Years

Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days, whichever is longer. Proof of purchase is required for warranty service.

II. WHO IS PROTECTED

The Warranty covers only NZXT products purchased by the original consumer.

III. WHAT IS AND IS NOT COVERED

Please note that our warranty is not an unconditional guarantee. If the product, in NZXT's reasonable opinion, malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply. Our warranty does not cover the following:

• any product or serial number/warranty sticker modification applied without permission from NZXT;
• any damage that is not a manufacturing defect;
• damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product;
• improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
• shipping or transport damage (claims must be made with the carrier);
• normal wear and tear.

NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for all exchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and only covers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.

IV. EXCLUSION OF DAMAGES (DISCLAIMER)

NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.

V. LIMITATIONS OF IMPLIED WARRANTIES

There are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.

VI. TO OBTAIN TECHNICAL SUPPORT

If you have already referenced your product owner's manual and still need help, you may contact us by phone at [phone], by email at [e-mail], or visit the NZXT Support site at nzxt.com/customer-support.

VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT

To receive a warranty service for your product when purchased directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization "RMA" request.

Once approved, you'll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.

VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS

This warranty gives you specific legal rights. These conditions are governed and construed in accordance with the laws of California (with exception of its conflict of law provisions), and the application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary.

For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT's liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

In the United Kingdom:

• For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the following:

Up to 30 days: if your goods are faulty, then you can get an immediate refund.
Up to six months: if your goods can't be repaired or replaced, then you're entitled to a full refund, in most cases.
Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.
- If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.
- The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.

In the EU:

- If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.

IX. WARRANTY SERVICE FROM RESELLERS

In the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.

In North America:

Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an RMA number.

In Europe:

Within the first year after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

In Australasia:

Within the first two years after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.

Outside North America, Europe, and Australasia:

If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.

X. NZXT.COM STORE RETURNS/EXCHANGE POLICY

Eligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.

Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service.
Visite el sitio Web nzxt.com/warranty y support.nzxt.com para obtener información sobre la cobertura y el servicio de la garantía.
Visitez nzxt.com/warranty et support.nzxt.com pour les informations de la couverture de la garantie et du service.
Informationen zu Geltungsbereich und Service der Garantie finden Sie unter support.nzxt.com und nzxt.com/warranty.
Visitare il sito nzxt.com/warranty e support.nzxt.com per informazioni sulla copertura e sul servizio della garanzia.
Visite nzxt.com/warranty e support.nzxt.com para obter informações sobre a cobertura da garantia e assistência.
제품 보증 범위와 서비스 정보를 확인하시려면 nzxt.com/warranty 또는 support.nzxt.com을 방문해 주시기 바랍니다.
保証範囲およびサービスに関する情報については、support.nzxt.comとnzxt.com/warrantyにアクセスしてください。
请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。
請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊息。

NZXT, Inc. | 15736 E. Valley Blvd, City of Industry, CA 91744, USA
