Technical specifications	Vented dryer, 8 kg capacity, energy class B
Dimensions	Width: 68.6 cm, Height: 99.1 cm, Depth: 73.7 cm
Drying programs	Various programs including cotton, synthetic, delicate, quick
Usage	Intuitive control panel with LED display, delayed start options
Maintenance	Accessible lint filter, water tank to empty after each use
Safety	Overheat protection system, child lock
General information	2-year warranty, available in white, noise level of 65 dB

Frequently Asked Questions - MEDP586KW MAYTAG

Why won\u0027t my MAYTAG MEDP586KW dryer start?

Check if the appliance is properly plugged in and if the outlet is working. Also make sure the door is properly closed, as the dryer won\u0027t start if the door is open.

The dryer isn\u0027t heating, what should I do?

Check the lint filter and the exhaust duct to ensure they are not blocked. A dirty filter or duct can prevent the dryer from heating properly.

My dryer makes an unusual noise during operation, what should I check?

Inspect the drum for foreign objects that could cause noise. Also check the rollers and belts for any signs of wear or damage.

Why does my dryer leave clothes damp at the end of the cycle?

This may be due to overloading the drum, a clogged lint filter, or a problem with the heating element. Try reducing the load and check the filter.

How can I clean the lint filter of my dryer?

Remove the lint filter located at the front of the dryer, under the cover. Remove the lint by gently scraping it off with your fingers or a vacuum cleaner, then rinse with warm water if necessary.

The dryer doesn\u0027t finish the cycle, what can I do?

Check if the moisture sensor is dirty, as this can prevent the dryer from detecting that the clothes are dry. If the problem persists, reset the appliance and try restarting the cycle.

Is there a way to prevent unpleasant odors in the dryer?

Make sure the lint filter and exhaust duct are clean. Regularly wash the drum with a mixture of water and vinegar to remove residues and odors.

How can I adjust the drying settings on my dryer?

Use the control panel to select the appropriate drying cycle based on the fabric type. Refer to the user manual for detailed instructions on the different settings.

My dryer displays an error code, what does it mean?

Consult the user manual for a list of error codes and their meanings. Each code indicates a specific problem that may require special attention.

USER MANUAL MEDP586KW MAYTAG

ELECTRONIC DRYER USE AND CARE GUIDE

GUIDE D'UTILISATION ET D'ENTRETIEN DE LA SECHEUSE ÉLECTRONIQUE

MANUAL DE USO Y CUIDADO DE LA SECADEORA ELECTRONICA

Table of Contents

DRYER SAFETY. 2

CHECK YOUR VENT SYSTEM

FOR GOOD AIRFLOW 4

CONTROL PANEL AND

FEATURES 5

CYCLE GUIDE-TIMEDDRY.5

CYCLE GUIDE - SENSOR

CYCLES 6

USING YOUR DRYER. 6

DRYER CARE 7

TROUBLESHOOTING. 9

ASSISTANCE OR

SERVICE BACK COVER

SECURITE DE LA SÉCHEUSE....11

VERIFICATION D'UNE

CIRCULATION D'AIR

ADEQUATE POUR LE SYSTEME

D'EVACUATION 13

TABLEEAU DE COMMANDE ET

CHARACTERISTIQUES 14

GUIDE DE PROGRAMMES -

SECHAGE MINUTE 14

GUIDE DE PROGRAMMES -

PROGRAMMES DE

DETECTION 15

UTILISATION DE LA

SECHEUSE 15

ENTRETIEN DE LA SÉCHEUSE...16

DEPANNAGE. 18

ASSISTANCE OU

SERVICE...COUVERTURE ARRIERE

Tabla de ContentsTable des

SEGURIDAD DE LA

SECADA. 20

REVISE QUE EL SISTEMA DE

VENTILACION TENGA UN BUEN

FLUJO DE AIRE 22

PANEL DE CONTROL Y

CHARACTERISTICAS. 23

GUIA DE CICLOS - TIMED DRY

(SECADO PROGRAMADO) 23

GUIA DE CICLOS - SENSOR

CYCLES (CICLOS CON

(Sensor) 24

USO DE SU SECADEORA 24

CUIDADO DE LA SECADEORA....25

SOLUTION DE PROBLEMAS....27

AYUDA O SERVICIO

TECNICO .CONTRAPORTADA

DRYER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or

"WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING - "Risk of Fire"

• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• Do not install a clothes dryer with flexible plastic venting materials or flexible metal (foil type) duct. If flexible metal duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions, including the following:

Read all instructions before using the dryer.
Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode.
To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.
Before the dryer is removed from service or discarded, remove the doors to the dryer compartment.
Do not reach into the dryer if the drum is moving.
Do not install or store the dryer where it will be exposed to the weather.
Do not tamper with controls.
Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.

Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
Clean lint screen before or after each load.
- Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.
See "Electrical Requirements" located in the installation instructions for grounding instructions.
WARNING: Risk of Fire. Do not install a booster fan in the exhaust duct.

NOTE: The booster fan warning does not apply to clothes dryers intended to be installed in a multiple clothes dryer system, with an engineered exhaust duct system that is installed per the clothes dryer manufacturer's guidelines.

The back of the dryer shall be installed against a wall. Refer to the minimum installation dimensions/clearances in the diagrams.

SAVE THESE INSTRUCTIONS

WARNING:

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death or property damage.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

WARNING: Gas leaks cannot always be detected by smell.

Gas suppliers recommend that you use a gas detector approved by UL or CSA.

For more information, contact your gas supplier.

If a gas leak is detected, follow the "What to do if you smell gas" instructions.

CHECK YOUR VENT SYSTEM FOR GOOD AIRFLOW

WARNING

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to follow these instructions can result in death or fire.

Good Airflow

Along with heat, dryers require good airflow to efficiently dry laundry. Proper venting will reduce your drying times and improve your energy savings. See Installation Instructions.

The venting system attached to the dryer plays a big role in good airflow.

Service calls caused by improper venting are not covered by the warranty and will be paid by the customer, regardless of who installed the dryer.

Maintain good airflow by:

■Cleaning your lint screen before each load.
Replace plastic or foil vent material with 4^ (102 mm) diameter heavy, rigid vent material.

Use the shortest length of vent possible.
Use no more than four 90^ elbows in a vent system; each bend and curve reduces airflow.

■Remove lint and debris from the exhaust hood.
■Remove lint from the entire length of the vent system at least every two years. When cleaning is complete, be sure to follow the Installation Instructions supplied with your dryer for final product check.
■ Clear away items from the front the dryer.

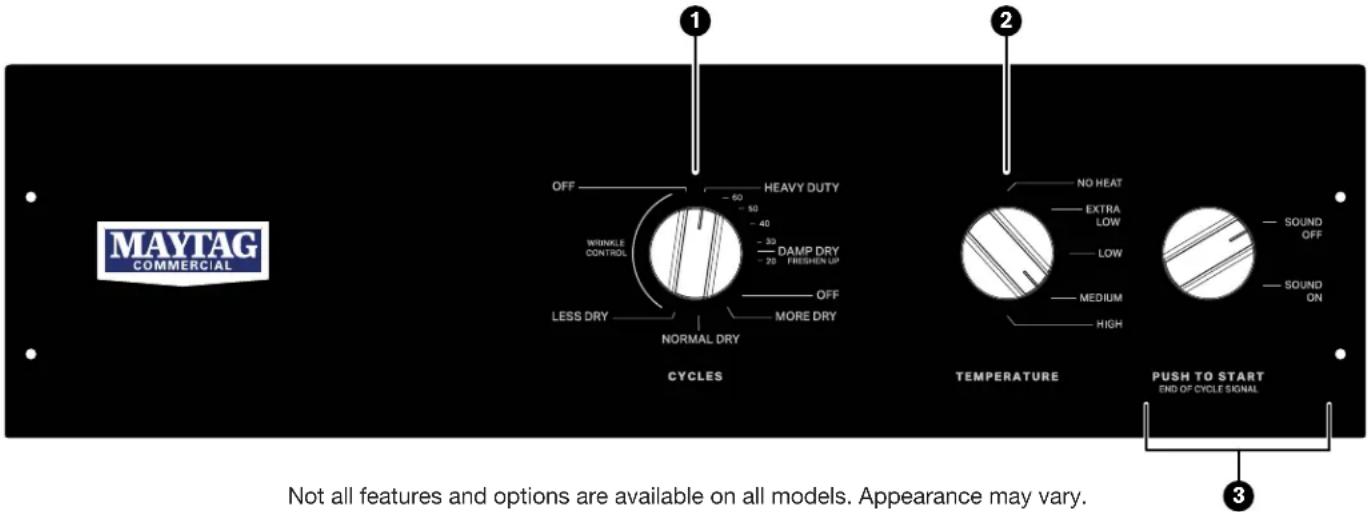

CONTROL PANEL AND FEATURES

DRYER CYCLE KNOB

Use your Dryer Cycle knob to select available cycles on your dryer. Turn the knob to select a cycle for your laundry load. See the "Cycle Guide" chart for detailed descriptions of cycles.

TIMED DRY

Will run the dryer for the specified time on the control. On models with a selectable temperature knob, you may choose a setting based on the fabrics in your load. Drying time and temperature will depend on your dryer model.

SENSOR CYCLES/DRYNESS LEVEL

Senses moisture in the load and air temperature and shuts off when the load reaches the selected dryness level. This setting gives the best drying in the shortest time. Drying time will vary based on fabric type, load size, and dryness setting.

TEMPERATURE

Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting.

NOTE: The No Heat Temperature feature is not available on the sensor cycles.

3 PUSH TO START END OF CYCLE SIGN

Press to start a cycle or rotate to turn sound on/off.

CYCLE GUIDE-TIMED DRY

Not all cycles and settings are available on all models.

TIMED DRY - Will run the dryer for the specified time on the control. Depending on model, temperature may be selected on cycle knob or be a separate control.

Items to Dry: Cycle:	Temperature: Cycle Details:
Heavy or bulky items Heavy	Duty* Any Comp	etes drying if items are still damp.
Any load	Timed Dry	Any	Dries items to a damp level for items that do not require an entire drying cycle. Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting.
Rubber, plastic, heat-sensitive fabrics	Timed Dry No	Heat Use a no-heat	setting for foam, rubber, plastic, or heat-sensitive fabrics.
SPECIAL SETTING†:
Any load Wrinkle	Control†	No Heat After	a cycle is complete, the load is periodically tumbled to avoid wrinkles until you are ready to remove it.

* NOTE: This clothes dryer's Government energy certifications were based on the 60-minute/Timed Dry Cycle, and Maximum Drying Temperature Setting. The as-shipped defaults of Normal Dry, Medium Temperature, and Sound Off were not used. This setting is added at the end of certain cycles to reduce wrinkling.

CYCLE GUIDE-SENSOR CYCLES

Not all cycles and settings are available on all models.

SENSOR CYCLES - Sense moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.

Depending on model, temperature may be selected on cycle knob or be a separate control.

Items to Dry: Cycle:	Temperature: Cycle Details:
Jeans, heavy work clothes, towels	More Dry High Gives fabric the best	Best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting. Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting.
Work clothes, medium weight fabrics, sheets	Normal Dry Medium
Casual, shirts, pants, lightweight items, synthetics, delicates, athletic wear	Less Dry Low

USING YOUR DRYER

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Do not dry anything that has ever had anything flammable on it (even after washing).

Failure to follow these instructions can result in death, explosion, or fire.

WARNING

Fire Hazard

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Items containing foam, rubber, or plastic must be dried on a clothesline or by using an Air Cycle.

Failure to follow these instructions can result in death or fire.

1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen straight up. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Push the lint screen firmly back into place.

For additional cleaning information, see the "Dryer Care" section.

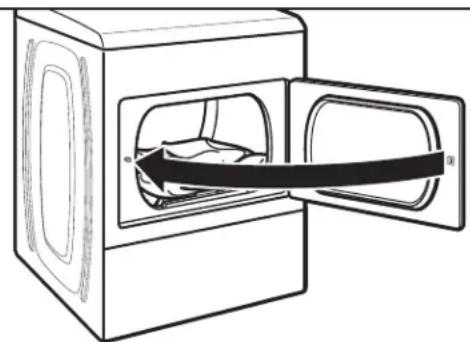

2. Load the dryer

Place laundry in the dryer. Close the door.

Do not overload the dryer; clothes should be able to tumble freely.

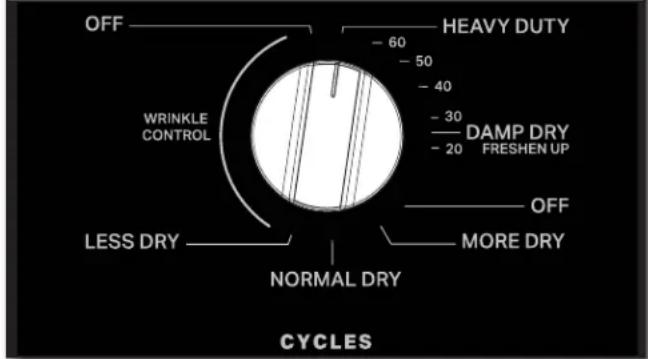

3. Select the desired cycle

Select the desired cycle for your load. See the "Cycle Guide" chart or the display for more information about each cycle.

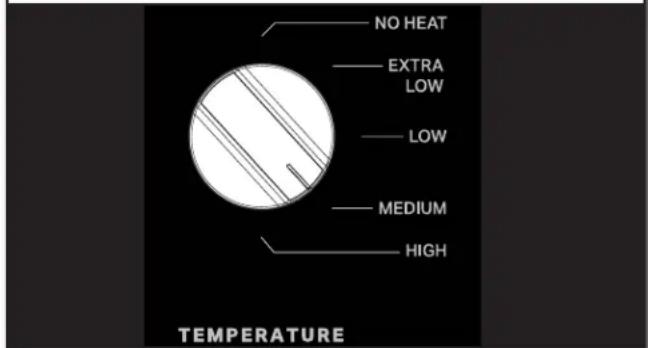

4. Set drying temperature

Setting dryer temperature:

The high heat setting may be used for drying heavyweight items such as towels and work clothes.
The Low or Medium heat setting may be used for drying medium-weight items such as sheets, blouses, dresses, underwear, permanent press fabrics, and some knits.
■Use the No Heat (air dry) setting for foam, rubber, plastic, or heat-sensitive fabrics. Line dry bonded or laminated fabrics.

NOTE: If you have questions about drying temperatures for various loads, refer to the care label directions.

Wrinkle Control feature

■Add up to 90 minutes of heat-free, periodic tumbling at the end of a cycle.

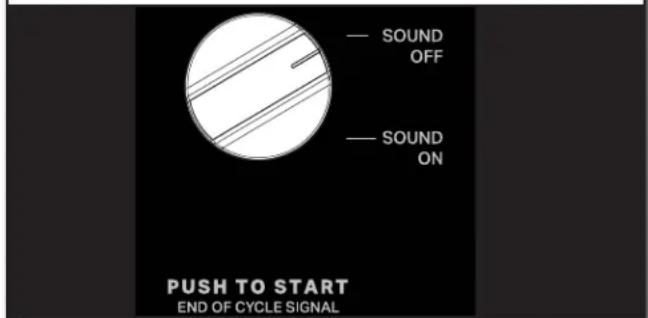

5. Press PUSH TO START knob to begin cycle or rotate END OF CYCLE SIGNAL knob to turn SOUND ON/OFF

Press the START knob to begin the cycle. Rotate END OF CYCLE knob to turn sound on/off. Promptly remove garments after cycle has completed to reduce wrinkling.

DRYER CARE

Cleaning the dryer location

Keep dryer area clear and free from items that would block the airflow for proper dryer operation. This includes clearing piles of laundry in front of the dryer.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Place dryer at least 18^ (460mm) above the floor for a garage installation.

Failure to do so can result in death, explosion, or fire.

Cleaning the dryer interior

To clean dryer drum:

1. Apply a liquid, nonflammable household cleaner to the stained area of the drum and rub with a soft cloth until stain is removed.
2. Wipe drum thoroughly with a damp cloth.
3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry these items inside out to avoid drum staining.

Removing accumulated lint

From inside the dryer cabinet

Lint should be removed every two years, or more often, depending on dryer usage. Cleaning should be done by a qualified servicer.

From the exhaust vent

Lint should be removed every two years, or more often, depending on dryer usage.

Cleaning the lint screen

Every load cleaning

The lint screen is located in the door opening of the dryer. A screen blocked by lint can increase drying time.

To clean:

1. Pull the lint screen straight up. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove.

1. Push the lint screen firmly back into place.

IMPORTANT:

■Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics.

If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint. See the "Check Your Vent System for Good Airflow" section.

As-needed cleaning

Laundry detergent and fabric softener residue can build up on the lint screen. This buildup can cause longer drying times for your clothes or cause the dryer to stop before your load is completely dry. The screen is probably clogged if lint falls off while the screen is in the dryer.

Clean the lint screen with a nylon brush every 6 months, or more frequently, if it becomes clogged due to a residue buildup.

To wash:

1. Roll lint off the screen with your fingers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with hot water and liquid detergent. Scrub lint screen with the brush to remove residue buildup.

1. Rinse screen with hot water.
2. Thoroughly dry lint screen with a clean towel. Reinstall screen in dryer.

Vacation, storage, and moving care

Non-Use or Storage Care

Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should:

1. Unplug dryer or disconnect power.
2. Clean lint screen. See the "Cleaning the Lint Screen" section.

Vacation, storage, and moving care (cont.)

Moving Care

For power supply cord-connected dryers:

1. Unplug the power supply cord.
2. Make sure leveling legs are secure in dryer base.
3. Use tape to secure dryer door.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

For direct-wired dryers:

1. Disconnect power.
2. Disconnect wiring.
3. Make sure leveling legs are secure in dryer base.
4. Use tape to secure dryer door.

Reinstalling the Dryer

Follow the Installation Instructions to locate, level, and connect the dryer.

Changing the drum light (on some models)

1. Unplug dryer or disconnect power.
2. Open the dryer door. Locate the light bulb cover on the back wall of the dryer. Using a Phillips-head screwdriver, remove the screw located in the lower right-hand corner of the cover. Remove the cover.

1. Turn bulb counterclockwise. Replace the bulb with a 10 W appliance bulb only. Replace the cover and secure with the screw.
2. Plug in dryer or reconnect power.

TROUBLESHOOTING

First try the solutions suggested here or visit our website at www.maytag.com/help In Canada, visit www.maytag.ca for assistance and to possibly avoid a service call.
If you experience Pos	sible Causes Solution
Clothes are not drying satisfactorily, drying times are too long, or load is too hot	Lint screen clogged with lint. Lint screen	n should be cleaned before each load.
	Load too large and heavy to dry quickly.	Separate the load so it tumbles freely.
	Exhaust vent or outside exhaust hood clogged with lint, restricting air movement.	Run the dryer for 5-10 minutes. Hold your hand under the outside exhaust hood to check air movement. If you do not feel air movement, clean exhaust system of lint or replace exhaust vent with heavy metal or flexible metal vent. See the Installation Instructions.
	Fabric softener sheets blocking the grille.	Use only one fabric softener sheet, and use it only once.
	Exhaust vent not the correct length. Check	Check that the exhaust vent is not too long or has too many turns. Long venting will increase drying times. See the Installation Instructions.
	Exhaust vent diameter not the correct size.	Use 4" (102 mm) diameter vent material.
	Dryer located in a room with temperature below 45°F (7°C).	Proper operation of dryer cycles requires temperatures above 45°F (7°C).
	Dryer located in a closet. Closet doors must have ventilation openings at the top and bottom of the door. The front of the dryer requires a minimum of 1" (25 mm) of airspace, and, for most installations, the rear of the dryer requires 5" (127 mm). See the Installation Instructions.
Dryer will not run Door not	closed completely. Make sure the dryer	door is closed completely.
	Start button not pressed firmly or held long enough.	Press the START button until you hear the dryer drum moving.
	Household fuse is blown or circuit breaker has tripped.	Electric dryers use two household fuses or circuit breakers. The drum may be turning, but you may not have heat. Replace the fuse or reset the circuit breaker. If the problem continues, call a qualified electrician.
	Incorrect power supply. Electric dryers	require 240 V power supply. Check with a qualified electrician.
	Wrong type of fuse. Use a time-delay fuse.
Unusual sounds	Dryer had a period of non-use.	If the dryer hasn't been used for awhile, there may be a thumping sound during the first few minutes of operation.
	A coin, button, or paper clip is caught between the drum and front or rear of the dryer.	Check the front and rear edges of the drum for small objects. Clean out pockets before laundering garments.
	It is a gas dryer. The gas valve clicking is a normal operating sound.
	The four legs are not installed, and the dryer is not level front to back and side to side.	The dryer may vibrate if not properly installed. See the Installation Instructions.
	Clothing knotted or balled up. When ballled up, the load will bounce, causing the dryer to vibrate. Separate the load items and restart the dryer.
No heat Household fuse is	blown or circuit breaker has tripped.	The drum may be turning, but you may not have heat. Electric dryers use two household fuses or circuit breakers. Replace both fuses or reset the circuit breaker. If the problem continues, call a qualified electrician.
	Supply line valve not open. For gas dryers	ers, ensure the valve is open on the supply line.
	Incorrect power supply. Electric dryers	require 240 V power supply. Check with a qualified electrician.

TROUBLESHOOTING

First try the solutions suggested here or visit our website at www.maytag.com/help In Canada, visit www.maytag.ca for assistance and to possibly avoid a service call.
If you experience Possible Causes Solution
Cycle time too short Sensor	or cycle ending early. The load may not be contacting the sensor strips. Level the dryer.Use a timed dry for very small loads. Change the dryness level setting on sensor cycles. Increasing or decreasing the dryness level will change the amount of drying time in a cycle.
Lint on load Lint screen clogged. Lint screen should be cleaned before each load.
Stains on load or drum Dryer fabric softener not properly used.	Add dryer fabric softener sheets at the beginning of the cycle.Fabric softener sheets added to a partially dried load can stain your garments. Drum stains are caused by dyes in clothing (usually blue jeans). These will not transfer to other clothing.
Loads are wrinkled Load not removed from dryer at the end of the cycle.	Select Wrinkle Control cycle to tumble the load without heat to avoid wrinkling.
Dryer tightly packed. Dry smaller loads	that can tumble freely to help prevent wrinkles from forming.
Odors You have recently been painting,staining, or varnishing in the area where your dryer is located.	If so, ventilate the area. When the odors or fumes are gone from the area, rewash and dry the clothing.
The electric dryer is being used for the first time.	The new electric heating element may have an odor. The odor will be gone after the first cycle.
Load is too hot Laundry itemsremoved from the dryer before the end of the cycle.	Allow the dryer to finish the cool-down cycle before removing laundry from dryer. All cycles are cooled slowly to reduce wrinkling and make items easier to handle. Items removed before cooldown may feel very warm.
A high temperature cycle was used or the Temperature knob was set on High.	Select a lower temperature, and use a sensor drying cycle.These cycles sense the temperature or the moisture level in the load and shut off when the load reaches the selected dryness.This reduces overdrying.

SECURITE DE LA SÉCHEUSE

Assistance or Service

Before calling for assistance or service, please check "Troubleshooting" or visit www.maytag.com/help.

It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance.

This information will help us to better respond to your request.

If you need replacement parts or to order accessories

We recommend that you use only FSP® Factory Specified Parts.

These parts will fit right and work right because they are made with the same precision

used to build every new MAYTAG® appliance.

To locate FSP® replacement parts or accessories go to www.maytagpartsonline.com.

Questions? Call us toll free at 1-800-344-1274 or in Canada call 1-800-807-6777.

Our consultants provide assistance with

In the U.S.A.

Features and specifications on our full line of appliances.
Installation information.
Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

In the U.S.A. and Canada

Use and maintenance procedures.
■ Accessory and repair parts sales.
Referrals to local dealers, repair parts distributors, and service companies. Maytag designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States and Canada.

You can write with any questions or concerns at:

Maytag Brand Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

1-800-344-1274

Maytag Brand Appliances

Customer eXperience Centre

Unit 200-6750 Century Ave

Mississauga, Ontario L5N 0B7

1-800-807-6777

Please include a daytime phone number in your correspondence.

Assistance ou Service

Customer eXperience Centre

Unit 200-6750 Century Ave

Mississauga, Ontario L5N 0B7

1-800-807-6777
