RG105522.9 - Grill plate Emerio - Free user manual and instructions

Product Type	Grill and Raclette Plate
Brand	Emerio
Model	RG105522.9
Number of Persons	8
Power Supply	220-240 V ~ 50-60 Hz
Power	1200 W
Dimensions (approx.)	Approx. 40 x 25 x 15 cm
Weight (approx.)	2.5 kg
Plate Material	Non-stick coating
Included Accessories	Grill plate, 8 cups
Temperature Control	Yes, via rotary knob
Indicator Light	Yes, power indicator
Cleaning the Plate	Dishwasher safe after cooling
Cleaning the Cups	Hand wash, not dishwasher safe
Cleaning the Body	Soft damp cloth, do not immerse
Safety	Automatic shut-off (not specified), hot surface
Warranty	2 years

Frequently Asked Questions - RG105522.9 Emerio

How to use the appliance for the first time?

Before first use, operate the appliance empty for about 10 minutes to burn off manufacturing residues. Ensure good ventilation. Apply a few drops of oil to the plate and wipe off excess with a dry cloth.

Can I wash the plate in the dishwasher?

Yes, the grill plate can be washed in the dishwasher after it has completely cooled. The cups (raclette spatulas) cannot be washed in the dishwasher, only by hand.

What is the power of the appliance?

The power is 1200 W at a voltage of 220-240 V ~ 50-60 Hz.

Is the appliance suitable for commercial use?

No, this appliance is designed exclusively for domestic use and similar applications (staff kitchens, farms, hotels, etc.). Do not use for commercial purposes.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its after-sales service, or similarly qualified persons to avoid hazards. Do not use the appliance.

Can I use the appliance unattended?

No, never leave the appliance unattended while in operation. The surface becomes very hot.

How to clean the heating elements?

Unplug the appliance and let it cool. Remove debris from heating elements with a soft brush. Never use abrasive cleaners or sharp utensils.

What foods can I cook on the plate?

You can grill meat, vegetables, toast in the cups, eggs, potatoes, and many other foods. Make sure to add fat to the mini paddles before use.

The appliance emits smoke during first use, is this normal?

Yes, it's normal. The appliance may emit a little smoke and a characteristic odor due to burning off manufacturing residues. This disappears quickly after a few minutes of operation.

What to do if the appliance falls into water?

Do not touch the appliance. Immediately unplug it from the power outlet. Do not reuse the appliance and take it to an authorized repair center.

USER MANUAL RG105522.9 Emerio

Modern black and silver grater with a circular lid and side-mounted handles, placed on a flat surface (no text or symbols visible)

Raclette grill for 8 persons (EN)

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shop, offices and other working environment; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Always plug the appliance into an earthed plug socket.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
15. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
18. Never leave the appliance unattended during use.
19. This appliance is not designed for commercial use.
20. Do not use the appliance for other than intended use.
21. Do not wind the cord around the appliance and do not bend it.
22. Place the appliance on a stable, level surface from which it cannot fall off.
23. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
24. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

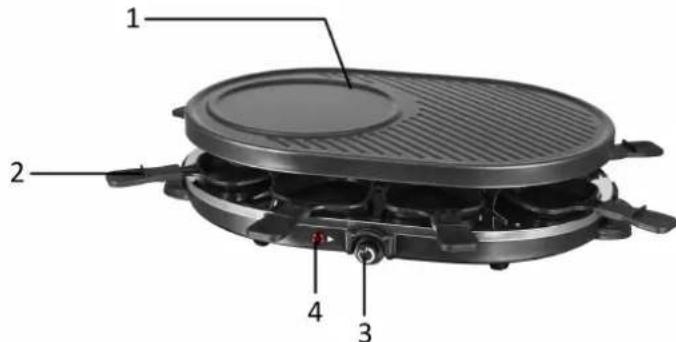

LIST OF COMPONENTS

1. Grill plate
2. Mini pans
3. Temperature switch
4. Indicator light

BEFORE USE

1. Make sure that there is enough ventilation around the appliance.
2. The appliance should not be placed on an untreated wood surface. Place the appliance on a level and heat resistant surface.
3. Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

GRILL LIKE A REAL CHEF

Preparing your meat in advance (take it out of the refrigerator, let it reach room temperature before you put it on the grill-plate) gives your meat a more even cooked result. It also prevents the grill-plate from deforming if the meat and other ingredients are too cold.

GRILL

1. Place the appliance in the middle of the table.
2. Cut the meat into small pieces. You can thus reduce the cooking time.
3. Turn on the unit by rotating the temperature switch. The indicator light illuminates and the appliance heats up.
   NOTE: When first use, drop some oil on the surface of the plate and then wipe it off with dry cloth.
4. When the grill plate has preheated for about 5-7 minutes, you can put your food on the grill plate to start cooking.
5. You can grill toasts in the raclette pans, fry eggs or potatoes and many other things. Meat can be prepared on the grill plate.
   NOTE: Always remember to add some grease to mini pans before use.
6. To turn off the appliance, turn the temperature switch to position "MIN" and then unplug the appliance.

CLEANING AND MAINTENANCE

1. Always unplug the appliance and allow cooling before moving and/or cleaning.
2. Do not immerse the appliance in water. Clean the heating unit with a soft damp cloth only. Remove debris from the heating elements with a soft brush.
3. The plate and all the pans can be washed in water. If stains still appear, it is recommended to use soapy water. The grill plate can be cleaned in a dishwasher after completely cooled down. The mini pans cannot be cleaned in the dishwasher.
4. Do not use abrasive cleaners or sharp utensils to clean the appliance.

TECHNICAL DATA

Rated Voltage: 220-240V \~ 50-60Hz

Power: 1200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Manufactured by: Emerio B.V.

Zomervaart 1A, 2033 DA Haarlem, The Netherlands
