USER MANUAL ThermoSpot CB5408 TEFAL

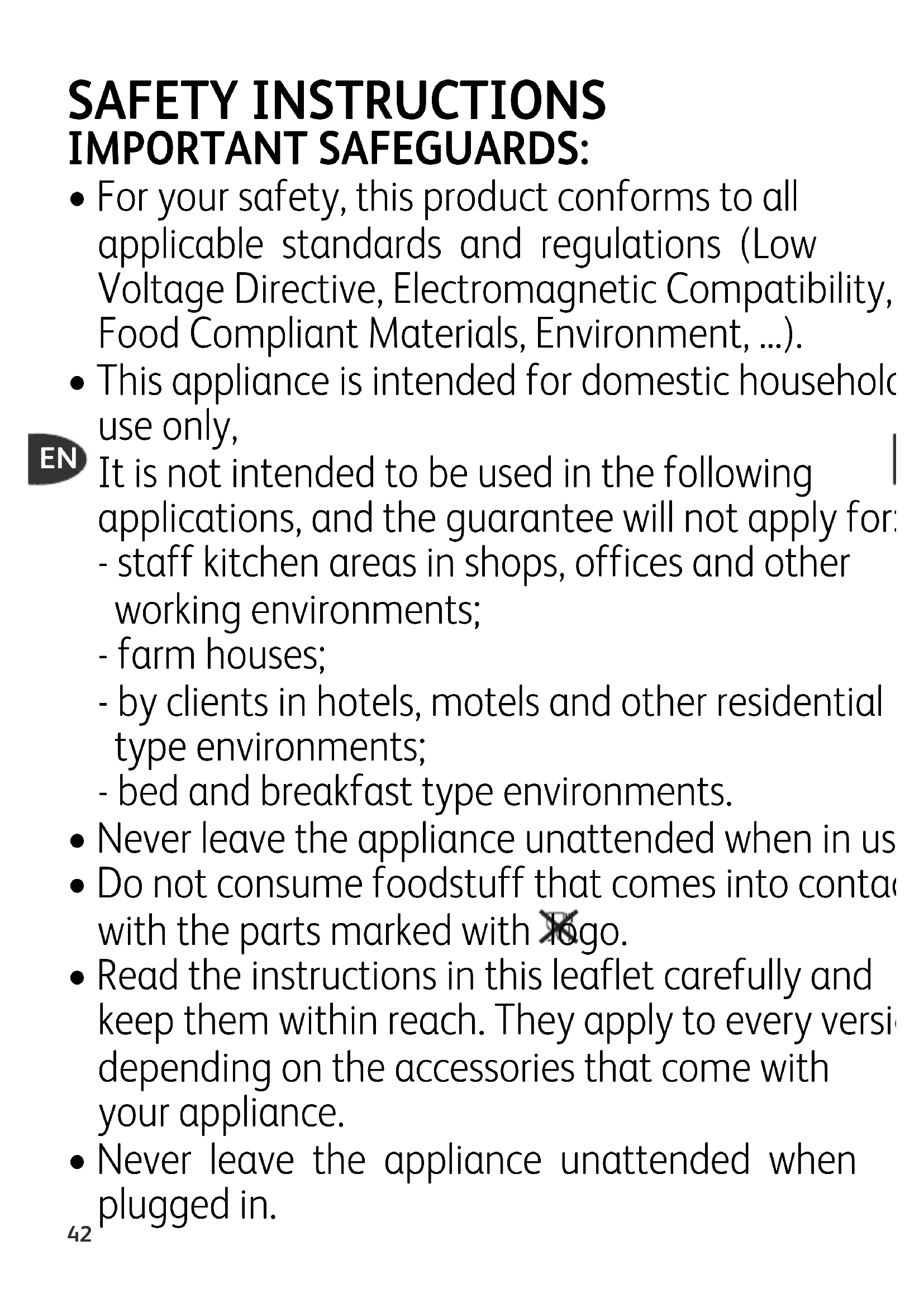

• For your safety, this product conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).

• This appliance is intended for domestic household use only, It is not intended to be used in the following applications, and the guarantee will not apply for: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• Never leave the appliance unattended when in use.

• Do not consume foodstuff that comes into contact with the parts marked with logo.

• Read the instructions in this leaflet carefully and keep them within reach. They apply to every version depending on the accessories that come with your appliance.

• Never leave the appliance unattended when plugged in.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Accessible surface temperatures can be high when the appliance is operating. Never touch these surfaces, always use the handles.

• Never use the appliance if it is not working correctly, if it has been fallen or if it has been damaged.

• Any intervention other than normal cleaning and maintenance by customer must be performed by an approved service center.

• The power cable must never be close to or in contact with hot parts of the appliance, rotating parts, close to a source of heat or resting on sharp edges.

• Never place the appliance below or close to easily inflammable objects (e.g. curtains, etc.).

• Never disconnect the plug by pulling on the power cable.

• If parts of the appliance should catch fire, never

PLANCH-THERMSPOT-2100068248_PLANCH-THERMSPOT-2100068248 11/10/11 11:35 Page4344 try to extinguish flames with water. Disconnect the appliance and smother the flames with a wet cloth.

• Allow the appliance to cool down completely before you clean and store it.

• Never move the appliance as long as it is hot.

• Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.

• Fully unwind the power cord.

• If the appliance is used in the centre of the table, keep it out of the reach of children.

• To prevent the appliance from overheating, do not place it in a corner or against a wall.

• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel.

• If an extension cord is used, make sure to choose one of equivalent diameter with an earthed socket.

• Always plug the appliance into an earthed socket.

• Position the cord carefully, whether an extension is used or not, so that guests can move freely around the table without tripping over it.

• If the supply cord is damaged, it must be replaced

PLANCH-THERMSPOT-2100068248_PLANCH-THERMSPOT-2100068248 11/10/11 11:35 Page44by the manufacturer, its service agent or similary qualified persons in order to avoid a hazard.

• This appliance is not intended to be operated by means of an external timer or separate remote- control system.

• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

• Only the appropriate connector must be used.

• Dot not use aluminium foil or other objects between the plates and the food being cooked.

• Do not remove the grease collection tray while cooking. If the grease collection tray becomes full when cooking: let the appliance cool down before emptying.

• Do not immerse the control panel and the power cord in water.

• The connector must be removed before the ap- pliance is cleaned and the appliance inlet must be dried before the appliance is used again.

• This appliance can be used by children aged from 8 years and above and persons with re- duced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

PLANCH-THERMSPOT-2100068248_PLANCH-THERMSPOT-2100068248 11/10/11 11:35 Page45Thank you for buying this appliance, which is intended for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. Our company has an ongoing policy of research and development and may modify these products without prior notice. Your Plancha is an appliance with a wide range of uses: as well as healthy, tasty mixed grills that you can cook without fat, your Plancha is also perfect for specialities such as the Japanese dish teppanyaki or American-style breakfasts with fried eggs and bacon, as well as the famous pancakes or tortillas. Prevention of accidents at home

• For a child, even a slight burn may sometimes be serious. As they grow up, teach your children to be careful around hot appliances in the kitchen.

• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary. Assembly Before first use

• Clean the body of the appliance (1) and the drip tray (2) (follow the instructions in the paragraph “After use”).

• Place the base of the appliance (1) on a clean flat surface.

• Insert the drip tray (2) into the appliance (1) - A. Connection and preheating

• Place on a flat, stable, heat-resistant surface.

• Pour a little cooking oil onto the plate and wipe with a soft cloth or paper kitchen towel.

• Set the thermostat of the plug-in connector to mini.

• Connect the plug-in connector to the pins of the appliance’s element (3) and then connect the cord to the mains - B. Never use the appliance when it is empty. On first use, there may be a slight odour and a little smoke during the first few minutes.

use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• If the plug-in connector is incorrectly positioned, the safety system will prevent the appliance from working.

• Pre-heat the appliance for about 10 minutes on position 5. Cooking After preheating, the appliance is ready to be used.

• Set the thermostat to the desired position.

• Leave to cook depending on your taste.

becomes uniformly red when hot . After use

• Set the thermostat to the mini position (according to the model).

• Unplug the cord from the mains and then remove the plug-in connector (3) from the appliance (1).

• Allow the appliance to cool.

• Clean the base of the appliance (1) and the drip tray (2) with a sponge, hot water and washing-up liquid - E. Storage

• The appliance may be stored vertically - G. Never cut directly on the appliance. Always use a wooden or plastic spatula to avoid damaging the cooking plate - D. Do not put cooking utensils on top of the appliance. Do not touch the metal parts of the appliance when it is heating or operating, as they are very hot. At the end of cooking, the appliance is hot: handle it with precaution. Do not place the cooking plate under water or onto fragile surface when the appliance is hot. Do not use a metallic sponge or scouring powder. The base of the appliance (1) and the drip tray (2) are dishwasher safe - C. The plug-in connector must not be washed in a dishwasher. Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area. Only use the plate supplied with the appliance or purchased from an approved service centre. Environment protection first ! Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point. If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

HELPLINE: 0845 602 1454 - UK - (01) 677 4003 - ROI

or consult our website: www.tefal.co.uk
