Product Type	Electric Charging Cart with UV Disinfection
Brand	Manhattan
Model	180658
Dimensions (approx.)	80 x 50 x 100 cm
Weight (approx.)	20 kg
Power Supply	AC 100-240 V, 50/60 Hz
Charging Ports	USB ports and power outlets
Disinfection Function	30-minute UV Cycle
Number of Compartments	Variable with removable dividers
LED Indicators	Orange: no connection; Green: device connected
Material	Metal and plastic
Safety	Door opening interrupts UV cycle
Maintenance	Clean with a soft, dry cloth
Spare Parts	Dividers, screws, ground cable
Repairability	Reversible door, removable dividers
General Information	Compliant with CE 2014/30/EU and 2014/35/EU

Frequently Asked Questions - 180658 MANHATTAN

How to reverse the cart door?

Unscrew the ground cable from the door and the cabinet. Remove the door by pulling on the L-shaped pins. Turn the door over and place the pins in the holes on the other side. Re-screw the ground cable.

What to do if the UV cycle does not start?

Check that the door is properly closed. The UV cycle requires a closed door to operate. If the problem persists, check the power supply and the UV button.

How to remove dividers to accommodate larger devices?

Unscrew the numbered bar and set it aside. Pull upward on the divider clip to release it. Remove the desired divider(s), then put the bar and screws back.

How to clean the charging cart?

Use a soft, dry cloth to clean the exterior. Avoid abrasive or liquid products that could damage the electrical components.

How long does the UV disinfection cycle last?

The UV cleaning cycle lasts 30 minutes. Opening the door interrupts the timer.

What do the LED indicators mean?

Orange LED: no connection. Green LED: device connected and charging.

Can laptops be charged in this cart?

Yes, insert laptops with the screen facing up and slightly open for better disinfection. Connect the appropriate cables.

How to connect the power cables?

Route cables through the holes in the back panel, then plug them into the power outlets. Secure cables using cable ties on the dividers.

What to do in case of power failure?

Check the AC power cable and the wall outlet. If the cart does not turn on, contact customer service.

Where to find detailed specifications?

Visit manhattanproducts.com or register your product on register.manhattanproducts.com/r/180658.

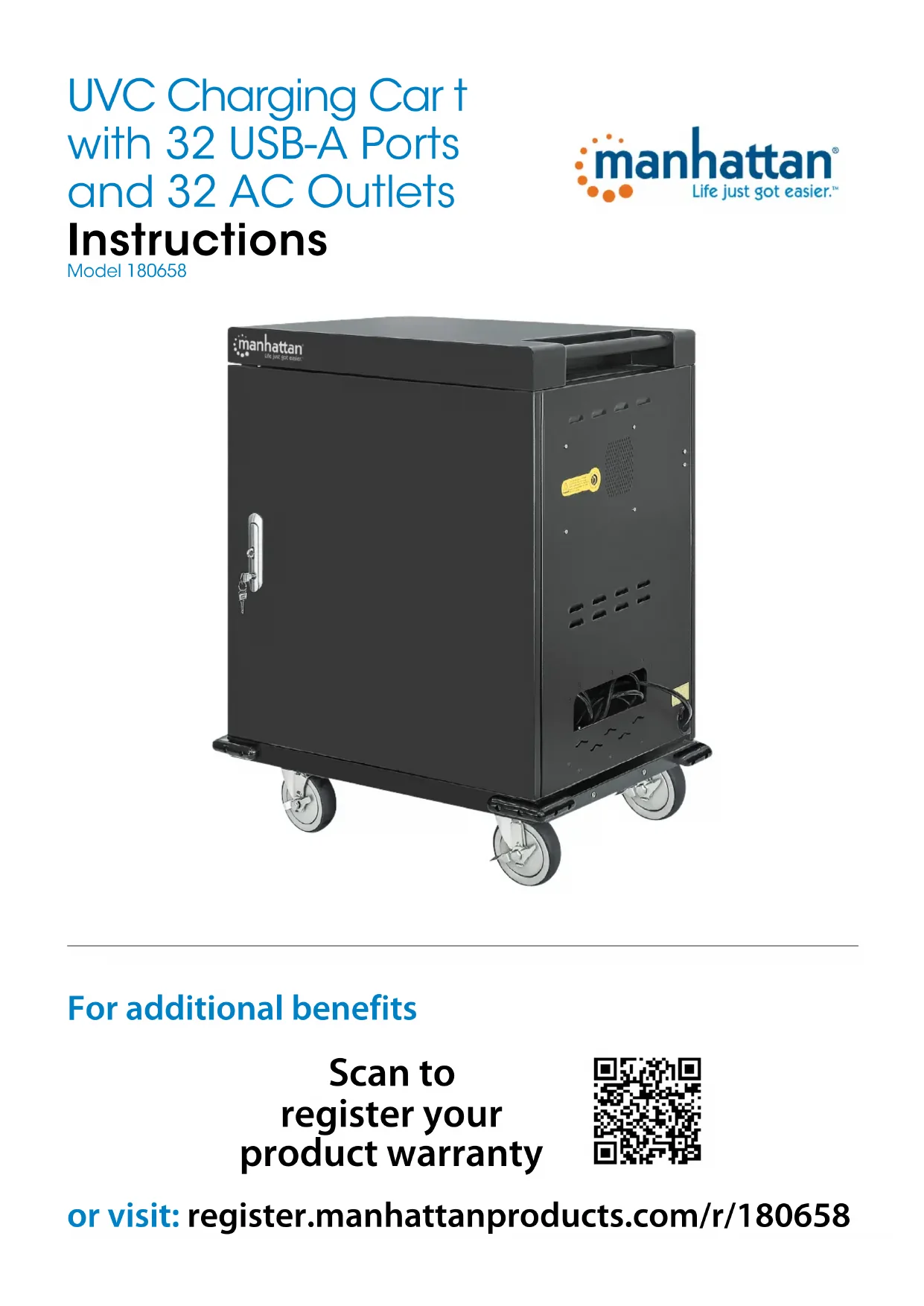

USER MANUAL 180658 MANHATTAN

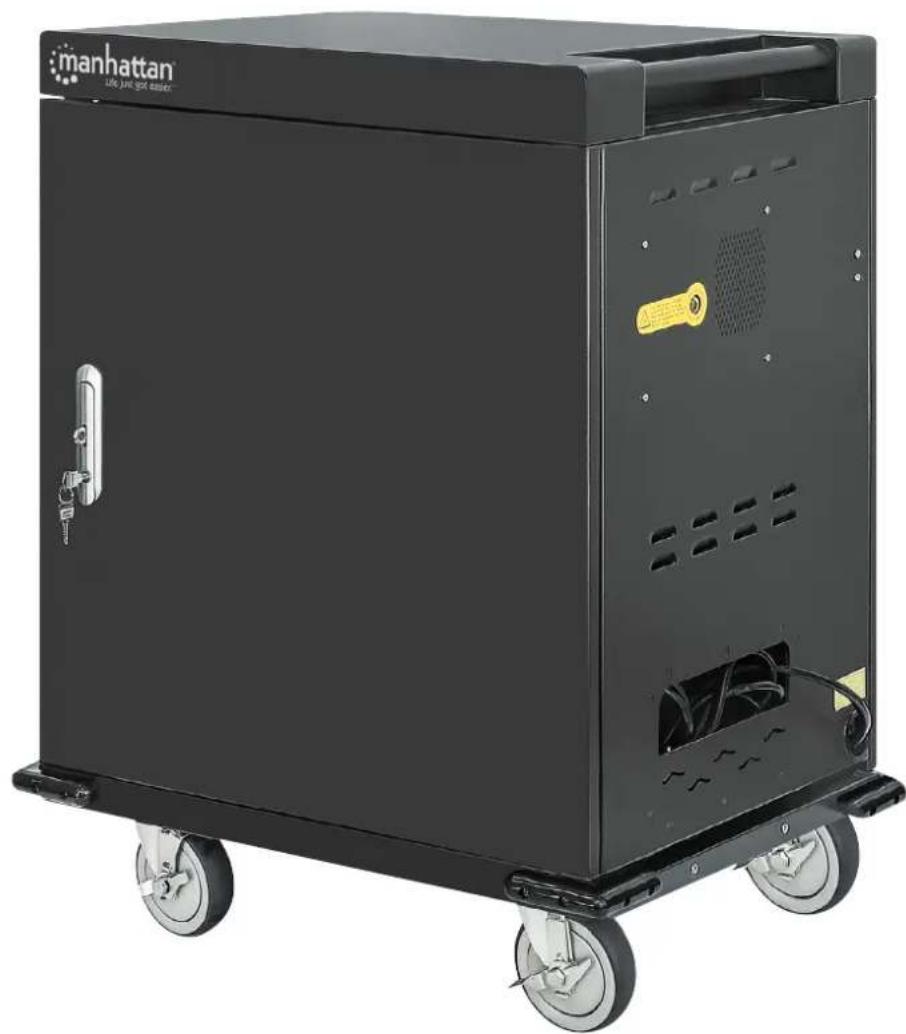

UVC Charging Cart with 32 USB-A Ports and 32 AC Outlets

Instructions

Model 180658

For additional benefits

Scan to register your product warranty

or visit: register.manhattanproducts.com/r/180658

Setup

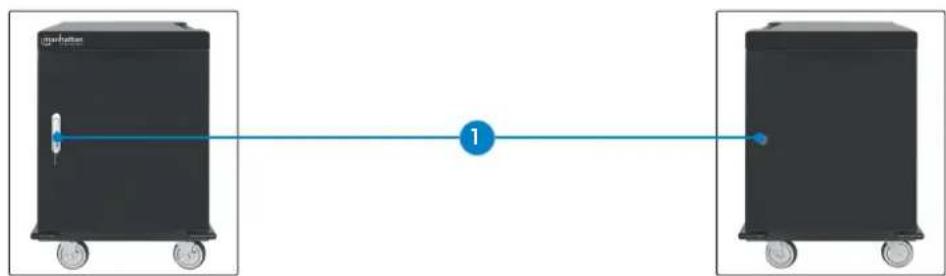

1 Unlock unit door(s) and open them (NOTE: on front door, pull handle up from bottom and turn counterclockwise).

2 To fit larger devices, remove bay divider(s).

• Unscrew numbered bar and set it aside.
• To remove divider, pull up on the clip to release it from the bar it's attached to.
• When enough dividers are removed, replace numbered bar and screws.

3 Connect unit power cable to power outlet.

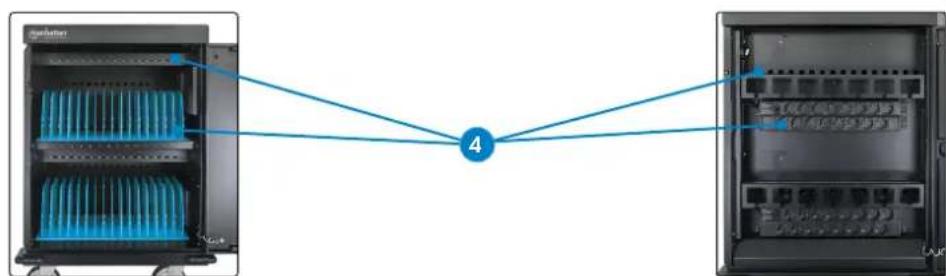

4 Connect devices to USB ports and power outlets with appropriate cables. Secure cables with wire clips on dividers.

• Connect USB cables to unit ports.
• Connect power cables to power outlets, feeding cables through holes on back panel.
• Load devices in bays (TIP: for better sanitization, insert laptops open-side up and slightly ajar).
• Connect cables to devices.

Charging and Sanitizing

5 Close door(s). Press the UV button to start a cleaning cycle. NOTE: the 30-min. UV cleaning cycle will begin; opening the door stops the timer; closing the door resumes it.

LEDS

Color Description

Orange No connection

Green Device connected

To Reverse the Door

NOTE: Make sure all power is cut off from unit!

A Unscrew grounding cable from door and cabinet.

B Remove door from cabinet by pulling L-shaped pins.

C Flip door and guide pins into holes on other side of cabinet frame. Release pins and ensure door is secure.

D Reattach grounding cable to door and cabinet.

A

C

B

D

For specifications, please visit manhattanproducts.com. Register your product at register. manhattanproducts.com/r/180658 or scan the QR code on the cover.

Einrichtung

manhattanproducts.com

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician for help.

CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and / or 2014/35/EU. The Declaration of Conformity for is available at:

support.manhattanproducts.com/barcode/180658

POWER INFORMATION

Max. Power Output (USA)	,600 W (110 V / 1 A)
Max. Power Output (Mexico)	2,032 W (127 V / 16 A)
Input	100 – 250 VAC, 50 – 60 Hz
Output per Port (USB-A)	5.0 V/2.4 A, 12.0 W
Average Active Efficiency (%)	86%
Low-Load Efficiency (10%)	83%
No-load Power Consumption (W)	22 W

North & South America

IC Intracom Americas

550 Commerce Blvd.

Oldsmar, FL 34677, USA

Asia & Africa

IC Intracom Asia

4-F, No. 77, Sec. 1, Xintai 5th Rd.

Xizhi Dist., New Taipei City 221, Taiwan

Europe

IC Intracom Europe

Lohbacher Str. 7, D-58553

Halver, Germany
