USER MANUAL BBB86088V3 LA CROSSE TECHNOLOGY

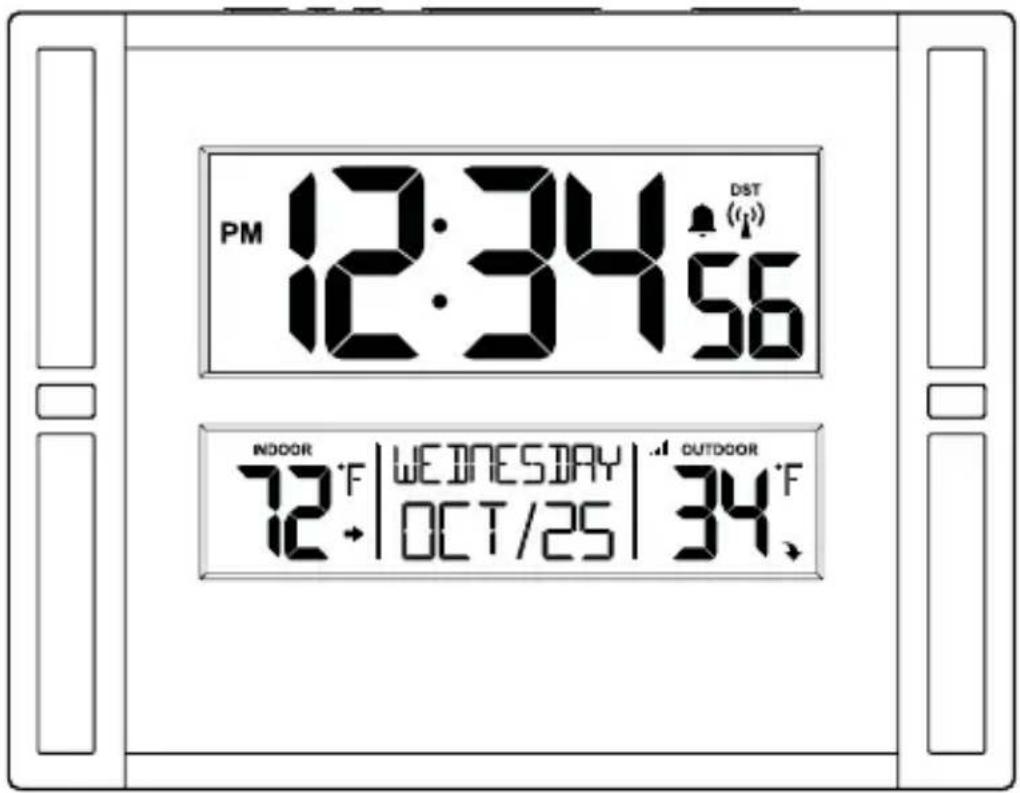

Welcome to the La Crosse Technology® family! We hope you enjoy your new Atomic Clock.Lets Get Started BBB86088 www.lacrossetechnology.com/support Page | 2

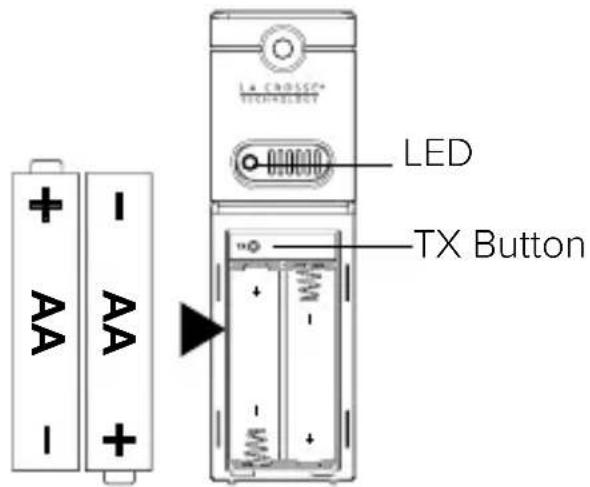

1. Insert 2 AA batteries into

your sensor. ∙The red LED light will flash when your sensor transmits. ∙The TX button lets you manually transmit a signal. LED TX Button

2. Insert 2 AA batteries into

3. Configure basic settings.

4. After 5 minutes, place

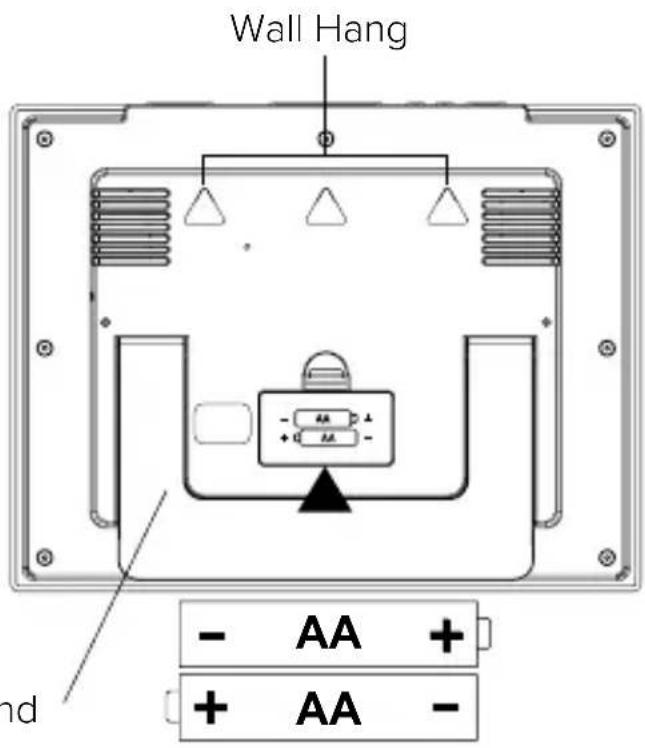

your sensor outside in a shaded location. Wall Hang Pullout Stand ∙ Mount your clock on the wall with the 3 holes on the back, or use the pullout stand to place your clock on a desk or counter.Time Zones Zone AST - Atlantic Zone EST - Eastern Zone CST - Central Zone MST - Mountain Zone PST - Pacific Zone AKT - Alaska Zone HAT - Hawaii Page | 3 www.lacrossetechnology.com/support BBB86088 Basic Settings

3. Press the °F/°C button to confirm adjustments and move to

4. Press the SNOOZE button at any time to exit.

• Date Note: When Español or Francais are selected, the settings menu will continue in the language selected.BBB86088 www.lacrossetechnology.com/support Page | 4 Language Beep ON | OFF Atomic ON | OFF

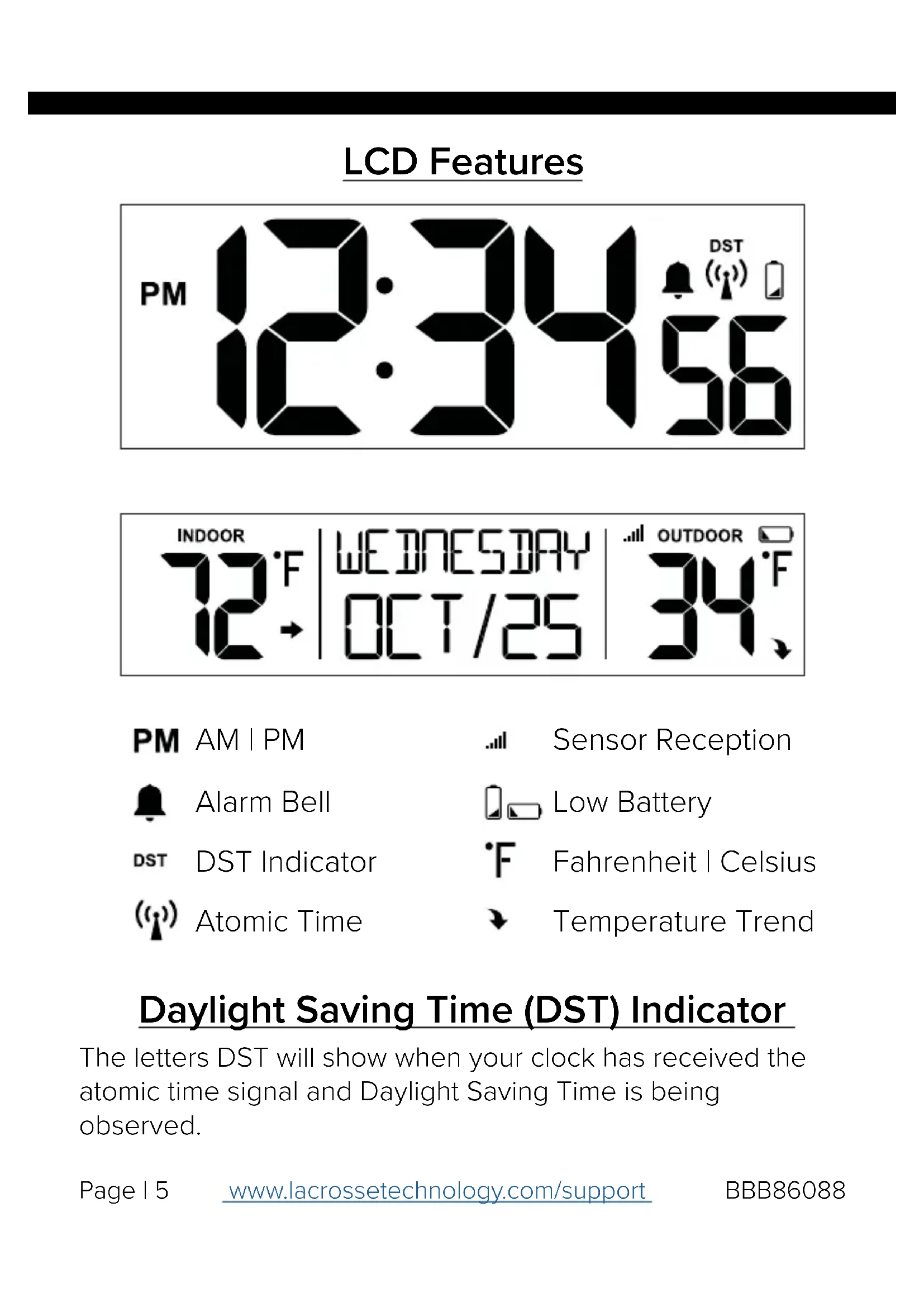

Fahrenheit | Celsius Press and release the °F/°C button to select Fahrenheit or Celsius temperature display. Fahrenheit Celsius AMLCD Features AM | PM Alarm Bell DST Indicator Atomic Time Sensor Reception Low Battery Fahrenheit | Celsius Temperature Trend Daylight Saving Time (DST) Indicator The letters DST will show when your clock has received the atomic time signal and Daylight Saving Time is being observed. Page | 5 www.lacrossetechnology.com/support BBB86088Atomic Time -WWVB Signal

• Your clock will search for the atomic signal at UTC 7:00, 8:00, 9:00, 10:00, and 11:00.

• If there is no WWVB signal reception, your clock will search every 2 hours until the WWVB time is received.

• The atomic time signal icon (tower) will flash while searching, and be solid when connected.

• Hold the MINUS button for 3 seconds to manually search for the WWVB atomic time signal.

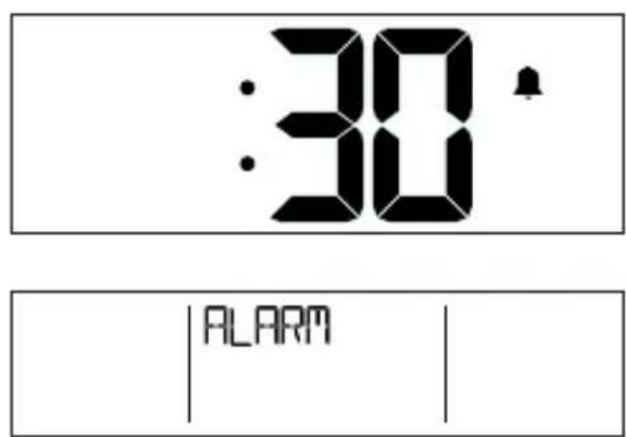

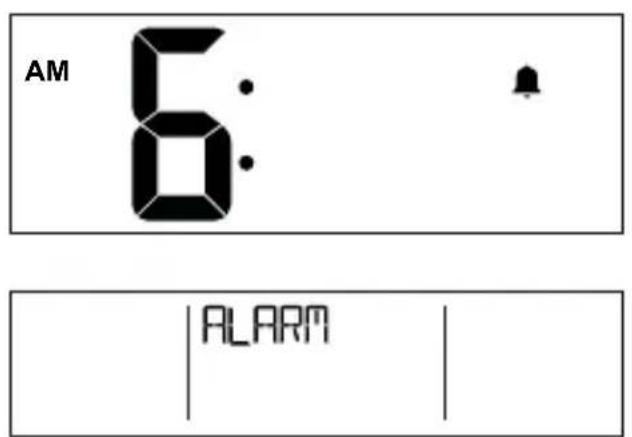

3. Press the ALARM button to confirm adjustments and move

4. Press the SNOOZE button at any time to exit.

BBB86088 www.lacrossetechnology.com/support Page | 6• The alarm is active when set. From normal time display, press and release the ALARM button to deactivate or activate the alarm.

• Alarm icon (bell) will show then active. Activate | Deactivate Alarm

• When your alarm sounds, press the SNOOZE button to silence alarm for 10 minutes. The alarm bell will flash.

• Press any button except SNOOZE to silence the alarm for 24 hours. Snooze Sensor Reception & Search

• If the signal is lost, your clock will display the LAST DATA recorded from the sensor for 10 minutes.

• After that 10 minutes if the signal does not come back dashes will show for outdoor temperature.

• After 30 minutes, your clock will automatically search for the sensor.

• Hold the PLUS button for 3 seconds to manually search for your outdoor sensor.

• The sensor reception icon will flash while searching.

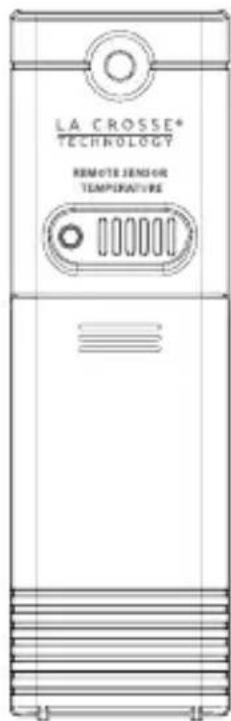

• The icon will be solid when the sensor is connected. Page | 7 www.lacrossetechnology.com/support BBB86088Position TX141-Bv2 Sensor

• Mount your sensor with the hole at the top: Either hang it from the back using a nail, or insert one mounting screw through the front.

• Mount your sensor on a north-facing wall or in any shaded area. Under an eave or deck rail is preferred.

• The maximum wireless transmission range to your clock is over 330 feet (100 meters) in open air, not including walls or floors.

• Be sure the sensor is mounted vertically, to allow moisture to drain out properly.

• Watch sensor mounting video: http://bit.ly/TH_SensorMounting

• The trend arrows indicate changes in your temperature (2°F, 1°C) over the past hour.

• They update every 15 minutes and compare data from exactly one hour prior. Temperature Trend Arrows Low Battery

• When the low battery icon appears by the time, replace the batteries in your clock.

• When the low battery icon appears by the outdoor temperature, replace the batteries in your sensor. BBB86088 www.lacrossetechnology.com/support Page | 8Page | 9 www.lacrossetechnology.com/support BBB86088 Let’s Get Social

JOIN THE CONVERSATION

Ask questions, watch detailed setup videos, and provide feedback on our social media channels!

• Do not mix old and new batteries

• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries

• Always purchase the correct size and grade of battery most suitable for intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device prior to battery installation.

• Ensure the batteries are installed with correct polarity ( + and - ).

• Remove batteries from equipment when it is not to be used for an extended period of time.

• Promptly remove expired batteries. Care and Maintenance La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning a product, please contact our friendly customer support or visit our online help: Phone: 1-608-782-1610 Online: www.lacrossetechnology.com/support Warranty and SupportSpecifications BBB86088 www.lacrossetechnology.com/support Page | 10 Temperature Power Dimensions Indoor Range: Outdoor Range: Transmission Range: Update Interval: 32°F to 122°F (0°C to 50°C) -40°F to 140°F (-40°C to 60°C) 300 feet (91 meters) open air Every 51 seconds Clock: TX141-Bv2 Sensor: 2 AA LR6, IEC batteries 2 AA LR6, IEC batteries Batteries not included Battery Life: Over 12 months Clock: TX141-Bv2 Sensor: 11.02” L x 1.10” W x 8.54” H (28.00 L x 2.80 W x 21.70 H cm) 1.57” L x 0.82” W x 5.11” H (3.98 L x 2.08 W x 12.98 H cm)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

1.57 “L x 0.82” W x 5.11 “H
