921530 - Chocolate fountain CaterChef - Free user manual and instructions

Product Type	Chocolate Fountain
Brand	CaterChef
Model	921530
Dimensions (cm)	17 x 23 x 16 (H)
Weight (approx.)	1.5 kg
Power Supply	220-240 V, 50-60 Hz
Power	40 W
Temperature Range	30 to 80 °C
Bowl Capacity	Not specified (small model)
Main Functions	Melting and keeping chocolate warm
Heating Type	Direct heating (not bain-marie)
Material	Stainless steel and plastic
Care and Cleaning	Clean with a damp cloth and mild detergent; do not immerse
Safety	Do not leave unattended; keep away from children; do not move when hot
Cooling after use	Minimum 30 minutes before handling
Spare parts and repairability	Use only CaterChef parts; repair by a professional
Warranty	Not specified
General Information	Manual available for download at notice-facile.com

Frequently Asked Questions - 921530 CaterChef

How to use the CaterChef 921530 chocolate fountain?

What is the power of the appliance?

How to clean the chocolate fountain after use?

Can I use other brands of chocolate?

What are the important safety precautions?

Can the chocolate fountain be used for something other than chocolate?

What to do if the appliance does not heat?

How long does it take to melt the chocolate?

Can I use an extension cord?

Where to find spare parts for model 921530?

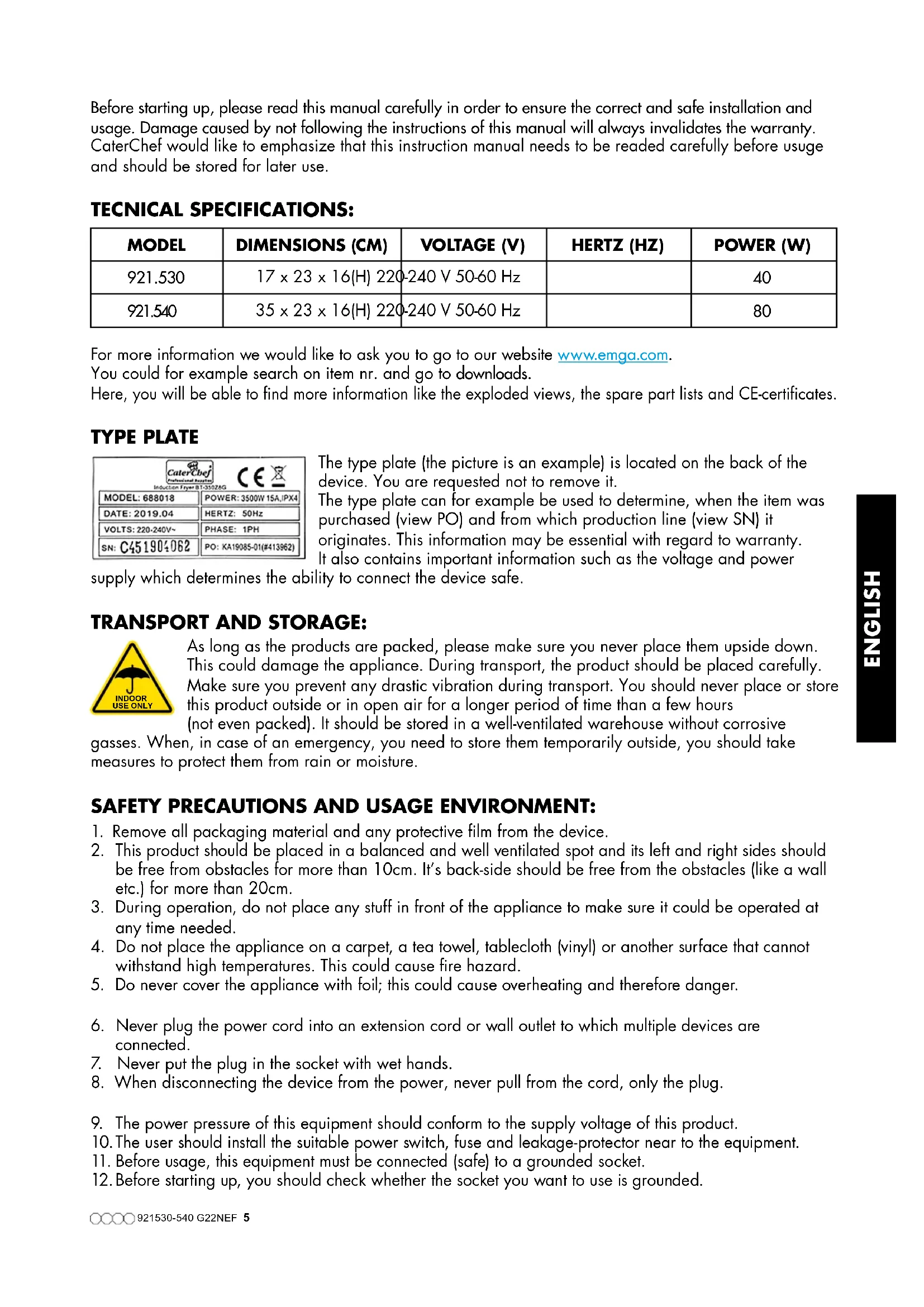

USER MANUAL 921530 CaterChef

Before starting up, please read this manual carefully in order to ensure the correct and safe installation and usage. Damage caused by not following the instructions of this manual will always invalidate the warranty. CaterChef would like to emphasize that this instruction manual needs to be read carefully before usage and should be stored for later use.

TECHNICAL SPECIFICATIONS:

MODEL	DIMENSIONS (CM)	VOLTAGE (V)	HERTZ (HZ)	POWER (W)
921.530	17 x 23 x 16(H) 220	-240 V 50-60 Hz		40
921.540	35 x 23 x 16(H) 220	-240 V 50-60 Hz		80

For more information we would like to ask you to go to our website www.emga.com.

You could for example search on item nr. and go to downloads.

Here, you will be able to find more information like the exploded views, the spare part lists and CE-certificates.

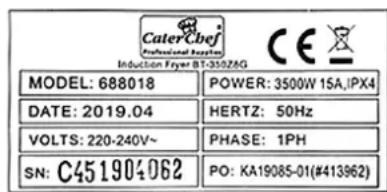

TYPE PLATE

The type plate (the picture is an example) is located on the back of the device. You are requested not to remove it.

The type plate can for example be used to determine, when the item was purchased (view PO) and from which production line (view SN) it originates. This information may be essential with regard to warranty. It also contains important information such as the voltage and power

supply which determines the ability to connect the device safe.

TRANSPORT AND STORAGE:

As long as the products are packed, please make sure you never place them upside down. This could damage the appliance. During transport, the product should be placed carefully. Make sure you prevent any drastic vibration during transport. You should never place or store this product outside or in open air for a longer period of time than a few hours (not even packed). It should be stored in a well-ventilated warehouse without corrosive

gasses. When, in case of an emergency, you need to store them temporarily outside, you should take measures to protect them from rain or moisture.

SAFETY PRECAUTIONS AND USAGE ENVIRONMENT:

1. Remove all packaging material and any protective film from the device.
2. This product should be placed in a balanced and well ventilated spot and its left and right sides should be free from obstacles for more than 10cm. It's back-side should be free from the obstacles (like a wall etc.) for more than 20cm.
3. During operation, do not place any stuff in front of the appliance to make sure it could be operated at any time needed.
4. Do not place the appliance on a carpet, a tea towel, tablecloth (vinyl) or another surface that cannot withstand high temperatures. This could cause fire hazard.
5. Do never cover the appliance with foil; this could cause overheating and therefore danger.
6. Never plug the power cord into an extension cord or wall outlet to which multiple devices are connected.
7. Never put the plug in the socket with wet hands.

8. When disconnecting the device from the power, never pull from the cord, only the plug.

9. The power pressure of this equipment should conform to the supply voltage of this product.

10. The user should install the suitable power switch, fuse and leakage-protector near to the equipment.
11. Before usage, this equipment must be connected (safe) to a grounded socket.

12. Before starting up, you should check whether the socket you want to use is grounded.

13. Ensure whether all the connections of all the electric elements of the product are firm or not, and whether the safety grounding is reliable or not.

14. When you change the power cable, you should select the same model cable and: it is only allowed to let a professional electrician do this.
15. Never use other parts than the ones which are from CaterChef. CaterChef is not taking any responsibility for damage caused by the use of other (non-related) parts.
16. If there are any abnormal phenomena during usage, you must stop the appliance directly. After checking you can continue to use it as long as it is safe. Do not repair the appliance by yourself. This should always been done by a technical professional.
17. During operation or cooling down: always keep the appliance out of reach of children. This, mainly to prevent burning injuries.

DEGREASE:

Before operating for the first time, clean the device with warm water, a wet cloth and a small amount of detergent. Do not rinse the appliance under the tap, this could cause serious damage to the appliance. In addition, make sure that you have dried it properly before you start operating the device.

SAFETY INSTRUCTIONS:

1. Never leave the area around the appliance during use. (Use also includes the cooling down period).
2. Never move the appliance during use.
3. Never touch the heating plate during use.
4. The device should only be used for its intended purpose.
5. Cooling down: After usage (and after turning thermostat back to 0 and turning the switch OFF), the appliance needs to cool down for a minimum time of 30 minutes. To prevent any burning injuries or other danger, do not touch, move or use the appliance during this period of time.
6. After usage the electricity needs to be cut from the socket to prevent fire hazard. This to prevent short circuit or danger.
7. When you move the product from its place, always pick it up from the lower side of the appliance. Never pick it up from the upper side (baking tray) to prevent any damage to the appliance.

USERS INSTRUCTIONS:

1. Note: Do not use water. This device does not work according to the au bain-marie principle, where water must be heated, but has direct heating.
2. Mount the handle to the pan with the supplied screw.
3. Operation: Place the pan on the heating plate, put the chocolate in it (note: the smaller the chunks, the faster the chocolate melts) and then switch it ON.
4. Set the thermostat to the desired temperature. The temperature range is 30 - 80^

CLEANING AND MAINTENANCE:

Step 1: After usage, the device must first be switched OFF, after which you must remove the plug from the socket. Always do this in the order described to prevent short circuit or other possible dangers.
Step 2: After the device has cooled down completely, clean the parts and the device with warm water, a wet cloth and a small amount of cleaning-detergent and then dry it thoroughly. Do not use benzine, thinner, scouring brush or polishing powder to clean the device.

• Pay attention! Do not rinse the device with water (don't wash it by using the tap).
  This could cause damage to the device and could therefore lead to dangerous situations;
• Never clean the device with a stainless steel brush. This causes scratches and damages to the device;
  Always store the appliance inside and keep it dry;
• Before maintaining the appliance, always make sure you have removed the plug from the socket.

If the appliance does not work or is damaged, check the following:

1. Whether the plug is in the socket;
2. Whether the plug and / or the cord is damaged.

If it is nr. 2 or if another problem occurs, contact your local dealer or authorized service technician.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
