USER MANUAL Kebap Master OneConcept

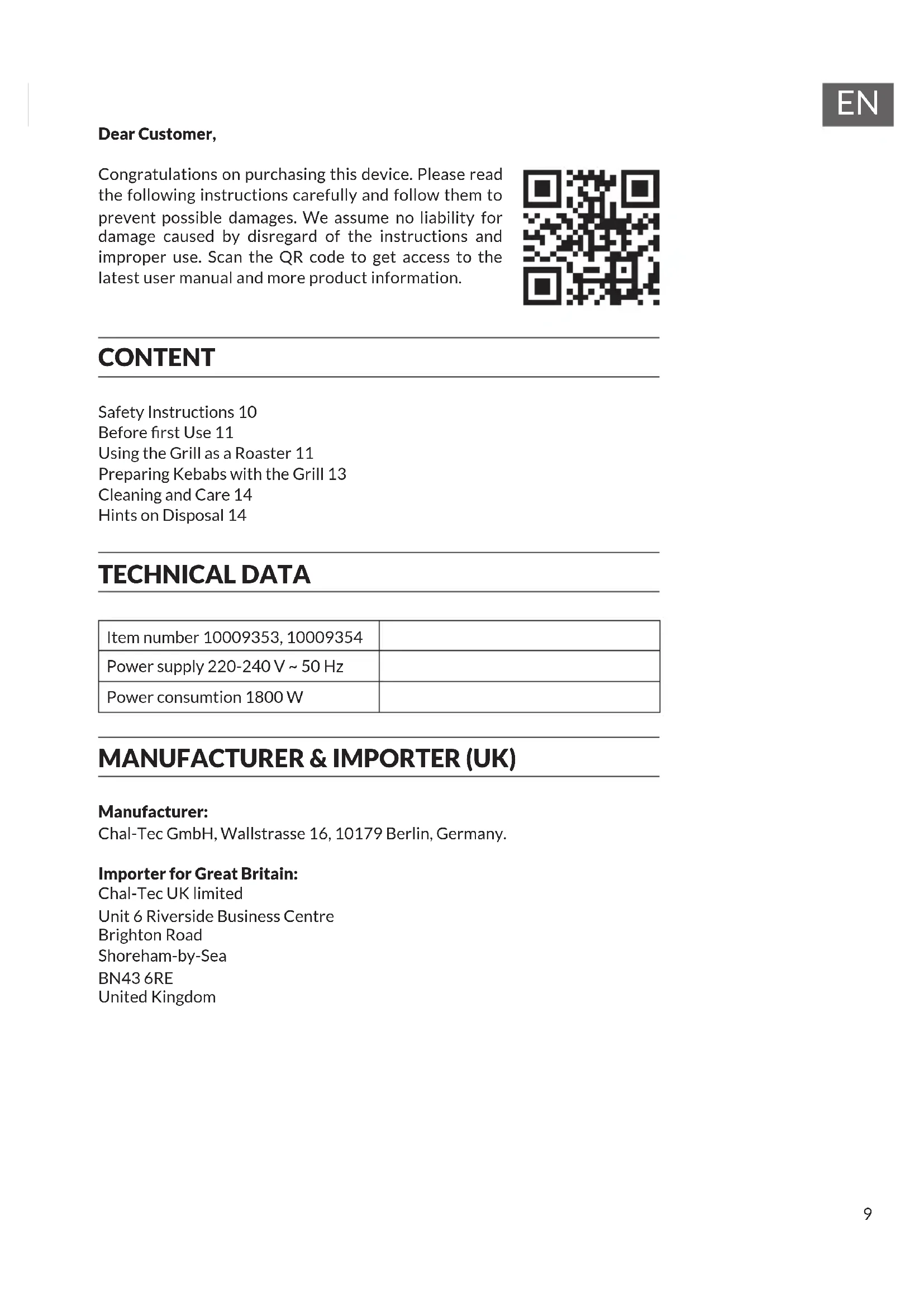

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions 10 Before rst Use 11 Using the Grill as a Roaster 11 Preparing Kebabs with the Grill 13 Cleaning and Care 14 Hints on Disposal 14 TECHNICAL DATA Item number 10009353, 10009354 Power supply 220-240 V ~ 50 Hz Power consumtion 1800 W MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom10

• Connect the device so that the mains plug is easily accessible at all times.

• Inspect the power cord regularly for damage. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a similarly qualied person.

• Repairs may only be carried out by qualied personnel, do not attempt to repair the device yourself.

• Do not connect the unit to a timer or a remote control power outlet.

• Never immerse the appliance, power cord or plug in water or other liquids.

• Do not handle the plug with wet hands.

• Do not pull the plug out of the socket by the cable, but hold it rmly by hand when pulling it off.

• Do not use the cable as a handle.

• Lay the cable in such a way that no one will trip over it.

• Do not let the cable run over sharp edges.

• Do not use the unit in wet rooms or in the rain.

• Place the appliance in such a way that it cannot fall into water. If it does fall into water, immediately unplug the appliance from the wall outlet and only then touch the appliance.

• Unplug the appliance from the wall outlet when it is no longer in use.

• Keep the appliance away from open re and heat sources.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Keep children away from the grill and do not leave the appliance unattended during operation.

• Place the appliance on a stable, level surface.

• Make sure that there are no easily inflammable objects or materials around the grill.

• Keep at least 30 cm away from walls.

• Do not touch the grill grate or other hot surfaces during operation.

• Do not move the appliance until it has cooled down completely. Only touch the appliance by the handles provided for this purpose.

• Only place the appliance on surfaces that are insensitive to heat. Position the appliance so that it is not too close to the edge.

• To avoid heat build-up, do not place the appliance directly under kitchen cabinets or shelves.

• Do not place the appliance on or near a stove.11

Read the instructions carefully. This information is necessary for using the vertical grill. Place the grill on a fl at surface, such as a kitchen worktop or table. Around the appliance, keep a distance of 10 cm from walls, cupboards or other objects. Remove all stickers from the appliance. Remove the drip tray, spit, forks and kebab holders and wash them in warm water with some detergent or in the dishwasher. Dry them thoroughly before use. During preparation, make sure that the TIMER control is set to „Off“ and that the appliance is disconnected from the power supply. It is recommended that the appliance be switched on for a trial period to remove production residues. Insert the power plug into a 230 V socket. Set the TIMER control to „20“ minutes. Some smoke and odor may be produced. This is normal. To avoid scratching, sticking, discoloration or re, do not place anything on top of the oven. This is especially important during use.

USING THE GRILL AS A ROASTER

CAUTION The surfaces of the device become hot during use and remain hot afterwards! Do not place anything on the appliance. Always wear protective, insulating oven gloves when placing or removing objects from the appliance. Never use the appliance without the drip tray.12

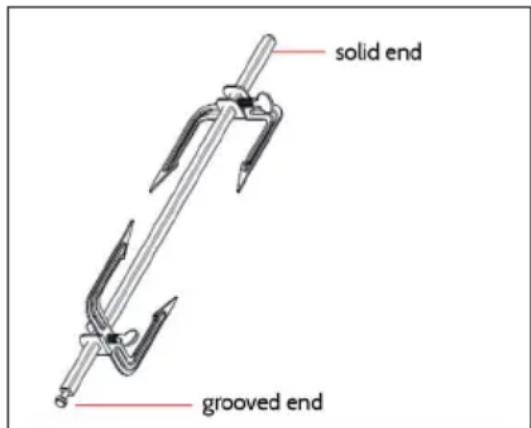

1. Push an end fork with the tines pointing to the centre onto the rotating

spike and tighten the screw.

2. Guide the pointed end through the middle of the food to be fried.

3. Push the other end fork onto the rotating spit so that the tines point

towards the food to be grilled.

4. Align the food to be grilled centrally, secure it with the end fork and

5. When cooking poultry, fasten the legs and wings to the body with kitchen

string so that the spit can turn easily.

6. Season or garnish the barbecue according to your wishes.

7. Place the drip tray at the bottom of the appliance to catch the drops.

8. Insert the xed end of the rotary spit into the drive opening in the middle

9. Insert the grooved end into the holder at the top inside the oven.

10. Set the timer control according to the recipe (see recipes). If the time is

more than 1 hour, set the controller to „stay on“ and check the appliance after the preparation time has expired.

11. When the food is ready, set the controller to „off“ and unplug the

appliance. Attention: the grill is very hot at the top and sides. Use oven gloves or other heat-resistant gloves to remove the food from the grill. You can also use a roasting fork or tongs.

12. Remove the spit by lifting it up and pulling it towards you. The lower part

must be lifted out of the drive opening, after which you can place the food on a cutting board.

13. Place the food on a cutting board or serving plate and let it rest for 10-15

14. Loosen the screws of the end fork with a pot cloth and remove them from

the spit. Then carefully remove the food from the spit and cut it.13

PREPARING KEBABS WITH THE GRILL

If a kebab holder is included, follow these instructions for use. CAUTION The surfaces of the device become hot during use and remain hot afterwards! Do not place anything on the appliance. Always wear protective, insulating oven gloves when placing or removing objects from the appliance. Never use the appliance without the drip tray.

1. Assemble the kebab holder as shown in the pictures.

2. Place the round drip tray at the bottom of the appliance to catch the drops.

3. Insert the xed end of the rotating spit into the drive opening in the middle

4. Insert the grooved end into the holder at the top inside the oven.

5. Set the TIMER control according to the recipe (see Recipes). If the time is

more than 1 hour, set the controller to „Stay On“ and check the appliance after the preparation time has expired.

6. When the food is ready, set the controller to „Off“ and unplug the

• Pull the power plug out of the socket. Let the grill cool down completely. Remove all accessories.

• Use a damp and/or soft cloth to clean the housing. NEVER IMMERSE THE APPLIANCE IN WATER. Clean the insides with water and a dry cloth. Do not use strong cleaners. All accessories can be cleaned with soapy water.

• Rub the walls with a damp cloth.

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.15
