USER MANUAL CMCH 150 NSEL CANDY

t is hazardous for anyone other than authorized service personnel to carry out servicing or repairs which involves the removal of covers. To avoid the risk of an electric shock do not attempt to repair this appliance yourself. WARNING!

isk of fire / flammable materials. Safety tips Do not use electrical appliances such as a hair dryer or heater to defrost your Freezer. Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the Freezer. Do not place carbonated or fizzy drinks in the Freezer compartment. Ice lollies can cause “Frost/Freeze burns”. If consumed straight from the Freezer. Do not remove items from the Freezer compartment if your hands are damp/wet, as this could cause skin abrasions or “Frost/Freezer burns”. Bottles and cans must not be placed in the Freezer compartment as they can burst when the contents freeze. Manufacturer’s recommended storage times should be adhered to. Refer to relevant instructions. Do not allow children to tamper with the controls or play with the Freezer. The Freezer is heavy. Care should be taken when moving it. It is dangerous to alter the specification or attempt to modify this product in any way. Do not store inflammable gases or liquids inside your Freezer. If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. This refrigerating appliance is not intended to be used as a built-in appliance. This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. 2Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of type recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a flammable propellant inthis appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. – WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than

those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless

they are of the type recommended by the manufacturer.

WARNING: Refrigerating appliances – in particular a refrigerator-freezer Type I – might not operate

consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed;

WARNING: The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of

children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

WARNING: The refrigerant used in your appliance and insulation materials requires special disposal

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the

appliance Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.To avoid contamination of food, please respect the following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. –Clean regularly surfaces that can come in contact with food and accessible drainage systems. –Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. – Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. – Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. – One-, two- and three-star compartments are not suitable for the freezing of fresh food. –If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Climate Range The information about the climate range of the appliance is provided on the rating plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper). Climate range Permissible ambient temperature

from +16°C to +43°C Note：Given the limit values of the ambient temperature range for the climate classes for which the refrigerating appliance is designed and the fact that the internal temperatures could be affected by such factors as location of the refrigerating appliance, ambient temperature and the frequency of door opening, the setting of any temperature control device might have to be varied to allow for these factors, if appropriate. If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 3Note:When operating in an environment other than the specified climate type (i.e., beyond the rated ambient temperature range), the appliance may not be able to maintain the desirable compartment temperatures. Locks If your Refrigerator is fitted with a lock, keep the key out of reach and not in the vicinity of the appliance to prevent children being entrapped. When disposing of an old Refrigerator, break off any old locks or latches as a safeguard. Freon-free The freon-free refrigerant (R600a) and the foaming insulation material (cyclopentane) that is environmentally friendly are used for the refrigerator, causing no damage to the ozone layer and having a very small impact on the global warming. R600a is flammable, and sealed in a refrigeration system, without leakage during normal use. But, in case of refrigerant leakage due to the refrigerant circuit being damaged, be sure to keep the appliance away from open flames and open the windows for ventilation as quickly as possible.

Due to technologic al innovation, the product descriptions in this manual may not be completely consistent with y our freezer. Details are in accordance with the real product.

WARNING: Never touch the interior of the Freezer Chamber or frozen foods in the

compartment with wet hands as this could result in frost bite. KEEP THE KEY OUT OF REACH OF CHILDREN AND NOT IN THE VICINITY OF THE FREEZER. TRANSPORTATION INSTRUCTIONS The appliance should be transported only in a vertical upright position. The packing as supplied must be intact during transportation. If during the course of transport the product has been transported horizontally, it must only be laid on its left hand side (when facing the door front) and it must not be operated for at least 4 hours to allow the system to settle after the appliance is brought back to upright position. 1. Failure to comply with the above instructions could result in damage occuring to the appliance. The manufacturer will not be held responsible if these instructions are disregarded.

2. The appliance must be protected against rain, moisture and other atmospheric influences.

IMPORTANT : Care must be taken while cleaning / carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product. IMPORTANT : This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance. IMPORTANT : Make sure that mains cable is not caught under the appliance during and after carrying / moving the appliance, to avoid the mains cable becoming cut or damaged.” When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed. INSTALLATION INSTRUCTIONS

1. If possible avoid placing the appliance near cookers, radiators or in direct

sunlight as this will cause the compressor to run for long periods. If installed next to a source of heat or refrigerator, maintain the following minimum side clearances: From Cookers 4" (100 mm) From Radiators 12" (300 mm)

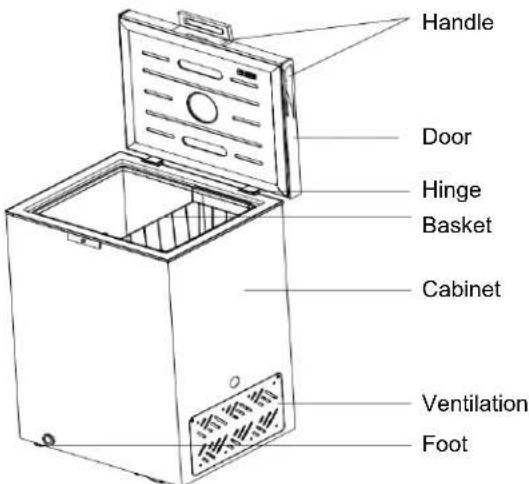

Handle Door Hinge Basket Cabinet Ventilation FootFrom Fridges 4" (100 mm) 2. Make sure that sufficient room is provided around the appliance to ensure free air circulation. Ideally, A space of no less than 10cm must be left around the freezer, and ensure you allow gaps as shown in the below diagram.

3. The appliance should be located on a smooth surface.

4. It is forbidden to use the refrigerator outdoors.

5. Protection from moisture. Do not locate the freezer in moist space to avoid the metal parts rusty. And do not spray water to the freezer, otherwise it will weaken the insulation and causes current leakage.

6. Refer to "Cleaning and Care" section to prepare your appliance for use.

7. If the freezer is installed in unheated areas, garages etc., in cold weather condensation may form on the outer surfaces. This is quite normal and is not a fault. Remove the condensation by wiping with a dry cloth. STARTING Before using the freezer, please read below:

• Make sure that the interior is dry and keep air circulating at the back of cabinet.

• For the details concerning the method of cleaning, please see section "CLEANING AND CARE"

• After Inserting the plug into the socket, the LED lights and digital display will illuminate for a while and will return to normal after 2 seconds; In setting mode, if no button is pressed within 5 seconds, all buttons will be locked automatically.

• Temperature can be set between - 24℃ ~ - 16℃. The default temperature setting is -18℃.

• You may hear some noise as the compressor starts running. The liquid and gas in refrigeration system may also make noise, no matter the compressor is running or not. This is a normal phenomenon.

• Before storing the food which are already frozen, please open the freezer door and check if the freezer has reached the correct temperature. Then put into the frozen food.

• Do not load the appliance immediately just after it is switched on. Wait until the correct storage temperature has reached. We recommend that you check the temperature with an accurate thermometer.

Due to individual factors of the refrigerator, the actual temperature in the box may have a certain error from the set temperature, which is a normal phenomenon and does not affect the normal use of the product. Important Notes:

• If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 38 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

• If you find that the door of the chest freezer is difficult to open just after you have closed it. Don’t worry about it. This is due to the differential pressure, which will be equalized and allow the door to be opened normally after a few minutes. FREEZER OPERATION Unlock Settings Under the lock state, press both the “+” and “-” buttons at the same time for 1s, then operation buttons get unlocked. And Parameter setting is enabled, with the current temperature setting flickering.

• Press "+" key once, the temperature increases by 1 ℃; Press "-" key once, the temperature decreases by 1 ℃; If no button operation within 5 seconds after each setting, the current set temperature shows on display will be fixed by the system automatically. Then the display will stop flickering. Super-Freezing function

• Press the "Super FRZ. " button, the temperature is set to - 30℃automatically, digital flickers ” - 30 ℃”. And meantime the indicator light of "Super FRZ. "is on, The flickering will stop in 5 seconds, then Super-Freezing function starts.

• After running 50 h, Super-Freezing function will stop automatically. The indicator goes out. It reverts to previous state.

• Under button unlock state during Super-Freezing mode, press the"Super FRZ. " button, Super-Freezing function will stop. The indicator goes out. It reverts to previous state. Temperature alarm function The sensor temperature will be detected after the freezer is energized for 3 hours. If the sensor temperature is higher than -12℃, the alarm indicator lights on, and the buzzer sounds at the frequency of 2Hz, which can be stopped by pressing any key under the key unlock state. And if the sensor temperature is still higher than -12℃ three minutes later, the buzzer resumes sounding. To press any button under the button unlock state can stop the buzzer sounding. When the freezer sensor temperature falls below -12℃, the alarm indicator lights off, and the buzzer stops sounding automatically. 5Indicator lights

• Freezer current state, the power indicator light lit. When state changes (i.e., digital flash), show all the bright display; A modified state (that is, the digital stop flashing), half light show.

• The “Power” indicator lights up if any key operation. When the state is changed (ie digital flashing), the light will be bright and it turns semi-bright if no key operation within 1minute.

• Freezer power off, the power indicator light goes out. Suggestion: The default factory temperature setting is -18℃.

Prepackaged commercially frozen food should be stored in accordance with the frozen food manufacturer’s instructions for a freezer compartment. To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained the following should be remembered: 1．Put packets in the freezer as quickly as possible after purchase. 2．Do not exceed “Use By”, “Best Before” dates on the packaging.

Place fresh food to be frozen near the side walls to ensure fast freezing and away from already frozen food, if possible. Never exceed this maximum capacity. Do not freeze too large a quantity at any one time. The quality of the food is best preserved when it is frozen right through to the centre as quickly as possible. Take special care not to mix already frozen food and fresh food. DEFROSTING Defrost twice a year or when a frost layer of around 7 mm (1/4”) has formed. Alternatively you may switch off the freezer at the socket outlet and pull out the mains plug. Extract the water conduit and put in a water container. 6 hours before the defrosting, please set the thermostat knob at "7" position to make sure the food is at the lowest temperature when you get it out. All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder). Remove the freezer basket. Leave the lid open. Containers of warm water may be placed carefully in the freezer to speed up the defrosting. Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. When defrosting has finished flow out defrost water which collects at the bottom of the freezer as the below diagram and dry the interior thoroughly. Switch on the Fast Freeze and leave it on for about three hours. 1.A drain outlet is designed at the bottom of the freezer liner, and when defrosting, remove its rubber cover , then the defrosting water flows out and is discharged from the drain pipe. 2.Extract the water conduit by 20-25mm until the water hole can be seen. 3.Twist the water conduit until the arrow points downward. 4.After defrosting is done, make sure there is no more water coming out before out the water conduit in place and make the arrow point upward. Important Notes:

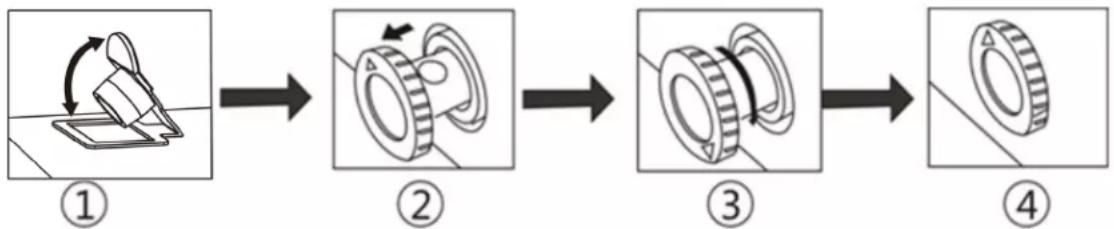

• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.

• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

• It is normal that water beads or frosts appear on the freezer collar and door gaskets in the wet weather, which will not affect the normal use. In such case, please clean it with a dry cloth in time!

** We recommend that you switch off the freezer at the socket outlet and pull out the mains plug before cleaning. ** Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. ** Use lukewarm water to clean the cabinet of the freezer and wipe it dry. ** Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. ** Excess deposit of ice should be removed on a regular basis using a plastic ice scraper available from your local store. Large accumulation of ice will impair the performance of the freezer. ** If the freezer is not going to be used for a long period of time switch it off, remove all food, clean it and leave the lid ajar. 6** Check lid seals regularly to ensure they are clean and free from food particles. Important Notes: Never use water wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.

Do – Defrost food from the freezer thoroughly in a fridge or in a microwave oven following defrosting and cooking instructions. Do – Ensure that chest freezer lid is completely closed after each use. Do – Defrost frozen meat completely before cooking. Do – Close the lid gently. Do – Check contents of the freezer at regular intervals. Do – Clean and defrost your freezer regularly (See “Defrosting”) Do – Keep food for as short a time as possible and adhere to “Best Before”, “Use By” dates. Do – Store commercially frozen food in accordance with the instructions given on the packets that you buy. Do – Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it. Do – Prepare fresh food for freezing in small portions to ensure rapid freezing. Do – Wrap all foods in aluminum foil or freezer quality plastic bags and make sure any air is excluded. Do – Wrap frozen food when you buy it and put it in to the freezer as soon as possible. Do – Store small items in the basket provided. Do – Remove ice cream from the freezer 10-20 minutes before serving. Don’t – Leave the lid open for long periods as this will make the freezer more costly to run and cause excessive ice formation. Don’t – Use pointed sharp edged objects such as knives, forks to remove the ice. Don’t – Put hot food in the freezer. Let it cool down first. Don’t – Put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst. Don’t – Store poisonous or dangerous substances in the freezer. Your freezer has been designed for the storage of edible foodstuffs only. Don’t – Consume ice-cream and water ices direct from the freezer. The low temperature may cause ‘freezer burns’ on lips. Don’t – Freeze fizzy drinks. Don’t – Try to keep frozen food which has thawed, it should be eaten within 24 hours or cooked and refrozen. Don’t – Remove items from the freezer with wet hands. Don’t – Shut the lid with force. You will damage the appliance.

• This appliance is not intended for use by persons (including children) with reduced physical, sensoryor mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environment farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments catering and similar not-retail applications.

• If the supply cord is damaged, it must be replaced by manufacture, its service agent or similarly qualified persons in order to avoid a hazard. Changing thel light

1. Before carrying out the bulb replacement ,please disconnecting the mains supply.

2. Hold and lift up the light bulb cover.

d bulb by unscrewing it in an anti-clockwise direction. 4. Replace with a new bulb (≤10W) by screwing it in a clockwise direction marking sure that it is secure in the bulb holder. Refit the light cover and re-connect your Fridge/Freezer to the mains supply and switch on. Lamp type：LED light. Energy efficiency level： F Certifications Electrical information This electrical appliance must be grounded. This product is equipped with a plug, which is suitable for all houses equipped with sockets meeting the current specifications If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a socket. This product complies the EEC directives. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. 7Warnings for disposal ※ Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm. ※ When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

To contact technical assistance, visit our website: https://corporate.haiereurope.com/en/ Under the section “Website”, choose your product's brand and country. You will be redirected to the website where you can find the telephone number and form to contact technical assistance. For further information about the product, please consult https://eprel.ec.europa.eu/
