Technical specifications	Built-in dishwasher, capacity of 14 place settings, energy class F
Dimensions	Width: 60 cm, Height: 85 cm, Depth: 60 cm
Washing programs	6 programs, including eco, quick, intensive
Water consumption	9 liters per cycle in eco mode
Usage	Intuitive control panel with LED display
Maintenance	Removable filters, regular maintenance recommended
Safety	Anti-overflow safety system, child lock
General information	2-year warranty, noise level: 49 dB

Frequently Asked Questions - DFC 2C24 UK INDESIT

How do I start the INDESIT DFC 2C24 UK dishwasher?

Make sure the dishwasher is plugged in, fill the rinse aid and salt reservoirs, load the dishes, then select the desired program by turning the selection knob.

What should I do if the dishwasher does not start?

Check that the appliance is properly plugged in, that the door is securely closed, and that there are no water leaks. Also ensure that the program is correctly selected.

Why are my dishes still dirty after a cycle?

This may be due to incorrect loading, using an inappropriate program, or clogged filters. Also check the levels of rinse aid and salt.

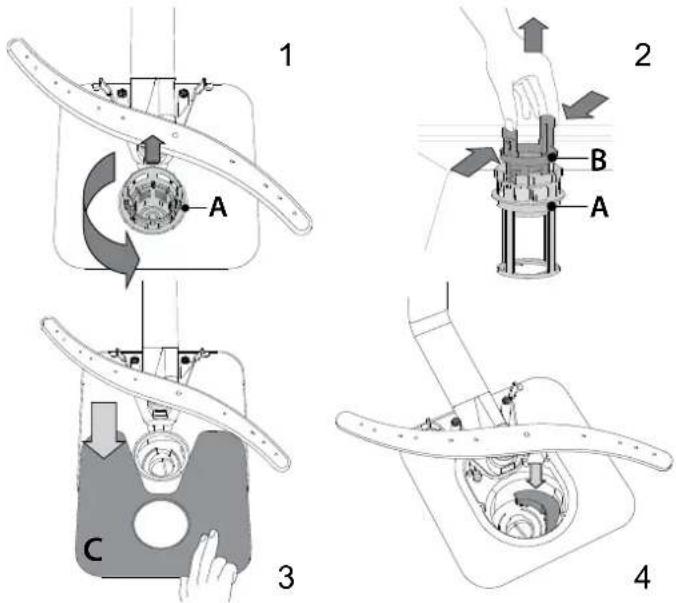

How do I clean the dishwasher filters?

Remove the filter located at the bottom of the appliance, rinse it under running water to remove debris, then carefully replace it.

What should I do if the dishwasher leaks?

Check that the door seals are in good condition, that the water inlet hose is properly attached, and that there are no cracks in the reservoir. If the problem persists, contact a technician.

How do I choose the right washing program?

Select the program based on the type of dishes and the level of dirt. Eco programs are ideal for lightly soiled dishes, while intensive programs are suitable for heavily soiled pots and pans.

Why does the dishwasher make strange noises?

Noises can be caused by objects improperly placed in the basket, clogged filters, or damaged moving parts. Check the contents and clean the filters.

What is the maximum operating temperature of the dishwasher?

The INDESIT DFC 2C24 UK dishwasher can reach temperatures up to 70°C depending on the selected program.

How do I reset the dishwasher?

To reset, turn off the appliance, wait a few minutes, then turn it back on. This can resolve some minor issues.

Where can I find the dishwasher user manual?

The user manual can usually be downloaded from the official INDESIT website or from the support section of your point of sale.

USER MANUAL DFC 2C24 UK INDESIT

THANK YOU FOR BUYING A INDESIT PRODUCT. In order to receive a more complete assistance, please register your appliance on: www.indesit.com/register

You can download the Safety Instructions and the User Manual, by visiting our website docs.indesit.eu and following the Instructions on the back of this booklet.

Before using the appliance carefully read Safety Instructions.

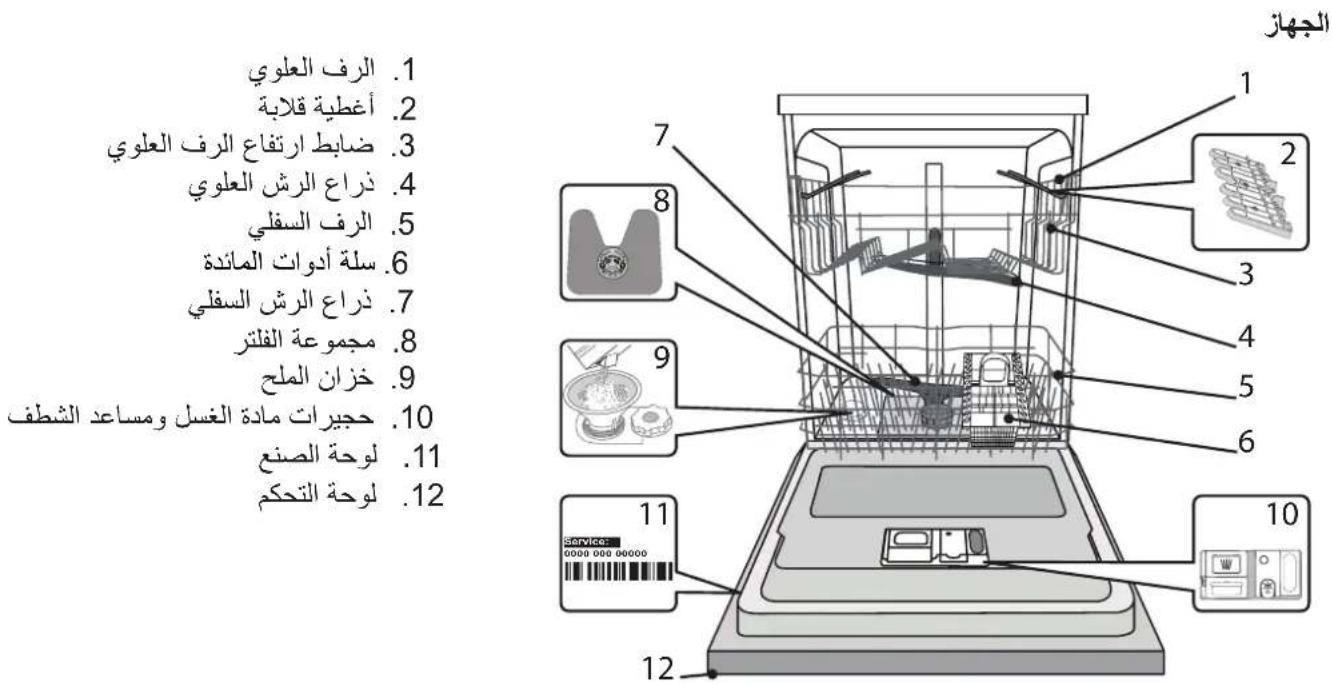

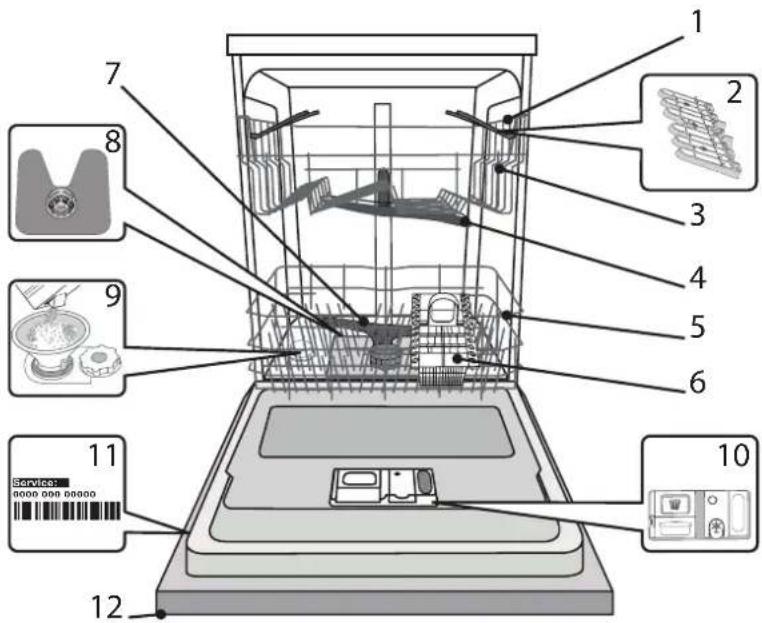

PRODUCT DESCRIPTION

APPLIANCE

1. Upper rack
2. Foldable flaps
3. Upper rack height adjuster
4. Upper spray arm
5. Lower rack
6. Cutlery basket
7. Lower spray arm
8. Filter Assembly
9. Salt reservoir
10. Detergent and Rinse Aid dispensers
11. Rating plate
12. Control panel

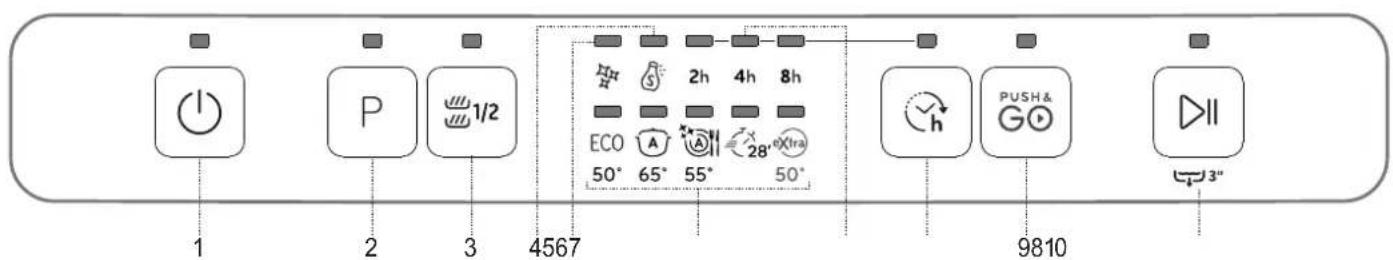

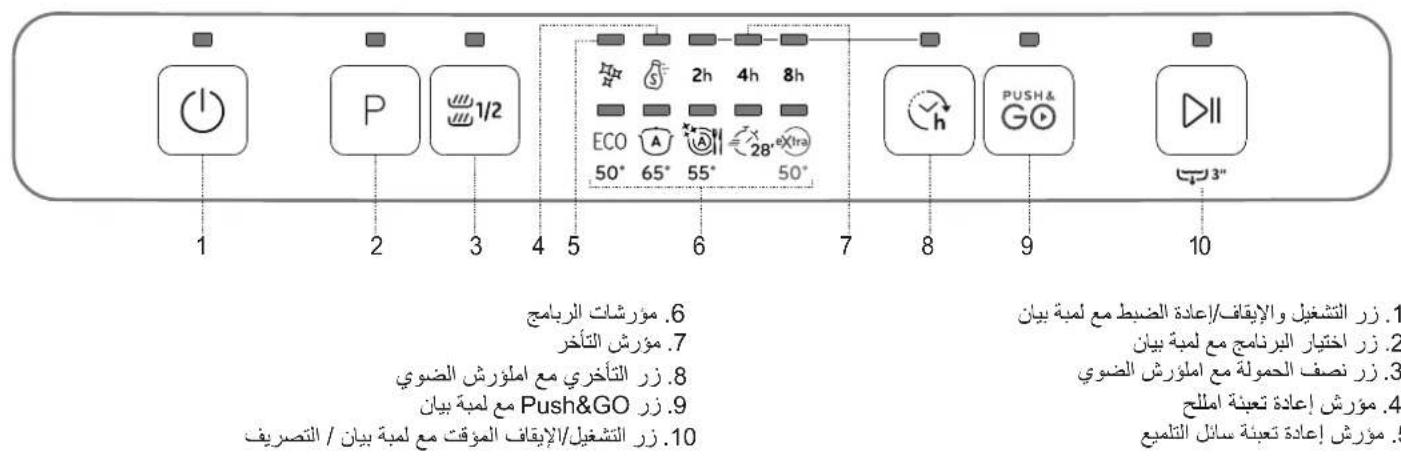

CONTROL PANEL

1. On-Off/Reset button with indicator light
2. Program selection button with indicator light
3. Half Load button with indicator light
4. Salt refill indicator light

5. Rinse Aid refill indicator light

6. Program indicator lights

7. Delay indicator light
8. Delay button with indicator light
9. Push&GO button with indicator light
10. Start/Pause button with indicator light / Drain out

FIRST TIME USE SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.
- It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.
It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light on the control panel is lit.

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1kg ); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory sets the default value for the water hardness.

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button START/Pause for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
  The program indicator light of the current set level flashes.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dH German degrees	°fH French degrees	°C Clark English degrees
1	Soft	0 - 6	0 - 10	0 - 7
2	Medium	7 - 11	11 - 20	8 - 14
3	Average	12 - 16	21 - 29	15 - 20
4	Hard	17 - 34	30 - 60	21 - 42
5	Very hard	35 - 50	61 - 90	43 - 62

• Switch off the appliance by pressing the ON/OFF button.

Setting is complete!

As soon as this procedure is complete, run a program without loading.

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light in the control panel is lit.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button START/Pause three times - a beep will be heard.
• Switch it on using the ON/OFF button.
  The program indicator light of the current set level flashes.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to 1 (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.
A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.
- If you see bluish streaks on the dishes, set a low number (2-3).
- If there are drops of water or limescale marks on the dishes, set a mid-range number (4-5).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMSTABLE

Program	Drying phase	Auto Door	Available options*	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1 Eco 50° ECO	✓	✓	1/2 h	3:10 9.5 0.95
2 Auto Intensive A 65°	✓	✓	1/2 h	2:00 - 3:10 14.0	-17.0 1.50 - 1.85
3 Auto Mixed 55° A	✓	✓	1/2 h	1:30 - 2:30 14.5	-16.0 1.15 - 1.30
4 Fast&Clean 28' 45° 28'	-	-	h	0:28 9.0 0.50
5 Extra 50° eXtra	-	-	1/2 h	1:00 11.0 1.20
6 Push&GO 50° PUSH& GO	✓	✓		1:25 11.5 1.10

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories:

For information on comparative EN testing conditions, please send an email to the following address: [e-mail]

Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 AUTO INTENSIVE

Automatic program for heavily soiled dishes and pans (not to be used for delicate items).

3 AUTO MIXED

Automatic program for normally soiled pans and dishes.

4 FAST&CLEAN 28'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase

5 EXTRA

Program that allows to wash very big items loaded in the lower rack. Please apply detergent directly to tub instead of detergent dispenser. Upper rack should be removed with this cycle.

6 PUSH&GO

Everyday wash and dry cycle that ensures great cleaning performance in a short time without the need to pre-treat dishes.

Notes:

Please note that cycle Fast&Clean is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

The button has two functions: HALF LOAD and EXTRA LIGHT. Select the wash cycle and press the HALF LOAD/EXTRA LIGHT button; the indicator light will go on. Press the HALF LOAD/EXTRA LIGHT button again to deselect this option.

HALF LOAD

If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. The amount of detergent can be halved.

EXTRA LIGHT

Compatible with the wash cycle EXTRA only. This option makes EXTRA suitable to large delicate crockery and items. This option includes no drying phase. Make sure the crockery and items are dishwasher-safe.

DELAY

It is possible to delay the start time of the program by 2, 4 or 8 hours:

1. After selecting the desired program and any other options, press the DELAY button. The indicator light will go on.
2. Select the desired delay time by pressing the DELAY button repeatedly. The 2 hours, 4 hours and 8 hours indicator lights will go on in succession. If the DELAY button is pressed again, the option is deselected and the indicator light goes off.
3. After the selection process, the countdown will begin if the START/PAUSE button is pressed. The selected delay-period indicator light is on and the Start/Pause button lights up (fixed light).
4. Once this time has elapsed, the DELAY indicator light goes off and the program begins.

The DELAY function cannot be set once a program has started.

PUSH& GO

PUSH&GO

Push&GO button is an easily distinguishable button that allows you direct access to the Push&GO program, a wash and dry cycle that ensures great cleaning performance in a short time. You don't have to worry which program to choose, Push&GO cycle will do the work for you.

To select Push&GO program, switch on appliance, press only Push&GO button for 3 seconds.

DRAIN OUT

To stop and cancel the active cycle, the Drain Out function can be used.

A long press of START/PAUSE button, will activate the DRAIN OUT function. The active program will be stopped and the water in the dishwasher will be drained out.

EXTRA

EXTRA makes it possible to carry out a heavy-duty wash cycle of large crockery up to a max height of 53cm: baking pans, oven grids, dripping pans, hob grids, large saucepans, serving dishes, pizza dishes, stainless-steel hood filters. Remove the upper rack to load bulky crockery.

Release the two locks (right and left) and pull out the rack.

When the upper rack is fitted, the locks must be always closed.

In order for the water to reach the crockery everywhere, arrange it as shown in the Figure.

The cycle can also be used on large delicate crockery using the option EXTRA LIGHT (see OPTIONS AND FUNCTIONS).

Do not start the dishwasher without the upper rack using wash cycles other than EXTRA.

To carry out the wash cycle Extra and Extra with the EXTRA LIGHT option pour the detergent DIRECTLY INTO THE TUB and not into the dispenser.

AUTODOOR

Auto Door is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture.

As additional steam protection, special designed protection foil is added together with the dishwasher (depending on the model type - can be the need to buy it). To see how to mount protection foil please refer to (INSTALLATION GUIDE).

Auto Door functionality could be disabled by the user as follows:

• To DISABLE: Switch On, then switch Off the machine. Keep the P button pressed for 5 sec., at the end of 5 sec the dishwasher plays a short beep. Press the ON/OFF button, the dishwasher plays the long beep.
• To ENABLE: Switch On, then switch Off the machine. Keep the P button pressed for 5 sec., at the end of 5 sec the dishwasher plays a short beep. Press the ON/OFF button, the dishwasher plays the melody.

LOADING THE RACKS

UPPER RACK

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

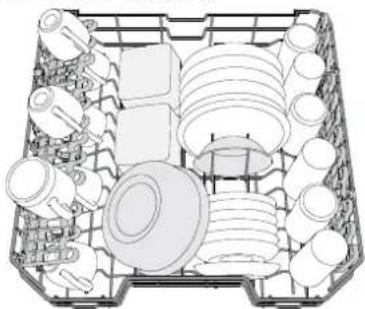

(loading example for the upper rack)

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up supports by creating more space upwards and avoid collision with the items loaded into lower rack.

The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers A at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded. NEVER raise or lower the basket on one side only.

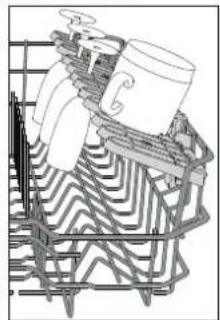

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack.

Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

Depending on the model:

to unfold the flaps there is needed to slide it up and rotate or release it from the snaps and pull it down.

• to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

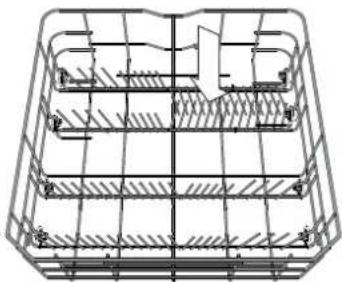

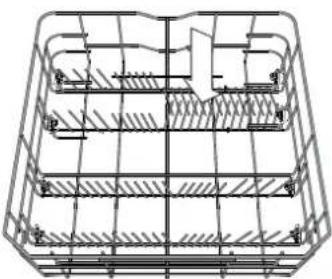

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm.

The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

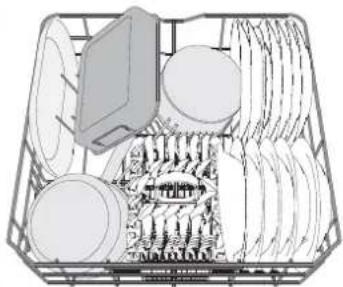

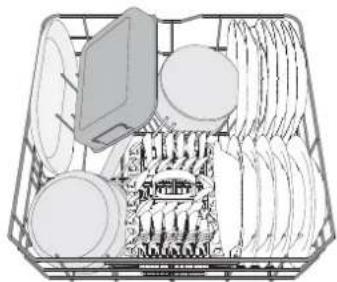

(loading example for the lower rack)

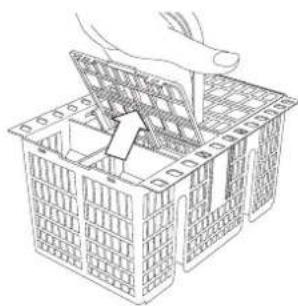

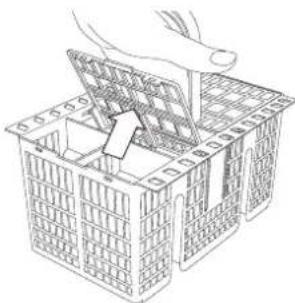

CUTLERY BASKET

The basket is equipped with top grilles for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they must be positioned horizontally in the tip-up compartments on the upper rack.

DAILYUSE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Press the ON/OFF button.

1. LOAD THE RACKS (see LOADING THE RACKS)

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing the START/PAUSE button.

When the program starts you hear a beep.

7.END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle indicator on the panel. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: press and hold the ON/OFF button, the machine will switch off. Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; start the cycle by pressing the START/PAUSE button.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (be ware of HOT steam!) and place the crockery inside the dishwasher. Close the door and press the START/PAUSE button the cycle will begin from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Once the door has been closed or the electricity supply is restored, to start again the cycle from where it was interrupted, press the START/PAUSE button.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
  Copper and tin crockery.
  Crockery soiled with ash, wax, lubricating grease or ink.

The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

• When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.
• In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter. In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multi Zone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

Using dishwasher with clogged filters or foreign objects inside filtration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).
2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
3. Slide out the stainless-steel plate filter C (Fig 3).
4. In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

After cleaning the filters, replace the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

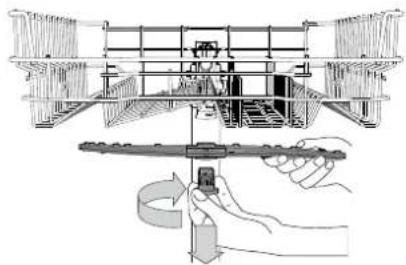

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

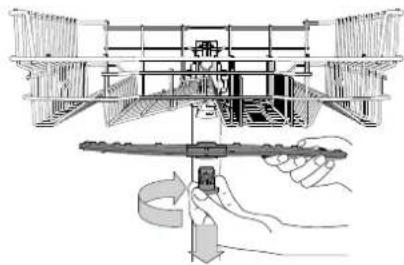

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

The lower spray arm may be removed by pulling it upwards.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: 3.5L of water;
• Takes up to 5 additional minutes for the cycle;
  Consumes below 0.005kWh of energy.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list.

For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet.

Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Salt indicator is lit	Salt reservoir is empty (after refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 2). Adjust water hardness (see table, page 2).
Rinse aid indicator is lit	Rinse aid dispenser is empty (after refill the rinse aid indicator may remain lit for several wash cycles).	Refill dispenser with rinse aid (for more information - see page 2).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not restart automatically when power returns. Press the START/Pause button to resume the cycle.
	The dishwasher door is not closed. Auto Door pin is not pulled in.	Vigorously push the door until you hear the "click".
	Cycle is interrupted by door opening for >4 sec.	Close the door and press the START/Pause button.
	It does not respond to commands.	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain.	The wash cycle has not finished yet. Wait until the drain hose is bent. Check that the drain hose is not bent (see INSTALLATION INSTRUCTION).	wash cycle finishes.
	The drain hose is bent. Check that the drain hose is not bent (see INSTALLATION INSTRUCTION).	s not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.	pipe.
	The filter is clogged up with food residues. Clean	he filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each other.	Position the crocckery correctly (see LOADING THE RACKS).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Restart dishwasher by pressing the DRAIN button (see OPTIONS AND FUNCTIONS) and run new program without detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).	wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).	Mbly (see CARE AND MAINTENANCE).
	There is no salt.	Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
The dishwasher does not fill the water. All LEDs are blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it.	After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely.	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply.	Check water supply for leaks or other issues letting air inside.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Visiting our website docs.indesit.eu and parts-selfservice.whirlpool.com
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet).

When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu (available only on certain models).

400011514871B

08/2023 as - Xerox Fabriano

GUIDE D'UTILISATION QUOTIDIENNE

D'UTILISATION QUOTIDIENNE

MERCI D'AVOIR CHOISI UN PRODUIT INDESIT.

OPTIONS ET FONCTIONS

INTERRUPTIONS IMPRÉVUES

08/2023 as - Xerox Fabriano

#

aal aiaaaaii iiee e jpllal yj 1y

aL 1 aie oai y aai i 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

eall yue jia jubi

aill 0jll sji g jilg clall jia jla jai jao jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jali jali jali jali jali jali jali jali jali jali jali

a 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6

1

clal jol 3.5\~:jill all ell

5 5

0.005

jll 40

aill jy, dssu y y bblil yll aeg gao qai jie gao

a a a a a a a a a a a a a a a a a a a a a a a a a a a a

Jgall dgsal j 1

y 30 y j 30

(1)

(2K) 4

(3)Cjuiuuiuuii jie guaaiai jia jia 3

4

（）

a 5 (4)

128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 162, 163, 164, 165, 166, 167, 168, 169, 170,

#

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

y

Jalil alig aygol gai lgl aie alla ylclogallllall

Jaiu

jbcbaal: jdy d n yj b y yy 10000000000000000000000000000000000000000000000000000000000000000000

auii

jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy

aegaae

2j 1

G

y

（）

Jaua 1

jglal jai gai jai

（）

J.6

zaiy 10000000000000000000000000000000000000000000000

Jyai 7

J 10000000000000000000000000000000000000000000000000000000000

cui aig dui

aal

Jus 1e alg y aal lalal jai jalil glbl tlae piai laie

a a a a a a a a a a a a a a a a a a a

Jg 1j

0j 1

J 1

.0gall ealil jayll ailll lal 1

#

1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

（）

ddalglai

y j 1 1 1 1 1 1 1 1 1 1 1 1 1 1

jaii 100000000000000000000000000000000000000

#

Jdll

aill 10g o

Aeiall 8aas aaii plaii jay

A. ,,

aai 1

13 13

Juljy jilj

#

:clw 8 j clw4 j jclw jy jdy jdy jdy jdy

aaiy aiai yaiy aiai iaiy iaiy iaiy aiai

aalwaae aeaal yaaaiy jaiil galiall ay

الإستعمال الحرفية (عربية/الإستعمال)	الإستعمال الحرفية (الترجمة)	الإستعمال الحرفية (الترجمة)	(*)الإستعمال الحرفية (الترجمة)	Auto Door	الإستعمال	الإستعمال
0,95 9,5 3:10			\( \underline{\underline{\mathbb{H}}}\overline{\underline{\mathbb{1}}}\overline{\underline{\mathbb{2}}} \)h	✓	✓	°50 ECO\( ^{1} \)
1,85 - 1,50 17,0 - 14.0 3:10 - 2:00			\( \underline{\underline{\mathbb{H}}}\overline{\underline{\mathbb{1}}}\overline{\underline{\mathbb{2}}} \)h	✓	✓	°65 A\( ^{2} \)
1,30 - 1,15 16,0 - 14,5 2:30 - 1:30			\( \underline{\underline{\mathbb{H}}}\overline{\underline{\mathbb{1}}}\overline{\underline{\mathbb{2}}} \)h	✓	✓	°55 A\( ^{3} \)
0,50 9,0 0:28			\( \underline{\underline{\mathbb{H}}}\overline{\underline{\mathbb{1}}}\overline{\underline{\mathbb{2}}} \)h	-	-	°45 \( \underline{\underline{\mathbb{E}}}\overline{\underline{\mathbb{1}}}\overline{\underline{\mathbb{A}}}\overline{\underline{\mathbb{B}}}\overline{\underline{\mathbb{C}}}\overline{\underline{\mathbb{A}}}\overline{\underline{\mathbb{B}}}\overline{\underline{\mathbb{C}}}\overline{\underline{\mathbb{A}}}\overline{\underline{\mathbb{B}}}\overline{\underline{\mathbb{C}}}\overline{\underline{\mathbb{A}}}\overline{\underline{\mathbb{B}}}\overline{\underline{\mathbb{C}}} \)
1,20 11,0 1:00			\( \underline{\underline{\mathbb{H}}}\overline{\underline{\mathbb{1}}}\overline{\underline{\mathbb{2}}} \)h	-	-	°50 e\( ^{Extra} \)Extra 5
1,10 11,5 1:25				✓	✓	°50 PUSH&Push&GO 6

.EN 60436:2020 aiaaiaaaaiiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiia

aaiy

Ae 1

C

Jss

EXTRA 5

( S让一一大) = 1

aiaaa aaii i 111 111 111 111 111 111 111 111

1 1

PUSH&GO 6

2

a 1

(1)

= 1

sila silaigi 3

Aafie aee aee aee aee aee aee Fasf&Clean 0

aiee eae aee eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae

FAST&CLEAN 28' 4

y 1

abii 1eua 8

A 10000000000000000000000000000000000000000000000

B

1 1
10 1
2

aill jll gannn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

5 5 5

.

(olal jus jbil) aeg yll oall jus jyj P jill jie bi

الإستعمال
Clark\( ^o \)dr們(بعبيعة	fH\( ^o \)d\r\b\(\text{電}\)	dH\( ^o \)d\r\b\(\text{電}\)	الإستعمال
7-0	10-0	6-0	\( ^o \)	1
14-8	20-11	11-7	\( ^o \)	2
20-15	29-21	16-12	\( ^o \)	3
42-21	60-30	34-17	\( ^o \)	4
62-43	90-61	50-35	\( ^o \)	5

.1

j 1

y

auiuuiuui uie g plai yue jia iue aie 1iue g lal ple g 1s

aalaae aee

ydiia aalll caijbj jgljglsl

C
