Features	Details
Speaker Type	Wireless surround speaker
Dimensions	Compact dimensions for easy integration into various environments
Rated Power	Power suited for an immersive audio experience
Connectivity	Bluetooth and Wi-Fi for easy wireless connection
Compatibility	Compatible with multiroom audio systems
Installation	Easy to install with wall mounting options
Maintenance	Regular cleaning recommended with a soft cloth
Safety	Do not expose to excessive moisture to avoid damage
Warranty	Limited warranty provided by the manufacturer
Additional Information	Check compatibility with your audio system before purchase

Frequently Asked Questions - SR9040 DEFINITIVE TECHNOLOGY

What is the best placement for my SR9040 speakers?

For optimal sound, place the SR9040 speakers at ear height when seated, keeping them 30 to 60 cm away from walls to avoid unwanted reflections.

How do I connect my SR9040 speakers to my amplifier?

Use appropriate audio cables to connect the output terminals of your amplifier to the input terminals of the SR9040 speakers, ensuring correct polarity (positive and negative).

Are the SR9040 speakers compatible with a surround system?

Yes, the SR9040 can be integrated into a surround system, whether as front, rear, or effect speakers.

What should I do if the sound is distorted on my SR9040 speakers?

First check your connections and ensure they are secure. Then reduce the volume level on your amplifier to avoid overloading the speakers.

How do I clean my SR9040 speakers without damaging them?

Use a soft, dry cloth to clean the surface of the speakers. Avoid harsh chemicals that could damage the finish.

Can the SR9040 speakers be wall-mounted?

Yes, the SR9040 can be wall-mounted. Make sure to use appropriate mounting brackets and follow the provided mounting instructions.

Where can I find replacement parts for my SR9040 speakers?

Replacement parts can be ordered directly from Definitive Technology or authorized dealers.

My SR9040 speakers emit background noise, what should I do?

First check your connections and ensure there is no interference from other electronic devices. Try moving the audio cable to see if the noise persists.

USER MANUAL SR9040 DEFINITIVE TECHNOLOGY

DEFINITIVE TECHNOLOGY

OWNER'S MANUAL

BP9000 Bipolar Surround Speakers: SR9080BP, SR9040BP

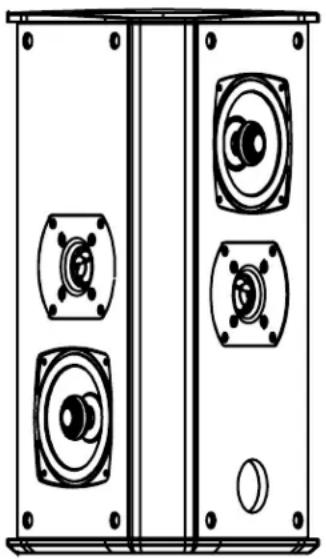

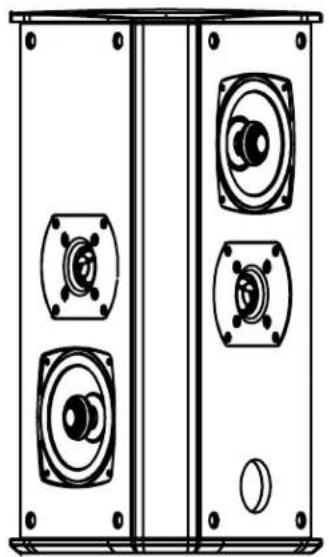

SR9080

BIPOLAR SURROUND

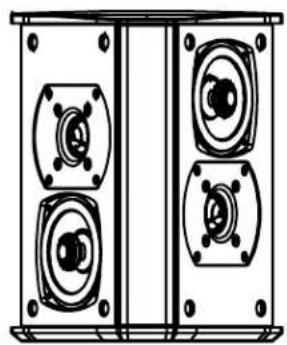

SR9040

BIPOLAR SURROUND

Thank you for choosing the Definitive Technology BP9000 Bipolar Surround Speakers. These compact, high-quality bipolar speakers are intended primarily for use as a rear or side speakers. In addition, they can also be used as front "effects" speakers in multichannel DSP systems. The lifelike soundfield and flexible placement make this speaker an excellent addition to any room.

Our engineers have spent many years in developing this product. In order to ensure that you experience the finest performance possible, we encourage you to take a moment to fully read this owner's manual and familiarize yourself with the proper installation and setup procedures for your SR surround speakers.

Positioning Your BP9000 Surround Speakers

FIGURE 1 - REAR AND SIDE SURROUND PLACEMENT

For use as rear surround speakers, position the speakers approximately 6^ 2 m high and 6^(2m) apart directly behind the listening area.
For use as side surround speakers, position the speakers approximately 6^ 2 m) high and directly beside or 1-2' (30-60 cm) behind the listening area.

Connecting Your Loudspeakers

FIGURE 2 - WIRING AND POLARITY

Strip 1 / 4'' (6mm) wire. Identify markings on wire and assign +/-

Ensure that the speaker is always connected to the receiver or amplifier + to + and - to -

1. Unscrew binding post and insert wire.
2. Tighten until wire is secure.

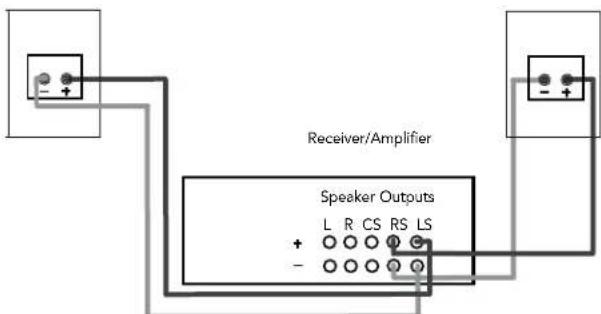

FIGURE 3-CONNECTING SPEAKER TO AMPLIFIER

Speaker Setup Small, SR9080BP Crossover at 80Hz SR9040BP Crossover at 100Hz

VERY IMPORTANT:

Do not use your receiver's auto setup function!!! The bipolar nature of this speaker will often confuse the receiver's auto setup.

Dolby Digital and DTS multi-channel systems have critical channel balance and speaker setup procedures which must be followed if the system is to perform properly. Consult your receiver's or processor's manual to learn how to access your system setup menus. Set speaker setup to "small" and crossover to 80Hz for the SR9080BP and 100Hz for the SR9040BP.

Troubleshooting

If you experience any difficulties with your BP Series loudspeakers, try the suggestions below. If you still have problems, contact your Definitive Technology Authorized Dealer for assistance.

1. Audible distortion when the speakers are playing at loud levels is caused by driving (turning up) your receiver or amplifier louder than it or the speakers are capable of playing. Most receivers and amplifiers put out their full-rated power well before the volume control is turned all the way up, so the position of the volume control is a poor indicator of its power limit. If your speakers distort when you play them loud, turn the volume down!
2. If you experience a lack of bass, it is likely that one speaker is out of phase with the other and needs to be rewired paying closer attention to connect positive to positive and negative to negative on both channels. Most speaker wire has some indicator (such as color-coding, ribbing or writing) on one of the two conductors to help you maintain consistency. It is essential to connect both speakers to the amplifier in the same way (in phase).
3. Make sure all your system interconnects are solidly in place.
4. Check that no foreign objects or liquid has entered the speaker cabinet.

Service

Service and warranty work on your Definitive product will normally be performed by the Definitive Technology retailer or importer. If, however, you wish to return the product to us, please contact us first, describing the problem and requesting proper authorization. Please note: Definitive phone and email technical support is offered only in English.

Product Servicing

The address given in this booklet is the address of our offices. Under no circumstances should loudspeakers be shipped to our offices or returned without contacting us first and obtaining return authorization. e-mail: [e-mail]

Technical Assistance

Contact Us Directly

Please contact the Definitive Technology Customer Service and Technical Support Group at 1-800-223-5246. To best assist you we are available 7 days a week, Monday - Friday from 9am to 9pm and on Saturdays and Sundays from 10am to 6pm email: [e-mail]

Warranty

Limited Warranty: 5 Years for Drivers and Cabinets, 3 Years for Electronic Components

DEI Sales Co., dba Definitive Technology (herein "Definitive") warrants to the original retail purchaser only that this Definitive loudspeaker product (the "Product") will be free from defects in material and workmanship for a period of five (5) years covering the drivers and cabinets, and three (3) years for the electronic components from the date of the original purchase from a Definitive Authorized Dealer. If the Product is defective in material or workmanship, Definitive or its Authorized Dealer will, at its option, repair or replace the warranted product at no additional charge, except as set forth below. All replaced parts and Product(s) become the property of Definitive. Product that is repaired or replaced under this warranty will be returned to you, within a reasonable time, freight collect. This warranty is non-transferrable and is automatically void if the original purchaser sells or otherwise transfers the

Product to any other party. This Warranty does not include service or parts to repair damage caused by accident, misuse, abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage in excess of the rated maximum of the unit, cosmetic appearance of cabinetry not directly attributable to defects in material or workmanship. This warranty does not cover the elimination of externally generated static or noise, or the correction of antenna problems or weak reception. This warranty does not cover labor costs or damage to the Product caused by installation or removal of the Product. Definitive Technology makes no warranty with respect to its products purchased from dealers or outlets other than Definitive Technology Authorized Dealer.

THE WARRANTY IS AUTOMATICALLY VOID IF:

1) The product has been damaged, altered in any way, mishandled during transportation, or tampered with.
2) The product is damaged due to accident, fire, flood, unreasonable use, misuse, abuse, customer applied cleaners, failure to observe manufacturers warnings, neglect or related events.
3) Repair or modification of the Product has not been made or authorized by Definitive Technology.
4) The product has been improperly installed or used. Product must be returned (insured and prepaid), together with the original dated proof of purchase to the Authorized Dealer from whom the Product was purchased, or to the nearest Definitive factory service center. Product must be shipped in the original shipping container or its equivalent. Definitive is not responsible or liable for loss or damage to Product in transit.

THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY THAT APPLIES TO YOUR PRODUCT. DEFINITIVE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH YOUR PRODUCT OR THIS WARRANTY. ALL OTHER WARRANTY, INCLUDING BUT NOT LIMITEDTO EXPRESS, IMPLIED, WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY EXCUSED AND DISCLAIMED TO THE MAXIMUM EXTENTALLOWED BY LAW. ALL IMPLIED WARRANTY ON PRODUCT ARE LIMITED TO THE DURATION OF THIS EXPRESSED WARRANTY. DEFINITIVE HAS NO LIABILITY FOR ACTS OF THIRD PARTIES. DEFINITIVE'S LIABILITY, WHETHER BASED ON CONTRACT, TORT, STRICT LIABILITY, ORANY OTHER THEORY, SHALL NOT EXCEEDTHE PURCHASE PRICE OF THE PRODUCT FOR WHICH A CLAIM HAS BEEN MADE. UNDER NO CIRCUMSTANCE WILL DEFINITIVE BEARANY LIABILITY FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. THE CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND DEFINITIVE SHALL BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN SAN DIEGO COUNTY, CALIFORNIA. DEFINITIVE RESERVES THE RIGHT TO MODIFY THIS WARRANTY STATEMENT AT ANYTIME. Some states do not allow the exclusion or limitation of consequential or incidental damages, or implied warranties, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. ©2009 DEI Sales Co. All rights reserved.

	SR9080BP	SR9040BP
PERFORMANCE SPECIFICATIONS
OVERALL FREQUENCY RESPONSE 40 Hz - 30 kHz 50 Hz - 30 kHz
SENSITIVITY 92 dB 92 dB
NOMINAL IMPEDANCE 8 ohms 8 ohms
RECOMMENDED ASSOCIATED AMPLIFIER POWER	20 - 200w 20 - 150w
DIMENSIONS
HEIGHT 15 5/8" (39.69 cm) 9 1/2" (24.12 cm)
WIDTH	9" (22.76 cm) 7 13/16" (19.8 cm)
DEPTH 6 1/16" (15.5 cm) 5 3/8" (13.5 cm)
SPEAKER COMPLEMENT
BASS/MIDRANGE DRIVER QUANTITY	2	2
BASS/MIDRANGE DIAMETER	4 1/2" (11.43 cm) 3 1/2" (8.89 cm)
TWEETER QUANTITY	2	2
TWEETER DIAMETER	1" (2.54 cm)	1" (2.54 cm)

Definitive Technology

1 Viper Way

Vista, CA 92082

[phone]

[phone]

www.definitivetechnology.com

email: [e-mail]

twitter: @DefinitiveTech

This product complies with the essential requirements of the EMC directive 89/336/EEC.

For more information on Definitive Technology Loudspeakers and accessories, visit www.definitivetechnology.com, or email [e-mail].

Definitive Technology Vista CA USA.800-228-7148
