Feature	Details
Screen Size	43 inches
Resolution	4K Ultra HD (3840 x 2160)
Panel Type	IPS
HDR Technology	HDR10, HLG
Connectivity	3 x HDMI, 2 x USB, Ethernet, Wi-Fi, Bluetooth
Operating System	webOS
Audio	20W, Dolby Audio
Power Consumption	85W (operating), 0.5W (standby)
Dimensions (without stand)	96.2 x 56.3 x 8.7 cm
Weight	9.5 kg
Warranty	2 years

Frequently Asked Questions - 43UM7400PLB LG

How do I connect my LG 43UM7400PLB TV to the Internet?

You can connect your TV to the Internet via Wi-Fi or an Ethernet cable. For Wi-Fi, go to network settings, select your network, then enter the password.

How do I perform a software update on the LG 43UM7400PLB?

Go to settings, select \"About this TV\", then \"Software Update\". If an update is available, follow the on-screen instructions to install it.

My TV won\u0027t turn on, what should I do?

Check that the TV is properly plugged into a working outlet. Try another outlet or power cable. If the problem persists, contact customer service.

How do I adjust the picture quality on the LG 43UM7400PLB?

Go to picture settings. You can adjust brightness, contrast, color, and sharpness to your preference or choose a preset mode.

How do I reset my LG 43UM7400PLB TV to factory settings?

Go to settings, select \"General\", then \"Reset to Factory Settings\". Follow the instructions to confirm the reset.

Why is the sound on my TV low or missing?

Check the volume and make sure it is not muted. Also check audio settings and ensure the speakers are selected as the audio output.

How do I connect external devices (like a game console) to the LG 43UM7400PLB?

Use the HDMI ports located on the back of the TV. Connect your device, then select the corresponding source in the TV\u0027s input menu.

My TV doesn\u0027t detect channels, what should I do?

Make sure the antenna or cable is properly connected. Go to channel settings and perform an automatic channel scan.

How do I use apps on my LG 43UM7400PLB?

Press the \"Home\" button on the remote to access the main menu. Select \"LG Content Store\" to download apps or access those already installed.

How do I enable game mode on the LG 43UM7400PLB?

Go to picture settings and enable \"Game Mode\". This reduces input lag for an improved gaming experience.

USER MANUAL 43UM7400PLB LG

MANUEL D'UTILISATION

Sécurité et ↔

Téléviseur LED*

RISQUE D'LECTROCUTION NE PAS OUVRIR

AVERTISSEMENT: AFIN DE RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRÊRÉ). AUCUNE PIECE N'EST REPARABLE PAR L'UTILISATEUR LUI-MÉME. CONFIEZ L'ENTRETIEN DE CET APPAREIL À UN PERSONNEL QUALIFIÉ.

• Image shown may differ from your TV.
• Image shown on a PC or mobile phone may vary depending on the OS(Operating System).
• App icon positions may vary on the platform, depending on the software version.

Network Settings

1 Press the Settings) on the remote to access the settings menu. Point the 1 Settings] icon and select by pressing the Wheel (OK) button on the remote.

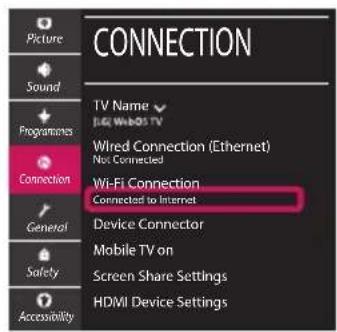

4 If the connection is successful, the "[Connected to Internet]" is displayed.

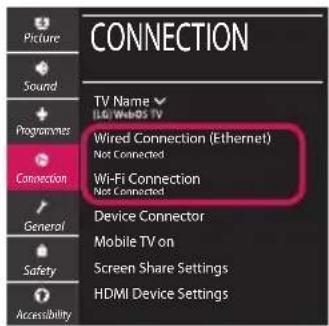

2 Select the [Connection] [Wired Connection(Ethernet)] or [Wi-Fi Connection].

You can check the status of connection in [Advanced Wi-Fi settings].

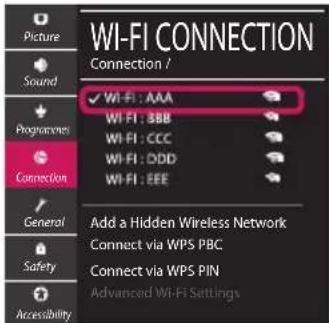

3 The device automatically tries to connect to the network available (wired network first). When you select the [Wi-Fi Connection], the network list available is displayed. Choose the network you wish to use.

For wireless AP (Router) that have the symbol, you need to enter the security key.

Troubleshooting Network Problems

1 Press the Settings) on the remote to access the settings menu. Point the [A] Settings] icon and select by pressing the Wheel (OK) button on the remote.

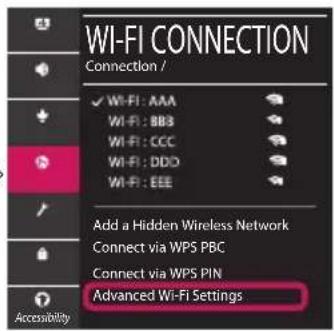

2 Select the [Connection] [Wired Connection (Ethernet)] or [Wi-Fi Connection] [Advanced Wi-Fi Settings].

→

Follow the instructions below that correlate to your network status.

Check the TV or the AP (Router).

When X appears next to TV:

1 Check the connection status of the TV, AP (Router).
Power off and power on the TV, AP (Router).
If you are using a static IP, enter the IP directly.
Contact internet service provider or AP (Router) company.

Check the AP (Router) or consult your Internet service provider.

When X appears next to Gateway:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
2 Initialize (Reset) the AP (Router).
Contact internet service provider or AP (Router) company.

When X appears next to DNS:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
Initialize (Reset) the AP (Router).
Check that the MAC address of the TV/AP (Router) is registered with your Internet service provider. (The MAC address displayed on the right pane of the network status window should be registered with your Internet service provider.)
Check the AP (Router) manufacturer's website to make sure your router has the latest firmware version installed.

SmartShare Connection to Smartphone

1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network.
2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones).
3 Enable your smartphone to share content files with other devices.
4 Select the file type you want to play (movie, audio or photo).
5 Select a movie, music or photo file to play on the TV.
6 Play the media file to view and enjoy it on your TV.

Updating the TV Firmware

• If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.

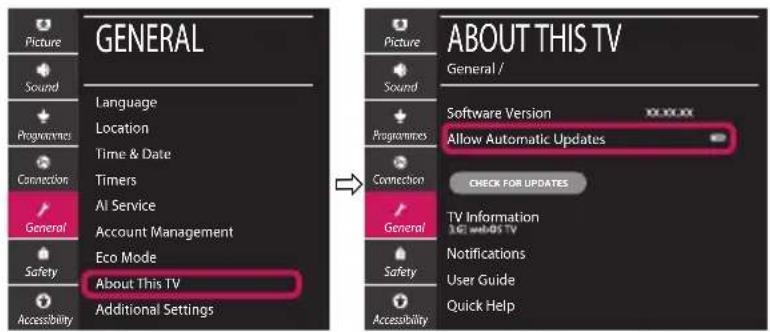

1 (Settings) [All Settings] [General] [About This TV] [CHECK FOR UPDATES]
2 After checking the version of the software, update it. If you check the "[Allow Automatic Updates]", you can update the software automatically.
