Technical specifications	Exquisit EKC625 cooker, 60 cm wide, electric oven, 4 ceramic glass cooking plates.
Oven capacity	65 litre capacity, ideal for cooking several dishes simultaneously.
Cooking type	Conventional cooking, with fan-assisted heat available.
Usage	Easy to use thanks to an intuitive control panel and adjustment knobs.
Maintenance	Easy cleaning thanks to the smooth surface of the plates and the enamelled oven interior.
Safety	Safety system with automatic shut-off and overheating protection.
Energy consumption	Energy class A, allowing energy savings.
Dimensions	Dimensions: 60 cm (width) x 85 cm (height) x 60 cm (depth).
Weight	Approximate weight of 50 kg, facilitating transport and installation.
Included accessories	Cooking grid and baking tray included.

Frequently Asked Questions - EKC625 Exquisit

The Exquisit EKC625 cooker does not turn on, what should I do?

Check if the cooker is properly plugged into a working outlet. Also make sure the circuit breaker has not tripped.

The cooker plates do not heat up, what should I do?

Make sure the temperature controls are set correctly. Also check if the heating elements are not damaged.

How to clean the surface of the Exquisit EKC625 cooker?

Use a mild cleaner and a non-abrasive cloth. Avoid products containing abrasives that could scratch the surface.

The cooker emits a burning smell, is this normal?

It is normal for a new cooker to emit a burning smell during the first use. Heat the cooker empty for about 30 minutes to eliminate this smell.

How to set the oven temperature?

Use the temperature adjustment dial located on the control panel to select the desired temperature. Wait a few minutes for the oven to reach the chosen temperature.

What to do if the oven light does not work?

Check the oven bulb. If it is burnt out, replace it with a bulb of the same type and power.

The cooker knobs are hard to turn, how to loosen them?

Check if there are food residues or dirt around the knobs. Clean them carefully with a damp cloth.

The cooker makes strange noises, what should I do?

Clicking or humming noises can be normal due to air circulation. If the noise persists or is unusual, contact customer service.

How to get a good cooking setting?

For optimal cooking, follow the recipe instructions and preheat the oven when necessary. Adjust the temperature according to your preferences.

Where to find the user manual for the Exquisit EKC625 cooker?

The user manual is usually included in the packaging. You can also download it from the official Exquisit website.

USER MANUAL EKC625 Exquisit

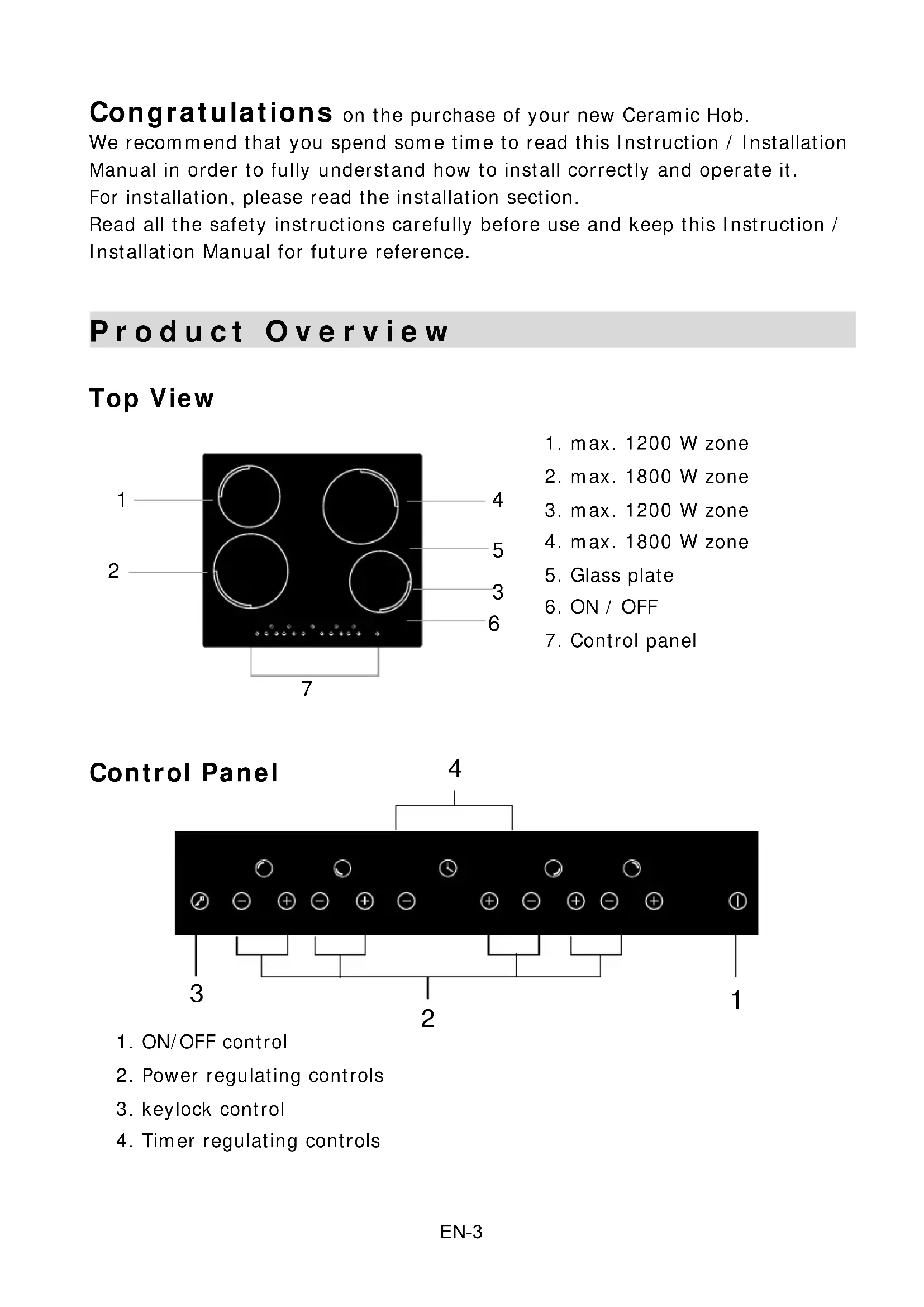

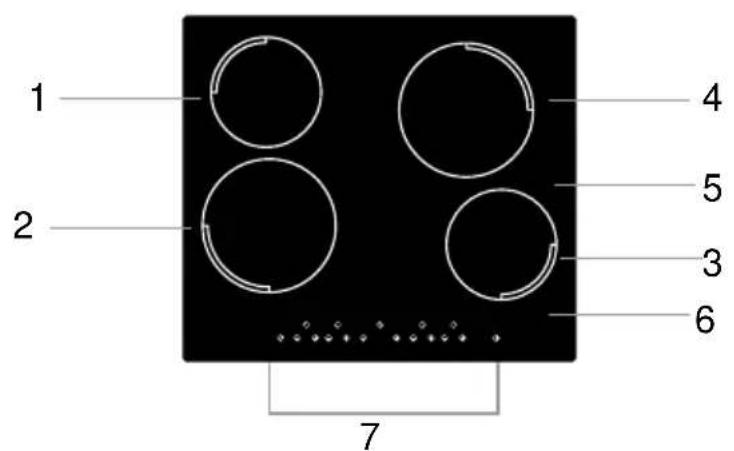

EN-2Congratulations on the purchase of your new Ceramic Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. Product Overview Top View

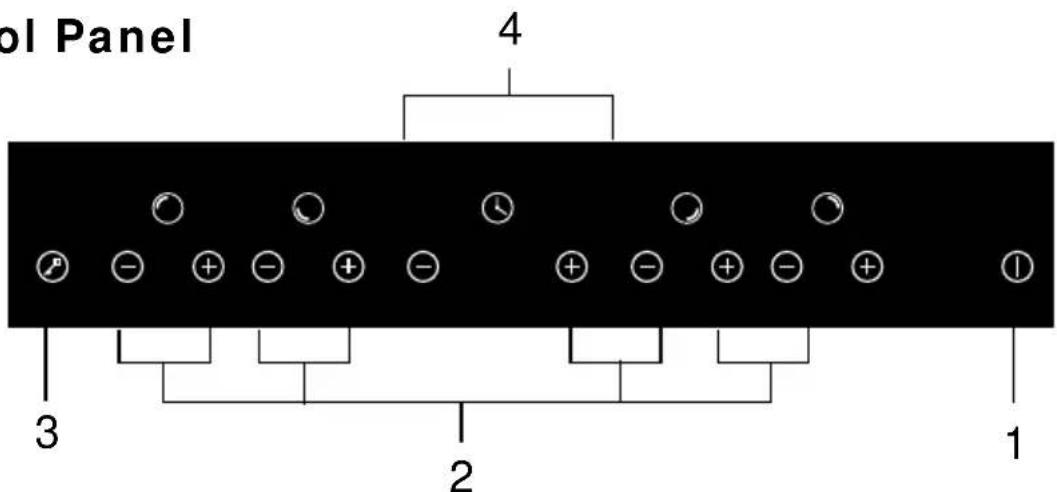

1. ON/OFF control 2. Power regulating controls 3. keylock control 4. Timer regulating controls

EN-3Product Information The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The ceramic cooker hob centers on customers and adpots personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.

Before using your New Ceramic Hob

• Read this guide, taking special note of the ‘Safety Warnings’ section.

• Remove any protective film that may still be on your ceramic hob. Using the Touch Controls

• The controls respond to touch, so you don’t need to apply any pressure.

• Use the ball of your finger, not its tip.

• You will hear a beep each time a touch is registered.

• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

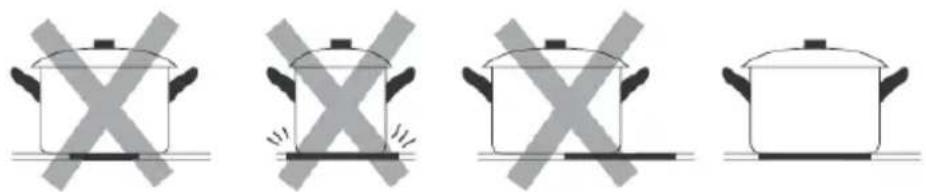

Choosing the right Cookware Do not use cookware with jagged edges or a curved base.

EN-4Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

Using your Ceramic Hob To start cooking

• After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the state of standby mode.

2. Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and the surface Of the cooking zone are clean and dry.

EN-53. Select a heat setting by touching the or control.

• If you don’t choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.

• You can modify the heat setting at any time during cooking.

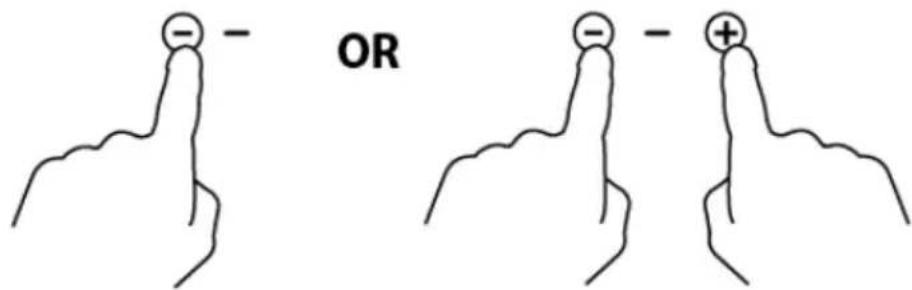

When you have finished cooking 1a. Turn the cooking zone off by scrolling down to “0“ or touching and control together.

1b. Turn the whole cooktop off by touching the ON/OFF control.

“ H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).

• When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock control. The timer indicator will show “ Lo “ To unlock the controls

1. Make sure the ceramic hob is turned on.

2. Touch and hold the keylock control for a while.

3. You can now start using your ceramic hob.

When the hob is in the lock mode,all the controls are disable except the ON/OFF

you can always turn the ceramic hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation

Over-Temperature Protection A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically. Residual Heat Warning When the hob has been operating for some time,there will be some residual heat.The letter “ ”appears to warn you to keep away from it. Auto Shutdown Another safety feature of the hob is auto shutdown.This occurs whenever you forget to switch off a cooking zone.The default shutdown times are shown in the table below: Power level 1 2 3 4 5 6 7 8 9 Default working timer (hour) 8 8 8 4 4 4 2 2 2

EN-7Using the Timer You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.

• You can set it to turn one cooking zone off after the set time is up.

• You can set the timer up to 99 minutes.

Using the Timer as a Minute Minder If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you’re not selecting any cooking zone.

2. Touch the or controls of the timer, the minute minder indicator will

3. Set the time by touching the or control

of the timer Hint: Touch the or control of the timer once to decrease or increase by 1 minute. Touch and hold the or control of the timer to decrease or increase by 10 minutes. If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

4. Touching the and together, the

timer is cancelled, and the “-- “ will show in the minute display.

EN-85. When the time is set, it will begin to count down immediately. The display w ill show the remaining time and the timer indicator will flash for 5 seconds.

6. Buzzer will bips for 30 seconds and the timer indicator

shows “- - “ when the setting time finished.

Setting the timer to turn one cooking zone off

1. Touch the or of the corresponding cooking

zone you want to set the timer for.

2. Set the time by touching the or control of the

timer Hint: Touch the or control of the timer once will decrease or increase by 1 minute. Touch and hold the or control of the timer will decrease or increase by 10 minutes. If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

EN-93.Touching the and together, the timer is cancelled, and it shows ” --” in the minute display.

4. When the time is set, it will begin to count

down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

cooking zone will be switch off automatically.

NOTE: If you want to change the time after the timer is set, you have to start from step 1

Cooking Guidelines Take care when frying as the oil and fat heat up very quickly, particularly if you’re using PowerBoost. At extremely high termperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips

• When food comes to the boil, reduce the temperature setting. EN-10• Using a lid will reduce cooking times and save energy by retaining the heat.

• Minimise the amount of liquid or fat to reduce cooking times.

• Start cooking on a high setting and reduce the setting when the food has heated through. Simmering, cooking rice

• Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flourthickened sauces below boiling point.

• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended. Searing steak To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.

2. Heat up a heavy-based frying pan.

3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot

pan and then lower the meat onto the hot pan.

4. Turn the steak only once during cooking. The exact cooking time will depend

on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be.

5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax

and become tender before serving. For stir-frying

1. Choose an ceramic compatible flat-based wok or a large frying pan.

2. Have all the ingredients and equipment ready. Stir-frying should be quick. If

cooking large quantities, cook the food in several smaller batches.

3. Preheat the pan briefly and add two tablespoons of oil.

4. Cook any meat first, put it aside and keep warm.

5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking

zone to a lower setting, return the meat to the pan and add your sauce.

6. Stir the ingredients gently to make sure they are heated through.

7. Serve immediately.

EN-11Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the cooktop to find the settings that best suit you. Heat setting Suitability

• delicate warming for small amounts of food

• melting chocolate, butter, and foods that burn quickly

• bringing soup to the boil

Care and Cleaning What? How? Important! Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)

1. Switch the power to the

2. Apply a cooktop cleaner while

the glass is still warm (but not hot!)

3. Rinse and wipe dry with a

clean cloth or paper towel.

4. Switch the power to the

• When the power to the cooktop is switched off, there will be no ‘hot surface’ indication but the cooking zone may still be hot! Take extreme care.

• Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.

• Never leave cleaning residue on the cooktop: the glass may become stained. EN-12Boilovers, melts, and hot sugary spills on the glass Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for ceramic glass cooktops, but beware of hot cooking zone surfaces:

1. Switch the power to the

cooktop off at the wall.

2. Hold the blade or utensil at a

30° angle and scrape the soiling or spill to a cool area of the cooktop.

3. Clean the soiling or spill up

with a dish cloth or paper towel.

4. Follow steps 2 to 4 for

‘Everyday soiling on glass’ above.

• Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.

• Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children. Spillovers on the touch controls

1. Switch the power to the

3. Wipe the touch control area

with a clean damp sponge or cloth.

4. Wipe the area completely dry

5. Switch the power to the

• The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Hints and Tips Problem Possible causes What to do The cooktop cannot Be turned on. No power. Make sure the cooktop is connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualified technician. The touch controls are unresponsive. The controls are locked. Unlock the controls. See section ‘Using your ceramic cooktop’ for instructions. The touch controls are difficult to operate. There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls. Make sure the touch control area is dry and use the ball of your finger when touching the controls. EN-13The glass is being scratched. Rough-edged cookware.

Unsuitable, abrasive scourer or cleaning products being used. Use cookware with flat and smooth bases. See ‘Choosing the right cookware’. See ‘Care and cleaning’. Some pans make crackling or clicking noises. This may be caused by the construction of your cookware (layers of different metals vibrating differently). This is normal for cookware and does not indicate a fault.

Technical Specification Cooking Hob EKC630 / EKC625 Cooking Zones 4 zones Supply Voltage 220-240V~ Installed Electric Power 5500-6600/6000W Product Size L×W×H(mm) 590X520X55 Building-in Dimensions A×B (mm) 560X490 Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

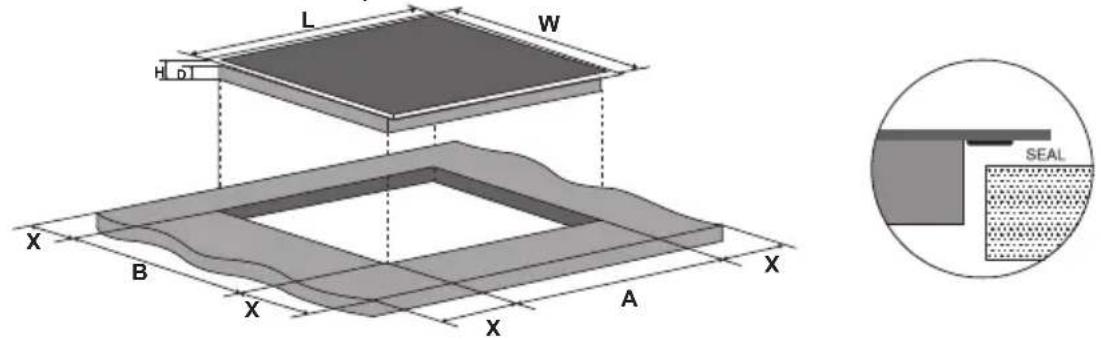

Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

EN-14L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) 590 520 55 51 560 490 50 mini Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

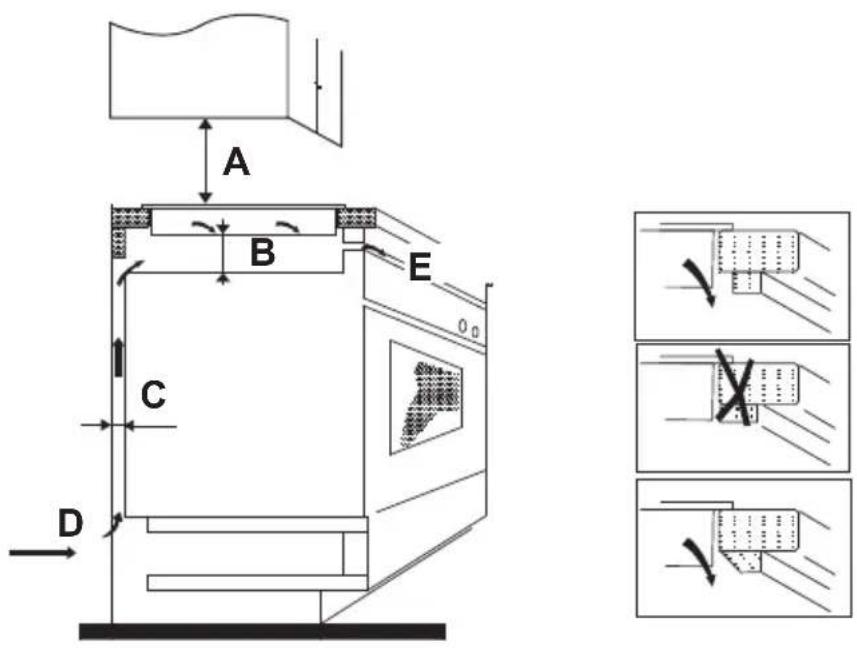

A(mm) B(mm) C(mm) D E 760 50 mini 20 mini Air intake Air exit 5mm Before locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.

Pls make sure that there is enough space left for ventilation, When you don’t have enough space you will have a lot electronic problems!

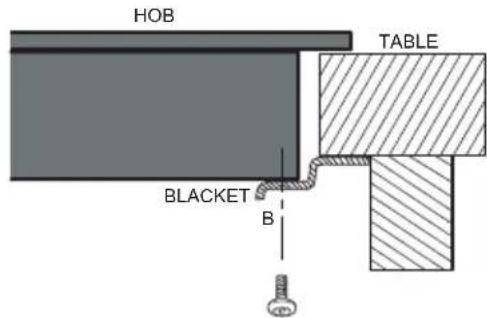

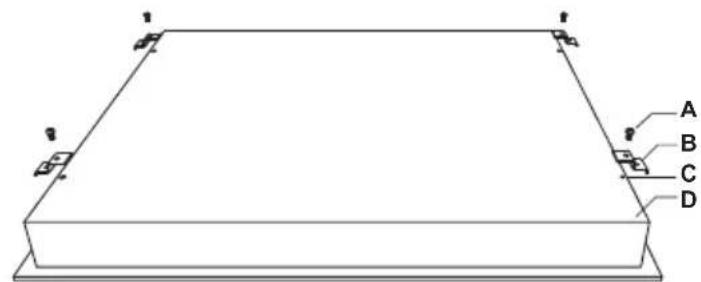

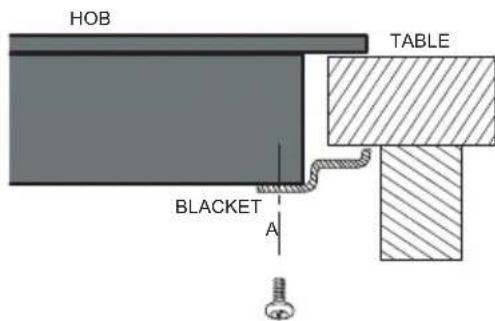

EN-15A B C D screw bracket Screw hole base Adjust the bracket position to suit for different work surface’s thickness. Cautions

1. The ceramic cooker hob must be installed by qualified personnel or technicians.

We have professionals at your service. Please never conduct the operation by yourself.

2. The ceramic cooker hob shall not be mounted to cooling equipment,

dishwashers and rotary dryers.

3. The ceramic cooker hob shall be installed such that better heat radiation can be

ensured to enhance its reliability.

4. The wall and induced heating zone above the work surface shall withstand heat.

5. To avoid any damage, the sandwich layer and adhesive must be resistant to

6. A steam cleaner is not to be used.

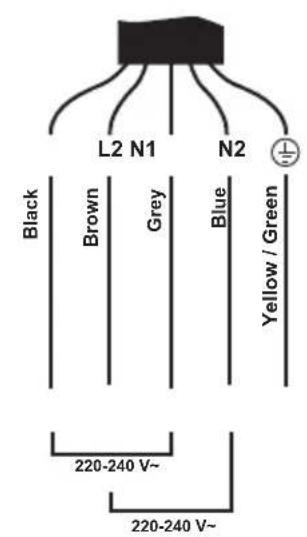

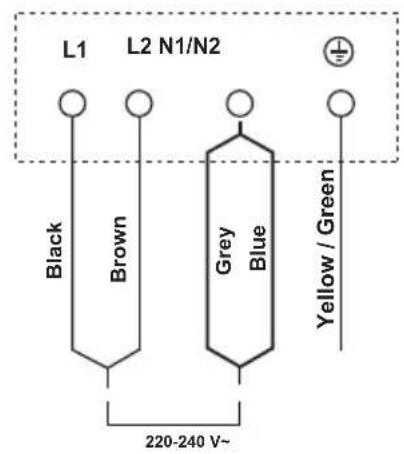

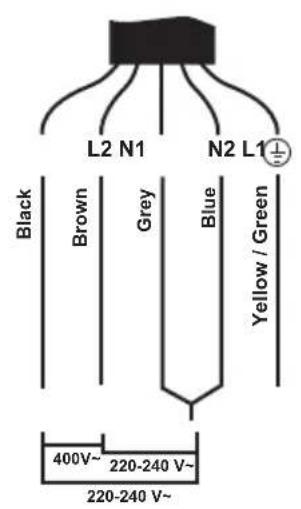

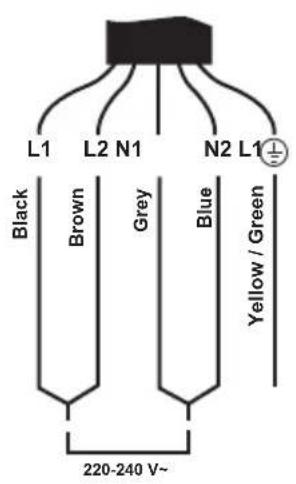

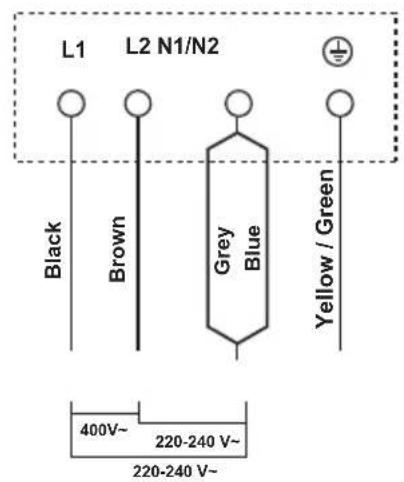

Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard,or a single-pole circuit breaker.the method of connection is shown below.

EN-161. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.

2. If the appliance is being connected directly to the mains supply, an omnipolar

circuit breaker must be installed with a minimum gap of 3mm between the contacts.

3. The installer must ensure that the correct electrical connection has been made

and that it complies with safety regulations.

4. The cable must not be bent or compressed.

5. The cable must be checked regularly and only replaced by a properly qualified

Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation

• Disconnect the appliance from the mains electricity supply before carrying

• out any work or maintenance on it.

• Connection to a good earth wiring system is essential and mandatory.

• Alterations to the domestic wiring system must only be made by a qualified electrician.

• Failure to follow this advice may result in electrical shock or death. Cut Hazard

• Take care - panel edges are sharp.

• Failure to use caution could result in injury or cuts. Important safety instructions

• Read these instructions carefully before installing or using this appliance.

• No combustible material or products should be placed on this appliance at any time.

• Please make this information available to the person responsible for installing the appliance as it

• could reduce your installation costs.

• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.

• This appliance is to be properly installed and earthed only by a suitably qualified person.

• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

• Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and maintenance Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.

• Switch the cooktop off at the wall before cleaning or maintenance.

• Failure to follow this advice may result in electrical shock or death. Health Hazard

• This appliance complies with electromagnetic safety standards.

• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.

• Failure to follow this advice may result in death. Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.

• Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool.

• Never leave metal objects (such as kitchen utensils) or empty pans on the cooktop as they can become hot very quickly. EN-18• Beware: magnetisable metal objects worn on the body may become hot in the vicinity of the cooktop. Gold or silver jewellery will not be affected.

• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.

• Failure to follow this advice could result in burns and scalds. Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.

• Failure to use caution could result in injury or cuts. Important safety instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.

• Never use your appliance as a work or storage surface.

• Never leave any objects or utensils on the appliance.

• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

• Never use your appliance for warming or heating the room.

• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.

• Do not allow children to play with the appliance or sit, stand, or climb on it.

• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

• Do not leave children alone or unattended in the area where the appliance is in use.

• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.

• Do not use a steam cleaner to clean your cooktop.

• Do not place or drop heavy objects on your cooktop.

• Do not stand on your cooktop.

• Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can scratch the glass.

• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the ceramic glass.

• If the power supply cable is damaged, it must only be replaced by a qualified technician.

• Do not operate your cooktop by means of an external timer or separate remote-control system.

• This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments ; -bed and breakfast type environments.

EN-19DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods. This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

PROBLEMES CAUSES POSSIBLES SOLUTIONS
