HW817D - Kettle INVENTUM - Free user manual and instructions

Technical Specifications	Capacity: 1.7 L, Power: 2200 W, Material: Stainless Steel
Features	Automatic shut-off, Overheat protection, Water level indicator
Usage	Ideal for preparing hot drinks, easy to use with a power button
Maintenance	Regular cleaning recommended, descaling according to water hardness
Safety	Non-slip base, overheat protection, automatic shut-off when water reaches boiling point
General Information	Warranty: 2 years, Weight: 1.2 kg, Dimensions: 23 x 15 x 25 cm

Frequently Asked Questions - HW817D INVENTUM

How can I clean my INVENTUM HW817D kettle?

To clean your kettle, use a mixture of vinegar and water. Fill the kettle with this mixture, heat it to boiling, then let it sit for an hour before rinsing thoroughly.

The kettle does not turn on, what should I do?

First, check that the kettle is properly plugged in and that the outlet is working. If it still does not turn on, try resetting the device by unplugging it for a few minutes.

What is the maximum volume of water I can boil?

The INVENTUM HW817D kettle has a maximum capacity of 1.7 liters.

How do I know if the water has reached the desired temperature?

The kettle is equipped with an indicator light that turns off when the water has reached boiling point.

Are there any safety features built into the kettle?

Yes, the kettle is equipped with an overheat protection system and an automatic shut-off when the water reaches boiling point.

Can I use the kettle to heat other liquids?

It is recommended to use the kettle only for water to avoid damaging the device.

How do I descale my INVENTUM HW817D kettle?

To descale your kettle, use an appropriate descaling product or a mixture of white vinegar and water. Heat the mixture, then let it act before rinsing thoroughly.

The kettle makes a strange noise, what should I do?

Noises may indicate limescale buildup. Try descaling the kettle. If the noise persists, contact customer service.

Does the kettle have a keep-warm function?

No, the INVENTUM HW817D kettle does not have a keep-warm function. It automatically turns off after boiling.

Where can I find spare parts for my kettle?

Spare parts can be ordered via the official INVENTUM website or authorized dealers.

USER MANUAL HW817D INVENTUM

1. safety instructions page 9
   2.appliance description page 11
2. before first use page 11
3. heating or boiling water page 11
4. heat mode page 12
5. switching the water cooker off page 12
   7.de-scaling page12
6. cleaning & maintenance page 12

General terms and conditions of service and warranty page 25

Deutsch

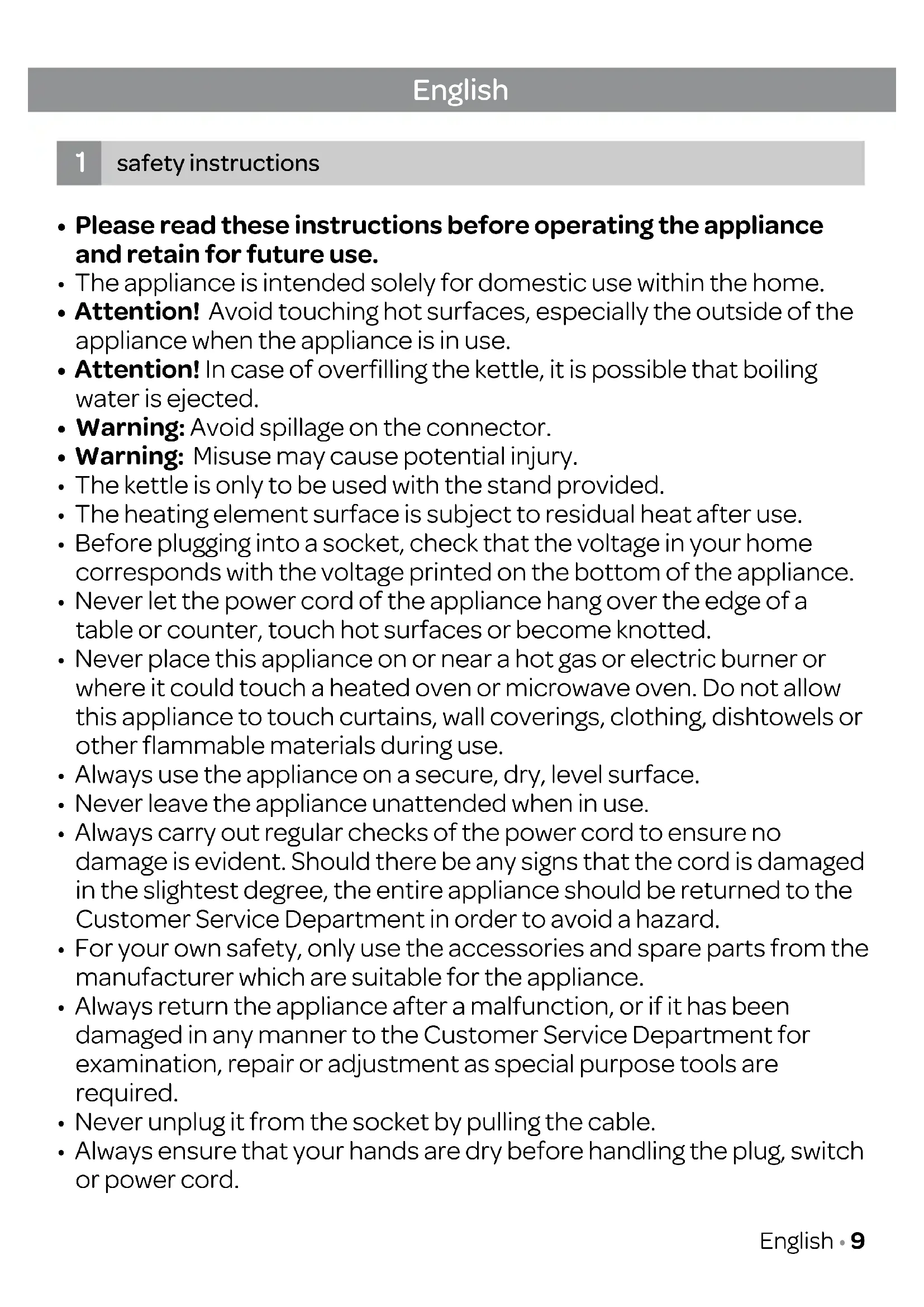

1 safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! Avoid touching hot surfaces, especially the outside of the appliance when the appliance is in use.
• Attention! In case of overfilling the kettle, it is possible that boiling water is ejected.
• Warning: Avoid spillage on the connector.
• Warning: Misuse may cause potential injury.
• The kettle is only to be used with the stand provided.
• The heating element surface is subject to residual heat after use.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave oven. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
• Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department in order to avoid a hazard.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• Never unplug it from the socket by pulling the cable.

• Always ensure that your hands are dry before handling the plug, switch or power cord.

• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised.

• This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Cleaning and maintenance shall not be made by children.

• Children should be supervised to ensure that they do not play with the appliance.

• If the appliance is not being used or is being cleaned, switch off the appliance and remove the plug from the socket.

• In case of a breakdown, never make repairs yourself; a blown safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should ever be used.

• Never immerse any part of the main body, power cord and plug into water or any other liquid to protect yourself against electrical hazards.

• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved Service Centre.

• This appliance is intended for household and similar use, such as:

• in staff kitchens, shops, offices and other work environments;

• by guests of hotels, motels and other residential environments;

• in Bed&Breakfast type environments;

-farms.

• When the appliance is used for other purposes than intended, or is when it is not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

u decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

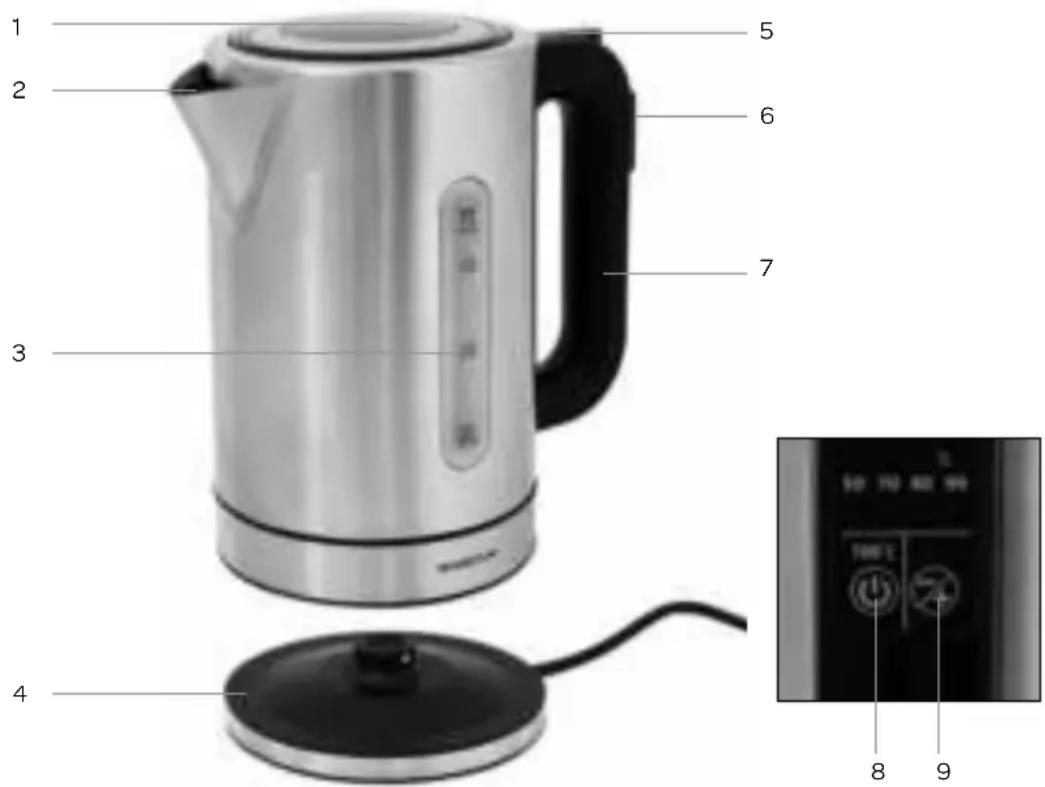

1. Lid
2. Spout
3. Water level indicator
4. Base
5. Lid open button
6. Controlpanel
7. Handle
8. On/off key
9. +/ -key

3 before first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the appliance on a stable and heat resistant surface.

The minimum water filling volume is 0.5 litres. The maximum filling volume is 1.7 litres.

Prior to use, the appliance must be filled to the maximum twice and the water must be brought to the boil twice. Throw away the boiled water and rinse the appliance with cold water. The appliance is now ready for use.

The water cooker is only suitable for boiling and heating water. Never fill the water cooker with milk, tea, coffee or other instant drinks.

4 heating or boiling water

Check that the voltage stated on the information plate matches the voltage used in your region.

Place the connection base on a flat, stable surface. Insert the plug in an earthed wall socket. Place the water cooker on the base. If necessary, excess cord can be stored in the bottom of the connection base by rolling up the cord.

1. Open the lid by pressing the button.
2. Fill the water cooker with the required volume of water and close the lid by pressing it close.
3. Place the water cooker on the connection base and make sure the plug is in the socket.
4. Press the on/off key once, to boil the water.
5. In order to heat the water to the required temperature, press the + / - key to select the required temperature (50 - 70 - 80 - 90^) . Then press the on/off key once more to heat the water to the set temperature.
6. The water cooker switches off automatically once the water boils or reaches the set temperature.

Caution: never switch on the water cooker when it contains no water. If, by accident, the water cooker is switched on without water in it, the boil dry safeguard switches off the water cooker automatically. In this case, remove the water cooker from the connection base and allow it to cool down for a few minutes. Then you can fill the water cooker and switch it on again. Make sure the lid of the water cooker is placed correctly. If this is not the case, the water cooker will not switch off automatically when the water boils and will continue to boil the water.

5 heat mode

If required, the heat mode can be switched on, so that the water cooker keeps the water at the set temperature (50-70-80-90°C) for a period of 30 minutes.

In order to activate the heat mode, observe the steps in section 4.

Instead of briefly pressing the on/off key, you must now press the on/off key for 2 seconds.

The water cooker now heats the water to the set temperature and keeps it hot for 30 minutes.

Once the temperature is reached, the LED light continues to burn to indicate that the heat mode is activated.

After 30 minutes, the water cooker switches off automatically and the water will cool.

When the water cooker is removed from the base, it automatically switches off completely.

6 switching the water cooker off

The water cooker switches off automatically once the set temperature is reached.

It is also possible to switch off the water cooker at any time by means of the on/off key. When the water cooker is taken off the connection base while boiling, the water cooker will also switch off.

Caution! It is possible that a little condensed water remains on the edge of the connection base. This is normal and does not affect the function of the water cooker.

7 de-scaling

Scale may occur on the inside of the water cooker. If you have hard water, it may be necessary to de-scale the water cooker occasionally. Use a suitable de-scaling agent for water cookers/coffee machines and observe the accompanying instructions.

You can also de-scale the water cooker with lemon juice. The lemon acid in this juice will make sure that the scale is removed. This natural method prevents the use of chemicals. Fill half the water cooker with hot water. Add the juice of half a lemon. Boil the water and then allow the water to cool down for 30 minutes. Throw away the boiled water and rinse the water cooker once more. Never clean the appliance with cleaning agents. These could damage your water cooker.

In order to remove the anti-scale filter from the water cooker for cleaning, you must take the water cooker from the connection base and allow it to cool down. Do not remove the anti-scale filter from the water cooker if it is still hot or filled with water. Pull the anti-scale filter loose towards the rear, away from the spout, and clean it with hot water. When placing back the filter, make sure it is properly attached to the spout. First place the point of the anti-scale filter and then you can press tight the anti-scale filter at the top by means of the clamp. Never place the anti-scale filter loose in the water cooker.

8 cleaning & maintenance

Regularly clean the water cooker for optimum performance. Never submerge the water cooker and connection base in water and/or other liquids. Before cleaning, always remove the plug from the socket and allow the water cooker to cool down. Regularly wipe the outside with a moist cloth. Never use detergents or abrasive cleaning agents!

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanyvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

normal wear and tear;
- improper use or misuse;
insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
- non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   external connection cables;

4. glass accessories and glass parts such as oven doors;
   and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
