DO450GO - Oven DOMO - Free user manual and instructions

Technical Specifications	Electric oven, 45-liter capacity, 1500 W power
Cooking Modes	Convection, grill, traditional cooking
Dimensions	External dimensions: 54 x 39 x 36 cm
Weight	Net weight: 12 kg
Usage	Ideal for cooking a variety of dishes, easy to use with an intuitive control panel
Maintenance	Easy cleaning thanks to a non-stick interior coating
Safety	Overheat protection system, insulated handle
Included Accessories	Rack, baking tray
General Information	2-year warranty, energy consumption class A

Frequently Asked Questions - DO450GO DOMO

The DOMO DO450GO oven does not turn on. What should I do?

Check that the oven is properly plugged into a working electrical outlet. Also make sure the fuse is not blown.

How do I set the oven temperature?

Use the temperature control knob on the control panel to select the desired temperature.

The oven is not heating properly. What could be the causes?

Check if the thermostat is set correctly. The heating element may also be damaged. Contact customer service if the problem persists.

How do I clean the DOMO DO450GO oven?

Use a damp cloth and a mild detergent. Avoid using abrasive cleaners that could scratch the surface.

Can I use the oven to cook frozen dishes?

Yes, the DOMO DO450GO oven is designed to cook frozen dishes. Be sure to follow the cooking instructions on the packaging.

The timer is not working. What should I do?

Check if the timer is set correctly. If the problem persists, reset the oven by unplugging it for a few minutes.

What types of dishes can I cook in the oven?

You can cook a variety of dishes, including meats, vegetables, cakes, and pizzas.

The oven makes strange noises during use. Is this normal?

Light noises can be normal due to air circulation. However, if the noise is loud or unusual, unplug the oven and contact customer service.

Does the DOMO DO450GO have a defrost function?

Yes, this model is equipped with a defrost function. Refer to the user manual for specific instructions.

Where can I find the user manual for the DOMO DO450GO?

The user manual is usually included in the packaging. You can also download it from the manufacturers website.

USER MANUAL DO450GO DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTIA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be.

The accessories and parts can also still be obtained at the store where you bought the appliance.

• Enkel in Belgie, Nederland, Luxemburg, Frankrijk en Duitsland.
• Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
• Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
• Only in Belgium, the Netherlands, Luxembourg, France and Germany.

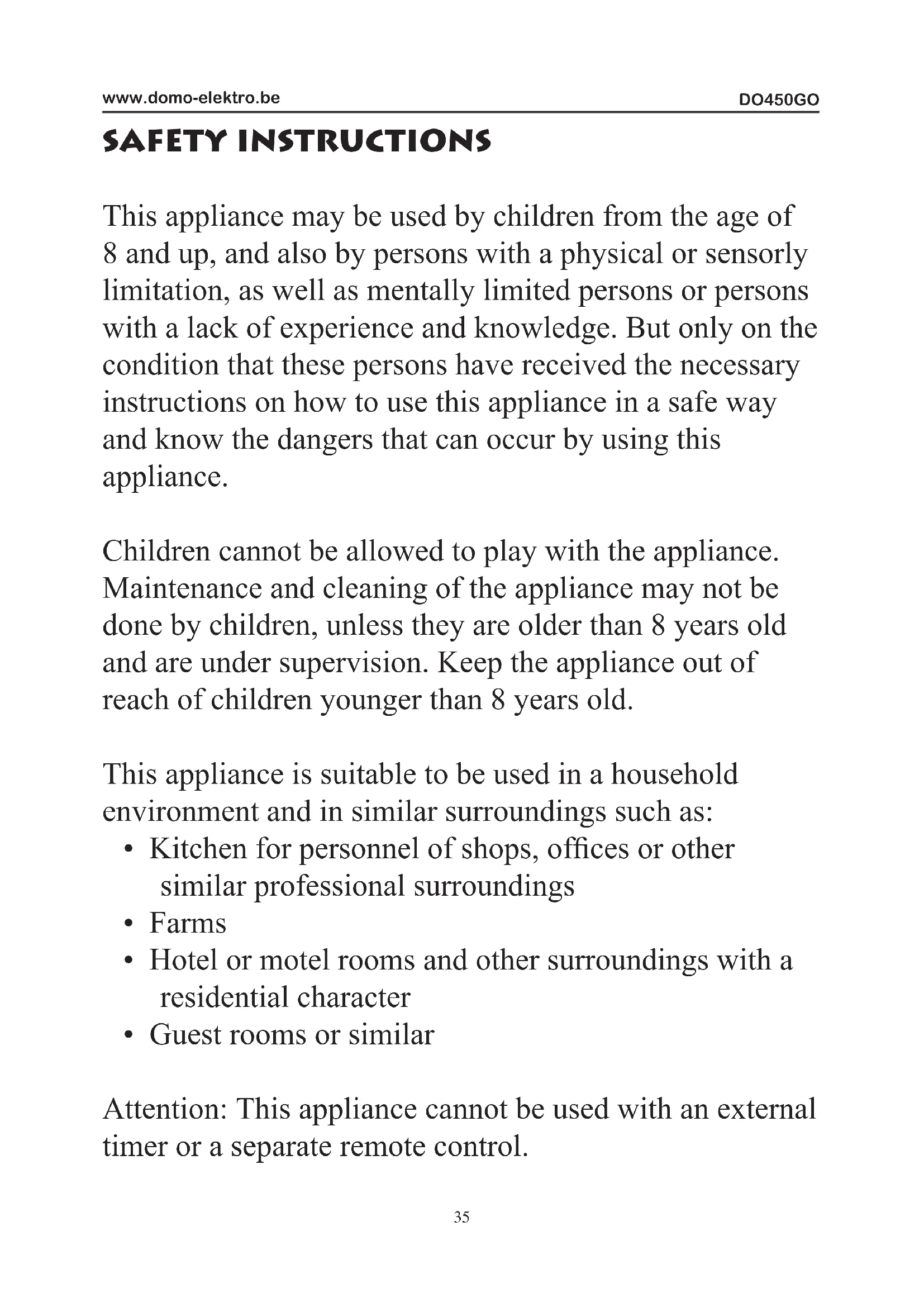

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or

electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Upon using the oven, please make sure there is 10cm (about 4 inches) of space around alle edges of the unit, so air can circulate freely around the unit.
• The unit must not be used in a closed-off space, such as a closet.

• To turn off the device: Please turn the control knob in 'off', then remove the plug from the electricity socket. Never pull on the wire to remove the plug from the socket.

• The dish and grill of the unit should never be covered by aluminium foil. This could lead to overheating within the oven.

• Use extreme caution when taking out your dish from the oven or when cleaning hot grease or other hot liquids.
• Never use metal sponges to clean the oven. Parts could become loose and land on the heating element, which in turn could shortcircuit the unit.
• Food that is too large or metal accessories should not be put inside the oven, because they could cause a fire or shortcircuit the unit.
• Fire could erupt when the unit is connected to or covered by flammable materials such as towels, curtains, wallpaper, etc...
• Never place any objects on top of the oven when it's cooking something.
• Use extreme caution when using plates or dishes that exist solely out of metal or glass
• Never place any of the following items inside the oven: cardboard, plastic, paper or anything similar
• Only store away accessories that came with the oven inside the unit when you are not using it.
• Attention: the unit cannot be used with an external timer or through a separate remote control.
• The oven can become hot when using it. Keep the electrical cord removed from hot parts and never cover the oven.

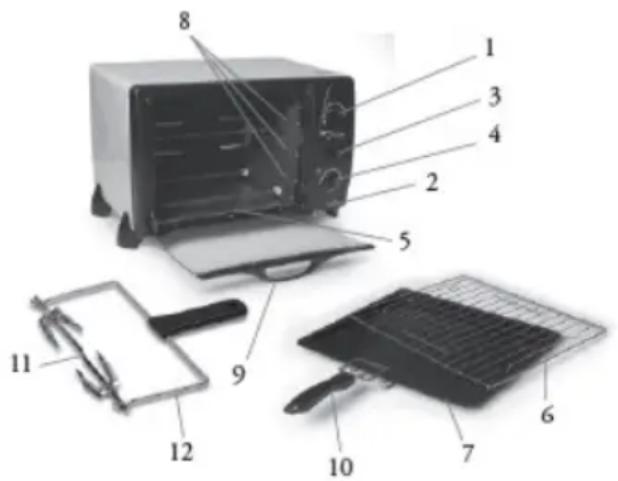

COMPONENTS

1. Temperature knob
2. Control light
3. Function knob
4. Time switch
5. Removable crumb plate
6. Grill plate
7. Baking plate
8. Adjustable to 3 heights
9. Door handle
10. Handle to remove grill and baking plate
11. Grill spit with meat holders
12. Handle to remove the grill spit

OPERATING INSTRUCTIONS

With help of the temperature knob, you can set your desired temperature ranging from keeping warm (110^) to baking and grilling (250^) . The function knob allows you to choose between the various options. These are:

: grilling, roasting and baking on plate with upper heating

(meat, fish, steaks, oven dishes, gratin dishes or subs)

ng and roasting with upper and lower heating

(lice, cookies & meat)

: grilling on the spit with upper and lower heating as well as

turning spit (meat & poultry)

ATTENTION:

When using the functions of upper heating as well as grilling on the spit, you need to open the oven door slightly (about 4cm or approximately 2 inches). The door will hold in the correct position. This way you achieve the perfect crust.

THE TIME SWITCH

You can set the time switch up to 60 minutes. You always need to set the time in order to start the cooking process. Should your dish be cooked ahead of the timer running down, you can simply turn the knob into the "off" position. When the timer runs down, you will hear a short ringing sound to warn you.

ACCESSORIES

The baking plate is used for baking cake, preparing oven dishes or baking subs.

The grill plate is used for grilling or preparing toasts. When grilling, we advise you to put the grill plate on top of the casserole to avoid excess grease to land on the heating elements.

To remove the baking and grill plates, please always use the designated handles.

The grill spit is used for grilling meat and poultry through rotating (also named rotissery). Slide the meat or poultry onto the spit and lock it in its place through both the meat holders that are located onto the spit.

Always be mindful that the meat or poultry does not touch the heating element and the spit can rotate smoothly. When using it for poultry, you need to pin down drumsticks and wings so they do not hinder the rotating of the spit in any way. Afterwards you place the spit into the oven. Keep the end of the squared side on the left when facing the oven door and click the opposite side into the right side of the oven wall.

Then you should be able to simply slide the left side of the spit in its place on the left side of the oven. We advise you to keep the baking plate below the spit, to prevent excess grease or meat juices from dripping onto the heating elements. To remove the spit from the oven after grilling, use the designated handle.

THE VARIOUS PREPARATION METHODS

Roasting:

-First, preheat the oven for about 15 minutes to 220^ .

-Place the meat on the baking plate.

-Slide the baking plate into the lower half of the oven.

-Set the desired temperature and turn the function knob into position:

• Turn on the oven by setting the time knob to the appropriate time.

• To check whether or not your dish is done, use the handle to remove the baking plate.

-As soon as you are satisfied with the result, remove the baking plate entirely and turn off the oven.

Grilling:

-Set the temperature knob to 220^ and the function knob into position:

-Preheat the oven for about 15 minutes.

-Place the grill plate onto the baking plate with the meat on top of that.

• The meat needs to be positioned as closely as possible to the upper heating elements, without actually touching them.

• To get that crispy brown surface, be sure to open the oven door just slightly (about 2 inches, or 4cm ).

Grilling with spit:

-Poultry needs to be slid onto the spit (drumsticks and wings need to be pinned down as well), so as to not hinder the spit when turning.

-Preheat the oven for about 15 minutes on 220^

-Place the grill spit as mentioned above and turn the knob into position:

-Make sure the oven door is opened slightly (about 2 inches, or 4cm

• When your meat or poultry is done, use then designated handle to remove the spit from the oven.

ATTENTION:

• Never touch the housing of the oven when it's running, this prevents you from receiving burn wounds or other injuries.

• Always pay extra attention when removing the baking plate, grill plate or grill spit from the hot oven. Always use exclusively the designated handles to do so.

MAINTENANCE AND CLEANING

Always remove the plug from the socket when starting to clean. Try to keep the oven as clean as possible throughout using it. All loose parts and accessories can be used in the dishwasher or cleaned manually.

The oven itself can never be immersed in water or can come in touch with running water when cleaning. You may use a damp cloth to clean the out- and inside of the unit.

The oven door can be washed after it's cooled down. Use a bit of detergent or a glass cleaner for persistent dirt.

The inside of the oven is self cleaning. Pour a bit of salted water onto the baking plate, slide it into the lower half of the oven and turn the unit on for about 10 minutes with the function knob into the upper and lower heating position.
