Product Type	Touchscreen Tablet
Brand	HUAWEI
Model	MediaPad M5 Lite (BAH2-W19)
Screen Size	10.1 inches (1920 x 1200 pixel resolution)
Approximate Weight	475 g
Approximate Dimensions	243 x 164 x 7.8 mm
Operating System	Android 8.0 (Oreo)
Processor	Hisilicon Kirin 659 (octa-core)
RAM Memory	3 GB or 4 GB depending on version
Internal Storage	32 GB or 64 GB expandable via microSD
Connectivity	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2, USB-C
Rear Camera	8 megapixels
Front Camera	8 megapixels
Sensors	Fingerprint, accelerometer, gyroscope, proximity, ambient light
Battery	Lithium polymer 7500 mAh (reference HB2994I8ECW)
Included Charger	Power adapter 5V/2A or 9V/2A (model HW-059200XHQ / HW-090200XH0)
Battery Life	Up to 10 hours of web browsing or video playback
Operating Temperature	0°C to 35°C
Storage Temperature	-20°C to 45°C
SAR (head/trunk)	0.81 W/kg
Maintenance	Avoid dust, humidity, magnetic fields; use approved accessories
Available Spare Parts	Power adapter, USB-C cable, battery (replacement by professional)
Repairability	Sealed battery, repair advised at authorized center
Warranty	2 years (according to local regulations)

Frequently Asked Questions - MediaPad M5 Lite HUAWEI

How to turn the tablet on and off?

To turn on, press and hold the power button until the screen lights up. To turn off, press and hold the power button and then select the power off option.

How to insert a microSD card or SIM card?

Use the provided eject pin to open the card tray. Insert the card correctly oriented and close gently. Be careful not to scratch the device.

How to set up the fingerprint sensor?

Go to Settings > Security > Fingerprint. Follow the instructions to register one or more fingerprints. Then use them to unlock the tablet or authorize purchases.

What safety precautions should I take with the tablet?

Keep the device at least 15 cm away from electronic implants, use only approved accessories, avoid extreme temperatures (0-35°C), and do not expose it to moisture or dust.

How to update the software?

Go to Settings > System > Software update. The device will search for available updates. Download and install the recommended version.

What is SAR and what is its value for this tablet?

The SAR (Specific Absorption Rate) measures the RF energy absorbed by the body. For the MediaPad M5 Lite, the maximum measured value is 0.81 W/kg, compliant with European standards.

Can I use the tablet while charging?

Yes, but it is recommended to use the original charger and not to cover the device while charging to avoid overheating. Unplug the charger after use.

Can I use the tablet on an airplane?

Follow the airline's instructions. Generally, airplane mode must be activated to disable wireless connections. In-flight use may be prohibited.

How to clean the screen and casing?

Turn off the device. Use a soft, dry cloth without chemicals. For stubborn stains, lightly dampen the cloth with water. Avoid any liquid entering the openings.

How to recycle the tablet at end of life?

Do not dispose of the device with household waste. Drop it off at a WEEE collection point or return it to your retailer. See the website http://consumer.huawei.com/en/ for more information.

USER MANUAL MediaPad M5 Lite HUAWEI

English (United Kingdom)....1

Français....10

Deutsch....22

Italiano....32

Español.... 42

Português....53

Nederlands....64

Русский ....74

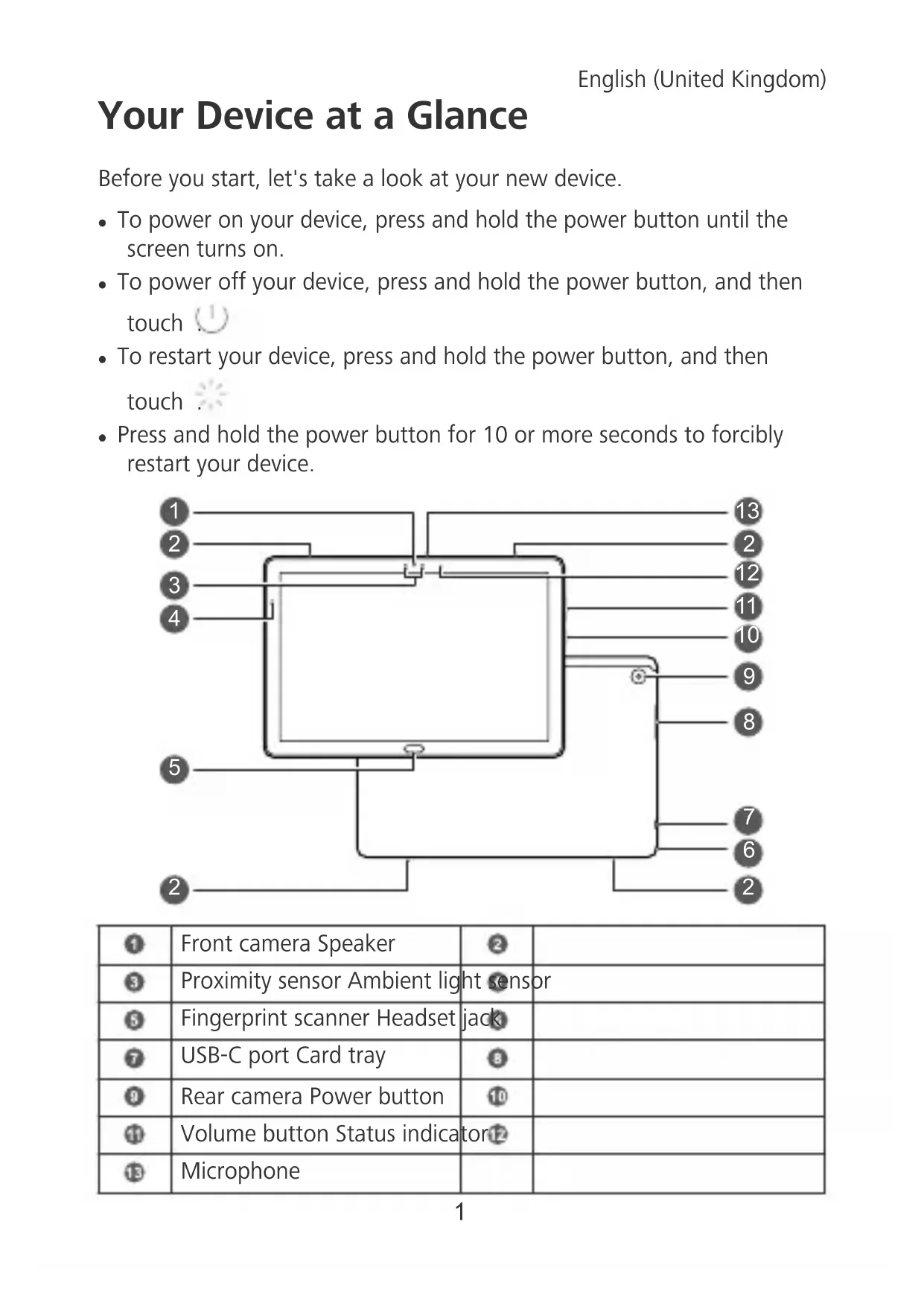

Your Device at a Glance

Before you start, let's take a look at your new device.

• To power on your device, press and hold the power button until the screen turns on.
• To power off your device, press and hold the power button, and then touch (1)

- To restart your device, press and hold the power button, and then touch.

- Press and hold the power button for 10 or more seconds to forcibly restart your device.

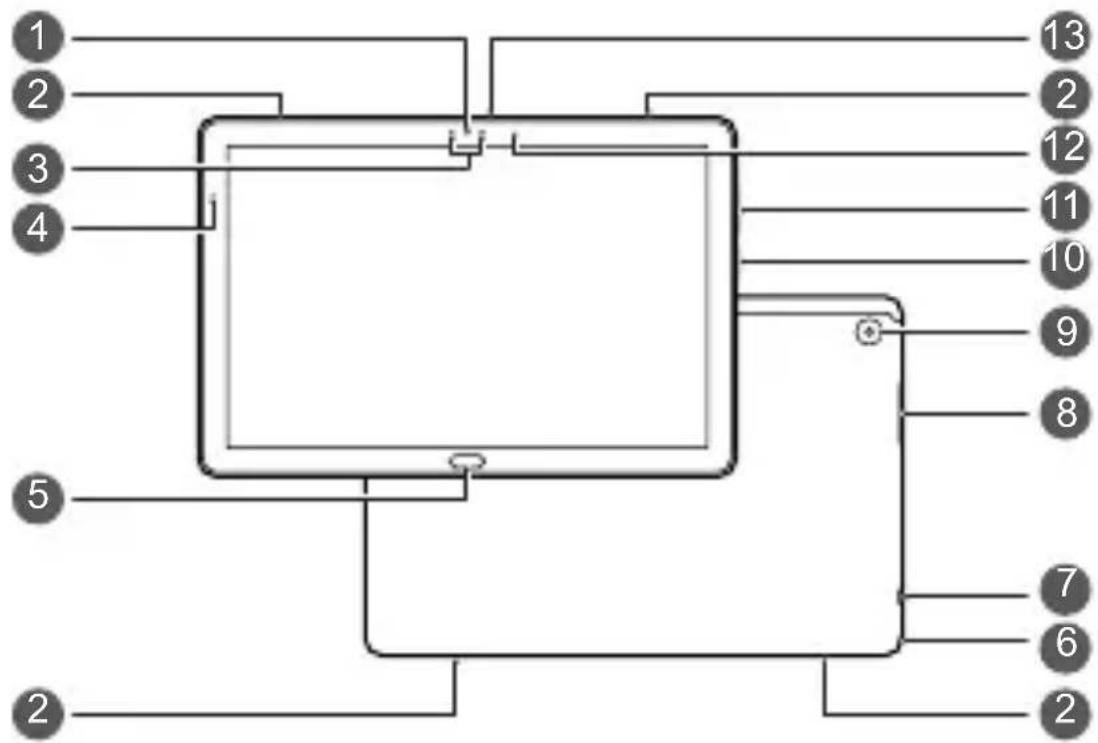

1 2 3 4 5 2 7 6 8 9 10 11 12 2 13

1	Front camera Speaker	2
3	Proximity sensor Ambient light sensor
5	Fingerprint scanner Headset jack
7	USB-C port Card tray	8
9	Rear camera Power button	10
11	Volume button Status indicator12
13	Microphone

Getting Started

- Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device.

- Be careful not to scratch your device or hurt yourself when using the eject pin.

- Store the eject pin out of the reach of children to prevent accidental swallowing or injury.

Follow the instructions in the following figures to set up your device. Please use the eject pin included.

BAH2-W19:

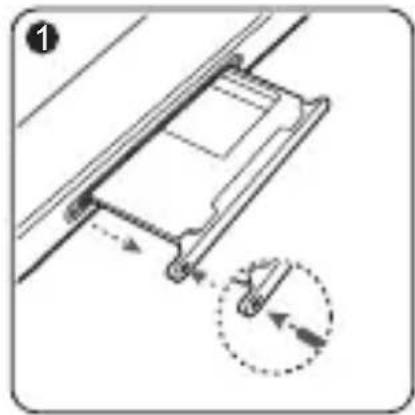

Technical diagram of a mechanical assembly with an arrow indicating motion, no text or symbols present

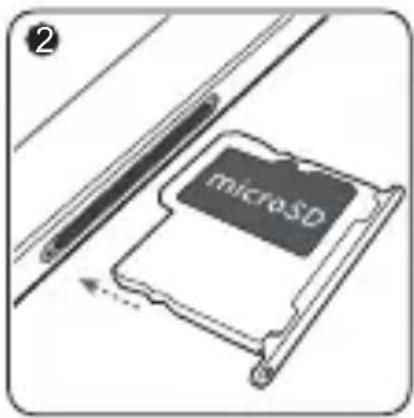

2 microSD

For More Information

If you encounter any problems whilst using your device, you can get help from the following resources:

• Go to Tips for function details and usage tips.
• Visit http://consumer.huawei.com/en to view device information, frequently asked questions and other information.
• Visit http://consumer.huawei.com/en/support for the most up-to-date contact information for your country or region.
• You can find service hotlines, retailer addresses, service policies and more information for your local region in HiCare.

Go to Settings and touch System > About tablet > Legal to view legal information for your product.

Go to Settings and touch System > About tablet > Legal > Safety information to view safety information for your product.

Go to Settings and touch System > About tablet > Authentication info to view regulatory information for your product.

Go to Settings and touch System > Certification logos to view more information on certification logos for your product.

All pictures and illustrations in this guide, including but not limited to the device colour, size, and display content, are for your reference only. The actual device may vary. Nothing in this guide constitutes a warranty of any kind, express or implied.

Safety Information

Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.

Operation and Safety

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Using an unapproved or incompatible power adapter, charger or battery may damage your device, shorten its lifespan or cause a fire, explosion or other hazards.
• Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +45 °C.
• Pacemaker manufacturers recommend maintaining a minimum distance of 15 cm between a pacemaker and a wireless device to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.
• Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves or radiators.
• Adhere to local laws and regulations while using the device. To reduce the risk of accidents, do not use your device while driving.
• While flying in an aircraft or immediately before boarding, ensure that you use your device according to the instructions provided. Using a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operations or be illegal under law.
• To prevent damage to your device's parts or internal circuits, do not use it in dusty, smoky, damp or dirty environments or near magnetic fields.

• When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.

• Unplug the charger from the electric socket and from the device when not in use.

• Do not use, store or transport the device where flammables or explosives are stored (e.g. in a petrol station, oil depot or chemical plant). Using your device in these environments increases the risk of explosion or fire.
• Dispose of this device, the battery and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion or other hazards.
• Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device.
• Adhere to any rules or regulations set forth by hospitals and health care facilities.
• If you must make or answer a call, stop your vehicle at a safe location first.
• Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.

Potentially Explosive Atmosphere

Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power on your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as

propane or butane) whether this device can be safely used in their vicinity.

Disposal and recycling information

The crossed-out wheelie bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in normal household waste. It is the responsibility of the user to dispose of the equipment using a designated collection point or service for separate recycling of waste electrical and electronic equipment (WEEE) and batteries according to local laws.

Proper collection and recycling of your equipment helps ensure EEE waste is recycled in a manner that conserves valuable materials and protects human health and the environment. Improper handling, accidental breakage, damage, and/or improper recycling at the end of its life may be harmful for your health and the environment. For more information about where and how to drop off your EEE waste, please contact your local authorities, retailer or household waste disposal service or visit the website http://consumer.huawei.com/en/.

Reduction of hazardous substances

This device and any electrical accessories are compliant with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH, RoHS and Batteries (where included) regulations, etc. For declarations of conformity about REACH and RoHS, please visit our web site http://consumer.huawei.com/certification.

EU Regulatory Conformance

Body worn operation

The device complies with RF specifications when used at a distance of 0.50 cm from your body. Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

The highest SAR value reported for this device type when tested in portable exposure conditions is

BAH2-W19 0.81 W/kg

Statement

Hereby, Huawei Technologies Co., Ltd. declares that this device BAH2-W19 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

The most recent and valid version of the DoC (Declaration of Conformity) can be viewed at http://consumer.huawei.com/certification.

This device may be operated in all member states of the EU.

Observe national and local regulations where the device is used.

This device may be restricted for use, depending on the local network.

Restrictions in the 2.4 GHz band:

Norway: This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund.

Restrictions in the 5 GHz band:

According to Article 10 (10) of Directive 2014/53/EU, the packaging shows that this radio equipment will be subject to some restrictions when placed on the market in Belgium (BE), Bulgaria (BG), the Czech Republic (CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE), the United Kingdom (UK), Turkey (TR), Norway (NO), Switzerland (CH), Iceland (IS), and Liechtenstein (LI). The WLAN function for this device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.

Frequency Bands and Power

(a) Frequency bands in which the radio equipment operates: Some bands may not be available in all countries or all areas. Please contact the local network provider for more details.
(b) Maximum radio-frequency power transmitted in the frequency bands in which the radio equipment operates: The maximum power for all bands is less than the highest limit value specified in the related Harmonised Standard.

The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows:

BAH2-W19 Bluetooth: 10 dBm, Wi-Fi 2.4G: 20 dBm, Wi-Fi 5G: 5150-5250MHz: 23 dBm, 5250-5350MHz: 20 dBm, 5470-5725MHz: 20 dBm

Accessories and Software Information

Some accessories are optional in certain countries or regions. Optional accessories can be purchased from a licenced vendor as required. The following accessories are recommended:

Adapters: HW-059200XHQ/HW-090200XH0 (X represents the different plug types used, which can be either C, U, J, E, B, A, I, R, Z or K, depending on your region)

Batteries: HB2994I8ECW

The product software version is BAH2-W19: BAH2-W19

8.0.0.117(C432). Software updates will be released by the manufacturer to fix bugs or enhance functions after the product has been released. All software versions released by the manufacturer have been verified and are still compliant with the related rules.

All RF parameters (for example, frequency range and output power) are not accessible to the user, and cannot be changed by the user.

For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at http://consumer.huawei.com/certification.

ErP Product Information

Huawei Technologies Co., Ltd. hereby declares that its products conform to the Energy-related Products Directive (ErP) 2009/125/EC. For detailed ErP information and the user manuals required by Commission Regulation, please visit: http://consumer.huawei.com/en/certification.

Legal Notice

Trademarks and Permissions

HUAWEI, HUAWEI are trademarks or registered

trademarks of Huawei Technologies Co., Ltd.

Android™ is a trademark of Google Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license.

Wi-Fi®, the Wi-Fi CERTIFIED logo and the Wi-Fi logo are trademarks of Wi-Fi Alliance.

ENERGY STAR® MARK

For information related to ENERGY STAR ^® , please visit the website www.energystar.gov.

Privacy Policy

To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/privacy-policy.

Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.

THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE ANY KIND OF WARRANTIES.
