USER MANUAL Evoke H6 PURE

Thank you for choosing the Evoke H6. This user manual explains how to use the various features of your Evoke H6. If you need more help, you can view our help topics at support.pure.com.

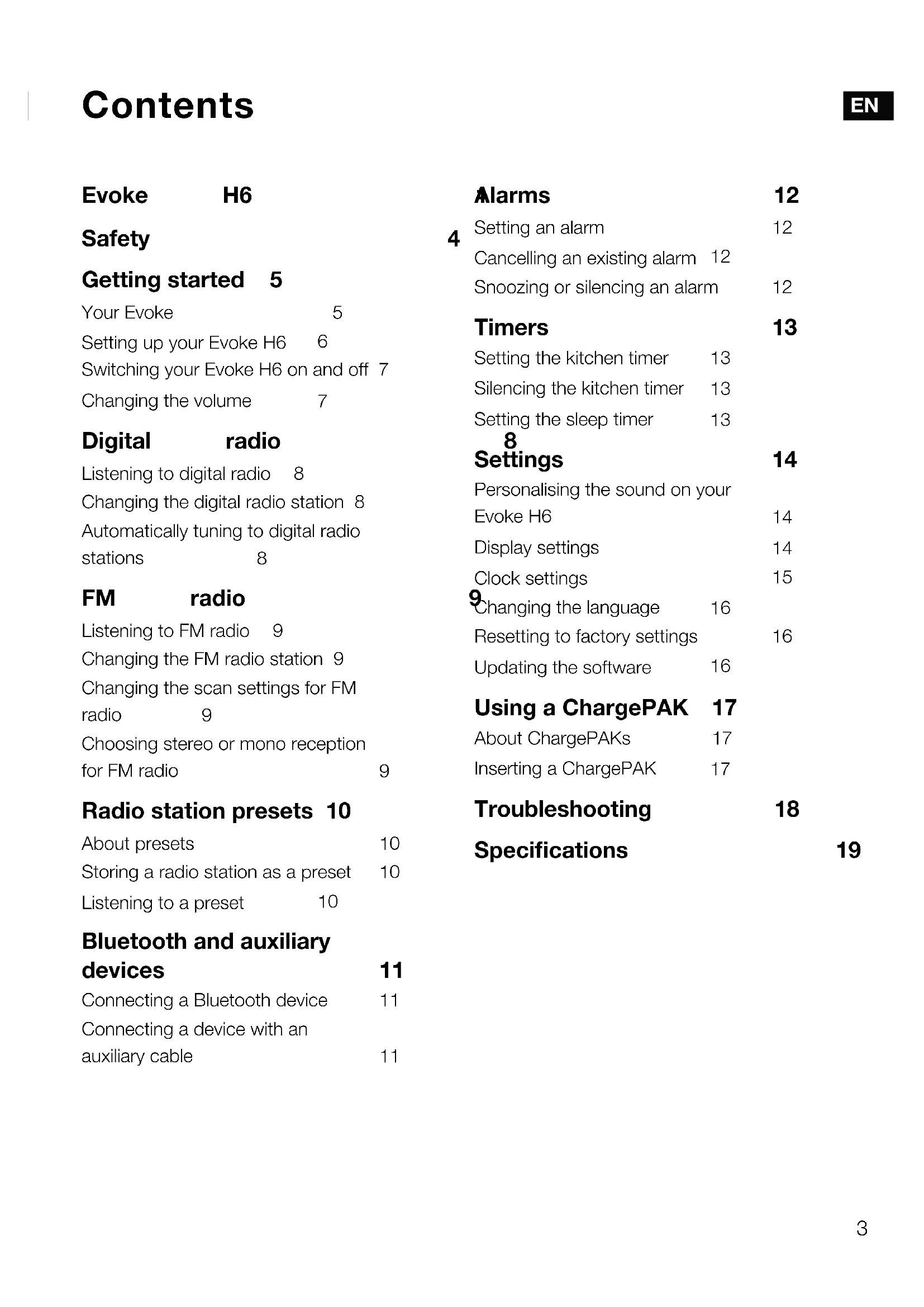

Contents

Evoke H6

Safety

Getting started 5

Your Evoke 5

Setting up your Evoke H6 6

Switching your Evoke H6 on and off 7

Changing the volume 7

Digital radio

Listening to digital radio 8

Changing the digital radio station 8

Automatically tuning to digital radio

stations 8

FM radio

Listening to FM radio 9

Changing the FM radio station 9

Changing the scan settings for FM

radio 9

Choosing stereo or mono reception

for FM radio 9

Radio station presets 10

About presets 10

Storing a radio station as a preset 10

Listening to a preset 10

Bluetooth and auxiliary devices 11

Connecting a Bluetooth device 11

Connecting a device with an

auxiliary cable 11

Alarms 12

4

Setting an alarm 12

Cancelling an existing alarm 12

Snoozing or silencing an alarm 12

Timers 13

Setting the kitchen timer 13

Silencing the kitchen timer 13

Setting the sleep timer 13

8

Settings 14

Personalising the sound on your

Evoke H6 14

Display settings 14

Clock settings 15

Changing the language 16

Resetting to factory settings 16

Updating the software 16

Using a ChargePAK 17

About ChargePAKs 17

Inserting a ChargePAK 17

Troubleshooting 18

Specifications 19

Safety instructions and cautions

Symbols used on this product

Symbol Description
ΔΩ	This symbol is used on the product to indicate a caution and that instructions should be read before use.
—	This symbol indicates DC voltage.
∅	This symbol indicates where the product is switched on or put into standby.

1. Read, heed and retain these instructions - All the safety and operating instructions should be read before this product is used and retained for future reference. All warnings on the appliance and in the operating instructions should be followed
2. Failure to install or use the product in accordance with these instructions may impair the safety of the product and invalid the warranty.
3. Use only power supply listed in these user manual/user instructions (supplied by Pure with model number SW1202400-IM) to power the equipment and do not use the power supply for any other purpose.
4. The direct plug-in adapter is used as a disconnect device, the disconnect device shall remain readily operable and accessible.
5. Do not immerse in water or use in a wet / moist environment, such as in the shower or bathroom if plugged into the mains supply. The power supply shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, placed above it.
6. Do not remove screws from or open the product casing.
7. Keep the product away direct sunlight and from heat sources such as radiators, heaters or other appliances that produce heat.
8. Danger of explosion if the battery is incorrectly replaced (ensure correct polarity). Replace only with the same or equivalent type. The battery shall not be exposed to excessive heat such as sunshine, fire or similar. Attention is drawn to the environmental aspects of battery disposal.
9. Do not expose the product to naked flame sources, such lighted candles which should not be placed on or near the product.
10. Ventilation should not be impaired by covering the product or power supply.
11. Clean only with a dry cloth.
12. This product is intended for use in moderate climates.
13. If the product is used in a manner not specified by the instructions, the product's protection could be impaired.
14. Do not use the product if any damage is noticed.
15. Product repairs are only allowed to be carried out by competent and authorised personnel.

Getting started

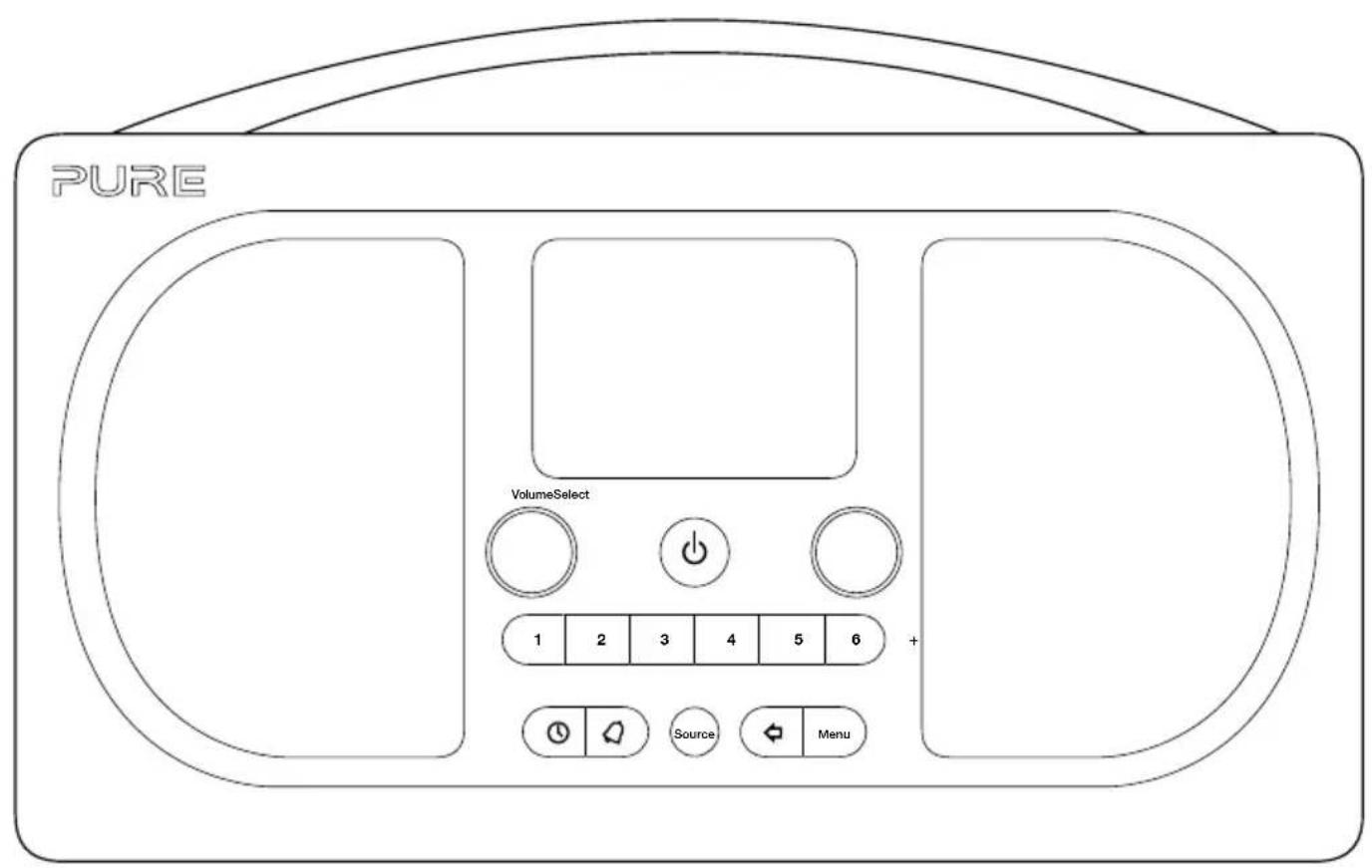

Your Evoke

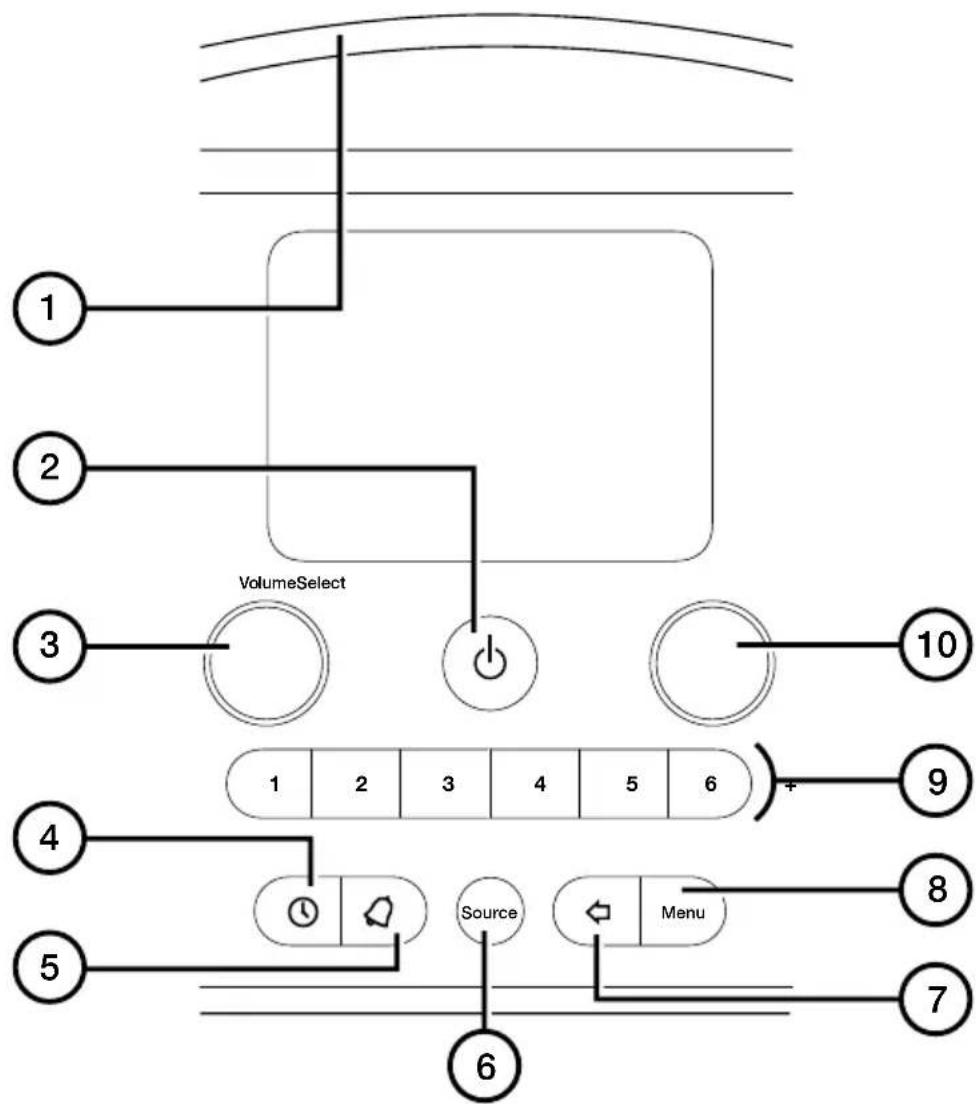

Front controls

1 Snoozehandle Tap to snooze an alarm or brighten the screen when dimmed
2 Standby Switch your Evoke H6 on and off, or put it in standby
3 Volume Turn to change the volume, press to mute the volume
4 Timer Press to set a sleep timer
5 Alarm Press to set an alarm or a kitchen timer
6 Source Press to change between digital radio, FM radio, Bluetooth, and auxiliary input
7 Back Press when in the menu to go back to the previous screen
8 Menu Press to change settings and options
9 Presets Press to store and access your favourite radio stations
10 Select Turn and press to browse radio stations, or select settings and options

Rear connections

12V DC 2.4A

Input for supplied mains adapter only

3.5mm output for stereo headphones

x inA

Analogue stereo input for auxiliary cables

Micro USB connector for software updates

Setting up your Evoke H6

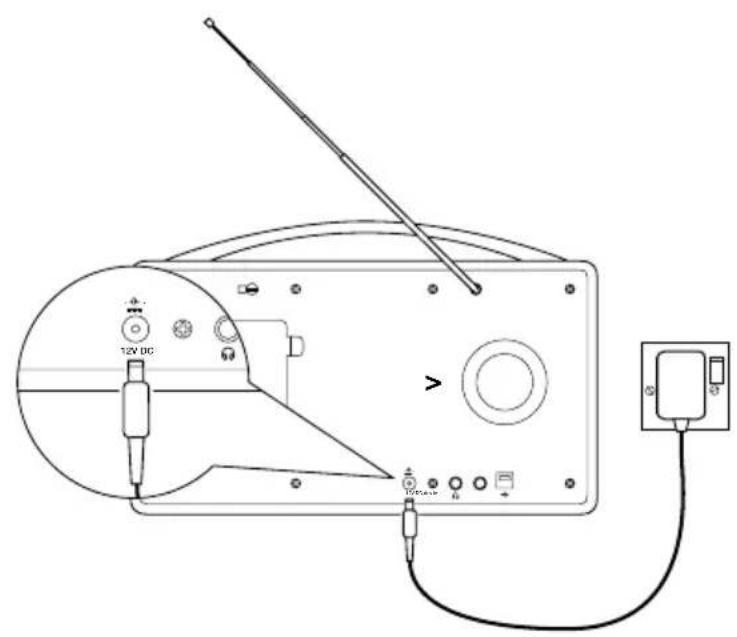

To set up your Evoke H6:

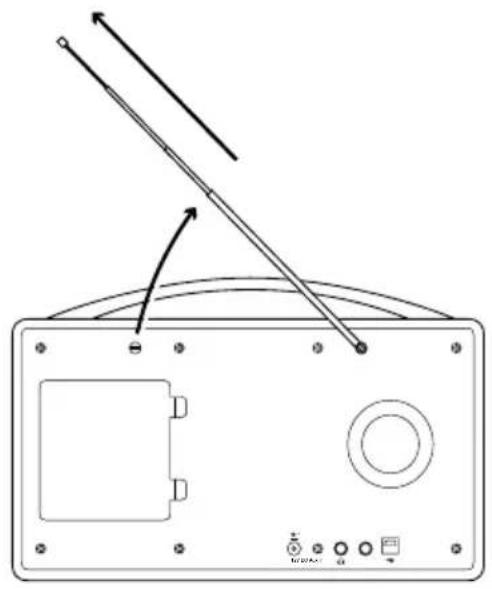

1. Unclip the aerial and fully extend it.
2. Connect the supplied mains adapter to the input on the back of your Evoke H6.
3. Plug the mains adapter into the mains supply.

Switching your Evoke H6 on and off

If you have a ChargePAK rechargeable battery, insert it before you switch your Evoke H6 on. Read more about using a ChargePAK on page 17.

To switch your Evoke H6 on:

Press

Note: When you switch your Evoke H6 on for the first time, it starts tuning to digital radio stations. After the autotune is complete, you can start listening to digital radio.

To switch your Evoke H6 off or put it in standby:

Press

If your Evoke H6 is being powered by a ChargePAK, your Evoke H6 switches off. If your Evoke H6 is connected to a power socket, your Evoke H6 enters standby. In standby, your Evoke H6 uses a low amount of power and displays the time and date on the screen.

Changing the volume

To change the volume:

To increase the volume, turn the Volume dial clockwise.
To decrease the volume, turn the Volume dial anticlockwise.

To mute the volume:

• Press the Volume dial.

Digital radio

Listening to digital radio

To listen to digital radio:

• Press until 'Digital Radio' is displayed.

Tip: Some digital radio stations also broadcast information and graphics, such as music album artwork or weather updates. Press the Select dial to change between slideshow, large slideshow and display modes.

Changing the digital radio station

To change the digital radio station:

1. Turn the Select dial left or right to browse through the available radio stations.
2. Press the Select dial to change radio station.

Station List

BBC Radio 1
BBC Radio 1Xtra
BBC Radio 2
BBC Radio 3
BBC Radio 4
BBC Radio 4Extra
BBC Radio 5 Live

Tip: A >> next to a radio station name means the station has a secondary service, which provides more content. The secondary service is listed below the radio station with a << next to the service name. Secondary services may only be available at certain times.

A '?' next to a radio station name means the station is inactive or unavailable.

Automatically tuning to digital radio stations

When you switch your Evoke H6 on for the first time, it automatically scans for digital radio stations. If you move your Evoke H6 to a new location, perform an autotune to update the list of radio stations.

To automatically tune to digital radio stations:

1. Turn and press the Select dial to choose 'Autotune'.

Your Evoke H6 starts scanning for digital radio stations.

FM radio

Listening to FM radio

To listen to FM radio:

Press until FM' is displayed.

Changing the FM radio station

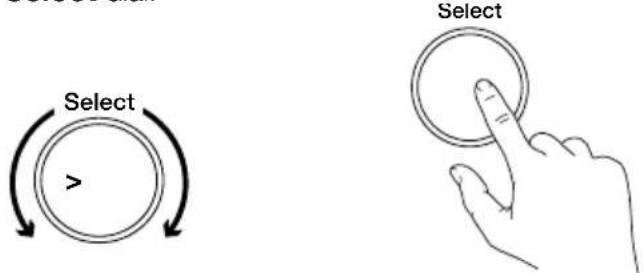

To change the FM radio station:

To scan to the previous or next radio station, turn the Select dial left or right and then press the Select dial.

• To manually tune to a radio station, turn the Select dial left or right. The frequency steps up or down by 0.05 MHz.

Changing the scan settings for FM radio

When you scan for FM radio stations, you can include all radio stations or only those with a strong signal.

To change scan settings for FM radio:

1. Press Monu
2. Turn and press the Select dial to choose 'Scan Setting'.
3. Turn and press the Select dial to choose 'Strong Stations Only' or 'All Stations'.

Choosing stereo or mono reception for FM radio

By default, your Evoke H6 uses stereo reception for FM radio. If your FM radio stations have a weak signal, try using mono reception to improve the signal strength.

To choose stereo or mono reception:

1. Press Monu
2. Turn and press the Select dial to choose 'Stereo'.
3. Turn and press the Select dial to choose 'FM Stereo' or 'Forced Mono'.

Radio station presets

About presets

You can store your favourite radio stations as presets. You can use presets to quickly tune to your stored radio stations whenever you want.

On the front of your Evoke H6, there are six preset buttons. Use 1 to 5 for quick access to your favourite radio stations. Use 6+ to open a list of all your presets.

You can store up to 20 digital radio stations and up to 20 FM radio stations as presets.

Storing a radio station as a preset

To store a radio station to a preset from 1 to 5:

1. Tune to the radio station you want to store.
2. Choose a preset button from 1 to 5 then press and hold it until a is displayed.

Tip: If there is already a radio station stored to the preset you've selected, the new station replaces it.

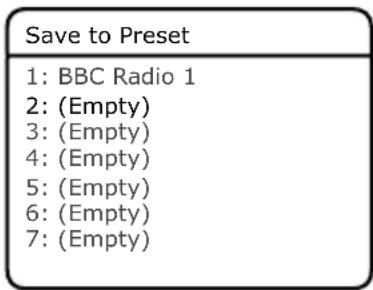

To store a radio station to the preset list:

1. Tune to the radio station you want to store.
2. Press and hold 6+ until the preset list is displayed.
3. Turn and press the Select dial to choose a preset number. A is displayed.

Tip: If there is already a radio station stored to the preset you've selected, the new station replaces it.

Listening to a preset

To listen to a preset from 1 to 5:

• Press a preset button from 1 to 5. For example, to listen to the radio station stored as preset 2, press 2.

To listen to any preset:

1. Press 6 + to open the preset list.
2. Turn and press the Select dial to choose a preset.

Bluetooth and auxiliary devices

Connecting a Bluetooth device

You can use Bluetooth to wirelessly connect to a device, such as a mobile phone or tablet. You can then stream music from your mobile phone or tablet through your Evoke H6.

The first time you connect a Bluetooth device to your Evoke H6, you need to pair them. After you've paired a device with your Evoke H6, your Evoke H6 remembers it for the next time.

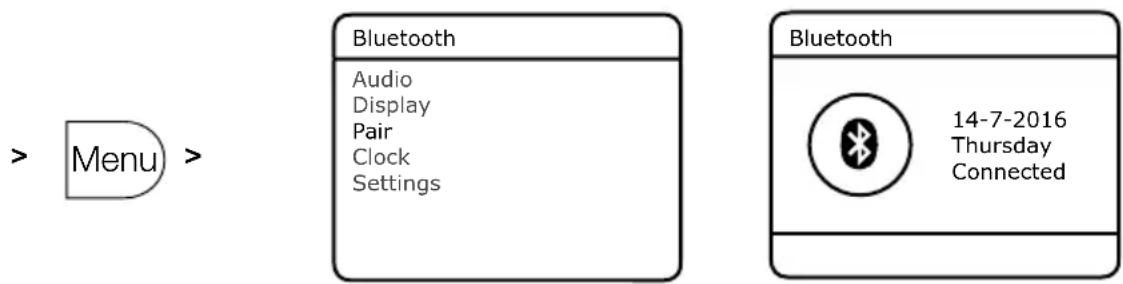

To connect a Bluetooth device:

1. Press until 'Bluetooth' is displayed.
2. Press Monu
3. Turn and press the Select dial to choose 'Pair'.

Your Evoke H6 is now discoverable for 5 minutes, which means other Bluetooth devices can find it.

1. On your Bluetooth device, switch Bluetooth on and connect to your Evoke H6.

Note: For more information, see your Bluetooth device's user manual. If you are asked to enter a passcode, enter 0000.

When 'Connected' is displayed on your Evoke H6 screen, your Evoke H6 is ready to stream music.

Tip: If you want to connect a different Bluetooth device to your Evoke H6, switch off Bluetooth on the connected device first.

Connecting a device with an auxiliary cable

You can use an auxiliary cable to connect a device, such as an MP3 player, to your Evoke H6. You can then enjoy music saved on the device through your Evoke H6.

To connect a device with an auxiliary cable:

1. Press until 'Auxiliary Input' is displayed.
2. Insert an auxiliary cable into the Aux in socket on the back of your Evoke H6.
3. Insert the other end of the auxiliary cable into the device you want to connect.

Your Evoke H6 is now ready to play music from the connected device.

Alarms

To wake up to your favourite radio station, you can set up to two alarms on your Evoke H6.

Note: You cannot set alarms when your Evoke H6 is being powered by a ChargePAK.

Setting an alarm

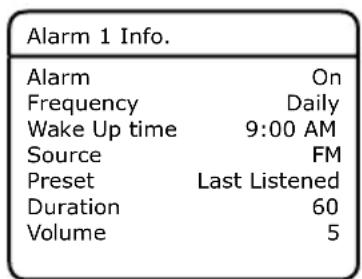

To set an alarm:

1. Press .
2. Turn and press the Select dial to choose 'Alarm 1' or 'Alarm 2'.
3. Turn and press the Select dial to change settings for the alarm.

'Alarm' Turn the alarm on or off

'Frequency' Choose how often you want the alarm to sound

'Wake Up time' Choose the time for the alarm

'Source' Choose to wake up to an FM or digital radio station, or a buzzer

Tip: To choose FM or digital radio, you need to have stored a radio station as a preset.

'Preset' Choose a radio station to wake up to

'Duration' Choose how many minutes the alarm sounds for

'Volume' Choose the volume for the alarm

1. When you have made all of your changes, press to exit the menu.

The 1 or 2 symbol is displayed at the bottom of the screen when an alarm is set.

Cancelling an existing alarm

To cancel an existing alarm:

1. Press
2. Turn and press the Select dial to choose 'Alarm 1' or 'Alarm 2'.
3. Turn and press the Select dial to change the 'Alarm' setting to 'Off'.

Snoozing or silencing an alarm

To snooze an alarm:

• Touch the SnoozeHandle.

The alarm snoozes for 5 minutes.

To silence an alarm:

Press

Timers

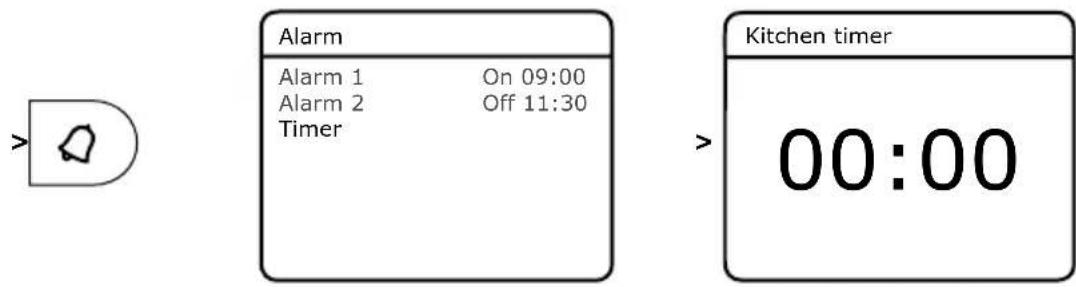

Setting the kitchen timer

The kitchen timer counts down and then ends with an alarm tone.

To set the kitchen timer:

1. Press
2. Turn and press the Select dial to choose 'Timer'.
3. Turn the Select dial to choose the duration of the timer.
4. Press the Select dial to start the timer.

The X symbol is displayed at the bottom of the screen when the timer is set.

Silencing the kitchen timer

To silence the kitchen timer:

Press.

Setting the sleep timer

The sleep timer puts your Evoke H6 in standby after a set amount of time.

To set the sleep timer:

1. Press
2. Turn the Select dial to choose the duration of the timer. Tip: You can choose between 15 and 90 minutes.
3. Press the Select dial to start the timer. The symbol and remaining time is displayed at the bottom of the screen when the timer is set.

Settings

Personalising the sound on your Evoke H6

Use the equaliser and boost setting to get the most out of your music. There are several equaliser settings set up already. For example, to hear classical music at its best, change the equaliser setting to 'Classic'. You can also customise the equaliser to change the treble, bass and loudness.

To use the equaliser:

1. Press Menu

2. Turn and press the Select dial to choose 'Audio'.

3. Turn and press the Select dial to choose 'Equaliser'.
4. Choose an equaliser setting:

To choose an equaliser setting, turn and press the Select dial.
- To use custom settings, turn and press the Select dial to choose 'Custom'. Then turn and press the Select dial to change the treble, bass and loudness.

To turn boost on or off:

1. Press Menu
2. Turn and press the Select dial to choose 'Audio'.
3. Turn and press the Select dial to choose 'Boost'.
4. Turn and press the Select dial to turn boost on or off.

Display settings

Changing the information displayed on the screen

You can change the information that is displayed on the screen when you are listening to the radio. For example, you can display scrolling information about the current radio station.

To change the information displayed on the screen:

1. Press Menu
2. Turn and press the Select dial to choose 'Display'.
3. Turn and press the Select dial to choose 'Info'.
4. Turn and press the Select dial to choose the information to display.

Changing the screen brightness

Your Evoke H6 has a light sensor, which adjusts the screen brightness based on your surroundings. You can also manually change the screen brightness.

To help save energy, you can dim the screen after 10 seconds of inactivity.

To change the brightness of the screen when switched on:

1. Press Menu

2. Turn and press the Select dial to choose 'Display'.

3. Turn and press the Select dial to choose 'On Level'.

4. Turn and press the Select dial to choose a brightness level. To make your screen brighter, choose a higher number. To automatically set the screen brightness, choose 'Auto'.

To dim the screen after 10 seconds of inactivity:

1. Press Menu
2. Turn and press the Select dial to choose 'Display'.
3. Turn and press the Select dial to choose 'Duration'.
4. Turn and press the Select dial to choose 'Timed'.

To change the brightness of the screen when dimmed:

1. Press Menu
2. Turn and press the Select dial to choose 'Display'.
3. Turn and press the Select dial to choose 'Dim Level'.
4. Turn and press the Select dial to choose a brightness level. To make your screen brighter, choose a higher number.

Clock settings

Setting the time and date

Your Evoke H6 can use FM and digital radio signals to set the time and date automatically. If the time and date do not update automatically, you can set them manually.

To set the time and date automatically:

1. Press Menu
2. Turn and press the Select dial to choose 'Clock'.
3. Turn and press the Select dial to choose 'Auto Update'.
4. Turn and press the Select dial to choose how to set the time and date.

To set the time and date manually:

1. Press Menu
2. Turn and press the Select dial to choose 'Clock'.
3. Turn and press the Select dial to choose 'Set Time/Date'.
4. Turn and press the Select dial to set the date.
5. Turn and press the Select dial to set the time.

Changing the time format

To change the time format:

1. Press Menu
2. Turn and press the Select dial to choose 'Clock'.
3. Turn and press the Select dial to choose 'Set 12/24 Hour'.
4. Turn and press the Select dial to choose the time format.

Changing the date format

To change the date format:

1. Press Menu
2. Turn and press the Select dial to choose 'Clock'.
3. Turn and press the Select dial to choose 'Set Date Format'.
4. Turn and press the Select dial to choose the date format.

Changing the language

You can change the language of menus and settings.

To change the language:

1. Press [Menu].
2. Turn and press the Select dial to choose 'Settings'.
3. Turn and press the Select dial to choose 'Language'.
4. Turn and press the Select dial to choose a language.

Resetting to factory settings

A factory reset removes all stored presets, alarms, timers and settings on your Evoke H6.

Note: You cannot undo a factory reset.

To reset to factory settings:

1. Press Menu
2. Turn and press the Select dial to choose 'Settings'.
3. Turn and press the Select dial to choose 'Factory Reset'.
4. Turn and press the Select dial to choose 'Yes'. Your Evoke H6 resets to factory settings and then restarts.

Updating the software

Pure may provide software updates to your Evoke H6. To check for available software updates, visit support.pure.com.

Tip: To be contacted when software updates are available, you can register your product at pure.com/register.

To check the current software version:

1. Press Menu
2. Turn and press the Select dial to choose 'Settings'.
3. Turn and press the Select dial to choose 'Software Version'.

To update the software:

1. Use a Micro USB cable to connect your Evoke H6 to your computer.
2. Follow the instructions provided with the software update file.

Using a ChargePAK

About ChargePAKs

A ChargePAK is a rechargeable battery pack that allows you to listen to your music anywhere. When your Evoke H6 is connected to a power outlet, it charges the ChargePAK. You can then disconnect your Evoke H6 from the power and take your music with you.

Inserting a ChargePAK

Note: Your Evoke H6 is only compatible with a Pure ChargePAK F1. Do not use any other batteries or ChargePAK models with your Evoke H6.

To insert a ChargePAK:

1. Switch your Evoke H6 off and disconnect it from the power supply.

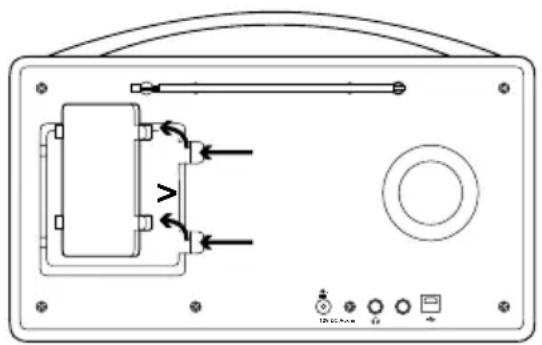

2. At the back of your Evoke H6, press the two clips on the battery cover to remove it.

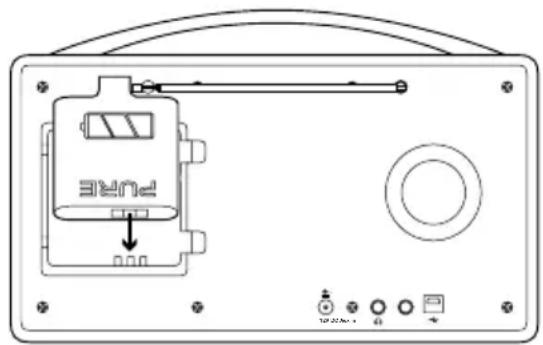

3. Insert the ChargePAK into the battery compartment, with the electrical contacts on the ChargePAK facing down and the Pure label facing you.
4. Replace the battery cover.
5. Connect your Evoke H6 to the power supply.

The ChargePAK starts charging. If the ChargePAK is new or has not been used for a long time, we recommend you charge it for at least 24 hours.

Note: When the ChargePAK is charging, it is normal for it to get warm. The efficiency of the ChargePAK may decrease over time.

Troubleshooting

Problem Solution
I can’t hear any sound	Use the Volume dial to turn the volume up. For digital radio, perform an autotune. Read more on page 8. For Bluetooth or auxiliary devices, check a device is connected. Turn the volume up on the connected device.
The screen is very dark	Remove any obstructions from in front of the speaker. There is a light sensor behind the speaker grill. Turn up the screen brightness. Read more on page 14.
I can’t find an FM or digital radio station	Adjust your aerial and check it is fully extended. Move your radio to another location. For digital radio, perform an autotune. Read more on page 8. For FM radio, try using mono reception to improve the signal strength. Read more on page 9.

Radio Digital and FM radio

Frequencies DAB/DAB+

FM radio 87.5-108MHz

Bluetooth Bluetooth v4.1

A2DP support

Speaker 2xFull range3"driver unit

Audio output power 20 Watts RMS

Inputs 12V DC power adapter socket (230V supplied)

3.5mm stereo Aux In for auxiliary devices

USB connection (Micro USB) for software updates only

Outputs 3.5mm stereo headphone

Presets 20 digital radio and 20 FM radio presets

Display 2.8" colour display

Mains power adapter Adapter

Input AC 100-240V\~,50/60 Hz,0.8A

Output DC 12V , 2400mA

Main unit

DC 12V , 2.4A

ChargePAK Pure ChargePAK F1 rechargeable battery pack (available separately)

Power consumption Standby: 0.8W

Active: 4.5W

Dimensions 180mm high x 305mm wide x 128mm deep

Aerial Captive telescopic aerial

Approvals CE marked.

Compliant with R&TTE (RED 2014/53/EU after 13th June 2017) and RoHS Directives (1999/95/EC and 2011/65/EU).

ETSI EN300 401 compliant.

See pure.com for the full Declaration of Conformity.

Warranty information

Imagination Technologies Limited warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of three years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Should you have a problem with your unit please contact your supplier or contact Pure Support at http://support.pure.com

Disclaimer

Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Imagination Technologies Limited reserves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notify any person or organization of such revisions or changes.

Trademarks

Evoke, Evoke H6, Pure, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited.

Copyright

Copyright © 2016 Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited. Version 1 August 2016.

Correct disposal of this product

This marking indicates that this product should not be disposed with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection system or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Evoke H6

Changement de station radio FM 9

Changement de station radio FM

Bluetooth Supporta Bluetooth v4.1

A2DP

Altoparlante

2 x driver full range da 3"

Potenza sonora

20 Watt RMS

3,5 mm stereo Aux In for AUX-enheter

USB-tilkobling (Mikro-USB) kun til programvareoppateringer

Utganger 3,5 mm stereohodetelefoner

Certificeringen CE-markering.

Imagination Technologies Limited

Home Park Estate

Kings Langley

Herts,WD4 8LZ

United Kingdom

www.pure.com

http://support.pure.com

Pure

Deutschland

[e-mail]

http://support.pure.com
