Technical Features	VirtuFit HTR 1.0 exercise bike with magnetic resistance, LCD screen, 8 resistance levels, maximum user weight of 120 kg.
Dimensions	Compact dimensions for home use, facilitating storage.
Usage	Ideal for cardio training at home, suitable for beginner and intermediate users.
Maintenance	Regularly check screw tightness and cleanliness of components, lubricate the chain if necessary.
Safety	Use on a flat surface, do not exceed maximum weight, follow usage instructions.
General Information	2-year warranty, easy assembly, included accessories for optimal comfort (adjustable saddle, non-slip pedals).

Frequently Asked Questions - HTR 1.0 VirtuFit

How do I assemble the VirtuFit HTR 1.0?

Please follow the instruction manual provided in the package. Make sure to gather all necessary tools before starting the assembly.

What is the maximum weight supported by the VirtuFit HTR 1.0?

The VirtuFit HTR 1.0 supports a maximum weight of 120 kg.

How do I adjust the resistance of the exercise bike?

You can adjust the resistance using the resistance knob located on the handlebar. Turn it clockwise to increase resistance and counterclockwise to decrease it.

Does the calorie counter always work?

The calorie counter works based on the intensity of your workout. Make sure the motion sensors are properly positioned for accurate calculation.

How do I maintain my VirtuFit HTR 1.0?

To keep your bike in good condition, clean it regularly with a damp cloth and check screws and bolts to ensure they are tight.

What should I do if the bike does not turn on?

First, check that the bike is properly plugged in. If the problem persists, try changing the monitor battery or consult the user manual for other solutions.

Is there a warranty on the VirtuFit HTR 1.0?

Yes, the VirtuFit HTR 1.0 typically comes with a 2-year warranty against manufacturing defects. Please keep your receipt for any claims.

How do I adjust the saddle height?

To adjust the saddle height, unlock the adjustment lever, set the saddle to the desired height, then lock the lever in place.

The bike makes a strange noise during use, what should I do?

Check if all screws and bolts are properly tightened. If the noise persists, it may be necessary to lubricate moving parts or contact customer service for assistance.

How do I use the training programs?

To use the training programs, consult the user manual for detailed instructions on setting up and selecting the different available programs.

Is the VirtuFit HTR 1.0 suitable for beginners?

Yes, the VirtuFit HTR 1.0 is designed to suit all fitness levels, including beginners. You can easily adjust the resistance according to your needs.

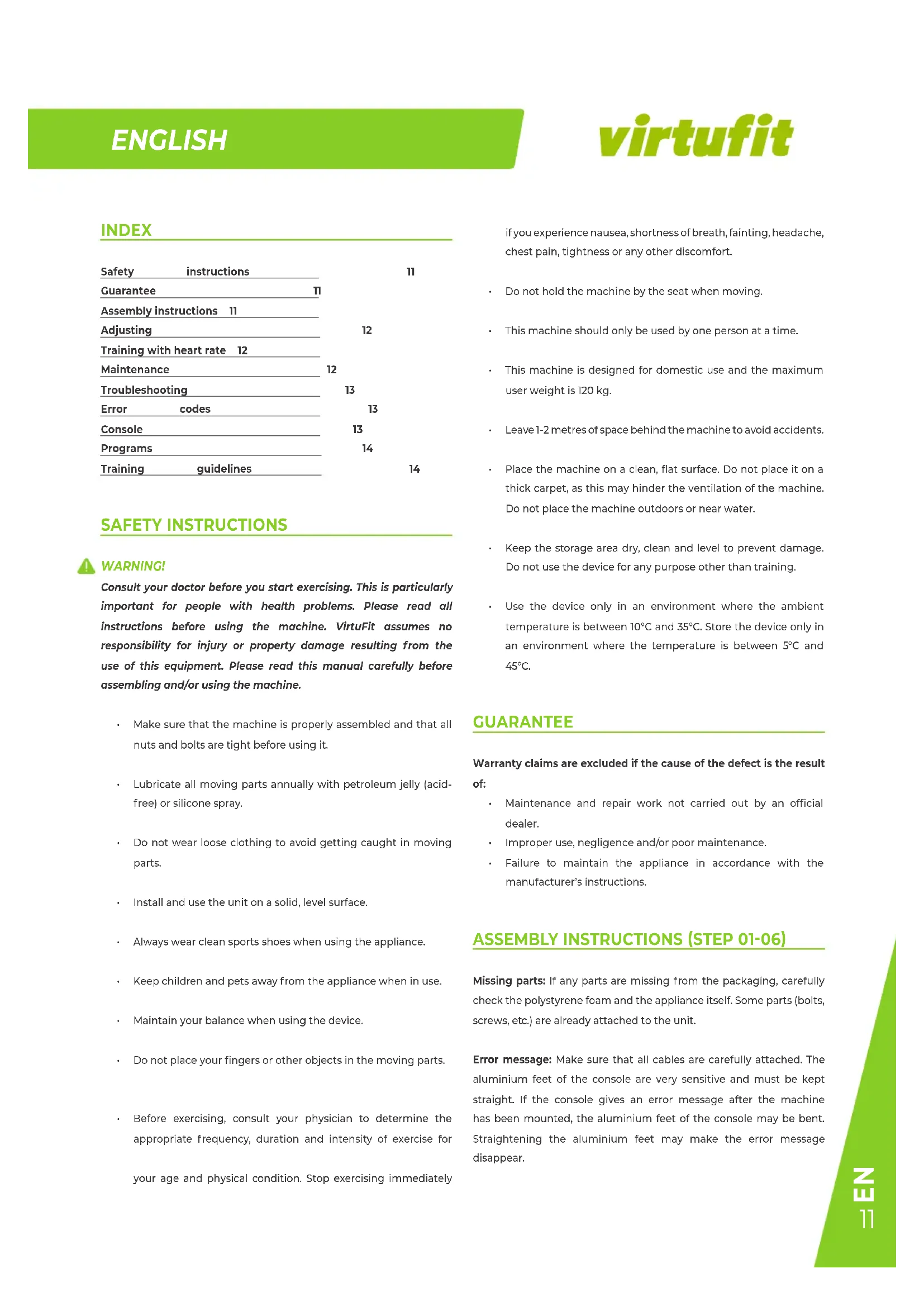

USER MANUAL HTR 1.0 VirtuFit

Safety instructions			11
Guarantee	11
Assembly instructions 11
Adjusting		12
Training with heart rate 12
Maintenance	12
Troubleshooting		13
Error codes		13
Console		13
Programs		14
Training guidelines			14

SAFETY INSTRUCTIONS

WARNING!

Consult your doctor before you start exercising. This is particularly important for people with health problems. Please read all instructions before using the machine. VirtuFit assumes no responsibility for injury or property damage resulting from the use of this equipment. Please read this manual carefully before assembling and/or using the machine.

• Make sure that the machine is properly assembled and that all nuts and bolts are tight before using it.
• Lubricate all moving parts annually with petroleum jelly (acid-free) or silicone spray.
• Do not wear loose clothing to avoid getting caught in moving parts.
  Install and use the unit on a solid, level surface.
  Always wear clean sports shoes when using the appliance.
• Keep children and pets away from the appliance when in use.
• Maintain your balance when using the device.
• Do not place your fingers or other objects in the moving parts.
• Before exercising, consult your physician to determine the appropriate frequency, duration and intensity of exercise for your age and physical condition. Stop exercising immediately

if you experience nausea, shortness of breath, fainting, headache, chest pain, tightness or any other discomfort.

• Do not hold the machine by the seat when moving.
  This machine should only be used by one person at a time.
• This machine is designed for domestic use and the maximum user weight is 120kg .
• Leave 1-2 metres of space behind the machine to avoid accidents.
• Place the machine on a clean, flat surface. Do not place it on a thick carpet, as this may hinder the ventilation of the machine. Do not place the machine outdoors or near water.
• Keep the storage area dry, clean and level to prevent damage.
• Do not use the device for any purpose other than training.
• Use the device only in an environment where the ambient temperature is between 10^ and 35^ . Store the device only in an environment where the temperature is between 5^ and 45^ .

GUARANTEE

Warranty claims are excluded if the cause of the defect is the result of:

• Maintenance and repair work not carried out by an official dealer.
• Improper use, negligence and/or poor maintenance.
• Failure to maintain the appliance in accordance with the manufacturer's instructions.

ASSEMBLY INSTRUCTIONS (STEP 01-06)

Missing parts: If any parts are missing from the packaging, carefully check the polystyrene foam and the appliance itself. Some parts (bolts, screws, etc.) are already attached to the unit.

Error message: Make sure that all cables are carefully attached. The aluminium feet of the console are very sensitive and must be kept straight. If the console gives an error message after the machine has been mounted, the aluminium feet of the console may be bent. Straightening the aluminium feet may make the error message disappear.

Hex head bolts: Make sure that the hex head spanner is pushed into the bolt before applying force. This will prevent the head of the socket bolt from turning.

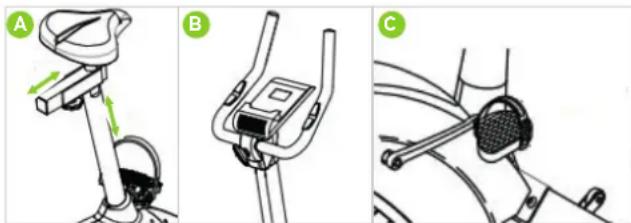

ADJUSTING

Adjusting the saddle (A)

In order to train effectively, it is advisable to adjust the saddle to the correct height. When pedalling, your knees should be slightly bent when the pedals are in the down position.

To adjust the saddle to the vertical position, follow the steps below:

• Loosen the knob on the seat post and pull the knob towards you.
• Move the seat post up or down until the saddle is in the desired position and release the knob.
• Move the seat post slightly up or down to ensure that the knob is in one of the adjustment holes.
• Tighten the knob on the seat post.

• Loosen the saddle knob a few turns.
• Slide the saddle forward or backward until it is in the desired position.
• Tighten the saddle knob.

Adjusting the handlebars (B)

To adjust the handlebar angle, follow the steps below:

• Loosen the knob.
• Tilt the handles to the desired position.
• Tighten the knob to secure the handles.

Adjusting the foot straps (C)

To adjust the foot straps, follow the steps below:

• Remove the end of the foot strap from the lips of the pedal.
• Adjust the footrest to the desired position.
• Attach the end of the foot strap to the tabs on the pedal.

TRAINING WITH HEART RATE

Hand sensors

This VirtuFit fitness machine is equipped with hand sensors to measure heart rate. The hand sensors are attached to the handle and only work if both sensors are held for a long time. For optimal performance, it is important that the hands are slightly damp and exert constant pressure on the sensors. Hands that are too dry or too wet may result in abnormal readings.

MAINTENANCE

Safe and efficient use can only be achieved if the appliance is properly installed and maintained. It is your responsibility to ensure that the appliance is maintained regularly. Parts that have been used and/or damaged must be replaced before the appliance is used again. The appliance should only be used and stored indoors. Long-term exposure to weather and temperature/humidity changes can have a serious impact on the electrical components and moving parts of the unit. Always unplug the power cord from the unit before cleaning or servicing it.

Daily maintenance

Clean and remove sweat and moisture after each use.
- Check that the unit is free of dust and dirt.
- Do not use aggressive cleaning agents and keep the device away from moisture.

Semi-annual maintenance

• Inspect all bolts and nuts connected to the moving parts of the unit. Tighten bolts and nuts as necessary and appropriate.
• Check the mobility of moving parts and components of the unit. Use silicone spray if necessary and appropriate.

We recommend the following:

Clean the unit after use.
- Use a dry cloth to clean the control panel and the areas around the on/off switch.
- Use a soft, clean cloth and detergent to remove stubborn marks and dirt from the unit.
- Store the unit in a safe, dry place away from heat and water.

CAUTION!

• Repairs must be carried out by a professional technician,

unless otherwise specified by the supplier or manufacturer.

Cleaning

General cleaning of the unit will extend its life. Keep the appliance clean by dusting it regularly. Regular maintenance will prolong the life of your appliance and prevent injuries! For more information, please visit https://www.virtufit.nl/service/faq/

CAUTION! Wear clean shoes to reduce the risk of soiling the machine. At least once a year, remove the cover to remove dust.

Battery

AAA BATTERIES

The display uses AAA batteries, which are replaceable on the back of the display. The batteries must be inserted correctly.

If the screen is unreadable or only parts of the image work, proceed as follows:

• Remove the batteries and wait 15 seconds.
• Replace the batteries correctly.

Tips on using the battery

• Remove the batteries from the screen when they are empty or when the camera will not be used for a long period of time.
• Do not recharge, disassemble or dispose of batteries in fire.
• Pay close attention to the + and - when inserting the batteries.

When replacing batteries, it is recommended to replace all batteries, do not mix old and new batteries.

• It is recommended to use alkaline batteries, they have a longer life than normal batteries.
• Batteries should be replaced when the display loses brightness or stops showing.

Battery replacement

• If the display is not accurate, it is recommended to replace the batteries.
• Use 2 x AAA batteries for power.

TROUBLESHOOTING

The display does not show any values: Check that the sensor and console cables are properly attached and undamaged. If this does not solve the problem, carefully bend the sensor.

Exercise bike squeaks: Check that all bolts and nuts are tight. If necessary.

Ticking noise when pedalling: This may be caused by one of the pedals. Remove the pedal(s) and mount it (them) correctly on the unit. Tighten the pedal(s) firmly. If this does not solve the problem, contact the supplier.

NOTE! The "R" (right) pedal must be mounted clockwise and the "L" (left) pedal must be mounted counter-clockwise.

The hand sensors are not working properly: Wash your hands, dry them well and test the hand sensors again. If this does not solve the problem, check the handlebar cables for damage and ensure that they are properly connected to the connector. If this still does not correct the problem, replace the handlebar.

Console does not work: If there is no signal when pedalling, check that the cable is correctly connected.

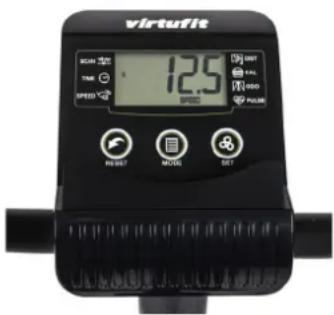

CONSOLE (FIG.A)

• SET Sets the values for: "TIME" DISTANCE and "CALORIES".
• CLEAR With this button the value can be reset to 0.
• RESET Press and hold the reset button for 3 seconds to clear the setting.
• MODE Press the MODE button to select the desired function.
• ODOMETER Automatically counts the total distance of all exercise sessions 0.0 9999 km.

Functions

• TIME Press "MODE" until "TIME" is displayed. The time measured since the beginning of the exercise is displayed.
  SPEED Press "MODE" until "SPEED" is displayed. The current speed during the exercise is displayed.
• DISTANCE Press "MODE" until "DISTANCE" is displayed. The

ENGLISH

distance covered during the exercise is displayed.

CALORIES Press "MODE" until "CALORIES" is displayed. The number of calories burned during the exercise is displayed.
- ODOMETER Press "MODE" until "ODOMETER" is displayed. The total distance covered during the exercise is displayed.
- PULSE Press "MODE" until "PULSE" is displayed. Display the heart rate. To measure the heart rate, place your hands on both contact surfaces. After 30 seconds, the most accurate heart rate is displayed. This measurement cannot be used as a basis for medical treatment.

PROGRAMS

Setting Training Goals

TIME: Select the "TIME" function by pressing "MODE". To set the time, press SET. To increase the target time, press "SET". When the time is set, the countdown starts automatically. - Press "RESET" briefly to reset the time. Press "MODE" to set the next optional target.

DISTANCE: Select the "DISTANCE" function by pressing "MODE". To set the distance, press the SET key. Press "SET" to increase the target value. When the distance is set, the countdown starts automatically. - Press "RESET" to reset the distance. Press "MODE" to set the next optional target.

CALORIES: Select the "CALORIES" function by pressing "MODE". To set the number of calories, press "SET". To increase the target value, press "SET". When the calories are set, the countdown starts automatically. - Press "RESET" briefly to reset the target. Press "MODE" to set the next optional target.

NOTE! If you press "SET" while setting the target value, the target value will increase faster.

TRAINING GUIDELINES (FIG. B, 1-5)

A successful training program includes a warm-up, the actual training and a cool-down. Perform the complete training program at least twice, but preferably three times a week and keep a rest day between training sessions. After a few months, the intensity of the training can be increased, for example to four or five times a week.

The warm-up

The purpose of a warm-up is to prepare the body for training and to

reduce the risk of injury. Warm up your body for two to five minutes before starting a cardio or strength training session. Do exercises that increase the heart rate and warm up the working muscles. Examples of this type of activity are running, jogging, jumping jacks, skipping and running in place.

Stretching

Stretching while the muscles are warm is very important after a good warm-up and cool-down. It reduces the risk of injury. Stretching exercises should be held for 15-30 seconds. Here are some examples of stretching exercises:

-Toe touch (Fig.B-1)
- Inner thight stretch (Fig. B-2)
- Hamstring stretch (Fig. B-3)
- Achilles stretch (Fig. B-4)
- Side stretch (Fig. B-5)

Cooling down

The purpose of the cool-down is to return the body to its (near) normal resting position at the end of the workout. A good cool-down slowly reduces your heart rate and promotes recovery.

NEDERLANDS

INHOUD

39	Horizontal saddle post	1
40	Bottle bracket	1
41	Phillips screw	2
42	Flat washer 1
