Technical specifications	BRESSER Condor 10x50 binoculars with 10x magnification and 50 mm objective diameter.
Prism type	Porro prism
Field of view	Field of view at 1000 m: 114 m
Focusing distance	Minimum focusing distance: 5 m
Weight	Approximately 800 g
Usage	Ideal for nature observation, hiking, and sporting events.
Maintenance	Clean lenses with a soft cloth, avoid harsh chemicals.
Safety	Do not expose to extreme temperatures or excessive humidity.
General information	2-year warranty, water and dust resistant, rubber coating for better grip.

Frequently Asked Questions - Condor 10x50 BRESSER

How can I adjust the focus of the BRESSER Condor 10x50 binoculars?

To adjust the focus, turn the central wheel until the image becomes sharp. Also use the diopter wheel on the right eyepiece to fine-tune the focus according to your vision.

Are the BRESSER Condor 10x50 binoculars waterproof?

Yes, the BRESSER Condor 10x50 binoculars are waterproof and nitrogen-filled to prevent fogging inside.

How do I clean the binocular lenses?

Use a soft microfiber cloth to wipe the lenses. Avoid using harsh chemicals. If necessary, you can slightly moisten the cloth with distilled water.

What is the warranty on the BRESSER Condor 10x50 binoculars?

The BRESSER Condor 10x50 binoculars are generally covered by a two-year warranty against manufacturing defects. Please refer to the specific warranty terms provided with the product.

How do I adjust the interpupillary distance?

To adjust the interpupillary distance, hold the binoculars by the tubes and spread or bring them together until the two eyepieces form a single image.

Are the BRESSER Condor 10x50 binoculars suitable for eyeglass wearers?

Yes, the binoculars are equipped with eyepieces that have diopter reducers allowing users to wear glasses while using the binoculars.

What is the weight of the BRESSER Condor 10x50 binoculars?

The BRESSER Condor 10x50 binoculars weigh approximately 800 grams.

What is the minimum focusing distance?

The minimum focusing distance of the BRESSER Condor 10x50 binoculars is about 5 meters.

USER MANUAL Condor 10x50 BRESSER

Black binoculars with visible lenses and no text or symbols on the device itself

BRESSER®

Diagram of a mechanical device with numbered parts and labeled components, including a top view and a close-up of the component.

10 ×

ali./.alebo./.vagy./.ili./.sau./.veya./.ŋ / или
B BRESSER

oder./or./ou./ot./o./eller./tail./lub./nebo..

ali./.alebo./.vagy./.ili./.sau./.veya./.ŋ / или
B BRESSER

FERNGLÄSER

Prohibition sign with sun and eye symbol crossed out, indicating no protection or absence of visual signs

BRANDGEFAHR!

This instruction manual was created for various models in our series of binoculars. Pages 2-7 present the relevant features in pictures. Depending on the model you have purchased, this chapter of the manual covers the binoculars in full or in part. As a result, please pay attention to the letters (P, R or C) to make sure that a chapter applies to your model.

Please read this manual carefully and completely before using the binoculars.

Your

BRESSER Team

P = Porro prism model · R = Roof prism model · C = Compact model

General Safety Informations!

RISK of physical injury!

Never look through this device directly at or near the sun. There is a risk of BLINDING YOURSELF!

Children should only use this device under supervision. Keep packaging materials (plastic bags, rubber bands, etc.) away from children. There is a risk of SUFFOCATION.

Prohibition sign with sun and eye symbol, no text present

Fire/Burning RISK!

Never subject the device - especially the lenses - to direct sunlight. Light ray concentration can cause fires and/or burns.

RISK of material damage!

Never take the device apart. Please consult your dealer if there are any defects. The dealer will contact our service centre and send the device in for repair if needed.

Do not subject the device to temperatures exceeding 60°C!

BINOCULARS

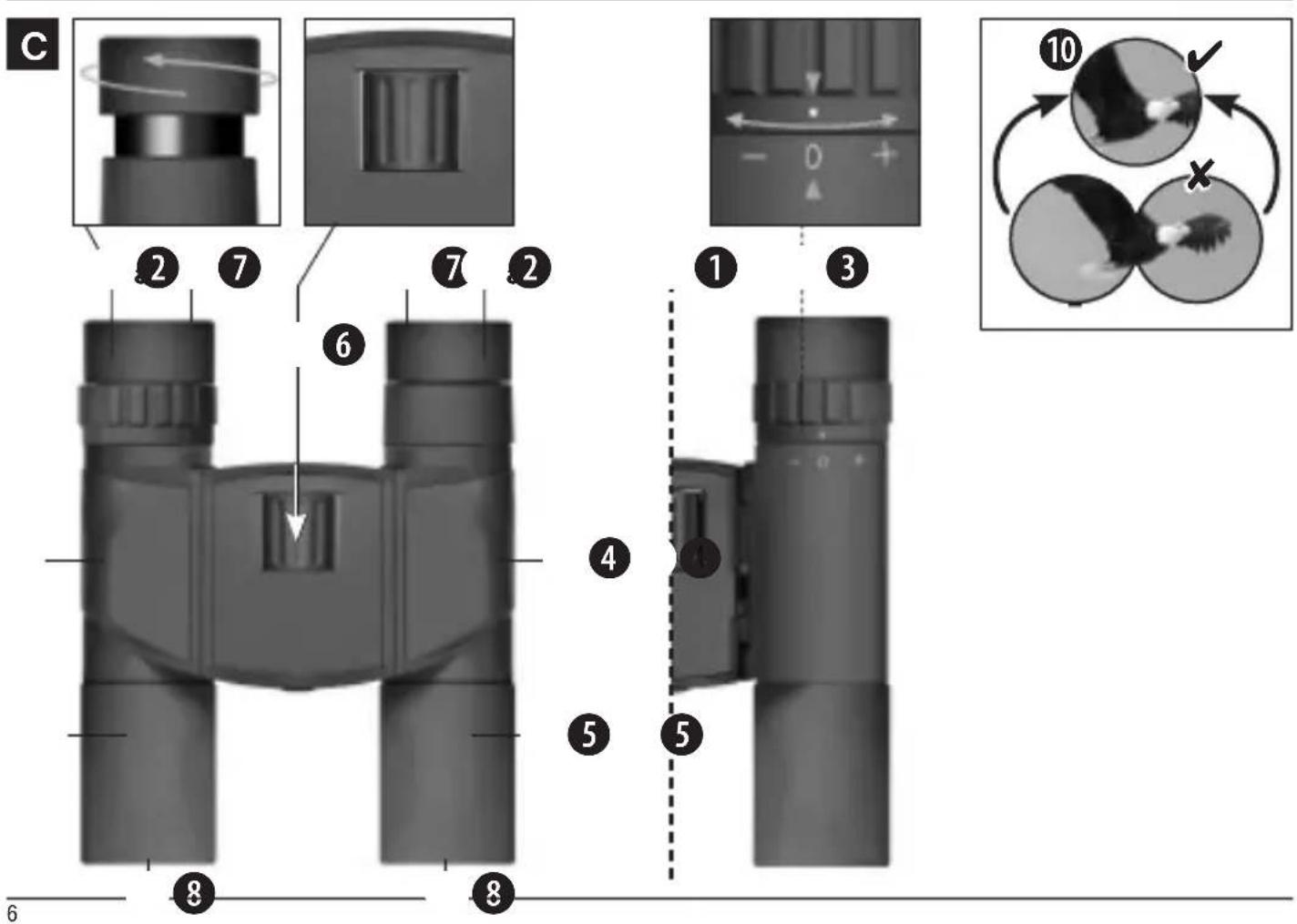

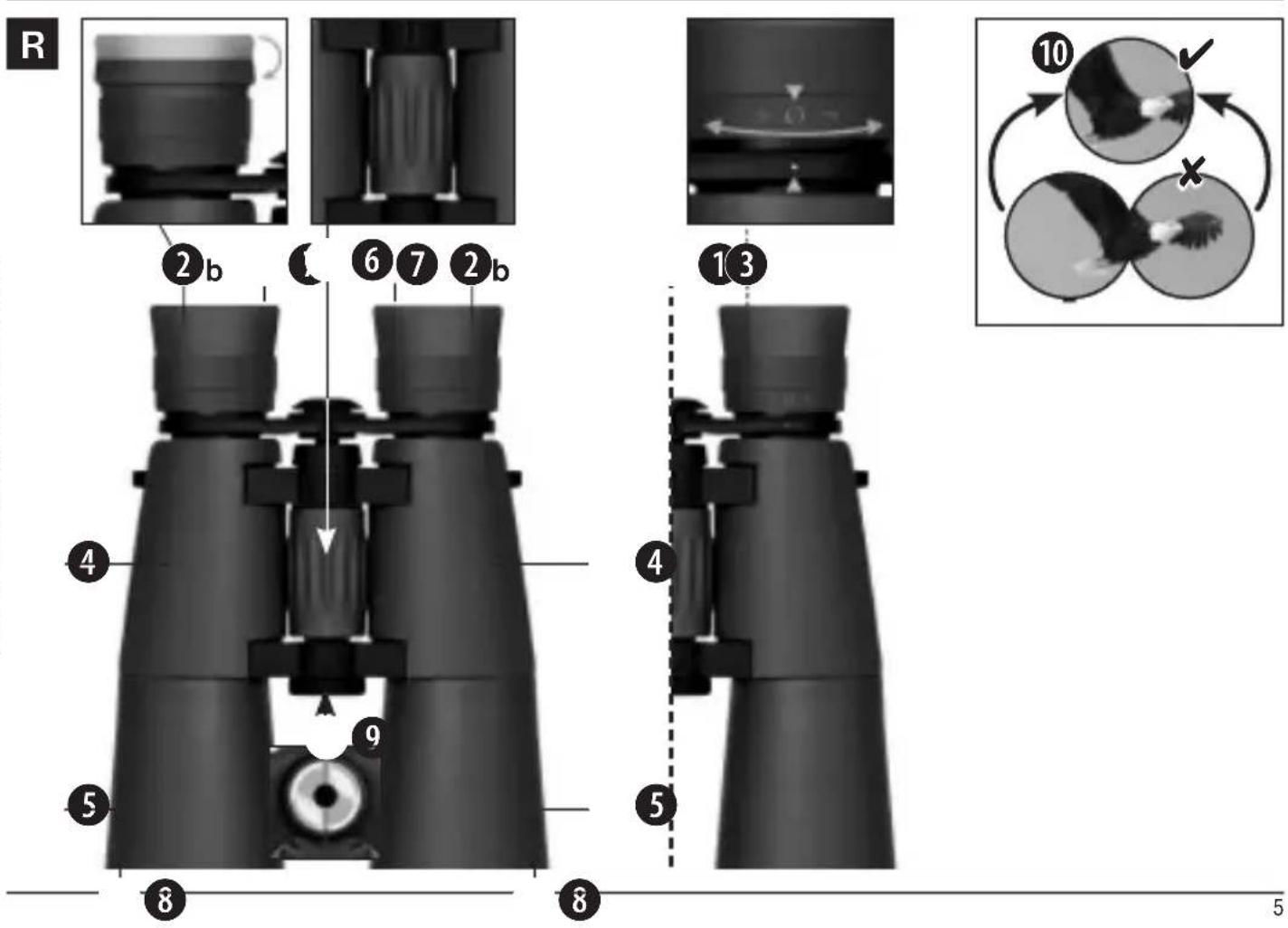

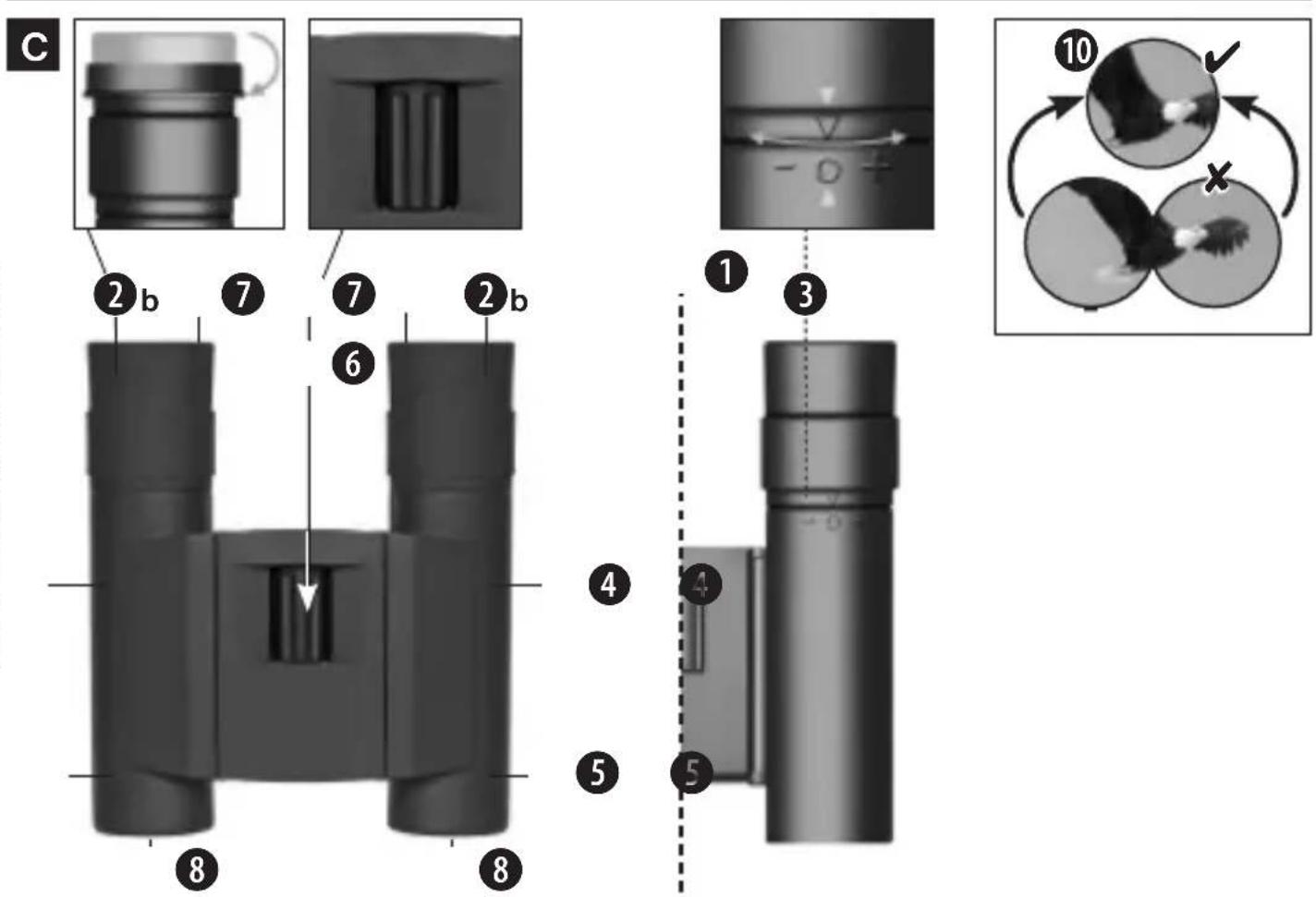

List of Parts

① Centre axle
②a Twist-up eyecups

or

②b Rubber eyecups

3 Dioptre adjustment
4 Body of the binoculars
5 Lens tube
6 Central focussing wheel
⑦ Eyepiece
8 Objective lens
9 Threaded tripod connection
10 Image circle with correctly set eye distance

Eyepieces for spectacle wearers P R C

Depending on the model, your binoculars are equipped with either twist-up eyecups (2a) or rubber eyecups (2b). Since there is a larger distance between the binocular eyepiece and the pupil for those wearing glasses, both eyecup varieties can be adjusted individually.

Twist-up Eyecups (2a)

Screw in the twist-up eyecups (2a) to use the binoculars while wearing glasses. If you are not wearing glasses, unscrew the eyecups to achieve the required distance from the pupils.

OR

Rubber Eyecups (2b)

To use the binoculars while wearing glasses, turn the rubber eyecups (2b) towards the sides and down. If you are not wearing glasses, leave the eyecups in the upright position to achieve the required distance from the pupils.

Adjusting the eyepiece distance P R C

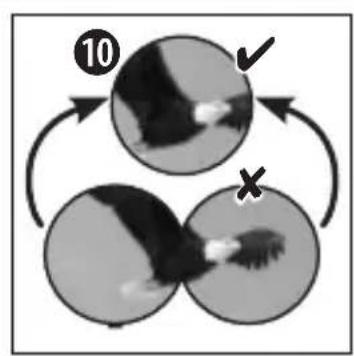

The distance between the eyes differs between individuals. To achieve perfect interaction between your eyes and the eyepieces of your binoculars set the angle at the centre of the binoculars (1) so that you see a circular image (10). Note this setting for later use.

Adjusting the focus P R C

Look through your binoculars with your right eye closed. Now adjust the image for your left eye using the centre wheel (6) until it is sharp and

clear. Close your left eye and adjust the image for your right eye using the dioptre ring (3) until it too is sharp and clear.

Mounting the binoculars on a tripod PR

Your binoculars have a threaded tripod connection (9) built in. The required tripod adapter is available as an optional accessory (Art. No. 19-16000 or 19-16500). With this accessory, you are able to mount your binoculars on a tripod with a DIN mounting thread (e.g. Art. No. 49-22100).

TIPS on cleaning

Lenses (eyepieces and/or object lenses) should be cleaned with a soft, lint-free cloth (e.g. micro-fibre) only. Do not use excessive pressure - this may scratch the lens.

Dampen the cleaning cloth with a spectacle cleaning fluid and use it on very dirty lenses.

Protect the device against dirt and dust. Leave it to dry properly after use at room temperature. Then put the dust caps on and store the device in the case provided.

JUmELLES

Chère cliente, cher client,

Prohibition sign with sun and eye symbol, indicating no protection or absence of visual signs

DANGER D'INCENDIE!

Prohibition sign with sun and eye symbol crossed out, indicating no protection or absence of visual attention

GEVAAR voor brand!

Prohibition sign with sun and eye symbol, crossed out by a diagonal line

PERICOLO DI INCENDIO!

Prohibition sign with sun and eye symbol, no text present

Prohibition sign with sun and eye symbol crossed out, indicating no protection or absence of visual signs

RISCO DE INCÊNDIO!

Prohibition sign with sun and eye symbol, no text present

ΚΙΝΔΥΝΟΣ ΠΥΡΚΑΓΙΑΣ!

Prohibition sign with sun and eye symbol, no text present

BRANDFARE!

Prohibition sign with sun and eye symbol, crossed out by a diagonal line

TULIPALON VAARA!

Prohibition sign with sun and eye symbol, indicating no protection or absence of visual signs

NEBEZPEČÍ POŽÁRU!

Prohibition sign with sun and eye symbol crossed out, indicating no protection or absence of visual signs

NIEBEZPIECZEŃSTWO POŻARU!

Prohibition sign with sun and eye symbol, no text present

ОПАСНОСТЬ ПОЖАРА!

The regular guarantee period is 2 years and begins on the day of purchase. To benefit from an extended voluntary guarantee period as stated on the gift box, registration on our website is required.

You can consult the full guarantee terms as well as information on extending the guarantee period and details of our services at www.bresser.de/warranty_terms.
