Feature	Details
Screen	10.1 inches, 1920 x 1200 pixels resolution, IPS technology
Processor	Qualcomm Snapdragon 625, octa-core
RAM	4 GB
Internal Storage	64 GB, expandable via microSD up to 256 GB
Operating System	Android 7.1 Nougat
Rear Camera	13 MP with autofocus
Front Camera	5 MP
Battery	7000 mAh, up to 12 hours battery life
Connectivity	Wi-Fi, Bluetooth 4.2, USB Type-C
Dimensions	247 x 171 x 7 mm
Weight	475 g
Maintenance	Regular screen cleaning, operating system updates
Security	Password lock function, Android security options
Included Accessories	Charger, USB Type-C cable
Warranty	1 year

Frequently Asked Questions - Tab4 10 Plus LENOVO

How do I reset my Lenovo Tab4 10 Plus to factory settings?

To reset your tablet, go to \"Settings\", select \"System\", then \"Reset options\". Choose \"Erase all data (factory reset)\" and follow the on-screen instructions.

What should I do if my tablet won\'t turn on?

Make sure the tablet is charged. Plug it into the charger for at least 30 minutes. If it still won\'t turn on, try holding down the power button for 10 seconds.

How do I connect my Lenovo Tab4 10 Plus to a Wi-Fi network?

Go to \"Settings\", then \"Wi-Fi\". Turn on Wi-Fi if it\'s not already on, select your network from the list, and enter the password if required.

How do I update my tablet\'s operating system?

Go to \"Settings\", then \"System\", and select \"System update\". If an update is available, follow the instructions to install it.

What should I do if my touchscreen is unresponsive?

Try restarting the tablet. If the problem persists, check if the screen is clean and dry. If the screen is still unresponsive, a factory reset may be necessary.

How do I free up storage space on my Lenovo Tab4 10 Plus?

Go to \"Settings\", then \"Storage\". You can see what is taking up space and choose to delete apps, files, or photos you no longer need.

How do I enable airplane mode on my tablet?

Swipe down from the top of the screen to access quick settings, then tap the airplane mode icon to turn it on or off.

How do I use the screenshot function?

To take a screenshot, press the power button and the volume down button simultaneously for a few seconds.

How do I manage my apps on the Lenovo Tab4 10 Plus?

Go to \"Settings\", then \"Apps\". You can see all your installed apps, uninstall them, or manage their permissions.

How do I transfer files to my tablet?

You can transfer files via a USB cable by connecting the tablet to a computer or use cloud services like Google Drive or Dropbox.

What should I do if my tablet is slow?

Try closing background apps, freeing up storage space, and restarting the tablet. If the problem persists, consider resetting the tablet.

USER MANUAL Tab4 10 Plus LENOVO

Safety, Warranty & Quick Start Guide

Lenovo TB-X704Y

Contents

English 1

Français....10

Español 19

English

Read this guide carefully before using your device.

Reading first - regulatory information

Device models equipped with wireless communications comply with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. In addition, if your product contains a telecom modem, it complies with the requirements for connection to the telephone network in your country.

Be sure to read the Regulatory Notice for your country or region before using the wireless devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer to the “Downloading publications” section below.

Getting support

To get support on network services and billing, contact your wireless network operator. To learn how to use your tablet and view its technical specifications, go to http://support.lenovo.com.

Downloading publications

Electronic versions of your publications are available from http://support.lenovo.com. To download the publications for your tablet, go to http://support.lenovo.com and follow the instructions on the screen.

Accessing your User Guide

Your User Guide contains detailed information about your tablet. To access your User Guide, go to http://support.lenovo.com and follow the instructions on the screen.

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both.

Other company, product, or service names may be trademarks or service marks of others.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories.

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

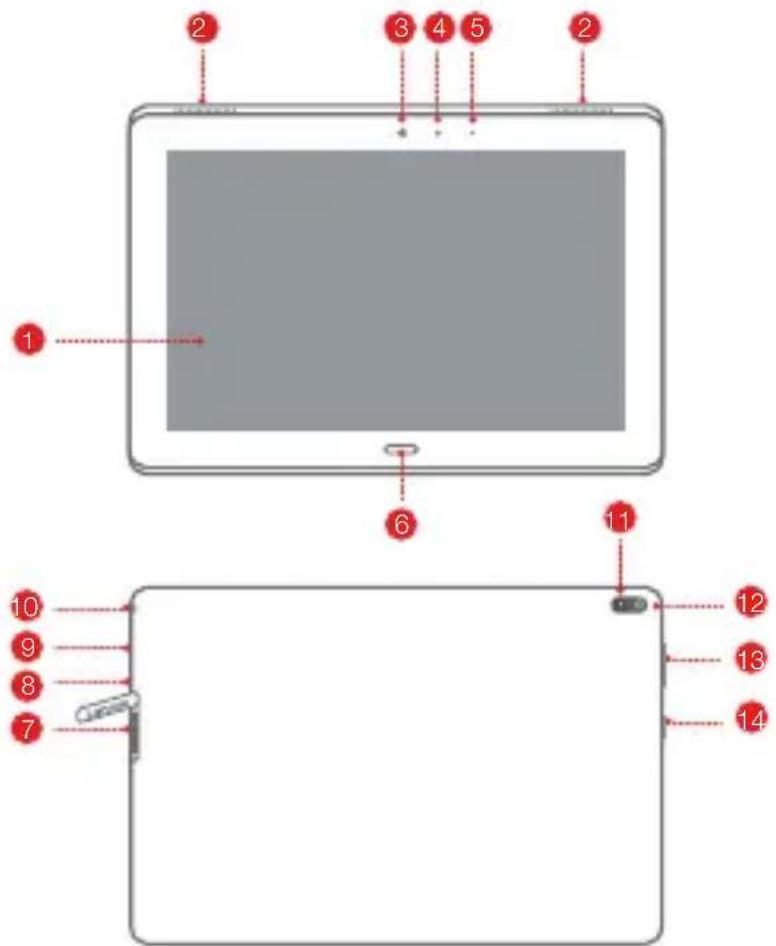

Device overview

Model Version
Lenovo TB-X704Y WLAN

1 2 3 4 5 2 6 11 10 9 8 7 12 13 14

1 Touch screen

2 Speakers

3 Front camera

4 Light sensor

5 Indicator

6 Fingerprint sensor

7 Card tray

8 Microphone

9 Type C USB 2.0 connector

10 Headset connector

11 Rear camera

12 Flash

13 Volume buttons

14 Power button

All pictures and illustrations in this document are for your reference only and may differ from the final product.

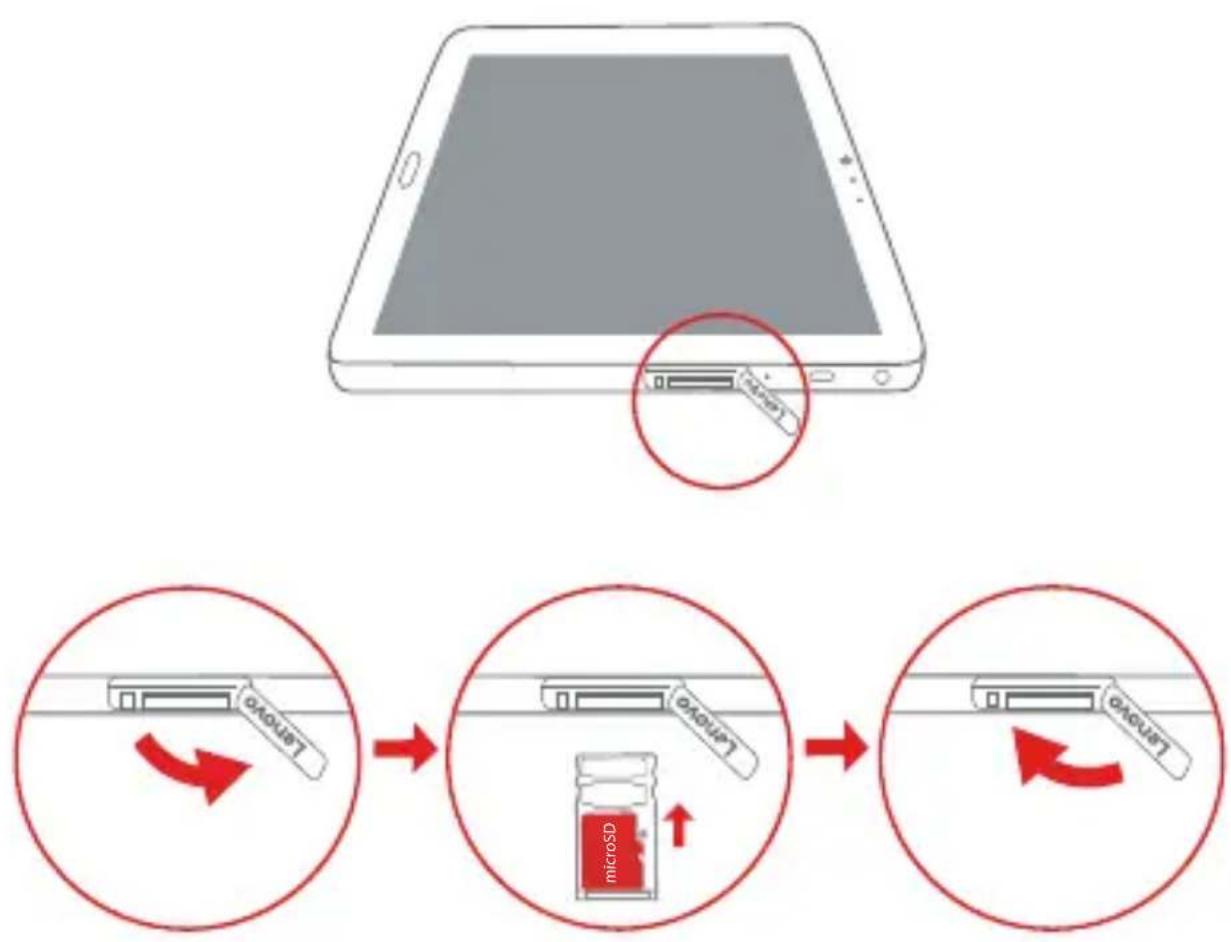

Preparing your device

Use a microSD card (sold separately) for extra storage.

Step 1. Open the card slot cover.

Step 2. Insert the microSD cards as shown.

Step 3. Replace the card slot cover.

Using your device for the first time

You might need to charge the battery before using your device. Insert the charger into the charging port as shown below.

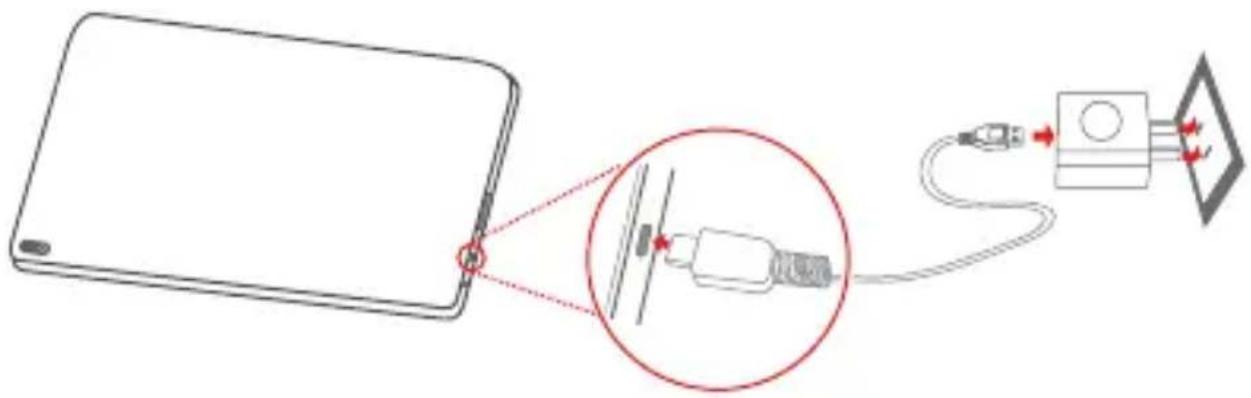

Connect your tablet to a power outlet using the cable and USB power adapter provided.

Diagram showing a device connected to an electrical outlet via cable, with a magnified detail highlighting the connector.

Low battery Fully charged Charging

Turning on/off

Simple line drawing of a door with vertical and horizontal lines (no text or symbols)

Turn on: Press and hold the Power button until the Lenovo logo appears.

Turn off: Press and hold the Power button for a few seconds, then tap Power off.

Restart: Press and hold the Power button for about 10 seconds to restart.

Important safety and handling information

Plastic bag notice

Danger: Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.

Built-in rechargeable battery notice

Danger: Do not attempt to replace the internal rechargeable lithium ion battery. Risk of explosion if the battery is replaced with an incorrect type. Contact Lenovo Support for factory replacement. Dispose of used batteries according to the instructions.

Caution about high volume usage

Warning: Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the sound, the less time is required before your hearing could be affected. To protect your hearing:

• Limit the amount of time you use headsets or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked.

Warning symbol with a question mark inside a triangle, indicating sound or noise hazard.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Safety instructions for parents and adult supervisors

Your mobile device is not a toy. Not recommended for children under 3 years of age to play with it. As with all electrical products, precautions should be observed during handling and using of electrical products to reduce the risk of electric shock. If parents choose to allow children 3 or older to use the device, they should caution his or her child about the potential hazard while using and handling the mobile device.

Parental should inspect the mobile device (including the ac power adapter and the small part, as applicable) periodically for damage. Routinely check this mobile device to ensure that the device is working properly and is safe for children to use.

Service and support information

The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty (LLW) for a full explanation of Lenovo warranty terms. See “Lenovo Limited Warranty notice” later in this document for details on accessing the full warranty.

Online technical support

Online technical support is available during the lifetime of a product at: http://www.lenovo.com/support

Telephone technical support

You can get help and information from the Customer Support Center by telephone. Before contacting a Lenovo technical support representative, please have the following information available: model and serial number, the exact wording of any error message, and a description of the problem.

Your technical support representative might want to walk you through the problem while you are at your device during the call.

Worldwide Lenovo Support telephone list

Important: Telephone numbers are subject to change without notice. The most up-to-date telephone list for the Customer Support Center is always available at:

http://www.lenovo.com/support/phone

If the telephone number for your country or region is not listed, contact your Lenovo reseller or Lenovo marketing representative.

Warranty information

Lenovo Limited Warranty notice

This product is covered by the terms of the LLW, version L505-0010-02 08/2011. Read the LLW at http://www.lenovo.com/warranty/llw_02. You can read the LLW in a number of languages from this Web site. If you cannot view the LLW from the Web site, contact your local Lenovo office or reseller to obtain a printed version of the LLW.

Warranty period and type of warranty service

Country or region Warranty period		Type of warranty service
United States of America, Canada	Parts and Labor - 1 yearBattery Pack - 1 year	1,5

* Excludes some components. 90-day limited warranty for power adapters, keyboards, plastics, and hinges.

Type of warranty service

1. Customer Replaceable Unit ("CRU") Service

2. Mail-in Service

For a full explanation of the types of warranty service, refer to the full warranty. See "Lenovo Limited Warranty notice" for details on accessing the full warranty.

Environmental, recycling, and disposal information

General recycling statement

Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to http://www.lenovo.com/recycling.

Important battery and WEEE information

Batteries and electrical and electronic equipment marked with the symbol of a crossed-out wheeled bin may not be disposed as unsorted municipal waste. Batteries and waste of electrical and electronic equipment (WEEE) shall be treated separately using the collection framework available to customers for the return, recycling, and treatment of batteries and WEEE. When possible, remove and isolate batteries from WEEE prior to placing WEEE in the waste collection stream. Batteries are to be collected separately using the framework available for the return, recycling, and treatment of batteries and accumulators. Country-specific information is available at: http://www.lenovo.com/recycling

Additional recycling statements

Additional information about recycling device components and batteries is in your User Guide. See “Accessing your User Guide” for details.

Battery recycling marks

Battery recycling information for the United States and Canada

US & Canada Only

Energy efficiency mark

Restriction of Hazardous Substances Directive (RoHS)

Lenovo products sold in California, on or after January 1, 2007, meet the requirements of "Californinia's RoHS" (SB 20,50).

Lenovo products sold to the New York City government, on or after March 1, 2007, meet the requirements of the City's environmental preferred purchasing regulations.

ENERGY STAR

Energy ENERGY STAR

Select models conform to ENERGY STAR requirements. Additional ENERGY STAR information is in the User Guide. Refer to “Accessing your User Guide” in this publication.

Français

Diagram of a tablet device with numbered components for identification and assembly reference.

1 Écran tactile

2 Haut-parleurs

Diagram showing a device connected to an electrical outlet via cable, with a magnified detail highlighting the connector.

Simple line drawing of a door with vertical and horizontal lines (no text or symbols)

Warning symbol with a question mark inside a triangle, indicating sound or audio (no text present)

Directive européenne RoHS (Restriction of Hazardous Substances)

Diagram showing a device connected to an electrical outlet via cable, with a magnified detail highlighting the connector.

Simple line drawing of a door with vertical and horizontal lines (no text or symbols)

Warning symbol with a question mark inside a triangle (no text or numbers)

© Copyright Lenovo 2017.

Reduce | Reuse | Recycle

V1.0_20170406

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

HQ60113220000 MC
