CMX435S - Hand blender INVENTUM - Free user manual and instructions

Product type	Immersion blender
Brand	Inventum
Model	CMX435S
Power	Approximately 250 W
Power supply	220-240 V ~ 50 Hz
Speeds	2 speeds (on/off by push button)
Dimensions (L x W x H)	Approximately 6 x 6 x 40 cm (motor unit + shaft)
Weight	Approximately 1 kg
Shaft material	Stainless steel
Included accessories	Blending shaft, whisk, connecting piece, measuring cup (600 ml) with non-slip lid
Measuring cup capacity	600 ml
Main uses	Blending, pureeing, whisking (egg whites, cream)
Cleaning	Shaft, whisk, measuring cup and lid are dishwasher safe; motor unit and connecting piece should be wiped with a damp cloth
Safety	Automatic stop when button is released, maximum continuous operation without load: 15 seconds
Warranty	2-year full manufacturer's warranty
Repairability	Original spare parts available from customer service
Cable length	Approximately 1 m (not specified, estimate)

Frequently Asked Questions - CMX435S INVENTUM

How to assemble the immersion blender?

Attach the blending shaft to the motor unit by turning clockwise. To remove, turn counterclockwise.

How to use the whisk?

Click the whisk into the connecting piece, then turn the assembly clockwise onto the motor unit. Use speed 1 to whisk egg whites or cream.

Can I use the appliance continuously for a long time?

No, the appliance should not exceed 15 seconds without load. Use it for intervals of one minute maximum, then let it cool for 3 minutes.

How to clean the blender?

Unplug the appliance. The shaft, whisk, measuring cup and lid can be washed in the dishwasher or by hand. The motor unit and connecting piece should be cleaned with a damp cloth. Never immerse the motor unit in water.

Are the blades removable?

No, the blades are integrated into the blending shaft. Be careful when cleaning as they are very sharp.

What is the power of the appliance?

The power is not specified in the manual, but it is estimated at approximately 250 W, typical for this type of appliance.

Is the appliance under warranty?

Yes, Inventum offers a full 2-year manufacturer's warranty from the date of purchase for normal domestic use in the Netherlands.

Can I blend hot foods?

Yes, but remove the container from the heat before blending to avoid overheating the shaft. Use the measuring cup or a bowl.

How to obtain a spare part?

Contact Inventum customer service via the form at www.inventum.eu/service-aanvraag. Use exclusively original parts.

Can the measuring cup be used as a storage container?

Yes, the non-slip base of the cup also serves as an airtight lid, allowing food to be stored in the refrigerator.

USER MANUAL CMX435S INVENTUM

1. safety instructions page 8
2. appliance description page10
3. before first use page10
4. using the stick mixer page 11
5. using the whisk page 11
6. cleaning & maintenance

General terms and conditions of service and warranty

page 11

page 21

Deutsch

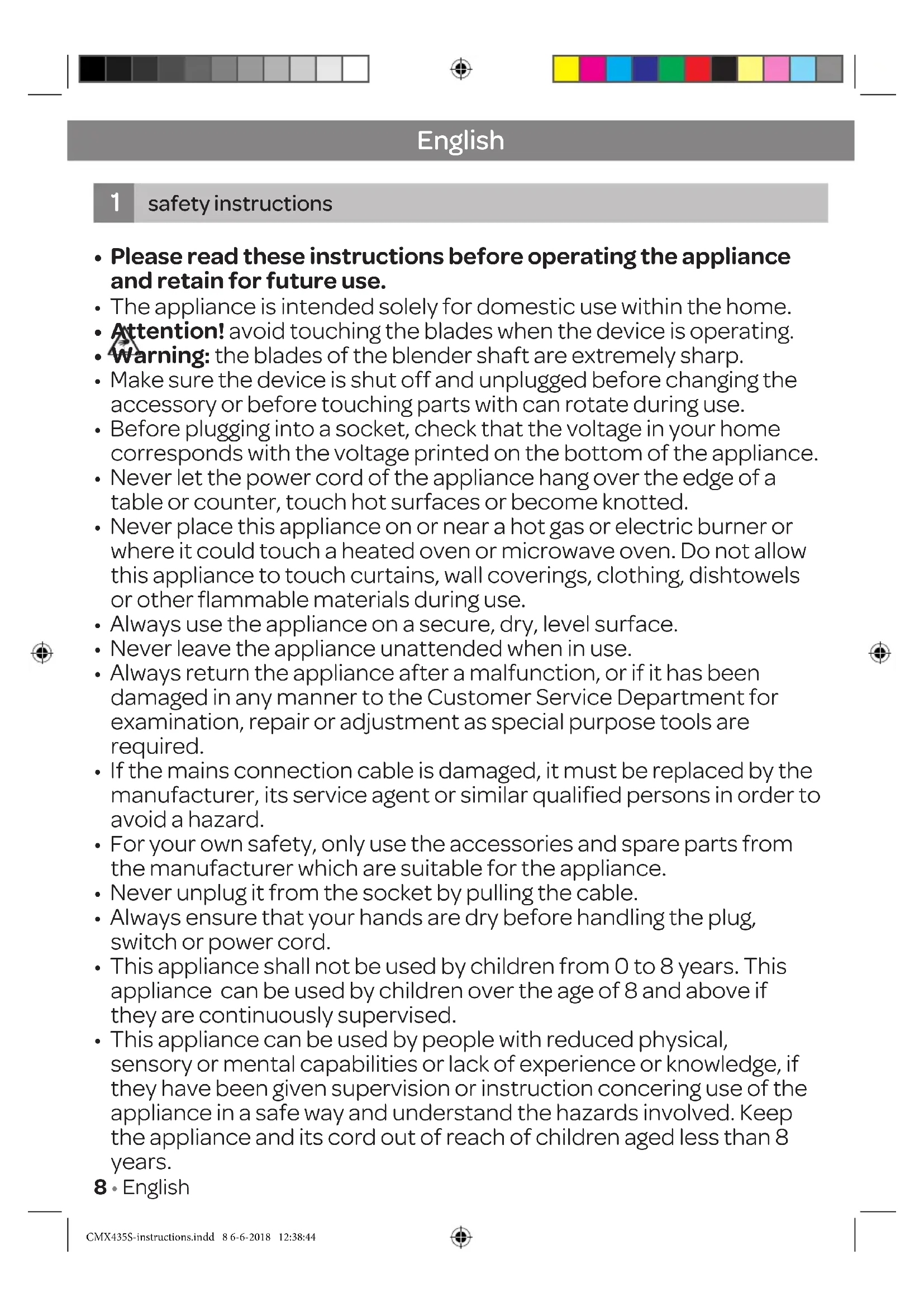

1 safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! avoid touching the blades when the device is operating.
• Warning: the blades of the blender shaft are extremely sharp.
• Make sure the device is shut off and unplugged before changing the accessory or before touching parts with can rotate during use.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave oven. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
• Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• If the mains connection cable is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Never unplug it from the socket by pulling the cable.
• Always ensure that your hands are dry before handling the plug, switch or power cord.
• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised.
• This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years.

8·English

• Cleaning and maintenance shall not be made by children.
• Children should be supervised to ensure that they do not play with the appliance.
• Unplug the appliance as soon as you have finished using it and when you are cleaning it.
• Never immerse any part of the main body, power cord and plug into water or any other liquid to protect yourself against electrical hazards.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas, in shops, offices and other working environments;

• by clients in hotels, motels and other residential type environments;
• Bed and Breakfast type environments
  -farm houses.
• When the appliance is used for other purposes than intended, or is when it is not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with them.
• Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

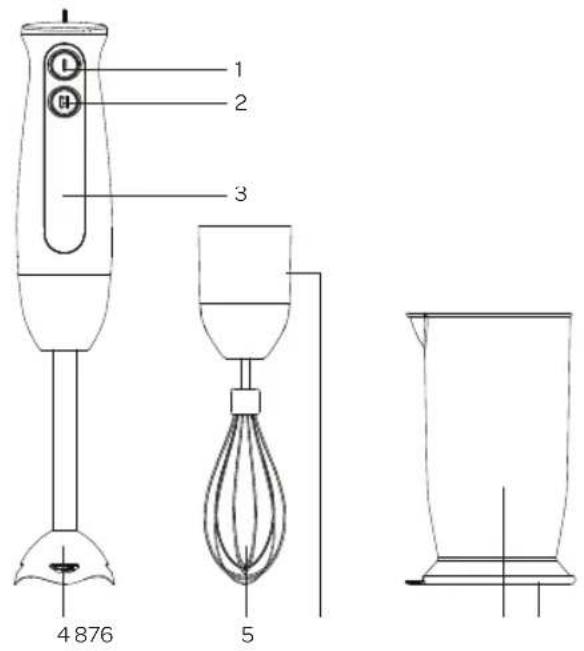

2 appliance description

1. On/off button - setting 1
2. On/off button - setting 2
3. Motor part
4. Blender shaft
5. Whisk
6. Connector for whisk
7. Measuring cup
8. Anti-slip base/ lid

3 before first use

Before using the appliance for the first time, please do as follows: carefully unpack the appliance and all the accessories and remove all the packaging material.

Warming: the blades of the blender shaft are extremely sharp.

Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation.

Rinse all the accessories with warm soapy water and dry them thoroughly:

• blender shaft
  whisk without the connector
• measuring cup with anti-slip base

Wipe the motor part and the connector with a damp cloth.

Do not use any abrasive detergents. These can damage the housing.

Always roll out the cord completely. Make sure that all the parts are dry before you use the appliance.

10·English

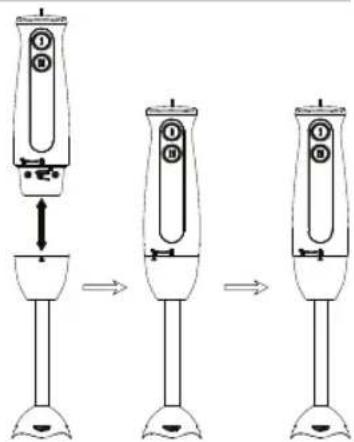

4 using the stick mixer

Warning: the blades of the blender shaft are extremely sharp.

• Take the motor part and the blender shaft. Attach the blender shaft to the motor part by turning the blender shaft clockwise. To loosen it, turn the blender shaft the other way.
• Plug in the appliance.
• Lower the stick mixer into the food.
• Press the on/off button for setting 1 or 2.
• As soon as you release the button, the stick mixer will stop.
• When you have finished mixing or blending and released the button, wait until the knives have stopped turning, before approaching the blender shaft with your hands.

Attention: do not activate the stick mixer constantly, this can cause engine problems. Do not use the stick mixer for more than one minute continuously, wait until the engine is cooled down in three minutes before operating it again. Blend larger quantities in multiple sessions. The stick mixer can't exceed a running time of 15 seconds without a load.

Always unplug the appliance from the supply if it is left unattended and before assembling, disassembling and during cleaning.

You can use the stick mixer in the measuring cup and also in another bowl. When blending directly in a saucepan while cooking, take the pan from the stove first to protect the appliance from overheating.

The anti-slip base is also an airtight lid for the measuring cup.

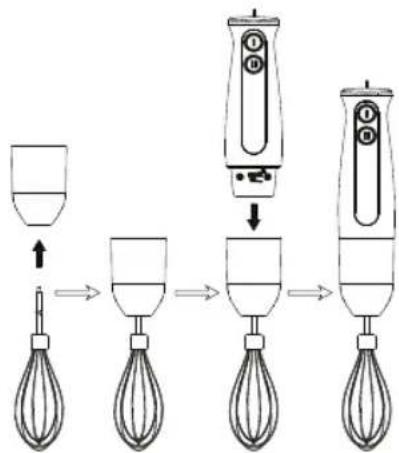

5 using the whisk

Use the whisk for example for making whipped cream or beating egg whites.

Take the motor part, the connector and the whisk.
- Attach the connector to the whisk.
- Attach the whisk to the motor part by turning the connector clockwise.
- Plug in the appliance.
- Place the ingredients in the measuring cup. Make sure the measuring cup is not too full.
- Place the whisk in the measuring cup.
- Press the on/off button for setting 1.
- As soon as you release the button, the whisk will stop.

Always unplug the appliance from the supply if it is left unattended and before assembling, disassembling and during cleaning.

To remove the whisk after use, turn it anti clockwise from the motor part and pull the whisk from the connector.

6 cleaning & maintenance

Always unplug the appliance from the supply if it is left unattended and before assembling, disassembling and during cleaning, Disassemble the motor part from the accessory.

• Wipe the motor part and the connector with a damp cloth.
• Rinse the measuring cup, the lid and the blender shaft with water or clean them in the dishwasher.
• Do not use any abrasive or strong detergents. These can damage the housing.

• Never place the motor part, the power cable or the plug in water or any other liquid.
  These accessories are dishwasher proof:

• blender shaft

• measuring cup with anti-slip base/lid
  whisk without the connector

Be careful when cleaning the accessories by hand. The knives of the blender shaft are extremely sharp.

Deutsch

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

normal wear and tear;
- improper use or misuse;
insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
non-originaiparts used by the customer
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   external connection cables;

4. glass accessories and glass parts such as oven doors;
   and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908

CMX435S/01.0518V

Sous reserve de modiflcation / Modifications and printing errors reserved
