Product Type	Dehumidifier
Brand	Ebac
Model	Powerdri 18
Extraction Capacity	1 to 2.5 liters per day
Water Tank	With full tank indicator
Permanent Drainage	Possible with included kit
Air Filter	Washable, replace every 3-4 months
Humidity Control	Adjustable humidistat (positions: normal, max, drying clothes)
Fan Speed	2 speeds (low/quiet, high)
Operating Temperature	3°C to 35°C
Power Supply	230 V / 50 Hz (estimated)
Weight	Approximately 10 kg (estimated)
Dimensions (W x H x D)	Approximately 40 x 50 x 25 cm (estimated)
Noise Level	Low in silent mode
Usage	Ideal for home, basement, laundry room
Maintenance	Clean the filter monthly, check drainage every 6 months
Safety	Protection by 30 mA RCD (recommended)
Warranty	Manufacturer's warranty (duration not specified)
Accessories	Permanent drainage kit included

Frequently Asked Questions - Powerdri 18 EBAC

How to empty the water tank?

Open the tank access door, remove the tank, empty it, then replace it by aligning the drainage outlet on the left side and close the door. The red light turns off when the tank is correctly installed.

What to do if the red light stays on even though the tank is empty?

Make sure the tank is correctly installed. Check that the float is not stuck. If the problem persists, contact customer service.

How to clean the appliance filter?

Remove the filter cartridge at the back of the appliance. Clean it with a low-power vacuum cleaner. Replace the cartridge. The filter should be cleaned monthly and replaced every 3 to 4 months depending on use.

Why is my dehumidifier not collecting water?

Check that the humidistat is not set too low. Make sure the tank is not full and is correctly installed. Check that the ambient temperature is between 3°C and 35°C.

How to install the permanent drainage kit?

Unplug the appliance. Remove the sealing plug at the back. Attach the end of the drainage tube to the permanent drainage outlet by pushing firmly. Make sure the hose is not twisted and that its level does not exceed that of the outlet. For accessories, contact your dealer.

What is the minimum and maximum operating temperature?

The minimum operating temperature is 3°C and the maximum is 35°C. Do not use the appliance outside this range.

Can I use an extension cord with the appliance?

No, it is not recommended to use an extension cord or multiple socket. Plug the appliance directly into a wall outlet protected by a 30 mA RCD.

What to do if the appliance does not turn on?

Check that the appliance is plugged in and the outlet works. Check the fuse (13 A for British plugs). If the problem persists, consult the repair service.

Can the dehumidifier be used in a vacation home unattended?

Yes, by using the provided permanent drainage kit, you can leave the appliance running without having to empty the tank. Make sure the drainage hose is correctly installed.

How can I improve the efficiency of my dehumidifier?

Place the appliance on a flat surface. Leave interior doors slightly open for air circulation and close exterior doors. Clean the filter regularly and make sure the drainage is not blocked.

USER MANUAL Powerdri 18 EBAC

Ketton Way, Aycliffe Business Park, Newton

Ketton Way, Aycliffe Business Park, Newton Aycliffe, County Durham, DL5 6SQ, Regno Unito

Tel: [phone] | [phone]

www.ebac.com

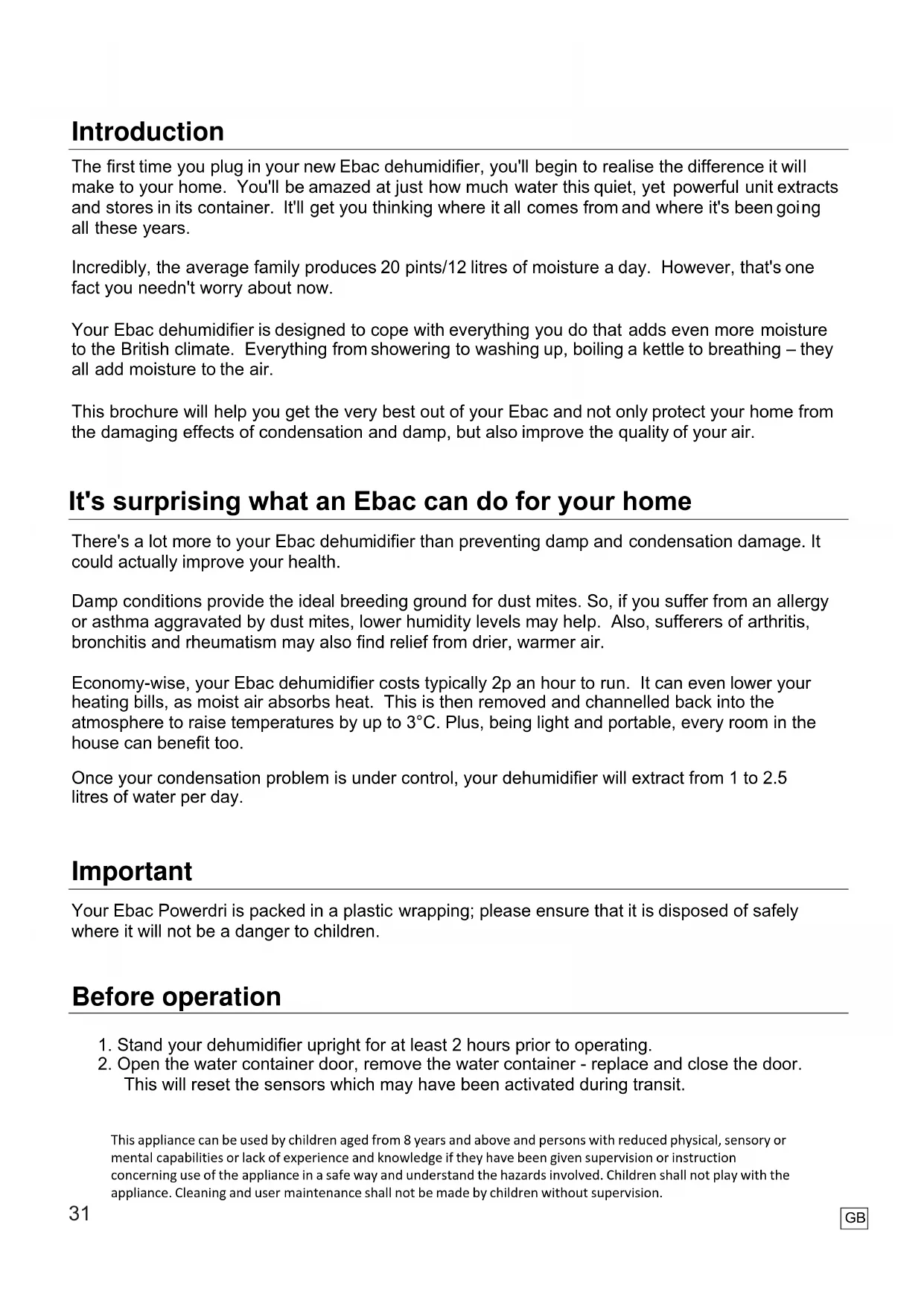

The first time you plug in your new Ebac dehumidifier, you'll begin to realise the difference it will make to your home. You'll be amazed at just how much water this quiet, yet powerful unit extracts and stores in its container. It'll get you thinking where it all comes from and where it's been going all these years.

Incredibly, the average family produces 20 pints/12 litres of moisture a day. However, that's one fact you needn't worry about now.

Your Ebac dehumidifier is designed to cope with everything you do that adds even more moisture to the British climate. Everything from showering to washing up, boiling a kettle to breathing - they all add moisture to the air.

This brochure will help you get the very best out of your Ebac and not only protect your home from the damaging effects of condensation and damp, but also improve the quality of your air.

It's surprising what an Ebac can do for your home

There's a lot more to your Ebac dehumidifier than preventing damp and condensation damage. It could actually improve your health.

Damp conditions provide the ideal breeding ground for dust mites. So, if you suffer from an allergy or asthma aggravated by dust mites, lower humidity levels may help. Also, sufferers of arthritis, bronchitis and rheumatism may also find relief from drier, warmer air.

Economy-wise, your Ebac dehumidifier costs typically 2p an hour to run. It can even lower your heating bills, as moist air absorbs heat. This is then removed and channelled back into the atmosphere to raise temperatures by up to 3^ . Plus, being light and portable, every room in the house can benefit too.

Once your condensation problem is under control, your dehumidifier will extract from 1 to 2.5 litres of water per day.

Important

Your Ebac Powerdri is packed in a plastic wrapping; please ensure that it is disposed of safely where it will not be a danger to children.

Before operation

1. Stand your dehumidifier upright for at least 2 hours prior to operating.
2. Open the water container door, remove the water container - replace and close the door. This will reset the sensors which may have been activated during transit.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Getting the most from your Powerdri

1. Ensure internal doors are kept ajar where possible to allow air circulation.
2. Ensure external doors and windows are kept closed as much as possible
3. Ensure the unit is positioned on a flat, even surface.

Setting the controls

Humidistat

Turn the humidistat to the appropriate symbol on the dial. When drying is complete switch off the dryer by turning the Humidistat to its lowest setting and unplugging the dryer from the mains. When using for automatic humidity control initially turn to the highest setting, when signs of excess moisture are reduced, gradually turn the humidistat dial anti-clockwise to the point where the dryer just switches off. This level of humidity will now be maintained.

If signs of excess moisture re-appear, increase the humidistat setting slightly until the problems are again under control.

Dual Dial Models

① Power On and Container Full Indication
2 Fan Speed Control
3 Humidstat

Fan Speed Control

Setting Fl	n
1	Low/Quiet Setting
2	High Setting for maximum extraction

To adjust fan speed
Turn the fan speed dial to desired position

Setting

Mid humidistat setting for homes with general moisture levels

Control unwanted moisture wherever it occurs

Assists with indoor laundry drying

Dry rooms and plaster quickly and effectively

High humidistat setting for maximum extraction

Emptying the water container

The red light on the control panel will illuminate when the container is full. When this occurs, water collection stops.

To empty, open the water container access door

The container can then be removed and emptied as shown

Replace the container back into the dehumidifier with the outlet on the left hand side and gently close the door.

Cleaning the filter

Your Powerdri has a filter to remove dust from the air.

This filter should be cleaned every month and replaced every 3 to 4 months dependent upon usage. Failure to do this will reduce the performance of your dehumidifier and may, over time lead to a permanent reduction in performance.

Remove the filter cartridge from the rear of the unit.

Clean the filter using a vacuum cleaner on a low power. Replace the filter cartridge onto the rear panel.

Your dryer can be used in unattended dwellings such as holiday homes without emptying the water container. To enable this facility you must use the permanent drainage kit supplied.

Fitting the Drainage Kit

Disconnect the Powerdri from the power supply before fitting the drainage kit.

Remove the permanent drainage seal from the rear of the unit.

To prevent this being mislaid this is attached to the rear of the panel of your dryer.

Locate the end of the drainage tube with the bleed hole.

Push this end of the tube onto the permanent drainage outlet (it may help to dip the end of the tube in hot water for a few seconds to soften it) ensuring that the bleed hole is located at the top.

Ensure that the tube is securely attached to the drainage outlet and route the pipe ensuring that:

• The pipe is not kinked nor has an excessive number of bends in it.
• The level of the pipe does not rise above the level of the machine's drainage outlet.

For accessories such as the drain kit, contact your local reseller or visit www.ebac.com

Your Powerdri requires very little maintenance, however, to maximise performance clean the filter every month (replacing every 3 to 4 months dependent upon usage) and every 6 months you should check the drainage system as follows:

1. Using a standard matchstick or small plastic bottle brush, remove any residue from the water drain outlet above the water container (left hand side).
2. Pull out the permanent drainage bung from the rear of the unit. This should then be pushed in and out a few times to remove any build up inside the drain tray (have a cloth or other absorbent material handy to catch the water). The bung should then be pushed fully home to reseal the drain tray.

Never use solvents or abrasive cleaners to clean your Powerdri.

If your Powerdri fails to operate

Always check the following list before requesting a repair service. Should a service call be requested and the fault is found to be detailed below, a charge may be incurred.

Power indicator light is not illuminated.

Check

1. The unit is switched on at the mains. If necessary test the socket by plugging in another appliance.
2. Check the fuse in the plug and if necessary replace with another 13 amp fuse (UK plug only). If you continue to have problems please see 'Requesting Service'.

Power indicator light is illuminated, but the unit is not collecting water.

Check

1. The humidistat (if activated) may be set too low, increase the setting.
2. The water container may be full, empty the container.
3. Ensure the water container is fitted. If you continue to have problems please see 'Requesting Service'.

Reduced water extraction.

Check

1. The humidistat (if activated) may be set too low, if signs of condensation or dampness remain, increase the setting.
2. The filter may be blocked. Remove, clean and refit.
3. After being installed all dehumidifiers will collect less moisture as initial excess moisture is removed. This is normal.
4. The dehumidifier may be positioned next to a heat source i.e. a radiator - reposition. If you continue to have problems see 'Requesting Service'.

Red water container light remains on all the time and the dehumidifier is not running (Normal when the water container is full).

Check

1. Ensure the water container is not full.
2. Ensure the water container is fitted. If you continue to have problems see 'Requesting Service'.

Min Operating Temperature 3^ Max Operating Temperature 35^

• Do not use the machine if the power cord or cabinet are damaged.
• If the flexible power cord is damaged it must be replaced by an identical cord which is available from Ebac Limited or an Ebac authorised distributor.
• Do not poke objects into any grilles on the machine.
• Ebac has a policy of constant development and, therefore, reserves the right to change specifications without prior notice.
• Do not use the machine without the permanent drainage bung in place on the back of the machine.
• To protect against electrical shocks, do not immerse unit, plug or cord in water, or spray with liquids.
• Do not use an extension cord or double adapter.
• Ensure Power supply is RCD protected at 30mA .
• UK product is shipped with a fuse in the mains plug. This is not necessary for EU products as they do not have a fuse.

Requesting service

Before requesting a service call please read the section 'If your Powerdri fails to operate correctly' and follow any advice this offers.

If after following this advice you still experience problems please obtain the following information then either log on to www.ebac.com/faq and use our quick and easy diagnostics system to resolve your problem or contact our customer service desk on [phone] (UK only)

1. Model and serial numbers (located on a rating plate behind the water container).
2. Your Name, Address, Postcode and Telephone Number.
3. Where your dehumidifier was purchased.
4. Date of purchase.
5. If applicable, any valid guarantee extension.

Ebac

DEHUMIDIFIERS

Ketton Way, Aycliffe Business Park, Newton Aycliffe, County Durham, DL5 6SQ, United Kingdom

Tel: [phone] | [phone]

www.ebac.com

Where you see this symbol on any of our electrical products or packaging, it indicates that the relevant electrical products should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product, please dispose of it in accordance with any applicable local laws or requirements for disposal of electrical and electronic equipment in so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste.
