43M120 - Wristwatch Caravelle - Free user manual and instructions

Product Type	Quartz wristwatch
Brand	Caravelle
Model	43M120
Power Supply	1.5V battery (silver-oxide type)
Battery Life	Approximately 1 year under normal conditions
Main Functions	Display of hours, minutes, seconds; date and day (depending on variant); elapsed time indicator with rotating bezel
Water Resistance	Water-resistant (no depth indication) – avoid swimming
Case Material	Stainless steel (estimated)
Case Diameter	Approximately 40 mm
Case Thickness	Approximately 10 mm
Weight	Approximately 80 g
Crystal Type	Mineral (estimated)
Crown	Screw-down winding crown (depending on model)
End-of-Life Battery Indicator	Second hand jumps at intervals of a few seconds
Warranty	Bulova limited warranty (refer to manual)
Care and Cleaning	Clean with a soft cloth; avoid chemicals; check water resistance periodically
Safety	Do not operate the crown underwater; replace battery as soon as it is depleted
Spare Parts and Repairability	Repair by authorized watchmaker; replaceable battery; parts available via Bulova
General Information	Analog quartz watch; Swiss/Japanese movement (estimated)

Frequently Asked Questions - 43M120 Caravelle

How to set the time on my Caravelle 43M120?

Pull the crown to the outer position (clicks). Turn it clockwise to advance the hands. For better accuracy, set the minute hand 5 minutes ahead of the desired time, then gently turn it back. Push the crown back to the inner position when the time reference reaches the 60th second.

How to set the date and day?

Pull the crown to the outer position (2 clicks). Turn the hands forward until the date (or day/date) changes. Continue to set the time while distinguishing AM/PM. Then push the crown back. For manual date adjustment, use the intermediate position (1 click): turn the crown gently until the desired date, and for the day, turn in the opposite direction.

How to use the rotating bezel to measure elapsed time?

Turn the bezel to align the triangle (zero mark) with the minute hand at the start time. The minute hand will then indicate the elapsed time on the bezel.

What to do if the second hand jumps in intervals?

This is the end-of-life battery indicator. Replace the battery as soon as possible. The watch will continue to run but may stop if the battery is depleted.

How to change the battery on my Caravelle 43M120?

Take the watch to an authorized Bulova retailer or a competent watchmaker. The battery contains mercury (Hg) and must be properly recycled. Do not attempt to replace the battery yourself if you are not equipped.

Is my watch water-resistant? Can I swim with it?

The watch is marked 'Water-resistant' without depth indication. It is not designed for swimming. For swimming, choose a model with '50m', '100m', or '200m' on the dial.

How to use the screw-down crown?

Unscrew the crown by turning it toward you (counterclockwise) to disengage the threading. Make your adjustments. To screw it back, push the crown to position 1 and turn clockwise until it is tight. The watch is only water-resistant when the crown is screwed down.

Why does my watch stop?

This usually indicates a depleted battery. Replace the battery. If the problem persists, consult a watchmaker. Leaving the crown in the outer position prolongs battery life when the watch is not in use.

How to get warranty repair?

First check the battery. If it is in good condition, send the watch postage paid in protective packaging with a description of the problem and $10 for postage and handling to the appropriate Bulova address. Do not write 'Bulova' on the envelope.

How to maintain my watch for long life?

Clean it regularly with a soft cloth. Avoid shocks, chemicals, and unsuitable water. Have the water resistance and movement checked by an authorized watchmaker every 1-2 years. Replace the battery as soon as the second hand starts jumping.

USER MANUAL 43M120 Caravelle

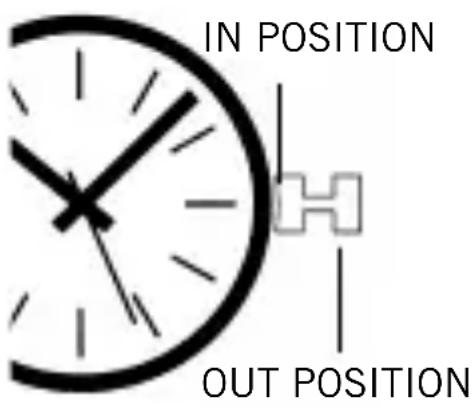

SETTING NON-DATE MODELS

If the watch has no second hand, merely pull out the crown and proceed to step 2.

Step 1: When the second hand reaches the 60th second mark, pull the crown to the "OUT" position. All hands will stop.

Step 2: Turn the hands forward (clockwise) to set the time. In order to prevent the hands from jumping when the crown is pushed in, set the minute hand approximately 5 minutes ahead of the desired minute marker; then, gently turn back to the same minute marker.

Step 3: When the time standard by which you are setting your watch reaches the 60th second, push the crown to the "IN" position without turning. All hands will start instantly.

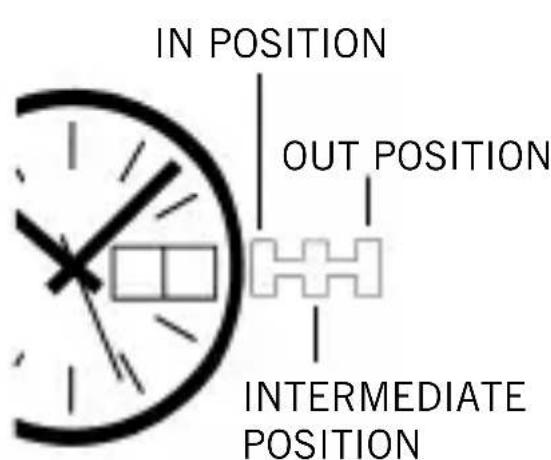

SETTING DATE AND DAY/DATE MODELS

Step 1: When the second hand reaches the 60th second mark, pull the crown all the way to the "OUT" position (you will hear two tiny "click" sounds). All hands will stop.

Step 2: With the crown still in the "OUT" position, move hands forward (clockwise) until you see the date (for date only) or both day and date change. This establishes midnight.

Step 3: For AM time, continue to move the hands forward until the minute hand is approximately 5

minutes ahead of the desired minute marker; then, gently turn back to the same minute marker. For PM time, follow the same procedure, but first advance the hands past 12 o'clock.

Note: The date will advance automatically at midnight, provided that AM and PM have been established (steps 2 and 3). The watch calendar is programmed for a 31-day cycle. Therefore, on the first day of any month following a month with less than 31 days, the date must be advanced manually (see Step 5).

Step 4: When the time standard by which you are setting your watch reaches the 60th second, push the crown all the way to the “IN” position without turning. All hands will start instantly.

Step 5: Pull the crown to the "INTERMEDIATE" position (one "click"). Your watch will continue to tell time. Slowly turn crown one way until correct date appears. Then, for day/date models, slowly turn crown the other way until correct day appears.

Note: The day is printed in two successive positions on the day indicator: in English and in Spanish on U.S. models; in English and in French, depending on the models. It is possible to make use of either position. The display will automatically

remain in the language chosen.

In some models, the calendar cannot be changed manually between 9:00pm and 6:00am. However, the mechanism will not be damaged if the crown is turned accidentally during this period of time.

Step 6: Push the crown to the "IN" position. Your watch is now operating normally.

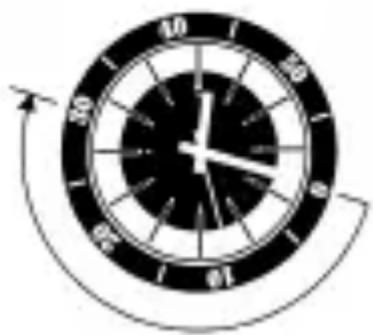

HOW TO USE THE ELAPSED TIME INDICATOR

If your watch is equipped with a rotatable outer dial with one-minute graduations, this can be used in various ways to check elapsed time. For example if a diver has a 30-minute air sup

ply, he can set the outer ring so that the triangle is in line with the minute hand when he submerges. The minute hand will then indicate on the outer ring the length of time that the diver has been under water.

SCREW-DOWN CROWN

If your watch includes a screw-down crown, you have additional assurance that it will remain watertight. To make the crown operational, it must be turned toward you until the threads are disengaged. Then, instructions for setting must be followed. To reseal the crown, press in until threads engage. Turn away from you until tight.

ABOUT THE POWER CELL

Your new Quartz Watch has a fresh power cell designed to provide maximum reliability for approximately a year under normal use. If the cell is not replaced before it is exhausted, the watch will simply stop. The mechanism should not be harmed in any manner. However, when the power cell becomes exhausted, it should be removed at your earliest convenience to diminish the possibility of leakage. Never store your watch with an exhausted power cell in it.

The watch should be brought to an authorized Bulova dealer for replacement of the power cell and recycling since the exhausted cell contains mercury (Hg) . For best performance, the proper power cell should be used.

ABOUT THE BATTERY LIFE INDICATOR

Some models are equipped with a battery life indicator. This is a novel device that will alert you to the need to replace the battery before the watch actually stops. At least a week prior to exhaustion of the battery, the second hand will jump a few seconds at a time. Timekeeping will not be affected.

Note: When the crown is in the "OUT" position, the motor and hands stop. Only the quartz crystal continues to vibrate, using very little power. If the watch is to be stored for a length of time, it is recommended that the crown be left in the "OUT" position to prolong battery life. This does not apply to models with two hands only.

DEEP WATER LIMITED WARRANTY

Supplementary and subject to all the provisions and duration of the basic Bulova watch limited warranty, deep sea watches are further warranted not to leak when submerged in water to the depth shown on the dial, provided crystal and crown remain intact and the case has been unopened.

In order to assure the preservation of your watch's water resistance, particularly in those instances where the element of safety is involved, have it checked occasionally by a competent watch technician and serviced or repaired, if necessary. In addition, the wearer should avoid manipulation of the crown when submerged.

WATER RESISTANCE

Watch modelsmarked only "Water Resistant on the case back, without additional depth markings on the dial, are not to be used for swimming. For swimming, models that have the additional marking of "50m," "100m" or "200m" on the dial are recommended.

CÓM O AJUSTAR A LOS MODELOS SIN FECHA

IF SERVICE IS REQUIRED: Bulova timepieces have been engineered to provide years of use with minimal need for service. In the unlikely event that service is needed, first have the battery tested to be sure it still has sufficient power. If this does not correct the problem, send a statement outlining the specific nature of the problem along with the timepiece in a durable, protective wrapping, postage prepaid and with a $10.00 shipping/handling fee.

IMPORTANT REMINDERS FOR SERVICE

• Do not show the name "Bulova" as part of the address
• Use registered mail or insured mail.
• Carefully wrap the timepiece in protective wrapping. Do not send in original box.

POST-WARRANTY SERVICE: Bulova's staff of watchmakers is expert at repairing and restoring Bulova timepieces. For repairs outside of warranty, a $10.00 charge will be assessed to cover cost of evaluation, postage and handling if repair authorization is refused. Post-warranty repairs should be mailed to the appropriate address.

For additional information please visit our Web Site at www.bulova.com
