44M114 - Wristwatch Caravelle - Free user manual and instructions

Product Type	Watch
Brand	Caravelle
Model	44M114
Movement	Quartz
Power source	1.5 volt battery
Battery life	Approximately 1 year under normal conditions
Functions	Time, date, day display (depending on model)
Calendar	31-day cycle, manual correction
Day language	English/Spanish or French/English depending on model
End of battery life indicator	On some models, second hand jumps a few seconds
Crown	Screw-down winding crown for water resistance
Water resistance	Varies by model (indicated on dial or case back)
Dive use	For models with depth rating (50m, 100m, 200m)
Rotating bezel	Some models have a rotating bezel to measure elapsed time
Warranty	Limited warranty for deep water use
Maintenance	Periodic check by a watchmaker, avoid operating the crown underwater
Repair	Send to Bulova with $10 for postage and evaluation (out of warranty)
Storage	Leave the crown in the pulled-out position to save battery

Frequently Asked Questions - 44M114 Caravelle

How do I set the time on my Caravelle 44M114 watch?

To set the time, pull the winding button out when the second hand is at 60 seconds. Turn the hands forward. Set the minute hand 5 minutes past the desired time, then turn it back. When the time reference reaches 60 seconds, push the button in to the inner position.

How do I set the date and day on my watch?

To set the date, pull the button to the middle position (one click) and slowly turn to the desired date. For day/date models, turn in the opposite direction for the day. Note that the calendar should not be changed between 9 PM and 6 AM on some models.

How do I use the rotating bezel to measure elapsed time?

If your watch has a rotating outer bezel, align the triangle with the minute hand at the start of the event. The minute hand will indicate the elapsed time on the bezel.

What should I do if my watch battery is dead?

Take the watch to an authorized Bulova dealer for battery replacement and recycling. Do not store the watch with a dead battery. Remove the battery if possible.

How do I know when to change the battery?

On some models, the second hand jumps several seconds at a time to indicate a low battery. Replace it within the following week.

Is my watch waterproof? Can I swim with it?

Water resistance depends on the model. If the dial indicates "50m", "100m" or "200m", you can swim. Models marked only "Water resistant" without depth are not suitable for swimming.

How do I screw and unscrew the crown?

To unscrew, turn the crown towards you until the thread is released. To screw back, push the crown into position 1, then press and screw in the opposite direction until tight. The watch is only waterproof if the crown is properly screwed.

Why has my watch stopped working?

First check the battery. If it is dead, replace it. If the battery is good, consult a watchmaker or send the watch to Bulova for repair with $10 for postage and evaluation.

Where can I get my Caravelle watch repaired?

You can send it to Bulova at the address given in the manual. Use protective packaging and include a description of the problem along with $10 for postage (out of warranty).

How can I extend battery life when I am not wearing the watch?

To save the battery, leave the winding button in the pulled-out position when the watch is not in use. This stops the hands but the quartz continues.

USER MANUAL 44M114 Caravelle

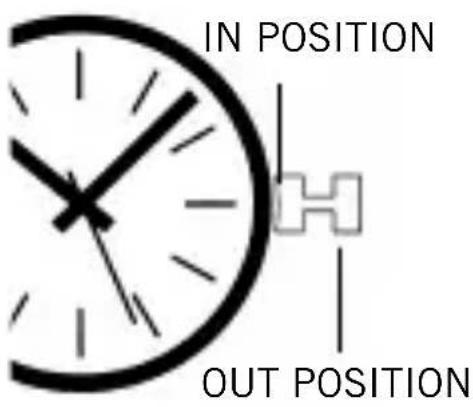

SETTING NON-DATE MODELS

If the watch has no second hand, merely pull out the crown and proceed to step 2.

Step 1: When the second hand reaches the 60th second mark, pull the crown to the “OUT” position. All hands will stop.

Step 2: Turn the hands forward (clockwise) to set the time. In order to prevent the hands from jumping when the crown is pushed in, set the minute hand approximately 5 minutes ahead of the desired minute marker; then, gently turn back to the same minute marker.

Step 3: When the time standard by which you are setting your watch reaches the 60th second, push the crown to the “IN” position without turning. All hands will start instantly.

SETTING DATE AND DAY/DATE MODELS

Step 1: When the second hand reaches the 60th second mark, pull the crown all the way to the “OUT” position (you will hear two tiny “click” sounds). All hands will stop.

Step 2: With the crown still in the “OUT” position, move hands forward (clockwise) until you see the date (for date only) or both day and date change. This establishes midnight.

Step 3: For AM time, continue to move the hands forward until the minute hand is approximately 5

minutes ahead of the desired minute marker; then, gently turn back to the same minute marker. For PM time, follow the same procedure, but first advance the hands past 12 o'clock.

Note: The date will advance automatically at midnight, provided that AM and PM have been established (steps 2 and 3). The watch calendar is programmed for a 31-day cycle. Therefore, on the first day of any month following a month with less than 31 days, the date must be advanced manually (see Step 5).

Step 4: When the time standard by which you are setting your watch reaches the 60th second, push the crown all the way to the “IN” position without turning. All hands will start instantly.

Step 5: Pull the crown to the “INTERMEDIATE” position (one “click”). Your watch will continue to tell time. Slowly turn crown one way until correct date appears. Then, for day/date models, slowly turn crown the other way until correct day appears.

Note: The day is printed in two successive positions on the day indicator: in English and in Spanish on U.S. models; in English and in French, depending on the models. It is possible to make use of either position. The display will automatically

remain in the language chosen.

In some models, the calendar cannot be changed manually between 9:00pm and 6:00am. However, the mechanism will not be damaged if the crown is turned accidentally during this period of time.

Step 6: Push the crown to the “IN” position. Your watch is now operating normally.

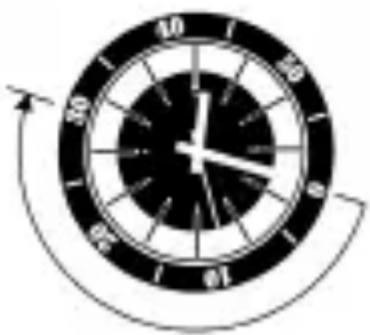

HOW TO USE THE ELAPSED TIME INDICATOR

If your watch is equipped with a rotatable outer dial with one-minute graduations, this can be used in various ways to check elapsed time. For example if a diver has a 30-minute air supply, he can set the outer ring so that the triangle is in line with the minute hand when he submerges.

The minute hand will then indicate on the outer ring the length of time that the diver has been under water.

SCREW-DOWN CROWN

If your watch includes a screw-down crown, you have additional assurance that it will remain water-tight. To make the crown operational, it must be turned toward you until the threads are disengaged. Then, instructions for setting must be followed. To reseal the crown, press in until threads engage. Turn away from you until tight.

ABOUT THE POWER CELL

Your new Quartz Watch has a fresh power cell designed to provide maximum reliability for approximately a year under normal use. If the cell is not replaced before it is exhausted, the watch will simply stop. The mechanism should not be harmed in any manner. However, when the power cell becomes exhausted, it should be removed at your earliest convenience to diminish the possibility of leakage. Never store your watch with an exhausted power cell in it.

The watch should be brought to an authorized Bulova dealer for replacement of the power cell and recycling since the exhausted cell contains mercury(Hg). For best performance, the proper power cell should be used.

ABOUT THE BATTERY LIFE INDICATOR

Some models are equipped with a battery life indicator. This is a novel device that will alert you to the need to replace the battery before the watch actually stops. At least a week prior to exhaustion of the battery, the second hand will jump a few seconds at a time. Timekeeping will not be affected.

Note: When the crown is in the “OUT” position, the motor and hands stop. Only the quartz crystal continues to vibrate, using very little power. If the watch is to be stored for a length of time, it is recommended that the crown be left in the “OUT” position to prolong battery life. This does not apply to models with two hands only.

DEEP WATER LIMITED WARRANTY

Supplementary and subject to all the provisions and duration of the basic Bulova watch limited warranty, deep sea watches are further warranted not to leak when submerged in water to the depth shown on the dial, provided crystal and crown remain intact and the case has been unopened.

In order to assure the preservation of your watch's water resistance, particularly in those instances where the element of safety is involved, have it checked occasionally by a competent watch technician and serviced or repaired, if necessary. In addition, the wearer should avoid manipulation of the crown when submerged.

WATER RESISTANCE

Watch modelsmarked only “Water Resistant on the case back, without additional depth markings on the dial, are not to be used for swimming.

For swimming, models that have the additional marking of “50m,” “100m” or “200m” on the dial are recommended.

CÓMO AJUSTAR A LOS MODELOS SIN FECHA

Analog clock face showing 12 o'clock with hour and minute hands, no text or symbols present.

IF SERVICE IS REQUIRED: Bulova timepieces have been engineered to provide years of use with minimal need for service. In the unlikely event that service is needed, first have the battery tested to be sure it still has sufficient power. If this does not correct the problem, send a statement outlining the specific nature of the problem along with the timepiece in a durable, protective wrapping, postage prepaid and with a \$10.00 shipping/handling fee.

IMPORTANT REMINDERS FOR SERVICE

• Do not show the name “Bulova” as part of the address
• Use registered mail or insured mail.
• Carefully wrap the timepiece in protective wrapping. Do not send in original box.

POST-WARRANTY SERVICE: Bulova's staff of watch-makers is expert at repairing and restoring Bulova timepieces. For repairs outside of warranty, a \$10.00 charge will be assessed to cover cost of evaluation, postage and handling if repair authorization is refused. Post-warranty repairs should be mailed to the appropriate address.

For additional information please visit our Web Site at www.bulova.com
