CTS1000CND - Toaster Waring Commercial - Free user manual and instructions

Features	Details
Product type	Commercial toaster
Capacity	Up to 300 slices per hour
Number of slots	2 wide slots
Dimensions	Width: 36 cm, Depth: 20 cm, Height: 30 cm
Weight	5.4 kg
Material	Stainless steel
Power	1800 Watts
Temperature control	Variable heat setting
Usage	Ideal for food service establishments, easy to use
Maintenance	Easy cleaning thanks to a crumb tray
Safety	Overheat protection
Warranty	1 year
Additional information	Designed for heavy use, ideal for cafes and restaurants

Frequently Asked Questions - CTS1000CND Waring Commercial

The toaster won\u0027t turn on, what should I do?

Check that the appliance is properly plugged in and that the outlet is working. Also make sure the thermostat is set to an appropriate temperature.

The bread doesn\u0027t toast evenly, what should I do?

Try changing the position of the bread slices. Make sure the grill is clean and that there are no residues that could affect cooking.

The toaster makes a strange noise, is this normal?

A slight noise can be normal, but if the noise is loud or unusual, unplug the appliance and contact after-sales service.

How do I clean the toaster?

Unplug the appliance and let it cool down. Remove the crumb tray and empty it. Wipe the outside with a damp cloth and clean the inside with a soft brush.

The toaster emits a burning smell, what should I do?

This can happen during the first use. Let the appliance run without bread for a few minutes to burn off residues. If the smell persists, stop using it and contact customer service.

How do I adjust the toaster\u0027s temperature?

Use the temperature adjustment knob on the control panel to choose the desired browning level before starting toasting.

The bread gets stuck in the toaster, what should I do?

Unplug the appliance before trying to remove the stuck bread. Never use a metal object to remove it; instead, use plastic tongs.

The toaster heats up but doesn\u0027t toast, what should I do?

Check if the lever is fully pressed down. If the problem persists, there may be an internal issue; contact after-sales service.

USER MANUAL CTS1000CND Waring Commercial

CTS1000/CTS1000C/CTS1000CND

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electrical hazards, do not immerse cord, plug, or any part of the Waring ^TM Commercial Conveyor Toaster in water or other liquid.
4. Children should be supervised to ensure that they do not play with the appliance.
5. Unplug from outlet when not in use and before cleaning. Allow unit to cool before cleaning or handling.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance has been dropped or damaged in any way, or if it is not operating properly. Return the toaster to the nearest Waring authorized service facility for examination, repair, or adjustment.
7. The use of attachments not recommended or sold by Waring may cause injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or countertop, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner or in a heated oven.
11. Do not use this toaster for other than its intended use.
12. A fire may occur if the toaster is covered or touching flammable materials such as draperies or walls when in operation. Do not operate under wall cabinets.
13. Oversized bread, metal foil packages or utensils must not be inserted in a toaster as they may involve a risk of fire or electrical shock.
14. Do not attempt to dislodge food when toaster is plugged into electrical outlet.

15. To avoid possibility of fire, do not leave toaster unattended during use.

16. Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

17. Waring toasters are designed, built, and sold for commercial use. If positioned where the general public can use them, make sure that all cautions, warning, and operating instructions are clearly posted near each unit to insure proper operation and reduce the chance of personal injury and/or equipment damage.
18. Plug unit into a properly grounded electrical outlet of the correct voltage, size and plug configuration. If the plug and receptacle do not match, contact a qualified electrician to determine the proper voltage and size and install the proper electrical outlet.
19. Unit is not waterproof. DO NOT submerge in water. Do not operate if it has been submerged in water.
20. To avoid injury, turn the power switch off, unplug the unit from the power source and allow to cool completely before performing any maintenance or cleaning.
21. To avoid electrical shock, always unplug the unit before performing cleaning or maintenance.
22. For safe and proper operation, the unit must be located a reasonable distance from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.
23. To avoid electrical shock or personal injury, do not steam clean or use excessive water on the unit.
24. Some exterior surfaces on the unit will get hot. Use caution when touching these areas to avoid injury.

25. Locate the unit at the proper counter height, in an area that is convenient for use. The location should be level to prevent the unit or its contents from accidentally falling, and strong enough to support the weight of the unit and food.

26. Failure to provide clearances will cause unit to fail and invalidate warranty claims (see initial preparation).

27. Do not use toppings (butter, etc) on product as product is inverted during normal operation.
28. Operating toaster without its adjustable feet invalidates any warranty claims.
29. Neglecting to keep fan opening clean could result in toaster failure.
30. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS FOR COMMERCIAL USE ONLY

Item Electrical Plug-Type Listings

CTS1000 120 Volt, 15A, 1800W NEMA 5-15P

CTS1000C 120 Volt, 15A, 1800W NEMA 5-20P

CTS1000CND 120 Volt, 12.5A, 1500W NEMA 5-15P

CUL, NSF

CUL, NSF

SHORT CORD INSTRUCTIONS

CAUTION: A short power supply cord is provided to reduce the risk of personal injury resulting from becoming entangled in or tripping over a long cord.

EXTENSION CORD USE

An extension cord or longer detachable cord is not recommended for use with conveyor toasters.

ELECTRIC POWER

If the electrical circuit is overloaded with other appliances, your appliance may not operate. It should be operated on an electrical circuit that is free from other appliances. If you are not sure of the reason for overloading or cannot find a separate circuit, contact a qualified electrician.

Warning symbol image showing a lightning bolt inside a triangle with a downward arrow

WARNING

RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN

Warning symbol with exclamation mark inside triangle

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

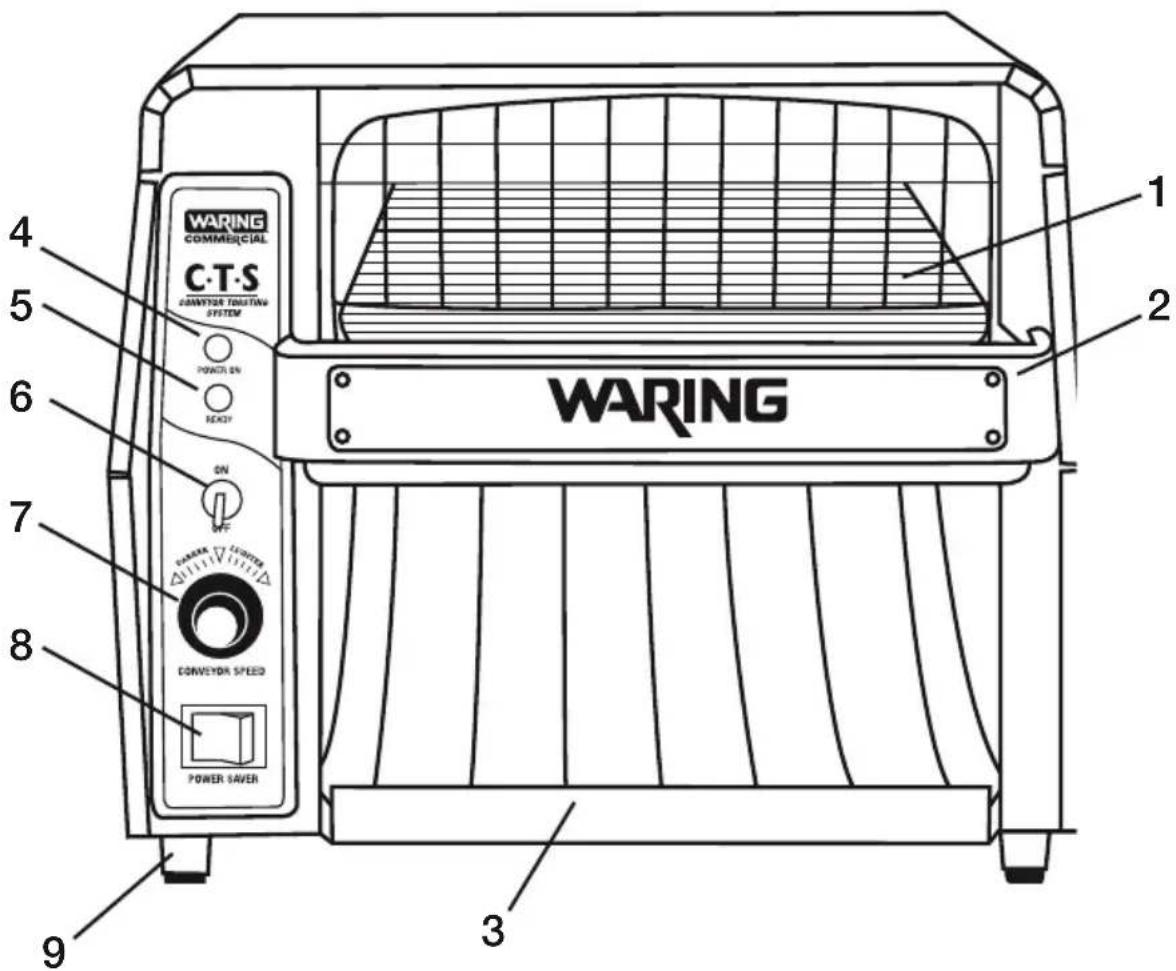

PARTS

WARING COMMERCIAL C.T.S COMPUTER TOLERATION SYSTEM POWER ON READY ON MC DURBAGE LEIGHTER CONVEYOR SPEED POWER SAVER 1 2 3 4 5 6 7 8 9 WARING

1. Wire Bread Feeder
2. Reflector/Crumb Tray
3. Toast Drawer
4. Power On Indicator Light
5. Temperature Ready Indicator Light
6. On/Off Toggle Switch
7. Conveyor Speed Control Knob
8. Standby Switch
9. Adjustable Feet
10. Carrying Handles (not shown)

OPERATION INSTRUCTIONS

Initial Preparation

- Place Waring™ Commercial Conveyor Toaster on level countertop with a minimum of a 2" clearance between the side and back walls.

NOTE: If unit is not seated properly, the feet are adjustable for balancing.

- Remove all parts (reflector/crumb tray and toast drawer) and clean thoroughly before first use.

- Replace all parts and plug unit into appropriate outlet (see previous page).

- Switch unit to the On position. The red Power On indicator light will illuminate.

IMPORTANT: Make sure the standby switch is in the Full power position (to the left).

• When conveyor toaster is ready for toasting, the green Ready indicator light will illuminate. This should take approximately 5 minutes.
• Turn the conveyor speed control knob to set the desired toasting speed.
• When the main power switch is turned to the OFF position, the cooling fan and green ready indicator light may stay on up to 15 minutes for cooling.

Toasting

• Place bread, bagel or muffin to be toasted on wire bread feeder. The conveyor toaster will automatically pull bread into the toasting chamber at the speed set by the conveyor speed control knob.
• When complete, toast will slide down bread chute into the toast drawer.

- If toast is too light or too dark, adjust the speed control. Turn the knob to the right for lighter toasting. Turn the knob to the left for darker toasting.

For best results, use day old bread stored at room temperature.

Standby Function

- During long periods of inactivity, the standby switch can be used to decrease the unit to 14 power. The switch is found below the conveyor speed control knob and should be switched to the right to activate this feature. This is done to save power and energy during idle periods and extend the life of the toaster's components. When full power is needed once again, switch back to the left and allow 3 to 4 minutes for unit to heat up again. The green indicator light will illuminate when unit is ready to toast.

Clearing a Toaster Jam

• WARNING: Never insert hands into the toasting chamber to clear a jam. Serious injury may result.
• WARNING: Never use a plastic object to clear a jam. If the toaster has not cooled down completely, damage to the toaster may result.
• Switch toaster to the Off position, unplug and allow the toaster to cool completely.

CAUTION: DO NOT ATTEMPT TO CLEAR THE JAM UNTIL THE TOASTER HAS COOLED THOROUGHLY.

- To clear jam, remove reflector/crumb tray and, using a long object, preferably made of wood, dislodge object causing jam.

Cleaning Instructions

- CAUTION: Switch toaster off, unplug and allow to cool thoroughly before cleaning. Do not touch hot surfaces until the unit has cooled.

• IMPORTANT: Do not clean your conveyor toaster using abrasive cleaners or pads. This will scratch and dull the surface of your unit.
• CAUTION: Do not spray, rinse or submerge the toaster in any liquid. Excessive moisture in the unit will cause a severe electrical hazard and may otherwise damage the toaster.
• Wipe the exterior of the toaster with a damp sponge or cloth soaked in hot or warm detergent water. Wipe with a clean, damp cloth to remove excess detergent and then wipe to dry the toaster.
• Remove the reflector/crumb tray, toast drawer and wire bread feeder from the unit and empty them. Wash them in warm detergent water and rinse them. Dry tray, drawer and rack thoroughly.

IMPORTANTES CONSIGNES DE SÉCURITÉ

Warning symbol image showing a lightning bolt inside a triangle with a downward arrow

AVERTISSEMENT

RISQUE D'INCENDIE OU DE CHOC ÉLECTRIQUE NE PAS OUVRIR

Warning symbol with exclamation mark inside triangle

AVERTISSEMENT: AFIN D'ÉVITER LES RISQUES D'INCENDIE OU D'ÉLECTROCUTION, NE PAS OUVRIR LE BOÎTIER OU LE PANNEAU ARRIÈRE DE L'APPAREIL. CET APPAREIL NE CONTIENT AUCUNE PIÈCE POUVANT ÊTRE RÉPARÉE PAR L'UTILISATEUR. TOUTE RÉPARATION DOIT ÊTRE EFFECTUÉE PAR UN TECHNICIEN QUALIFIÉ.

©2008 Waring Commercial

314 Ella T. Grasso Avenue

Torrington, CT 06790

www.waringproducts.com

Printed in China

Imprimé en Chine

CTS1000/CTS1000C/CTS1000CND IB

08WC101

IB-8550
