WCT850RC - Toaster Waring Commercial - Free user manual and instructions

Brand	Waring Commercial
Model	WCT850RC
Product Type	Commercial Toaster
Category	Toasters
Usage	Commercial
Number of Slots	2 standard slots, 2 wide slots
Main Functions	Electronic browning controls, bread/bagel selector, manual stop by lifting carriage
Carriage	Carriage control to lower and raise bread
Bread/Bagel Selector	Yes (WCT850 model only)
Crumb Tray	Removable, dishwasher safe
Power Cord	90 cm with grounded plug (3 prongs)
Rated Voltage	120 V or 208/240 V depending on model
Plug Type	NEMA 5-15P, 5-20P, 6-15P or 6-20P
Housing Material	Stainless steel or similar (not specified)
Care and Cleaning	Wipe housing with a damp cloth, crumb tray dishwasher safe, do not use metal objects to dislodge bread
Safety	Grounding required, do not cover, do not use near flammable materials, unplug before cleaning
Warranty	2 years against defects in material and workmanship
After-Sales Service	Contact Waring Service Center or authorized service center
Compliance	ANSI/UL No. 197

Frequently Asked Questions - WCT850RC Waring Commercial

How do I clean the crumb tray of the WCT850RC toaster?

Remove the crumb tray, discard crumbs, then wash it in the dishwasher or by hand with a damp cloth. Replace it before using the appliance. Never operate the toaster without the tray.

What should I do if a slice of bread gets stuck in the slots?

Unplug the appliance, let it cool, then gently turn it upside down and shake to release the bread. Never use metal or sharp objects to dislodge bread, as this could damage the appliance.

How do I toast a bagel with the WCT850RC?

Set the selector to the 'BAGEL' position. Cut the bagel in half and place the cut side to the left, according to the arrows on the housing. Lower the carriage. The toaster toasts only one side.

What is the required power supply voltage for this toaster?

The WCT850RC can operate at 120 V or 208/240 V depending on configuration. Check the label on the appliance. Use a suitable grounded outlet. Do not connect to DC current.

Can I use an extension cord with this toaster?

Yes, provided the extension cord has electrical ratings at least equal to those of the appliance, is equipped with a grounding plug, and does not hang over the edge of the countertop.

How do I stop the toaster during operation?

Simply lift the carriage control lever. This interrupts the toasting cycle and raises the bread.

What types of bread can I toast in this toaster?

The toaster accepts standard bread in the normal slots (toasting on both sides) and thicker slices or bagels in the wide slots (toasting on one side).

How do I clean the exterior of the toaster?

Allow the appliance to cool and unplug it. Wipe the housing with a slightly damp cloth. Avoid liquid entering the slots. Dry before next use.

What should I do if the power cord is damaged?

Do not use the appliance. Send it to an authorized service center (Waring Service Center or service center) for inspection and repair. Do not attempt to repair it yourself.

Is the toaster covered by warranty?

Yes, Waring Commercial warrants this toaster against defects in material or workmanship for 2 years from the date of purchase, subject to normal and non-abusive use.

USER MANUAL WCT850RC Waring Commercial

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.
2. Do not touch hot surfaces. Use handles or knobs.
3. Always unplug from outlet prior to handling or cleaning.
4. To protect against risk of electrical hazards, do not immerse cord, plug, or any part of the Waring® toaster in water or other liquids.
5. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.
7. Unplug from outlet when not in use and before cleaning. Allow unit to cool before cleaning or handling.
8. Do not operate any appliance with a damaged cord or plug or after the appliance has been dropped or damaged in any way, or if it is not operating properly. Return the toaster to the nearest Waring authorized service facility for examination, repair, or adjustment.
9. The use of attachments not recommended or sold by Waring may cause injury.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or countertop, or touch hot surfaces.
12. Do not place on or near a hot gas or electric burner or in a heated oven.
13. Do not use this toaster for other than its intended use.
14. FIRE MAY OCCUR IF THE TOASTER IS COVERED OR TOUCHING FLAMMABLE MATERIALS SUCH AS DRAPERIES OR WALLS WHEN IN OPERATION. DO NOT OPERATE UNDER WALL CABINETS.
15. Oversize foods, metal foil packages or utensils must not be inserted in a toaster as they may involve a risk of fire or electrical shock.
16. Do not attempt to dislodge food when toaster is plugged into electrical outlet.
17. To avoid possibility of fire, do not leave toaster unattended during use.
18. Put this list in a safe place - do not discard.
19. Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

SAVE THESE INSTRUCTIONS

For Commercial Use

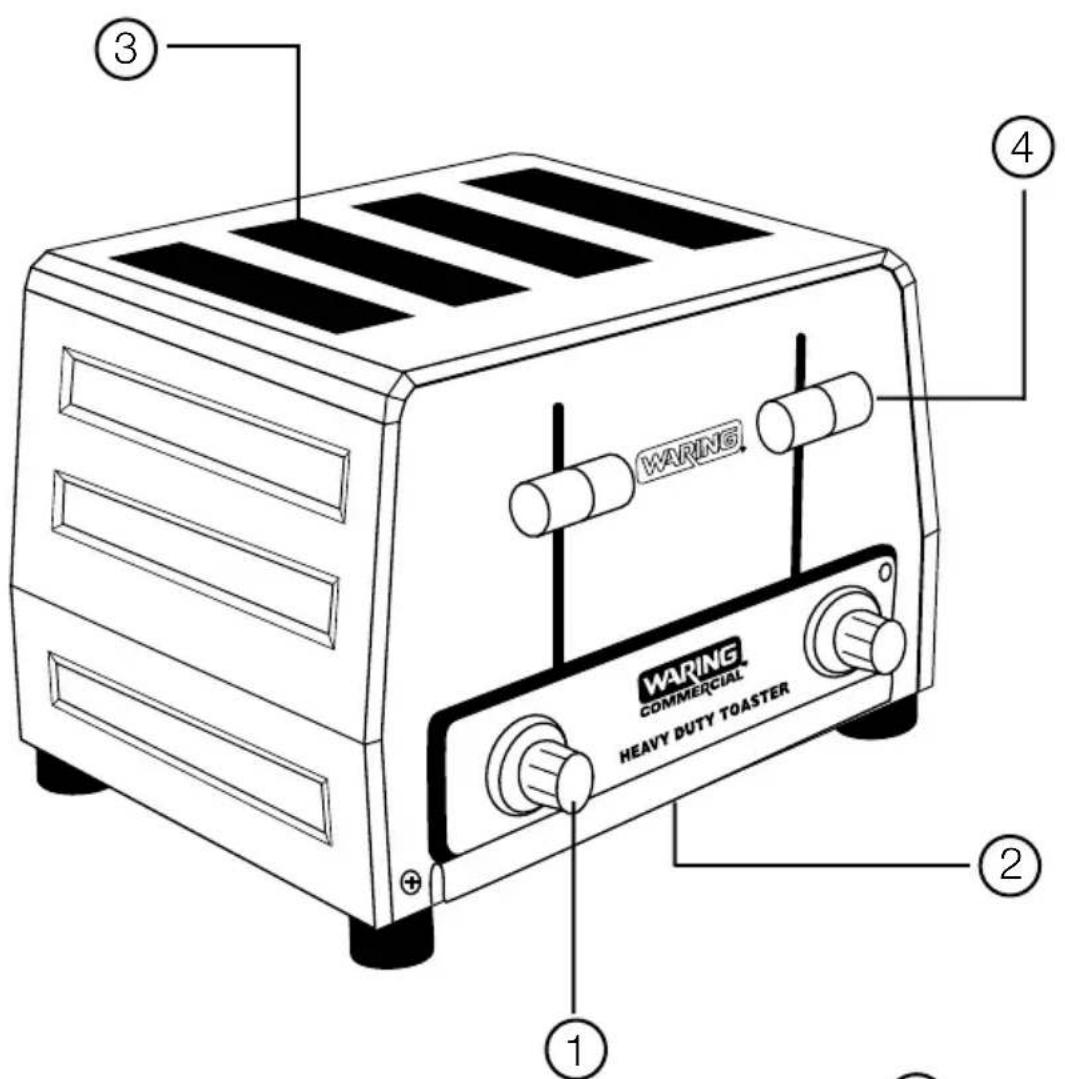

WCT800 SERIES TOASTERS

1) Electronic Browning Control
2) Slide-out Crumb Tray
3) Toaster Slot
4) Carriage Control Lift Lever
5) 3 ft. Power Cord (not shown)

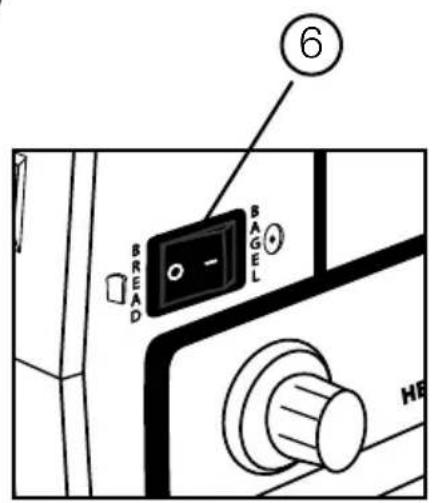

6) Bread/Bagel Switch (For WCT850 only)

Conforms to ANSI/UL STD 197

Specifications

Phase	Model Amps Watts			Frequency (Hz)	Voltage Cord		Plug Supply
1	WCT800 19 2200 60	120 3 ft.	5-20P
1	WCT800RC 15 1800	60 120 3	ft. 5-15P
1	WCT800RCND	12 14	40 60 120	3 ft. 5-15P
1	WCT805 10/12		2028/2700	60 208/240 3 ft. 6-15P
1	WCT805B 13 2700 60	208 3 ft.	6-20P
1	WCT810 17 2025 60	120 3 ft.	5-20P
1	WCT815 8/9	2025 60 240	3 ft. 6-15P
1	WCT815B 10 2025 60	208 3 ft.	6-15P
1	WCT820	12.5	1500	60 120 3 ft. 5-15P
1	WCT825	6.25	1500	60 240 3 ft. 6-15P
1	WCT825B	7.2	1500	60 208 3 ft. 6-15P
1	WCT850	13.5	2800	50/60	208	3 ft.	6-20P
1	WCT850RC 15 1800	50/60	120	3 ft. 5-15P
1	WCT855	11.25	2700	50/60	240	3 ft.	6-15P
1	WCT850RCND	11.5	1380	50/60	120	3 ft.	5-15P

Grounding Instructions

For your protection, the Waring® Commercial toasters are supplied with a molded 3-prong grounding-type plug and should be used in combination with a properly connected grounding-type outlet. Use of any other voltage or altering of the plug or cord may damage the unit, will void warranty and may cause injury.

120V	120V	208/240V	208/240V
NEMA 5-15P NEMA 5-20P		NEMA 6-15P	NEMA 6-20P

3 ft. Cord with Plug Configuration

Special Cord Set Instructions

A short power-supply cord is provided to reduce the risks result from becoming entangled in or tripping over a longer cord.

Extension cords may be used if care is exercised in their use.

If an extension cord is used, the marked electrical rating of the extension cord must be at least as great as the electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over. If the appliance is of the grounded type, the extension cord should be a grounding type 3-wire cord.

Operation

1. Put toaster on counter or flat, dry surface near electrical outlet.
2. Place bread in all the slots, set both browning controls and push down the carriage control levers. The toasted bread will automatically rise when the bread cycle is complete.
3. The regular slots toast both sides of bread, while bagel slots toast only on one side.
4. To stop toasting mid-cycle, just lift up the carriage control lever.

The sliced side of bagels and buns needs to face to the left. Arrows on toaster indicate toasting side.

The sliced side of bagels and buns should follow the diagram on the top panel of the toaster.

WCT850: To toast both sides of bread, switch must be positioned on the bread selection. To toast only one side, switch must be positioned on the bagel selection. The sliced side of bagels and buns should follow the diagram on the top panel of the toaster.

CAUTION: The removable crumb tray must be completely inserted before toaster can be operated. If the tray is removed for cleaning, ensure that it is replaced before using toaster. Crumb tray is dishwasher safe.

Cleaning and Maintenance Let toaster cool before any cleaning operation.

1. To clean outer surface: Let toaster cool. Unplug power cord. Wipe down exterior with damp cloth. Prevent liquid from running into toaster slots. Before using, allow toaster's outer surface to dry.
2. To clean crumb tray: Remove the crumb tray and discard crumbs. Wipe crumb tray clean and replace in toaster. Never operate the toaster without the crumb tray in place. Crumb tray is dishwasher safe.
3. To remove any pieces of bread remaining in the toaster, unplug toaster, turn the toaster upside down and gently shake. Never insert any metal or sharp instrument into the toaster slots. This could damage the toaster and cause a safety hazard.
4. Any other servicing should be performed by an authorized service representative.

Warning - To prevent electric shock, unplug before cleaning.

LIMITED 1 YEAR WARRANTY

Waring warrants every new COMMERCIAL PRODUCT to be free from defects in material and workmanship for a period of 1 year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semi-liquids, providing it has not been subjected to loads in excess of the indicated rating.

Under this warranty, the Waring Commercial Division will repair or replace any part which, upon examination, appears to us to be defective in materials or workmanship, provided the toaster is delivered prepaid to the Waring Service Center at 314 Ella T. Grasso Avenue, Torrington, CT 06790 or any Authorized Service Center.

This warranty does not: a) apply to any unit that has become worn, defective, damaged or broken due to use, repairs, or servicing by other than the Waring Service Center or an Authorized Service Center or due to abuse, misuse, overloading or tampering; or b) cover incidental or consequential damages of any kind.

This warranty gives you specific legal rights, and you may have other rights, which vary from state to state, so that certain limitations or exclusions set forth above may not apply to you.

WARNING-This warranty is Void if the appliance is used on Direct Current (DC).

Waring Commercial 314 Ella T. Grasso Avenue Torrington CT,06790

www.waringcommercialproducts.com

SERVICE

Refer to the list of Authorized Service Centers enclosed with your Waring Toaster for the name of the nearest Service Center, or contact Waring in one of the following 3 ways:

1) Mail: SERVICE CENTER 314 ELLA T. GRASSO AVENUE TORRINGTON, CT 06790
2) Product Service: [phone] or (800) 4WARING
3) Internet: http://www.waringcommercialproducts.com

E-mail: [e-mail]

Ship units for repair to the above address or to an Authorized Service Center.

Do not ship to a Waring Sales Office.

TORRINGTON, CT 06790

2) Por téléphone, Ilamando al: [phone] o (800) 4WARING
3) Por Internet: http://www.waringcommercialproducts.com

Specifications techniques

Phase	Modèle Ampères	Puisance(W)	Fréquence(Hz)	Tension(V)	Cordon Fiche
1 WCT800 19 2200 60	120 3 ft.	5-20P
1 WCT800RC 15 1800	60 120 3	ft. 5-15P
1	WCT800RCND	12 144	0 60 120 3 ft.	5-15P
1 WCT805 10/12		2028/2700	60 208	240 3 ft.	6-15P
1 WCT805B 13 2700	60 208 3 ft.	6-20P
1 WCT810 17 2025 60	120 3 ft.	5-20P
1 WCT815 8/9		1521/2025	60 208	240 3 ft.	6-15P
1 WCT815B 10 2025	60 208 3 ft.	6-15P
1 WCT820 12.5	1500 60 1	20 3 ft.	5-15P
1 WCT825 6.25	1500 60 2	40 3 ft.	6-15P
1 WCT825B	7.2	1500 60 208 3	ft.	6-15P
1 WCT850 13.5	2800 50/6	0 208 3 ft.	6-20P
1 WCT850RC 15 1800	50/60 120	3 ft.	5-15P
1 WCT855 11.25 2700	50/	60 240 3 ft.	6-15P
1	WCT850RCND	11.5	1380	50/60	120
					3 ft.

GARANTIE LIMITÉE D'UN AN

TORRINGTON, CT 06790

Trademarks or service marks of third parties used herein are the trademarks or service marks of their respective owners.

©2017 Waring Commercial
