Friteuse - Deep fryer Herman den Blijker - Free user manual and instructions

Features	Details
Type of fryer	Electric fryer
Capacity	3.5 liters
Power	2000 Watts
Material	Stainless steel
Adjustable temperature	From 150 to 190 6C
Oil filter	Removable filter for better filtration
Safety system	Overheat protection
Ease of cleaning	Removable dishwasher-safe components
Included accessories	Control panel, frying basket
Dimensions	40 x 30 x 25 cm
Weight	3.5 kg

Frequently Asked Questions - Friteuse Herman den Blijker

How do I clean my Herman den Blijker fryer?

To clean your fryer, unplug it and let it cool down. Remove the basket and used oil. Wash the basket and the tank with warm soapy water. Rinse thoroughly and dry before reassembling.

How much oil should I use?

The amount of oil depends on the capacity of your fryer. Generally, fill the tank up to the level indicated inside. Never exceed the maximum limit to avoid overflow.

Why isn\u0027t my fryer heating up?

Check that the fryer is properly plugged in and that the outlet is working. Also make sure the thermostat is set to the desired temperature. If the problem persists, contact customer service.

Can I use olive oil in my fryer?

It is better to use oils with a high smoke point, such as sunflower or rapeseed oil. Olive oil can burn and affect the taste of your fries.

How do I know if the oil is at the right temperature?

Use a kitchen thermometer to check the oil temperature. For crispy fries, the ideal temperature is about 175-180 6C.

Is it possible to fry frozen foods?

Yes, you can fry frozen foods, but keep in mind they may lower the oil temperature. It is advisable to fry them in small quantities for better results.

How do I prevent my fries from sticking together?

To prevent fries from sticking, make sure they are dry before placing them in the hot oil. Fry them in small batches and do not overload the basket.

The fryer smells burnt, what should I do?

A burnt smell can be caused by used oil or food residues. Clean the fryer thoroughly and change the oil. If the smell persists, check the heating elements.

Can I use my fryer outdoors?

It is recommended to use the fryer indoors on a flat and stable surface. Avoid using it outdoors, especially in windy or damp weather.

How do I store the oil after use?

Let the oil cool completely, filter it to remove food residues, and store it in an airtight container away from light and heat.

USER MANUAL Friteuse Herman den Blijker

InnoEssentials International

Donk 1B, 2991 LE Barendrecht, The Netherlands

E-mail: [e-mail]

HANDLEIDING

HERMAN

2.0

HANDLEIDING

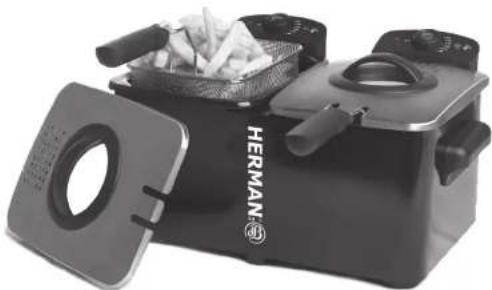

Friteuse 2x 3 liter

Read and keep this booklet

LIVRET D'INSTRUCTION

1. Temperature control knob
2. On/Off indicator light
3. Heating indicator light
4. Glass window

5.Filter
6. Handle
7. Holes for basket handle
8. Carrying handle

1. Hook for basket
2. Frying pan
3. Connection slide for electronics

4. Reset switch

5. Connection control switch

6. Heating element
7. Temperature control sensors
8. Mains plug

INHOUDSOPGAVE

- PLAATSING VAN HET APPARAAT

Getting the best out of your HERMAN * product 7
Safety first 7
- Appliance location 8
Power cord 8
Plug 8
Prior to first use 8
- Operating instructions 9
Safety Cut-Out 9
Cleaning the appliance and changing the oil 9
Your two year warranty 10
Service 10
Specifications 10

- GETTING THE BEST OUT OF YOUR HERMAN® PRODUCT

To get the best out of your new HERMAN® product please read these instructions carefully prior to using the appliance.

HERMAN® is not liable for any damage this appliance may cause as a result of misuse of this appliance either to your person or your belongings.

SAFETY FIRST

This appliance will become very hot when in use, keep it away from children and people with reduced physical, sensory or mental capabilities.
In the event of burns and/or scalds be sure to cool the affected area for at least 10 minutes under cold, running water. If you are uncertain about the severity, get medical assistance.
Cooking oil can catch fire when overheated. In this event cover the appliance with a fire-proof blanket or put the lids back on to kill the fire. Under no circumstances should you pour water onto the hot oil! Water and oil don't mix and the water will evaporate explosively which is potentially lethal.
This appliance is heavy when full of oil, never attempt to move it unless it has been completely cooled down. The appliance should be left to cool for a minimum of 3 hours after having been switched off prior to moving or storage. Always use the carrying handles when moving the appliance.
- Never leave the appliance unattended when in use.
- Never lean over the appliance while it is

in use, steam will pass through the filter and around the edges of the lid possibly causing severe burns to the face.

• Never operate the appliance if there is visible damage to the power cord, plug or any other component or if it has malfunctioned in any way. Never attempt to repair the appliance and/or component parts yourself, always consult a qualified domestic appliance engineer.
• Never use the appliance outside, it is intended for indoor household use only.
• Never immerse the control panel, power cord or plug in water or any other liquid.
• Never operate the appliance with the oil level below the minimum or above the maximum oil fill levels.
• Never operate the appliance near flammable materials such as curtains or tablecloths.
• Never cover the appliance with any kind of material.
  Always turn the appliance off after use. Ensure that the temperature control knob is in the 0 (off) position, turn the plug off at the socket and remove the plug from the socket.
  Always unplug the appliance from the mains socket after use and before cleaning. Always let the appliance cool down before cleaning.
  Always use a suitable heat resistant garment such as an oven glove when opening the lid while the appliance is in use. Steam may be released when the lid is opened and hot oil can ' spit' from the oil bowl which can cause serious injury.
  Always ensure the food is as dry as possible before frying. Check that there is no water in your oil before using your appliance and never add water to the oil.
  The appliance is not intended to be operated by means of an external timer or separate remote-control system.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid short cicuting the appliance.

APPLIANCE LOCATION

The appliance must be placed on a horizontal, flat and stable surface away from other heat sources and where it cannot be splashed with water.
- Do not use the appliance in confined spaces, such as under cupboards or shelves.
- Do not place the appliance in a position where the power cord could cause a trip hazard or be reached by children. Children and vulnerable adults must not be left unsupervised when the appliance is in use.
Always allow a minimum of 20cm air space around the appliance and at least 60cm air space above the appliance for air circulation when in use.

POWER CORD

The power cord should never be strained or stretched.
- Ensure that the power cord is kept away from hot surfaces and sharp objects that could cause damage to it.
In the event the power cord is damaged in any way you must not use the appliance. Never attempt to repair the appliance or any component parts yourself, always consult a qualified domestic appliance engineer.

- PLUG

If the plug becomes damaged in any way you must not use the appliance. Never attempt to repair the appliance or component parts yourself, always consult a qualified domestic appliance engineer.

PRIOR TO FIRST USE

Carefully remove the appliance from the outer packaging. Remove all packaging materials and either retain for future use or dispose of responsibly. We recommend that the appliance is cleaned before first use. Please refer to the cleaning instructions chapter in this manual.

• Remove the control panel by gently pulling it upwards - Do not wash or immerse this part in water or any other liquid.
• Lift the oil pan out of the outer casing.
• Wash the oil pan and fryer basket in warm water with a mild detergent using a soft kitchen cloth.
• Rinse and dry the oil pan and fryer basket thoroughly.
  Lower the oil pan back into the outer casing.
• Replace the control panel by gently sliding it downwards into the retaining slots.
• You will need to fix the fryer basket and the fryer handle together, check that the handle 'clicks' into place and is secure. Lower the fryer basket into the oil pan.
• Please note that the Appliance will not work if the control panel is not seated correctly.
• Fill the oil pan with oil; ensure that the oil level is above the minimum level indicator and below the maximum level indicator. A good quality vegetable oil or rapeseed oil must be used. Do not mix oil types or use Margarine, Butter or Olive oil.

OPERATING INSTRUCTIONS

• When plugging in this appliance, be aware that the 2x 2000W power used when heating the oil is the absolute limit of a single mains fuse. Operating any other appliances on the same fuse can cause it to blow as you would be overloading the mains circuit.

Refer to the cooking instructions on your food packaging for the correct temperature and frying times.
Make sure that the temperature control knob is set to the 0 (off) position.
- Remove the lid and the frying basket.
- Insert the plug into the mains socket.
To minimize the risk of the cable being trapped or pulled, coil the excess cable into the storage area at the rear of the control unit.
- Turn on the mains socket, the power indicator will light up on the appliance.
- Set the temperature control knob to the required temperature.
- Wait until the heat indicator goes dark before placing food in the appliance. The appliance will not work if the control panel is not seated correctly.
- When the heat indicator goes dark, place the food to be fried into the frying basket and gently lower the frying basket into the oil pan. Never load the fryer basket over 2/3 full. BEWARE OF HOT SPITTING OIL
Replace the lid during frying.
- When your food is fried remove the lid. Carefully lift the frying basket out of the oil pan and hook it onto the edge of the appliance allowing excess oil to drip back into the oil pan.
- When you have finished frying, replace the lid and turn the temperature switch back to the 0 (off) position. Switch off the appliance at the mains socket and remove the plug.
The oil in the appliance will need replacing regularly to ensure optimum performance. Well used oil can be dangerous as it is more likely to catch fire if left to overheat.

SAFETY CUT-OUT

If you accidentally switch on the appliance with no or too little oil in the oil bowl, the appliance will automatically cut out to prevent damage to the immersion heater. If this happens:
- Switch off and unplug the appliance from the mains supply, wait until the

element has cooled completely.

Top up the oil level so that it is between the maximum and minimum markings.
- Press the 'Reset' button on the back of the control panel using a pen or stick. The appliance should now operate correctly.

- CLEANING THE APPLIANCE AND CHANGING THE OIL

• Oil should be changed after 10 uses or if it becomes brown or milky in colour, whichever comes first.
• Ensure that the appliance is unplugged and completely cool, use extra caution when handling the heat element as this stays hot for some time even if the appliance appears to be completely cool. Hot oil will cause burns and will melt plastic containers. Wear suitable protective clothing and eye protection.
  DO NOT USE ABRASIVE CLEANING PRODUCTS AS THIS WILL DAMAGE THE SURFACES
• Remove the control panel by gently pulling it upwards - Do not wash or immerse this part in water or immerse in any other liquid.
• Lift the oil pan out of the outer casing.
  Pour the old oil into a suitable container.
• Wash the oil pan and frying basket in warm water with a mild detergent using a soft kitchen cloth.
• Wash the outer casing in warm water with a mild detergent using a soft kitchen cloth.
• Wash the lid in warm water with a mild detergent using a soft kitchen cloth.
• Remove the filters from the lid and wash in warm water with a mild detergent.
• Rinse and dry the oil pan, outer casing, filters and fryer basket thoroughly.
  Lower the oil pan back into the outer casing.
• Replace the control panel by gently sliding it downwards into the retaining slots.

• Please note that the appliance will not work if the control panel is not seated correctly.

• Fill the oil pan with oil; ensure that the oil level is above the minimum level indicator and below the maximum level indicator. A good quality vegetable oil or rapeseed oil must be used. Do not mix oil types or use Margarine, Butter or Olive oil.

• The lid, basket, filter and frying pan are dishwasher safe. When placing them in a dishwasher, be sure to remove them and thoroughly dry them when the program has finished.

YOUR TWO YEAR WARRANTY

HERMAN® provides a 2-year warranty for all defects resulting from hidden deficiencies which render the appliance unsuitable for normal operation.

• The warranty period starts on the date of first purchase. We advise to carefully save your receipt as proof of this date.
• Within the warranty period any and all defects resulting from faulty production or faulty materials will be resolved free of charge, by means of repair, replacement of parts or component parts or replacement of the appliance as a whole.
• Repairs will only be performed under warranty in case it can be proven (by means of a filled in warranty card and the original receipt) that the complaint has been filed inside the warranty period.
• The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleaning), or when repairs or alterations have been executed outside the authorized service centre of your retailer. (This excludes disassembly as stated in this instruction booklet.)
• The warranty does not cover any defects caused by connecting the appliance to a wrong outlet voltage, misuse of the appliance, wear and tear within regularly acceptable limits or defect resulting directly from neglecting the instructions in this booklet.
• HERMAN cannot be held responsible for any material damage or personal accident resulting from connecting the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet).

The warranty under no circumstances

grants the right to any compensation.

• All other claims, including damages, are excluded unless the Law states otherwise. Other warranty regulations than the warranty regulations outlined in this booklet are not applicable.

SERVICE

In the event your appliance malfunctions or stops working during normal use, turn off the main power at the socket and unplug the device from the mains power circuit.
Allow the device time to cool down as stated in the safety instructions.
Contact your salesperson or company for instructions.
Your salesperson or company will make sure any defect under warranty will be repaired as soon as possible.
- Should your appliance malfunction or stop functioning outside the warranty period, or are you unable to claim warranty due to IE. loss of receipt, you can contact the supplier of the device. The contact information can be found on the back of this booklet. For these repairs charges may apply.

SPECIFICATIONS

Voltage: 220 - 240 V AC
Frequency: 50 Hz
Maximum power consumption: 2x 2000W
Storage ambient temperature: -10^ - 60^
Operating ambient temperature 15^ - 35^

TABLE DES MATIÈRES

Province (state) / Provincie / Province:

Country / Land / Pays:

ZIP code / Postcode / Code postal:

Telephone number / Telefoonnummer / Numero de téléphone:

Email address / E-mailadres / Adresse e-mail:

Date of purchase / Aanschafdatum / Date de l'achat:

HERMAN® provides a 2-year warranty for all defects resulting from hidden deficiencies which render the appliance unsuitable for normal operation.

The warranty period starts on the date of first purchase. We advise to carefully save your receipt as proof of this date.
- Within the warranty period any and all defects resulting from faulty production or faulty materials will be resolved free of charge, by means of repair, replacement of parts or component parts or replacement of the appliance as a whole.
Repairs will only be performed under warranty in case it can be proven (by means of a filled in warranty card and the original receipt) that the complaint has been filed inside the warranty period.
The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleaning), or when repairs or alterations have been executed outside the authorized service centre of your retailer. (This excludes dissassembly as stated in this instruction booklet.)
- The warranty does not cover any defects caused by connecting the appliance to a wrong outlet voltage, misuse of the appliance, wear and tear within regularly acceptable limits or defect resulting directly from neglecting the instructions in this booklet.
- HERMAN cannot be held responsible for any material damage or personal accident resulting from connecting the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right to any compensation.
All other claims, including damages, are excluded unless the Law states otherwise. Other warranty regulations than the warranty regulations outlined in this booklet are not applicable.
