Vintage GGM.D043 - Watch Mondaine - Free user manual and instructions

Product type	Automatic mechanical watch
Brand	Mondaine
Model	Vintage GGM.D043
Movement	Swiss automatic
Power source	Mechanical (no battery)
Power reserve	Approximately 36 hours
Initial winding	10 to 20 crown turns
Accuracy	Lower than a quartz watch
Water resistance	Factory tested (not specified)
Case material	Stainless steel
Glass	Mineral
Strap	Leather
Main functions	Display of hours, minutes and seconds
Maintenance and cleaning	Avoid magnetic fields, shocks and contact with water
Repairability	Have it serviced by a qualified watchmaker
Warranty	Refer to the retailer

Frequently Asked Questions - Vintage GGM.D043 Mondaine

How do I wind my Mondaine Vintage GGM.D043?

Before wearing the watch, turn the crown clockwise about 10 to 20 turns. This will start the movement. Then, the automatic rotor will wind it through arm movements.

Why isn't my watch working?

The watch must be manually wound initially (10 to 20 turns). If it is not worn for more than 36 hours, it stops. Wind it and then wear it to get it running again.

What is the accuracy of the Mondaine Vintage GGM.D043?

The accuracy is lower than that of a quartz watch. It is affected by temperature variations, movement and other mechanical incidents. It is advisable to reset the time every 2 or 3 days if you are strict about punctuality.

Is it water resistant?

Water resistance is factory tested, but the manual does not specify an exact value. As a precaution, avoid prolonged contact with water and do not wear it in the shower or while swimming.

How do I maintain my watch?

Avoid strong shocks, magnetic fields and humidity. Clean the case and strap with a soft dry cloth. Have the movement serviced by a qualified watchmaker every 3 to 5 years.

Can I wear it in the shower?

No, it is not recommended to wear this watch in the shower or while swimming. Its water resistance is not specified and water could damage the mechanism. Remove it before any water activity.

What should I do if my watch stops?

Wind it manually by turning the crown 10 to 20 turns. If it does not start, wear it so the rotor winds it. If the problem persists, consult a watchmaker.

How long is the power reserve?

The power reserve is approximately 36 hours. If you take off the watch in the evening, it will still run the next day, but not more than 36 hours without movement.

What is the difference with a quartz watch?

An automatic mechanical watch works without a battery thanks to a spring and a rotor. It is less accurate than a quartz watch, but it is valued for its traditional watchmaking craftsmanship and authentic character.

Where can I get my watch serviced?

Contact a certified professional watchmaker or Mondaine customer service. Regular servicing (every 3 to 5 years) ensures the longevity of the movement.

USER MANUAL Vintage GGM.D043 Mondaine

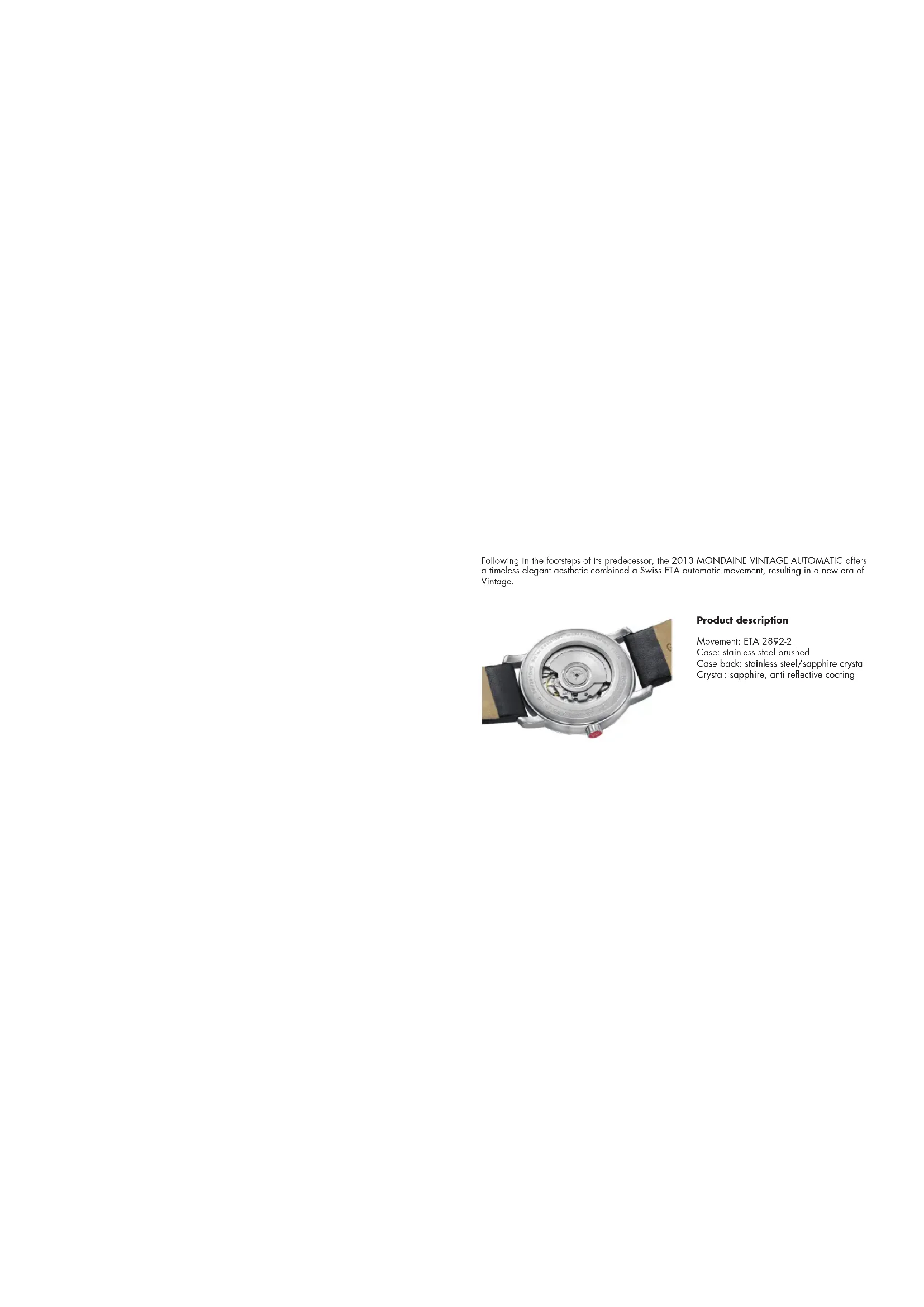

Following in the footsteps of its predecessor, the 2013 MONDAINE VINTAGE AUTOMATIC offers a timeless elegant aesthetic combined a Swiss ETA automatic movement, resulting in a new era of Vintage.

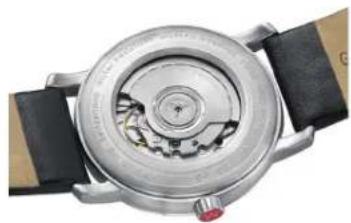

Close-up of a wristwatch with black strap and metallic casing (no visible text or symbols)

Product description

Movement: ETA 2892-2

Case: stainless steel brushed

Case back: stainless steel/sapphire crystal

Crystal: sapphire, anti reflective coating

The MONDAINE VINTAGE AUTOMATIC is a Swiss brand-name watch with a mechanical movement, so it needs no batteries. It is factory-tested for water resistance and shock-resistance.

The big breakthrough for automatic watches came in the 1940s after continual improvement of this winding system over the years. Until the advent of quartz watches, automatic watches were the only convenient alternative to traditional hand-wound models.

Mechanical watches look back on a long tradition and, even today, they are the skilled watch-maker's pride and joy. For many watch fans, mechanical watches are still the only real ones.

The MONDAINE VINTAGE AUTOMATIC picks up and continues the success story of the top-quality Swiss mechanical watch.

Its mechanical movement is a first-class Swiss product and accuracy is guaranteed by the precise interaction of many tiny, meticulously adjusted components such as cogs, pivots and springs.

The principle of the automatic watch is based on a rotor mounted on a ball bearing which is

turned to the right or left by gravity. Any movement bends the winding spring, so the watch is continually wound up.

Mechanical watches in general are less accurate than quartz watches, and the same applies to the MONDAINE VINTAGE AUTOMATIC.

You will have to bear with this slight variation because, although the movement is very precise, the absence of electronics makes it more sensitive to changes in temperature, movement and mechanical factors.

If you attach importance to absolute accuracy, you should check your watch every couple of days and adjust it as necessary or wear a MONDAINE quartz watch.

Your MONDAINE VINTAGE AUTOMATIC should be wound some 10 - 20 times before wearing to ensure it runs regularly from the time you first put it on.

After a time, the movement of your wrist will have charged the watch with a running reserve of about 36 hours, so it can be taken off at night without causing problems.

Registered models. All rights reserved and defended by the manufacturer.

M. dessingstrasse 5, CH-8027 Zurich T+41 58 666 88 00 F+41 58 666 87 00

www.mondaine.com

Printed on paper bleached without chlorine. Ed. 04.2013 GGM.D043
