Royal Sovereign International, Inc. APL-330U LAMINATOR Owner's Manual Please read and retain these instructions.To register your product, please go to www.royalsovereign.com USA. Click the Customer Support Tab then Registration Tab.www.royalsovereign.com Página en Español 9LAMINATORAPL-330U

SAfeTy INSTRUcTIONS The safety recommendations outlined in this section should be read and understood before operating this machine. When using this machine follow these basic safety precautions to reduce risk of fire, electric shock or injury. Keep this information for future reference.

1. To prevent the possibility of a fire or injury, do not allow foreign articles inside the machine.

2. Do not attempt to laminate items that exceed total recommended material thickness.

3. Do not insert pouch film with the back end first. (Front of film: sealed side, Back of film: open side.) This may cause the pouch to jam the rollers. 4. To prevent the possibility of electric shock, do not immerse the laminator in water or permit liquids inside the machine.

5. Because the laminator creates heat, keep out of the reach of children.

6. Do not cut pouches before inserting them into the laminator. This will cause the laminator to jam.

7. Do not laminate leaves, flower, clothes etc.

8. Iftheroomtemperatureislow(under64˚F),thereadylightmaytakelongertocomeon.

9. When unplugging the power plug, grip the plug to pull it out. Pulling the cord may result in electric shock, fire, or

damage to the machine.

10. Do not use the machine if the cord is damaged. This may result in electric shock, fire, or other hazards.

11. Do not place objects on the power cord and do not bend it excessively. This may result in electric shock, fire or other hazards.

12. When not using the machine for long periods of time, unplug the power cord from the outlet.4

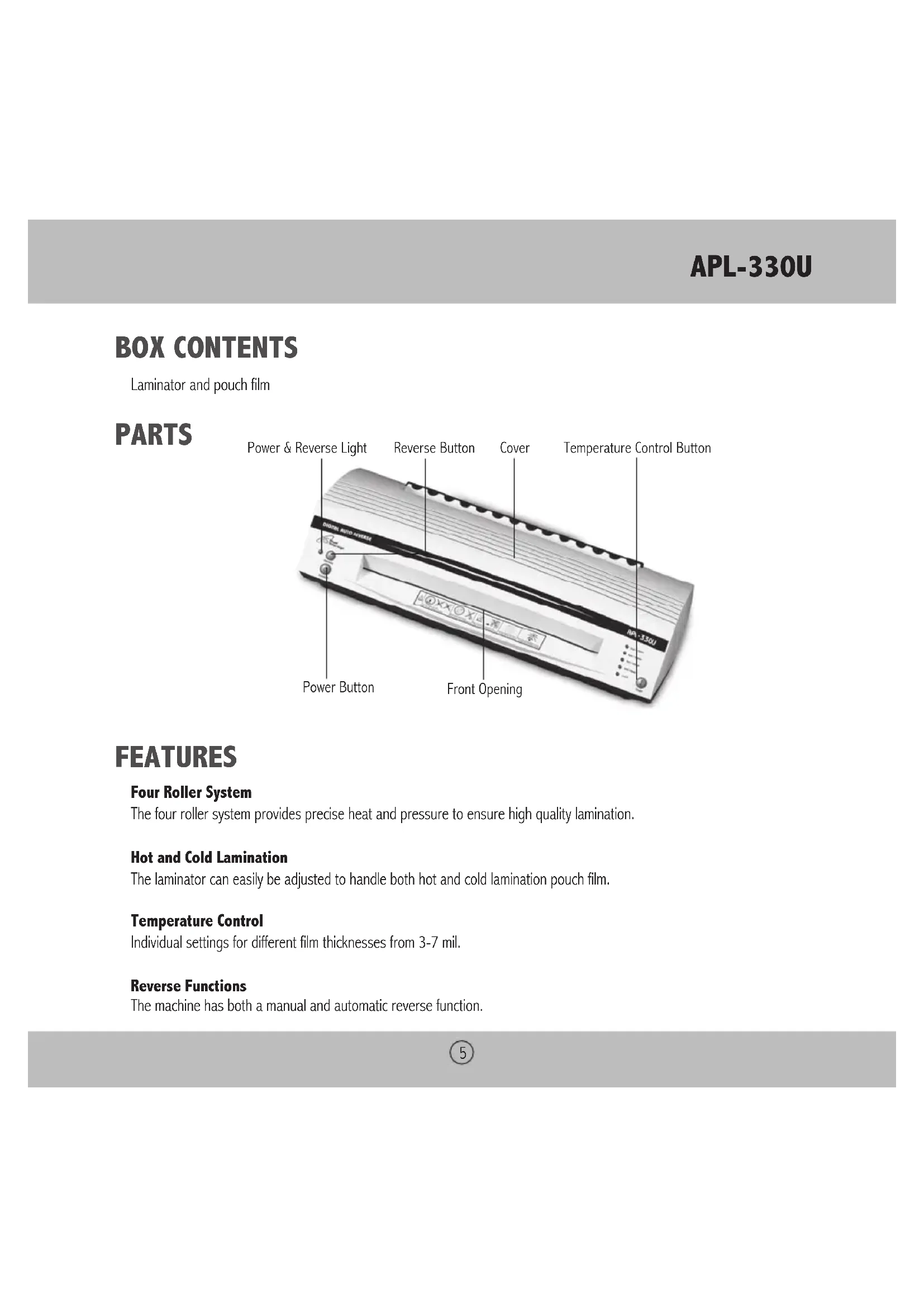

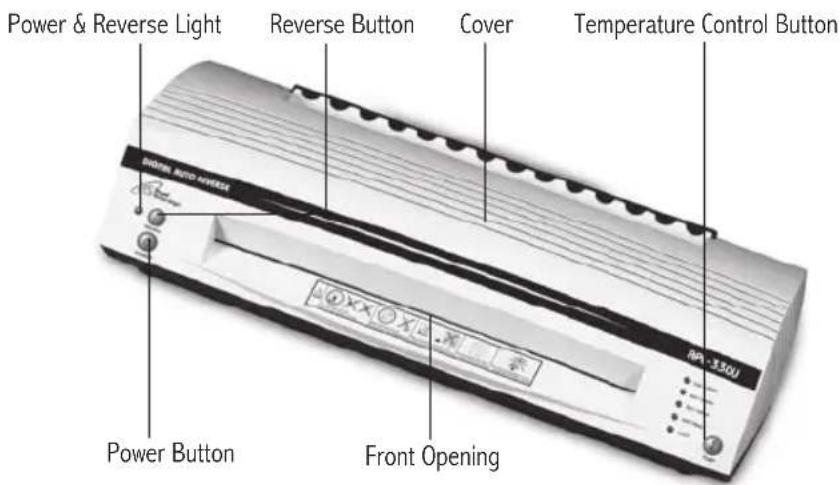

BOX CONTENTS Laminator and pouch film PARTS FEATURES Four Roller System The four roller system provides precise heat and pressure to ensure high quality lamination. Hot and Cold Lamination The laminator can easily be adjusted to handle both hot and cold lamination pouch film. Temperature Control Individual settings for different film thicknesses from 3-7 mil. Reverse Functions The machine has both a manual and automatic reverse function. Reverse Button Power & Reverse Light Temperature Control Button Front Opening Power Button Cover6 OPeRATION Hot Lamination [Before laminating important or unique documents, always test a pouch through the laminator using a similar document.]

1. Place the machine on a flat, sturdy surface and press the power button to turn on the machine.

2. The machine is preset to the 3mil setting. To change the setting, press the temperature control button. The machine will take approximately 4 minutes to warm-up. When the proper temperature is reached, the blinking light will glow steady.

3. Place the item to be laminated into the laminating pouch.

4. Insert the pouch film into the front opening of the laminator. Make sure to place the sealed end of the pouch film in first. All sized pouches should be placed in the center of the front opening to pass through the sensor.

5. The document or photo will then exit out the back of the machine.

6 .If the item is not completely laminated, repeat step 4. NOTe: After inserting the pouch into the laminator, if the laminated item does not pass through all 4 rollers within approximately 15 seconds the automatic reverse function will turn on sending the item out of the front of the machine. If you need to reverse an item after it is inserted into the rollers press the reverse button and the item will exit the front opening. NOTe: Laminated items exiting the machine may be too hot to touch. NOTe: Laminated items will be hot and will easily bend. To keep the item flat, place on a flat surface and allow it to cool. cold Lamination

1. Place the machine on a flat, sturdy surface and press the power button to turn on the machine.

2. Press the temperature setting button until the Cold lamination setting is lit. If the machine was previously used in hot mode, allow approximately 40 minutes to cool down. When the proper temperature is reached, the light will glow steady. 3. Place the document to be laminated on the non-adhesive side of the cold film with the document face down, sealed end first.

4. Insert the document to be laminated into the front opening of the machine.

5. Remove paper liner from the cold film slowly while the document is being inserted into the machine.

6. The document or photo will exit out the back of the machine.

NOTe: After inserting the pouch into the laminator, if the laminated item does not pass through all 4 rollers within approximately 15 seconds the automatic reverse function will turn on sending the item out of the front of the machine. If you need to reverse an item after it is inserted into the rollers press the reverse button and the item will exit the front opening.APL-330U

Symptom Solution Motor does not work. Check to make sure machine is plugged in. Check to make sure the power button is turned on. Pouches are not laminating correctly. Make sure that the machine is set to the correct setting. The setting should be the same as the thickness of the pouch you are using. Ex. 3 mil pouch film should be set to 3 mil setting. The machine is beeping and the pouch is returning out of the front of the machine. The automatic reverse function has turned on to retrieve the item. The item you are laminating may be jammed or too large to pass the rollers. Wait for the pouch to exit the front of the machine. You can try laminating again after 15 seconds. The rollers are moving, but the laminated item is not. Hold down the reverse button until the entire pouch has exited the front of the machine. You can try laminating again after 15 seconds. TROUBLESHOOTING If you are still having complications, please contact Royal Sovereign’s Service Center at 1-800-397-1025. SPECIFICATIONS Model APL-330U Dimensions 22" x 9.8" x 6.5" / 560 x 250 x 165(mm) Maximum laminating width 13" / 340mm Film thickness 3~7 mil / 75~175 micron Number of rollers 4 Cold mode Yes Heating system Hot shoe Ready time Approximately 4 minutes Motor type AC motor Laminating speed 20" per min / 520 mm per min Weight 17.6lbs / 8kg Voltage/Cycle 120V ,60Hz Power consumption 820W8

LIMITED ONE YEAR WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for one year from the date of the original purchase. This warranty is extended only to the original purchaser. This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages. Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization. Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer. Return defective product to the following address with a detailed description of the problem. If possible, pack in original carton. Please prepay shipping charges. For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA- Customer Support Tab. For sales of product, parts or accessories please visit us at www.royalfulfillmentcorp.com. For service or sales please contact your local Royal Sovereign Office: ROYAL SOVEREIGN INTERNATIONAL, INC. RS CANADA INC. 2 Volvo Drive Rockleigh, NJ 07647 USA 1025 Westport Crescent, Mississauga, Ontario, Canada L5T1E8 TEL : +1) 800-397-1025 FAX : +1) 201-750-1022 TEL : +1) 800-397-1025 FAX : +1) 201-750-1022 www.royalsovereign.comRoyal Sovereign International, Inc. APL-330U LAMINADORA Manual del Propietario Por favor lea y conserve estas instrucciones. Para registrar su producto, visite el sitio web www.royalsovereign.com USA. Haga clic en la pestaña de “Customer Support” y después en la pestaña de “Registration”.www.royalsovereign.com Página en Español 9 Page en Français 17LAMINADORAAPL-330U
