USER MANUAL CS900 Royal Sovereign
Page en Français 17
Please read and retain these instructions.
To register your product, please go to www.royalsovereign.com USA.
Click the Customer Support Tab then Registration Tab.
www.royalsovereign.com
Royal Sovereign International, Inc.
LAMINATOR
SAFETY INSTRUCTIONS
The safety recommendations outlined in this section should be read and understood before operating this machine. When using this machine follow these basic safety precautions to reduce risk of fire, electric shock or injury. Keep this information for future reference.
- To prevent the possibility of a fire or injury, do not allow foreign articles inside the machine.
- Do not attempt to laminate items that exceed total recommended material thickness.
- Do not insert pouch film with the back end first. (Front of film: sealed side, Back of film: open side.) This may cause the pouch to jam the rollers.
- To prevent the possibility of electric shock, do not immerse the laminator in water or permit liquids inside the machine.
- Because the laminator creates heat, keep out of the reach of children.
- Do not cut pouches before inserting them into the laminator. This will cause the laminator to jam.
- Do not laminate leaves, flower, clothes etc.
- If the room temperature is low (under 64^ F), the ready light may take longer to come on.
- When unplugging the power plug, grip the plug to pull it out. Pulling the cord may result in electric shock, fire, or damage to the machine.
- Do not use the machine if the cord is damaged. This may result in electric shock, fire, or other hazards.
- Do not place objects on the power cord and do not bend it excessively. This may result in electric shock, fire or other hazards.
- When not using the machine for long periods of time, unplug the power cord from the outlet.
CONTENTS
Box Contents 5
Parts 5
Controls 5
Features 5
Operation 6
Troubleshooting 7
Specifications 7
Warranty 8
Contact Information 8
Página en Español 9
Page en Français 17

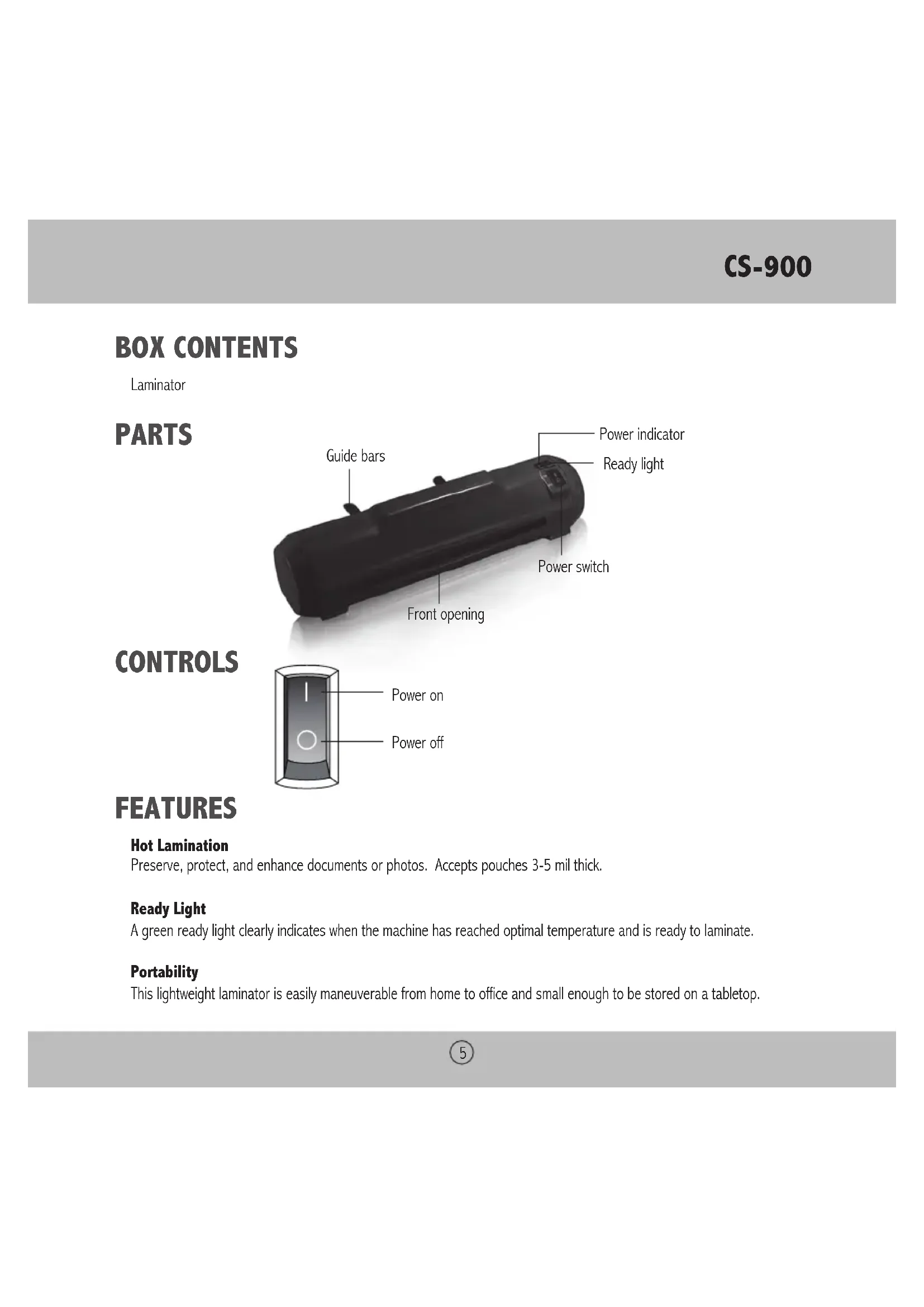

BOX CONTENTS
Laminator

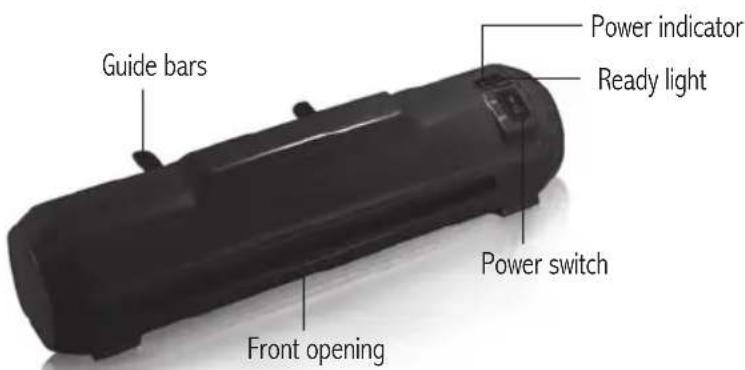

PARTS
Hot Lamination
Preserve, protect, and enhance documents or photos. Accepts pouches 3-5 mil thick.
Ready Light
A green ready light clearly indicates when the machine has reached optimal temperature and is ready to laminate.
Portability
This lightweight laminator is easily maneuverable from home to office and small enough to be stored on a tabletop.
OPERATION
Hot Lamination
- Place the machine on a flat, sturdy surface.
- Turn the power switch to the on position. The machine will take approximately 5-10 minutes to warm-up. When the proper temperature is reached, the ready light will turn on.
- Place the item to be laminated into the laminating pouch.
- Insert the pouch film into the front opening of the laminator. Make sure to place the sealed end of the pouch film in first.
- The document or photo will then automatically feed out the through the back of the machine.
NOTE: Laminated items exiting the machine may be too hot to touch.
- If the item is not completely laminated, repeat steps 4-5.
NOTE: Laminated items will be hot and will easily bend. To keep the item flat, place on a flat surface and allow it to cool.
Before laminating important or unique documents, always test a pouch through the laminator using a similar document.
TROUBLESHOOTING
| Symptom Solution | |
| Motor does not work. | Check to make sure machine is plugged in.Check to make sure the power switch is turned on. |
| Pouches are not laminating correctly. Make sure that the machine is on and the ready light is lit. | |
If you are still having complications, please contact Royal Sovereign's Service Center at 1-800-397-1025.
SPECIFICATIONS
| Model CS-900 | |
| Dimensions 14x3.8x3.3 (inch) / 356x97x85 (mm) | |
| Maximum laminating width 9.3"/ 238 mm | |
| Maximum laminating thickness | 3-5 mil |
| Number of rollers 2 | |
| Heating system Hot shoe | |
| Ready time 5-10 (min) | |
| Motor type AC motor | |
| Laminating speed | 11.8"/min / 300mm /min |
| Weight | 2.4 lbs /1.1 kg |
| Voltage/Cycle | 120V / 60Hz |
LIMITED ONE YEAR WARRANTY
This warranty applies to repair or replacement of product found to be defective in material or workmanship for one year from the date of the original purchase. This warranty is extended only to the original purchaser.
This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.
Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.
Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.
Return defective product to the following address with a detailed description of the problem. If possible, pack in original carton. Please prepay shipping charges.
For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA- Customer Support Tab.
For sales of product, parts or accessories please visit us at www.royalfulfillmentcorp.com.
For service or sales please contact your local Royal Sovereign Office:
ROYAL SOVEREIGN INTERNATIONAL, INC. RS CANADA INC.
2 Volvo Drive Rockleigh, NJ 07647 USA 1025 Westport Crescent, Mississauga, Ontario, Canada L5T1E8
TEL: +1) 800-397-1025 FAX: +1) 201-750-1022 TEL: +1) 800-397-1025 FAX: +1) 201-750-1022
www.royalsovereign.com
