USER MANUAL ME712K SAMSUNG

MOYENNEMENT FAIBLE 300 W

www.samsung.com/africa_en/support Ghana 0800-10077 0302-200077 Cote D’Ivoire 8000 0077 www.samsung.com/africa_fr/supportSENEGAL 800-00-0077 CAMEROON 67095-0077 KENYA 0800 545 545 www.samsung.com/support UGANDA 0800 300 300 TANZANIA 0685 889 900 RWANDA 9999 BURUNDI 200 DRC 499999 SUDAN 1969 SOUTH AFRICA 0860 SAMSUNG (726 7864) BOTSWANA 8007260000 NAMIBIA 08 197 267 864 ZAMBIA 0211 350370 MAURITIUS 800 2550 REUNION 0262 50 88 80 MOZAMBIQUE 847267864 / 827267864 ANGOLA 917 267 864 DE68-03993S-00 ME712K_XSG_DE68-03993S-00_FR.indd 16 2/20/2017 11:19:49 AMMicrowave Oven User manual ME711K/ME712K/ME713K ME712K_XSG_DE68-03993S-00_EN.indd 1 2/20/2017 11:18:28 AM2 English Contents Contents Safety instructions 3 Important safety instructions 3 Installation 7 Accessories 7 Installation site 8 Turntable 8 Maintenance 8 Cleaning 8 Oven features 9 Oven 9 Control panel 9 Oven use 10 Cooking/Reheating 10 Power levels 10 Stopping the cooking 11 Adjusting the cooking time 11 Manual defrosting food 11 Using the instant reheat feature 11 Instant reheat settings 11 Cookware guide 12 Troubleshooting 13 Troubleshooting 13 Technical specifications 15 ME712K_XSG_DE68-03993S-00_EN.indd 2 2/20/2017 11:18:28 AMEnglish 3 Safety instructions Only use utensils that are suitable for use in microwave ovens. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. Metallic containers for food and beverages are not allowed during microwave cooking. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. If smoke is observed (emitted), switch off or unplug the appliance and keep the door closed in order to stifle any flames. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Safety instructions

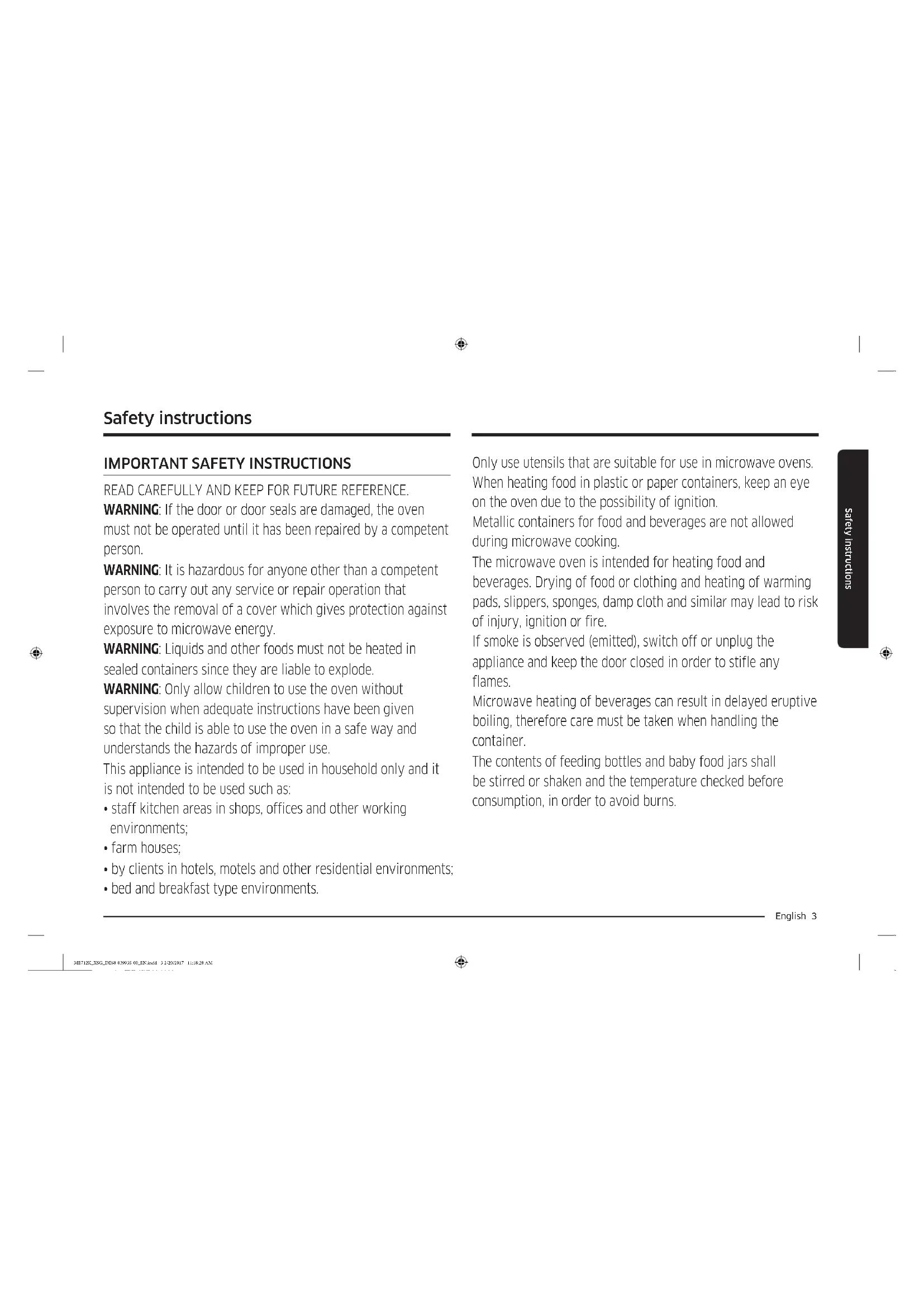

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: If the door or door seals are damaged, the oven

must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent

person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in

sealed containers since they are liable to explode.

WARNING: Only allow children to use the oven without

supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. This appliance is intended to be used in household only and it is not intended to be used such as:

• staff kitchen areas in shops, offices and other working environments;

• by clients in hotels, motels and other residential environments;

• bed and breakfast type environments. ME712K_XSG_DE68-03993S-00_EN.indd 3 2/20/2017 11:18:28 AM4 English Safety instructions Safety instructions Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The microwave oven is intended to be used on the counter top (freestanding) use only, the microwave oven shall not be placed in a cabinet. The appliance should not be cleaned with a water jet. The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This oven should be positioned proper direction and height permitting easy access to cavity and control area. Before using the your oven first time, oven should be operated with the water during 10 minute and then used. If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center. The microwave oven has to be positioned so that plug is accessible. ME712K_XSG_DE68-03993S-00_EN.indd 4 2/20/2017 11:18:28 AMEnglish 5 Safety instructions General safety Any modifications or repairs must be performed by qualified personnel only. Do not heat food or liquids sealed in containers for the microwave function. Do not use benzene, thinner, alcohol, or steam or high-pressure cleaners to clean the oven. Do not install the oven: near a heater or flammable material; locations that are humid, oily, dusty or exposed to direct sunlight or water; or where gas may leak; or an uneven surface. This oven must be properly grounded in accordance with local and national codes. Regularly use a dry cloth to remove foreign substances from the power plug terminals and contacts. Do not pull, excessively bend, or place heavy objects on the power cord. If there is a gas leak (propane, LP, etc) ventilate immediately. Do not touch the power cord. Do not touch the power cord with wet hands. While the oven is operating, do not turn it off by unplugging the power cord. Do not insert fingers or foreign substances. If foreign substances enter the oven, unplug the power cord and contact a local Samsung service centre. Do not apply excessive pressure or impact to the oven. Do not place the oven over fragile objects. Ensure the power voltage, frequency, and current matches the product specifications. Firmly plug the power plug into the wall socket. Do not use multiple plug adapters, extension cords, or electric transformers. Do not hook the power cord on metal objects. Make sure the cord is between objects or behind the oven. Do not use a damaged power plug, power cord, or loose wall socket. For damaged power plugs or cords, contact a local Samsung service centre. Do not pour or directly spray water onto the oven. Do not place objects on the oven, inside, or on the oven door. Do not spray volatile materials such as insecticide on the oven. Do not store flammable materials in the oven. Because alcohol vapours can contact hot parts of the oven, use caution when heating food or drinks containing alcohol. Children may bump themselves or catch their fingers on the door. When opening/ closing the door, keep children away. Microwave warning Microwave heating of beverages may result in delayed eruptive boiling; always use caution when handling the container. Always allow beverages to stand at least 20 seconds before handling. If necessary, stir during heating. Always stir after heating. In the event of scalding, follow these First Aid instructions:

1. Immerse the scalded area in cold water for at least 10 minutes.

2. Cover with a clean, dry dressing.

3. Do not apply any creams, oils, or lotions.

To avoid damaging the tray or rack, do not put the tray or rack in water shortly after cooking. Do not use the oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of hot oils. ME712K_XSG_DE68-03993S-00_EN.indd 5 2/20/2017 11:18:28 AM6 English Safety instructions Safety instructions Microwave operation precautions Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

• Do not operate the oven with the door open. Do not tamper with the safety interlocks (door latches). Do not insert anything into the safety interlock holes.

• Do not place any object between the oven door and front face or allow food or cleaner residue to accumulate on sealing surfaces. Keep the door and door sealing surfaces clean by wiping with a damp cloth and then with a soft, dry cloth after each use.

• Do not operate the oven if it is damaged. Only operate after it has been repaired by a qualified technician. Important: the oven door must close properly. The door must not be bent; the door hinges must not be broken or loose; the door seals and sealing surfaces must not be damaged.

• All adjustments or repairs must be done by a qualified technician. Microwave oven precautions Only use microwave-safe utensils. Do not use metallic containers, gold or silver trimmed dinnerware, skewers, etc. Remove wire twist ties. Electric arcing may occur. Do not use the oven to dry papers or clothes. Use shorter times for small amounts of food to prevent overheating or burning. Keep the power cord and power plug away from water and heat sources. To avoid the risk of explosion, do not heat eggs with shells or hard-boiled eggs. Do not heat airtight or vacuum-sealed containers, nuts, tomatoes, etc. Do not cover the ventilation slots with cloth or paper. This is a fire hazard. The oven may overheat and turn off automatically and will remain off until it cools sufficiently. Always use oven mitts when removing a dish. Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling. Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam. Do not operate the oven when it is empty. The oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the oven is started accidentally. Install the oven in compliance with the clearances in this manual. (See Installing your microwave oven.) Use caution when connecting other electrical appliances to sockets near the oven. ME712K_XSG_DE68-03993S-00_EN.indd 6 2/20/2017 11:18:29 AMEnglish 7 Installation Limited warranty Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit or accessory was caused by the customer. Items this stipulation covers include:

• Door, handles, out-panel, or control panel that are dented, scratched, or broken.

• A broken or missing tray, guide roller, coupler, or wire rack. Use this oven only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven. Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact a local Samsung service centre or find help and information online at www.samsung.com. Use this oven for heating food only. It is intended for domestic use only. Do not heat any type of textiles or cushions filled with grains. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the oven. To avoid deterioration of the oven surface and hazardous situations, always keep the oven clean and well maintained. Installation Accessories Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

01 Roller ring, to be placed in the centre of the oven. Purpose: The roller ring supports the turntable.

02 Turntable, to be placed on the roller ring with the centre fitting to the coupler. Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning. IMPORTANT DO NOT operate the microwave oven without the roller ring and turntable. ME712K_XSG_DE68-03993S-00_EN.indd 7 2/20/2017 11:18:29 AM8 English Maintenance Installation site 10 cm behind 20 cm above 10 cm on the side 85 cm of the floor

• Select a flat, level surface approx. 85 cm above the floor. The surface must support the weight of the oven.

• Secure room for ventilation, at least 10 cm from the rear wall and both sides, and 20 cm from above.

• Do not install the oven in hot or damp surroundings, such as next to other microwave ovens or radiators.

• Conform to the power supply specifications of this oven. Use only approved extension cables if you need to use.

• Wipe the interior and the door seal with a damp cloth before using your oven for the first time. Turntable Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely. Maintenance Cleaning The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces

• Turntable and Roller rings IMPORTANT ALWAYS ensure that the door seals are clean and the door closes properly. IMPORTANT Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and

2. Remove any splashes or stains on the inside surfaces or on the roller ring with a

soapy cloth. Rinse and dry.

3. To loosen hardened food particles and remove smells, place a cup of diluted

lemon juice on the turntable and heat for ten minutes at maximum power.

4. Wash the dishwasher-safe plate whenever necessary.

NOTE DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

• Prevent the door from closing correctly ME712K_XSG_DE68-03993S-00_EN.indd 8 2/20/2017 11:18:29 AMEnglish 9 Oven features Oven features Oven

KNOB 03 TIMER KNOB 04 INSTANT REHEAT ME712K_XSG_DE68-03993S-00_EN.indd 9 2/20/2017 11:18:30 AM10 English Oven use Oven use Cooking/Reheating The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable and close the door.

1. Set the power level to maximum by

turning COOKING POWER CONTROL knob. (MAXIMUM POWER : 800 W)

2. Set the time by turning TIMER knob.

Result: The oven light comes on and the turntable starts rotating. IMPORTANT Never switch the microwave oven on when it is empty. NOTE You can change the power level during cooking by turning the COOKING POWER CONTROL knob. Power levels You can choose among the power levels below. Power level Output HIGH 800 W REHEAT 700 W

DEFROST ( ) 180 W LOW 100 W NOTE If you select higher power level, the cooking time must be decreased. NOTE If you select lower power level, the cooking time must be increased. ME712K_XSG_DE68-03993S-00_EN.indd 10 2/20/2017 11:18:30 AMEnglish 11 Oven use Stopping the cooking You can stop cooking at any time to check the food.

1. To stop temporarily;

Open the door. Result: Cooking stops. To resume cooking, close the door.

2. To stop completely;

Turn the TIMER knob to “0”. Adjusting the cooking time Adjust the remaining cooking time by rotating the TIMER knob. Manual defrosting food The Defrost feature enables you to defrost meat, poultry, fish. First, place the frozen food in the centre of the turntable and close the door.

appropriate time. Result: Defrosting begins. NOTE Use only recipients that are microwave-safe. Using the instant reheat feature First, place the food in the center of the turntable and close the door.

Reheat. (drinks or soup/sauce, fresh vegetables). NOTE Use only recipients that are microwave-safe. Instant reheat settings Here are a few tips and recommendations to be followed when cooking or reheating food with whe Instant Reheat and Cooking Feature. Symbols Food Serving size Cooking time Standing time Drinks 150 ml 1 min 10 sec 1-2 min. Soup/Sauce (chilled) 200-250 g 3 min 2-3 min. Fresh vegetables 300-350 g 6 min 40 sec 2-3 min. ME712K_XSG_DE68-03993S-00_EN.indd 11 2/20/2017 11:18:31 AM12 English Cookware guide Cookware guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven. Cookware Microwave- safe Comments Aluminum foil

Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. Crust plate

Do not preheat for more than 8 minutes. China and earthenware

Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim. Disposable polyester cardboard dishes

Some frozen foods are packaged in these dishes. Fast-food packaging

Can be used to warm food. Overheating may cause the polystyrene to melt.

• Paper bags or newspaper

• Recycled paper or metal trims

May cause arcing. Glassware

Can be used, unless decorated with a metal trim.

Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.

Must remove the lid. Suitable for warming only. Cookware Microwave- safe Comments Metal

May cause arcing or fire.

• Freezer bag twist ties

• Plates, cups, napkins and kitchen paper

For short cooking times and warming. Also to absorb excess moisture.

May cause arcing. Plastic

Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.

Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.

Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or grease- proof paper

Can be used to retain moisture and prevent spattering.

: Unsafe ME712K_XSG_DE68-03993S-00_EN.indd 12 2/20/2017 11:18:31 AMEnglish 13 Troubleshooting Troubleshooting Troubleshooting If you have any of the problems listed below try the solutions given. Problem Cause Action General The buttons cannot be pressed properly. Foreign matter may be caught between the buttons. Remove the foreign matter and try again. For touch models: Moisture is on the exterior. Wipe the moisture from the exterior. Child lock is activated. Deactivate Child lock. The time is not displayed. The Eco (power-saving) function is set. Turn off the Eco function. The oven does not work. Power is not supplied. Make sure power is supplied. The door is open. Close the door and try again. The door open safety mechanisms are covered in foreign matter. Remove the foreign matter and try again. The oven stops while in operation. The user has opened the door to turn food over. After turning over the food, press the Start button again to start operation. Problem Cause Action The power turns off during operation. The oven has been cooking for an extended period of time. After cooking for an extended period of time, let the oven cool. The cooling fan is not working. Listen for the sound of the cooling fan. Trying to operate the oven without food inside. Put food in the oven. There is not sufficient ventilation space for the oven. There are intake/exhaust outlets on the front and rear of the oven for ventilation. Keep the gaps specified in the product installation guide. Several power plugs are being used in the same socket. Designate only one socket to be used for the oven. There is a popping sound during operation, and the oven doesn't work. Cooking sealed food or using a container with a lid may causes popping sounds. Do not use sealed containers as they may burst during cooking due to expansion of the contents. The oven exterior is too hot during operation. There is not sufficient ventilation space for the oven. There are intake/exhaust outlets on the front and rear of the oven for ventilation. Keep the gaps specified in the product installation guide. Objects are on top of the oven. Remove all objects on the top of the oven. The door cannot be opened properly. Food residue is stuck between the door and oven interior. Clean the oven and then open the door. ME712K_XSG_DE68-03993S-00_EN.indd 13 2/20/2017 11:18:31 AM14 English Troubleshooting Troubleshooting Problem Cause Action Heating including the Warm function does not work properly. The oven may not work, too much food is being cooked, or improper cookware is being used. Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom. The thaw function does not work. Too much food is being cooked. Reduce the amount of food and start the function again. The interior light is dim or does not turn on. The door has been left open for a long time. The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the Cancel button. The interior light is covered by foreign matter. Clean the inside of the oven and check again. A beeping sound occurs during cooking. If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing. After turning over the food, press the Start button again to restart operation. The oven is not level. The oven is installed on an uneven surface. Make sure the oven is installed on flat, stable surface. There are sparks during cooking. Metal containers are used during the oven/thawing functions. Do not use metal containers. Problem Cause Action When power is connected, the oven immediately starts to work. The door is not properly closed. Close the door and check again. There is electricity coming from the oven. The power or power socket is not properly grounded. Make sure the power and power socket are properly grounded.

through a door crack.

in the oven. There may be water or steam in some cases depending on the food. This is not an oven malfunction. Let the oven cool and then wipe with a dry dish towel. The brightness inside the oven varies. Brightness changes depending on power output changes according to function. Power output changes during cooking are not malfunctions. This is not an oven malfunction. Cooking is finished, but the cooling fan is still running. To ventilate the oven, the cooling fan continues to run for about 3 minutes after cooking is complete. This is not an oven malfunction. ME712K_XSG_DE68-03993S-00_EN.indd 14 2/20/2017 11:18:31 AMEnglish 15 Technical specifications Problem Cause Action Turntable While turning, the turntable comes out of place or stops turning. There is no roller ring, or the roller ring is not properly in place. Install the roller ring and then try again. The turn table drags while turning. The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave. Adjust the amount of food and do not use containers that are too large. The turn table rattles while turning and is noisy. Food residue is stuck to the bottom of the oven. Remove any food residue stuck to the bottom of the oven. Technical specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. Model ME711K/ME712K/ME713K Power source 230 V
