USER MANUAL CE1185GB SAMSUNG

“Quick” Look-up Guide I want to cook some food I want to add an extra 30 seconds I want to Power defrost some food

Press the Select ( ) button until the appropriate power level is displayed. Next : Turn the blinking dial.

Select the cooking time by turning the Jog Dial as required. Next : Press the blinking button.

When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute. Leave the food in the oven. Press +30s ( ) button one or more times for each extra 30 seconds that you wish to add.

1. Place the frozen food in the oven.

Select the food category by pressing the Select ( ) button, until the desired food category is selected. Next : Turn the blinking dial.

Select the weight by turning the Jog Dial as required. Next : Press the blinking button.

When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute. jlXX_\ni{h~TWZX`WlluUGGwGYGGtSGtG]SGYWW]GGXWaZXGht3

Using the Steam Cleaning The steam provided by steam clean system will soak the cavity surface. After using steam clean function, you can easily clean the cavity of oven.

Use this function only after the oven has completely cooled. (Room temperature)

Use normal water only,and no distilled water.

It will be more better if you do a deodorization function after using Steam cleaning.

If the door is opened during this operation « E-01 » will be displayed. (The water in the oven will be very hot due to the steam cleaning function.) Warning!

• Water Bowl only can be use during “ Steam Clean ” mode.

• When cooking non-liquid itensm, remove water bowl because It will damage and cause fire to the microwave oven.

Fill with water following guide line inside the water bowl.

The line is about 30ml.)

Please attach the water bowl in right side of the oven

Press the Steam clean ( ) button. (Bulb does work during Steam cleaning time.)

Please clean cavity of oven with dried dishtowel. Remove the turntable and only under rack with kitchen paper. jlXX_\ni{h~TWZX`WlluUGGwGZGGtSGtG]SGYWW]GGXWaZXGht4

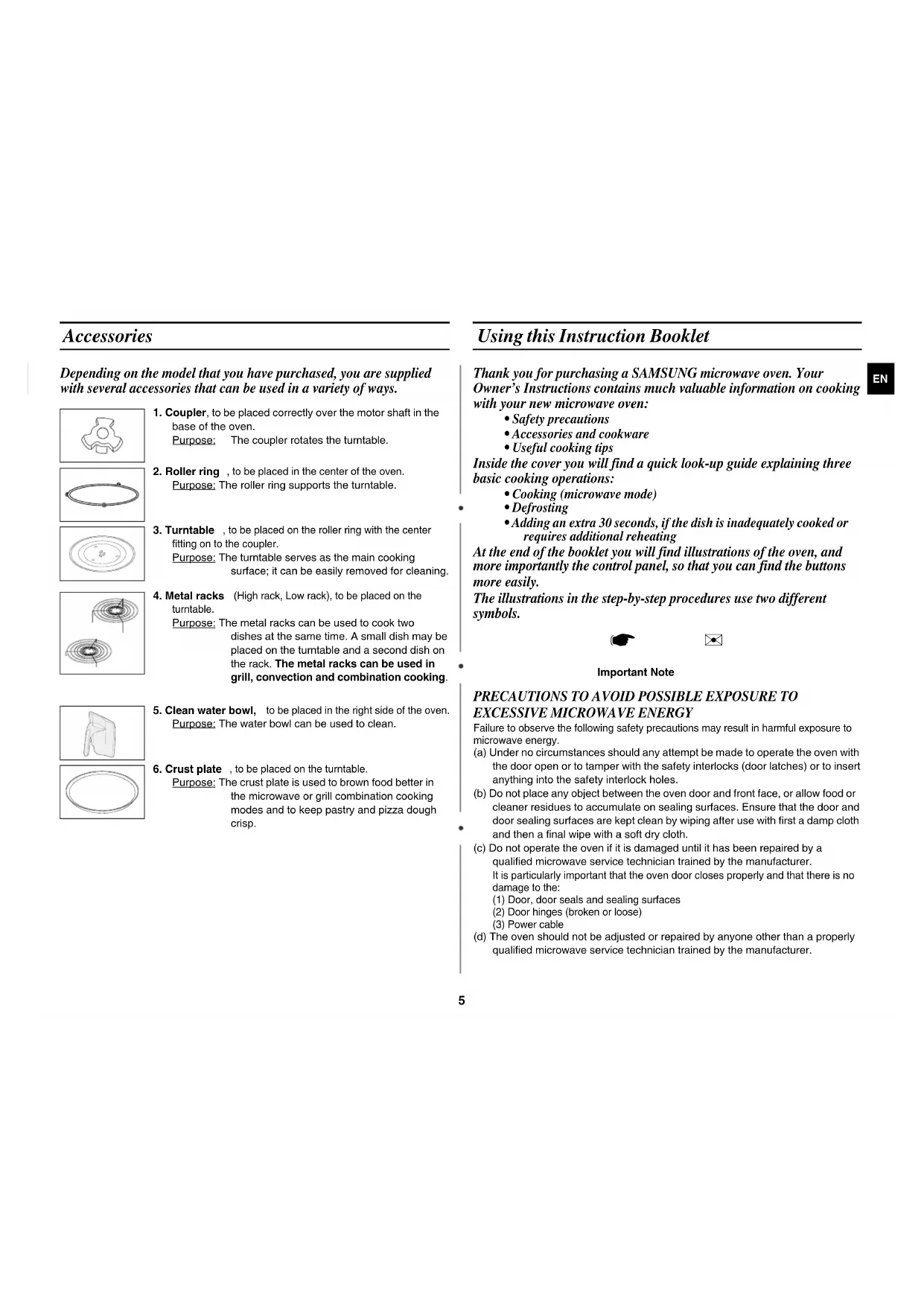

Accessories Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways. Using this Instruction Booklet Thank you for purchasing a SAMSUNG microwave oven. Your Owner’s Instructions contains much valuable information on cooking with your new microwave oven:

• Accessories and cookware

• Useful cooking tips Inside the cover you will find a quick look-up guide explaining three basic cooking operations:

• Cooking (microwave mode)

• Adding an extra 30 seconds, if the dish is inadequately cooked or requires additional reheating At the end of the booklet you will find illustrations of the oven, and more importantly the control panel, so that you can find the buttons more easily. The illustrations in the step-by-step procedures use two different symbols.

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.(a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.(b) Do not place any object between the oven door and front face, or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use with first a damp cloth and then a final wipe with a soft dry cloth.(c) Do not operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer.It is particularly important that the oven door closes properly and that there is no damage to the:(1) Door, door seals and sealing surfaces(2) Door hinges (broken or loose)(3) Power cable(d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.1. Coupler, to be placed correctly over the motor shaft in the base of the oven.Purpose:The coupler rotates the turntable.2. Roller ring, to be placed in the center of the oven.Purpose: The roller ring supports the turntable.3. Turntable, to be placed on the roller ring with the center fitting on to the coupler.Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.4. Metal racks (High rack, Low rack), to be placed on the turntable.Purpose: The metal racks can be used to cook two dishes at the same time. A small dish may be placed on the turntable and a second dish on the rack. The metal racks can be used in grill, convection and combination cooking.5. Clean water bowl, to be placed in the right side of the oven.Purpose: The water bowl can be used to clean.6. Crust plate, to be placed on the turntable.Purpose: The crust plate is used to brown food better in the microwave or grill combination cooking modes and to keep pastry and pizza dough crisp. Important Note jlXX_\ni{h~TWZX`WlluUGGwG\GGtSGtG]SGYWW]GGXWaZXGht6

Safety Precautions IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken.

• Dinnerware with gold or silver trimmings

• Skewers, forks, etc. Reason: Electric arcing or sparking may occur and may damage the oven.

• Airtight or vacuum-sealed bottles, jars, containers. Ex) Baby food jars

• Airtight food. Ex) Eggs, nuts in shells, tomatoes Reason: The increase in pressure may cause them to explode. Tip: Remove lids and pierce skins, bags, etc.

operate the microwave oven when it is empty. Reason: The oven walls may be damaged. Tip: Leave a glass of water inside the oven at all times. The water will absorb the microwaves if you accidentally set the oven going when it is empty.

cover the rear ventilation slots with cloths or paper. Reason: The cloths or paper may catch fire as hot air is evacuated from the oven.

use oven gloves when removing a dish from the oven. Reason: Some dishes absorb microwaves and heat is always transferred from the food to the dish. The dishes are therefore hot

touch heating elements or interior oven walls. Reason: These walls may be hot enough to burn skin even after cooking is finished, oven though they do not appear to be so. Keep away from hot spot. Do not allow inflammable materials to come into contact with any interior area of the oven. Let the oven cool down first.

To reduce the risk of fire in the oven cavity

• Do not store flammable materials in the oven

• Remove wire twist ties from paper or plastic bags

• Do not use your microwave oven to dry newspapers

• If smoke is observed, keep the oven door closed and switch off or disconnect the oven from the power supply.

Take particular care when heating liquids and baby foods.

• ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to equalize.

• Stir during heating if necessary and ALWAYS stir after heating.

• To prevent eruptive boiling and possible scalding, you should stir before, during, and after heating.

• In the event of scalding, follow these FIRST AID instructions :

• Immerse hand in cold water for at least 10 minutes.

• Cover with clean, dry dressing.

• Do not apply any creams, oils or lotions.

• NEVER fill the container to the top and choose a container that is wider at the top than at the bottom to prevent the liquid from boiling over. Bottles with narrow necks may also explode if overheated.

ALWAYS check the temperature of baby food or milk before giving it to the baby.

NEVER heat a baby's bottle with the teat on, as the bottle may explode if overheated.

• During microwave heating of beverages, there are results in delayed eruptive boiling, therefore care has to be taken when handling the container.

Be careful not to damage the power cable.

• Do not immerse power cable or plug in water and keep power cable away from heated surfaces.

• Do not operate this appliance if it has a damaged power cable or plug.

Stand at arm’s length from the oven when opening the door. Reason: The hot air or steam released may cause scalding.

Keep the inside of the oven clean.

• Clean the inside of the oven right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury. Reason: Food particles or spattered oils stuck to oven walls or floor can cause the damage of painting and reduce the efficiency of the oven.

“Clicking” sound might be noticed while operating, especially in defrosting mode. Reason: When the power output is changing electrically, you may hear that sound. This is normal.

If the microwave oven is operating without any load, the power will cut off automatically for safety. After standing for over 30 min, you can operate the oven normally.

• Do not worry is the oven continues to work after cooking has finished. Reason: This product is designed to fan for some minutes, not operating microwave oven(MWO), to cool down the inner electronic parts when the stop button is pressed or the door is opened after finishing cooking in case that the oven operates for some minutes in cooking(MWO, GRILL, CONVECTION, MWO+GRILL, MWO+ CONVECTION). When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute. jlXX_\ni{h~TWZX`WlluUGGwG]GGtSGtG]SGYWW]GGXWaZXGht7

Safety Precautions (continued)

IMPORTANT SAFETY INSTRUCTIONS

During cooking, you should look into the oven from time to time when food is being heated or cooked in disposable containers of plastic paper or other combustible material.

Do not use the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

It is hazardous for anyone other than a comperent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Only allow children to use the oven without supervicion when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Oven casing and door will get hot during convection and combination cooking. ☛ DO NOT operate the microwave oven without the coupler, roller ring and turntable. Installing Your Microwave Oven This microwave oven can be placed almost anywhere (kitchen work surface or shelf, movable trolley, table). ☛ Never block the air vents as the oven may overheat and automatically switch itself off. It will remain inoperable until it has cooled sufficiently.

For your personal safety, plug the cable into a 3-pin, 230 Volt, 50Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. ☛ Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

1. When you install your oven, make sure there is adequate

ventilation for your oven by leaving at least 10 cm (4 inches) of space behind, and on the sides of the oven and 20 cm (8 inches) of space above the oven and 85 cm (33 inches) of the floor.

Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

This microwave oven has to be positioned so that plug is accessible. 20cm above10cm behind10cm onthe side85 cm of the floor jlXX_\ni{h~TWZX`WlluUGGwG^GGtSGtG]SGYWW]GGXWaZXGht8

Setting the Time Your microwave oven has an inbuilt clock. The time can be displayed the only 24-hour notation. You must set the clock:

• When you first install your microwave oven

• After a power failure ✉ Do not forget to reset the clock when you switch to and from summer or winter time. Checking that Your Oven is Operating Correctly The following simple procedure enables you to check that your oven is working correctly at all times. If you are in doubt, refer to the section entitled “What to Do if You are in Doubt or Have a Problem” next the page. ✉ The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum (100% - 900 W) is used, the water takes longer to boil. Open the oven door by pulling the handle on the right side of the door. Place a glass of water on the turntable. Close the door.

1. Turn the Jog Dial to set the hour.

Next : Press the blinking button. Press the start( ) button. Next : Turn the blinking dial. Turn the Jog Dial to set the minute.Next : Press the blinking button. When the right time is dispeayed, press the start( ) button. Result: The time is displayed whenever you are not using the microwave oven.Press the start( ) button and set the time to 4 or 5 minutes, by pressing the start( ) button the appropriate number of times. Result: The oven heats the water for 4 or 5 minutes. The water should then be boiling. jlXX_\ni{h~TWZX`WlluUGGwG_GGtSGtG]SGYWW]GGXWaZXGht9

How a Microwave Oven Works Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour. You can use your microwave oven to:

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:• Even cooking of the food right to the centre• The same temperature throughout the food What to Do if You are in Doubt or You have a Problem Becoming familiar with a new appliance always takes a little time. If you have any of the problems listed below, try the solutions given. They may save you the time and inconvenience of an unnecessary service call. ◆ The following are normal occurrences.• Condensation inside the oven• Air flow around the door and outer casing• Light reflection around the door and outer casing• Steam escaping from around the door or vents◆ The food is not cooked at all• Have you set the timer correctly and pressed the Start( ) button?• Is the door closed?• Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered.◆ The food is either overcooked or undercooked• Was the appropriate cooking length set for the type of food?• Was an appropriate power level chosen?◆ Sparking and cracking occur inside the oven (arcing)• Have you used a dish with metal trimmings?• Have you left a fork or other metal utensil inside the oven?• Is aluminium foil too close to the inside walls?◆ The oven causes interference with radios or televisions• Slight interference may be observed on televisions or radios when the oven is operating. This is normal.* Solution: Install the oven away from televisions, radios and aerials.• If interference is detected by the oven’s microprocessor, the display may be reset.* Solution: Disconnect the power plug and reconnect it. Reset the time.◆ « E - 25 » message indicates•The « E - 25 »message is automatically activated prior to the microwave oven overheating. Should the « E - 25 » message be activated, then depress the " " key to utilize the initialization mode. If the above guidelines do not enable you to solve the problem, then contact your local Samsung customer service centre. Please have the following information read;

• The model and serial numbers, normally printed on the rear of the oven

• Your warranty details

• A clear description of the problem Then contact your local dealer or SAMSUNG aftersales service. 1. The microwaves generated by the magnetron reflected at cavity and are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food. Cooking times vary according to the container used and the properties of the food:• Quantity and density• Water content• Initial temperature (refrigerated or not) jlXX_\ni{h~TWZX`WlluUGGwG`GGtSGtG]SGYWW]GGXWaZXGht10

Cooking/Reheating The following procedure explains how to cook or reheat food.

ALWAYS check your cooking settings before leaving the oven unattended. Open the door. Place the food in the centre of the turntable. Close the door. Never switch the microwave oven on when it is empty. Quick Start: ✉ If you wish to heat a dish for a short period of time at maximum power (900W), you can also simply press the +30s ( ) button once for each 30 seconds of cooking time. The oven starts immediately. Power Levels and Time Variations The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between six power levels. The cooking times given in recipes and in this booklet correspond to the specific power level indicated.

1. Press the Microwave( ) button.

Result: The following indications are displayed: ( ) (microwave mode) Next : Press the blinking button.

Select the appropriate power level by pressing the Select ( ) button until the corresponding output power is displayed. Refer to the power level table below for further details. Next : Turn the blinking dial.

Set the cooking time by turning the Jog Dial

• Example: For a cooking time of 3 minutes, 30 seconds, turn the jog dial to the right to set 3:30. Result: The cooking time is displayed. Next : Press the blinking button.

Press the Start ( ) button. Result: The oven light comes on and the turntable starts rotating. Cooking starts and when it has finished:

The oven will beep and flash “0” four times. The oven will then beep one time per minute. ✉ If you would like to know the current power level of the oven cavity, press Select

button once. If you would like to change the power level during cooking, press the Select

Stopping the Cooking You can stop cooking at any time so that you can:

• Turn the food over or stir it

• Leave it to stand Adjusting the Cooking Time Like traditional cooking, you may find that, depending on the food’s characteristics or your tastes, you have to adjust the cooking times slightly. You can:

• Check how cooking is progressing at any time simply by opening the door

• Increase or decrease the remaining cooking time To stop the cooking... Then... Temporarily Open the door. Result: Cooking stops. To resume cooking, close the door again and press the Start ( ) button. Completely Press the Stop () button. Result: Cooking stops. If you wish to cancel the cooking settings, press the Stop ( ) button again.

1. To increase the cooking time of your food, press the

+30s( ) button once for each 30 seconds that you wish to add.

During the cooking, to increase or decrease the cooking time of your food, turn the Jog Dial right or left. jlXX_\ni{h~TWZX`WlluUGGwGXXGGtSGtG]SGYWW]GGXWaZXGht12

Using the Auto Cook Feature The five Auto Cook( ) features include/provide pre- programmed cooking times. You do not need to set either the cooking times or the power level. You can adjust the size of the serving by turning the Jog Dial.

Use only recipients that are microwave-safe. Open the door. Place the food in the centre of the turntable. Close the door. The following table presents the various Auto Cook Programmes, quantities, standing times and appropriate recommendations. Programmes no 1, 4 and 5 are running with microwave energy only. Programmes no 3 is running with a combination of microwaves and grill. Programmes no 2 is running with a combination of microwaves and convection.

Select the type of food that you are cooking by pressing the Select ( ) button. Refer to the table on the following page for a description of the various pre-programmed settings. Next : Turn the blinking dial.

Select the size of the serving by turning the Jog Dial

Press the Start ( ) button. Result: The food is cooked according to the pre- programmed setting selected.

When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute. Code Food Serving Size Standing Time Recommendations Ready Meal (chilled) 0.3-0.35 kg 0.4-0.45 kg 0.5-0.55 kg 3min. Put on a ceramic plate and cover with microwave cling film. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta). Frozen Pizza 0.3-0.4 kg 0.45-0.55 kg 0.6-0.7 kg - Place one frozen pizza (-18°C) on the low rack, place two frozen pizzas on the low and high rack Chicken Pieces 0.2-0.3 kg (1pc) 0.4-0.5 kg (2pcs) 0.6-0.7 kg (3pcs) 0.8-0.9 kg (3-4pcs) 2-3min. Brush the chicken pieces with oil and spice them with pepper, salt and paprika. Put them in a circle on the high rack with the skin-side down. Turn over, as soon as the beep sounds. Fresh Vegetables 0.2-0.25 kg 0.3-0.35 kg 0.4-0.45 kg 0.5-0.55 kg 0.6-0.65 kg 0.7-0.75 kg 2-3 min. Weigh the vegetables after washing, cleaning and cutting into similar size. Put them into a glass bowl with lid. Add 30

(2 tablespoons) water when cooking for 200-250 g, add 45 ml (3 tablespo-ons) for 300-450 g and add 60-75 ml (4-5 tablespoons) for 500-750 g.Stir after cooking. When cooking higher quantities stir once during cooking. Peeled Potatoes 0.3-0.35 kg 0.4-0.45 kg 0.5-0.55 kg 0.6-0.65 kg 0.7-0.75 kg 2-3 min. Weigh the potatoes after peeling, washing and cutting into a similar size. Put them into a glass bowl with lid. Add 45 ml (3tablespoons) water when cooking 300-450g, add 60ml (4tablespoons) for cooking 500-750 g. jlXX_\ni{h~TWZX`WlluUGGwGXYGGtSGtG]SGYWW]GGXWaZXGht13

Using the Power Defrost Feature The Power Defrost( ) feature enables you to defrost meat, poultry, fish, bread , cake and fruit. The defrost time and power level are set automatically. You simply select the programme and the weight.

Use only containers that are microwave-safe. Open the door. Place the frozen food on a ceramic in the centre of the turntable. Close the door.

You can also defrost food manually. To do so, select the microwave function with a power level of 180 W. Refer to the section entitled “Defrosting” on page 23 for further details. The following table presents the various Power Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kind of package material before defrosting. Place meat, poultry and fish on a ceramic plate.

1. Press the Power Defrost ( ) button.

Next : Press the blinking button. Select the type of food that you are cooking by pressing the Select ( ) button. Refer to the table on the following page for a description of the various pre-programmed settings.Next : Turn the blinking dial. Select the food weight by turning the Jog Dial Next : Press the blinking button. Press Start( ) button.Result: Defrosting begins. The oven beeps through defrosting to remind you to turn the food over. Press the Start( ) again to finish defrosting.Result: When cooking has finished, the oven will beep and flash “ ” four times. The oven will then beep one time per minute.Code FoodServing Size Standing Time Recommendations Meat 0.2~2kg 20-90 min. Shield the edges with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops and minced meat.Poultry0.2~2kg 20-90 min. Shield the leg and wing tips with aluminium foil. Turn the poultry over, when the oven beeps. This programme is suitable for whole chicken as well as for chicken pieces. Fish 0.2~2kg 20-60 min. Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the oven beeps. This programme is suitable for whole fishes as well as for fish fillets.Bread/ Cake 0.12~1kg 10-60 min. Put bread or cake on a piece of kitchen paper and turn over, as soon as the oven beeps (oven keeps operating and is stopped, when you open the door).This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle.This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry.It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping.Fruit0.1~0.6kg 5-20 min. Spread fruits evenly into a flat glass dish or use a flat ceramic plate. This programme is suitable for all kinds of fruit. jlXX_\ni{h~TWZX`WlluUGGwGXZGGtSGtG]SGYWW]GGXWaZXGht14

Using Crust Plate Normally when cooking in microwave oven, using grill or microwave mode in grill/convection ovens, foods like pastries and pizza become soggy from button side. Using the Samsung Crust plate helps to gain a crispy cookde result of your food. The crust plate can also be used for bacon, eggs, sausages, etc.

Before using the crust plate, preheat it by selecting the combination mode for 3 to 5 minutes:• Combination of convection (220°C) and microwaves. (600 W power level) • Combination of grill and microwaves (300 W power level)• See page 17 respectively. How to clean the Crust plate

As the crust plate has a Teflon layer, if you use it incorrectly, it can be damaged.• Never cut the food on the plate. Remove the food from the plate before to cutting into slices.• Turn the food over preferably with a plastic or wooden spatula.1. Preheat the crust plate, as described above.• Use oven gloves at all times as the crust plate will become very hot. Brush the plate with oil if you are cooking food, such as bacon and eggs, in order to brown the food nicely. Place the food on the crust plate.• Do not place any recipients on the crust plate that are not heat-resistant (plastic bowls for example). Place the crust plate on the turntable in the microwave oven.• Never place the crust plate in the oven without the turntable. Press the Combi button.Next : Press the blinking button. Select the appropriate Combination mode by pressing the Select( ) button.Next : Turn the blinking dial. Set the cooking time by turning the Jog Dial until the appropriate cooking time is displayed.Next : Press the blinking button. Press the Start( ) button.Result: Cooking starts. When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute.The best way to clean the crust plate is to wash it with hot water and detergent. Then rinse if off with clean water. Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged. jlXX_\ni{h~TWZX`WlluUGGwGX[GGtSGtG]SGYWW]GGXWaZXGht15

Auto fast Preheating the Oven For convection cooking, it is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven. When the oven reaches the requested temperature, it is maintained for approximately 10 minutes; it is then switched off automatically. Check that the heating element is in the correct position for the type of cooking that you require. ✉ In case the inner temperature has reached the preset temperature, the beep 6 times when setting the temperature and the preset temperature is kept for 10 minutes. ✉ If you would like to know the current temperature of oven cavity, press Auto Fast Preheat( ) button. Cooking by Convection The convection mode enables you to cook food in the same way as in a traditional oven. The microwave mode is not used. You can set the temperature, as required, in a range varying from 40°C to 250°C in eight preset levels. The maximum cooking time is 60 minutes.

• Always use oven gloves when touching the recipients in the oven, as they will be very hot.

• You can get better cooking and browning, if you use the low rack. Check that the heating element is in the horizontal position and that the turntable is in position. Open the door and place the recipient on the low rack and set on turntable. ✉ You can check the temperature at any time by pressing the Auto Fast Preheat() button.

Press the Select ( ) button one or more times to set the temperature. Result: The following indications are displayed: 250°C(temperature) Next : Press the blinking button.

Press the Start ( ) button. Result: The oven is preheated to the requested temperature.

Upon arrival at the preset temperature, the oven beeps 6 times and the temperature is kept for 10 minutes.

After 10 minutes, the beeps 4 times and the operation stops.

Press the Select ( ) button once or more times to set the temperature. Result: The following indications are displayed: (convection mode) 250°C (temperature) Next : Turn the blinking dial.

Set the cooking time by turning the Jog Dial

When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute. jlXX_\ni{h~TWZX`WlluUGGwGX\GGtSGtG]SGYWW]GGXWaZXGht16

Grilling The grill enables you to heat and brown food quickly, without using microwaves.

• Always use oven gloves when touching the recipients in the oven, as they will be very hot.

• You can get better cooking and grilling results, if you use the high rack. Check that the heating element is in the horizontal position, and that the appropriate rack is in position. Choosing the Heating Element Position The heating element is used when grilling. The heating element is used when cooking food by convection, grilling or spit roasting. It can be placed in one of two positions:

• Horizontal position for convection cooking and grilling

Only change the position of the heating element when it is cold and do not apply excessive force when placing it in the vertical position. Choosing the Accessories

For further details on suitable cookware and utensils, refer to the Cookware Guide on page 19 .1. Open the door and place the food on the rack. Press the Grill ( ) button.Result: The following indications are displayed:(grill mode)Next : Turn the blinking dial.• You cannot set the temperature of the grill. Set the grilling time by turning the Jog Dial

• The maximum grilling time is 60 minutes.Next : Press the blinking button. Press the Start( ) button.Result: Grilling starts: When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute. Traditional convection cooking does require cookware. You should, however, use only cookware that you would use in your normal oven. Microwave-safe cantainers are not usually suitable for convection cooking; don’t use plastic containers, dishes, paper cups, towels, etc. If you wish to select a combined cooking mode (microwave and grill or convection), use only recipients that are microwave-safe and oven-proof. Metallic cookware or utensils may damage your oven. To set the heating element to the...Then...Vertical position ◆ Pull down on the heating element ◆ Push it towards the back of the oven until it is parallel with the back wallHorizontal position (convection cooking and grilling)◆ Pull the heating element towards you◆ Push it upwards until it is parallel with the ceiling (top) of the oven jlXX_\ni{h~TWZX`WlluUGGwGX]GGtSGtG]SGYWW]GGXWaZXGht17

Cooking by Combination You can also combine microwave cooking with the grill or convection, to cook quickly and brown at the same time.

ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. You can improve cooking and grilling, if you use the high rack. Open the door. Place the food on the rack best suited to the type of food to be cooked. Place the rack on the turntable. Close the door. Safety-locking Your Microwave Oven Your microwave oven is fitted with a special Child Safety programme, which enables the oven to be “locked” so that children or anyone unfamiliar with it cannot operate it accidentally. The oven can be locked at any time.

1. Press the Combi button.Next : Press the blinking button.

Select the appropriate Combination mode by pressing the Select ( ) button. Refer to the conbination mode and power level table below for further detaies.Next : Turn the blinking dial. Set the cooking time by turning the Jog Dial The maximum cooking time is 60 minutes.Next : Press the blinking button. Press the Start( ) button.Result: Combination cooking starts. When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute.Mode Power Level C 1 Microwave(300w) + Grill C 2 Microwave(180w) + Convection (200°C) C 3 Microwave(450w) + Convection (200°C) C 4 Microwave(600w) + Convection (220°C)

1. Press the Grill and Convection buttons at the same

time(about one second).Result: The oven is locked. The follow indication is display “

2. Press the Grill and Convection buttons at the same

Switching the Beeper Off You can switch the beeper off whenever you want. Manual Stop Turntable Function The turntable on/off( ) button enables you to use large dishes which fill the whole oven by stopping the turntable from rotating (only manual cooking mode).

The results will be less satisfactory in this case as the cooking is less even. We recommend that you turn the dish by hand halfway through the cooking process.Warning ! Never operate the turntable without food in the oven. Reason: This may cause fire or damage to the unit. ✉ Do not press the Turntable on/off( ) button during the cooking process. Cancel the cooking phase, before pressing the turntable On/Off( ) button.

1. Press the Microwave() and Grill

buttons at the same time (about one second).Result:The oven does not beep to indicate the end of a function. To switch the beeper back on, press the Microwave() and Grill

buttons again at the same time (about one second).Result: The oven operates normally.

1. Press the Turntable on/off ( ) button.

Result:The turntable will not rotate. To switch the turntable rotating back on, press the Turntable on/off ( ) button again.Result: The turntable will rotate. jlXX_\ni{h~TWZX`WlluUGGwGX_GGtSGtG]SGYWW]GGXWaZXGht19

Cookware Guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven. ✓ :Recommended ✓✗:Use Caution ✗ :Unsafe Cookware Microwave- Safe Comments Aluminium foil

Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. Crust plate

Do not preheat for more than 8minutes. China and earthenware

Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless deco-rated with a metal trim. Disposable polyester cardboard dishes

Some frozen foods are packaged in these dishes. Fast-food packaging

• Polystyrene cups containers

• Paper bags or newspaper

• Recycled paper or metal trims

Can be used to warm food. Overheating may cause the polystyrene to melt. May catch fire. May cause arcing. Glassware

Can be used, unless decorated with a metal trim. Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly. Must remove the lid. Suitable for warming only. Metal

• Freezer bag twist ties

May cause arcing or fire. Paper

• Plates, cups, napkins and Kitchen paper

For short cooking times and warming. Also to absorb excess moisture. May cause arcing. Plastic

Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plas-tic. Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape. Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or grease-proof paper

Cooking Guide MICROWAVES Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food. COOKING Cookware for microwave cooking: Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers. Food suitable for microwave cooking: Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints). Covering during cooking To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film. Standing times After cooking is over food the standing time is important to allow the temperature to even out within the food. Cooking Guide for frozen vegetables Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time. Cooking Guide for rice and pasta Rice: Use a large glass pyrex bowl with lid – rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: The rice may not have absorbed all water after the cooking time is finished. Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards. Food Portion Power Time (min.) Standing Time(min.) Instructions Spinach 0.15kg 600W 5-6 2-3 Add 15 ml (1 tablespoon) cold water. Broccoli 0.3kg 600W 8-9 2-3 Add 30 ml (2 tbsp.) cold water. Peas 0.3kg 600W 7-8 2-3 Add 15 ml (1 tbsp.) cold water. Green Beans 0.3kg 600W 7½-8½ 2-3 Add 30 ml (2 tbsp.) cold water. Mixed Vegetables (carrots/peas/ corn) 0.3kg 600W 7-8 2-3 Add 15 ml (1 tbsp.) cold water. Mixed Vegetables (Chinese style) 0.3kg 600W 7½-8½ 2-3 Add 15 ml (1 tbsp.) cold water. Food Portion Power Time (min.) Standing Time(min.) Instructions White Rice (parboiled) 0.25kg 0.37kg 900W 15-16 17½-18½ 5 Add 500 ml cold water. Add 750 ml cold water. Brown Rice (parboiled) 0.25kg 0.37kg 900W 20-21 22-23 5 Add 500 ml cold water. Add 750 ml cold water. Mixed Rice (rice + wild rice) 0.25kg 900W 16-17 5 Add 500 ml cold water. Mixed Corn (rice + grain) 0.25kg 900W 17-18 5 Add 400 ml cold water. Pasta 0.25kg 900W 10-11 5 Add 1000 ml hot water. Food Portion Power Time (min.) Standing Time(min.) Instructions jlXX_\ni{h~TWZX`WlluUGGwGYWGGtSGtG]SGYWW]GGXWaZXGht21

Cooking Guide (continued) Cooking Guide for fresh vegetables Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended – see table. Cook covered for the minimum time – see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes. Hint : Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook.All fresh vegetables should be cooked using full microwave power (900W). REHEATING Your microwave oven will reheat food in a fraction of the time that conventional ovens and hobs normally take.Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20°C or a chilled food with a temperature of about +5 to +7°C.Arranging and coveringAvoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.Power levels and stirringSome foods can be reheated using 900 W power while others should be reheated using 600 W, 450 W or even 300 W.Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example).Stir well or turn food over during reheating for best results. When possible, stir again before serving.Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food. It is preferable to underestimate cooking time and add extra heating time, if necessary.Heating and standing timesWhen reheating food for the first time, it is helpful to make a note of the time taken - for future reference.Always make sure that the reheated food is piping hot throughout.Allow food to stand for a short time after reheating - to let the temperature even out. The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart.Take particular care when heating liquids and baby food. See also the chapter with the safety precautions. REHEATING LIQUIDS Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.Food Portion Time (min.)Standing Time (min.)InstructionsBroccoli 0.25kg0.5kg 4½-5 7-8 3 Prepare even sized florets. Arrange the stems to the centre.Brussels Sprouts0.25kg 6-6½ 3 Add 60-75 ml (5-6 tbsp.) water.Carrots 0.25kg 4½-5 3 Cut carrots into even sized slices.Cauliflower 0.25kg0.5kg 5-5½ 7½-8½3 Prepare even sized florets. Cut big florets into halves. Arrange stems to the centre.Courgettes 0.25kg 4-4½ 3 Cut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender. Egg Plants 0.25kg 3½-4 3 Cut egg plants into small slices and sprinkle with 1 tablespoon lemon juice.Leeks 0.25kg 4-4½ 3 Cut leeks into thick slices.Mushrooms 0.12kg0.12kg 1½-2 2½-3 3 Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving.Onions 0.25kg 5-5½ 3 Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Pepper 0.25kg 4½-5 3 Cut pepper into small slices. Potatoes 0.25kg0.5kg 4-5 7-8 3 Weigh the peeled potatoes and cut them into similar sized halves or quarters. Turnip Cabbage 0.25kg 5½-6 3 Cut turnip cabbage into small cubes. jlXX_\ni{h~TWZX`WlluUGGwGYXGGtSGtG]SGYWW]GGXWaZXGht22

Cooking Guide (continued)

Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40°C. BABY MILK

Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby’s bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37°C. REMARK: Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating. Reheating Baby Food and Milk Use the power levels and times in this table as guide lines for reheating. Reheating Liquids and Food Use the power levels and times in this table as a guide lines for reheating. Food Portion Power Time Standing Time(min.) Instructions Baby food (vegetables + meat) 0.19kg 600W 30sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully. Baby porridge (grain + milk + fruit) 0.19kg 600W 20sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully. Baby milk 0.1kg 0.2kg 300W 30-40sec. 1min. to 1min. 10sec. 2-3 Stir or shake well and pour into a sterilised glass bottle. Place into the centre of turntable. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully. Food Portion Power Time (min.) Standing Time (min.) Instructions Drinks (coffee, tea and water) 0.15kg (1 cup) 0.3kg (2 cups) 0.4kg (3 cups) 0.6kg (4 cups) 900W 1-1½ 2-2½ 3-3½ 3½-4 1-2 Pour into cups and reheat uncovered: 1 cup in the centre, 2 cups opposite of each other, 3 cups in a circle. Keep in microwave oven during standing time and stir well. Soup (chilled) 0.25kg 0.35kg 0.45kg 0.55kg 900W 2½-3 3-3½ 3½-4 4½-5 2-3 Pour into a deep ceramic plate or deep ceramic bowl. Cover with plastic lid. Stir well after reheating. Stir again before serving. Stew (chilled) 0.35kg 600W 4½-5½ 2-3 Put stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Pasta with sauce (chilled) 0.35kg 600W 3½-4½ 3 Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving. Filled pasta with sauce (chilled) 0.35kg 600W 4-5 3 Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Plated Meal (chilled) 0.35kg 0.45kg 0.55kg 600W 4½-5½ 5½-6½ 6½-7½ 3 Plate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling-film. Cheese Fondue ready-to- serve (chilled) 0.4kg 600W 6-7 1-2 Put the ready-to-serve cheese fondue in a suitable sized glass pyrex bowl with lid. Stir occasionally during and after reheating. Stir well before serving. jlXX_\ni{h~TWZX`WlluUGGwGYYGGtSGtG]SGYWW]GGXWaZXGht23

Cooking Guide (continued) DEFROSTING Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up. Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away. Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible. Check the food occasionally to make sure that it does not feel warm. If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting. Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below. Hint : lat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food. For defrosting of frozen food with a temperature of about -18 to - 20°C, use the following table as a guide. All frozen food should be defrosted using defrosting power level (180 W). Food Portion Time (min.) Standing Time (min.) Instructions Meat Minced beef Pork steaks 0.25kg 0.5kg 0.25kg 6-7 10-12 7-8 15-30 Place the meat on a flat ceramic plate. Shield thinner edges with aluminium foil. Turn over after half of defrosting time! Poultry Chicken pieces Whole chicken 0.5kg (2pcs) 1.2kg 12-14 28-32 15-60 First, put chicken pieces first skin-side down, whole chicken first breast-side-down on a flat ceramic plate. Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time! Fish Fish fillets/ Whole fish 0.2kg 0.4kg 6-7 11-13 10-25 Put frozen fish in the middle of a flat ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends with aluminium foil. Turn over after half of defrosting time! Fruits Berries 0.3kg 6-7 5-10 Spread fruit on a flat, round glass dish (with a large diameter). Bread Bread rolls (each ca. 50 g) Toast/ Sandwich German bread (wheat + rye flour) 2pcs 4pcs 0.25kg 0.5kg 1-1½ 2½-3 4-4½ 7-9 5-20 Arrange rolls in a circle or bread vertically(like a tower) on kitchen paper in the middle of turntable. Turn over after half of defrosting time! jlXX_\ni{h~TWZX`WlluUGGwGYZGGtSGtG]SGYWW]GGXWaZXGht24

Cooking Guide (continued) GRILL The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable’s rotation makes the food brown more evenly. Preheating the grill for 4 minutes will make the food brown more quickly. Cookware for grilling: Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt. Food suitable for grilling: Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings. IMPORTANT REMARK: Whenever the grill only mode is used, make sure that the grill-heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. Please remember that food must be placed on the high rack, unless another instruction is recommended. MICROWAVE + GRILL This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Cookware for cooking with microwaves + grill Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt. Food suitable for microwaves + grill cooking: Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details. IMPORTANT REMARK: Whenever the combination mode (microwave + grill) is used, make sure that the grill heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. The food should be placed on the high rack, unless another instruction is recommended. Otherwise it has to be placed directly on the turntable. Please refer to the instructions in the following chart. The food must be turned over, if it is to be browned on both sides. Grill Guide for fresh food Preheat the grill with the grill-function for 3 minutes. Use the power levels and times in this table as guide lines for grilling. Fresh Food Portion Power 1. Side Time (min.)

Time (min.) Instructions Toast Slices 4 pcs (each 0.25kg) Grill only 3½-4½ 3-4 Put toast slices side by side on the rack. Grilled Tomatoes 0.2kg (2pcs) 0.4kg (4pcs) 300W + Grill 4-5 5½-6½ - Cut tomatoes into halves. Put some cheese on top. Arrange in a circle in a flat glass pyrex dish. Place it on the high rack. Stand for 2-3 minutes. Tomato- Cheese Toast 4 pcs (0.3kg) 300W + Grill 4½-5½ - Toast the bread slices first. Put the toast with topping on the high rack. Stand for 2-3 minutes Baked Apples 2 apples (ca.0.4kg) 4 apples (ca.0.8kg) 300W + Grill 6½-7½ 11-13 - Core the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish. Place the dish directly on the low rack. jlXX_\ni{h~TWZX`WlluUGGwGY[GGtSGtG]SGYWW]GGXWaZXGht25

Cooking Guide (continued) Grill Guide for fresh food (continued) CONVECTION Cooking with convection is the traditional and well known method of cooking food in a traditional oven with hot air. The heating element and the fan are situated on the back-wall, so that the hot air is circulating. Cookware for convection cooking: All conventional ovenproof cookware, baking tins and sheets – anything you would normally use in a traditional convection oven – can be used. Food suitable for convection cooking: All biscuits, individual scones, rolls and cakes should be made by this mode as well as rich fruit cakes, choux pastry and soufflés. MICROWAVES +CONVECTION This mode combines the microwave energy with the hot air and is therefore reducing the cooking time while giving the food a brown and crispy surface. Cooking with convection is the traditional and well known method of cooking food in an oven with hot air circulated by a fan on the back-wall. Cookware for cooking with microwaves + convection: Should be able to let the microwaves pass through. Should be ovenproof (like glass, pottery or china without metal trims); similar to the cookware described under MW + Grill. Food suitable for microwave + convection cooking: All kinds of meats and poultry as well as casseroles and gratin dishes, sponge cakes and light fruit cakes, pies and crumbles, roast vegetables, scones and breads. Convection Guide for fresh food like Bread Rolls, Bread and Cake Preheat the convection with the preheating function to the desired temperature, unless we recommend not to preheat the oven- see table. Use the power levels and times in this table as guide lines for convection cooking. Fresh Food Portion Power 1. Side Time (min.)

Time (min.) Instructions Chicken Pieces 0.5kg (2pcs) 0.9kg (3-4pcs) 300W + Grill 10-11 12-13 9-10 11-12 Brush chicken pieces with oil and spices. Put them in a circle on the high rack. Stand for 2-3 minutes Lamb Chops (medium) 0.4kg (4pcs) Grill only 10-12 8-9 Brush the lamb chops with oil and spices. Lay them in a circle on the high rack. After grilling stand for 2-3 minutes. Pork Steaks 0.4kg (2pcs) MW + Grill 300W+ Grill 8-9 Grill only 8-9 Brush the pork steaks with oil and spices.Lay them in a circle on the high rack. After grilling stand for 2-3 minutes. Roast Fish 0.4-0.5kg 300W + Grill 6-7 7-8 Brush skin of whole fish with oil and add herbs and spices. Put two fishes side by side (head to tail) on the high rack. Stand for 2-3 minutes. Food Portion Power Time (min.) Instructions BREAD ROLLS Bread Rolls (ready baked) 4-6 pcs (each ca. 0.05kg) Only convection 180°C 2-3 Put bread rolls in a circle on the low rack. Use oven gloves while taking out! Stand 2-3 minutes. Marble Cake/ Lemon cake (fresh dough) 0.7kg 180 W + 220°C without preheating! 24-26 Put the fresh dough in a rectangular glass or black metal baking dish (length 25 cm). Put the cake on the low rack. Stand for 5-10 minutes. Filled Puff Pastries(chilled) 0.25kg (5pcs) Only convection 220°C 15-20 Fill fresh puff pastry dough with e.g. ham, sausages, cheese or vegetables.Put them on baking paper in a circle on the high rack. Muffins (fresh dough) 6 x 70 g (0.4- 0.45kg) 180 W + 200°C 14-16 Fill the fresh dough evenly in a ceramic muffin-dish, suitable for 6 medium sized muffins, or use 6 small, round glass pyrex dishes. Put the dish on the low rack. Stand for 5 min. jlXX_\ni{h~TWZX`WlluUGGwGY\GGtSGtG]SGYWW]GGXWaZXGht26

Cooking Guide (continued) Convection guide for frozen food like Bread Rolls, Bread, Cake and Pastry Preheat the convection with the preheating function until the desired temperature is reached, unless we recommend not to preheat the oven- see table. Use the power levels and times in this table as guide lines for baking. Convection guide for frozen Pizza, Pasta, Chips and Nuggets Preheat the convection with the preheating function until the desired temperature is reached, unless we recommend not to preheat the oven- see table. Use the power levels and times in this table as guide lines for baking. Food Portion Power Time (min.) Instructions Baguettes / Garlic Bread (pre-baked) 0.2-0.25kg (1pc) 180 W + 200°C 6-7 Put the frozen baguette on baking paper on the low rack. After baking stand for 2-3 minutes. Food Portion Power Time (min.) Instructions Pasta (Lasagne or Canneloni) 0.4kg 450 W + 200°C without preheating! 20-22 Put into a suitable sized glass pyrex dish or leave in the original packaging (take care that this is suitable for microwaves and oven heat). Put frozen lasagne on the low rack. After cooking stand for 2-3 minutes. Pasta (Macaroni, Tortellini) 0.4kg 450 W + 200°C without preheating! 16-18 Put into a suitable sized glass pyrex dish or leave in the original packaging (take care that this is suitable for microwaves and oven heat). Put frozen pasta gratin on the low rack. After cooking stand for 2-3 minutes. Chicken Nuggets 0.25kg 450 W + 200°C 6½-7½ Put chicken nuggets on the low rack. After cooking stand for 2-3 minutes. jlXX_\ni{h~TWZX`WlluUGGwGY]GGtSGtG]SGYWW]GGXWaZXGht27

Cooking Guide (continued) SPECIAL HINTS MELTING BUTTERPut 50 g butter into a small deep glass dish. Cover with plastic lid.Heat for 30-40 seconds using 900 W, until butter is melted.MELTING CHOCOLATEPut 100 g chocolate into a small deep glass dish.Heat for 3-5 minutes, using 450 W until chocolate is melted.Stir once or twice during melting. Use oven gloves while taking out!MELTNG CRYSTALLIZED HONEYPut 20 g crystallized honey into a small deep glass dish.Heat for 20-30 seconds using 300 W, until honey is melted.MELTING GELATINELay dry gelatine sheets (10 g) for 5 minutes into cold water.Put drained gelatine into a small glass pyrex bowl.Heat for 1 minute using 300 W.Stir after melting.COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water.Cook uncovered in a glass pyrex bowl for 3 ½ to 4 ½ minutes using 900 W,until glaze/icing is transparent. Stir twice during cooking.COOKING JAMPut 600 g fruits (for example mixed berries) in a suitable sized glasspyrex bowl with lid. Add 300 g preserving sugar and stir well.Cook covered for 10-12 minutes using 900 W.Stir several times during cooking. Empty directly into small jamglasses with twist-off lids. Stand on lid for 5 minutes.COOKING PUDDINGMix pudding powder with sugar and milk (500 ml) by following themanufacturers instructions and stir well. Use a suitable sized glass pyrexbowl with lid. Cook covered for 6 ½ to 7 ½ minutes using 900 W.Stir several times well during cooking.BROWNING ALMOND SLICESSpread 30 g sliced almonds evenly on a medium sized ceramic plate.Stir several times during browning for 3 ½ to 4 ½ minutes using 600 W.Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out! Cleaning Your Microwave Oven The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces

• Turntable and Roller rings

ALWAYS ensure that the door seals are clean and the door closes properly. ☛ Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the of the appliance and possibly result in a hazardous situation.1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.

Remove any splashes or stains on the inside surfaces or on the roller ring with a soapy cloth. Rinse and dry. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turntable and heat for ten minutes at maximum power. Wash the dishwasher-safe plate whenever necessary. ✉ DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:• Accumulate• Prevent the door from closing correctly ✉ Clean the microwave oven cavity right ofter each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury. ✉ The instructions for cooking ranges, hobs and ovens shall state that a steam cleaner is not to be used. jlXX_\ni{h~TWZX`WlluUGGwGY^GGtSGtG]SGYWW]GGXWaZXGht28

Storing and Repairing Your Microwave Oven A few simple precautions should be taken when storing or having your microwave oven serviced. The oven must not be used if the door or door seals are damaged:

• Distorted or bent oven casing Only a qualified microwave service technician should perform repairs. ☛ NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:• Unplug it from the wall socket• Contact the nearest after-sales service centre ✉ If you wish to store your oven away temporarily, choose a dry, dust- free place.
• Reason: Dust and damp may adversely affect the working parts in the oven Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. Power source230V ~ 50 Hz ACPower consumptionMaximum powerMicrowaveGrill (heating element)Convection (heating element)3100 W1400 W1300 W1700 WOutput power 100 W / 900 W - 6 levels (IEC-705)Operating frequency 2450 MHzDimensions (W x D x H)OutsideOven cavity 522 x 539 x 312 mm355 x 380.6 x 234 mmVolume 32 LiterWeight Net Shipping21.0 kg approx. 23.5 kg approx. jlXX_\ni{h~TWZX`WlluUGGwGY_GGtSGtG]SGYWW]GGXWaZXGht29
