USER MANUAL GE87MC SAMSUNG

Owner's Instructions & Cooking Guide

imagine the possibilities

Thank you for purchasing this Samsung product.

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

100% Recycled Paper

This manual is made with 100% recycled paper.

contents

Safety information 2

Quick look up guide ....11

Oven features 12

Oven 12

Control panel....13

Accessories 13

Oven use 14

How a microwave oven works 14

Checking that your oven is operating correctly 14

Setting the time 15

Cooking/Reheating 15

Power levels 16

Adjusting the cooking time 16

Stopping the cooking 16

Setting the energy save mode....16

Using the auto reheat feature 17

Using theauto reheat programmes 17

Using the auto cook feature 18

Using the auto cook programmes 18

Using the auto power defrost feature 19

Using auto power defrost programmes 19

Choosing the accessories 20

Grilling 20

Combining microwaves and the grill 20

Using the memory feature 21

Using the settings 21

Switching the beeper off 21

Safety-locking your microwave oven 22

Cookware guide 22

Cooking guide 23

Troubleshooting 31

Troubleshooting 31

Technical specifications ....32

safety information

USING THIS INSTRUCTION BOOKLET

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contain valuable information on cooking with your microwave oven;

• Safety precautions
  • Suitable accessories and cookware
  • Useful cooking tips
• Cooking tips

LEGEND FOR SYMBOLS AND ICONS

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

Warning; Fire hazard Warning; Hot surface

Warning; Electricity Warning; Explosive material

Do NOT attempt. Do NOT touch

Do NOT disassemble. Follow directions explicitly.

Unplug the power plug from the wall socket.

Call the service center for help.

Important

Make sure the machine is grounded to prevent electric shock.

Note

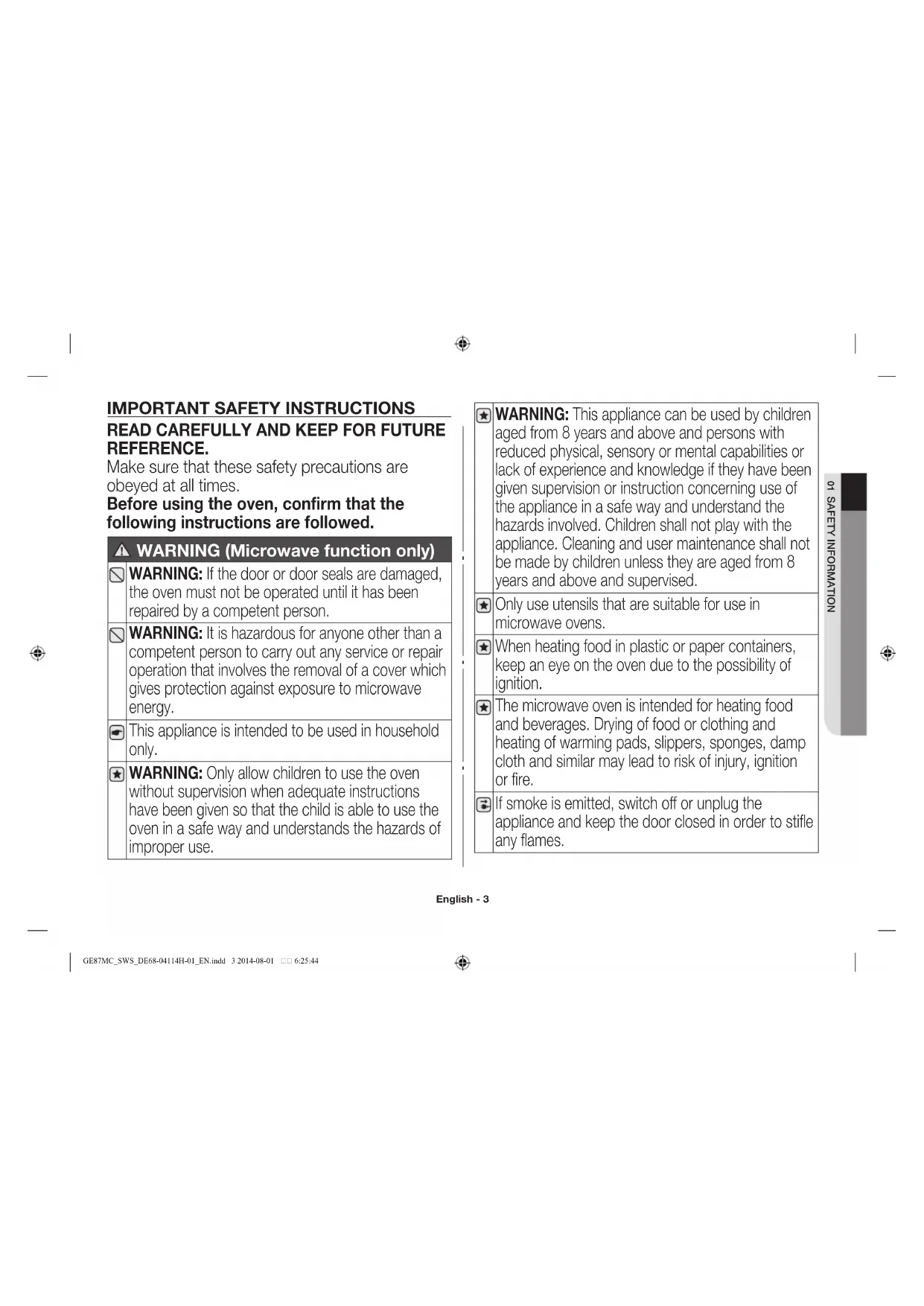

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Make sure that these safety precautions are obeyed at all times.

Before using the oven, confirm that the following instructions are followed.

⚠ WARNING (Microwave function only)

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
This appliance is intended to be used in household only.
WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
Only use utensils that are suitable for use in microwave ovens.
When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

★	WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
★	WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
☐	Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
★	The oven should be cleaned regularly and any food deposits removed.
☐	Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
☐	The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.

★	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
★	Children should be supervised to ensure that they do not play with the appliance.
√	If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
☐	WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode;
☐	The appliance should not be cleaned with a water jet.
★	This oven should be positioned proper direction and height permitting easy access to cavity and control area.
★	Before using the your oven first time, oven should be operated with the water during 10 minute and then used.
★	If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.
★	The microwave oven has to be positioned so that plug is accessible.
□	The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet.

⚠ WARNING (Oven function only) - Optional
	WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
	During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
	WARNING: Accessible parts may become hot during use. Young children should be kept away.
	A steam cleaner is not to be used.
	WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

★	WARNING: The appliance and its accessible parts become hot during use.Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
★	This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
☐	Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
☒	The temperature of accessible surfaces may be high when the appliance is operating.
☒	The door or the outer surface may get hot when the appliance is operating.
☒	Keep the appliance and its cord out of reach of children less than 8 years.

English - 5

Appliances are not intended to be operated by means of an external timer or separate remote-control system.

This product is a Group 2 Class B ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Place the oven on a flat level surface 85 cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

1. When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and (8 inches) of space above.

1. Remove all packing materials inside the oven.
2. Install the roller ring and turntable. Check that the turntable rotates freely. (Turntable type model only)
3. This microwave oven has to be positioned so that plug is accessible.
   If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For your personal safety, plug the cable into a proper AC earthed socket.
   Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces
• Door and door seals
- Turntable and Roller rings (Turntable type model only)

ALWAYS ensure that the door seals are clean and the door closes properly.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.
2. Remove any splashes or stains on the inside surfaces of oven with a soapy cloth. Rinse and dry.

3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice in the oven and heat for ten minutes at maximum power.

4. Wash the dishwasher-safe plate whenever necessary.

DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

• Accumulate
  • Prevent the door from closing correctly

√ Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury.

When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45° and clean it. (Swing heater model only)

STORING AND REPAIRING YOUR MICROWAVE OVEN

A few simple precautions should be taken when storing or having your microwave oven serviced. The oven must not be used if the door or door seals are damaged:

• Broken hinge
  • Deteriorated seals
  • Distorted or bent oven casing

English - 7

Only a qualified microwave service technician should perform repair.

NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplug it from the wall socket
- Contact the nearest after-sales service centre

If you wish to store your oven away temporarily, choose a dry, dustfree place.

Reason : Dust and damp may adversely affect the working parts in the oven.

This microwave oven is not intended for commercial use.
The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care, to arrange for a qualified engineer to replace the bulb.

WARNING
	Only qualified staff should be allowed to modify or repair the appliance.	√	√	√	√
	Do not heat liquids and other food in sealed containers for microwave function.	√	√	√	√

	For your safety, do not use high-pressure water cleaners or steam jet cleaners.	√	√	√	√
	Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground.	√	√	√	√
	This appliance must be properly grounded in accordance with local and national codes.	√	√	√	√
	Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.	√	√	√	√
	Do not pull or excessively bend or place heavy objecton the power cord.	√	√	√	√
	In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.	√	√	√	√
	Do not touch the power plug with wet hands.	√	√	√	√
	Do not turn the appliance off by unplugging the power plug while an operation is in progress.	√	√	√	√
	Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.	√	√	√	√
	Do not apply excessive pressure or impact to the appliance.	√	√	√	√
	Do not place the oven over a fragile object such as a sink or glass object.	√	√
	Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance.	√	√	√	√
	Ensure that the power voltage, frequency and current are the same as those of the product specifications.	√	√		√
	Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer.	√	√	√
	Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.	√	√	√
	Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.	√	√	√	√
	Do not pour or directly spray water onto the oven.	√	√
	Do not place objects on the oven, inside or on the door of the oven.	√	√	√
	Do not spray volatile material such as insecticide onto the surface of the oven.	√	√
	Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven.	√		√	√
	Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.	√	√	√	√
	WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating.In the event of scalding, follow these FIRST AID instructions:Immerse the scalded area in cold water for at least 10 minutes.Cover with a clean, dry dressing.Do not apply any creams, oils or lotions.	√	√	√	√

English - 8

	Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack.				√
	Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled.This could result in a sudden boil over of the hot liquid.	√			√

CAUTION
	Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc.Remove wire twist ties from paper or plastic bags.Reason: Electric arcing or sparking may occur and may damage the oven.	√		√	√
	Do not use your microwave oven to dry papers or clothes.	√		√	√
	Use shorter times for smaller amounts of food to prevent overheating and burning food.	√		√	√
	Do not immerse the power cable or power plug in water and keep the power cable away from heat.	√	√
	Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc.			√	√
	Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it cools sufficiently.	√		√
	Always use oven mitts when removing a dish from the oven to avoid unintentional burns.			√
	Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.			√
	Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.			√
	Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally.	√			√
	Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven.)	√		√
	Take care when connecting other electrical appliances to sockets near the oven.	√	√	√

English - 9

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY. (MICROWAVE FUNCTION ONLY)

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.
(b) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

(1) door (bent)
(2) door hinges (broken or loose)
(3) door seals and sealing surfaces

(d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include:

(a) A dented, scratched, or broken door, handle, out-panel, or control panel.
(b) A broken or missing tray, guide roller, coupler, or wire rack.

- Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

• Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

quick look up guide

If you want to cook some food.

1. Place the food in the oven. Select the power level by pressing the 🔊 button one or more times.
2. Set the cooking time by pressing the (一) and (+) buttons as required.
3. Press the ◊ button.

Result: Cooking starts. The oven beeps four times when cooking is over.

If you want to auto Power defrost some food.

1. Place the frozen food in the oven. Select the type of food that you are cooking by pressing the Power (**) button one or more times.
2. Select the food weight by pressing the (→) and (＋) buttons.
3. Press the (◇) button.

If you want to add extra 30 seconds.

Leave the food in the oven.

Press +30s one or more times for each extra

30 seconds that you wish to add.

If you want to grill some food.

1. Preheat the grill to the required temperature, by pressing the Grill (U), time setting (+) and (-) and Start (☐) button.
2. After preheating is finished, Open the door and Place the food on the rack in the oven. Press the Grill (u) button. Select the cooking time by pressing the (÷) and (●) buttons.
3. Press the Start (◇) button.

U

oven features

OVEN

1 2 3 4 6 105 11 7 8 9 12:30

1. VENTILATION HOLES
2. GRILL
3. LIGHT
4. DISPLAY
5. DOOR LATCHES

6. DOOR

7. TURNTABLLE

8. COUPLER
9. ROLLER RING
10. SAFETY INTERLOCK HOLES
11. CONTROL PANEL
12. OPEN DOOR PUSH BUTTON

English - 12

CONTROL PANEL

1 2 3 4 5 6 7 8 9 10 11 12 13 12:30

1. DISPLAY
2. AUTO POWER DEFROST BUTTON
3. AUTO COOK SELECTION
4. GRILL MODE SELECTION
5. MICROWAVE/POWER LEVEL MODE SELECTION

6. UP (+) / DOWN (−) BUTTON (cook time, weight and serving size)

7. STOP/ENERGY SAVE BUTTON

8. CLOCK SETTING
9. AUTO REHEAT SELECTION
10. MEMORY BUTTON
11. COMBI MODE SELECTION
12. CHILD LOCK SELECTION
13. START/+30s BUTTON

ACCESSORIES

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

1. Roller ring, to be placed in the centre of the oven. Purpose: The roller ring supports the turntable.
2. Turntable, to be placed on the roller ring with the centre fitting to the coupler.

Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.

1. Grill rack, to be placed on the turntable. Purpose: The metal rack can be used in grill and combination cooking.

oven use

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour.

You can use your microwave oven to:

• Defrost
- Instant Reheat/Cook
• Cook

Cooking Principle.

1. The microwaves generated by the magnetron are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.
3. Cooking times vary according to the recipient used and the properties of the food:

• Quantity and density

• Water content

• Initial temperature (refrigerated or not)

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre
• The same temperature throughout the food

CHECKING THAT YOUR OVEN IS OPERATING CORRECTLY

The following simple procedure enables you to check that your oven is working correctly at all times. Open the oven door by pushing the large button in the bottom right-hand corner of the control panel.

First, place a bowl of water on the turntable. Then, close the door.

1. Press the Power Level button and set the time to 4-5 minutes by pressing the (—) and (÷) button the appropriate number of times.
2. Press the Start ( ◊ ) button.

Result: The oven heats the water for 4 to 5 minutes. The water should then be boiling.

The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum is used, the water takes longer to boil.

SETTING THE TIME

Your microwave oven has an inbuilt clock. When power is supplied, ":0", "88:88" or "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock:

• When you first install your microwave oven
  • After a power failure

Do not forget to reset the clock when you switch to and from summer and winter time.

1. To display the time in the...

24-hour notation.
12-hour notation.
Press the Clock (⊕) button once or twice.

1. Press the ( ) and ( ) buttons to set the hour.

1. Press the ⏻ button.

1. Press the (—) and (+) buttons to set the minute.

1. Press the ⏻ button.

COOKING/REHEATING

The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable. Then, close the door.

1. Press the 📁 button.

Result: The 800 W (maximum cooking power) indications are displayed: Select the appropriate power level by pressing the 📄 button again ur wattage is displayed. Refer to the p

1. Set the cooking time by pressing the (—) and (+) buttons as required.

1. Press the ◊ button.

Result: The oven light comes on and the turntable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Never switch the microwave oven on when it is empty.

If you wish to heat a dish for a short period of time at maximum power (800 W), simply press the +30s button once for each 30 seconds of cooking time. The oven starts immediately.

POWER LEVELS

You can choose among the power levels below.

Power level	Output
	MWO GRILL
HIGH 800 W		-
MEDIUM HIGH 600 W		-
MEDIUM 450 W		-
MEDIUM LOW 300 W		-
DEFROST (###)	180 W	-
LOW/KEEP WARM 100 W		-
GRILL	-	1100 W
COMBI I (###)	800 W (33 %) 1100 W (67 %)

If you select higher power level, the cooking time must be decreased.
If you select lower power level, the cooking time must be increased.

ADJUSTING THE COOKING TIME

You can increase the cooking time by pressing the +30s button once for each 30 seconds to be added.

Press the +30s button once for each 30 seconds to be added.

STOPPING THE COOKING

You can stop cooking at any time to check the food.

1. To stop temporarily; Open the door.

Result: Cooking stops. To resume cooking, close the door and press ◆ again.

1. To stop completely; Press the Ⓤ button.

Result: The cooking stops. If you wish to cancel the cooking settings, press the Stop (💡) button again.

You can also cancel any setting before starting by simply pressing Stop (☐).

SETTING THE ENERGY SAVE MODE

The oven has an energy save mode. This facility saves electricity when the oven is not in use.

• Press the Energy Save button.
• To remove energy save mode, open the door and then display shows current time. The oven is ready for use.

Auto energy saving function

If you do not select any function when appliance is in the middle of setting or operating with temporary stop condition, function is canceled and clock will be displayed after 25 minutes.

Oven Lamp will be turned off after 5 minutes with door open condition.

USING THE AUTO REHEAT FEATURE

The Auto Reheat feature has four pre-programmed cooking time. You do not need to set either the cooking times or the power level. You can adjust the number of servings by pressing the ( ) and ( ) buttons. First, place the food in the centre of the turntable and close the door.

1. Select the type of food that you are cooking by pressing the Auto Reheat (###) button once or more times.

1. Select the size of the serving by pressing the (—) and (+buttons. (Refer to the table on the side).

1. Press the ◊ button.

Result: Cooking starts. When it has finished.

1) The oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Use only recipients that are microwave-safe.

USING THE AUTO REHEAT PROGRAMMES

The following table presents 4 Auto Reheat Programmes, quantities, standing times and appropriate recommendations.

Code/Food Portion		Standing time	Recommendations
1. Chilled Ready meal[IMAGE]	300-350 g400-450 g	3 min. Put meal on a ceramic plate and cover with microwave cling film.This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta).
2. Frozen Ready meal[IMAGE]	300-350 g400-450 g	4 min. Take frozen ready meal and check if dish is suitable for microwave.Pierce film of ready meal. Put the frozen ready meal in the centre.This programme is suitable for frozen ready meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta).
3. Chilled Soup/Sauce[IMAGE]	200-250 g300-350 g400-450 g	3 min. Pour the soup/sauce into a deep ceramic soup plate or bowl. Cover during heating and standing time.Stir before and after standing time.
4. Drinkscoffee, milk, tea, water(room-temperature)[IMAGE]	150 ml(1 cup)250 ml(1 mug)	1-2 min. Pour the liquid into ceramic cup and reheat uncovered. Place one cup/mug in the centre of turntable.Leave them to stand in the microwave oven.Stir drinks before and after standing time. Be careful while taking the cups out (see safety instructions for liquids).

04 OVEN USE

USING THE AUTO COOK FEATURE

The Auto Cook feature has three pre-programmed cooking times. You do not need to set either the cooking times or the power level. You can adjust the number of servings by pressing the (+) and (−) buttons. First, place the food in the centre of the turntable and close the door.

1. Select the type of food that you are cooking by pressing the Auto Cook (☐) button once or more times.

1. Select the size of the serving by pressing the (—) and (+buttons. (Refer to the table on the side).

1. Press the ◆ button.

Result: Cooking starts. When it has finished.

1) The oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Use only recipients that are microwave-safe.

USING THE AUTO COOK PROGRAMMES

The following table presents the various Auto Cook Programmes, quantities, standing times and appropriate recommendations.

Code/Food Portion		Standing time	Recommendations
1. Frozen pasta gratin[IMAGE]	200 g400 g	2-3 min. Put the frozen pasta gratin into a suitable sized glass pyrex dish. Put the dish on the rack. This programme is suitable for frozen pasta gratin such as lasagne, cannelloni or macaroni.
2. Frozen mini quich/Mini pizza[IMAGE]	150 g(4-6 pcs)250 g(7-9 pcs)	- Put the frozen mini-quiches or minipizzas evenly on the rack.
3. Frozen fish gratin[IMAGE]	200 g400 g	2-3 min. Put the frozen fish gratin into a suitable sized glass pyrex dish. Put the dish on the rack. This programme is suitable for frozen ready products consisting of fish fillets topped with vegetables and sauce.

USING THE AUTO POWER DEFROST FEATURE

The Auto Power Defrost feature enables you to defrost meat, poultry, fish and bread/cake. The defrost time and power level are set automatically. You simply select the programme and the weight.

Use only dishes that are microwave-safe.

First, place the frozen food in the centre of the tumtable and close the door.

1. Select the type of food that you are cooking by pressing the Power Defrost ( ^*** ) button one or more times. (Refer to the table on the side).

1. Select the food weight by pressing the (—) and (+) buttons. It is possible to set up to a maximum of 1500 g.

1. Press the ◆ button.

Result :

• Defrosting begins.
• The oven beeps half way through defrosting to remind you to turn the food over.
• Press button again to finish defrosting.

You can also defrost food manually. To do so, select the microwave cooking/reheating function with a power level of 180 W. Refer to the section entitled "Cooking/Reheating" on page 15 for further details.

USING AUTO POWER DEFROST PROGRAMMES

The following table presents the various Power Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kind of package material before defrosting. Place meat, poultry, fish, and Bread/cake on a ceramic plate.

Code/ Food	Serving size	Standing time	Recommendations
1. Meat 200-1500 g 20-60	min. Shield the	edges with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops, minced meat.
2. Poultry 200-1500 g 20-60	min. Shield the	leg and wing tips with aluminium foil. Turn the poultry over, when the oven beeps. This programme is suitable for whole chicken as well as for chicken portions.
3. Fish 200-1500 g 20-50 min. Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the oven beeps. This programme is suitable for whole fishes as well as for fish fillets.
4. Bread/ Cake	125-625 g 5-20 min. Put bread on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door.) This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping.

☑ Select the Manual Defrosting function with a power level of 180 W if you want to defrost food manually. For further details on manual defrosting and defrosting time, refer to the page 27\~28.

CHOOSING THE ACCESSORIES

Use microwave-safe recipients; do not use plastic containers, dishes, paper cups, towels, etc.

If you wish to select the combined cooking mode (grill and microwave), use only dishes that are microwave-safe and ovenproof.

For further details on suitable cookware and utensils, refer to the Cookware Guide on page 22\~23.

GRILLING

The grill enables you to heat and brown food quickly, without using microwaves. For this purpose, a grill rack is supplied with your microwave oven.

1. Preheat the grill to the required temperature, by pressing the Grill (U) button and set the preheat time by pressing the (+) and (-) buttons.

1. Press the ◆ button.

1. After prehealing is finished, Open the door and place the food on the rack. Close the door.

1. Press the ⌘ button. Result: The following indications are displayed:

1. Set the Grilling time by pressing the (—) and (+) buttons. The maximum grilling time is 60 minutes.

1. Press the button.

Result: Grilling cooking start. When it has finished.

1) The oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Do not worry if the heater turns off and on while grilling. This system is designed to prevent overheating of the oven.

Always use oven gloves when touching the dishes in the oven, as they will be very hot.

COMBINING MICROWAVES AND THE GRILL

You can also combine microwave cooking with the grill, to cook quickly and brown at the same time.

ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.
ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot.

1. Open the oven door. Place the food on the rack and the rack on the turntable. Close the door.

1. Press the Combl (💡 ∨) button.

Result: The following indications are displayed: (microwave and grill mode)

You cannot set the temperature of the grill.

1. Set the Cooking time by pressing the (−) and (+) buttons. The maximum time is 60 minutes.

2. Press the ◆ button.

Result: Combination cooking starts. When it has finished,

1) The oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

USING THE MEMORY FEATURE

If you often cook or reheat the same types of dishes, you can store the cooking times and power levels in the oven's memory, so that you do not have to reset them each order.

You can store two different setting.

Storing the Setting.

1. To programme the...

Then press the Memory ( ) button...

First setting Second setting

Once (Display is P1) Twice (Display is P2)

1. Set your cooking programme as usual (cooking time and power level) see if necessary.

2. Press ◆ button.

Result: Your setting are now stored in the oven's memory.

USING THE SETTINGS

First, place the food in the centre of the turntable and close the door.

1. To select the...

Then press the Memory ( 🔍 ) button...

[Non-Text]

First setting Second setting

Once (Display is P1) Twice (Display is P2)

1. Press ◦ button.

Result: The food is cooked as requested.

SWITCHING THE BEEPER OFF

You can switch the beeper off whenever you want.

1. Press the ☑ and ◁ buttons at the same time.

Result :

• The following indication is displayed.

• The oven does not beep each time you press a button.

1. To switch the beeper back on, press the ☑ and ◇ buttons again at the same time.

Result :

• The following indication is displayed.

• The oven operates with the beeper on again.

Your microwave oven is fitted with a special Child Safety programme, which enables the oven to be "locked" so that children or anyone unfamiliar with it cannot operate it accidentally.

The oven can be locked at any time.

1. Press the Child Lock (💡) button for one second.

Result :

• The oven is locked (no functions can be selected).
• The display shows "L".

1. To unlock the oven, press the Child Lock (☐) button for one second.

Result: The oven can be used normally.

cookware guide

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry.

The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

√ : Recommended √χ : Use caution χ : Unsafe

Cookware	Microwave-safe	Comments
Aluminum foil	×	Can be used in small quantities to protect areas against overcooking.Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
Crust plate		Do not preheat for more than 8 minutes.
China and earthenware		Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim.
Disposable polyester cardboard dishes		Some frozen foods are packaged in these dishes.
Fast-food packaging
Polystyrene cups containers		Can be used to warm food.Overheating may cause the polystyrene to melt.
Paper bags or newspaper	×	May catch fire.
Recycled paper or metal trims	×	May cause arcing.
GlasswareOven-to-tablewareFine glasswareGlass jars	√√√	Can be used, unless decorated with a metal trim.Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenlyMust remove the lid. Suitable for warming only.
MetalDishesFreezer bag twist ties	✕✕	May cause arcing or fire.
PaperPlates, cups, napkins and kitchen paperRecycled paper	√✕	For short cooking times and warming. Also to absorb excess moisture.May cause arcing.
PlasticContainersCling filmFreezer bags	√√√✕	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

cooking guide

MICROWAVES

Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content.

The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

COOKING

Cookware for microwave cooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.

Food suitable for microwave cooking:

Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).

Covering during cooking

To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.

Standing times

After cooking is over food the standing time is important to allow the temperature to even out within the food.

Cooking Guide for frozen vegetables

Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time.

Food Portion	Power		Time (min.)	Standing time (min.)	Instructions
Spinach 150 g 600	W 4 12 -5 12	2-3 Add 15 ml (1			tablespoon) cold water.
Broccoli 300 g 600	W 9-10 2-3	Add 30 ml (2			tbsp.) cold water.
Peas 300 g 600 W	7 12 -8 12 2-3	Add 15 ml (1			tbsp.) cold water.
Green beans 300 g	600 W 8-9	2-3 Add 30 ml (2			tbsp.) cold water.
Mixed vegetables (carrots/peas/corn)	300 g 600	W 7 12 -8 12	2-3 Add 15 ml (1		tbsp.) cold water.
Mixed vegetables (chinese style)	300 g 600	W 8-9 2-3	Add 15 ml (1		tbsp.) cold water.

Cooking Guide for rice and pasta

Rice: Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is finished.

Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

Food	Portion	Power	Time (min.)	Standing time (min.)	Instructions
White rice (parboiled)	250 g	800 W	16-17	5	Add 500 ml cold water.
Brown rice (parboiled)	250 g	800 W	21-22	5	Add 500 ml cold water.
Mixed rice (rice + wild rice)	250 g	800 W	17-18	5	Add 500 ml cold water.
Mixed corn (rice + grain)	250 g	800 W	18-19	5	Add 400 ml cold water.
Pasta	250 g	800 W	11-12	5	Add 1000 ml hot water.

English - 24

Cooking Guide for fresh vegetables

Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended – see table. Cook covered for the minimum time – see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking.

Cover during a standing time of 3 minutes.

Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook.

All fresh vegetables should be cooked using full microwave power (800 W).

Food Portion	Time (min.)		Standing time (min.)	Instructions
Broccoli 250 g	600 g	4-4 12 7-7 12	3 Prepare	even sized florets. Arrange the stems to the centre.
Brussels sprouts	250 g 5 12 -6 12 3	Add 60-75 ml	(4-5 tbsp.) water.
Carrots	250 g 4 12 -5 3 Cut carrots into even sized slices.
Cauliflower	250 g	5-5 12 8 12 -9	3 Prepare	even sized florets. Cut big florets into halves. Arrange stems to the centre.
	600 g
Courgettes	250 g 3 12 -4 3 Cut courgettes into slices. Add 30 ml			(2 tbsp.) water or a knob of butter.Cook until just tender.
Egg plants	250 g 3 12 -4 3 Cut egg plants into small slices and			sprinkle with 1 tablespoon lemon juice.
Leeks	250 g 4 12 -5 3 Cut leeks into thick slices.
Mushrooms	125 g250 g	1 12 -23-3 12	3 Prepare	small whole or sliced mushrooms.Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving.
Onions	250 g 5 12 -6 3 Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water.
Pepper	250 g 4 12 -5 3 Cut pepper into small slices.
Potatoes	250 g500 g	4-57 12 -8 12	3 Weigh	the peeled potatoes and cut them into similar sized halves or quarters.
Turnip cabbage	250 g 5-5 12 3 Cut turnip cabbage into small cubes.

REHEATING

Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take.

Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C.

Arranging and covering

Avoid reheating large items such as joint of meat – they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.

Power levels and stirring

Some foods can be reheated using 800 W power while others should be reheated using 600 W, 450 W or even 300 W. Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example).

Stir well or turn food over during reheating for best results. When possible, stir again before serving.

Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food.

It is preferable to underestimate cooking time and add extra heating time, if necessary.

Heating and standing times

When reheating food for the first time, it is helpful to make a note of the time taken – for future reference.

Always make sure that the reheated food is piping hot throughout. Allow food to stand for a short time after reheating - to let the temperature even out.

The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart.

Take particular care when heating liquids and baby food. See also the chapter with the safety precautions.

English - 25

REHEATING LIQUIDS

Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

REHEATING BABY FOOD

BABY FOOD: Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating!

Let stand for 2-3 minutes before serving. Stir again and check the temperature.

Recommended serving temperature: between 30-40 °C.

BABY MILK: Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37 °C.

REMARK: Baby food particularly needs to be checked carefully before serving to prevent burns.

Use the power levels and times in the next table as a guide lines for reheating.

Reheating baby food and milk
Use the power levels and times in this table as guide lines for reheating.

Food Portion Power	Time		Standing time (min.)	Instructions
Baby food (vegetables + meat)	190 g 600 W 30 sec.	2-3 Empty into ceramic		deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes.Before serving, stir well and check the temperature carefully.
Baby porridge (grain + milk + fruit)	190 g 600 W 20 sec.	2-3 Empty into ceramic		deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes.Before serving, stir well and check the temperature carefully.
Baby milk 100 ml 300 W 30-40 sec.	2-3 Stir or shake well and			pour into a sterilized glass bottle. Place into the centre of turn-table. Cook uncovered. Shake well and stand for at least 3 minutes.Before serving, shake well and check the temperature carefully.
	200 ml 50 sec to 1	min.

Reheating Liquids and Food
Use the power levels and times in this table as a guide lines for reheating.

Food Portion Power			Time (min.)	Standing time (min.)	Instructions
Drinks (coffee, tea and water)	150 ml (1 cup)	900 W 1-1 12 1-2 Pour into cup and reheat uncovered. Put cup/mug in the centre of turntable. Keep in microwave oven during standing time and stir well.
	250 ml (1 mug)
Soup (chilled)	250 g 800 W 3-3 12 2-3 Pour into a deep ceramic plate. Cover with plastic lid. Stir well after reheating. Stir again before serving.
Stew (chilled)	350 g 600 W 5 12 -6 12	2-3 Put stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving.
Pasta with sauce (chilled)	350 g 600 W 4 12 -5 12	3 Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving.
Filled pasta with sauce (chilled)	350 g 600 W 5-6 3 Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving.
Plated meal (chilled)	350 g 600 W 5 12 -6 12	3 Plate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling-film.

MANUAL DEFROSTING

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away.

Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible.

Check the food occasionally to make sure that it does not feel warm.

If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting.

Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing.

Leave the fish, meat and poultry to stand in order to complete defrosting.

The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below.

Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food.

For defrosting of frozen food with a temperature of about -18 to -20 °C, use the following table as a guide.

All frozen food should be defrosted using defrosting power level (180 W).

Food Portion		Time (min.)	Standing time (min.)	Instructions
MeatMinced beef 250 gPork steaks 250 g 712	500 g 812	612-712 10-12	5-25 Place	the meat on a flat ceramic plate. Shield thinner edges with aluminium foil. Turn over after half of defrosting time!
PoultryChicken pieces 500 gWhole chicken 900 g 28-30	(2 pcs)	1412-1512	15-40 First, put o	chicken pieces firstskin-side down, whole chicken first breast-side-down on a flat ceramic plate. Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time!
FishFish fillets 200 g	(2 pcs)400 g(4 pcs)	6-7 5-1512-13	Put frozen fish	in the middle ofa flat ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends with aluminium foil. Turn over after half of defrosting time!
FruitsBerries 250 g 6-7 5-10	Distribute fruits on a flat,			round glass dish (with a large diameter).
BreadBread rolls(each about 50 g)Toast/SandwichGerman bread(wheat+rye flour)	2 pcs4 pcs250 g500 g	12-1 2-2 12 412-5 8-10	5-20 Avrange rolls in a circle or bread horizontally on kitchen paper in the middle of tumtable. Turn over after half of defrosting time!

GRILL

The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 3-4 minutes will make the food brown more quickly.

Cookware for grilling:

Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt.

Food suitable for grilling:

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings.

Important remark:

Whenever the grill only mode is used, make sure that the grill-heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. Please remember that food must be placed on the high rack, unless another instruction is recommended.

MICROWAVE + GRILL

This cooking cycle combines the radiant heat that is coming from the grill with the speed of microwave cooking alternately. It operates only while the door is closed and the

turntable is rotating. Due to the rotation of the turntable, the food browns evenly.

Cookware for cooking with microwave + grill

Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt.

Food suitable for microwave + grill cooking:

Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details.

Important remark:

Whenever the combination mode (microwave + grill) is used, make sure that the grill heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. The food should be placed on the high rack, unless another instruction is recommended. Otherwise it has to be placed directly on the turntable. Please refer to the instructions in the following chart.

The food must be turned over, if it is to be browned on both sides.

Grill Guide for frozen food
Use the power levels and times in this table as guide lines for grilling.

Frozen food	Portion P	Power	1st side time (min.)	2nd side time (min.)	Instructions
Bread rolls (each ca. 50 g)	2 pcs4 pcs	Mw-Grill Cycle	Mw-Grill 3-4 4-5	Grill only 1-2 1-2	Arrange rolls in a circle on rack. Grill the second side of the rolls up to the crisp you prefer. Stand for 2-5 minutes.
Baguettes + topping (tomatoes, cheese, ham, mushrooms)	250-300 g (2 pcs)	Mw-Grill Cycle	12-15 - P	Put 2 frozen baguettes side by side on the rack. After grilling stand for 2-3 minutes.
Gratin (vegetables or potatoes)	400 g Mw-Grill Cycle		18-23 - P	Put frozen gratin into a small, round glass pyrex dish. Put the dish on the rack. After cooking stand for 2-3 minutes.
Pasta (cannelloni, macaroni, lasagne)	400 g Mw-Grill Cycle		Mw-Grill 25-28	Grill only 2-3	Put frozen pasta into a small flat rectangular glass pyrex dish. Put the dish directly on the turntable. After cooking stand for 2-3 minutes.
Chicken nuggets	250 g Mw-Grill Cycle		8-10 5-6	Put chicken nuggets on the rack. Turn over after first time.
Oven chips 250 g Only		Grill	10-15 8-1	Put oven chips evenly on crusty plate on the rack.

Grill Guide for fresh food

Preheat the grill with the grill-function for 3-4 minutes. Use the power levels and times in this table as guide lines for grilling.

Fresh food	Portion Power		1st side time (min.)	2nd side time (min.)	Instructions
Toast slices 4 pcs(each 25 g)		Grill only 6	-8 412-512	Put the toast	t slices side by side on the rack.
Bread rolls(already baked)	2-4 pieces	Grill only 2-3	2-3	Put bread	rolls first with the bottom side up in a circle directly on the turntable.
Grilled tomatoes	200 g(2 pcs)	Grill only	12-15	- Cut to	tomatoes into quarters. Put some cheese on top. Arrange in a circle in a flat glass pyrex dish. Place it on the rack.
Toast with topping	2 pcs(300 g)	1st stage:Mw-Grill Cycle2nd stage:Grill only	312-412 3-4	- Toast	the bread slices first. Put the toast with topping (ham, sliced tomatoes or pineapple cheese slices) side by side on the rack. Stand for 2-3 minutes.
Baked potatoes	300 g(2 potatoes)	Mw-Grill Cycle	16-18	- Cut to	potatoes into halves. Put them in a circle on the rack with the cut side to the grill.
Chicken pieces	450-500 g(2 pcs)	Mw-Grill Cycle	12-15	10-12	Prepare chicken pieces with oil and spices. Put them in a circle with the bones to the middle. Put one chicken piece not into the centre of the rack. Stand for 2-3 minutes.
Lamb chops/beef steaks (medium)	400 g(4 pcs)	Grill only	12-15 9-12	Brush the lamb chops with oil and spices. Lay them in a circle on the rack. After grilling stand for 2-3 minutes.
Pork steaks 25	0 g(2 pcs)	Mw-Grill Cycle	Mw-Grill 7-8	Grill only 10-15	Brush the pork steaks with oil and spices. Lay them in a circle on the rack. After grilling stand for 2-3 minutes.
Baked apples	2 apples(300g)	Mw-Grill Cycle	9-12 - C	Core the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a fiat glass pyrex dish. Place the dish directly on the turntable.

TIPS AND TRICKS

MELTING BUTTER

Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 800 W, until butter is melted.

MELTING CHOCOLATE

Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450 W until chocolate is melted. Stir once or twice during melting. Use oven gloves while taking out!

MELTING CRYSTALLIZED HONEY

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W until honey is melted.

MELTING GELATINE

Lay dry gelatine sheets (10g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300W . Stir after melting.

COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 800 W, until glaze/icing is transparent. Stir twice during cooking.

COOKING JAM

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 800 W. Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

COOKING PUDDING

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 800 W. Stir several times well during cooking.

BROWNING ALMOND SLICES

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3½ to 4½ minutes using 600 W. Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

English - 30

troubleshooting

If you have any of the problems listed below try the solutions given.

This is normal.

• Condensation inside the oven.
• Air flow around the door and outer casing.
• Light reflection around the door and outer casing.
• Steam escaping from around the door or vents.

The oven does not start when you press the Start (◇) button.

• Is the door completely closed?

The food is not cooked at all.

• Have you set the timer correctly and/or pressed the Start (☐) button?
  • Is the door closed?
• Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered?

The food is either overcooked or undercooked.

• Was the appropriate cooking length set for the type of food?
• Was an appropriate power level chosen?

The light bulb is not working.

- The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care, to arrange for a qualified engineer to replace the bulb.

Sparking and cracking occur inside the oven (arcing).

• Have you used a dish with metal trimmings?
• Have you left a fork or other metal utensil inside the oven?
• Is aluminum foil too close to the inside walls?

Smoke and bad smell when initial operating.

- It's a temporary condition by new component heating. Smoke and smell will disappear completely after 10 minutes operation. To remove smell more quickly, please operate microwave oven with putting lemon formation or lemon juice in the cabinet.

The oven causes interference with radios or televisions.

• Slight interference may be observed on televisions or radios when the oven is operating. This is normal. To solve this problem, install the oven away from televisions, radios and aerials.
• If interference is detected by the oven's microprocessor, the display may be reset. To solve this problem, disconnect the power plug and reconnect it. Reset the time.

If the above guidelines do not enable you to solve the problem, then contact your local SAMSUNG customer service centre. Please have the following information read;

• The model and serial numbers, normally printed on the rear of the oven
• Your warranty details
• A clear description of the problem

Then contact your local dealer or SAMSUNG aftersales service.

technical specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model	GE87MC
Power source	230 V ~ 50 Hz
Power consumption
Microwave	1200 W
Grill	1100 W
Combined mode	1400 W
Output power	100 W / 800 W (IEC-705)
Operating frequency	2450 MHz
Magnetron	OM75P (31)
Cooling method	Cooling fan motor
Dimensions (W x H x D)
Outside	489 x 275 x 355 mm
Oven cavity	330 x 211 x 324 mm
Volume	23 liter
Weight
Net	13 kg approx

QUESTIONS OR COMMENTS

COUNTRY	CALL	OR VISIT US ONLINE AT
AUSTRIA 0800- SAMSUNG (0800 - 7267864)		www.samsung.com/s/support
BELGIUM 02-201-24-15		www.samsung.com/s/support (Dutch)www.samsung.com/s/support (French)
DENMARK 7070 1970		www.samsung.com/s/support
FINLAND 030-6227515		www.samsung.com/s/support
FRANCE 0146 63 00 00		www.samsung.com/s/support
0180 6 SAMSUNG bzw.0580-7267864*GERMANY (0.20 €/Anuf aus dem dt. Festretz, aus demMobility max. 0,50 €/Anuf)		www.samsung.com/s/support
ITALIA 800-SAMSUNG (800 7267864)		www.samsung.com/s/support
CYPRUS 8009 4000 only from landline, toll free		www.samsung.com/s/support
SAMSUNG(0900-7267864) only from land line1 from mobile and land line
LUXEMBURG 261 03 710		www.samsung.com/support
NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min)		www.samsung.com/s/support
NORWAY 515 56480		www.samsung.com/s/support
PORTUGAL 808 20 7267		www.samsung.com/s/support
SFAIN 0034902172676		www.samsung.com/s/support
SWEDEN 0771 726 7864 (SAMSUNG)		www.samsung.com/s/support
SWITZERLAND 0900 726 78 64 (0800-SAMSUNG)		www.samsung.com/s/support (German)www.samsung.com/s/support (French)
UK 0330 SAMSUNG (7267864)		www.samsung.com/s/support
EIRE 0818 717100		www.samsung.com/s/support

DE68-04114H-01

English - 32

GE87MC

Mikrowellengerät

100 % Recycled Paper

100 % Recycled Paper

- + ◇ +30s

02 pRéSENTATION RApIdE

Français - 11

DES QUESTIONS OU DES COMMENTAIRES?

PAYS	TÉLÉPHONE	OU SUR INTERNET
AUSTRIA 0800	- SAMSUNG (0800 - 7267864)	www.samsung.com/issupport
BELGIUM 02-29	-1-24-19	www.samsung.com/fesupport (Dutch)www.samsung.com/fesupport (French)
DENMARK 70 70	19 70	www.samsung.com/fesupport
FINLAND 030-6227515		www.samsung.com/fesupport
FRANCE 01 48	63 00 00	www.samsung.com/fesupport
0180 6 SAMSUNG bzw0180.6.7267864(+20)ENruf aus dem d.l. Festrelz, aus demMobitunk nax. 0 (GAnruf)		www.samsung.com/fesupport
ITALIA 900-SAMSUNG (800.7267864)		www.samsung.com/fesupport
CYPRUS 8009	4000 only from landline, toll free	www.samsung.com/gesupport
GREECE([phone]	80111 SAMSUNG (80111 725 7864) only from land line1 from mobile and land line
LUXEMBURG 26	1 03 710	www.samsung.com/support
NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0.10/Min)		www.samsung.com/support
NORWAY 815 6480		www.samsung.com/support
PORTUGAL 808	20 7267	www.samsung.com/support
SPAIN	034902172678	www.samsung.com/fesupport
SWEDEN 0771	726 7864 (SAMSUNG)	www.samsung.com/fesupport
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/fesupport (German)www.samsung.com/fesupport (French)
UK	0330 SAMSUNG (7267864)	www.samsung.com/fesupport
EIRE	0618 717100	www.samsung.com/fesupport

DE68-04114H-01

Français - 32

GE87MC

Forno a microonde
