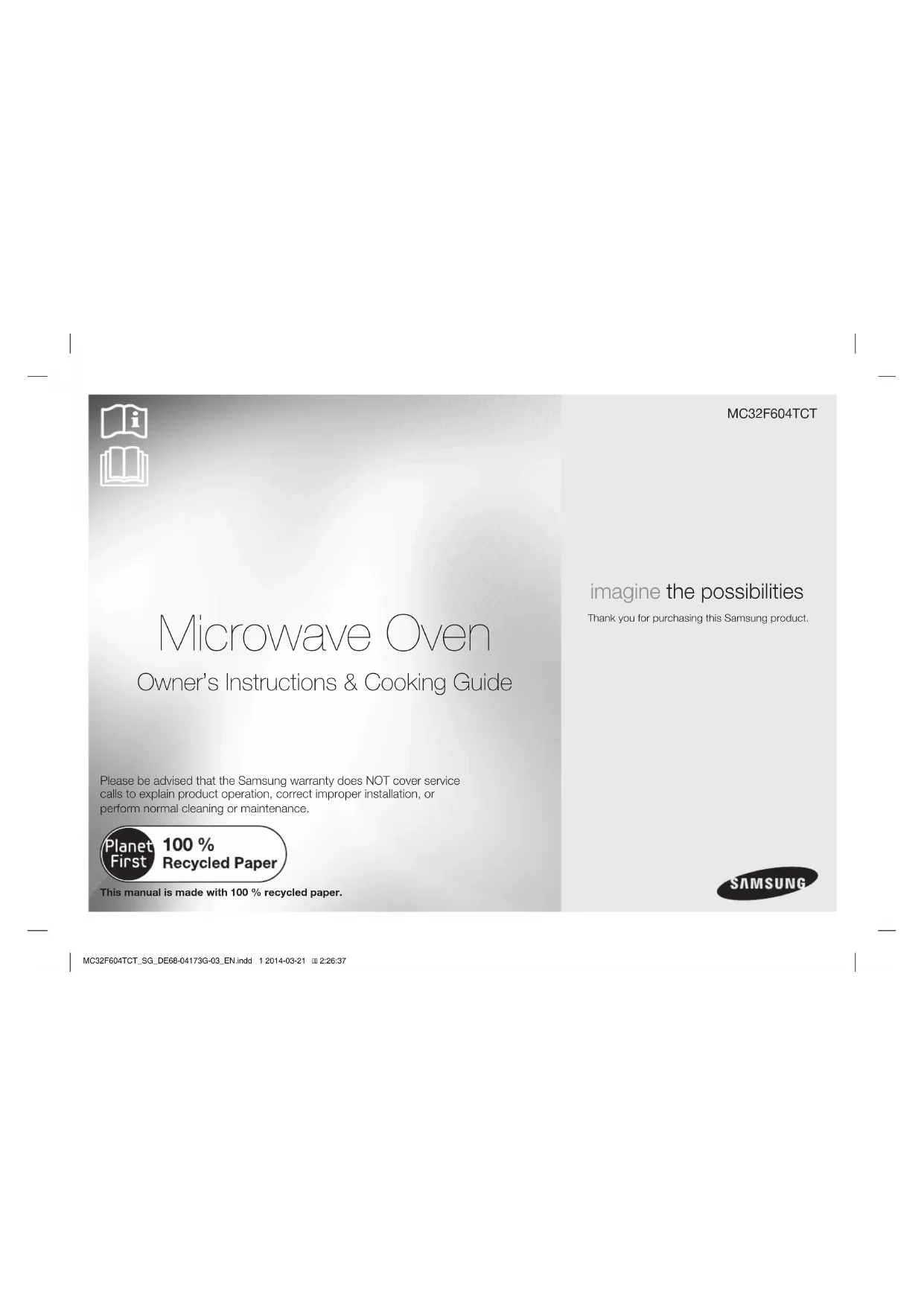

USER MANUAL MC32F604TCT SAMSUNG

LISEZ ATTENTIVEMENT CE MANUEL

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. This manual is made with 100 % recycled paper.MC32F604TCT_SG_DE68-04173G-03_EN.indd 1 2014-03-21 2:26:37English-2 safety information

USING THIS INSTRUCTION BOOKLET

You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain valuable information on cooking with your microwave oven:

• Suitable accessories and cookware

WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. Warning; Fire hazard Warning; Hot surface Warning; Electricity Warning; Explosive material Do NOT attempt. Do NOT touch. Do NOT disassemble. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service center for help. Note Important

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE

REFERENCE. Make sure that these safety precautions are obeyed at all times. Before using the oven, confirm that the following instructions are followed. WARNING (Microwave function only)

WARNING: If the door or door seals are

damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other

than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. This appliance is intended to be used in household only.

WARNING: Only allow children to use the

oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. MC32F604TCT_SG_DE68-04173G-03_EN.indd 2 2014-03-21 2:26:39English-3

WARNING: This appliance can be used by

children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Only use utensils that are suitable for use in microwave ovens. When heating food in plasitic or paper containers, keep an eye on the oven due to the possibility of ignitions. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. If smoke is emitted, switch o or unplug the appliance and keep the door closed in order to stifle any flames.

WARNING: Microwave heating of beverages

can result in delayed eruptive boiling, therefore care must be taken when handling the container.

WARNING: The contents of feeding bottles

and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. The oven should be cleaned regularly and any food deposites removed. Failure to maintain the oven in a clean conditioin could lead to deterioration of the surface that could adversely aect the life of the appliance and possibly result in a hazardous situation. The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc. MC32F604TCT_SG_DE68-04173G-03_EN.indd 3 2014-03-21 2:26:39English-4 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: Liquids or other foods must not

be heated in sealed containers since they are liable to explode; The appliance should not be cleaned with a water jet. This oven should be positioned proper direction and height permitting easy access to cavity and control area. Before using the your oven first time, oven should be operated with the water during 10 minute and then used. If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center. The microwave oven has to be positioned so that plug is accessible. The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet. WARNING (Oven function only) - Optional

WARNING: When the appliance is operated

in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become

hot during use. Young children should be kept away. A steam cleaner is not to be used. MC32F604TCT_SG_DE68-04173G-03_EN.indd 4 2014-03-21 2:26:39English-5

WARNING: Ensure that the appliance is

switched o before replacing the lamp to avoid the possibility of electric shock.

WARNING: The appliance and its accessible

parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. The temperature of accessible surfaces may be high when the appliance is operating. The door or the outer surface may get hot when the appliance is operating. Keep the appliance and its cord out of reach of children less than 8 years. Appliances are not intended to be operated by means of an external timer or separate remote-control system.

INSTALLING YOUR MICROWAVE OVEN

Place the oven on a flat level surface 85 cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and 20 cm (8 inches) of space above.

3. Install the roller ring and turntable. Check that

the turntable rotates freely. (Turntable type model only)

4. This microwave oven has to be positioned so

that plug is accessible. 10 cm behind 20 cm above 10 cm on the side 85 cm of the floor MC32F604TCT_SG_DE68-04173G-03_EN.indd 5 2014-03-21 2:26:40English-6 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For your personal safety, plug the cable into a proper AC earthed socket. Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

CLEANING YOUR MICROWAVE OVEN

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• TurntableandRollerrings (Turntable type model only) ALWAYS ensure that the door seals are clean and the door closes properly. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely aect the life of the appliance and possibly result in a hazardous situation.

Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.

2. Remove any splashes or stains on the

inside surfaces of oven with a soapy cloth. Rinse and dry.

3. To loosen hardened food particles and

remove smells, place a cup of diluted lemon juice in the oven and heat for ten minutes at maximum power.

4. Wash the dishwasher-safe plate whenever

necessary. MC32F604TCT_SG_DE68-04173G-03_EN.indd 6 2014-03-21 2:26:40English-7 DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

• Preventthedoorfromclosingcorrectly Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury. When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45° and clean it. (Swing heater model only)

STORING AND REPAIRING YOUR

MICROWAVE OVEN A few simple precautions should be taken when storing or having your microwave oven serviced. The oven must not be used if the door or door seals are damaged:

• Distortedorbentovencasing Only a qualified microwave service technician should perform repair. NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplugitfromthewallsocket

• Contactthenearestafter-salesservice centre If you wish to store your oven away temporarily, choose a dry, dustfree place. Reason : Dust and damp may adversely aect the working parts in the oven. This microwave oven is not intended for commercial use. MC32F604TCT_SG_DE68-04173G-03_EN.indd 7 2014-03-21 2:26:40English-8 The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care,to arrange for a qualified engineer to replace the bulb. WARNING Only qualified sta should be allowed to modify or repair the appliance. Do not heat liquids and other food in sealed containers for microwave function. For your safety, do not use high-pressure water cleaners or steam jet cleaners. Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground. This appliance must be properly grounded in accordance with local and national codes. Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. Do not pull or excessively bend or place heavy objecton the power cord. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the power plug with wet hands. Do not turn the appliance o by unplugging the power plug while an operation is in progress. Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre. Do not apply excessive pressure or impact to the appliance. Do not place the oven over a fragile object such as a sink or glass object. Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance. Ensure that the power voltage, frequency and current are the same as those of the product specifications. Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer. Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven. Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre. Do not pour or directly spray water onto the oven. Do not place objects on the oven, inside or on the door of the oven. Do not spray volatile material such as insecticide onto the surface of the oven. Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven. MC32F604TCT_SG_DE68-04173G-03_EN.indd 8 2014-03-21 2:26:44English-9 Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.

WARNING: Microwave heating of beverages can

result in delayed eruptive boiling,therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched o so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating. In the event of scalding, follow these FIRST AID instructions:

• Immerse the scalded area in cold water for at least 10 minutes.

• Cover with a clean, dry dressing.

• Do not apply any creams, oils or lotions. Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack. Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of the hot liquid. CAUTION Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc. Remove wire twist ties from paper or plastic bags. Reason: Electric arcing or sparking may occur and may damage the oven. Do not use your microwave oven to dry papers or clothes. Use shorter times for smaller amounts of food to prevent overheating and burning food. Do not immerse the power cable or power plug in water and keep the power cable away from heat. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc. Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself o automatically, and will remain o until it cools suciently. Always use oven mitts when removing a dish from the oven to avoid unintentional burns. Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling. Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam. Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally. Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven.) Take care when connecting other electrical appliances to sockets near the oven. MC32F604TCT_SG_DE68-04173G-03_EN.indd 9 2014-03-21 2:26:45English-10

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY. (MICROWAVE FUNCTION ONLY) Failure to observe the following safety precautions may result in harmful exposure to microwave energy. (a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes. (b) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth. (c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent) (2) door hinges (broken or loose) (3) door seals and sealing surfaces (d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer. Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include: (a) A dented, scratched, or broken door, handle, out-panel, or control panel. (b) A broken or missing tray, guide roller, coupler, or wire rack.

• Usethisapplianceonlyforitsintendedpurposeasdescribedinthis instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

• Becausethesefollowingoperatinginstructionscovervariousmodels, the characteristics of your microwave oven may dier slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www. samsung.com.

• Thismicrowaveovenissupposedforheatingfood.Itisintendedfor domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.

• Failuretomaintaintheoveninacleanconditioncouldleadto deterioration of the surface that could adversely aect the life of the appliance and possible result in a hazardous situation. MC32F604TCT_SG_DE68-04173G-03_EN.indd 10 2014-03-21 2:26:45English-11

1. Place the food in the oven.

Press the Microwave ( ) button.

2. Press the Microwave ( ) button until the

appropriate power level is displayed.

3. Select the cooking time by turning the Dial knob as

Result: Cooking starts.

• Whencookinghasnished,the oven will beep and flash “0” four times. The oven will then beep one time per minute. If you want to add an extra 30 seconds. Leave the food in the oven. Press Start/+30s ( ) button one or more times for each extra 30 seconds that you wish to add. MC32F604TCT_SG_DE68-04173G-03_EN.indd 11 2014-03-21 2:26:47English-12 If you want to defrost some food.

1. Place the frozen food in the oven.

Press the Power Defrost ( ) button.

2. Select the food category by pressing the Power

Defrost ( ) button, until the desired food category is selected.

3. Select the weight by turning the Dial knob as

Result: Defrosting starts.

• Whencookinghasnished,the oven will beep and flash “0” four times. The oven will then beep one time per minute. oven features OVEN

OVEN FEATURES ACCESSORIES Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

1. Roller ring, to be placed in the center of the oven.

Purpose: The roller ring supports the turntable.

2. Turntable, to be placed on the roller ring with the

center fitting on to the coupler. Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.

3. High rack, Low rack, to be placed on the turntable.

Purpose: The metal racks can be used to cook two dishes at the same time. A small dish may be placed on the turntable and a second dish on the rack. The metal racks can be used in grill, convection and combination cooking.

4. Crusty plate, to be placed on the turntable.

Purpose: The crusty plate is used to brown bottom of food by using the microwave or grill combination cooking modes and to keep pastry and pizza dough crispy. CONTROL PANEL

CORRECTLY The following simple procedure enables you to check that your oven is working correctly at all times. If you are in doubt, refer to the section entitled “What to do if you are in doubt or have a problem” on the page 39. The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum (100 % - 900 W) is used, the water takes longer to boil. Open the oven door by pulling the handle on the upper side of the door. Place a glass of water on the turntable. Close the door. Press the Start/+30s ( ) button and set the time to 4 or 5 minutes, by pressing the Start/+30s ( ) button the appropriate number of times. Result: The oven heats the water for 4 or 5 minutes. The water should then be boiling.

Your microwave oven has an inbuilt clock. When power is supplied, “:0”, “88:88” or “12:00” is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24- hour or 12-hour notation. You must set the clock:

• Whenyourstinstallyourmicrowaveoven

• Afterapowerfailure Do not forget to reset the clock when you switch to and from summer and winter time. Auto energy saving function If you do not select any function when appliance is in the middle of setting or operating with temporary stop condition, function is canceled and clock will be displayed after 25 minutes. Oven Lamp will be turned o after 5 minutes with door open condition. oven use

HOW A MICROWAVE OVEN WORKS

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour. You can use your microwave oven to:

1. The microwaves generated by the magnetron

reflected at cavity and are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.

2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5

cm). Cooking then continues as the heat is dissipated within the food.

3. Cooking times vary according to the container used and the properties of the

• Quantity and density

• Initial temperature (refrigerated or not) As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre

• The same temperature throughout the food MC32F604TCT_SG_DE68-04173G-03_EN.indd 14 2014-03-21 2:26:49English-15 03 OVEN USE

2. Turn the Dial knob to set the hour.

3. Press the Clock ( ) button.

4. Turn the Dial knob to set the minute.

5. When the right time is displayed, press the Clock (

) button to start the clock. Result: The time is displayed whenever you are not using the microwave oven. COOKING/REHEATING The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. Open the door. Place the food in the centre of the turntable. Close the door. Never switch the microwave oven on when it is empty.

1. Press the Microwave ( ) button.

Result: The following indications are displayed: (microwave mode)

2. Select the appropriate power level by pressing the

Microwave ( ) button again until the corresponding output power is displayed. Refer to the Power level table side page for further details.

3. Set the cooking time by turning the Dial knob.

Result: The cooking time is displayed.

4. Press the Start/+30s ( ) button.

Result: The oven light comes on and the turntable starts rotating. Cooking starts and when it has finished:

• Theovenbeepandash“0”fourtimes. The oven will then beep one time per minute. If you would like to know the current Power Level of the oven cavity, press Microwave ( ) button once. If you would like to change the power level during cooking, press the Microwave ( ) button twice or more times to select the desired power level. Quick Start: If you wish to heat a dish for a short period of time at maximum power (900 W), you can also simply press the Start/+30s ( ) button once for each 30 seconds of cooking time. The oven starts immediately.

POWER LEVELS AND TIME VARIATIONS

The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between six power levels. Power level Percentage Output HIGH 100 % 900 W

DEFROST 20 % 180 W LOW 11 % 100 W MC32F604TCT_SG_DE68-04173G-03_EN.indd 15 2014-03-21 2:26:50English-16 You can also increase/decrease the cooking time by turning the Dial knob.

• To increase cooking time turn the dial knob to right

The oven has an energy save mode. This facility saves electricity when the oven is not in use. Normal condition is standby mode and show clock when not using.

• Press the Energy Save ( ) button. Result : Display o.

• To remove energy save mode, open the door or press the Energy Save ( ) button and then display shows current time. The oven is ready for use.

USING THE POWER DEFROST FEATURE

The Power Defrost ( ) feature enables you to defrost meat, poultry, fish, bread, cake and fruit. The defrost time and power level are set automatically. You simply select the programme and the weight. Use only containers that are microwave-safe. Open the door. Place the frozen food on a ceramic in the centre of the turntable. Close the door.

1. Press the Power Defrost ( ) button.

2. Select the type of food that you are cooking by

pressing the Power Defrost ( ) button. Refer to the table on the following page for a description of the various preprogrammed settings.

3. Select the weight of food by turning the Dial knob.

The cooking times given in recipes and in this booklet correspond to the specific power level indicated. If you select a... Then the cooking time must be... Higher power level Lower power level Decreased Increased

STOPPING THE COOKING

You can stop cooking at any time so that you can:

• Turn the food over or stir it

• Leave it to stand To stop the cooking... Then... Temporarily Temporarily : Open the door or press the Stop button once. Result: Cooking stops. To resume cooking, close the door again and press the Start/+30s ( ) button. Completely Completely : Press the Stop button twice. Result: Cooking stops. If you wish to cancel the cooking settings, press the Stop/Eco ( ) button again.

ADJUSTING THE COOKING TIME

You can increase the cooking time by pressing the Start/+30s ( ) button once for each 30 seconds to be added.

• Check how cooking is progressing at any time simply by opening the door

• Increase the remaining cooking time To increase the cooking time of your food, press the Start/+30s ( ) button once for each 30 seconds that you wish to add.

• Theovenbeepsthroughdefrostingto remind you to turn the food over.

5. Press the Stop/Eco ( ) button to finish defrosting.

Result: When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute. You can also defrost food manually. To do so, select the microwave function with power level of 180 W. Refer to the section entitled “Defrosting” on page 34-35 for further details.

USING THE POWER DEFROST PROGRAMMES

The following table presents the various Power Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kind of package material before defrosting. Place meat, poultry and fish on a flat glass plate or on a ceramic plate, arrange bread and cake on kitchen paper. Code Food Serving size (g) Standing time (min.) Recommendations 1 Meat 200-1500 20-90 Shield the edges with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops, minced meat. 2 Poultry 200-1500 20-90 Shield the leg and wing tips with aluminium foil. Turn the poultry over, when the oven beeps. This programme is suitable for whole chicken as well as for chicken portions. Code Food Serving size (g) Standing time (min.) Recommendations 3 Fish 200-1500 20-80 Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the oven beeps. This programme is suitable for whole fishes as well as for fish fillets. 4 Bread/ Cake 125-1000 10-60 Put bread horizontally on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door.) This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and pu pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping. 5 Fruit 100-600 5-20 Spread fruits evenly into a flat glass dish. This programme is suitable for all kind of fruits. MC32F604TCT_SG_DE68-04173G-03_EN.indd 17 2014-03-21 2:26:51English-18 USING THE AUTO REHEAT/AUTO COOK FEATURES The 20 Auto Reheat/Auto Cook ( ) features include/provide pre- programmed cooking times. You do not need to set either the cooking times or the power level. You can adjust the size of the serving by turning the Dial knob. Use only recipients that are microwave-safe. Open the door. Place the food in the centre of the turntable. Close the door.

1. Press the Auto Reheat/Auto Cook ( ) button.

2. Select the type of food that you are cooking by

pressing the Auto Reheat/Auto Cook ( ) button. Refer to the table on the following page for a description of the various preprogrammed settings.

3. Select the type of food by turning the Dial knob.

4. Select the serving size of the food by pressing the

Auto Reheat/Auto Cook ( )

5. Press the Start/+30s

button. Result: The food is cooked according to the preprogrammed setting selected.

• Whencookinghasnished,theoven will beep and flash “0” four times. The oven will then beep one time per minute.

USING THE AUTO REHEAT PROGRAMMES

The following table presents 8 Auto Reheat Programmes, quantities, standing times and appropriate recommendations. Programmes no 1-3 are running with microwave energy only. Programmes no 4-8 are running with a combination of microwaves, grill and convection. Use oven gloves when taking out food. Code Food Serving size Standing time (min.) Recommendations 1-1 Ready- Meal (chilled) 300-350 g 400-450 g 2-3 Put on a ceramic plate and cover with microwave cling film. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta). 1-2 Soup (chilled) 200-250 g 300-350 g 400-450 g 2-3 Pour into a deep ceramic soup plate or bowl and cover with plastic lid during heating. Stir carefully before and after standing time. 1-3 Mini Ravioli (chilled) 200-250 g 300-350 g 3 Put chilled ready mini ravioli in a microwave proof plastic dish in the centre of turntable. Pierce film of ready product or cover plastic dish with microwave cling film. Stir carefully before and after standing time. This programme is suitable for ravioli, as well as for noodles in sauce. 1-4 Frozen Pizza 300-350 g 400-450 g - Put frozen pizza on the low rack. MC32F604TCT_SG_DE68-04173G-03_EN.indd 18 2014-03-21 2:26:52English-19 03 OVEN USE

USING THE AUTO COOK PROGRAMMES

The following table presents 12 Auto Cook Programmes, quantities, standing times and appropriate recommendations. Programmes no 1-5 are running with microwave energy only. Programmes no 6-8 are running with a combination of microwaves and grill. Programmes no 9 -10 are running with a combination of microwaves and convection. Programme 11-12 are running with convection mode. Use oven gloves when taking out food. Code Food Serving size Standing time (min.) Recommendations 2-1 White Rice 150-200 g 200-250 g 5-10 Weigh parboiled white rice and add double quantity of cold water. For example: when cooking 0.25 kg rice, add ½ liter cold water. Use glass pyrex bowl with lid. Put bowl in the centre of turntable. Cook covered. 2-2 Broccoli Florets/ Fresh Vegetables 200-250 g 300-350 g 400-450 g 500-550 g 1-2 Weigh the vegetables after washing, cleaning and cutting into similar size. Put them into a glass bowl with lid. Add 30 ml (2 tablespoons) water when cooking for 200-250 g, add 45 ml (3 tablespoons) for 300-450 g and add 60-75 ml (4-5 tablespoons) for 500-550 g. Stir after cooking. When cooking higher quantities stir once during cooking. Code Food Serving size Standing time (min.) Recommendations 1-5 Frozen Pizza Snacks 100-150 g 250-300 g - Put frozen pizza snacks on the low rack. 1-6 Frozen Lasagne 400-450 g 800-850 g 3-4 Put frozen lasagne into a suitable sized ovenproof dish. Put dish on low rack. 1-7 Frozen Chicken Wings 200-250 g 300-350 g 400-450 g 2 Put the frozen ready chicken wings or small drumsticks (pre-cooked and spiced) on the high metal rack with the skin-side down. Put them in a circle and leave the centre clear. Turnover, as soon as the oven beeps. 1-8 Frozen Bread Rolls 100-150 g (2 pcs) 200-250 g (4 pcs) 300-350 g (6 pcs) 3-5 We recommend to preheat the oven to 180 °C for 5 minutes using the convection function. Put 2 to 6 frozen bread rolls (-18 °C) in a circle on the low rack. This program is suitable for small frozen bakery products as bread rolls, ciabatta rolls and small baguettes. MC32F604TCT_SG_DE68-04173G-03_EN.indd 19 2014-03-21 2:26:52English-20 Code Food Serving size Standing time (min.) Recommendations 2-3 Sliced Carrots/ Fresh Vegetables 100-150 g 200-250 g 300-350 g 1-2 Weigh the vegetables after washing, cleaning and cutting into similar size. Put them into a glass bowl with lid. Add 30 ml (2 tablespoons) water when cooking for 200-250 g, add 45 ml (3 tablespoons) for 300-350 g. This programme is suitable for cauliflower 2-4 Peeled Potatoes 300-350 g 400-450 g 500-550 g 600-650 g 3 Wash and peel potatoes, cut into halves and put into a glass bowl with lid. Add 15-30 ml of water (1-2 tablespoons). Stir after cooking. When cooking higher quantities stir once during cooking. 2-5 Jacket Potatoes 200 g 400 g 600 g 5 Use oven potatoes with a size of 200 g each. Pierce skin and set on turntable. 2-6 Roast Fish 200-300 g 400-500 g 3 Brush skin of whole fish with oil and add herbs and spices. Put fish side by side, head to tail on the high rack. Turnover, as soon as the beep sounds. 2-7 Fish Fillet 200-300 g 400-500 g 2 Put fish filets, such as salmon evenly on the high rack. Turnover, as soon as the beep sounds. Code Food Serving size Standing time (min.) Recommendations 2-8 Chicken Pieces 300-400 g (1 pc) 500-600 g (2 pcs) 700-800 g (3 pcs) 2 Preheat with the grill- function for 3-4 minutes. Brush the chicken pieces with oil and spice them with pepper, salt and paprika. Put them in a circle on the high rack with the skin-side down. Turnover, as soon as the beep sounds 2-9 Roast Chicken 1000-1100 g 1100-1200 g 5 Brush chilled chicken with oil and spices. Put breast-side- down, in the middle of the low rack. Turnover, as soon as the oven beeps. Push start button to continue process. 2-10 Roast Beef/ Roast Lamb 1000-1100 g 1200-1300 g 10-15 First, start programme. It will be indicate on the display as “HEAT”, oven is preheating. And then put dough into a round black metal baking tin, using baking paper on the bottom(diameter 26 cm). After beep sounds insert tin on the low rack. 2-11 Sponge Cake 450-550 g 10 First, start programme. It will be indicate on the display as “HEAT”, oven is preheating. And then put dough into a round black metal baking tin, using baking paper on the bottom(diameter 26 cm). After beep sounds insert tin on the low rack. MC32F604TCT_SG_DE68-04173G-03_EN.indd 20 2014-03-21 2:26:53English-21 03 OVEN USE Code Food Serving size Standing time (min.) Recommendations 2-12 Muns 250-300 g - First, start programme. It will be indicate on the display as “HEAT”, oven is preheating. And then pour dough into 6-8 paper or silicone cups for muns and set on the low rack. After beep sounds insert rack.

USING THE SLIM FRY COOK FEATURE

The ten slim fry cook features include/provide pre-programmed cooking times. You do not need to set either the cooking times or the power level. You can adjust the slim fry cook category by press the slim fry button. First, place the food in the center of the turntable and close the door. ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot.

1. Select the type of food that you are cooking by

pressing the Slim Fry Cook ( ) button one or more times. (Refer to the table on the side.)

2. Select the weight of food by turning the Dial knob.

3. Press the Start/+30s ( ) button.

USING THE SLIM FRY PROGRAMMES

The following table presents the 10 Slim Fry auto programmes for frying. It contains its quantities, standing times and appropriate recommendations. You will use less oil compared to frying with oil fryer, while you will get tasty results. Programmes are running with a combination of convection, top heater and microwave energy. Code Food Serving size (g) Standing time (min.) Recommendations 1 Frozen Oven Chips 300-350 450-500 - Distribute frozen oven chips evenly on the crusty plate. Set plate on high rack. Turnover after beep sounds. Press start to continue. (The oven keeps operating if you do not turn over). 2 Frozen prawns (breaded) 200-250 300-350 - Distribute frozen (breaded) prawns evenly on the crusty plate. Set plate on low rack. 3 Frozen Chicken Nuggets 200-250 350-400 - Distribute frozen chicken nuggets evenly on the crusty plate. Set plate on low rack. Turnover after beep sounds. Press start to continue. (The oven keeps operating if you do not turn over). 4 Frozen Potato Croquettes 200-250 300-350 - Distribute frozen potato croquettes evenly on the crusty plate. Set plate on low rack. MC32F604TCT_SG_DE68-04173G-03_EN.indd 21 2014-03-21 2:26:53English-22 Code Food Serving size (g) Standing time (min.) Recommendations 5 Frozen Mini Spring Rolls 200-250 350-400

Distribute frozen mini spring rolls evenly on the crusty plate. Set plate on low rack. 6 Homemade French Fries 300-350 450-500 1-2 Recommandations Preheat the oven up to 200 °C using the fast preheat function. Use hard to medium type of potatoes and wash them. Peel potatoes and cut into sticks with a thickness of 10x10 mm. Soak in cold water (for 30 min.). Dry them with a towel, weigh them and brush with 5 g olive oil. Distribute homemade fries evenly on the crusty plate. Set plate on low rack. Turnover after beep sounds. Press start to continue. (The oven keeps operating if you do not turn over). 7 Potato Wedges 200-250 300-350 400-450 1-2 Wash normal sized potatoes and cut them into wedges. Brush with olive oil and spices. Put them with the cut side on the crusty plate. Set plate on high rack. Code Food Serving size (g) Standing time (min.) Recommendations 8 Drumsticks 200-250 300-350 400-450 1-2 Preheat with the grill- function for 3-4 minutes. Weigh drumsticks and brush with oil and spices. Place them evenly on high rack. Turnover after beep sounds, oven will stop process. Press start to continue. 9 Sliced Courgette 100-150 200-250

Preheat with the grill- function for 3-4 minutes. Rinse and slice courgettes. Brush with 5 g olive oil and add spices. Put slices evenly on the crusty plate and set plate on high rack. Turnover after beep sounds. Press start to continue. (The oven keeps operating if you do not turn over). 10 Apple Halves 300-350 400-450

Rinse and core apples (each 150 g). Cut them into halves horizontally. Put halves with the cut side down on the crusty plate, add filling e.g. raisins or grated almonds. Put plate on low rack. After cooking serve with vanilla ice cream. MC32F604TCT_SG_DE68-04173G-03_EN.indd 22 2014-03-21 2:26:54English-23 03 OVEN USE

USING THE AUTO FERMENTATION FEATURE

The five auto fermentation cook features include/provide pre-programmed cooking times. You do not need to set either the cooking times or the power level. You can adjust the auto fermentation category by press the auto fermentation button. First, place the food in the center of the turntable and close the door.

1. Select the type of food that you are cooking by

pressing the Auto fermentation ( ) button once or twice. (Refer to the table.)

2. Select the code of food by turning the Dial knob.

3. Press the Start/+30s ( ) button.

USING THE AUTO FERMENTATION PROGRAMMES

The following table presents how to use the auto programme for rising yeast dough or preparing yogurt. Code Food Serving size (g) Standing time Recommendations Dough Proof 1-1 Pizza Dough 300-500 - Put dough in suitable sized bowl and set on the low rack. Cover with cling film. 1-2 Cake Dough 500-800 - Put dough in suitable sized bowl and set on the low rack. Cover with cling film. 1-3 Bread Dough 600-900 - Put dough in suitable sized bowl and set on the low rack. Cover with cling film. Code Food Serving size (g) Standing time Recommendations Homemade Yogurt 2-1 Small Dishes 500 6 hours in fridge Distribute 150 g yogurt into 5 ceramic cups or small glass jars evenly (30 g each). Add 100 ml milk into each cup. Use long-life milk (room-temperature;

each with cling film and set in a circle on turntable. 2-2 Large Bowl 500 6 hours in fridge Mix 150 g natural yogurt with 500 ml long-life milk (room- temperature; 3.5 % fat). Pour evenly into large glass bowl. Cover with cling film and set on turntable. MC32F604TCT_SG_DE68-04173G-03_EN.indd 23 2014-03-21 2:26:54English-24

6. Set the cooking time by turning the Dial knob.

(30 minutes in the example).

7. Press the Grill ( ) button.

8. Set the cooking time by turning the Dial knob.

(15 minutes in the example).

9. Press Start/+30s ( ) button.

Result: Cooking starts:

• Whencookinghasnished,the oven will beep and flash “0” four times. The oven will then beep one time per minute.

FAST PREHEATING THE OVEN

For convection cooking, it is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven. When the oven reaches the requested temperature, it is maintained for approximately 10 minutes; it is then switched o automatically. Check that the heating element is in the correct position for type of cooking that you require.

1. Press the Fast Preheat ( ) button.

Result: The following indications are displayed: 200 °C (temperature)

button one or more times to set the temperature. (Temperature : 200, 180, 160, 140, 100, 40 °C) MULTISTAGE COOKING Your microwave oven can be programmed to cook food in up to three stages (the Convection, Microwave+Convection and Fast Preheat mode can not be used in Multistage cooking). Example: You wish to defrost food and cook it without having to reset the oven after each stage. You can thus defrost and cook a 1.8 kg chicken in three stages:

• Microwave cooking for 30 minutes

• Grill for 15 minutes Defrosting must be the first stage. Combination and Grill can only be used once during the remaining two stages. However microwave can be used twice (at two dierent power levels).

1. Press the Power Defrost ( ) button.

2. Select the type of food that you are cooking by pressing

3. Set the weight by turning the Dial knob the

appropriate number of times. (1800 g in the example)

4. Press the Microwave ( ) button.

5. Set the microwave power level by pressing the

Microwave ( ) button to select the appropriate Power Level (450 W in the example). MC32F604TCT_SG_DE68-04173G-03_EN.indd 24 2014-03-21 2:26:56English-25 03 OVEN USE

3. Press the Start/+30s ( ) button.

Result: The oven is preheated to the requested temperature.

• Thedisplaytimesare8seconds for the selected cooking mode and 2 seconds for the preset temperature in sequence. Ex) In fast preheat mode at 200 °C (displayed for 8 seconds) (displayed for 2 seconds)

• Uponarrivalatthepresettemperature,theovenbeeps 6 times and the temperature is kept for 10 minutes.

• After10minutes,thebeeps4timesandtheoperation stops. In case the inner temperature has reached the preset temperature, the beeps 6 times when temperature and the preset temperature is kept for 10 minutes. If you would like to know the current temperature of oven cavity, press Fast Preheat ( ) button.

COOKING BY CONVECTION

The convection mode enables you to cook food in the same way as in a traditional oven. The microwave mode is not used. You can set the temperature, as required, in a range varying from 40 °C to 200 °C in six preset levels. The maximum cooking time is 60 minutes. If you wish to Fast preheating the oven, see page 24.

• Always use oven gloves when touching the recipients in the oven, as they will be very hot.

• You can get better cooking and browning, if you use the low rack. Check that the heating element is in the horizontal position and that the turntable is in position. Open the door and place the recipient on the low rack and set on turntable.

1. Press the Convection ( ) button.

Result: The following indications are displayed: (convection mode) 200 °C (temperature)

2. Press the Convection ( ) button once or more

times to set the temperature. (Temperature : 200, 180, 160, 140, 100, 40 °C)

3. Set the cooking time by turning the Dial knob.

4. Press the Start/+30s ( ) button.

Result: Cooking starts:

• Thedisplaytimesare8seconds for the preset cooking time and 2 seconds for the preset temperature in sequence. Ex) 30 minutes of cooking time at 200 °C (displayed for 8 seconds) (displayed for 2 seconds)

• Whencookinghasnished,theovenwillbeepandash “0” four times. The oven will then beep one time per minute. If you would like to know the current temperature of oven cavity, press Fast Preheat ( ) button. Be careful, Grill heater may work intermittently while the convection mode is operating. MC32F604TCT_SG_DE68-04173G-03_EN.indd 25 2014-03-21 2:26:57English-26

CHOOSING THE ACCESSORIES

Traditional convection cooking does require cookware. You should, however, use only cookware that you would use in your normal oven. Microwave-safe containers are not usually suitable for convection cooking; don’t use plastic containers, dishes, paper cups, towels, etc. If you wish to select a combined cooking mode (microwave and grill or convection), use only recipients that are microwave-safe and oven-proof. For further details on suitable cookware and utensils, refer to the Cookware guide on page 28. GRILLING The grill enables you to heat and brown food quickly, without using microwaves.

• Always use oven gloves when touching the recipients in the oven, as they will be very hot.

• You can get better cooking and grilling results, if you use the high rack.

1. Open the door and place the food on the rack.

2. Press the Grill ( ) button.

Result: The following indications are displayed: (grill mode)

• You cannot set the temperature of the grill.

3. Set the grilling time by turning the Dial knob.

• The maximum grilling time is 60 minutes.

4. Press the Start/+30s ( ) button.

Result: Grilling starts.

• Whencookinghasnished,the oven will beep and flash “0” four times. The oven will then beep one time per minute.

COMBINING MICROWAVES AND THE GRILL

You can also combine microwave cooking with the grill, to cook quickly and brown at the same time. ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. Open the door. Place the food on the rack best suited to the type of food to be cooked. Place the rack on the turntable. Close the door.

1. Press the Microwave+Grill ( ) button.

Result: The following indications are displayed: (microwave & grill combi mode) 600 W (output power)

2. Select the appropriate power level by pressing

the Microwave+Grill ( ) button until the corresponding output power is displayed (300-600 W).

• You cannot set the temperature of the grill.

3. Set the cooking time by turning the Dial knob.

• The maximum cooking time is 60 minutes.

4. Press the Start/+30s ( ) button.

• Whencookinghasnished,the oven will beep and flash “0” four times. The oven will then beep one time per minute. MC32F604TCT_SG_DE68-04173G-03_EN.indd 26 2014-03-21 2:26:58English-27 03 OVEN USE

COMBINING MICROWAVES AND CONVECTION

Combination cooking uses both microwave energy and convection heating. No preheating is required as the microwave energy is immediately available. Many foods can be cooked in combination mode, particularly:

• Roast meats and poultry

• Egg and cheese dishes ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. You can get better cooking and browning, if you use the low rack. Open the door. Place the food on the turntable or on the low rack which should then be place on the turntable. Close the door.

1. Press the Microwave+Convection ( ) button.

Result: The following indications are displayed: (microwave & convection combi mode) 200 °C (temperature : switches to the following temperature mode in 2 seconds)

2. Select the temperature by pressing the

Microwave+Convection ( ) button. (Temperature : 200, 180, 160, 140, 100, 40 °C)

3. Set the cooking time by turning the Dial knob.

• The maximum cooking time is 60 minutes.

4. Set the appropriate power level by pressing the

Microwave+Convection ( ) button until the corresponding output power is displayed (600, 450, 300, 180, 100 W).

5. Press the Start/+30s ( ) button.

• Theovenisheatedtotherequired temperature and then microwave cooking continues until the cooking time is over.

• Thedisplaytimesare8secondsforthepresetcooking time and 2 seconds for the preset temperature in sequence. Ex) 30 minutes of cooking time at 200 °C (displayed for 8 seconds) (displayed for 2 seconds)

• Whencookinghasnished,theovenwillbeepandash “0” four times. The oven will then beep one time per minute. If you would like to know the current temperature of oven cavity, press Fast Preheat ( ) button.

SWITCHING THE BEEPER OFF

You can switch the beeper o whenever you want.

1. Press the Fast Preheat ( ) button and

Microwave+Grill ( ) buttons at the same time for 1 second. Result :

• Thefollowingindicationisdisplayed.

Preheat ( ) button and Microwave+Grill ( ) buttons again at the same time for 1 second. Result :

• Thefollowingindicationisdisplayed.

• Theovenoperateswiththebeeperonagain.

SAFETY-LOCKING YOUR MICROWAVE OVEN

Your microwave oven is fitted with a special Child Safety programme, which enables the oven to be “locked” so that children or anyone unfamiliar with it cannot operate it accidentally.

1. Press the Grill ( ) button and Microwave+Conv. (

) buttons at the same time for 3 seconds. Result :

2. To unlock the oven, press the Grill ( ) button and

Microwave+Conv. ( ) buttons again at the same time for 3 seconds. Result : The oven can be used normally. cookware guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven. Cookware Microwave-safe Comments Aluminum foil

Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. Crust plate

Do not preheat for more than 8 minutes. China and earthenware

Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim. Disposable polyester cardboard dishes

Some frozen foods are packaged in these dishes. Fast-food packaging

Can be used to warm food. Overheating may cause the polystyrene to melt.

• Paperbagsor newspaper

May cause arcing. MC32F604TCT_SG_DE68-04173G-03_EN.indd 28 2014-03-21 2:27:00English-29 04 COOKWARE GUIDE Cookware Microwave-safe Comments Glassware

Can be used, unless decorated with a metal trim.

Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.

May cause arcing or fire.

• Plates,cups, napkins and kitchen paper

For short cooking times and warming. Also to absorb excess moisture.

May cause arcing. Plastic

Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.

Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.

Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or grease-proof paper

Can be used to retain moisture and prevent spattering.

: Unsafe cooking guide MICROWAVES Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food. COOKING Cookware for microwave cooking: Cookware must allow microwave energy to pass through it for maximum eciency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers. Food suitable for microwave cooking: Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints). Covering during cooking To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in dierent ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film. Standing times After cooking is over food the standing time is important to allow the temperature to even out within the food. MC32F604TCT_SG_DE68-04173G-03_EN.indd 29 2014-03-21 2:27:00English-30 Cooking Guide for frozen vegetables Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time – see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time. Food Portion (g) Power (W) Time (min.) Standing time (min.) Instructions Spinach 150 600 5-6 2-3 Add 15 ml (1 tbsp.) cold water. Broccoli 300 600 8-9 2-3 Add 30 ml (2 tbsp.) cold water. Peas 300 600 7-8 2-3 Add 15 ml (1 tbsp.) cold water. Green Beans 300 600 7½-8½ 2-3 Add 30 ml (2 tbsp.) cold water. Mixed Vegetables (carrots/peas/ corn) 300 600 7-8 2-3 Add 15 ml (1 tbsp.) cold water. Mixed Vegetables (chinese style) 300 600 7½-8½ 2-3 Add 15 ml (1 tbsp.) cold water. Cooking Guide for fresh vegetables Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended – see table. Cook covered for the minimum time – see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking.Cover during a standing time of 3 minutes. Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook. All fresh vegetables should be cooked using full microwave power (900 W). Food Portion (g) Time (min.) Standing time (min.) Instructions Broccoli 250

4½-5 7-8 3 Prepare even sized florets. Arrange the stems to the centre. Brussels Sprouts 250 6-6½ 3 Add 60-75 ml (5-6 tbsp.) water. Carrots 250 4½-5 3 Cut carrots into even sized slices. Cauliflower 250

5-5½ 7½-8½ 3 Prepare even sized florets. Cut big florets into halves. Arrange stems to the centre. Courgettes 250 4-4½ 3 Cut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender. Egg Plants 250 3½-4 3 Cut egg plants into small slices and sprinkle with 1 tablespoon lemon juice. Leeks 250 4-4½ 3 Cut leeks into thick slices. Mushrooms 125

1½-2 2½-3 3 Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving. MC32F604TCT_SG_DE68-04173G-03_EN.indd 30 2014-03-21 2:27:01English-31 05 COOKING GUIDE Food Portion (g) Time (min.) Standing time (min.) Instructions Onions 250 5-5½ 3 Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Pepper 250 4½-5 3 Cut pepper into small slices. Potatoes 250

4-5 7-8 3 Weigh the peeled potatoes and cut them into similar sized halves or quarters. Turnip Cabbage 250 5½-6 3 Cut turnip cabbage into small cubes. Cooking Guide for rice and pasta Rice: Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is finished. Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards. Food Portion (g) Power (W) Time (min.) Standing time (min.) Instructions White Rice (parboiled) 250 900 15-16 5 Add 500 ml cold water. 375 17½-18½ Add 750 ml cold water. Brown Rice (parboiled) 250 900 20-21 5 Add 500 ml cold water. 375 22-23 Add 750 ml cold water. Food Portion (g) Power (W) Time (min.) Standing time (min.) Instructions Mixed Rice (rice + wild rice) 250 900 16-17 5 Add 500 ml cold water. Mixed Corn (rice + grain) 250 900 17-18 5 Add 400 ml cold water. Pasta 250 900 10-11 5 Add 1000 ml hot water. Indomie 1 Small pack (80 g) 1 Big pack (120 g) 900 7-7½ 9-9½ - Use a glass pyrex bowl. Put the noodle and add room temperature 350 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and mix indomie spices. REHEATING Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take. Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C. Arranging and covering Avoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful. Power levels and stirring Some foods can be reheated using 900 W power while others should be reheated using 600 W, 450 W or even 300 W. Check the tables for guidance. MC32F604TCT_SG_DE68-04173G-03_EN.indd 31 2014-03-21 2:27:01English-32 In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example). Stir well or turn food over during reheating for best results. When possible, stir again before serving. Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food. It is preferable to underestimate cooking time and add extra heating time, if necessary. Heating and standing times When reheating food for the first time, it is helpful to make a note of the time taken - for future reference. Always make sure that the reheated food is piping hot throughout. Allow food to stand for a short time after reheating - to let the temperature even out. The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart. Take particular care when heating liquids and baby food. See also the chapter with the safety precautions. REHEATING LIQUIDS Always allow a standing time of at least 20 seconds after the oven has been switched o to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

BABY FOOD: Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40 °C. BABY MILK: Pour milk into a sterilized glass bottle. Reheat uncovered. Never heat a baby’s bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving ! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37 °C. REMARK: Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating. Reheating Liquids and Food Use the power levels and times in this table as a guide lines for reheating. Food Portion Power (W) Time (min.) Standing time (min.) Instructions Drinks (coee, tea and water) 150 ml (1 cup) 900 1-1½ 1-2 Pour into cups and reheat uncovered: 1 cup in the centre, 2 cups opposite of each other, 3 cups in a circle. Keep in microwave oven during standing time and stir well. 300 ml (2 cups) 2-2½ 450 ml (3 cups) 3-3½ 600 ml (4 cups) 3½-4 Soup (chilled) 250 g 350 g 450 g 550 g 900 2½-3 3-3½ 3½-4 4½-5 2-3 Pour into a deep ceramic plate or deep ceramic bowl. Cover with plastic lid. Stir well after reheating. Stir again before serving. MC32F604TCT_SG_DE68-04173G-03_EN.indd 32 2014-03-21 2:27:01English-33 05 COOKING GUIDE Food Portion Power (W) Time (min.) Standing time (min.) Instructions Stew (chilled) 350 g 600 4½-5½ 2-3 Put stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Pasta with sauce (chilled) 350 g 600 3½-4½ 3 Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving. Filled pasta with sauce (chilled) 350 g 600 4-5 3 Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Plated meal (chilled) 350 g 450 g 550 g 600 4½-5½ 5½-6½ 6½-7½ 3 Plate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling- film. Food Portion Power (W) Time (min.) Standing time (min.) Instructions Cheese fondue ready- to-serve (chilled) 400 g 600 6-7 1-2 Put the ready- to-serve cheese fondue in a suitable sized glass pyrex bowl with lid. Stir occasionally during and after reheating. Stir well before serving. Reheating Baby Food and Milk Use the power levels and times in this table as guide lines for reheating. Food Portion Power (W) Time Standing time (min.) Instructions Baby food (vegetables + meat) 190 g 600 30 sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully. Baby porridge (grain + milk + fruit) 190 g 600 20 sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully. MC32F604TCT_SG_DE68-04173G-03_EN.indd 33 2014-03-21 2:27:02English-34 Food Portion Power (W) Time Standing time (min.) Instructions Baby milk 100 ml 300 30-40 sec. 2-3 Stir or shake well and pour into a sterilized glass bottle. Place into the centre of turntable. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully. 200 ml 1 min. to 1 min. 10 sec. DEFROSTING Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up. Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away. Put the frozen food on a dish without cover. Turn over half way, drain o any liquid and remove any giblets as soon as possible.Check the food occasionally to make sure that it does not feel warm. If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting. Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below. Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food. For defrosting of frozen food with a temperature of about -18 to -20 °C, use the following table as a guide. All frozen food should be defrosted using defrosting power level (180 W). Food Portion Time (min.) Standing time (min.) Instructions Meat Minced Meat 250 g 500 g 6-7 8-13 15-30 Place the meat on turntable. Shield thinner edges with aluminium foil. Turn over after half of defrosting time! Pork Steaks 250 g 7-8 Poultry Chicken Pieces 500 g (2 pcs) 14-15 15-60 First, put chicken pieces first skin-side down, whole chicken first breast-side- down on a flat ceramic plate. Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time! Whole Chicken 1200 g 32-34 Fish Fish Fillets 200 g 6-7 10-25 Put frozen fish in the middle of a flat ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends of fillets and tail of whole fish with aluminium foil. Turn over after half of defrosting time! Whole Fish 400 g 11-13 Fruits Berries 300 g 6-7 5-10 Spread fruit on a flat, round glass dish (with a large diameter). MC32F604TCT_SG_DE68-04173G-03_EN.indd 34 2014-03-21 2:27:02English-35 05 COOKING GUIDE Food Portion Time (min.) Standing time (min.) Instructions Bread Bread Rolls (each Ca. 50 g) 2 pcs 4 pcs 1-1½ 2½-3 5-20 Arrange rolls in a circle or bread horizontally on kitchen paper in the middle of turntable. Turn over after half of defrosting time! Toast/ Sandwich 250 g 4-4½ German Bread (wheat + rye flour) 500 g 7-9 GRILL The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable’s rotation makes the food brown more evenly. Preheating the grill for 3-5 minutes will make the food brown more quickly. Cookware for grilling: Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt. Food suitable for grilling: Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings. Important remark: Whenever the grill only mode is used, please remember that food must be placed on the high rack, unless another instruction is recommended. MICROWAVE + GRILL This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly.Three combination modes are available with this model: 600 W + Grill, 450 W + Grill and 300 W + Grill. Cookware for cooking with microwave + grill Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt. Food suitable for microwave + grill cooking: Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details. Important remark: Whenever the combination mode (microwave + grill) is used, the food should be placed on the high rack, unless another instruction is recommended. Please refer to the instructions in the following chart. The food must be turned over, if it is to be browned on both sides. Grill Guide for Fresh Food Preheat the grill with the grill-function for 2-3 minutes. Use the power levels and times in this table as guide lines for grilling. Use oven gloves when taking out. Fresh food Portion Power 1st side time (min.) 2nd side time (min.) Instructions Toast Slices 4 pcs (each 25 g) Grill only 3-4 2-3 Put toast slices side by side on the high rack. Grilled Tomatoes 400 g (2 pcs) 300 W + Grill 6-8 - Cut tomatoes into halves. Put some cheese on top. Arrange in a circle in a flat glass pyrex dish. Place it on the high rack. Stand for 2-3 minutes. MC32F604TCT_SG_DE68-04173G-03_EN.indd 35 2014-03-21 2:27:02English-36 Fresh food Portion Power 1st side time (min.) 2nd side time (min.) Instructions Tomato- Cheese Toast 4 pcs (300 g) 300 W + Grill 5-7 - Toast the bread slices first. Put the toast with topping on the high rack. Stand for 2-3 minutes. Toast Hawaii (Ham, Pineapple, Cheese Slices) 4 pcs (500 g) 300 W + Grill 6-8 - Toast the bread slices first. Put the toast with topping on the high rack. Stand for 2-3 minutes. Baked Potatoes 500 g 600 W + Grill 10-12 - Cut potatoes into halves. Put them in a circle on the high rack with the cut side to the grill. Gratin Potatoes/ Vegetables (chilled) 450 g 450 W + Grill 10-12 - Put the fresh gratin into a small glass pyrex dish. Put the dish on the high rack. After cooking stand for 2-3 minutes. Baked Apples 2 apples (ca. 400 g) 300 W + Grill 7-8 - Core the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish. Place the dish directly on the low rack. Chicken Pieces 500 g (2 pcs) 300 W + Grill 9-11 8-10 Brush chicken pieces with oil and spices. Put them in a circle on the high rack. After grilling stand for 2-3 minutes. Fresh food Portion Power 1st side time (min.) 2nd side time (min.) Instructions Roast Chicken 1200 g 450 W + Grill 21-23 20-22 Brush the chicken oil and spices. Put breast-side-down, in the middle of the low rack. After grilling stand for 5 minutes. Roast Fish 400-500 g 300 W + Grill 6-8 6-7 Brush skin of whole fish with oil and add herbs and spices. Put two fishes side by side (head to tail) on the high rack. After grilling stand for 2-3 minutes. Plantain 1 ea (200 g)

Grill 7-7½ 4-5 Peel and slice plantain 1 cm thick and put on the crusty plate with grill rack. Brush all sides with oil. If plantain becomes soft, reduce time 1~2 minute soft type. Stand for 1-2 minutes. Yam 200 g 450W+Grill 11-11½ - Peel and slice yam

put on the crusty plate and brush all sides with oil. Put it on the high rack and cook. Stand for 1-2 minutes. MC32F604TCT_SG_DE68-04173G-03_EN.indd 36 2014-03-21 2:27:02English-37 05 COOKING GUIDE CONVECTION Cooking with convection is the traditional and well known method of cooking food in a traditional oven with hot air. The heating element and the fan position is at the back-wall, so that the hot air is circulating. This mode is supported by the top heating element. Cookware for convection cooking: All conventional ovenproof cookware, baking tins and sheets – anything you would normally use in a traditional convection oven – can be used. Food suitable for convection cooking: All biscuits, individual scones, rolls and cakes should be made by this mode as well as rich fruit cakes, choux pastry and soués. MICROWAVES +CONVECTION This mode combines the microwave energy with the hot air and is therefore reducing the cooking time while giving the food a brown and crispy surface. Cooking with convection is the traditional and well known method of cooking food in an oven with hot air circulated by a fan on the back-wall. Cookware for cooking with microwaves + convection: Should be able to let the microwaves pass through. Should be ovenproof (like glass, pottery or china without metal trims); similar to the cookware described under MW + Grill. Food suitable for Microwave+Convection cooking: All kinds of meats and poultry as well as casseroles and gratin dishes, sponge cakes and light fruit cakes, pies and crumbles, roast vegetables, scones and breads. Convection Guide for fresh and frozen food Preheat the convection with the auto pre-heat function to the desired temperature.Use the power levels and times in this table as guide lines for convection cooking. Use oven gloves when taking out. Fresh food Portion Power 1st side time (min.) 2nd side time (min.) Instructions PIZZA Frozen Pizza (ready baked) 300-400 g 1st : 300 W + 200

7-9 5-6 Place the pizza on the low rack. After baking stand for 2-3 minutes. PASTA Frozen Lasagne 400 g 1st : 450 W + 200

16-18 3-4 Put into a suitable sized glass pyrex dish or leave in the original packaging (take care that this is suitable for microwaves and oven heat). Put frozen pasta gratin on the low rack. After cooking stand for 2-3 minutes. MEAT Roast Beef/ Roast Lamb (medium) 1200-1300 g 600 W + 180 °C 20-23 10-13 Brush beef/ lamb with oil and spice it with pepper, salt and paprika. Put it on the low rack, first with the fat side down. After cooking wrap in aluminium foil and stand for 10-15 minutes. Roast Chicken 1000-1200 g 1st : 450 W + 200

2nd : 450 W + Grill 20-22 21-23 Brush chicken with oil and spices. Put chicken first breast side down, second side breast side up on the low rack. Stand for 5 minutes. MC32F604TCT_SG_DE68-04173G-03_EN.indd 37 2014-03-21 2:27:02English-38 Fresh food Portion Power 1st side time (min.) 2nd side time (min.) Instructions BREAD Fresh Bread Rolls 6 pcs (350 g) 100 W + 180 °C 8-10 - Put bread rolls in a circle on the low rack. Stand 2-3 minutes. Garlic Bread (chilled, prebaked) 200 g (1 pc) 180 W + 200 °C 8-10 - Put the chilled baguette on baking paper on the low rack. After baking stand for 2-3 minutes. CAKE Marble Cake (fresh dough) 500 g Only 180

38-43 - Put the fresh dough in a small rectangular black metal baking dish (length 25 cm). Put the cake on the low rack. After baking stand for 5-10 minutes. Small Cakes (fresh dough) 12 x 28 g Only 160

28-33 - Fill the fresh dough evenly in paper cups and set on crusty plate on the low rack. After baking stand for 5 minutes. Cookies (fresh dough) 200-250 g Only 200

15-20 - Put the chilled croissants on baking paper on the low rack. Frozen Cake 1000 g 180 W + 180 °C 18-20 - Put the frozen cake directly on the low rack. After defrost and warming stand for 15-20 minutes. SPECIAL HINTS MELTING BUTTER Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 900 W, until butter is melted. MELTING CHOCOLATE Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450 W until chocolate is melted. Stir once or twice during melting. Use oven gloves while taking out!

MELTING CRYSTALLIZED HONEY

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W, until honey is melted. MELTING GELATINE Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting. COOKING GLAZE/ICING (FOR CAKE AND GATEAUX) Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 900 W, until glaze/icing is transparent. Stir twice during cooking. COOKING JAM Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 900 W. Stir several times during cooking. Empty directly into small jam glasses with twist-o lids. Stand on lid for 5 minutes. COOKING PUDDING Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 900 W. Stir several times well during cooking.

BROWNING ALMOND SLICES

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3½ to 4½ minutes using 600 W. Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out! MC32F604TCT_SG_DE68-04173G-03_EN.indd 38 2014-03-21 2:27:02English-39 06 TROUBLESHOOTING troubleshooting and error code WHAT TO DO IF YOU ARE IN DOUBT OR HAVE A PROBLEM Becoming familiar with a new appliance always takes a little time. If you have any of the problems listed below, try the solutions given. They may save you the time and inconvenience of an unnecessary service call. The following are normal occurrences.

• Condensation inside the oven

• Airowaroundthedoorandoutercasing

• Lightreectionaroundthedoorandoutercasing

• Steamescapingfromaroundthedoororvents The food is not cooked at all

• Have you set the timer correctly and pressed the Start/+30s ( ) button?

• Haveyouoverloadedtheelectriccircuitandcausedafusetoblowora breaker to be triggered. The food is either overcooked or undercooked

• Was the appropriate cooking length set for the type of food?

• Wasanappropriatepowerlevelchosen? The oven causes interference with radios or televisions

• Slight interference may be observed on televisions or radios when the oven is operating. This is normal.

• Solution: install the oven away from televisions, radios and aerials.

• If interference is detected by the oven’s microprocessor, the display may be reset.

• Solution: Disconnect the power plug and reconnect it. Reset the time. The light bulb is not working.

• The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care, to arrange for a qualified engineer to replace the bulb. Sparking and cracking occur inside the oven (arcing)

• Have you used a dish with metal trimmings?

• Haveyouleftaforkorothermetalutensilinsidetheoven?

• Isaluminumfoiltooclosetotheinsidewalls? Smoke and bad smell when initial operating.

• It’s a temporary condition by new component heating. Smoke and smell will disappear completely after 10 minutes operation. To remove smell more quickly, please operate microwave oven with putting lemon formation or lemon juice in the cabinet. If the above guidelines do not enable you to solve the problem, then contact your local SAMSUNG customer service centre. Please have the following information read;
