USER MANUAL HSA2280EGB HAIER

- The temperature of accessible surfaces may be high when the appliance is operating.

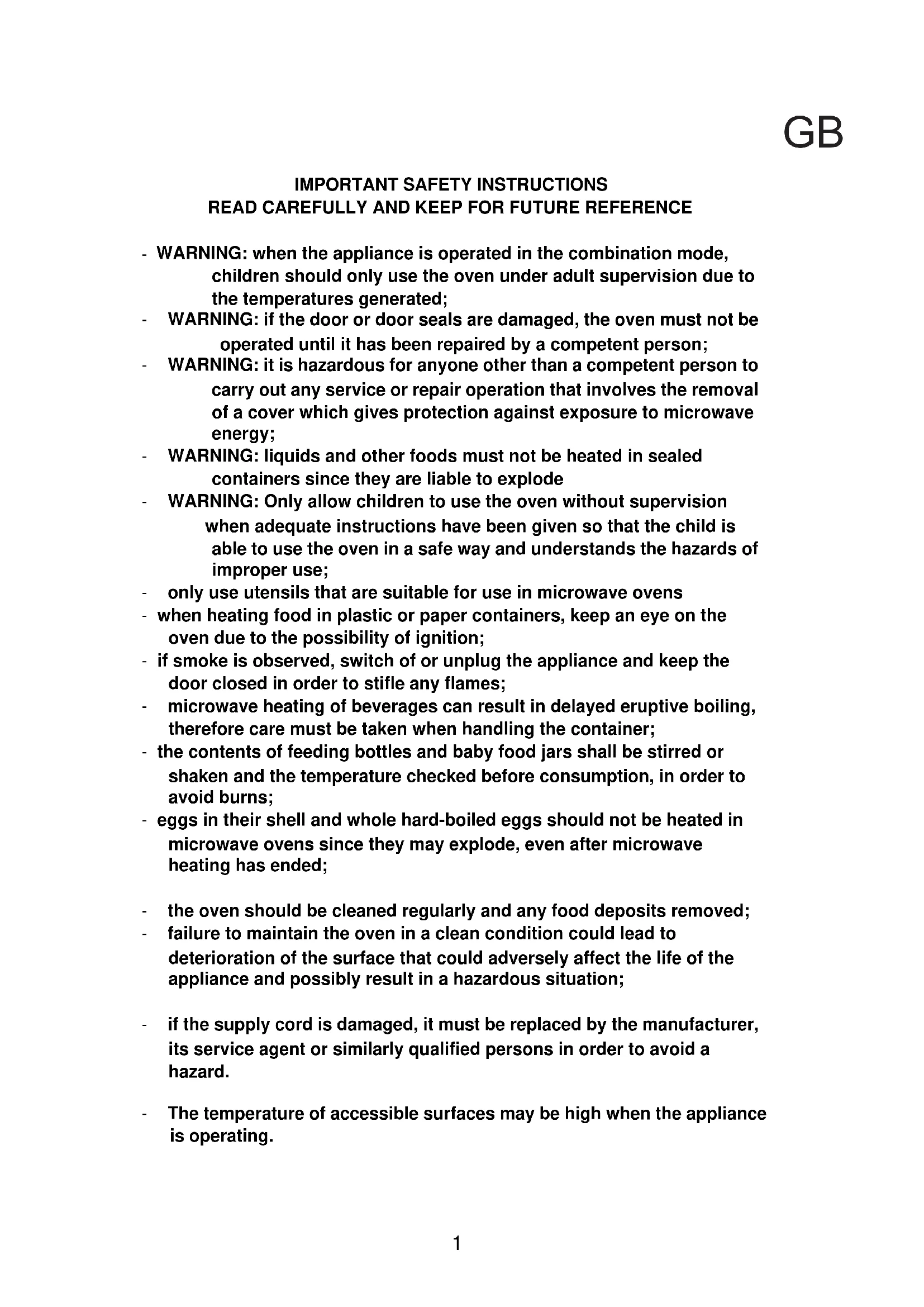

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE - WARNING: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; - WARNING: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; - WARNING: it is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy; - WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode - WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use; - only use utensils that are suitable for use in microwave ovens - when heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition; - if smoke is observed, switch of or unplug the appliance and keep the door closed in order to stifle any flames; - microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; - the contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns; - eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; - the oven should be cleaned regularly and any food deposits removed; - failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation; - if the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. If the oven will not perform at all, the display does not

appear or the display disappears: a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

2. If the microwave power does not function:

a) Check to see whether the timer is set. b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven. RADIO INTERFERENCE Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures. a. Clean the door and sealing surface of the oven. b. Place the radio, TV, etc. as far away from your microwave oven as possible. c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT. Note: The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only.

1. The plug socket should be within easy reach

2. This oven requires 1.3 KVA for its input.

consultation with service engineer is suggested when installing the oven. CAUTION:This oven is protected internally by ac 250V,10 Amp Fuse. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: Green-and-yellow : Earth Blue : Neutral Brown : Live As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green of green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. INSTALLATION

1. Make sure all the packing materials are removed from

the inside of the door.

2. Inspect the oven after unpacking for any visual

damage such as: Misaligned Door Damaged Door Dents or Holes in Door Window and Screen Dents in Cavity If any of the above are visible, DO NOT use the oven.

3. This Microwave Oven weighs 1 . kg and must be 2 2

placed on a horizontal surface strong enough to support this weight.

4. The oven must be placed away from high temperature

5. DO NOT place anything on top of the oven.

6. DO NOT remove the turn -table drive shaft.

7. As with any appliance, close supervision is necessary

when used by children.

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.

2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any

other nonfood items, or for sterilizing purposes.

3. Do not operate the oven when empty. This could damage the oven.

4. Do not use the oven cavity for any type of storage,such a papers, cookbooks, etc.

5.Do not cook any food surrounded by a membrane,such as egg yolks,potatoes,chicken livers,etc without first being pierced several times with a fork.

IMPORTANT SAFETY INSTRUCTIONS

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function) -WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; -WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy; -WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode. -WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use; - The oven must have sufficient air flow.Keep 10 cm space at back;15 cm at both sides and 30cms from top of the oven.Don't remove oven's feet, do not block air events of the oven. - Only use utensils that are suitable for use in microwave ovens. - When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition; - If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames; - Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; - The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns; - Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; - When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth. - The oven should be cleaned regularly and any food deposits removed; - Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation; - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

46. Do not insert any object into the openings on the outer

7. Do not at any time remove parts from the oven such as

the feet, coupling, screws, etc.

8. Do not cook food directly on the glass tray. Place food

in/on proper cooking utensil before placing in the oven.

9. IMPORTANT-COOKWARE NOT TO USE IN YOUR

MICROWAVE OVEN Do not use metal pans or dishes with metal handles. Do not use anything with metal trim. Do not use paper covered wire twist-ties on plastic bags. Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed. Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used. Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven. Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.

10. Microwave utensils should be used only in

accordance with manufacturer's instructions.

11. Do not attempt to deep-fry foods in this oven.

12. Please remember that a microwave oven only

heats the liquid in a container rather than the container itself.Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

13. Always test the temperature of cooked food

yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/ liquid to distribute heat evenly.

14. Food containing a mixture of fat and water,

e.g.stock,should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

15. When preparing/cooking food/liquid and remember

that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

16. Cooking utensil may become hot because of heat

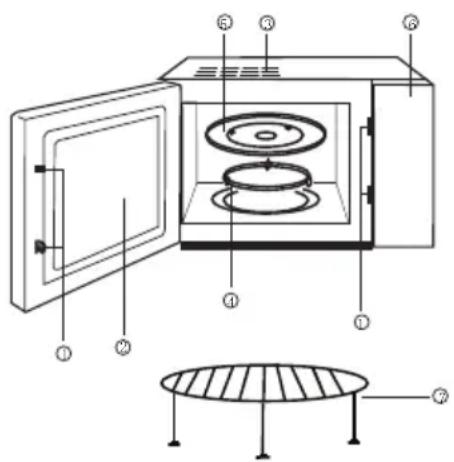

transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil. 17.To reduce the risk of fire in the oven cavity: (a)Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. (b)Remove wire twist-ties from bags before placing bag in oven. (c)If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel. FEATURE DIAGRAM (1) Door Safety Lock System (2) Oven Window (3) Oven Air Vent (4) Roller Ring (5) Glass Tray (6) Control Panel (7) Grill rack

([DPSOH$XWRFRRNLQJ400JILVK

Weight Touching Times

5. Memory cooking function:

This function can memorize some useful cooking programes to avoid reseting time and power operation. a) If no memory has been set press "memory" "1" will be displayed, input cooking power and time, press "memory" again, the set program will be menorized. If you press "Start" instead of "menory" button, the oven will start work, and the program also will be menorized. b) It there is any memory has been set already, when you press "menory" button, "1" will be displayed, the oven will operate according to the memorized program after you press "Start" button. The progrume will not be kept when the electrity is off.

This function has two patterns, you may press "Grill" to select such functions: (the longest cooking time is 60 minutes). Pattern 1: 85% grill power, display G-1 Pattern 2: 50% grill power, display G-2 Example: Cooking food with G-1 for 20 minutes A) Press "Grill" until the LED displayed "G-1". B) Set cooking time "20:00" C) Press "Start" When grilling, the food isn't heated by microwave, heat is radiated from the metal heater at the top of the oven. When grill is working, the cooking time has 2 stages, after the 1st half of the cooking, the program will automatically pause and sound 2 beeps, indicating you to open the oven and turn food over, close the door after turn the food over, press "Start" button, the cooking will continue for the 2nd half. If you do not want to turn the food over, the oven will re-start after 1 min pause.

&,QSXWFRRNLQJWLPHPLQXWHVE\URWDWLQJWKHNQRE7LPH6HWWLQJ

a) In the course of operation, pressing "Pause/Cancel" button will stop operation. b) If any program was set before pressing start, pressing this button will cancel all the set program.

7. Combination Cooking

This appliance offers you a choice of two methods of combination cooking. Option 1 : 55% Micro + 45% Grill), display "C-1" Option 2 : 30% Micro + 70% Grill), display "C-2" Example : Cooking food using option 2 for 30 minutes. a) Press "Combi" button to select "C-2" b) Set cooking time for 30 minutes c) Press "Start "

DIIHFWWKHERWWRPVXUIDFHRUUROOHUULQJZKHHOV :KHQUHPRYLQJWKHUROOHUULQJIURPFDYLW\IORRUIRUFOHDQLQJEHVXUHWRUHSODFHLWLQWKHSURSHUSRVLWLRQ
