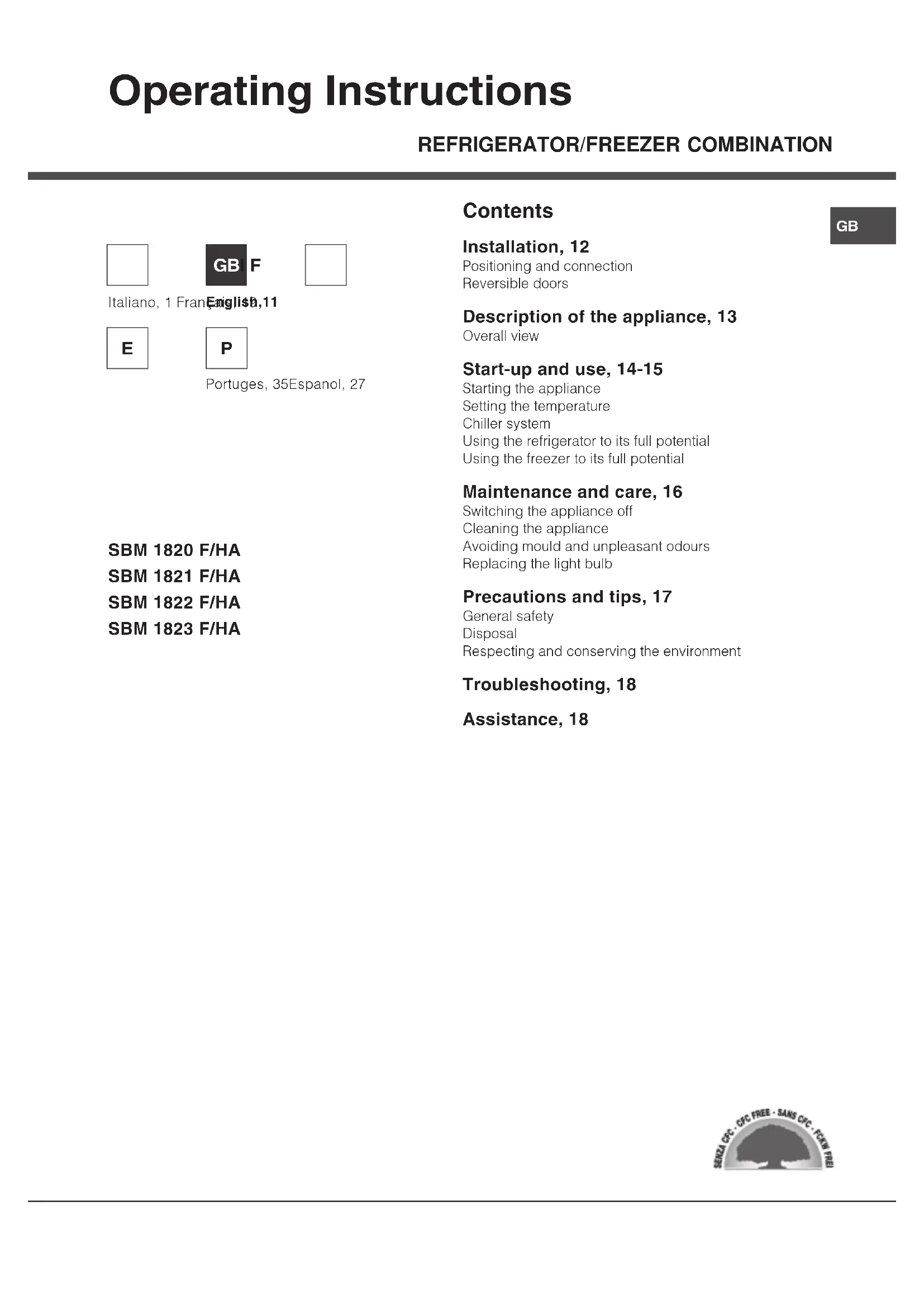

Contents Installation, 12 Positioning and connection Reversible doors Description of the appliance, 13 Overall view Start-up and use, 14-15 Starting the appliance Setting the temperature Chiller system Using the refrigerator to its full potential Using the freezer to its full potential Maintenance and care, 16 Switching the appliance off Cleaning the appliance Avoiding mould and unpleasant odours Replacing the light bulb Precautions and tips, 17 General safety Disposal Respecting and conserving the environment Troubleshooting, 18 Assistance, 18 Operating Instructions

Installation ! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning and connection Positioning

1. Place the appliance in a well-ventilated humidity-free

2. Do not obstruct the rear fan grills. The compressor

and condenser give off heat and require good ventilation to operate correctly and save energy.

3. Leave a space of at least 10 cm between the top part

of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.

4. Ensure the appliance is away from any sources of

heat (direct sunlight, electric stove, etc.).

5. In order to maintain the correct distance between the

appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided. Levelling

1. Install the appliance on a level and rigid floor.

2. If the floor is not perfectly horizontal, adjust the

refrigerator by tightening or loosening the front feet. Electrical connections After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following: The appliance is earthed and the plug is compliant with the law. The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W). The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V). The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

Description of the appliance Overall view The instructions contained in this manual are applicable to different model refrigerators. The diagrams may notdirectly represent the appliance purchased. For more complex features, consult the following pages. Varies by number and/or position.

Starting the appliance ! Before starting the appliance, follow the installation instructions (see Installation). ! Before connecting the appliance, clean thecompartments and accessories well with lukewarmwater and bicarbonate.! The appliance comes with a motor protection controlsystem which makes the compressor startapproximately 8 minutes after being switched on. Thecompressor also starts each time the power supply iscut off whether voluntarily or involuntarily (blackout).1. Insert the plug into the socket and ensure that theinternal light illuminates ( the FREEZER OPERATIONknob must not be on the OFF position

2. Turn the FREEZER OPERATION knob andREFRIGERATOR OPERATION knob to an average value.After a few hours you will be able to put food in therefrigerator. Setting the temperature The temperature insidethe refrigeratorcompartmentautomatically adjustsitself according to theposition of the thermostatknob.min= warmestmax = coldestWe recommend, however,a medium position. Chiller system No FrostIt is recognisable byaeration cells located onthe back walls of thecompartments.The No Frost systemcirculates cold aircontinuously to collecthumidity and prevent iceand frost formation. Thesystem maintains anoptimal humidity level inthe compartment, preserving the original quality of thefood, preventing the food from sticking together andmaking defrosting a thing of the past. Do not block theaeration cells by placing food or containers in directcontact with the refrigerating back panel. Close bottlesand wrap food tightly.SHELVES: with or without grill.Due to the special guides theshelves are removable andthe height is adjustable (seediagram), allowing easystorage of large containersand food. Height can beadjusted without completeremoval of the shelf. Using the refrigerator to its full potential Place only cold or lukewarm foods in the compartment,not hot foods (see Precautions and tips). Remember that cooked foods do not last longer thanraw foods. Do not store liquids in open containers. They willincrease humidity in the refrigerator and causecondensation to form.GB

Using the freezer to its full potential The temperature inside the freezer compartment automatically adjusts itself according to the position of the thermostat knob. 1 = warmest max = coldest We recommend, however, a medium position. is the optimal temperature for energy saving levels. OFF switches the appliance off, including the refrigerator. Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours). Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored in the top FREEZER and STORAGE compartment where the temperature drops below -18°C and guarantees rapid freezing. ! to avoid blocking the air circulation inside the freezer compartment, it is advisable not to obstruct the ventilation holes with food or containers. Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break. The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4) ! Do not open the door during freezing. ! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.16

Maintenance and care Switching the appliance off During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1. set the FREEZER OPERATION knob on OFF

2. pull the plug out of the socket

Cleaning the appliance The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia. The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully. The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance. Avoiding mould and unpleasant odours The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly. If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open. Replacing the light bulb To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover (10W).GB

Precautions and tips ! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. This appliance complies with the following Community Directives: - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; -89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; - 2002/96/CE.. General safety The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual. The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. Do not touch the appliance with bare feet or with wet or moist hands and feet. Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns. When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on OFF (appliance off) to eliminate all electrical contact. In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments. Do not put ice cubes taken directly from the freezer into your mouth. This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Keep packaging material out of the reach of children! It can become a choking or suffocation hazard. Disposal Observe local environmental standards when disposing packaging material for recycling purposes. The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out wheeled bin symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources. Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy. Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously. Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy. Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption. Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).18

Assistance Before calling for Assistance: Check if the malfunction can be solved on your own (see Troubleshooting). If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre Communicating: type of malfunction appliance model (Mod.) serial number (S/N) This information can be found on the data plate located on the bottom left side of the refrigerator compartment. Never call on unauthorized technicians and always refuse spare parts which are not originals. Mod. RG 2330

02/2010 - Xerox Fabriano Troubleshooting Malfunctions: The internal light does not illuminate. The motor does not start. The refrigerator and the freezer do not cool well. The food inside the refrigerator is beginning to freeze. The motor runs continuously. The appliance makes a lot of noise. Some of the external parts of the refrigerator become hot Possible causes / Solutions: The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house. The appliance comes with a motor protection control (see Start-up and use). The doors do not close properly or the seals are damaged. The doors are opened too frequently. The TEMPERATURE ADJUSTMENT knob is not in the correct position The refrigerator or the freezer have been over-filled. The TEMPERATURE ADJUSTMENT knob is not in the correct position. The door is not closed properly or is continuously opened. The outside ambient temperature is very high. The appliance has not been installed on a level surface (see Installation). The appliance has been installed between cabinets that vibrate and make noise. The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal. These raised temperatures are necessary in order to avoid the formation of condensation on certain parts of the product. If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.COMBINE REFRIGERATEUR/CONGELATEUR Mode demploi Sommaire Installation, 20 Mise en place et raccordement Réversibilité des portes Description de lappareil, 21 Vue densemble Mise en marche et utilisation, 22-23 Mise en service de lappareil Réglage de la température Système de refroidissement Pour profiter à plein de votre réfrigérateur Pour profiter à plein de votre congélateur Entretien et soins, 24 Mise hors tension Nettoyage de lappareil Contre la formation de moisissures et de mauvaises odeurs Remplacement de lampoule déclairage Précautions et conseils, 25 Sécurité générale Mise au rebut Economies et respect de lenvironnement Anomalies et remèdes, 26 Assistance, 26
