USER MANUAL BC 312 ANI HOTPOINT ARISTON

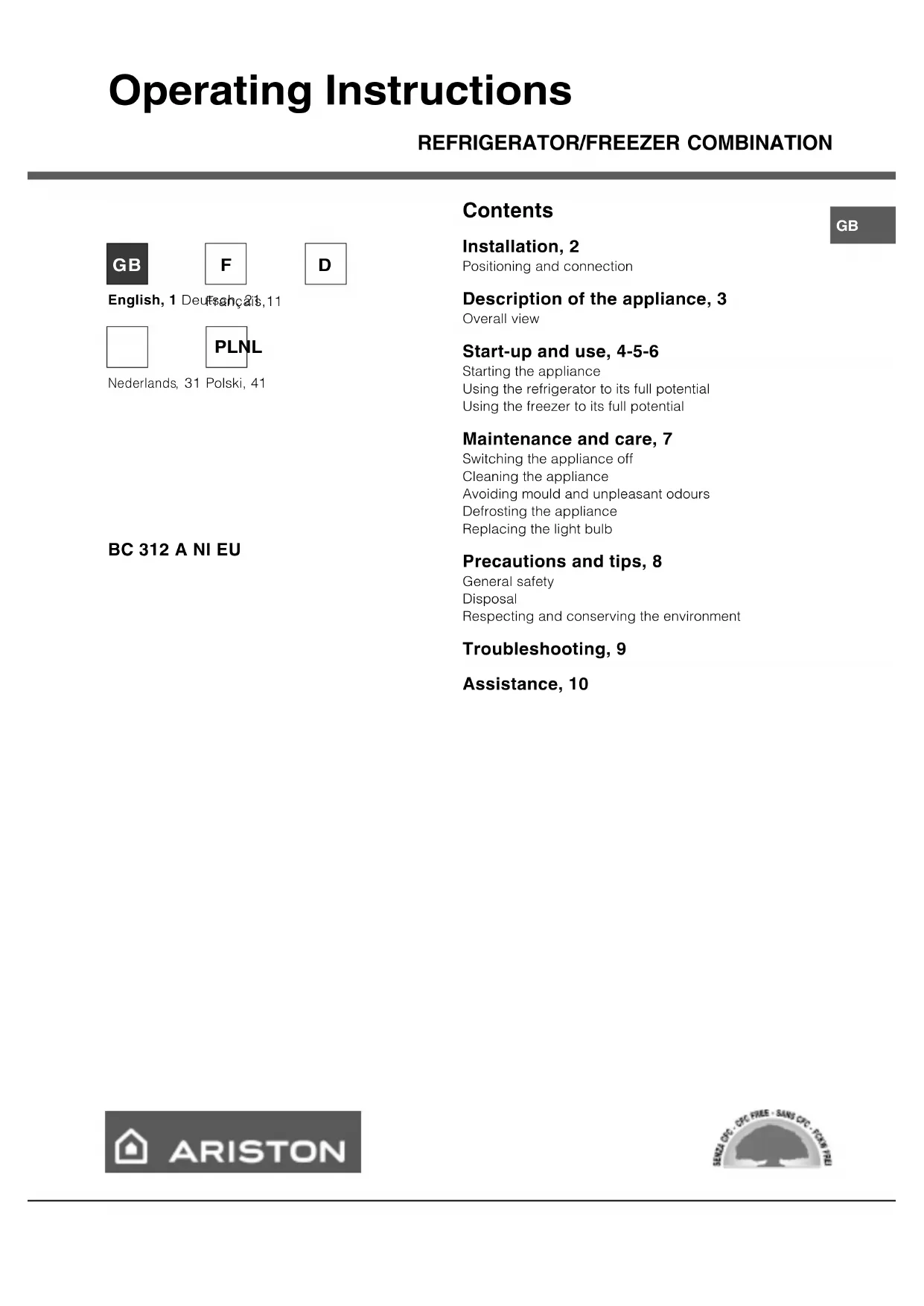

Contents Installation, 2 Positioning and connection Description of the appliance, 3 Overall view Start-up and use, 4-5-6 Starting the appliance Using the refrigerator to its full potential Using the freezer to its full potential Maintenance and care, 7 Switching the appliance off Cleaning the appliance Avoiding mould and unpleasant odours Defrosting the appliance Replacing the light bulb Precautions and tips, 8 General safety Disposal Respecting and conserving the environment Troubleshooting, 9 Assistance, 10 Operating Instructions English, 1 Deutsch, 21 Polski, 41 Nederlands , 31 Français,11

Installation ! Before placing your new appliance into operationplease read these operating instructions carefully. Theycontain important information for safe use, forinstallation and for care of the appliance.! Please keep these operating instructions for futurereference. Pass them on to possible new owners of theappliance. Positioning and connection Positioning 1. Place the appliance in a well-ventilated humidity-freeroom.2. Do not obstruct the rear fan grills. The compressorand condenser give off heat and require goodventilation to operate correctly and save energy.3. Ensure the appliance is away from any sources ofheat (direct sunlight, electric stove, etc.). Electrical connections After the appliance has been transported, carefullyplace it vertically and wait at least 3 hours beforeconnecting it to the electricity mains. Before insertingthe plug into the electrical socket ensure the following:• The appliance is earthed and the plug is compliantwith the law.• The socket can withstand the maximum power of theappliance, which is indicated on the data platelocated on the bottom left side of the fridge (e.g. 150 W).

• The voltage must be in the range between the valuesindicated on the data plate located on the bottom leftside (e.g. 220-240V).• The socket is compatible with the plug of theappliance.If the socket is incompatible with the plug, ask anauthorised technician to replace it ( see Assistance

Do not use extension cords or multiple sockets.! Once the appliance has been installed, the powersupply cable and the electrical socket must be easilyaccessible.! The cable must not be bent or compressed.! The cable must be checked regularly and replaced byauthorised technicians only (see Assistance).! The manufacturer declines any liability shouldthese safety measures not be observed.GB

Description of the appliance Overall view The instructions contained in this manual are applicable to different model refrigerators. The diagrams may notdirectly represent the appliance purchased. For more complex features, consult the following pages. Varies by number and/or position.

binFREEZER andSTORAGEcompartmentSTORAGEcompartment ICE tray

Start-up and use Starting the appliance ! Before starting the appliance, follow theinstallation instructions (see Installation ! Before connecting the appliance, clean thecompartments and accessories well with lukewarmwater and bicarbonate.1. Insert the plug into the socket and ensure that theinternal light illuminates.2. Turn the TEMPERATURE ADJUSTMENT knob to anaverage value. After a few hours you will be able toput food in the refrigerator. Using the refrigerator to its full potential The temperature inside the refrigerator compartmentautomatically adjusts itself according to the position ofthe thermostat knob.

5 = coldestWe recommend, however, a medium position.The cooling section of the refrigerator is located insidethe back wall of the refrigerator compartment forincreased space and improved aesthetics. Duringoperation, the back wall will be covered in frost or waterdroplets depending on whether the compressor isoperating or paused. Do not worry, the refrigerator isfunctioning normally. If the TEMPERATURE ADJUSTMENT knob has beenset on high values with large quantities of food and witha high ambient temperature, the appliance can operatecontinuously, resulting in excessive frost formation andexcessive energy consumption: compensate for this byshifting the knob towards lower values (defrosting willoccur automatically).In static appliances, the air circulates in a natural way:the colder air tends to move downwards as it is heavier.The food should be stored as follows:)RRG$UUDQJHPHQWLQVLGHWKHUHIULJHUDWRUFresh fish and meat Above the fruit and vegetable bins Fresh cheese Above the fruit and vegetable bins Cooked food On any shelf Salami, bread loaf, chocolate On any shelf Fruit and vegetables In the fruit and vegetable bins Eggs On the shelf provided Butter and margarine On the shelf provided Bottles, drinks, milk On the shelf provided

Available only on certain models.• Place only cold or lukewarm foods in thecompartment, not hot foods (see Precautions and tips

• Remember that cooked foods do not last longer thanraw foods.• Do not store liquids in open containers. They willincrease humidity in the refrigerator and causecondensation to form.SHELVES: with or without grill.Due to the special guides theshelves are removable and theheight is adjustable ( see diagram), allowing easy storageof large containers and food.Height can be adjusted withoutcomplete removal of the shelf.MULTI-USE* bin: to store food (such as cold meats)for a long time and also prevent odours from lingeringin the refrigerator.BOTTLE RACK/ CAN RACK* flap door: to store abottle or several cans horizontally (see diagram).When not in use, close the flap door to increase thespace in the refrigerator compartment.WINE AREA : to store up tothree bottles of wine ( see diagram). The air circulatesfreely between the bottlesguaranteeing rapid cooling.When not in use, close it toincrease the space on the shelf.

: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light

vert noir consulter la notice

2. If the word “OK” does not appear it means that the

temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher position (colder) and wait approximately 10 hours until the temperature has been stabilised.

3. Check the indicator light again: if necessary, readjust

it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting. Food hygiene

1. Once you have bought your food, remove all

external packaging made of paper/cardboard or other wrappers, which could introduce bacteria or dirt inside your refrigerator.

2. Protect the food, (especially easily perishable items

and those that have a strong smell), in order to avoid contact between them, thereby removing both the possibility of germ/bacteria contamination as well as the diffusion of strong odours inside the fridge.

3. Store all food in such a way as to ensure air can

circulate freely between different items.

4. Keep the inside of your fridge clean, taking care not

to use oxidiser or abrasive products.

5. Remove all food past its expiry date from the

6. For the correct preservation of food, all easily

perishable items (soft cheeses, raw fish, meat, etc.) should be stored in the coldest zone of the fridge compartment, i.e. just above the salad crisper where the temperature indicator is situated.6

Using the freezer to its full potential

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).

• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored above the grill in the freezer compartment and if possible be in direct contact with the walls (side and rear), where the temperature drops below -18°C and guarantees rapid freezing.

• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.

• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4) ! Do not open the door during freezing. ! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours. ! If the room temperature drops below 14°C for an extended period of time, the ideal temperature will not be reached in the freezer compartment and food preservation will be reduced. Ice tray The fact that they are situated on the top part of the freezer drawers ensures greater cleanliness: the ice no longer comes into contact with the food placed inside the freezer compartment; furthermore, the dripping of the water during filling is avoided (a lid to cover up the hole after filling with water is also provided).

1. Pull out the tray by pushing it up.

Check that the tray is ompletely empty and fill it with water through the opening provided.

2. Take care not to exceed the level indicated (MAX

WATER LEVEL). Excess water prevents the ice cubes from dispensing (if this happens, wait for the ice to melt and empty the tray).

3. Turn the tray 90°: due to the connected

compartments each mould fills with water ( see diagram

4. Close the opening with the lid provided and put the

tray back, placing the top part in the corresponding housing and allowing it to drop in again.

5. When the ice has formed (minimum time

approximately 8 hours) knock the tray against a hard surface and wet the outside so that the ice cubes come loose and take them out through the opening. MAX WATER LEVEL MAX WATER LEVELGB

Maintenance and care Switching the appliance off During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply: It is not sufficient to set the temperature adjustment knobs

(appliance off) to eliminate all electrical contact. Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.

• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.

• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance. Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.

• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open. Defrosting the appliance ! Follow the instructions below. Do not speed up the defrosting process by using any devices or tools other than the scraper provided, you may damage the refrigeration circuit. Defrosting the refrigerator compartment The refrigerator has an automatic defrosting function: water is ducted to the back of the appliance by a special discharge outlet ( see diagram ) where the heat produced by the compressor causes it to evaporate. It is necessary to clean the discharge hole regularly so that the water can flow out easily. Defrosting the freezer compartment

1. Set the TEMPERATURE ADJUSTMENT knob to the

2. Wrap frozen foods in newspaper and place them in

another freezer or in a cool place.

3. Leave the door open until the frost has melted

completely. This can be made easier by placing containers with lukewarm water in the freezer compartment.

4. Clean and dry the freezer compartment carefully

before switching the appliance on again.

5. Certain appliances are

fitted with the DRAIN SYSTEM to lead the water outside: let the water flow into a container ( see diagram

6. Wait for approximately

2 hours, i.e. until the ideal storage conditions have been restored, before placing food in the freezer compartment.. Replacing the light bulb To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover (15W or 25W).8

Precautions and tips ! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. This appliance complies with the following Community Directives: - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; -89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; - 2002/96/CE.. General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or moist hands and feet.

• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.

• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.

• Do not use devices or tools other than the special scraper provided inside the compartments.

• Do not put ice cubes taken directly from the freezer into your mouth.

• Do not allow children to tamper with the controls or play with the appliance. Under no circumstance should they be allowed to sit on the bins or to hang from the door.

• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard. Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.

• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product. All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances. Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.

• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.

• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.

• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.

• Defrost the appliance if ice forms ( see Maintenance

A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.

• Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping ( see Maintenance ).GB

Troubleshooting If the appliance does not work, before calling for Assistance ( see Assistance ), check for a solution from the following list. Malfunctions: The internal light does not illuminate. The refrigerator and the freezer do not cool well. The food inside the refrigerator is beginning to freeze. The motor runs continuously. The appliance makes a lot of noise. Some of the external parts of the refrigerator become hot. The back wall of the refrigerator unit is covered in frost or droplets of water. There is water at the bottom of the refrigerator. Possible causes / Solutions:

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

• The doors do not close properly or the seals are damaged.

• The doors are opened too frequently.

• The TEMPERATURE ADJUSTMENT knob is not in the correct position

• The refrigerator or the freezer have been over-filled.

• The atmospheric temperature of the area surrounding the appliance is lower than 14°C.

• The TEMPERATURE ADJUSTMENT knob is not in the correct position.

• The food is in contact with the back inside wall of the refrigerator.

• The door is not closed properly or is continuously opened.

• The outside ambient temperature is very high.

• The thickness of the frost exceeds 2-3 mm ( see Maintenance

• The appliance has not been installed on a level surface ( see Installation

• The appliance has been installed between cabinets that vibrate and make noise.

• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

• These raised temperatures are necessary in order to avoid the formation of condensation on certain parts of the product.

• This shows the appliance is operating normally.

• The water discharge hole is blocked ( see Maintenance ).10

01/20065 - Xerox Business Services Assistance Before calling for Assistance: Check if the malfunction can be solved on your own ( see Troubleshooting

• If after all the checks, the appliance still does not operate or the problem persists, call the nearest ServiceCentreCommunicating:• type of malfunction• appliance model (Mod.)• serial number (S/N)This information can be found on the dataplate located on the bottom left side of therefrigerator compartment. Never call on unauthorized technicians and always refuse spare parts which are not originals. Mod. RG 2330
