90.320V - Hand blender Beper - Free user manual and instructions

Frequently Asked Questions - 90.320V Beper

USER MANUAL 90.320V Beper

White and black beper tool with digital display and 'mix' branding (no additional text or symbols)

ITALIANO pag. 3

ENGLISH pag. 10

FRANÇAIS pag. 16

DEUTSCH pag. 22

ESPAÑOL pag. 28

For further information and/or for instructions for use in other languages, please visit: beper.com

beper m mix... 1 2 3 4 5 6 7

Close-up of a hand using a mechanical tool to press or adjust a cylindrical component, with an arrow indicating rotation (no text or symbols visible)

Fig.1

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPARECCHIO.

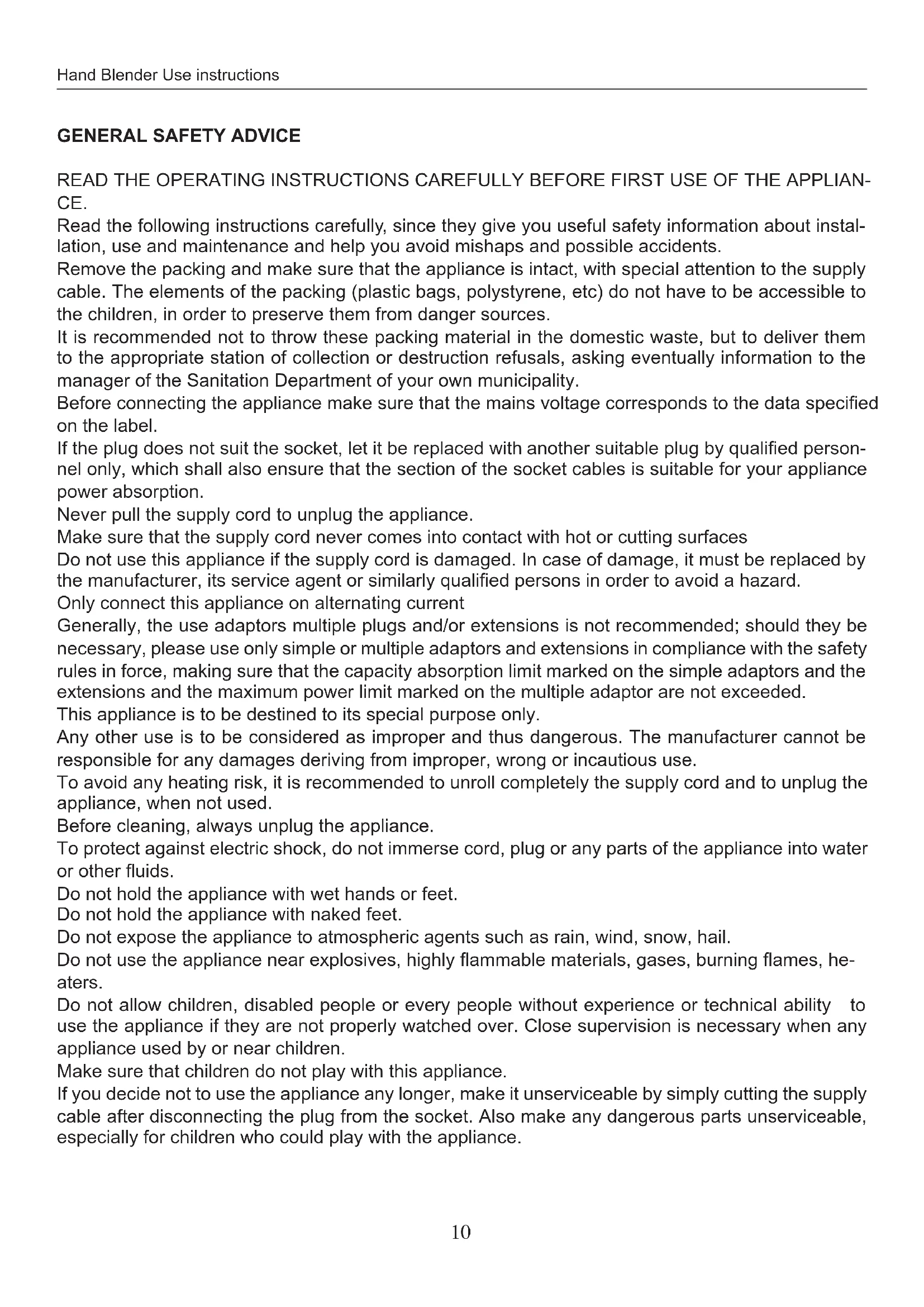

GENERAL SAFETY ADVICE

READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE FIRST USE OF THE APPLIANCE.

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable. The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources.

It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Never pull the supply cord to unplug the appliance.

Make sure that the supply cord never comes into contact with hot or cutting surfaces

Do not use this appliance if the supply cord is damaged. In case of damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Only connect this appliance on alternating current

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

This appliance is to be destined to its special purpose only.

Any other use is to be considered as improper and thus dangerous. The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

To avoid any heating risk, it is recommended to unroll completely the supply cord and to unplug the appliance, when not used.

Before cleaning, always unplug the appliance.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not hold the appliance with wet hands or feet.

Do not hold the appliance with naked feet.

Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail.

Do not use the appliance near explosives, highly flammable materials, gases, burning flames, heaters.

Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over. Close supervision is necessary when any appliance used by or near children.

Make sure that children do not play with this appliance.

If you decide not to use the appliance any longer, make it unserviceable by simply cutting the supply cable after disconnecting the plug from the socket. Also make any dangerous parts unserviceable, especially for children who could play with the appliance.

USE ADVICE

Before using the hand blender check the integrity of the appliance and cord supply.

Be careful when using the hand blender, the blade is very cutting.

Before removing the ingredients on the blade, unplug the appliance from the socket.

Do not keep the hand blender on for more than 30 seconds, to avoid overhaeting, and wait at least for 5 minutes before using it again.

Use the hand blender on a horizontal surface.

Do not immerse the motor unit into water or other liquid.

Do not use the hand blender with wet hands and/or naked feet.

Before assembly, disassembly or clean, unplug the appliance from the socket.

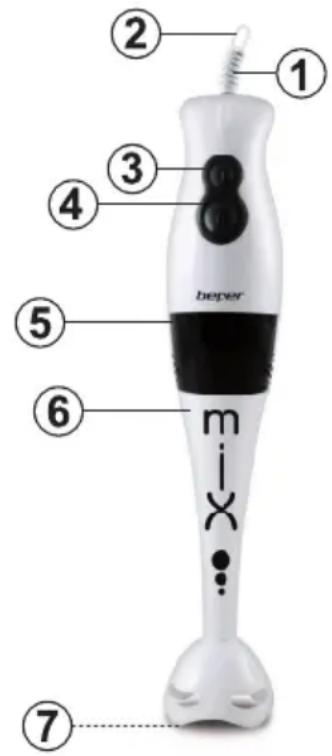

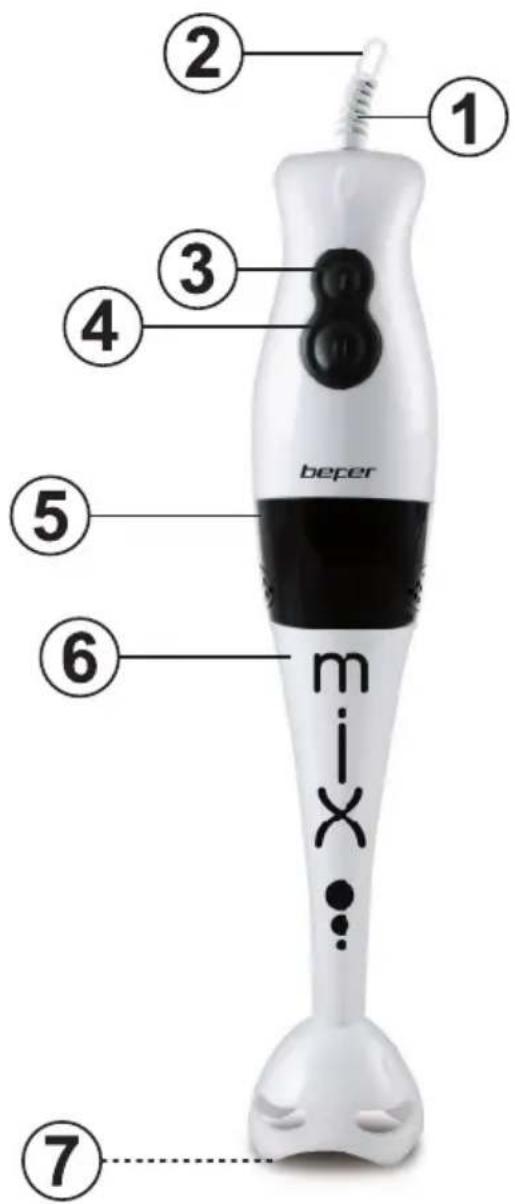

DESCRIPTION

1. Speed selector II

2. Cord supply

3. Hang ring
4. Speed selector I
5. Motor unit
6. Removable blending attachment
7. Stainless steel blade

INSTRUCTION FOR USE

ASSEMBLY THE HAND BLENDER

Insert the stainless steel blending attachment (6) on the motor unit (5), and screw.

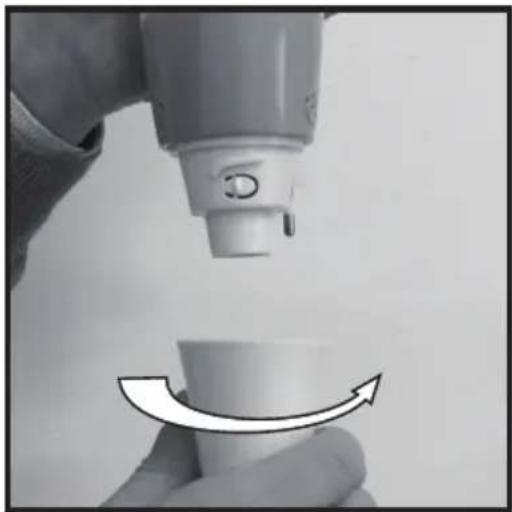

To remove the blending attachment, unscrew (assembly mechanism 6) and separate the two components. (Fig.1)

beper m x-i

HOW TO USE THE HAND BLENDER

After assembly the hand blender and check it is correctly assembled, connect the cord supply (1) to the socket.

Select speed rotation with speed selector:

Speed selector I (3) for low speed;

Speed selector II (4) for high speed.

The stainless steel blade (8) allow to chop the ingredients into the container.

To get better results, it is necessary to give to the hand blender a rotating movement into the container.

At the same time it is necessary to keep the blade (7) completely immerse into the ingredients to avoid splash.

The hand blender is perfect for :

• mashed vegetables, milkshake ;
• sauces ;
• soup, mayonnaise.

CLEANING

Before cleaning the hand blender, unplug the cord supply from the socket.

The motor unit can be cleaned with a soft cloth and hot water.

Do never use thinners, abrasive detergent in general, detergent for plastic, glass or other, that could damage the hand blender.

Do not put liquids into the hand blender.

Do not immerse the motor unit (5) into water or other liquids, do not rinse with water.

Clean the stainless steel blending attachment (7) with running water.

Be careful to the stainless blade that is very sharpen and cutting.

TECHNICAL DATA

Power: 170-220W

Power supply : 220-240V \~ 50/60Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

Guarantee conditions

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

Technical assistance

Even after the guarantee period we will always pay attention to repairs for defected appliances. For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

Recipes

Soup

Ingredients (for 6 persons):

2 potatoes

12 onion

1 carrot

1 celery stalk

1 tomato

1 zucchini

2 leaves of laurel

1 spoon of salt

2 spoons of olive oil extra virgin

1,5 l of water

Cooking :

Finely chop the onion, put in a frying pan with oil for a few minutes, then add the other chopped vegetables, tomato is better without skin, mix well and add water, salt and laurel leaves. make it boiled covered for about 20 minutes then turn off. Mix the vegetables with the immersion hand blender for 1 or 2 seconds to make the soup creamier.

Spinach cream

Ingredients (for 6 persons) :

1 kg of fresh spinach

400 ml of whole milk (better if fresh)

200 ml of sour cream

1 pinch of nutmeg

12 teaspoon of salt

Cooking :

Wash spinach, and put in a covered saucepan with low heat with a little water.

Add milk and mix whole to obtain a smooth cream, add sour cream, salt and nutmeg. Cook for 2-3 minutes and serve hot.

Recipes

Tomatoes cream

Ingredients (for 6 persons) :

1 teaspoon of butter
2 tablespoon extra virgin olive oil
1 big onion
2 cloves garlic
2 tablespoons of flour
2 kg of ripe tomatoes
2 tablespoons tomato paste
1 teaspoon sugar
^3/_4 of a liter of vegetable broth
A pinch of clove powder
150 ml cream
Salt and pepper

Cooking :

Melt butter with garlic over low heat in saucepan.

Peel the onion, chop and put in a saucepan and cook for about 10 minutes, at the end mix the garlic cloves, peeled and finely chopped. Sprinkle with flour and cook a few minutes, mixing carefully.

Put washed and cut tomatoes into the pan, add the tomato puree, sugar and vegetable broth. Bring to a boil and cook lightly over low heat 30 minutes.

When complete, flavored with cloves, salt and pepper and let cool slightly.

Mix everything with the immersion hand blender.

Add cream and mix well.

Serve hot tomato cream, with crispy bread crouton.

PRECAUTIONS GENERALES

LIRE ATTENTIVEMENT LES INSTRUCTIONS SUIVANTES AVANT LA PREMIERE UTILISATION DE L'APPAREIL.

Assistance technique
