Product type	Conveyor toaster
Brand	Hendi
Model	Conveyor toaster 261309
Dimensions (W × D × H)	418 × 368 × 387 mm
Weight	Not specified (professional use)
Power supply	230-240 V ~ 50 Hz
Power	1940 W
Heating type	Upper and lower heating elements
Cooking adjustment	Heating control (3 positions) and speed control (color)
Special features	Bagel mode (upper element only), energy-saving mode
Indicator light	Yes, operation indicator
Included trays	Front tray, rear tray, entry grid, 4 adjustable feet
Crumb tray	Yes, removable for cleaning
Material	Metal (likely stainless steel)
Care and cleaning	Cleanable exterior with damp cloth and mild detergent; do not immerse; vacuum ventilation slots
Safety	Automatic shutdown in case of malfunction (likely), splash water protection, do not use with sugary foods
Warranty	1 year (manufacturing defects)
Use	Indoor only, on stable and level surface
Replacement parts	Contact after-sales service (not specified in the manual)
Repairability	Repair by qualified professional; do not disassemble yourself

Frequently Asked Questions - Converyor toaster 261309 Hendi

How to connect the toaster?

Plug the appliance into a 230-240 V ~ 50 Hz power outlet, compliant with local standards. Ensure that the outlet is accessible at all times.

What cooking settings are available?

You can choose the heating mode (upper only for bagels, upper and lower, or economy) and adjust the conveyor speed to achieve a toast color from light to dark.

How to clean the toaster?

Unplug the appliance. Clean the exterior with a damp cloth and a little mild dish soap. Do not immerse. Use a vacuum cleaner for the ventilation slots. The crumb tray can be removed and cleaned separately.

What to do if the appliance does not heat?

Check that the plug is properly connected and that the fuse has not blown. If the problem persists, the heating element or control unit may be faulty. Contact an authorized repairer.

Can I toast bagels?

Yes, use the heating control position that powers only the upper element. This toasts the top while keeping the inside soft.

What is the power of the appliance?

The power is 1940 W at 230-240 V.

Is the appliance suitable for children?

No, children should not use the appliance without supervision. It is designed for professional use and requires a responsible adult.

How to save energy?

Use the energy-saving mode on the heating control. It reduces consumption and keeps the toaster warm for quick reheating.

What to do in case of conveyor jam?

Cut the power and unplug the appliance. Carefully remove trapped food with tongs (never bare hands). Check that the chain is not jammed. If the problem persists, contact a professional.

Where to find replacement parts?

Spare parts must be provided by an authorized dealer. Contact Hendi's after-sales service or your supplier.

USER MANUAL Converyor toaster 261309 Hendi

Grille-pain constant

Toster przylotowy

Prajitor paine tip tunel

GEBRUKSAANWIJZING

USERINSTRUCTIONS

GEBRAUCHSANWEISUNG

MODE D'EMPLOI

INSTRUKCJA OBSŁUGI

INSTRUCTIONS UTILIZERULUI

HENDI

FOOD SERVICE EQUIPMENT

Please read and keep these instructions

Keep these instructions with the appliance.

For indoor use only.

Thank you for purchasing this Hendi appliance. Please read these user instructions carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety instructions in particular very carefully.

Safety Regulations

• Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
• The appliance may only be used for the purpose for which it was intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and any other liquids. In the unlikely event that the appliance should fall into water, immediately pull the plug out of the socket and have the appliance checked by a certified technician. Not following these instructions could give rise to life-threatening situations.
• Never try to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• Regularly check the plug and cord for any damage. Should the plug or cord be damaged have it/them repaired by a certified repair company.
• Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
• Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. To pull the plug out of the socket, always pull on the plug and not on the cord.
• Make sure that no one can accidentally pull the cord (or extension cord) loose or trip over the cord.
• This appliance may only be used for the purpose it was initially designed for.
• Always keep an eye on the appliance when in use.
• Children do not understand that incorrect use of electrical appliances can be dangerous. Therefore, never let children use electrical appliances without supervision.
• Always pull the plug out of the socket when the appliance is not being used and always before cleaning.
• Warning! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before pulling the plug out of the socket.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied along with the appliance.
• Only connect the appliance to an electrical outlet with the Voltage and frequency mentioned on the appliance label.
• Avoid overloading.
• Turn off the appliance after use by removing the plug from the socket.
• Always remove the plug from the socket when filling or cleaning the appliance.
• The electrical installation must comply with the applicable national and local regulations.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Special safety precautions

This appliance is designed and intended only for making toast.

Preparations before using for the first time

• Check to make sure the appliance is undamaged. In case of any damage, contact your supplier immediately and do NOT use the appliance.
• Remove all the packing material and protection film (if applicable).
• Clean the appliance with luke-warm water and a soft cloth.
• Place the appliance on a level and steady surface, unless mentioned otherwise.
• Make sure there is enough clearance around the appliance for ventilation purposes.
• Position the appliance in such a way that the plug is accessible at all times.

Contents

The package includes:

1 front tray
1 back tray
1 inlet grid
4 adjustable feet.

Installation

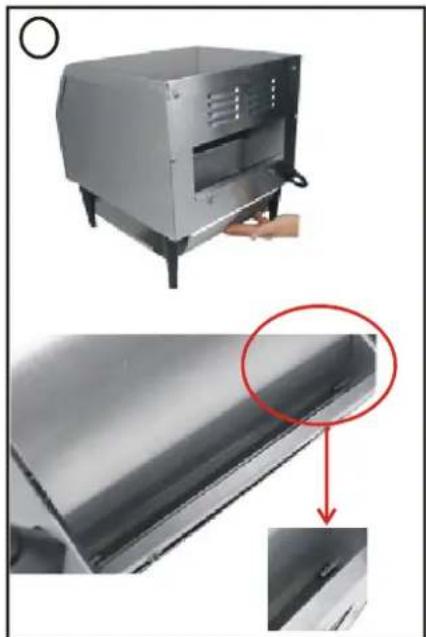

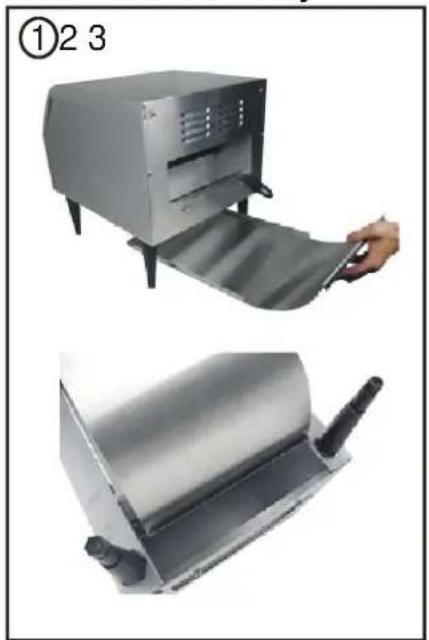

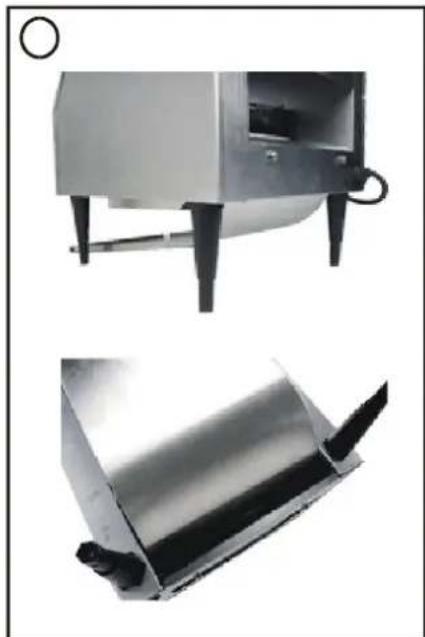

Installation front tray

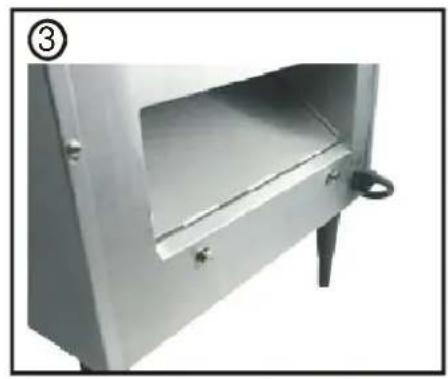

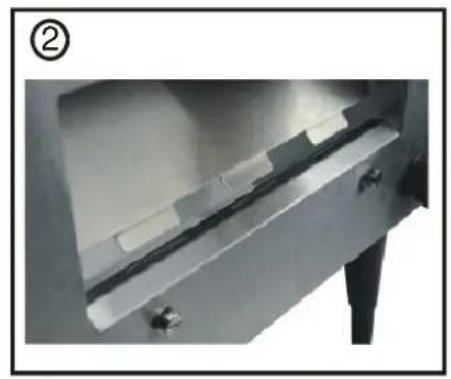

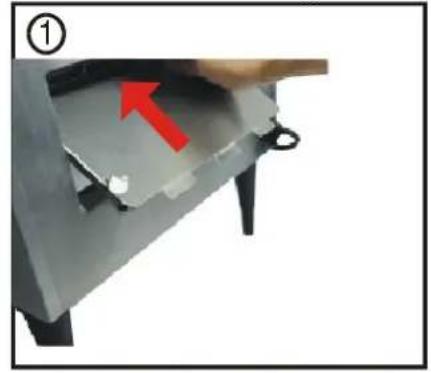

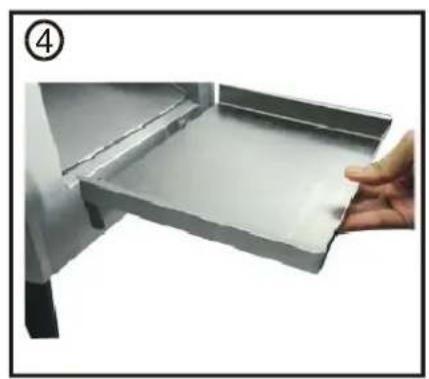

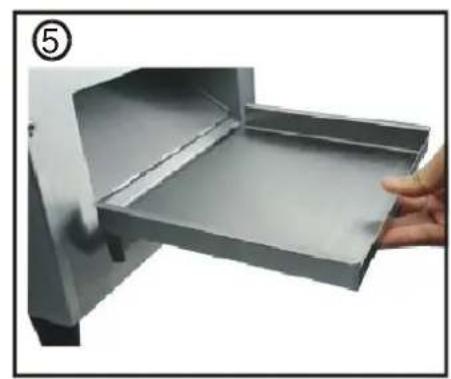

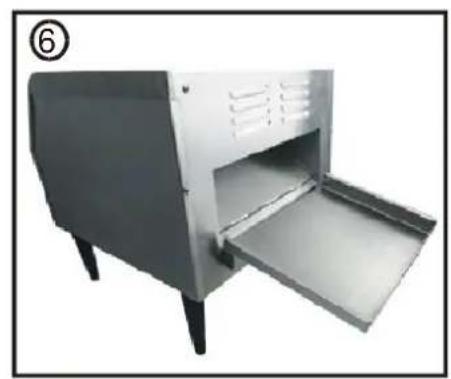

Installation back tray

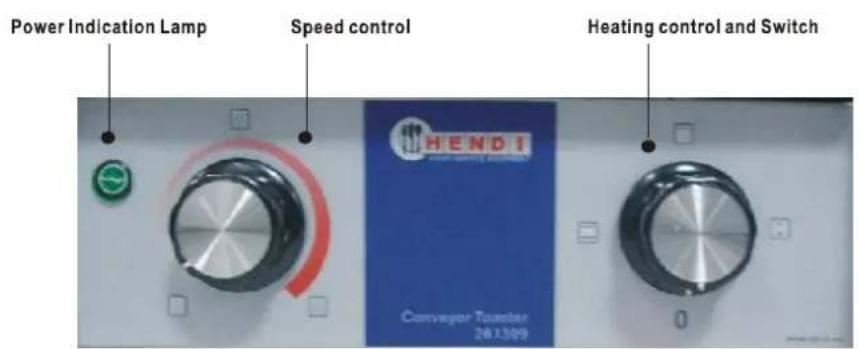

Control Panel

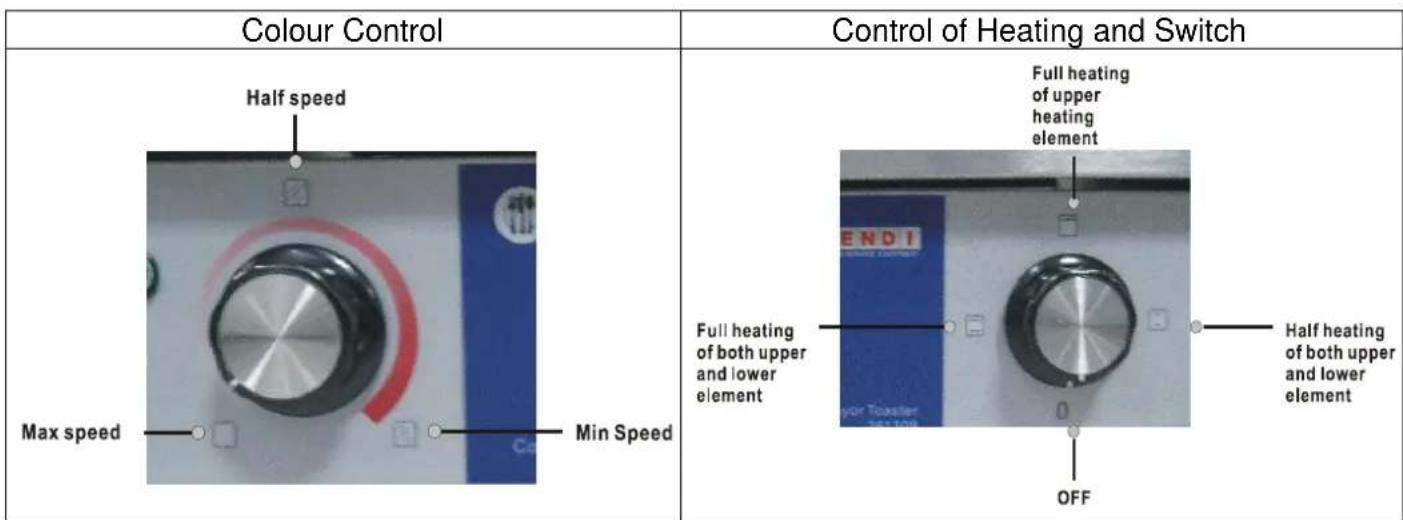

Switch, Colour and Heating control

The front and back trays can be changed. The toast crumb tray collects crumbs easily.

Operation

When the power is on, the indicator lamp will light.

Heating Control

Switch Off

□ Provides full power to the upper element only. Used for e.g. bagels or buns.
Provides full power to both upper and lower elements.
Energy saver - saves power when not in use. Keeps the conveyor toaster warm for fast heating when required.

Color Control

Once you have selected the desired way of cooking above, you can adjust the speed to determine the color of your toasted product.

light
medium
dark

Cleaning and maintenance

Always remove the plug from the socket before cleaning the appliance.
- Beware: Never immerse the appliance in water or any other liquid!
- Clean the outside of the appliance with a damp cloth (water with mild detergent).
- Never use aggressive cleaning agents or abrasives. Do not use any sharp or pointed objects. Do not use petrol or solvents! Clean with a damp cloth and detergent if necessary. Do not use abrasive materials.
- Clean the ventilation slots (if applicable) with the vacuum cleaner.
- Do not use bread that contains sugar on the surface because it will melt and caramelize on the toaster after heating. You should always protect the unit from pollution because this will affect its functioning.
- If used intensively, regularly clean the crumb tray

Faults

Fault	Possible cause	Possible solution
Appliance does not work	No power at the socket	Check the fuse
	The plug is not plugged (correctly) into the power point	Check the plug
Appliance does not reach the set temperature	Heating element faulty	Contact the supplier
	Control unit faulty	Contact the supplier
	Heating element fuse faulty	Contact the supplier

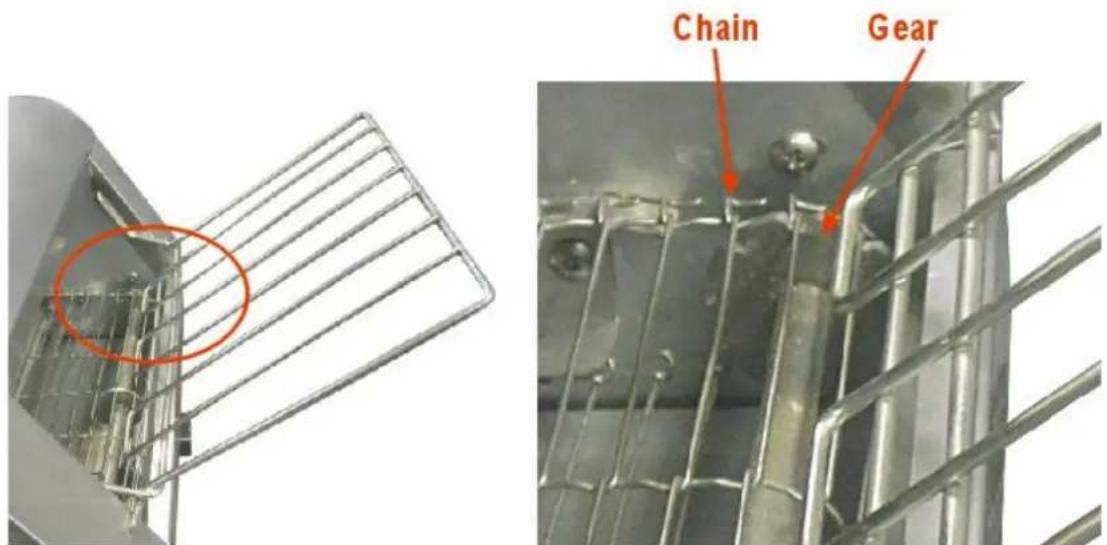

Chain does not rotate*	Motor faulty	Contact the supplier
	Control unit faulty	Contact the supplier
	Gear or Chain mislocated	Contact the supplier

*Gear or chain do not rotate

Technical data

Input Voltage

Power

Dimensions

230-240 V a.c.50 Hz

1940W

418× 368× 387mm

Warranty

Any defect affecting the functionality of the appliance that becomes apparent within one year after purchase will be corrected by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was bought and include proof of purchase (f.e. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

At the end of the life of the appliance, please dispose of the appliance according to the regulations and guidelines applicable at the time.

Throw packing materials like plastic and boxes in the appropriate containers.
