ENGLISH DVD Player User Manual AK68-02048A imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register DVD-D360K DVD-D530 DVD-D530K2 Precautions

- Refer to the identification label located on the rear of your player for its proper operat ing voltage. - Install your player in a cabinet with adequate ventilation holes. (7~10cm). Do not block ventilation holes on any of the components for air circulation. - Do not push the disc tray in by hand. - Do not stack components. - Be sure to turn all components off before moving the player. - Before connecting other components to this player, be sure to turn them off. - Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time. - The mains plug is used as a disconnect device and shall stay readily operable at any time.

- This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. - Do not open covers and do not repair your self. Refer servicing to qualified personal.

- Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only. - Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. - Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn theplayer off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally. - When condensation forms inside the player due to sharp changes in temperature, the player may not operate correctly. If this occurs, leave the player at room tempera- ture until the inside of the player becomes dry and operational.

- Do not clean disc using record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface. - Do not touch the disc’s bottom. Hold by the edges or by one edge and the hole in the center. - Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

5. Environmental info

- The battery used in this product contains chemicals that are harmful to the environment

- So, dispose the batteries in the proper- manner, according to federal, state, and local regulations. The product unit accomparied this user manual is licenced under certain intellectual property rights of certain third parties. This licence is limited to private non-commercial use by end-user consum- ers for licenced contents. No rights are granted for commercial use. The licence does not cover any product unit other than this product unit and the licence does not extend to any unlicenced product unit or pro-cess conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The licence only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/ OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this licence for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3. CAUTION: USE OF ANY CONTROLS,

• CDI •CVD - Ability to play back may depend on recording conditions.

• DVD+RW,-RW(Vmode) - The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions. COPY PROTECTION Many DVD discs are encoded with copy pro- tection. Because of this, you should only con- nect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a dis- torted picture from copy-protected DVD discs. This item incorporates copy protection technol- ogy that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

ARE FULLY COMPATIBLE WITH THIS

PRODUCT AND MAY CAUSE ARTIFACTS TO

Region Number Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is described on the rear panel of the player. Disc Markings Play Region Number PAL broadcast system in U.K, France, Germany, etc. Dolby Digital disc Stereo disc Digital Audio disc MP3 disc STEREO

DIGITALSOUNDSTEREO PAL DivX Certification DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license. “DivX Certified to play DivX video, including premium content.” Covered by one or more of the following U.S patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274.

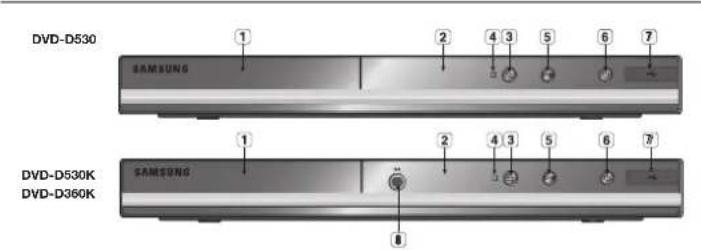

Place the disc here.

Operation indicators are displayed here.

Press to open and close the disc tray.

Turn on/off and the player is turned on/off.

Connect digital still camera, MP3 player, memory stick, Card reader other removable storage devices.

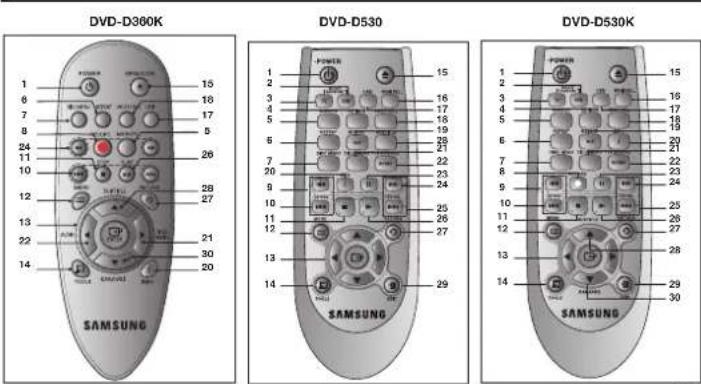

Tour of the Remote Control DVD-D530K

TV SET COMPATIBILITY WITH THIS MODEL

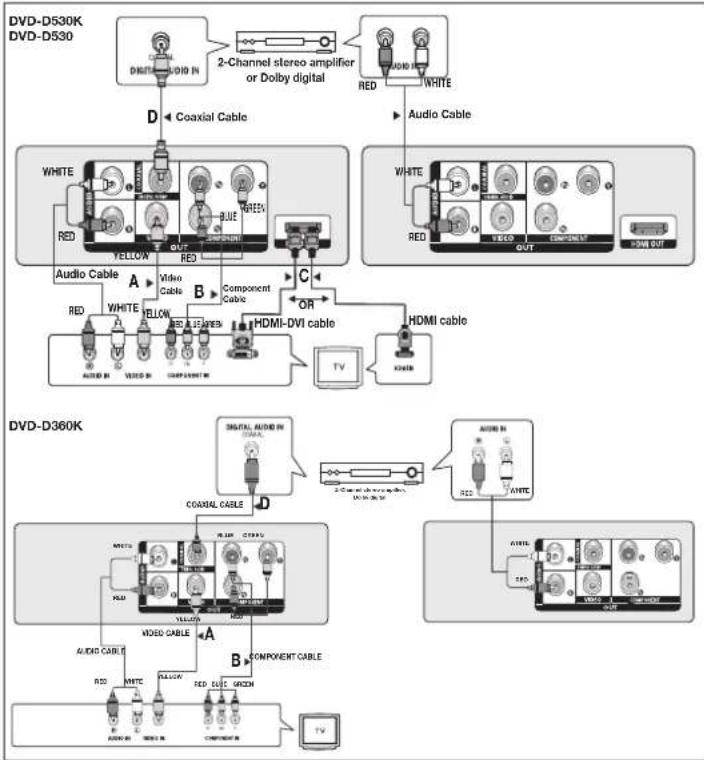

CENTER.”4 Choosing a Connection Connections The following shows examples of connections commonly used to connect the DVD player with a TV and other components. Before Connecting the DVD Player - Always turn off the DVD player, TV, and other components before you connect or disconnect any cables. - Refer to the user’s manual of the additional components you are connecting for more information on those particular components. Note - Noise may be generated if the audio cable is too close to the power cable. - If you want to connect to an Amplifier, please refer to the Amplifier connection page. - The number and position of terminals can vary depending on your TV set. Please refer to the user’s manual of the TV. - If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player. - If you press the VIDEO SEL. button when DVD Player is in stop mode or no disc is inserted, the Video Output mode changes in the following sequence: (I-SCAN ➝ P-SCAN) B. Connection to a TV (Interlace/Progressive)

1. Using component video cables, connect the COMPONENT VIDEO OUT terminal on the rear of the

DVD player to the COMPONENT IN terminal of TV.

2. Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD

player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV.

3. Press the input selector on your TV remote control until the Component signal from the DVD player

appears on the TV screen.

4. Set the Video Output to I-SCAN/P-SCAN in the Display Setup menu. You can use the VIDEO SEL.

button to change the Video Output mode. Note - What is “Progressive Scan”? Progressive scan has twice as many scanning lines as the interlace output method has. Progressive scanning method can provide better and clearer picture quality. C. Connecting to a TV with DVI/HDMI Jack (ONLY DVD-D530K/D530)

1. Using the HDMI-DVI/HDMI-HDMI cable , connect the HDMI OUT terminal on the rear of the DVD

player to the DVI/HDMI IN terminal of your TV.

2. Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD

player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3. Press the input selector on your TV remote control until the DVI/HDMI signal from the DVD player

appears on your TV screen. HDMI VIDEO Specifications (ONLY DVD-D530K/D530) When you press the HDMI SEL. button, 480p, 576p, 720p, 1080p, 1080i are selected in order. The first press of the HDMI SEL. button brings up the current resolution. The second press allows you to change the HDMI output resolution. - Depending on your TV, certain HDMI output resolutions may not work. - Please refer to the user’s manual of your TV. - If HDMI or HDMI-DVI cable is plugged into TV, the DVD player’s output is set to HDMI/DVI within 10 seconds.

Turns the power on or off.

DVD Button (Only DVD-D530K/D530) Use to select the DVD player for operation.

(Only DVD-D530K/D530) Use to select a Samsung TV for operation.

(Only DVD-D530K/D530) Lets you easily adjust the aspect ratio of a picture according to the screen size of your TV (16:9 or 4:3).

Allows you to repeat play a title, chapter, track, or disc.

RECORD Button (Only DVD-D530K/D360K) Use to Karaoke recording.

Use to skip the title, chapter or track.

This button functions as a toggle switch.

Displays the current disc mode. It also lets you access the Display function.

15. OPEN/CLOSE ( ) Button

To open and close the disc tray.

REPEAT A-B Button (Only DVD-D530K/D530) Allows you to repeat play a chosen section (A-B) on a disc.

AUDIO/TV SOURCE Button Use this button to access various audio functions on a disc. Use this button to select an available TV source (mode TV).

23. PAUSE Button ( )

(Only DVD-D530K/D530) Pauses disc play.

24. SEARCH Buttons ( / )

Allows you to search forward/backward through a disc.

25. TV CH ( , ) Buttons

(Only DVD-D530K/D530) Channel selection.

1. Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on

the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of TV.

2. Turn on the DVD player and TV.

3. Press the input selector on your TV remote control until the Video signal from the DVD player

appears on the TV screen.5

• HDMI (High Definition Multimedia Interface) HDMI is an interface to enable the digital transmission of video and audio data with just a single connector.Using HDMI, the DVD player transmits a digital video and audio signal and displays a vivid picture on a TVhaving an HDMI input jack.

• HDMI connection description HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data).- Though the player uses a HDMI cable, the player outputs only a pure digital signal to the TV. - If TV does not support HDCP (High-bandwidth Digital content protection), snow noise appears on the screen.

• Why does Samsung use HDMI? Analog TVs require an analog video/audio signal. However, when playing a DVD, the data trans- mitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD player) or an analog-to-digital converter (in the TV) is required. During this conver-sion, the picture quality is degraded due to noise and signal loss. DVI technology is superior because it requires no D/A con- version and is a pure digital sig-nal from the player to your TV.

• What is the HDCP? HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector . etc). Content is encrypted at the source device to prevent unauthorized. D. Connection to an Audio System (2 Channel Amplifier, Dolby Digital, or MPEG2 )

1. Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD

player to the AUDIO (red and white) IN terminals of the Amplifier. If using a coaxial cable, connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

2. Using the video signal cable(s), connect the VIDEO, COMPONENT or HDMI OUT terminals on the

rear of the DVD player to the VIDEO, COMPONENT or DVI IN terminals of your TV

3. Turn on the DVD player, TV, and Amplifier.

4. Press the input select button of the Amplifier to select external input in order to hear sound from the

DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input. 2-Channel stereo amplifier or Dolby digital Coaxial Cable Audio Cable RED HDMI cable WHITE RED WHITE HDMI-DVI cable YELLOWVideo CableComponent Cable YELLOW

RED BLUE GREEN RED WHITE RED WHITE DVD-D360K DVD-D530K DVD-D530 - If you set the HDMI output resolution 720p,1080p or 1080i, HDMI output provides better picture quality. - If you connect an HDMI cable between Samsung TV and this DVD player, you can operate this DVD player using your TV remote control. This is only available with Samsung TVs that support Anynet+(HDMI-CEC). - If your TV has an logo, then it will SupportstheAnynet+Function.

Playing a Disc Basic functions Before Play - Turn on your TV and set it to the correct Video Input by pressing TV/VIDEO button on the TV remote control. - If you connected an external Audio System, turn on your Audio System and set it to the cor rect Audio Input. After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press the π/† button, and then press the ENTER button. (This screen will only appear when you plug in the player for the first time.)If the language for the startup screen is not set, the set-tings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use.Once you select a menu language, you can change it by pressing the ®|| button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language. Skipping Tracks During play, press the SKIP (|k or K|) button. - When playing a DVD, if you press the SKIP (K|) button, it moves to the next chapter. If you press the SKIP (|k) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter. - When playing a VCD, if you press the SKIP (K|) button, it moves to the next track. If you press the SKIP (|k) button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track. - If a track exceeds 15 minutes when playing a VCD and you press the K| button, it moves for- ward 5 minutes. If you press the |k button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track. Using the Search and Skip Functions During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection. Searching through a Chapter or Track During play, press the SEARCH (k or K) button on the remote control for more than 1 second. Note - The speed marked in this function may be different from the actual playback speed. - No sound is hearing during search mode (Except CD). DVD

VCD 2X, 4X, 8X, 16X, 32X 2X, 4X, 8X, 16X, 32X 4X, 8X Repeat Play Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc. When playing a DVD/VCD

1. Press the REPEAT button on the remote control. Repeat screen appears.

2. Press the REPEAT or π/† button to change playback mode.

DVD repeats play by chapter or title. - Off. - Title : repeats the title that is playing. - Chapter : repeats the chapter that is playing.

Repeat A-B (Only DVD-D360K) Using the Disc and Title Menu During the playback of a DVD disc, press the DISC MENU/TITLE MENU button on the remote control. Note - Depending on a disc, the Disc Menu/Title Menu may not work. - You can also use the Disc Menu, using the DISC MENU button on the remote control. - Title Menu will only be displayed if there are at least two titles in the disc. Using the Display Function When Playing a DVD/VCD/MPEG4

1. During play, press the TOOLS button on the remote control.

2. Press the π/† buttons to select the desired item.

3. Press the √/® buttons to make the desired setup.

4. To make the screen disappear, press the TOOLS button again.

The functions when using the Display function are listed in the table below. To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified. Most DVD discs are recorded in chapters so that you can quickly find a specific passage. Allows playback of the film from a desired time. You must enter the starting time as a refer- ence.The time search function does not operate on some disc. Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks. Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles. User will be able to choose EZ-View type. Press enter to activate the Zoom function. To access the desired Angle function. Some DVD disc are have more than one recorded angle.

A-B REPEAT allows you to set point (B) directly after point (A) has been set. - Depending on a disc, the Repeat function may not work. Slow Play This feature allows you slowly to repeat scenes con-taining sports, dancing, musical instruments being played etc., so you can study them more closely. When playing a DVD

1. During play, press the PAUSE ( )/PLAY ( ) button.

2. Press the SEARCH (k/K) button to choose the play speed between 1/2, 1/4, 1/8,1/16,1/2

and so on. If you want to go normal play press PLAY button. Adjusting the Aspect Ratio (EZ View) Advanced functions To play back using aspect ratio (DVD)

1. During play, press the EZ VIEW/TOOLS button on the remote control.

2. Press the EZ VIEW or π/† buttons to select the screen size. Each time you press the π/† or √/®

buttons, the screen size changes. For graphics of the screen sizes and lists of the sequences in which the sizes change, see the next column.

3. Press the EXIT/RETURN button to exit EZ View.

If you are using a 16:9 TV For 16:9 aspect ratio discs - WIDE SCREEN - SCREEN FIT - ZOOM FIT For 4:3 aspect ratio discs - Normal Wide - SCREEN FIT - ZOOM FIT - Vertical Fit If you are using a 4:3 TV For 16:9 aspect ratio discs - 4:3 Letter Box - 4:3 Pan Scan - SCREEN FIT - ZOOM FIT For 4:3 aspect ratio discs - Normal Screen - SCREEN FIT - ZOOM FIT Using the A-B Repeat function (Only DVD-D360K)

1. Press the REPEAT button on the remote control. The repeat screen appears.

2. Press the π/† button to select the REPEAT A-B and then press ENTER.

3. Press the ENTER at the point where you want repeat play to start (A).

4. Press the ENTER at the point where you want repeat play to start (B).

Using the A-B Repeat function (Only DVD-D530K/D530)

1. Press the REPEAT A-B button on the remote control.

2.Press the REPEAT A-B button at the point where you want repeat play to start (A). 3.Press the REPEAT A-B button at the point where you want the repeat play to stop (B).

3. To return to normal play, press the REPEAT A-B button until the display shows Repeat : Off.

Note This function may behave differently depending on the type of disc. Note - This function depends on audio languages are encoded on the disc and may not work. - A DVD disc can contain up to 8 audio languages. Selecting the Audio Language You can select a desired audio language quickly and easily with the AUDIO button. Using the AUDIO button (DVD/VCD/MPEG4)

1. During play, Press the AUDIO/ √ button. Change the audio language by pressing the AUDIO or

π/† button. - The audio languages are represented by abbreviations.

Note - The subtitle languages are represented by abbreviations. - You have to change the desired subtitle in the Disc Menu, according to discs. Press the DISC MENU button. - This function depends on what subtitles are encoded on the disc and may not work on all DVDs. - A DVD disc can contain up to 32 subtitle languages. Selecting the Subtitle Language You can select a desired subtitle quickly and easily with the SUBTITLE/(π) button. Using the SUBTITLE/(π) button (DVD/MPEG4)

1. During play, Press the SUBTITLE/(π) button.

2. Press the SUBTITLE/(π) or π/† button to change the language. Each time you press the

SUBTITLE/(π) or π/† button, the language changes.

Changing the Camera Angle When a DVD contains multiple angles of a particular scene, you can use the ANGLE function. Using the ANGLE function (DVD) If the disc contains multiple angles, the ANGLE appears on the screen.

1. During play, press the TOOLS button on the remote control.

2. Press the π/† buttons to select icon. When the angle screen is displayed, press the √/® but-

tons on the remote control to select the desired angle option. Using the Bookmark Function This feature lets you bookmark sections of a DVD or VCD (Menu Off mode) so you can quickly find them at a later time. Using the Bookmark Function (DVD/VCD)

1. During play, press the MARKER button on the remote control.

2. When you reach the scene you want to mark, press the √/® or π/† buttons, and then press

MARKER button. Up to 12 scenes may be marked at a time

1. Open the disc tray. Place the disc on the tray. Close the tray.

Press the √/® buttons to select a Music folder, and then press ENTER. Press the π/† buttons to select a song file, and then press the ENTER to begin playback of the song. Recalling a Marked Scene

1. During play, press the MARKER button on the remote control.

2. Press the √/® orπ/† buttons to select a marked scene.

3. Press the PLAY () button to skip to the marked scene.

1. During play, press the MARKER button on the remote control.

2. Press the √/® orπ/† buttons to select the bookmark number you want to delete.

3. Press the ENTER button to delete a bookmark number.

Using the Zoom Function Using the Zoom Function (DVD/VCD)

1. During play or pause mode, press the TOOLS buttons on the remote control.

Folder Selection The folder can be selected both in Stop or Play mode. - To select the Parent Folder Press the RETURN button to go to parent folder, or press the π/† buttons to select “..” and press ENTER to go to the parent folder. - To select the Peer Folder Press the π/† buttons to select the desired folder, then press ENTER. - To select the Sub-Folder Press the π/† buttons to select the desired folder, then press ENTER. Clips Menu for MP3/WMA/JPEG/MPEG4/CD Audio CD Audio or discs with MP3/WMA/JPEG/MPEG4 contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders. To go access these folders and the files in them, follow these steps :

1. Open the disc tray. Place the disc on the tray.

2. Close the tray. The tray closes and the Parent Folder Menu screen

appears (top screen image.) Parent folders contain all the Peer folders that have the same kind of content: music, video, photos, etc.

3. Press the √/® buttons to select the Parent folder of your choice, and then

press the ENTER. A screen displaying the Peer folders appears. The Peer folders contain all the fold- ers with the same kind of content (video, music, photos, etc.) that are in the Parent folder. Videos \ 1/2 PagesCD Pages Move Return Note - Depending on a disc, the Bookmark function may not work. CD-R MP3/WMA file When you record MP3 or WMA files on CD-R, please refer to the following. - Your MP3 or WMA files should be ISO 9660 or JOLIET format. ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft’s DOS and Windows, and with Apple’s Mac. This format is the most widely used.

When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma” as the file extension. General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 char- actersorless,havenospacesinthename,andavoidtheuseofspecialcharactersincluding:(.,/,\,=,+). - Use a decompression transfer rate of at least 128 Kbps when recording MP3 files. Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played prop- erly. - Use a decompression transfer rate of at least 64Kbps when recording WMA files. Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly. Sampling rate that can be supported for WMA files is > 30Khz. - Do not try recording copyright protected MP3 files. Certain “secured” files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media

(registered trade mark of Microsoft Inc) and SDMI

(registered trade mark of The SDMI Foundation). You cannot copy such files. - Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files). - This unit can play a maximum of 500 files and 500 folders per disc. MPEG4 Playback MPEG4 Play Function AVI files are used to contain the audio and video data. Only AVI format files with the “.avi” extensions can be played.

1. Open the disc tray. Place the disc on the tray. Close the tray.

2. Press the √/® buttons to select a Videos Menu , then press the ENTER. Press the π/† to select

an avi file (DivX/XviD) then press the ENTER. Press the π/† and then press the ENTER button. Repeat/Random playback Press the REPEAT button to change the playback mode. There are four modes, such as Off, Track, Folder and Random. - Off (

): Repeats the current song file. - Folder (

): Repeats the song files which have the same extension in the current folder. - Random (

): Song files which have the same extension will be played in random order. To resume normal play, press the REPEAT button until the Repeat : Off.9 Repeat and Repeat A-B playback

buttons to change playback mode. There are 3 modes, such as Off, Folder and Title. - Off : No Repeat mode. - Title : repeats the title that is playing. - Folder : repeats the AVI files which have the same extension in the current folder. Repeat A-B playback (Only DVD-D360K)

1. Press the REPEAT button on the remote control. The repeat screen appears.

2. Press the π/† button

to select the REPEAT A-B and then press ENTER.

3. Press the ENTER at the point where you want repeat play to start (A).

4. Press the ENTER at the point where you want repeat play to start (B).

Repeat A-B playback (Only DVD-D530K/D530)

1. Press the REPEAT A-B button on the remote control.

2.Press the REPEAT A-B button at the point where you want repeat play to start (A).

Press the REPEAT A-B button at the point where you want the repeat play to stop (B) - To return to normal play, press the REPEAT A-B button until the display shows Repeat : Off

A-B REPEAT allow you to set point (B) directly after point (A) has been set. MPEG4 Function Description Function Description Skip (|k or K|) During play, press the |k or K| button, it moves to next or previous track. Search (k or K) During play, press the SEARCH (k or K) button and press again to search at a faster speed. Allows you to search at a faster speed in an AVI file. (2X, 4X, 8X, 16X, 32X) Slow Motion Play Allows you to search at a slower speed in an AVI file. (1/2, 1/4, 1/8, 1/16) ZOOM X1/X2/X3/X4/Normal in order CD-R AVI fileThis unit can play the following video compression formats within the AVI file format: - DivX 3.11 contents - DivX 4 contents (Based on MPEG-4 Simple Profile) - DivX 5 contents (MPEG-4 simple profile plus additional features such as bi-directional frames. Qpel and GMC are also supported.) - XviD MPEG-4 compliant Contents.

Format that support for DivX file : - Basic DivX format DivX3.11 / 4.12/ 5.x - These functions may not work depending on MPEG4 file. Possible warning messages that may appear when trying to play DivX/AVI files are :

- File with bad registration code.

2. Unsupported Codec

- Files with certain Codec Types, Versions (ex. MP4, AFS and other proprietary codecs) are not suppoerted by this player.

3. Unsupported Resolution

- Files containing resolutions higher than the player’s specification are not supported. - Xvid (MPEG-4 compliant video codec) and DivX Pro - File format : *.avi, *.div, *.divx. This unit supports all resolutions up to maximum below. DivX5 720 x 480 @30fps 720 x 576 @25fps: Maximum bitrate : 4Mbps Note

• Theresolutionthatcanbesupportedby DVD-D530/D530K model up to 720 x 480 @30 frames/ 720 x 576 @25 frames.

• ThisunitsupportsCD-R/RWwrittenin MPEG4 in accordance with the “ISO9660 format”. Fast playback To play back the disc at a faster speed, press (k/K) during playback

Playing Media Files Using the USB Host feature You can enjoy the media files such as pictures, movies andtunes saved in an MP3 player, USB memory or digital camera in high audio by connecting the storage device to the USB port of the DVD Player. Using the USB HOST feature

1. Connect the USB device to the USB port on the front of the unit.

2. The USB Menu screen appears. Press the √/® button to select Menu, then press ENTER.

3. Press the π/† buttons to select a file in the USB device. Press ENTER to Open the file.

Depends on the file size and clip duration, loading time on USB may take longer than using CD or DVD media.

If there is a Disc in the unit, pressing the DVD button (DVD-D530K/DVD-D530) or USB button (DVD- D360K) will make the player exit the USB menu and load the disc Safe USB Removal

Skip Forward/Back During playback, press the (|k/K|) button.

• Whenthereismorethanonefile,whenyoupresstheK| button, the next file is selected.

• Whenthereismorethanonefile,whenyoupressthe|k button, the previous file is selected. Compatible Devices

1. USB devices that support USB Mass Storage v1.0.(USB devices that operate as a removable disk in

Windows (2000 or later) without additional driver installation.)

2. MP3 Player: Flash type MP3 player.

3. Digital camera: Cameras that support USB Mass Storage v1.0.

• CamerasthatoperateasaremovablediskinWindows(2000orlater)withoutadditionaldriver installation.

4. USB Flash Drive: Devices that support USB2.0 or USB1.1.

• YoumayexperienceadifferenceinplaybackqualitywhenyouconnectaUSB1.1device.

5. USB card Reader: One slot USB card reader and Multi slot USB card reader10

CD Ripping This feature allows you to copy audio files from a disc to a USB device in MP3 format. Open the dics tray. Place the Audio CD(CD DA) disc on the tray, and close the tray. Connect the USB device to the USB port on the front of the unit. Press the DVD button (DVD-D530K/DVD-D530) or USB but- ton (DVD-D360K).

1. Press the TOOLS button to display the Ripping screen.

2. Press the π/† buttons, then press the ENTER button to select files for ripping.

• BetterQuality:192kbps - Device selection, press ENTER to change between partitions on the USB device (max 4). - Select - Unselect, press ENTER to change from Select all (files) or Select none. Note - To cancel copying in progress, press the ENTER button. - To return to the CDDA screen, press the TOOLS button again. - While the CD is being ripped, the player will automatically enter stop mode. - The ripping process is 2.6 times of normal speed. - The DVD player can only rip Audio CD (CD DA) discs. - The USB button does not work while you’re in the Ripping menu. - CD ripping function may not supported for some MP3 players device. Picture CD Playback

1. Select the desired folder.

2. Press the π/† buttons to select a Picture file in the clips menu and then press the ENTER button.

6. If you use a USB extension cable, the USB device might not be recognized.

• CBI(Control/Bulk/Interrupt)isnotsupported.

• DigitalCamerasthatusePTPprotocolorrequireadditionalprograminstallationwhenconnectedtoa PC are not supported.

• AdeviceusingNTFSfilesystemisnotsupported.(OnlyFAT16/32(FileAllocationTable16/32)file system is supported.)

• SomeMP3players,whenconnectedtothisproduct,maynotoperatedependingonthesectorsizeof their file system.

• TheUSBHOSTfunctionisnotsupportedifaproductthattransfersmediafilesbyitsmanufacturer- specific program is connected.

• TheUSBHostdoesnotsupportUSBHardDiscDrives(HDD). Note

Depending on a file size, the amount of time between each picture may be different from the manual.

If you don’t press any button, the slide show will start automatically in about 10 seconds by default. MP3-JPEG Playback You can play JPEG using music as a backgound.

1. Press the π/† buttons to select an MP3 file in the clips menu and then press the ENTER button.

• Rotation Press the TOOLS button to select Rotate, and then press the ENTER button. Press the √/® button to rotate the screen 90 degrees to the left/right.

Zoom Press the TOOLS button to select Zoom, and then press ENTER. Each time ENTER button is pressed, the picture is enlarged. Zoom mode : X1-X2-X3-X4-X1.

• Skip Picture Press the |k or K| button to select previous or next picture.

• Slide Show Press the PLAY (®) button to start SLIDE function. Press the PAUSE (∏∏) button to stop SLIDE function. To continue slide show press PLAY button. Note - Depending on a file size, the amount of time between each picture may be different from the set interval time. - The image may be displayed at a smaller size depending on the picture size when displaying images in HD-JPEG mode. - It is recommended to set the “BD Wise” to “Off” In case of playback JPEG image file bigger than 720 X 480 pixel size. Picture CD Playback for HD-JPEG (Only DVD-D530K/ DVD-D530) Must connect to HDMI. Resolution should be 720p/1080i/ 1080p, and HD-JPEG should be in HD mode.

1. Select the desired folder.

2. Press the π/† buttons to select a Picture file in the clip menu and then press the ENTER button.

• PresstheSTOP(■) button to return to the clips menu.

• WhenplayingaKodakPictureCD,theunitdisplaysthePhotodirectly,nottheclipsmenu. Rotation - Press the TOOLS button to select Rotate, and then press the ENTER button. - Each time the √/® buttons are pressed, the picture rotates 90 degrees clockwise. - Each time the π button is pressed, the picture will reverse to the upside down to show a mirror image. - Each time the † button is pressed, the picture will reverse to the right side to show a mirror image. Zoom - Press the TOOLS button to select Zoom, and then press the ENTER button. - Each time ENTER button is pressed, the picture is enlarged. Zoom mode : X1-X2-X3-X4-X1. Slide Show - When you press the PLAY at JPEG file, it will go to full screen mode and automatically slide show.11 CD-R JPEG Disc - Only files with the “.jpg” and “.JPG” extensions can be played. - If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played. - Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played. - The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces orspecialcharacters(./=+). - Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi- session disc, the disc can be played only up to the blank segment. - A maximum of 500 images can be stored on a single CD. - Kodak Picture CDs are recommended. - When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played. - Kodak Picture CD: The JPEG files in the pictures folder can be played automatically. - Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu. - Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu. - QSS Picture CD: The unit may not play QSS Picture CD. - If the number of files in 1 Disc is over 500, only 500 JPEG files can be played. - If the number of folders in 1 Disc is over 500, only JPEG files in 500 folders can be played. Note MP3 and JPEG files have to be on the same disc. To return to the menu screen, Press the RETURN or MENU buttons.

2. Press the √/® buttons to select Photos Menu, and then press the ENTER button.

Press the π/† buttons to select a JPEG file in the clips menu and then press the ENTER button. - Music will play from the beginning

3. Press Stop button when you want to stop the playback.

Echo/Microphone Volume/Key Control (Tone control)

1. Play the karaoke disc containing the songs you want.

- Press the KARAOKE (†) button, and then press π/† to select ECHO, VOL or KEY.

2. Press the √/® buttons to change the desired item.

Karaoke Functions Karaoke functions (Only DVD-D530K/D360K) Operation Sequence

1. Connect the terminals Mixed Audio Out to TV or Amplifier.

2. Connect the microphone plug to Mic (microphone) and set Karaoke score to On. When MIC is con-

nected and Karaoke score is On, the karaoke functions can be used. Karaoke Scoring (Score) The scoring will appear as :

1. The microphone is connected and Karaoke score is On.

2. At the end of each chapter/title of karaoke disc.

- If the DVD karaoke have any information on the scoring drive. Note - If you hear feedback(squealing or howling) while using the karaoke feature, move the microphone away from the speakers or turn down the microphone volume or the speaker volume. - When playing MP3, WMA and LPCM disc, the karaoke functions will not operate. - When the MIC is connected, Digital Out does not work. - The MIC sound outputs only from Analog Audio Out. - If MIC is connected to the MIC jack on the front panel, 5.1CH audio will be changed in to 2 CH audio automatically, this condition can’t be change unless the MIC is plugged out. Karaoke Sound Recording

1. Insert USB storage media into USB jack and then connected the microphone plug to Mic.

2. To star karaoke recording, choose one of VCD/DVD/SVCD file, then press RECORD button.

3. When recording, user can only press STOP button and PAUSE button to cancel the recording.

4. If user do cancelation, then file result will be saved.

Using the Setup Menu Changing setup menu The Setup menu lets you customize your DVD player by allowing you to select various language prefer- ences, set up a parental level, even adjust the player to the type of television screen you have.

4. To make the setup screen disappear after setting up, press the RETURN button.

Setting Up the Display Options Display options enable you to set various video functions of the player.

Setting Up the BD Wise (Only DVD-D530K/D530) When the player is connected to a SAMSUNG TV which supports “BD Wise”,you can enjoy optimized Picture Quality by setting the “BD Wise” function as “On”.

Press the π/† buttons to select ON/OFF, then press the ENTER button. - In case of VCD, the device can not differentiate between hard karaoke or movies, then the scoring will always appear.

3. Karaoke score will appear at the end of time for each chapter/title for about 6s.12

• This option can be changed only when TV support BD Wise.

• Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan set- tings in the TV’s menu system.

• If Video Output is set incorrectly, the screen may be blocked.

• The resolutions available for HDMI output depend on the connected TV or projector. For details, see the user’s manual of your TV or projector.

• When the resolution is changed during playback, it may take a few seconds for a normal image to appear.

• If you set the HDMI output resolution 720p,1080p or 1080i, HDMI output provides better pic- ture quality.

• It is recommended to set the "BD Wise" to "Off" In case of playback JPEG image file bigger than 720 X 480 pixel size. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trade- marks of Dolby Laboratories. HDMI (Only DVD-D530K/D530) - If your TV is not compatible with compressed multi-channel formats (Dolby Digital, MPEG), you should set Digital Audio to PCM. - If your TV is not compatible with LPCM sampling rates over 48kHz, you should set PCM Down sam-pling to On. Setting Up the Audio Options Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

Note : - When play a disc that has MPEG Audio and you have Bitstream selected in the Audio Options menu, the Digital Audio jack may not output audio - There is no analogue audio output when you play a sound disc. - Even when PCM Down sampling is Off

Setting Up the Anynet+(HDMI-CEC) (Only DVD-D530K/D530) Anynet+isafunctionthatcanbeusedtooperatetheunitusingaSamsungTVremotecontrol,by connecting the DVD D530/D530K to a SAMSUNG TV using a HDMI Cable. (This is only available with SAMSUNGTVsthatsupportAnynet+. Select On when you connect the DVD D530/D530KwithSamsungTVthatsupportAnynet+.

• BypressingthePLAY button of the unit while watching TV, the TV screen will change to the play screen.

• IfyouchangetheHDMItoothersources(Composite,Component,...etc)inTVwhileplayingtheDVD disc, the DVD Player will stop playing. Setting Up the Language Features If you set the player menu, disc menu, audio and subtitle language in advance, they will come up auto- matically every time you watch a movie.

Note - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU button. - If the selected language is not recorded on the disc, the original pre-recorded language is selected. - Select “Original” if you want the defaultsoundtrack language to be the original language the disc is recorded in. - Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio language.

Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.13 Security Levels : ❶ KID SAFE ❷ G (General Audiences) : All Ages Admitted ❸ PG (Parental Guidance suggested) : Some material may not be suitable for young children. ❹ PG 13 (PG-13 Parents strongly cautioned) : Some material may be inapproriate for children under

❺ PGR (Parental Guidance Recommended) : These are not necessarily unsuitable for children, but viewer discretion is advised, and parents and guardians are encouraged to supervise younger viewers. ❻ R (Restricted) : Under 17 requires accompanying adult ❼ NC17 (NC-17) : No one 17 and under admitted. ❽ ADULT Note: - If you have forgotten your password, see “Forgot Password” in the Troubleshooting Guide. Setting Up the General Options

Setting Up the Support Options Support option enable you to check your DVD player information such as the model code, Software Version, The serial and version numbers can be found on the back side of your DVD-Player.

Select PRODUCT INFORMATION, then press the

or ENTER button. Setting Up the Security Options The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc. Setting Up the Rating Level and Changing the Password

Enter your password.

4. Press the π/† buttons to select the rating level you want, and then press the ENTER button.

e.g) Setting up in KID SAFE - For example, if you select the Kids Safe level, discs that contain level 2 or higher will not play.

5. Enter your password. If this is the first time, enter 0000. Then, enter a new password. The new pass-

word must be a number other than 0000 to activate the parental control function. Then, re-enter the new password. Troubleshooting Reference Problem Action The screen is blocked.

• Press the ®|| button (in front panel) for more than 5 seconds under no disc inside. All setting will revert to factory settings. Forgot password.

• Press the ®|| button (in front panel) for more than 5 seconds under no disc inside. All setings including the password will revert to the factory settings. Don't use this unless absolutely necessary. No HDMI output

• Check the Video output is HDMI enabled.

• Check the connection between the TV and the HDMI jack of DVD player.

• See if the TV supports this 480p/ 576p/720p/1080i/1080p DVD player. Abnormal HDMI output screen.

• If snow noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection). HDMI output Jitter

• Check your TV system setup correctly.

• The screen Jitter phenomenon may occur when frame rate is converted from 50Hz to 60 Hz for 720p/1080i/ 1080p HDMI (High Definition Multimedia Interface) Output.

• Please refer to the user's manual of your TV. Before requesting service (troubleshooting), please check the following.14 Memo Spesifications General Power Requirements AC110~240V, 50/60Hz Power Comsumption For the power supply and power con- sumption, refer to the label attached to the product Weight

): Lecture normale - Track (Plage) (

3. Unsupported Resolution (Résolution non prise

.ﻝﻳﻐﺷﺗﻠﺍ ﺀﺩﺑﻠ RETURN

(DVD-D360K) (A-B ﺭﺍﺭﻛﺘ) REPEAT A-B -

.ﺔﺷﺎﺸﻟﺍ ﻢﺠﺣ ﺮﻴﻐﺘﻳ π/†

(ﻲﺌﺍﻮﺸﻋ) Random - .(Repeat: Off)
