28504 - Tent ROLLEI - Free user manual and instructions

Product type	Portable photo studio (light tent) with integrated LED lighting
Brand	Rollei
Model	28504 (Light Box 40x40 cm)
Dimensions (unfolded)	40 × 40 × 40 cm
Dimensions (folded)	40 × 40 × 4 cm
Weight	809 g
Power supply	USB 5 V (USB cable included)
Power consumption	2 × 500 mA (1 A total)
LED lighting	2 light bars, 2 × 6 W
Color temperature	6500 K (neutral white light)
Brightness	2 × 1680 lumens
Included accessories	White background, black background, USB cable
Top opening	Removable cover for top-down shooting
Recommended use	Product photography, objects up to 25 × 25 cm
Setup	Unfolding by pulling, assembly by snap buttons
Folding	Step-by-step folding, compact storage
Materials	Diffuser fabric, foldable metal frame
Maintenance	Clean with a soft, dry cloth
Safety	Do not expose to water or moisture, indoor use only
Compliance	CE (EMC Directive 2014/30/EU)

Frequently Asked Questions - 28504 ROLLEI

How to unfold the Rollei 28504 light tent?

Gently pull the ends of the tent to unfold it. Then connect the three side walls using the snap buttons. The walls automatically lock into place.

How to install the backgrounds?

Insert the background (white or black) into the slots provided inside the tent. It slides easily between the walls.

How to turn on the LEDs?

Connect the LED light bars to the included USB cable, then plug this cable into a USB power source (power adapter, power bank, computer). The LEDs turn on automatically.

Can I take photos from above?

Yes, remove the cover attached with Velcro on top of the tent. You can then photograph your object from above.

What is the maximum recommended object size?

The tent can accommodate objects up to approximately 25 × 25 cm.

How to fold the tent after use?

Disassemble the tent from the top and bottom. First fold the top and center walls, then fold the top side over the back. Finally, fold the bottom side over the top and insert the ends into the opening.

What is the color temperature of the LEDs?

The LEDs emit neutral white light at 6500 K, ideal for product photography.

Can I use the tent with a smartphone?

Yes, the tent is designed to be used with any camera, including smartphones. Place your phone in the front opening or from above if the cover is removed.

How to clean the light tent?

Use a soft, dry cloth to dust the fabric. Avoid chemicals or water that could damage the diffuser.

Where to find the CE declaration of conformity?

The CE declaration of conformity can be requested at the address indicated on the warranty card provided with the product.

USER MANUAL 28504 ROLLEI

1. Light box with 2 LED light bars
2. Black background
3. White background
4. USB cable

This light box is suitable for shooting products with a maximum size of up to 25 × 25cm and it can be used nearly anywhere and at any time. It is recommended to be used as a temporary studio with excellent easy-to-use feature and premium portability, especially when you are travelling. Remove the round cover at the top of the light box to take photos from above.

Technical Features:

Power LED 2x6W

Voltage 5V

Current Consumption 2 × 500 ~mA (1 A)

Colour Temperature 6500 K

Brightness 2x1680lm

Dimensions 40 × 40 × 40 cm , folded: 40 × 40 × 4 cm

Weight 809 g

Unfolding Steps:

Unfold the studio with pulling from the edge. It will be opened easily and smoothly.

Connect the three sidewalls together by using snap buttons. The sidewalls will get automatically in the correct position.

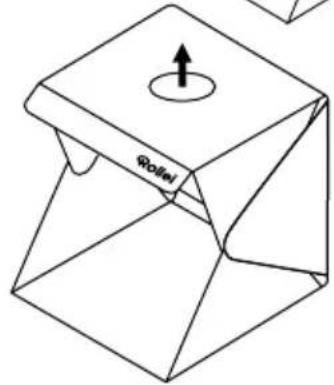

Insert the the background (white or black as desired) and connect the LED lights with the USB cable to your power supply. To take photos from above of the light box please remove the cover.

Folding Steps:

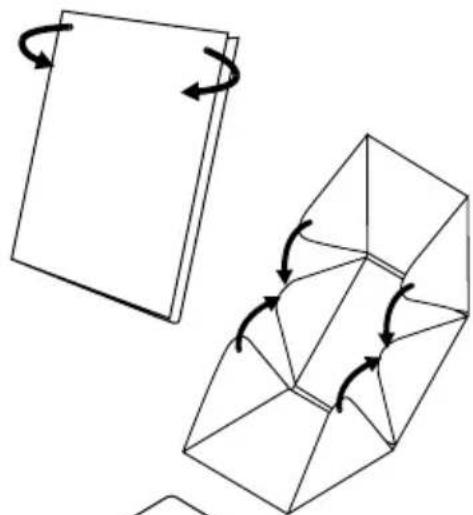

Pull apart the photo studio from the top and bottom. It will be unfolded easily.

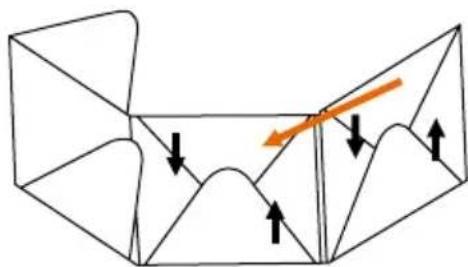

Fold down the sides of the top and the middle. Then fold the top side onto the back side as shown in the picture.

Then fold the bottom side onto the top one and put the edges into the gap between the top and the background part.

Disposal

Dispose of packaging: For disposal, separate packaging into different types. Cardboard and board must be disposed of as paper and foil must be recycled.

Disposal of old devices: Applicable in the European Union and other European countries with systems for the separate collection of reusable materials. Do not dispose old devices into the household waste! If the Rollei Light Box 40 × 40 cm is no longer used, every consumer is legally obli gated to

dispose them separately from the household waste, for example, at a collection site of his community / city district. This ensures that devices are properly recycled and negative effects on the environment are avoided. Therefore electrical and electronic equipment needs to be marked with the shown symbol.

CE Conformity

The Manufacturer hereby declares that the CE marking was applied to the Rollei Light Box 40 × 40 cm in accordance with the basic require ments and other relevant provisions of the following CE Directives:

2011/65/EC RoHs Directive

2014/30/EC Low Voltage Directive

2002/96/EG WEEE Directive

The EC Declaration of Conformity can be requested from the address specified on the Warranty card.
