SERIES 6 LED TV user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model ____ Serial No. ____

SAMSUNG

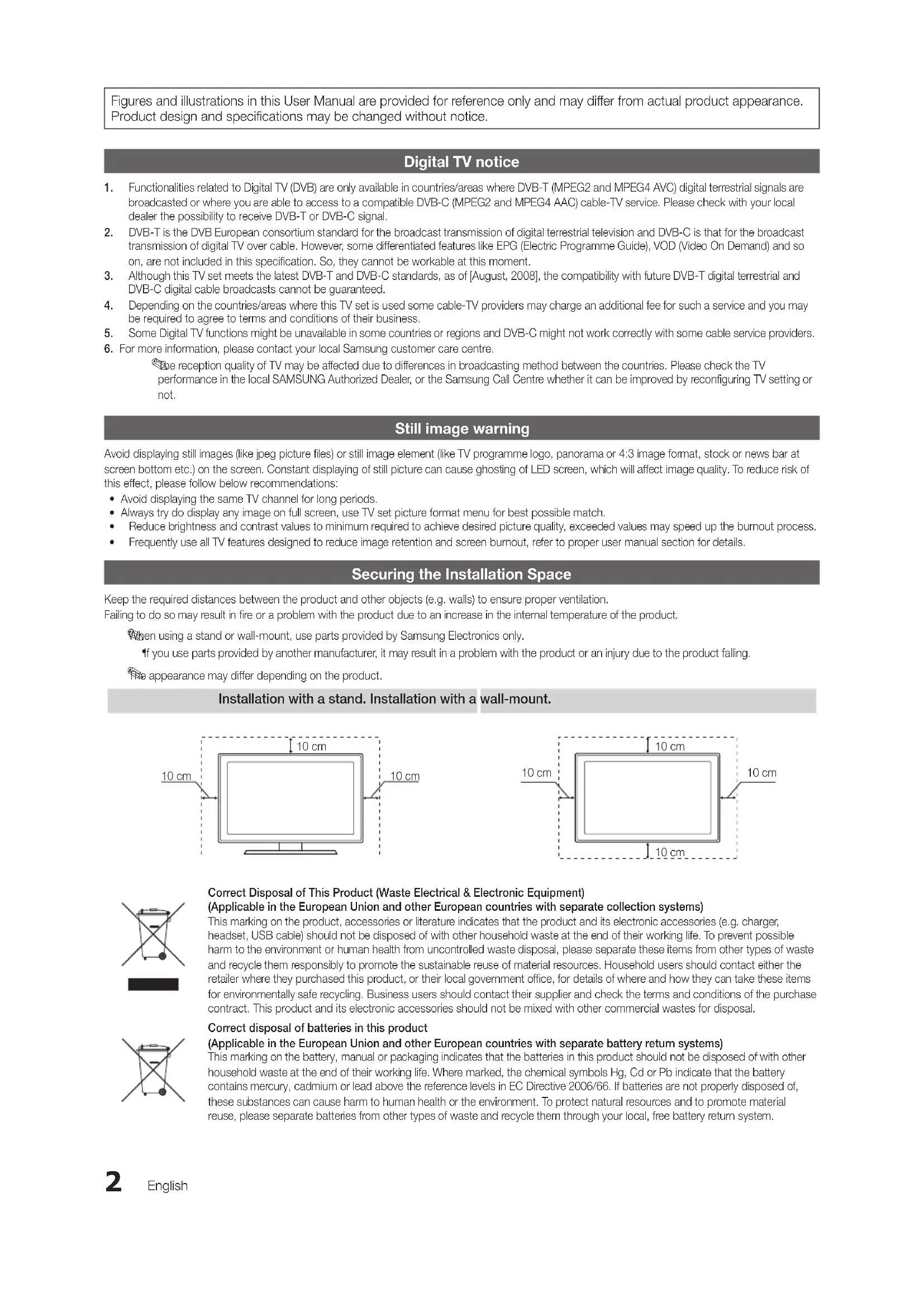

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.
2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.
3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.
4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.
5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.
6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

Still image warning

Avoid displaying still images (like jpeg picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.
  • Always try do display any image on full screen, use TV set picture format menu for best possible match.
• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.
  • Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

Installation with a stand. Installation with a wall-mount.

10 cm 10 cm 10 cm

10 cm 10 cm 10 cm 10 cm

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Contents

Getting Started

4

4 Accessories
5 Viewing the Control Panel
6 Viewing the Remote Control
7 Connecting to an Antenna
7 Plug & Play (Initial Setup)

Connections

8

8 Connecting to an AV Device
9 Connecting to an Audio Device
10 Changing the Input Source

Basic Features

11

11 How to Navigate Menus
11 Using the INFO button (Now & Next guide)
11 Planning Your Viewing
13 Channel Menu
15 Picture Menu
18 Sound Menu
20 Setup Menu
23 Support Menu

Advanced Features

24

24 Connecting to a PC
25 Network Connection
32 Media Play
39 Anynet+
42 AllShare

Other Information

44

44 Analogue Channel Teletext Feature
45 Assembling the Cables
46 Installing the Wall Mount
48 Anti-theft Kensington Lock
48 Securing the TV to the wall
49 Troubleshooting
53 Specifications
54 Index

Check the Symbol!

TOOLS

This function can be used by pressing the TOOLS button on the remote control.

Note One-Touch Button

Getting Started

Accessories

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

The items' colours and shapes may vary depending on the models.

Cables not included in the package contents can be purchased separately.

• Remote Control & Batteries (AAA x 2)

- Cleaning Cloth

- Owner's Instructions

Power Cord

• Warranty Card / Safety Guide (Not available in some locations)

- Blanking Bracket

- Holder-Ring (4EA)

- Holder-Wire stand

- Cable Tie

- Holder-Wire (3EA)

• Power Code Clamp

- Component Adapter

- AV Adapter

- SCART Adapter

See separate guide for installing the stand.

Simple line drawing of a rectangular plate with a small square top and a central circular base (no text or symbols)

• Stand (1EA)

• Guide Stand (1EA)

5EA (M4 X L12)

5EA (M4 X L8)
- Screws (10EA)

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

• Maximum thickness - 0.55 inches (14mm)

Viewing the Control Panel

product colour and shape may vary depending on the model.

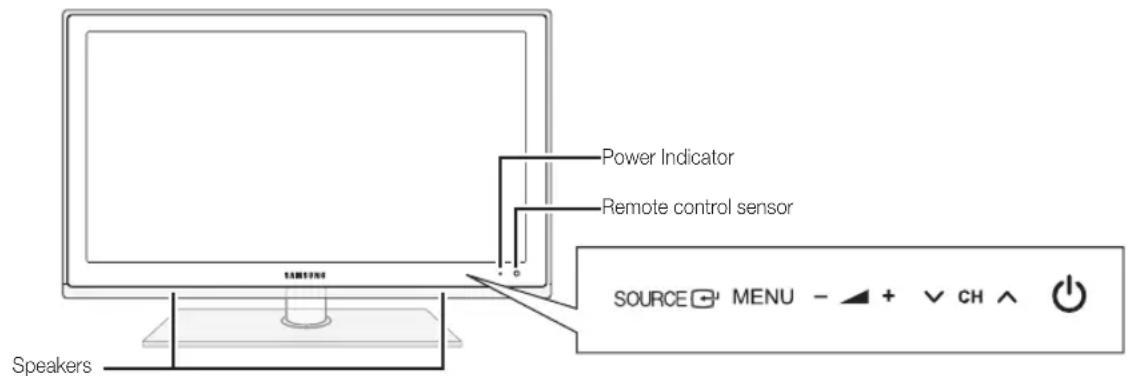

Power Indicator Remote control sensor SOURCE MENU - + CH ↑ Speakers

Remote control sensor Aim the remote control towards this spot on the TV.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

SOURCE ☐ Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER ☐ button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display) of your TV's features.

- ▲+	Adjusts the volume. In the OSD, use the - ▲+ buttons as you would use the ◀ and ▶ buttons on the remote control.
▽ CH ∧	Changes the channels. In the OSD, use the √ CH ∧ buttons as you would use the ▼ and ▲ buttons on the remote control.
○ (Power)	Turns the TV on or off.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

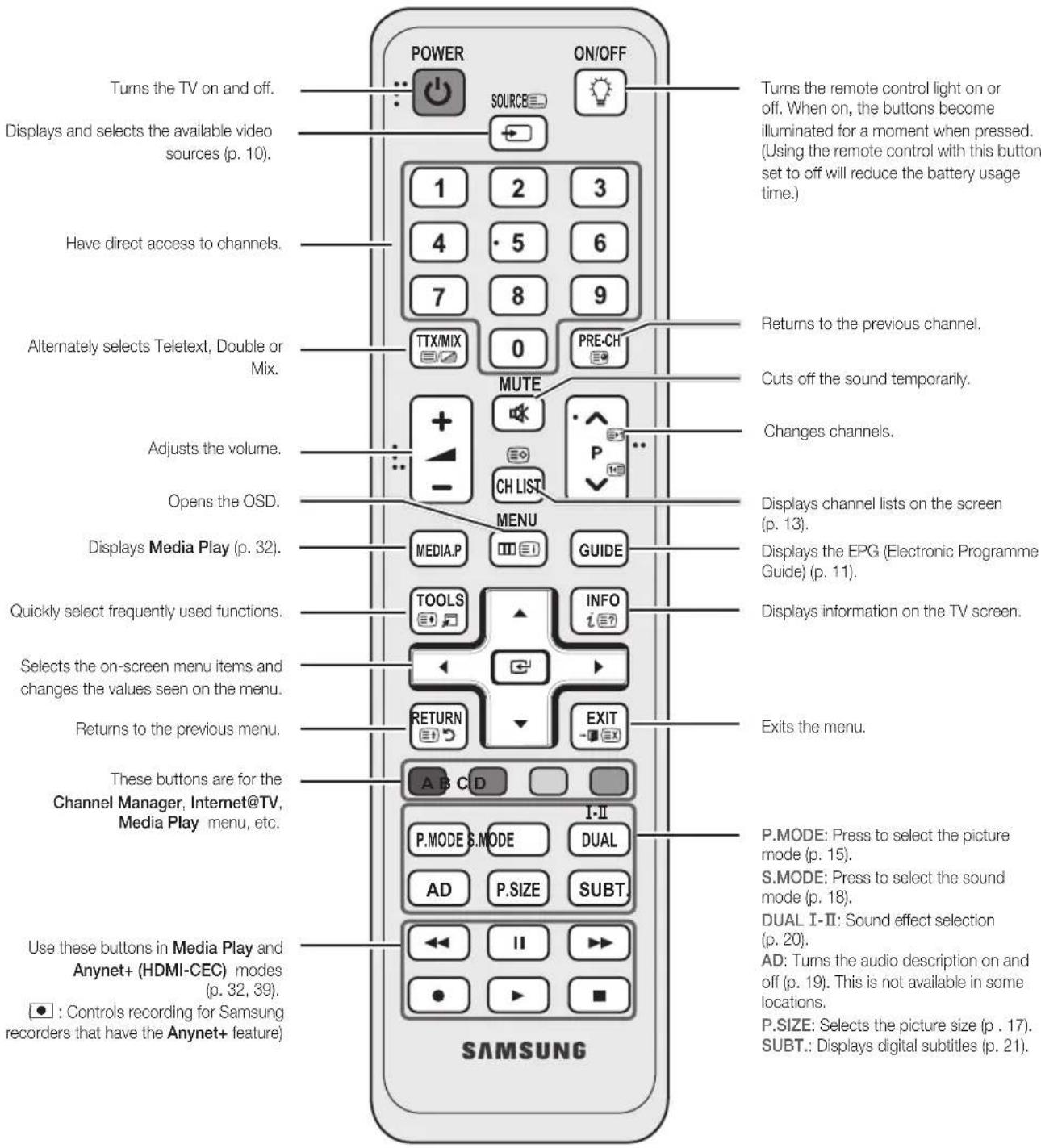

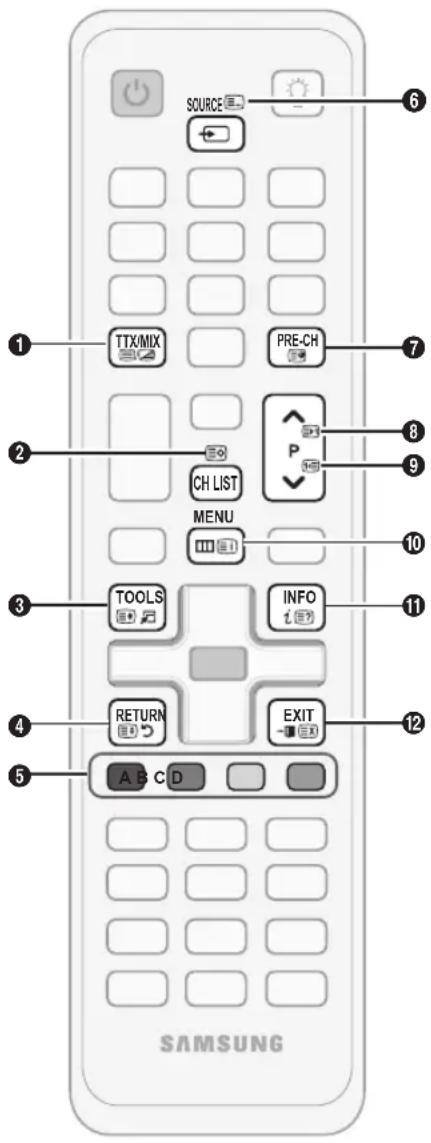

Viewing the Remote Control

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and Volume buttons.

TURNS the TV on and off. Displays and selects the available video sources (p. 10). Have direct access to channels. Alternately selects Teletext, Double or Mix. Adjusts the volume. Opens the OSD. Displays Media Play (p. 32). Quickly select frequently used functions. Selects the on-screen menu items and changes the values seen on the menu. Returns to the previous menu. These buttons are for the Channel Manager, Internet@TV, Media Play menu, etc. Use these buttons in Media Play and Anynet+ (HDMI-CEC) modes (p. 32, 39). ●: Controls recording for Samsung recorders that have the Anynet+ feature) POWER SOURCE ON/OFF 1 2 3 4 5 6 7 8 9 TTX/MIX 0 PRE-CH MUTE + - CH LIST MENU MEDIA.P GUIDE TOOLS INFO I?? RETURN EXIT A B C D P.MODE S.MODE DUAL AD P.SIZE SUBT. I-II P.MODE: Press to select the picture mode (p. 15). S.MODE: Press to select the sound mode (p. 18). DUAL I-II: Sound effect selection (p. 20). AD: Turns the audio description on and off (p. 19). This is not available in some locations. P.SIZE: Selects the picture size (p . 17). SUBT.: Displays digital subtitles (p. 21).

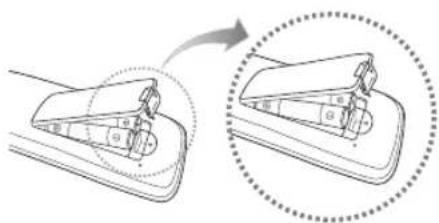

Installing batteries (Battery size: AAA)

Technical diagram showing mechanical assembly with labeled parts and a magnified inset view

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote control.

Avoid using nearby special fluorescent light or neon signs.

The colour and shape may vary depending on the model.

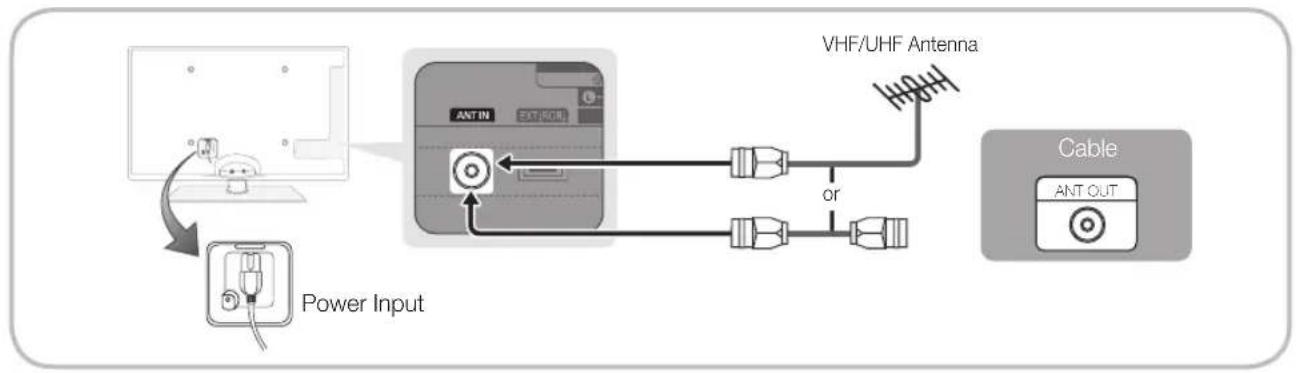

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

Preset: Connecting the mains and antenna.

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWER ⏻ button. Plug & Play is available only when the Input source is set to TV.

To return to the previous step, press the Red button.

1	Selecting a language	Press the ▲ or ▼ button, then press the ENTER ➔ button.Select the desired OSD (On Screen Display) language.
2	Selecting Store Demo or Home Use	Press the ◀ or ▶ button, then press the ENTER ➔ button.Select the Home Use mode. Store Demo Mode is for retail environments.Return the unit's settings from Store Demo to Home Use(standard): Press the volume button on the TV. When you see the volume OSD, press and hold MENU for 5 sec.
3	Selecting a country	Press the ▲ or ▼ button, then press the ENTER ➔ button.Select the appropriate country.After selecting the country in the Country menu, some models may proceed with an additional option to setup the pin number.When you input the PIN number, "0-0-0-0" is not available.
4	Selecting an antenna	Press the ▲ or ▼ button, then press the ENTER ➔ button.Select Air or Cable.
5	Selecting a channel	Press the ▲ or ▼ button, then press the ENTER ➔ button.Select the channel source to memorise. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Store (p. 13).Press the ENTER ➔ button at any time to interrupt the memorization process.
6	Setting the Clock Mode	Set the Clock Mode automatically or manually.Press the ▲ or ▼ button to select Auto, then press the ENTER ➔ button.
7	Time Zone	Press the ▲ or ▼ button to select the your time zone, then press the ENTER ➔ button.(depending on the country)
8	Viewing the HD Connection Guide.	The connection method for the best HD screen quality is displayed.
9	Enjoy your TV.	Press the ENTER ➔ button.

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is "0-0-0-0." If you want to change the PIN number, use the Change PIN function.

Connecting to an AV Device

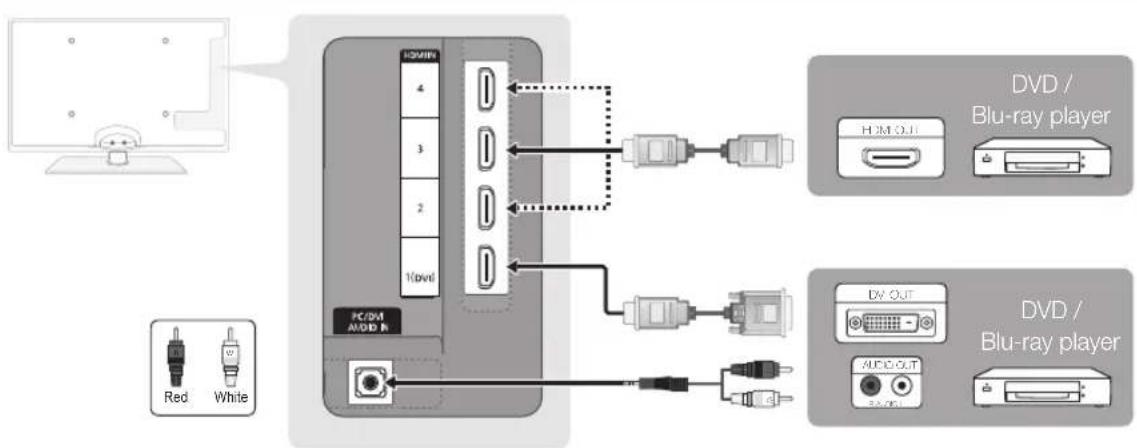

Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, satellite receiver (STB)

HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack for video. A DVD, Blu-ray player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.

If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal colour).

If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade.

It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a connection error may occur.

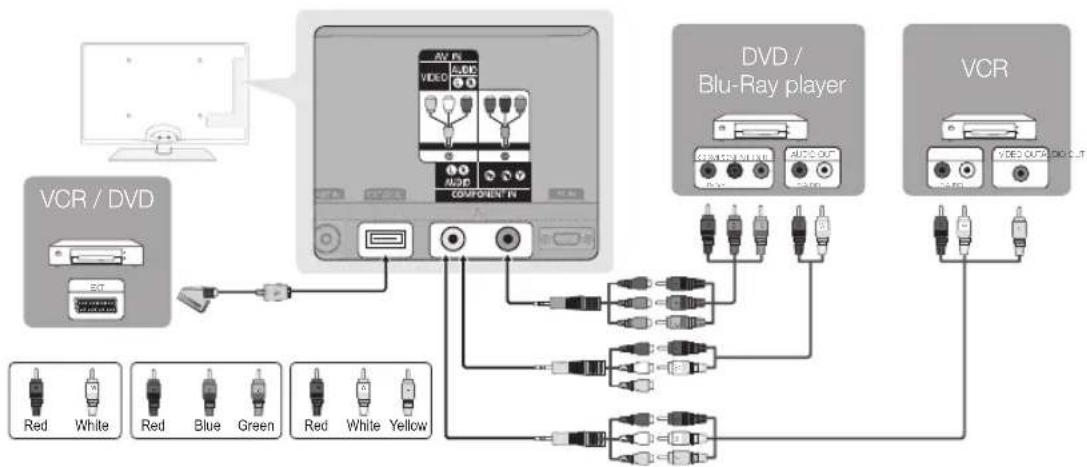

Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable

Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

Connecting to an Audio Device

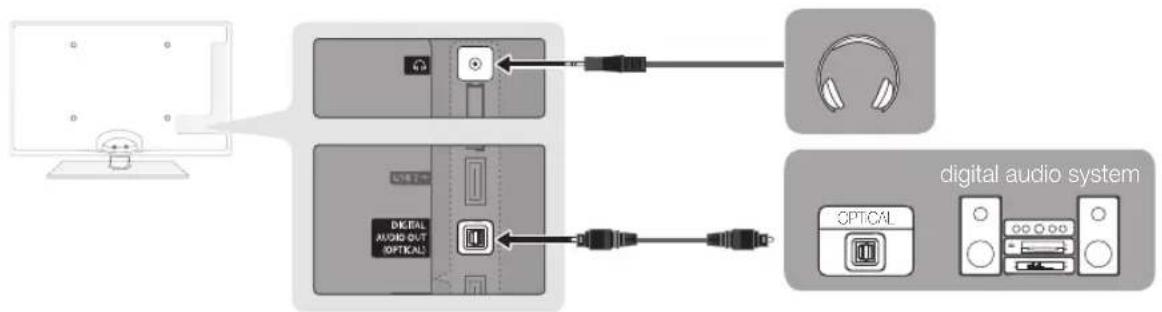

Using an Optical (Digital) or Headphone Cable Connection

Available devices: digital audio system, amplifier, DVD home theatre

DIGITAL AUDIO OUT (OPTICAL)

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.

6.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theatre) is set to on, you can hear sound output from the TV's optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

Headphones 📞: You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

Connections

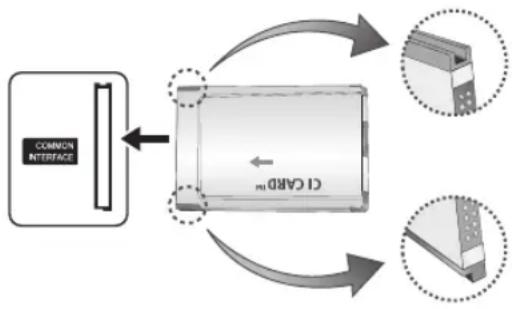

CONNECTIONS COMMON INTERFACE Slot

To watch paid channels, the "CI or CI+ CARD" must be inserted. If you don't insert the "CI or CI+ CARD," some channels will display the message "Scrambled Signal".

The pairing information containing a telephone number, the "CI or CI+ CARD" ID the Host ID and other information will be displayed in about 2\~3 minutes. If an error message is displayed, please contact your service provider.

When the configuration of channel information has finished, the message "Updating Completed" is displayed, indicating the channel list is updated.

NOTE

•You must obtain a "CI or CI+ CARD" from a local cable service provider.
When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it.
Insert the "CI or CI+ CARD" in the direction marked on the card.
The location of the COMMON INTERFACE slot may be different depending on the model.
“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.
If you have any problems, please contact a service provider.
Insert the "CI or CI+ CARD" that supports the current antenna settings. The screen will be distorted or will not be seen.

Changing the Input Source

Source List

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

■TV / Ext. / PC / AV / Component / HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB

In the Source List, connected inputs will be highlighted.
Ext. and PC always stay activated.

Edit Name

■VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA:

Name the device connected to the input jacks to make your input source selection easier.

When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the HDMI IN 1(DVI) port, you should set to DVI PC mode under Edit Name.
When connecting an HDMI/DVI cable to the HDMI IN 1(DVI) port, you should set to DVI PC or DVI Devices mode under Edit Name.

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.


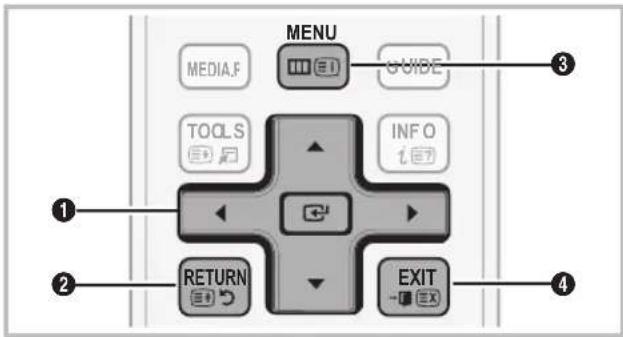

① ENTER/ Direction button: Move the cursor and select an item. Confirm the setting.
② RETURN button: Returns to the previous menu.
3 MENU button: Displays the main on-screen menu.
④ EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1	MENU	The main menu options appear on the screen:Picture, Sound, Channel, Setup, Input, Application, Support.
2	▲ / ▼	Select an icon with the ▲ or ▼ button.
3	ENTER	Press ENTER to access the sub-menu.
4	▲ / ▼	Select the desired submenu with the ▲ or ▼ button.
5	◀ / ▶	Adjust the value of an item with the ◀ or ▶ button. The adjustment in the OSD may differ depending on the selected menu.
6	ENTER	Press ENTER to complete the configuration.
7	EXIT →	Press EXIT.

Using the INFO button (Now & Next guide)

The display identifies the current channel and the status of certain audio-video settings.

The Now & Next guide shows daily TV programme information for each channel according to the broadcasting time.

• Scroll ◀, ▶ to view information for a desired programme while watching the current channel.
• Scroll ▲, ▼ to view information for other channels. If you want to move to the currently selected channel, press the ENTER button.

abc1 DTV Air 15 Life On Venus Avenue Unclassified No Default Information 18:00 ~ 6:00 18:11 Thu 6 Jan Watch Information

Planning Your Viewing

Guide

The EPG (Electronic Programme Guide) information is provided by broadcasters. Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the specified time. Programme entries may appear blank or out of date depending on a

Using Channel View

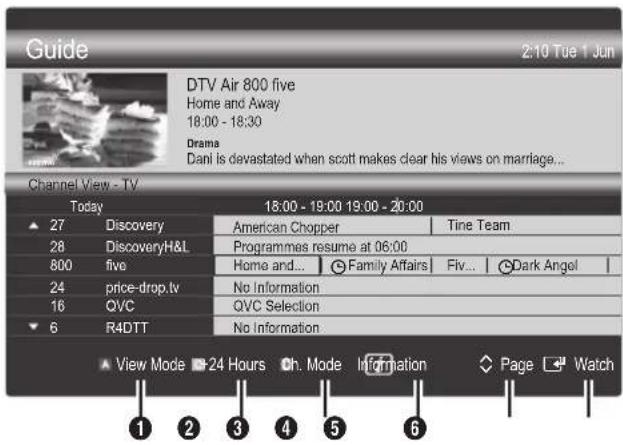

Guide 2:10 Tue 1 Jun DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... Channel View - TV Today 18:00 - 19:00 19:00 - 20:00 27 Discovery American Chopper Tine Team 28 DiscoveryH&L Programmes resume at 06:00 800 five Home and... Family Affairs Fiv... Dark Angel 24 price-drop.lv No Information 16 QVC QVC Selection 6 R4DTT No Information View Mode 24 Hours Ch. Mode Information Page Watch

Basic Features

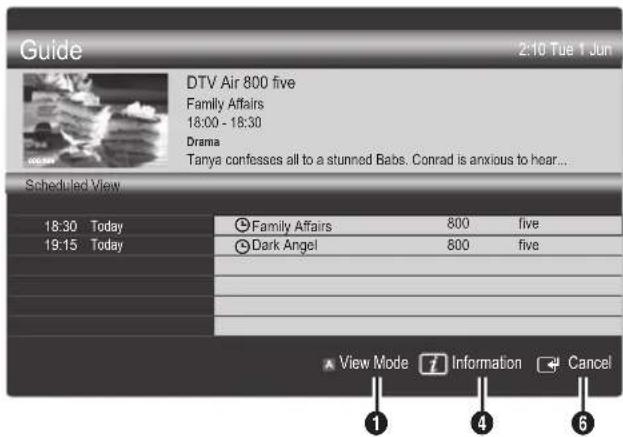

Using Scheduled View

Guide 2:10 Tue 1 Jun DTV Air 800 five Family Affairs 18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear... Scheduled View 18:30 Today 19:15 Today Family Affairs 800 five Dark Angel 800 five View Mode Information Cancel

1 Red (View Mode): View the list of programmes that are playing now or coming up.
2 Yellow (+24 Hours): Viewing the list of programmes to be broadcasted after 24 hours.
③ Blue (Ch. Mode): Select the type of channels you want to display on the Channel View window. (All, TV, Radio, Data/Other, My Channel 1\~4)
4 Information: Displays details of the selected programme.
⑤ (Page): Move to next or previous page.
6 ENTER button

- When selecting the current programme, you can watch the selected programme.

- When selecting the future programme, you can reserve to watch the selected programme. To cancel the schedule, press the ENTER button again and select Cancel Schedules.

Channel Manager

Delete or set favourites channels and use the programme guide for digital broadcasts. Select a channel in the Channels, My Channels or Scheduled screen.

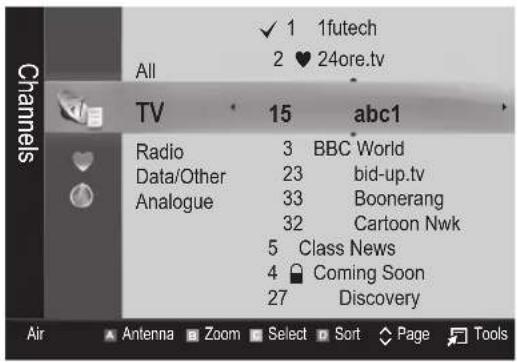

All ✓ 1 1futech 2 ♥ 24ore.tv TV 15 abc1 Radio 3 BBC World Data/Other 23 bid-up.tv Analogue 33 Boonerang 32 Cartoon Nwk 5 Class News 4 Coming Soon 27 Discovery Air Antenna Zoom Select Sort Page Tools

■ Channels: Shows the channel list according to channel type.

My Channels: Shows the group of the channel.
Scheduled: Shows all the currently reserved programmes.

Using the colour buttons with the Channel Manager

Red (Antenna): Toggle among Air or Cable.
- Green (Zoom): Enlarges or shrinks a channel number.
Yellow (Select): Select desired channels and press the Yellow button to set all the selected channels at the same time. The √ mark appears to the left of the selected channels.
Blue (Sort): Change the list ordered by channel name or channel number.

(Page): Move to next or previous page.

- (Tools): Displays the Channel Manager option menu. (The options menus may differ depending on the situation.)

Channel Status Display Icons

Icons Operations
A	An analogue channel.
√	A channel selected.
♥	A channel set as a Favourite.
	A programme currently being broadcast.
	A locked channel.
	A reserved programme.

♥ My Channels

(in Channel Manager)

Shows all favourite channels.

■Edit My Channels TOOLS: You can set the selected channels to desired my channels group.

The “♥” symbol will be displayed and the channel will be set as a my channel.

1. Select a channel and press the TOOLS button.
2. Add or delete a channel in the my channel groups you want among 1, 2, 3 and 4.
   • One or more groups can be selected.
3. After you have changed the settings, the channel list for each group can be viewed in my channels.

All 1futech 2 ♥ 24ore.tv TV 15 Radio 3 Data/Other 23 Analogue 33 32 5 4 27 Edit My Channels Lock Timer Viewing Edit Channel Number Delete Select All Coming Soon Discovery Air Antenna Zoom Select Sort Page Tools

Channel List

You can see all the channels searched.

Channel Menu

Retuning Channels

Antenna (Air / Cable)

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

Country

The PIN input screen appears. Enter your 4 digit PIN number.

■ Digital Channel: Change the country for digital channels.
■ Analogue Channel: Change the country for analogue channels.

Auto Store

Scans for a channel automatically and stores in the TV.

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears.

■Antenna Source (Air / Cable) TOOLS: Select the antenna source to memorise.
■Channel Source (Digital & Analogue / Digital / Analogue): Select the channel source to memorise.

When selecting Cable → Digital & Analogue or Digital: Provide a value to scan for cable channels.

Search Mode (Full / Network / Quick): Scans for all channels with active broadcast stations and stores them in the TV.

If you select Quick, you can set up the Network, Network ID, Frequency, Modulation and Symbol Rate manually by pressing the button on the remote control.

Network (Auto / Manual): Selects the Network ID setting mode among Auto or Manual.

Network ID: When Network is Manual, you can set up Network ID using the numeric buttons.

Frequency: Displays the frequency for the channel. (differs in each country)

Modulation: Displays available modulation values.

Symbol Rate: Displays available symbol rates.

Manual Store

Scans for a channel manually and stores in the TV.

If a channel is locked using the Child Lock function, the PIN input window appears.

■ Digital Channel: When scanning has finished, channels are updated in the channel list.

When selecting Antenna → Air: Channel, Frequency, Bandwidth

When selecting Antenna → Cable: Frequency, Modulation, Symbol Rate

■Analogue Channel (Programme, Colour System, Sound System, Channel, Search): If there is abnormal sound or no sound, reselect the sound standard required.

Channel mode

P (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

• C (aerial channel mode) / S (cable channel mode): These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

Editing Channels

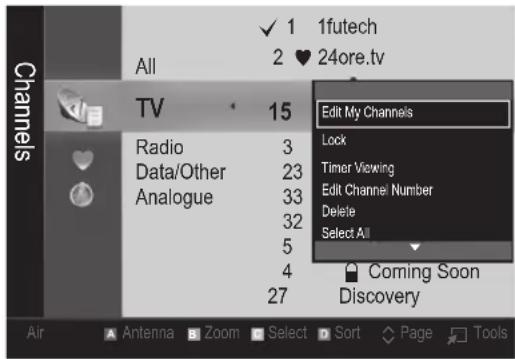

Channel Manager Option Menu

(in Channel Manager)

1. Select a channel and press the TOOLS button.
2. Edit the channel name or number using the Edit Channel Name or Edit Channel Number menu.
   ■ Edit Channel Name (analogue channels only): Assign your own channel name.
   ■ Edit Channel Number (digital channels only): Edit the number by pressing the number buttons desired.

Other Features

Cable Search Option

(depending on the country)

Sets additional search options such as the frequency and symbol rate for a cable network search.

Freq.Start / Freq.Stop: Set the start or stop frequency (differs in each country).
■ Modulation: Displays available modulation values.
■ Symbol Rate: Displays available symbol rates.

Channel Manager

Channel Manager Option Menu

Set each channel using the Channel Manager menu options (Lock / Unlock, Timer Viewing, Sort, Delete, Select All / Deselect All). Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
   ■ Lock / Unlock: Lock a channel so that the channel cannot be selected and viewed.

NOTE

•This function is available only when the Child Lock is set to On.
- The PIN input screen appears. Enter your 4-digit PIN, the default of which is "0-0-0-0". Change the PIN using the Change PIN option.

Timer Viewing: You can set a desired channel to be displayed automatically at the reserved time. Set the current time first to use this function.

When a digital channel is selected, press the ▶ button to view the digital Programme.

■ Sort (analogue channels only): This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.
- Delete: You can delete a channel to display the channels you want.
■ Select All / Deselect All: Select all the channels or deselect all the selected channels in the channel manager.

Scheduled

(in Channel Manager)

You can view, modify or delete a show you have reserved to watch.

■ Change Info: Change a show you have reserved to watch.
■ Cancel Schedules: Cancel a show you have reserved to watch.
Information: Display a show you have reserved to watch. (You can also change the reservation information.)
■ Select All / Deselect All: Select or deselect all reserved programmes.

Channel List Transfer

The PIN input screen appears. Enter your 4 digit PIN number. Imports or exports the channel map. You should connect a USB storage to use this function.

■ Import from USB: Import channel list from USB.
■ Export to USB: Export channel list to USB. this function is available when USB is connected.

Fine Tune

(analogue channels only)

If the signal is weak or distorted, fine tune the channel manually.

tuned channels are marked with an asterisk “*”.

eset the fine-tuning, select Reset.

Picture Menu

Changing the Preset Picture Mode

Mode

Select your preferred picture type.

■Dynamic: Suitable for a bright room.
■Standard: Suitable for a normal environment.
■Natural: Suitable for reducing eye strain.

Natural is not available in PC mode.

■ Movie: Suitable for watching movies in a dark room.

Adjusting Picture Settings

Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

NOTE

In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R) function is not available.

In PC mode, you can only make changes to Backlight, Contrast and Brightness.

Settings can be adjusted and stored for each external device connected to the TV.

Lowering picture brightness reduces power consumption.

Economical Solutions

Eco Solution

■Energy Saving (Off / Low / Medium / High /

Picture Off / Auto) TOOLS: This adjusts the

brightness of the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen.

■ Eco Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room.

If you adjust the Backlight, the Eco Sensor will be set to Off.

Min Backlight: When Eco sensor is On, the minimum screen brightness can be adjusted manually.

If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

■ No Signal Power Off (Off / 15 min / 30 min / 60 min):

To avoid unnecessary energy consumption, set how long you want the TV to remain on if it's not receiving a signal.

Disabled when the PC is in power saving mode.

Changing the Picture Options

Advanced Settings

(available in Standard / Movie mode)

You can adjust the detailed setting for the screen including colour and contrast.

In PC mode, you can only make changes to Dynamic Contrast, Gamma, White Balance and LED Motion Plus.

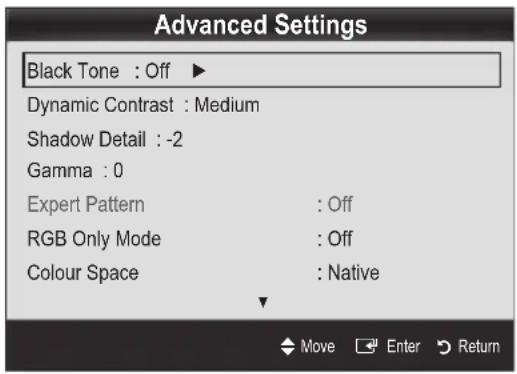

Advanced Settings Black Tone : Off ▶ Dynamic Contrast : Medium Shadow Detail : -2 Gamma : 0 Expert Pattern : Off RGB Only Mode : Off Colour Space : Native Move Enter Return

■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth.
■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast.
■ Shadow Detail (-2\~+2): Increase the brightness of dark images.
■ Gamma: Adjust the primary colour intensity.
■ Expert Pattern (Off / Pattern 1 / Pattern 2): By running the Expert Pattern function, the picture can be calibrated without a generator or filter. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears.
While the Expert Pattern is running, sound is not outputted.
Only enabled in DTV, Component and HDMI modes.
RGB Only Mode (Off / Red / Green / Blue): You can adjust Colour or Tint (G/R) of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.).

Colour Space (Auto / Native / Custom): Adjust the range of colours available to create the image. To adjust Colour, Red, Green, Blue and Reset, set Colour Space to Custom.

■ White Balance: Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour's (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour's (red, green, blue) brightness.

Reset: Resets the White Balance to it's default settings.

■Flesh Tone: Emphasize pink "Flesh Tone."

■ 10p White Balance (Off / On): Controls the white balance in 10 point interval by adjusting the red, green, and blue brightness.

Available when the picture mode is set to Movie and when the external input is set to HDMI or Component.

Some external devices may not support this function.

Interval: Select interval to adjust.

Red: Adjust the red level.

Green: Adjust the green level.

Blue: Adjust the blue level.

Reset: Resets the 10p White Balance to its default settings.

■ Edge Enhancement (Off / On): Emphasize object boundaries.

■ xvYCC (Off / On): Setting the xvYCC mode on increases detail and colour space when watching movies from an external device (e.g. DVD player) connected to the HDMI or Component IN jacks.

Available when the picture mode is set to Movie and when the external input is set to HDMI or Component.

Some external devices may not support this function.

■ LED Motion Plus (Off / On): Removes drag from fast scenes with a lot of movement to provide a clear picture.

Picture Options

In PC mode, you can only make changes to the Colour Tone, Size, Digital Noise Filter and Auto Protection Time.

Picture Options

Colour Tone : Normal ▶

Size : Auto Wide

Screen Mode : 16:9

Digital Noise Filter : Auto

MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off

■Colour Tone (Cool / Normal / Warm1 / Warm2)

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.
Settings can be adjusted and stored for each external device connected to an input on the TV.

■Size: Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9: Adjusts the picture size to 16:9 for DVDs or wide broadcasting.

Wide Zoom: Magnifies the picture size more than 4:3.

Adjusts the Position by using ▲, ▼ buttons.

Zoom: Magnifies the 16:9 wide pictures vertically to fit the screen size.

Adjusts the Position or Size by using ▲, ▼ button.

4:3: The default setting for a movie or normal broadcasting.

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

NOTE

• Depending on the input source, the picture size options may vary.
• The available items may differ depending on the selected mode.
• In PC mode, only 16:9 and 4:3 modes can be adjusted.
• Settings can be adjusted and stored for each external device connected to an input on the TV.
• After selecting Screen Fit in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode: Adjusts the Position or Size by using ▲, ▼, ◀, ► button.
• If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

Screen Mode (16:9 / Wide Zoom / Zoom / 4:3): Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

Net available in PC, Component or HDMI mode.

■Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation): When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best picture is displayed.

Auto Visualisation: When changing analogue channels, displays the intensity of the current signal and defines the screen noise filter.

Only available for analogue channels.

■MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality.

■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth.

Available only in HDMI mode (RGB signals).

■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

■100Hz Motion Plus (Off / Clear / Standard / Smooth / Custom / Demo): Removes drag from fast scenes with a lot of movement to provide a clearer picture.

If noise occurs on the screen, please set up the 100Hz Motion Plus to Off. If 100Hz Motion Plus is Custom, you can set up the Blur Reduction, Judder Reduction or Reset manually.

100Hz Motion Plus is Demo, you can compare the difference of on and off modes.

Basic Features

Blur Reduction: Adjusts the blur reduction level from video sources.

Judder Reduction: Adjusts the judder reduction level from video sources when playing films.

Reset: Reset the custom settings.

■Auto Protection Time (2 hours / 4 hours / 8 hours / 10 hours / Off): If the screen remains idle with a still image for a certain period of time defined by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

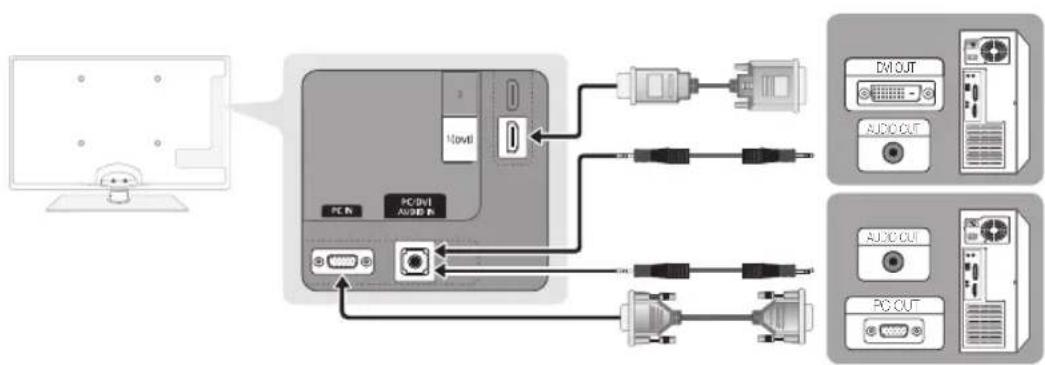

Setting up the TV with Your PC

Set the input source to PC.

Auto Adjustment TOOLS

Adjust frequency values/positions and fine tune the settings automatically.

Not available when connecting with an HDMI/DVI cable.

Screen

Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.

■ Position: Adjust the PC screen position with direction button (▲ / ▼ / ◀ / ▶).

■ Image Reset: Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on "Control Panel" on the Windows start menu.
2. Click on "Appearance and Themes" in the "Control Panel" window and a display dialog-box will appear.
3. Click on "Display" and a display dialog box will appear.

4. Navigate to the "Settings" tab on the display dialog-box.

5. The correct size setting (resolution) [Optimum: 1920 X 1080 pixels]

6. If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Sound Menu

Changing the Preset Sound Mode

SRS TheaterSound

■Standard: Selects the normal sound mode.
■Music: Emphasizes music over voices.
■Movie: Provides the best sound for movies.
■Clear Voice: Emphasizes voices over other sounds.

■ Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.

Adjusting Sound Settings

Equalizer

Adjusts the sound mode (standard sound mode only).

■ Balance L/R: Adjusts the balance between the right and left speaker.
100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies.
■ Reset: Resets the equalizer to its default settings.

Sound Systems, Etc.

SRS TruSurround HD (Off / On) TOOLS

(standard sound mode only)

This function provides a virtual 5.1 channel surround sound experience through a pair of speakers or headphones using HRTF (Head Related Transfer Function) technology.

SRS TruDialog (Off / On)

(standard sound mode only)

This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly.

Audio Language

(digital channels only)

Change the default value for audio languages.

The available language may differ depending on the broadcast.

Audio Format

(digital channels only)

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

Audio Format option may differ depending on the broadcast. 5.1ch Dolby digital sound is only available when connecting an external speaker through an optical cable.

Audio Description

(not available in all locations) (digital channels only)

This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster.

■Audio Description (Off / On): Turn the audio description function on or off.

■ Volume: Adjust the audio description volume.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

When Speaker Select is set to External Speaker

TV Speaker: Off, External Speaker: On

When Speaker Select is set to TV Speaker •TV Speaker: On, External Speaker: On

If there is no video signal, both speakers will be mute.

Additional Setting

(digital channels only)

■ DTV Audio Level (MPEG / HE-AAC): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level.

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

■ SPDIF Output: SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

By connecting to 5.1ch speakers in a Dolby Digital setup, maximize your interactive 3D sound experience.

Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms \~ 250ms).

■ Dolby Digital Comp (Line / RF): This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than -31dB (reference) to either -20dB or -31dB.

RF: Set the output level for signals greater or less than -20dB (reference) to either -10dB or -20dB.

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

Basic Features

Selecting the Sound Mode

When you set to Dual I-II, the current sound mode is displayed on the screen.

	Audio Type	Dual I-II	Default
A2 Stereo	Mono Mono		Automatic change
	Stereo	Stereo ↔ Mono
	Dual	Dual I ↔ Dual II	Dual I
NICAM Stereo	Mono Mono		Automatic change
	Stereo	Mono ↔ Stereo
	Dual	Mono ↔ Dual I ↘ Dual II ↙	Dual I

If the stereo signal is weak and an automatic switching, occurs, then switch to the mono.
Only activated in stereo sound signal.
Only available when the Input source is set to TV.

Setup Menu

Setting the Time

Time

■ Clock: Setting the clock is for using various timer features of the TV.

current time will appear every time you press the INFO button.

If you disconnect the power cord, you have to set the clock again.

Clock Mode (Auto / Manual)

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.
The antenna must be connected in order to set the time automatically.

Clock Set: Set the Day, Month, Year, Hour and Minute manually.

Available only when Clock Mode is set to Manual.

Time Zone (depending on the country): Select your time zone.

When Country is set to Others, you can use this function.
This function is only available when the Clock Mode is set to Auto.

Using the Sleep Timer

■Sleep Timer TOOLS: Automatically shuts off the TV after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes).

To cancel Sleep Timer, select Off.

Setting the On / Off Timer

■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock first.

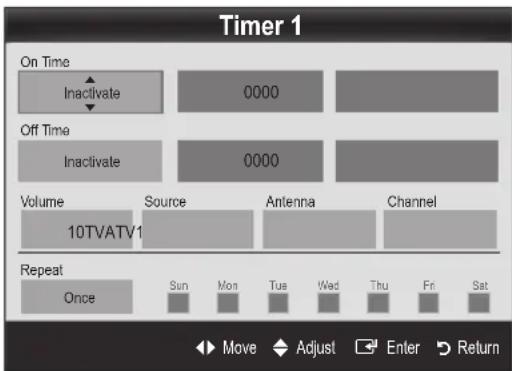

Timer 1 On Time Inactivate 0000 Off Time Inactivate 0000 Volume 10TVATV1 Source Antenna Channel Repeat Once Sun Mon Tue I Wed Thu Fri Sat Move Adjust Enter Return

On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate timer with the setting you've chosen, set to Activate.)

Volume: Set the desired volume level.

Source: Select TV or USB content to be played when the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select ATV or DTV.

Channel (when the Source is set to TV): Select the desired channel.

Contents (when the Source is set to USB): Select a folder in the USB device containing music or photo files to be played when the TV is turned on automatically.

If there is no music file on the USB device or the folder containing a music file is not selected, the Timer function does not operate correctly.
When there is only one photo file in the USB device, the Slide Show will not play.

If a folder name is too long, the folder cannot be selected.

Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon\~Fri, Mon\~Sat, Sat\~Sun or Manual to set at you convenience. If you select Manual, you can set up the day you want to activate the timer.

The √ mark indicates the day is selected.

Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

Locking Programmes

Security

The PIN input screen appears before the setup screen.

Enter your 4-digit PIN, the default of which is "0-0-0-0". Change the PIN using the Change PIN option.

■ Child Lock (Off / On): Lock channels in Channel Manager, to prevent unauthorized users, such as children, from watching unsuitable programme.

Available only when the Input source is set to TV.

■ Parental Lock (Depending on the country): Prevent unauthorized users, such as children, from watching unsuitable programme with a user-defined 4-digit PIN code. If selected channel is locked, the “☐” symbol will be displayed.

Allow All: Unlock All TV ratings (Not supported in France).

When Parental Lock is set to 18, the PIN input screen appears before changing the channels (France only).

You can block TV programs by set up rating in Parental Lock as the I (children), T (All public), SC (Unclassified) and X (X rated). When Parental Lock is set to X, the PIN input screen always before changing the channels (Spain only).

■ Change PIN: Change your personal ID number required to set up the TV.

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to "0-0-0-0": POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

Other Features

Language

■Menu Language: Set the menu language.

■ Teletext Language: Set a desired language for teletext.

English is the default in cases where the selected language is unavailable in the broadcast.

■Preference (Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language / Primary Teletext Language / Secondary Teletext Language): Select a language, which will be the default language when a channel is selected.

Subtitle

Use this menu to set the Subtitle mode.

■Subtitle (Off / On): Switches subtitles on or off.

■Mode (Normal / Hearing Impaired): Sets the subtitle mode.

■Subtitle Language: Sets the subtitle language.

If the programme you are watching does not support the Hearing Impaired function, Normal automatically activates even if the Hearing Impaired mode is selected.

English is the default in cases where the selected language is unavailable in the broadcast.

If the programme broadcasts with digital text, this feature is enabled.

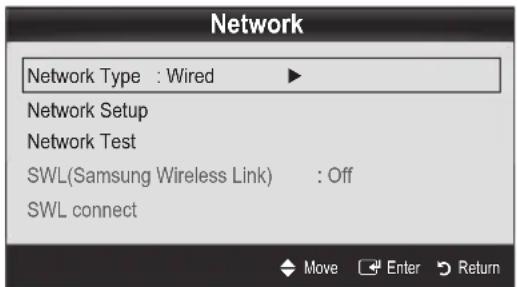

Network (Network Type / Network Setup / Network Test / SWL(Samsung Wireless Link) / SWL connect)

For details on setting up options, refer to the "Network Connection" instructions (p. 25).

Basic Features

General

■ Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

NOTE

Precautions and limitations for game mode

- To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu.

- If you display the TV menu in Game Mode, the screen shakes slightly.

Game Mode is not available when the input source is set to TV or PC.

•After connecting the game console, set Game Mode to On to prevent poor picture quality.

If Game Mode is On: Picture mode is set to Standard and Sound mode is set to Movie.

- Selecting Reset after adjusting the equalizer returns the equalizer to its default settings.

■ BD Wise (Off / On): Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

Available when connecting Samsung products that support BD Wise through a HDMI cable.

■ Menu Transparency (Bright / Dark): Set the Transparency of the menu.

■ Melody (Off / Low / Medium / High): Set so that a melody plays when the TV is turned on or off.

Common Interface

• CI Menu: This enables the user to select from the CAM-provided menu. Select the CI Menu based on the menu PC Card.
  ■ Application Info: View information on the CAM inserted into the CI slot and on the "CI or CI+ CARD" which is inserted into the CAM. You can install the CAM anytime whether the TV is on or off.
• Purchase a CI CAM module at your nearest dealer or by phone.
• Firmly insert the "CI or CI+ CARD" into the CAM in the direction of the arrow.
• Insert the CAM with the "CI or CI+ CARD" into the common interface slot, in the direction of the arrow so that it aligns parallel with the slot.
• Check if you can see a picture on a scrambled signal channel.

Wireless Remote Control

Turn wireless remote controls on or off or give permission to wireless remote controls.

Picture In Picture (PIP)

PIP TOOLS

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

NOTE

For PIP sound, refer to the Sound Select instructions.
If you turn the TV off while watching in PIP mode, the PIP window will disappear.
•You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.
•While Internet@TV is in operation, the PIP function cannot be used.
PIP settings

Main picture Sub picture
Component, HDMI1/DVI, HDMI2, HDMI3, HDMI4, PC	TV

■ PIP (Off / On): Activate or deactivate the PIP function.
■ Channel: Select the channel for the sub-screen.

■Size (☐ / ☐): Select a size for the sub-picture.
■Position (☐ / ☐ / ☐ / ☐): Select a position for the sub-picture.
■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

Support Menu

Self Diagnosis

■ Picture Test (Yes / No): Use to check for picture problems.
■ Sound Test (Yes / No): Use the built-in melody sound to check for sound problems.

If you hear no sound from the TV's speakers, before performing the sound test, make sure Speaker Select is set to TV Speaker in the Sound menu.
The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

Signal Information: (digital channels only) HDTV channel's reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.
- Troubleshooting: If the TV seems to have a problem, refer to this description.

If none of these troubleshooting tips apply, contact the Samsung customer service centre.

Software Upgrade

Software Upgrade can be performed via a broadcasting signal or by network connection or downloading the latest firmware from "www.samsung.com," to a USB memory device.

Current Version the software already installed in the TV.

Software is represented as "Year/Month/Day_Version".

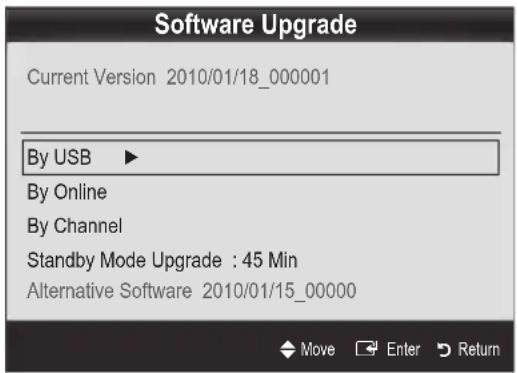

Software Upgrade Current Version 2010/01/18_000001 By USB ▶ By Online By Channel Standby Mode Upgrade : 45 Min Alternative Software 2010/01/15_00000

Installing the Latest Version

■By USB: Insert a USB drive containing the firmware upgrade file, downloaded from "www.samsung.com," into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are

TV Rear Panel

complete. The TV will be turned off and on automatically after completing the firmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade.

■ By Online: Upgrade the software using the Internet.

First, configure your network. For detailed procedures on using the Network Setup, refer to the "Network Connection" instructions.
If the internet connection doesn't operate properly, the connection may be broken. Please retry downloading. If the problem persists, download by USB and upgrade.

■ By Channel: Upgrade the software using the broadcasting signal.

If the function is selected during the software transmission period, software will be automatically searched and downloaded.
The time required to download the software is determined by the signal status.

■ Standby Mode Upgrade: A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the LED product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.
■ Alternative Software (backup): Displays the software version downloaded through By Online. During the software upgrading, When the Upgrade will discontinue from last step, this function be activated.

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centres, and how to download products and software.

Connecting to a PC

Using an HDMI/DVI Cable / a D-sub Cable

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution		Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H / V)
IBM	640 x 350	31.469	70.086	25.175	+/-
	720 x 400	31.469	70.087	28.322	-/+
MAC	640 x 480	35.000	66.667	30.240	-/-
	832 x 624	49.726	74.551	57.284	-/-
	1152 x 870	68.681	75.062	100.000	-/-
VESA CVT	720 x 576	35.910	59.950	32.750	-/+
	1152 x 864	53.783	59.959	81.750	-/+
	1280 x 720	56.456	74.777	95.750	-/+
	1280 x 960	75.231	74.857	130.000	-/+
VESA DMT	640 x 480	31.469	59.940	25.175	-/-
	640 x 480	37.861	72.809	31.500	-/-
	640 x 480	37.500	75.000	31.500	-/-
	800 x 600	37.879	60.317	40.000	+/+
	800 x 600	48.077	72.188	50.000	+/+
	800 x 600	46.875	75.000	49.500	+/+
	1024 x 768	48.363	60.004	65.000	-/-
	1024 x 768	56.476	70.069	75.000	-/-
	1024 x 768	60.023	75.029	78.750	+/+
	1152 x 864	67.500	75.000	108.000	+/+
	1280 x 1024	63.981	60.020	108.000	+/+
	1280 x 1024	79.976	75.025	135.000	+/+
	1280 x 720	45.000	60.000	74.250	+/+
	1280 x 800	49.702	59.810	83.500	-/+
	1280 x 800	62.795	74.934	106.500	-/+
	1280 x 960	60.000	60.000	108.000	+/+
	1360 x 768	47.712	60.015	85.500	+/+
	1440 x 900	55.935	59.887	106.500	-/+
	1440 x 900	70.635	74.984	136.750	-/+
	1600 x 1200	75.000	60.000	162.000	+/+
	1680 x 1050	65.290	59.954	146.250	-/+
VESA GTF	1280 x 720	52.500	70.000	89.040	-/+
	1280 x 1024	74.620	70.000	128.943	-/-
VESA DMT / DTV CEA	1920 x 1080p 67.500 60.000 148.500 +/-

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

•The interlace mode is not supported.
•The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

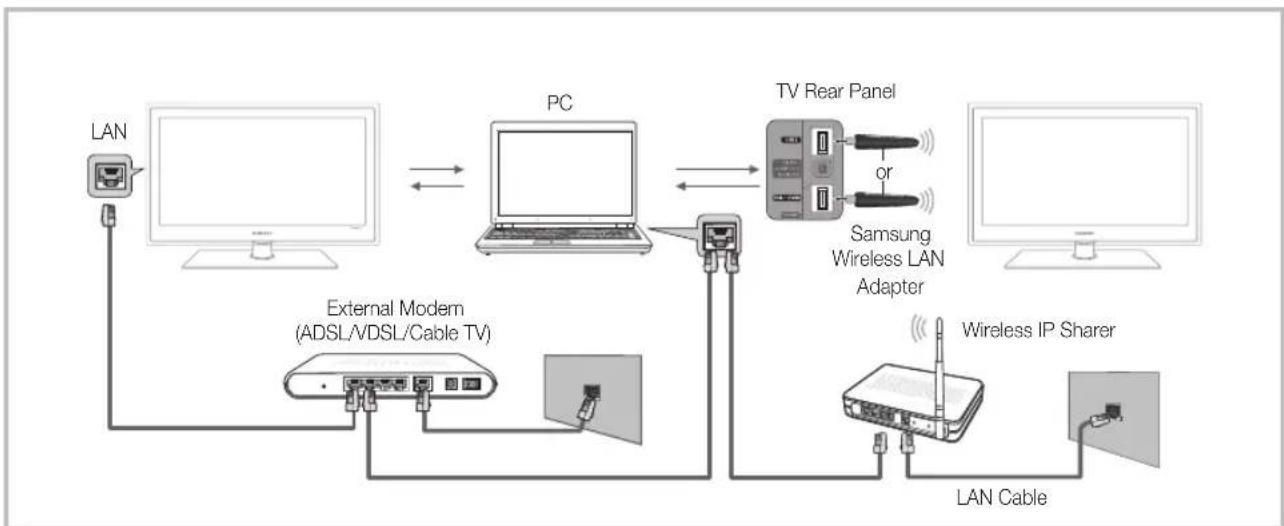

Network Connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection.

Connecting to a Wired Network

You can attach your TV to your LAN using cable in three ways:

- You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5 cable. See the diagram below.

The Modem Port on the Wall

External Modem
(ADSL / VDSL / Cable TV)

Line drawing of a network device with ports and connectors (no text or symbols)

TV Rear Panel

LAN CableModem Cable

- You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected to an external modem. Use Cat 5 cable for the connection. See the diagram below.

The LAN Port on the Wall

External Modem
(ADSL / VDSL / Cable TV)

IP Sharer
(having DHCP server)

TV Rear Panel

- Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

The Modem Port on the Wall

TV Rear Panel

If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don't have to enter them manually. Most home networks are Dynamic Networks.

Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV's Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer.

You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support DHCP also let you use Static IP addresses.

Advanced Features

Network Setup (Auto)

Use the Automatic Network Setup when connecting your TV to a network that supports DHCP. To set up your TV's cable network connection automatically, follow these steps:

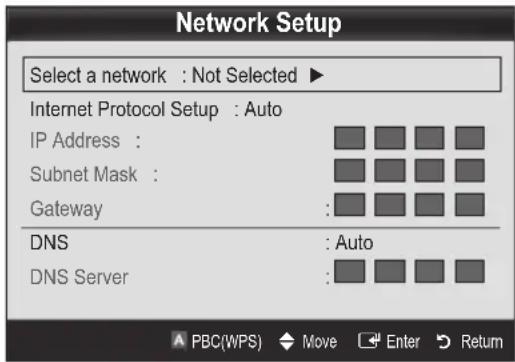

How to set up automatically

1. Connect your TV to your LAN as described in the previous section.
2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup, and then press the ENTER button.
3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTER button. The Network screen appears.

Network Network Type : Wired ▶ Network Setup Network Test SWL(Samsung Wireless Link) : Off SWL connect Move Enter Return

1. On the Network screen, select Network Type.
2. Set Network Type to Wired.
3. Select Network Setup. The Network Setup screen appears.

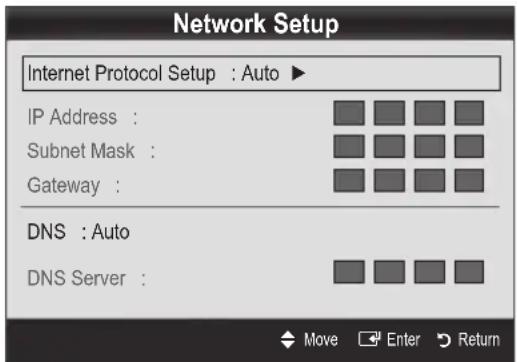

Network Setup Internet Protocol Setup : Auto ► IP Address : Subnet Mask : Gateway : DNS : Auto DNS Server :

1. Set Internet Protocol Setup to Auto.
2. Auto acquires and enters the needed Internet values automatically.
   9 When done, press the RETURN button on your remote.
3. Select Network Test to check the Internet connectivity.
4. If the Network Function has not acquired the network connection values, go to the directions for Manual.

Network Setup (Manual)

Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the screen.
2. In the pop-up menu that appears, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support Tab, click the Details button. The Network connection values are displayed.

How to set up manually

To set up your TV's cable network connection manually, follow these steps:

1. Follow Steps 1 through 6 in the "How to set up automatically" procedure.
2. Set Internet Protocol Setup to Manual.
3. Press the ▼ button on your remote to go to the first entry field.
4. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use the number buttons on your remote to enter numbers and the arrow buttons to move from one entry field to another.
5. When done, press the RETURN button on your remote.
6. Select Network Test to check the Internet connectivity.

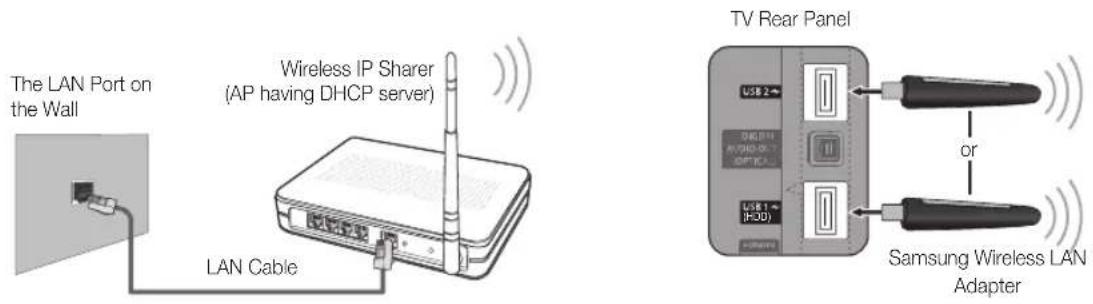

To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS09ABGN), which you connect to your TV's back or side panel USB jack. See the illustration below.

Use the SWL(Samsung Wireless Link) function, connect to the USB 1 (HDD) port.

Samsung's Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts.com. Samsung's Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung recommends using IEEE 802.11N. When you play the video over a IEEE 802.11B/G connection, the video may not play smoothly.

NOTE

•You must use the "Samsung Wireless LAN Adapter" (WIS09ABGN) to use a wireless network.

Samsung's Wireless LAN adapter is sold separately. The WIS09ABGN Wireless LAN adapter is offered by select retailers, Ecommerce sites and Samsungparts.com.

• To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network.

Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is currently being used by another device nearby, this will result in interference and communication failure.

If you apply a security system other than the systems listed blow, it will not work with the TV.

If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIP-AES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications.

If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.

If your router, modem, or device isn't certified, it may not connect to the TV via the "Samsung Wireless LAN Adapter."

- Connection Methods: You can setup the wireless network connection six ways.

– Samsung Auto Configuration

- PBC (WPS)

- Auto Setup (Using the Auto Network Search function)

- Manual Setup

– SWL(Samsung Wireless Link)

- Ad-Hoc

• All of Samsung Wireless LAN Adapter should be connected directly to the TV's USB port. USB HUB are not supported.

Advanced Features

Notice

The picture may appear corrupted for some channels when the TV is connected to the Samsung Wireless LAN Adapter. In such case, establish a connection using one of the following methods:

Method 1 Method 2
Connect using the USB right angle adapter

Diagram showing a wall-mounted device connected to a cylindrical tank, with an inset image of a monitor displaying a small object (no text or symbols present)

Connect via an extension cable

Diagram showing cable installation or connection between a computer monitor and two connected devices, with one labeled 'or'.

Network Setup (Samsung Auto Configuration)

This function is available in APs (Access Points) that support Auto Configuration. If your AP does not, you can connect through PBC (WPS), auto, or manually.

This function is available when SWL(Samsung Wireless Linkset to Off.
You can check for equipment that supports Samsung Auto Configuration on www.samsung.com.

How to set up using Samsung Auto Configuration

1. Place the AP and TV next to each other and turn them on.

Because the booting times of applications differ, you may have to wait for approximately 2 minutes.
If the LAN cable connected the WAN port of AP during Samsung Auto Configuration, you are able to complete until internet connection test. If you do not connect, Samsung Auto Configuration will check only device connecting of AP (Not check internet).

1. After 2 minutes, connect the Samsung Wireless LAN Adapter to the TV. When the Samsung Wireless LAN Adapter is established, the pop-up window appears.

2. As soon as a connection is established, place the AP in parallel with the Samsung Wireless LAN Adapter giving a gap no larger than 25cm.

3. Wait until the connection is automatically established.

If the connection fails, reset the AP and then try again.
If Samsung Auto Configuration does not connect your TV to your AP, a pop-up window appears on the screen notifying you of the failure. Reset the AP, and then try again. If the connection fails again, choose one of the other connection setup methods, PBC (WPS), auto, or manual.

1. After the connection is established, locate the sharer at the desired location.

If the AP settings have been changed or it is the first time you use the new AP after purchase, you need to set up again beginning from Step 1.

Network Setup (PBC (WPS))

How to set up using PBC (WPS)

If your router has a PBC (WPS) button, follow these steps:

1. Connect your TV to your LAN as described in the previous section.
2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup, and then press the ENTER □ button.
3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTER ← button.
4. On the Network screen, select Network Type.
5. Set Network Type to Wireless.
6. Select Network Setup. The Network Setup screen appears.

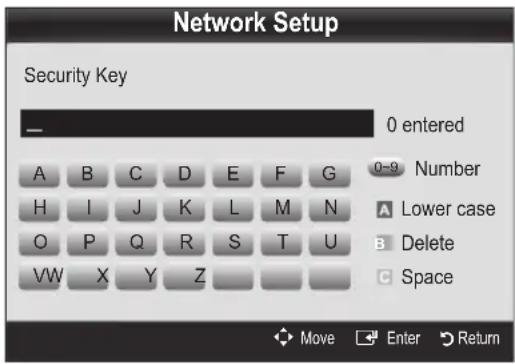

Network Setup Security Key 0 entered A B C D E F G 0-9 Number H I J K L M N A Lower case O P Q R S T U B Delete VW X Y Z C Space Move Enter Return

1. Press the Red button on your remote.
2. Press the PBC (WPS) button on your router within 2 minutes. Your TV player automatically acquires all the network setting values it needs and connects to your network.
3. After the network connection is set up, press the RETURN button to exit the Network Setup screen.

Network Setup (Auto)

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

How to set up automatically

To set up the wireless connection automatically, follow these steps:

1. Follow Steps 1 through 6 in the "How to set up using PBC (WPS)" above.
2. Press the ▼ button to select Internet Protocol Setup, and then press the ENTER button. Press the ▲ or ▼ button to select Auto, and then press the ENTER button.
3. Press the ▲ button to go to Select a Network, and then press the ENTER button. The Network function searches for available wireless networks. When done, it displays a list of the available networks.
4. In the list of networks, press the ▲ or ▼ button to select a network, and then press the ENTER □ button.

If the AP is set to Hidden (Invisible), you have to select Add Network and enter the correct Network Name (SSID) and Security Key to establish the connection.

1. If the Security/PIN pop-up appears, go to Step 6. If the Network Connecting Screen appears, go to Step 10.
2. Press the ▲ or ▼ button to select Security or PIN. For most home networks, you would select Security (for Security Key). The Security Screen appears.

Network Setup Select a network : Not Selected ▶ Internet Protocol Setup : Auto IP Address : Subnet Mask : Gateway : DNS : Auto DNS Server :

1. On the Security screen, enter your network's Pass Phrase.

You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem.

1. To enter the Pass Phrase, follow these general directions:

2. Press the number buttons on your remote to enter numbers.

3. Use the direction buttons on your remote to move from button to button on the Security Key screen.
4. Press the Red button to change case or display symbols/characters.
5. To a enter letter or symbol, move to the letter or symbol, and then press the ENTER button.

6. To delete the last letter or number you entered, press the Green button on your remote.

7. When done, press the Blue button on your remote. The Network Connecting screen appears.

8. Wait until the connection confirmation message is displayed, and then press the ENTER button. The Network Setup screen re-appears.
9. To test the connection, press the RETURN button to select Network Test, and then press the ENTER button.

Advanced Features

Network Setup (Ad-Hoc)

You can connect to a mobile device without an access point through the "Samsung Wireless LAN Adapter" by using a peer to peer network.

This function is available when SWL(Samsung Wireless Link) is set to Off.

How to connect to new Ad-hoc device

1. Follow Steps 1 through 6 in the "How to set up using PBC (WPS)" (p. 28).
2. Choose Select a network. A list of devices/networks appears.
3. While in the device list, press the Blue button on the remote.
   The message Ad-hoc is a direct Wi-Fi connection with cell phone or PC. The existing network system may have limited functionality. Do you want to change the network connection? is displayed.
4. Input the generated Network Name (SSID) and Security Key into the device you want to connect.

How to connect an existing Ad-hoc device

1. Follow Steps 1 through 6 in the "How to set up using PBC (WPS)" (p. 28).
2. Choose Select a network. The Device/Network list appears.
3. Select the device you want in the Device list.
4. If security key is required, input the security key.

If network doesn't operate normally, check the Network Name (SSID) and Security Key again. An incorrect Security Key may cause a malfunction.

Network Setup (Manual)

If the other methods do not work, you need to enter the Network setting values manually.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support tab, click the Details button. The Network settings are displayed.

How to set up manually

To enter the Network connection values manually, follow these steps:

1. Follow Steps 1 through 6 in the "How to set up using PBC (WPS)" (p. 28).
2. Press the ▼ button to select Internet Protocol Setup, and then press the ENTER button. Press the ▲ or ▼ button to select Manual, and then press the ENTER button.
3. Press the ▼ button to go to the first entry field (IP Address).
4. Use the number buttons to enter numbers.
5. When done with each field, use the ▶ button to move successively to the next field. You can also use the other arrow buttons to move up, down, and back.
6. Enter the IP Address, Subnet Mask, and Gateway values.
7. Press the ▲ or ▼ button to go to DNS.
8. Press the ▼ button to go to the first DNS entry field. Enter the numbers as above.
9. When done, press the ▲ button to go to Select a Network. Select your network, and then press the ENTER button.
10. Go to Step 4 in the "How to set up automatically" (p. 29), and follow the directions from that point on.

SWL(Samsung Wireless Link)

This function lets you connect a Samsung device that supports the PBC (WPS) to your TV. You can connect devices to the TV even if a sharer is not connected to the TV.

To use the Internet@TV, the AP (access point) must be connected to the wireless network.
If a Samsung Wireless LAN Adapter is connected to the USB 2 port, the network may not operate normally. We recommend to connecting it to the USB 1 (HDD) port.
Only sharers using the 2.4 Ghz band are supported. Sharers using the 5 Ghz band are not supported.

SWL connect

You can directly connect a device that supports the PBC (WPS) to the TV.

This function is available when SWL(Samsung Wireless Link) is set to On.

How to connect Samsung Wireless Link

For the procedures to establish a connection, refer to the following:

1. Follow Steps 1 through 5 in the "How to set up using PBC (WPS)" (p. 28).
2. Select SWL(Samsung Wireless Link) by using the ▼ button and press the ENTER button to turn it On.

3. Select SWL connect by using the ▼ button and press the ENTER button.

4. If the "Press the PBC button on the device which supports PBC button to connect within 120 seconds" message appears, press the PBC button on the device to connect.

For more information, refer to the wireless network setup manual of the device to be connected.

1. If the device is connected properly to the TV after starting count on message box then message box will be disappeared automatically.

If the connection fails, please retry after 2 minutes.

If Your TV Fails to Connect to the Internet

Your TV may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your TV has a different MAC address, your ISP can not authenticate its MAC address, and your TV can not connect.

To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC (such as your TV) to the Internet.

If your Internet service provider requires an ID or password to connect to the Internet, your TV may not be able to connect to the Internet. If this is the case, you must enter your ID or password when connecting to the Internet.

The internet connection may fail because of a firewall problem. If this is the case, contact your Internet service provider.

If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG.

Advanced Features

Media Play

Enjoy photos, music and/or movie files saved on a USB Mass Storage Class (MSC) device and/or your PC.

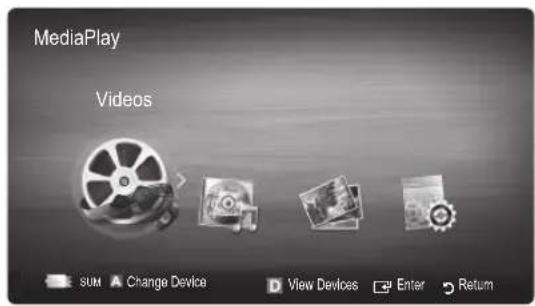

MediaPlay Videos sum Change Device View Devices Enter Return

Connecting a USB Device

1. Turn on your TV.
2. Connect a USB device containing photo, music and/or movie files to the USB 1 (HDD) or USB 2 jack on the side of the TV.
3. When USB is connected to the TV, popup window appears. Then you can select Media Play.

TV Rear Panel

USB 2 OR/DO OPTICA USB 1 (HDD) USB Drive

Connecting to the PC through network

You can play pictures, music and videos saved on your PC through a network connection in the Media Play mode.

If you use Media Play through saved file on your PC, you should download "PC Share Manager" and users manual from "www.samsung.com."

1. For more information on how to configure your network, refer to "Network Connection." (p. 25).
2. You are recommended to locate both TV and PC in same subnet. The first 3 parts of the subnet address of the TV and the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address: 123.456.789.*)
3. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager programme will be installed.
4. You can connect the TV to the PC directly without connecting it through a Sharer (Router).

No supported functions when connecting to the PC through network:

•The Background Music and Background Music Setting functions.

Sorting files by preference in the Photos, Music, and Videos folders.

•The (REW) or (FF) button while a movie is playing.

The Divx DRM, Multi-audio, embedded caption does not supported.

Samsung PC Share manager should be permitted by the firewall programme on your PC.

When you use Media Play mode through a network connection, According to functions of the provided server:

•The sorting method may vary.

•The scene search function may not be supported.

•The Play Continuously function, which resumes playing of a video, may not be supported.

- The Play Continuously function does not support multiple users. (It will have only memorised the point where the most recent user stopped playing.)

The ◀ or ▶ button may not work depending on the content information.

- If you experience any file stuttering issue while playing a video over a wireless network, we recommend using a wired network

It might not work properly with unlicensed multimedia files.

Need-to-Know List before using Media Play

MTP (Media Transfer Protocol) is not supported.

•The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV's USB port.

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.

Connect a USB HDD to the dedicated port, USB 1 (HDD) port.

- Do not disconnect the USB device while it is loading.

•The higher the resolution of the image, the longer it takes to display on the screen.

•The maximum supported JPEG resolution is 15360X8640 pixels.

For unsupported or corrupted files, the "Not Supported File Format" message is displayed.

- If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM) is a technology that supports the creation of content, the distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high power (more than 500mA or 5V) may not be supported.

If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be recognized or may malfunction.

If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.

•The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

- If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection.

If a file deleted from the PC is still found when Media Play is run, use the "Empty the Recycle Bin" function on the PC to permanently delete the file.

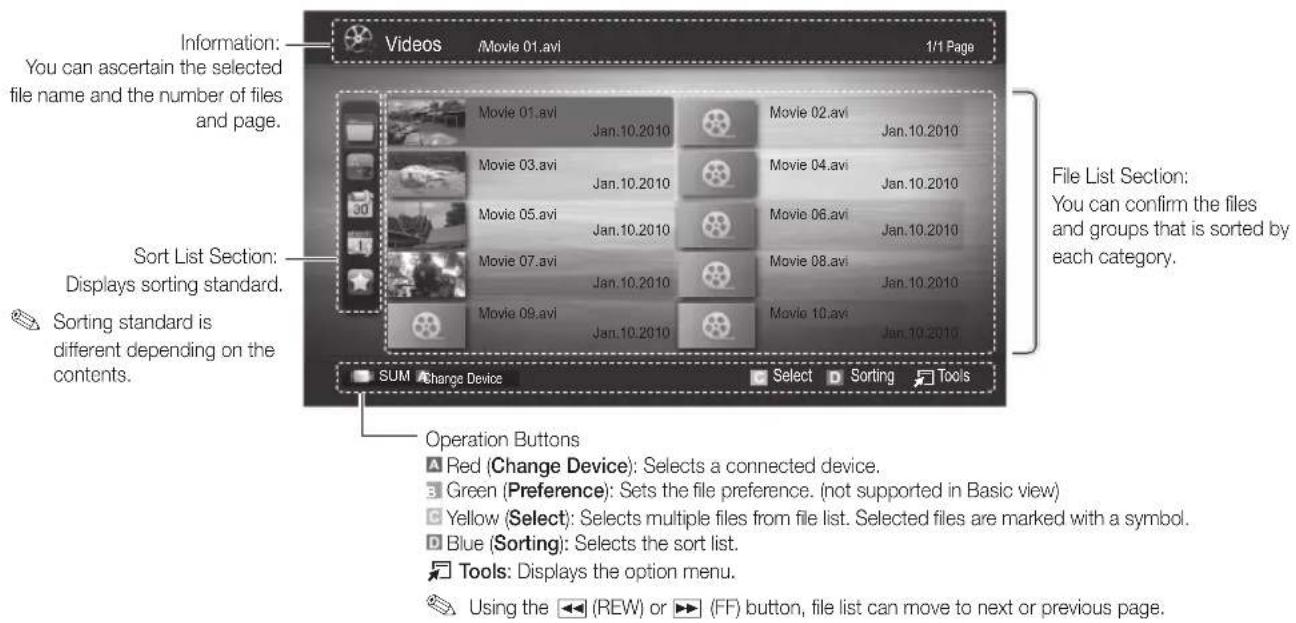

Screen Display

Move to the file you desired using the up/down/right/left buttons and then press the ENTER or (Play) button. The file is played.

Supports the View Devices and Home in Media Play homepage.

Information: You can ascertain the selected file name and the number of files and page. Sort List Section: Displays sorting standard. Sorting standard is different depending on the contents. SUM Change Device Select Sorting Tools Operation Buttons Red (Change Device): Selects a connected device. Green (Preference): Sets the file preference. (not supported in Basic view) Yellow (Select): Selects multiple files from file list. Selected files are marked with a symbol. Blue (Sorting): Selects the sort list. Tools: Displays the option menu. Using the (REW) or (FF) button, file list can move to next or previous page.

Videos

Playing Video

1. Press the ◀ or ▶ button to select Videos, then press the ENTER◀ button in the Media Play menu.
2. Press the ◀/▶/▲/▼ button to select the desired file in the file list.

3. Press the ENTER □ button or ▶ (Play) button.

4. The selected file is displayed on the top with its playing time.

5. If video time information is unknown, play time and progress bar are not displayed.
6. During playing the video, you can search using the ◀ and ▶ button.

In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself.

• Supported Subtitle Formats

Name File extension Format
MPEG-4 time-based text .txt XML
SAMI .smi HTML
SubRip	.srt	string-based
SubViewer	.sub	string-based
Micro DVD	.sub or .txt	string-based

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

• Supported Video Formats

File Extension	Container Video	Codec Resolution		Frame rate (fps)	Bit rate (Mbps)	Audio Codec
*.avi*.mkv	AVI MKV	Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8				MP3 / AC3 / LPCM / ADPCM / DTS Core
		XviD 1920x1080 6 ~ 30 8
		H.264 BP / MP / HP 1920x1080 6 ~ 30 25
		MPEG4 SP / ASP 1920x1080 6 ~ 30 8
		Motion JPEG 800x600 6 ~ 30 8
*.asf ASF		Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8				MP3 / AC3 / LPCM / ADPCM / WMA
		XviD 1920x1080 6 ~ 30 8
		H.264 BP / MP / HP 1920x1080 6 ~ 30 25
		MPEG4 SP / ASP 1920x1080 6 ~ 30 8			30
		Motion JPEG 800x600 6 ~ 30 8
*.wmv ASF	Window Media	Video v9 1920x1080 6 ~ 30 25		WMA
*.mp4 MP4		H.264 BP / MP / HP 1920x1080 6 ~ 30 25				MP3 / ADPCM / AAC
		MPEG4 SP / ASP 1920x1080 6 ~ 30 8
		XVID	1920x1080 6 ~ 30 8
*.3gp	3GPP	H.264 BP / MP / HP 1920x1080 6 ~ 30 25				ADPCM / AAC / HE-AAC
		MPEG4 SP / ASP 1920x1080 6 ~ 30 8
*.vro	VROVOB	MPEG1	1920x1080	24 / 25 / 30 30		AC3 / MPEG / LPCM
		MPEG2	1920x1080	24 / 25 / 30 30
*.mpg*.mpeg	PS	MPEG1	1920x1080	24 / 25 / 30 30		AC3 / MPEG / LPCM / AAC
		MPEG2	1920x1080	24 / 25 / 30	30
		H.264	1920x1080 6 ~ 30 25
*.ts*.tp*.trp	TS	MPEG2	1920x1080	24 / 25 / 30 30		AC3 / AAC / MP3 / DD+ / HE-AAC
		H.264	1920x1080 6 ~ 30 25
		VC1 1920x1080 6 ~ 30 25

Other Restrictions

NOTE

• If there are problems with the contents of a codec, the codec will not be supported.
• If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly.
• Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec listed in the table above.
  • If the Index Table is in error, the Seek (Jump) function is not supported.

Video Decoder	Audio Decoder
Supports up to H.264, Level 4.1H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.XVID, MPEG4 SP, ASP :Below 1280 x 720: 60 frame maxAbove 1280 x 720: 30 frame maxGMC 2 over is not supported.H.263 is not supported.Only Samsung Techwin MJPEG is supported.	Supports up to WMA 7, 8, 9, STDWMA 9 PRO does not support 2 channel excess multi channel or lossless audio.WMA sampling rate 22050Hz mono is not supported.

Advanced Features

Playing movie file continuously (Resume Play)

If you exit the playing Videos function, it can be played later from the point where it was stopped.

If you press the ENTER button (Chaptering) during playing the file, you can explore scene divided into 5 chapters you want.

1. Select the movie file you want to play continuously by pressing the ◀ or ▶ button to select it from the file list section.

2. Press the ▶ (Play) / ENTER ← button.

3. Select Play Continuously (Resume Play) by pressing the Blue button. The Movie will begin to play from where it was stopped.

The Blue button is available when resuming play. The Continuous Movie Play Help function is set to On in the Settings menu, a pop-up message will appear when you resume play a movie file.

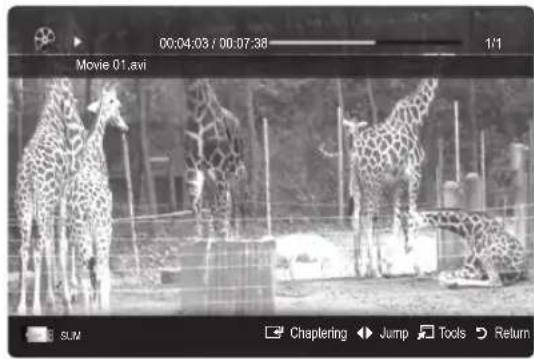

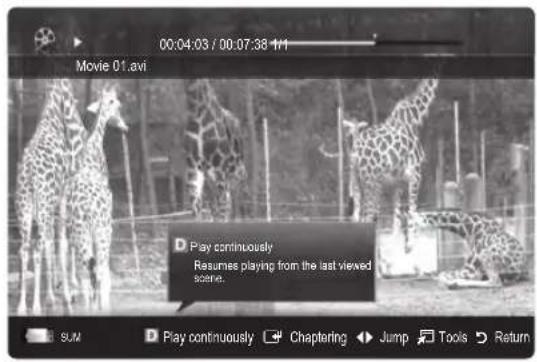

00:04:03 / 00:07:38 1/1 Movie 01.avi D Play continuously Resumes playing from the last viewed scene. SUM D Play continuously □ Chaptering ◀ Jump □ Tools ▶ Return

Music

Playing Music

1. Press the ◀ or ▶ button to select Music, then press the ENTER ➕ button in the Media Play menu.
2. Press the ◀/▶/▲/▼ button to select the desired file in the file list.
3. Press the ENTER □ button or ▶ (Play) button.

- During playing the music, you can search using the ◀ and ▶ button.

- (REW) and (FF) buttons do not function during play.

Only displays the files with MP3 and PCM file extension. Other file extensions are not displayed, even if they are saved on the same USB device.

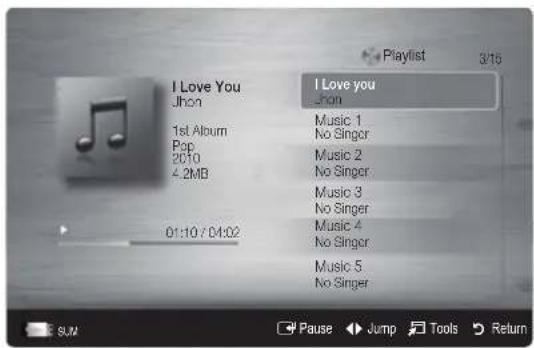

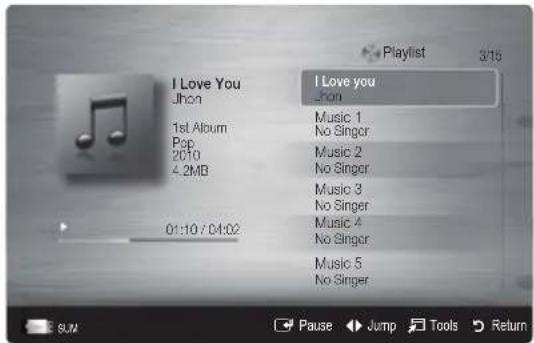

I Love You Jhon 1st Album Pop 2010 4.2MB 01:10 / 04:02 I Love you Jhon Music 1 No Singer Music 2 No Singer Music 3 No Singer Music 4 No Singer Music 5 No Singer

If the sound is strange when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file may cause a sound problem.)
You can create My Playlist selecting the desired music in the file, and can play My Playlist.

Photos

Viewing a Photo (or Slide Show)

1. Press the ◀ or ▶ button to select Photos, then press the ENTER ➕ button in the Media Play menu.
2. Press the ◀/▶/▲/▼ button to select the desired file in the file list.

3. Press the ENTER □ button or ▶ (Play) button.

4. While a photo list is displayed, press the ▶ (Play) / ENTER◀ button on the remote control to start slide show.

5. All files in the file list section will be displayed in the slide show.
   – During the slide show, files are displayed in order from currently being shown.

Music files can be automatically played during the Slide Show if the Background Music is set to On.

The BGM Mode cannot be changed until the BGM has finished loading.

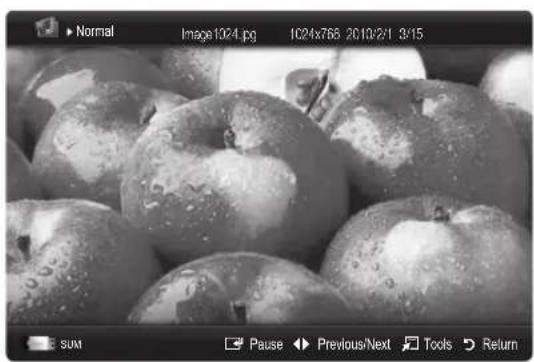

Black-and-white close-up photo of a cluster of apples with water droplets (no text or symbols visible)

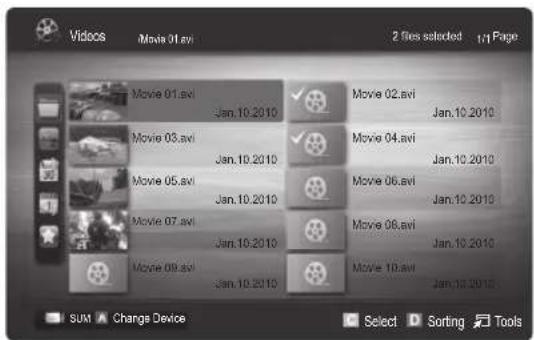

Playing the selected video/music/photo files

1. Press the Yellow button in the file list to select the desired file.
2. Repeat the above operation to select multiple files.

NOTE

•The √ mark appears to the left of the selected files.
•To cancel a selection, press the Yellow button again.
To deselect all selected files, press the TOOLS button and select Deselect All.

1. Press the TOOLS button and select Play Selected Contents.

Playing the video/music/photo file group

1. While a file list is displayed, move to the any file in desired group.
2. Press the TOOLS button and select Play Current Group.

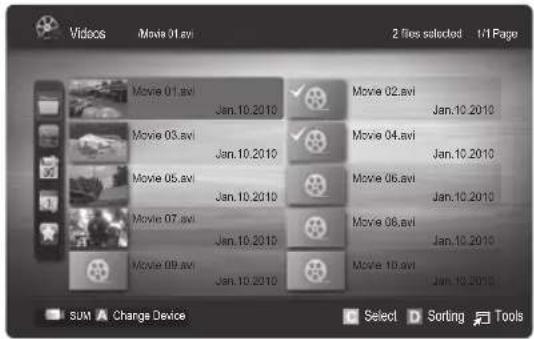

Videos Movie 01.avi Jan.10.2010 Movie 02.avi Jan.10.2010 Movie 03.avi Jan.10.2010 Movie 04.avi Jan.10.2010 Movie 05.avi Jan.10.2010 Movie 06.avi Jan.10.2010 Movie 07.avi Jan.10.2010 Movie 08.avi Jan.10.2010 Movie 09.avi Jan.10.2010 Movie 10.avi Jan.10.2010 SUM Change Device Select Sorting Tools

Media Play Additional Function

Sorting the file list

Press the Blue button in the file list to sort the files.

Category Operations Videos Music Photos
Basic View	It shows whole folder. You can view the photo by selecting the folder.	√ √	√
Title	It sorts and displays the file title in Symbol/Number/Alphabet/Special order.	√ √	√
Preference	It sorts and displays the file by preference. You can change the file preference in the file list section using the Green button.	√ √	√
Latest Date	It sorts and shows files by latest date.	√		√
Earliest Date	It sorts and shows files by earliest date.	√		√
Artist	It sorts the music file by artist in alphabetical.		√
Album	It sorts the music file by album in alphabetical order.		√
Genre	It sorts music files by the genre.		√
Mood	It sorts music files by the mood. You can change the music mood information.		√
Monthly	It sorts and shows photo files by month. It sorts only by month (from January to December) regardless of year.			√

Advanced Features

Videos/Music/Photos Play Option menu

During playing a file, press the TOOLS button.

Category Operations Videos Music Photos
Title You can move the other file directly.	√
Repeat Mode You can play recorded, movie and music files repeatedly.	√	√
Picture Size You can adjust the picture size for preference.	√
Picture Setting You can adjust the picture setting. (p. 15, 16, 17, 18)	√	√
Sound Setting You can adjust the sound setting. (p. 18, 19, 20)	√	√	√
Subtitle Setting	You can play the video file with Subtitle. This function only works if the subtitles are the same file name as the video file.	√
Audio You can enjoy video in one of supported languages as required. The function is only enabled when stream-type files which support multiple audio formats are played.	√
Stop Slide Show / Start Slide Show	You can start or stop a Slide Show.
Slide Show Speed You can select the slide show speed during the slide show.			√
Background Music	You can set and select background music when watching a Slide Show.		√
Zoom You can zoom into images in full screen mode.			√
Rotate	You can rotate images in full screen mode.		√
Information	You can see detailed information about the played file.	√	√

Settings

Using the Setup Menu

■ Cont. movie play help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie playback.
■ Get the DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web site and register the registration code with a personal account, you can download VOD registration file. If you play the VOD registration using Media Play, the registration is completed.
For more information on DivX® VOD, visit "www.DivX.com."
■ Get the DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.
■ Information: Select to view information about the connected device.

Anynet+

What is Anynet+? TOOLS

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV's remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

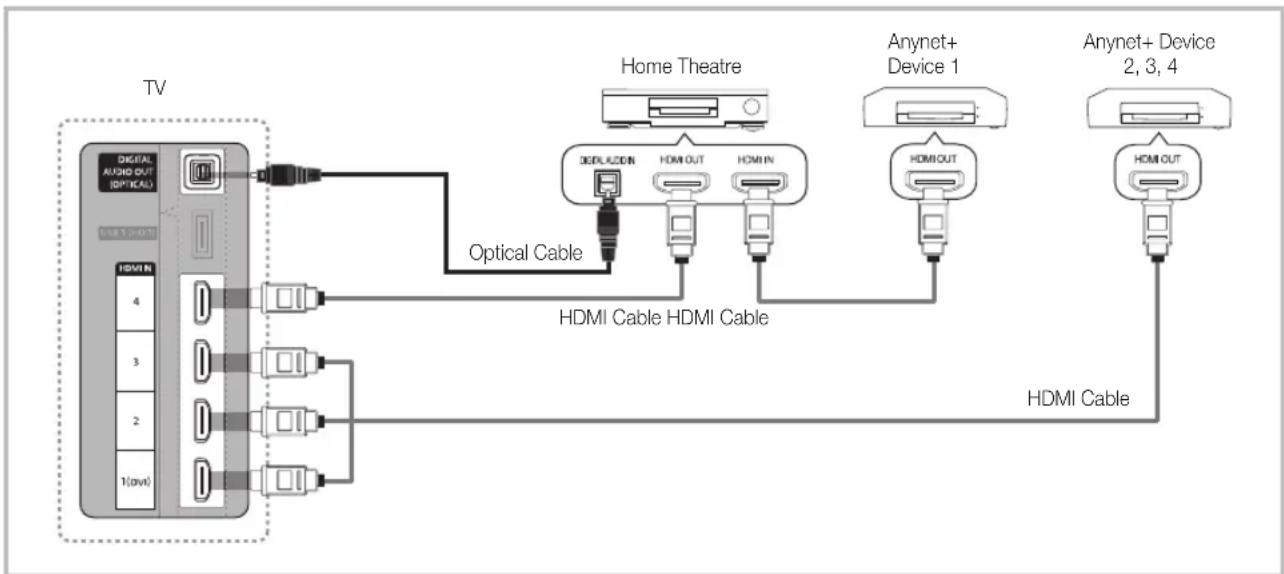

To connect to Home Theatre

1. Connect the HDMI IN (1(DVI), 2, 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.
2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

NOTE

• Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home Theatre.
• When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theatre's Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Satellite Box (i.e. Anynet Device 1 or 2) directly to the Amplifier or Home Theatre, not the TV.
  •Connect only one Home Theatre.
• You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.
  •Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.
  •Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

Advanced Features

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu Description
View TV Changes Anynet+ mode to TV broadcast mode.
Device List Shows the Anynet+ device list.
(device_name) MENU	Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear.
(device_name) INFO	Shows the play menu of the connected device. E.g. If a DVD recorder is connected, the play menu of the DVD recorder will appear.
Recording: (*recorder)	Starts recording immediately using the recorder. (This is only available for devices that support the recording function.)
Stop Recording: (*recorder) Stops recording.
Receiver Sound is played through the receiver.

If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name).

Setting Up Anynet+

Setup

Anynet+ (HDMI-CEC) (Off / On): To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On.

When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.

Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.

The active source on the TV must be set to TV to use the Anynet+ function.
Even if an external device is still recording, it may turn off.

Switching between Anynet+ Devices

1. Anynet+ devices connected to the TV are listed.
   If you cannot find a device you want, press the Red button to refresh the list.

2. Select a device and press the ENTER button. You can switch to the selected device.
   Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears.

3. Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching operation.

4. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the Device List.

Recording

You can make a recording of a TV Programme using a Samsung recorder.

1. Select Recording.

When there are more than two recording devices

• When multiple recording devices are connected, the recording devices are listed. Select one recording device in the Device List.
  When the recording device is not displayed, select Device List and press the Red button to search devices.

• Press the EXIT button to exit.

You can record the source streams by selecting Recording: (device_name).
Pressing the ☐ (REC) button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded.
Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device's users manual.

You can listen to sound through a receiver (i.e Home Theatre) instead of the TV Speaker.

1. Select Receiver and set to On.

2. Press the EXIT button to exit.

If your receiver supports audio only, it may not appear in the device list.

The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO OUT (OPTICAL) jack of the TV.

When the receiver (i.e Home Theatre) is set to On, you can hear sound output from the TV's Optical jack. When the TV is displaying a DTV (aerial) signal, the TV will send out 5.1 channel sound to the receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the receiver.

NOTE

- You can only control Anynet+ devices using the TV remote control, not the buttons on the TV.

•The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.

•The Anynet+ functions do not operate with other manufacturers' products.

Troubleshooting for Anynet+

Problem Possible Solution
Anynet+ does not work. • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.• Connect only one receiver (home theatre).• Check if the Anynet+ device power cord is properly connected.• Check the Anynet+ device's Video/Audio/HDMI cable connections.• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.• Check whether the TV remote control is in TV mode.• Check whether it is Anynet+ exclusive remote control.• Anynet+ doesn't work in certain situations. (Searching channels, operating Media Play or Plug & Play (Initial setup), etc.)• When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again.• Check if the Anynet+ Function of Anynet+ device is set on.
I want to start Anynet+.	• Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu.• Press the TOOLS button to display the Anynet+ menu and select a menu you want.
I want to exit Anynet+. • Select View TV in the Anynet+ menu.• Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices.• Press P √/∧, and PRE-CH to change the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)
The message “Connecting to Anynet+ device...” appears on the screen.	• You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.• Use the remote control when the Anynet+ setting or switching to view mode is complete.
The Anynet+ device does not play.	• You cannot use the play function when Plug & Play (Initial setup) is in progress.
The connected device is not displayed.	• Check whether or not the device supports Anynet+ functions.• Check whether or not the HDMI cable is properly connected.• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.• Search Anynet+ devices again.• You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions.• If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan.
The TV Programme cannot be recorded.	• Check whether the antenna jack on the recording device is properly connected.
The TV sound is not output through the receiver.	• Connect the optical cable between TV and the receiver.

AllShare

About AllShare

AllShare connects your TV, mobile phones and other devices which are compatible through a network. On your TV, you can view call arrivals, SMS messages and schedules set on your mobile phones. In addition, you can play media contents including videos, photos and music saved on your mobile phones or the other devices (such as your PC) by controlling them on the TV via the network. Additionally, you can use your TV as a monitor for your mobile when browsing a web page.

For more information, visit "www.samsung.com" or contact the Samsung call centre. Mobile devices may need additional software installation. For details, refer to each device's user's guide.

Setting Up AllShare

Setup

■ Message (On / Off): Enables or disables the message function (for call arrivals, SMS messages and schedules set on your mobile phones).
■ Media (On / Off): Enables or disables the media function. When the media function is on, it plays videos, photos and music from a mobile phone or other device that supports AllShare.
■ ScreenShare (On / Off): Enables or disables the ScreenShare function for using mobile phone as a remote control.
■ TV name: Sets the TV name so you can find it easily on a mobile device.

If you select User Input, you can type on the TV using the OSK (On Screen Keyboard).

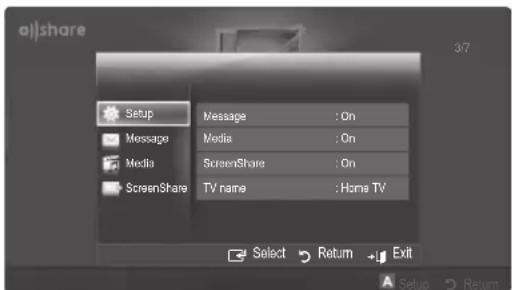

allshare Setup Message : On Media : On ScreenShare : On ScreenShare TV name : Home TV Select Return Exit Setup Return

Message / Media / ScreenShare

Shows a list of mobile phones or connected devices which have been set up with this TV for using the Message,

Media, or ScreenShare function.

The Media function is available in all mobile devices which support AllShare.

- Allowed / Denied: Allows/Blocks the mobile phone.

■ Delete: Deletes the mobile phone from the list.

This function only deletes the name of the mobile from the list. If the deleted mobile device is turned on or trys to connect to the TV, it may appear on the list again.

Using the Message Function

Using this function, you view call arrivals, SMS messages and schedules set on the mobile phone through the alarm window while watching TV.

NOTE

• To disable the alarm window, set Message to Off in Setup of AllShare.

If OK is selected, or if OK is not selected after the message has appeared three times, the message will be deleted. The message is not deleted from the mobile phone.

•The alarm window can be displayed while using some applications such as Media Play etc. To view the contents of a message, switch to TV viewing mode.

When a message from an unknown mobile phone is displayed, select the mobile phone on the message menu in AllShare and select Denied to block the phone.

Message View

If a new SMS message arrives while you are watching TV, the alarm window appears. If you click the OK button, the contents of the message are displayed.

You can configure the viewing settings for SMS messages on your mobile phones. For the procedures, refer to the mobile phone manual.

Some types of characters may be displayed as blank or broken characters.

Call Arrival Alarm

If a call arrives while you are watching TV, the alarm window appears.

Schedule Alarm

While you are watching TV, the alarm window appears to display the registered event.

You can configure viewing settings for schedule contents on your mobile phones. For the procedures, refer to the mobile phone manual.

Some special characters may be displayed as blank or broken characters.

Using the Media Function

An alarm window appears informing the user that the media contents (videos, photos, music) sent from a mobile phone will be displayed on your TV. The contents are played automatically 3 seconds after the alarm window appears. If you press the RETURN or EXIT button when the alarm window appears, the media contents are not played.

NOTE

If the media function executes for the first time, the warning popup windows appears. Press the ENTER button to select Allow, then you can use Media function on that device.

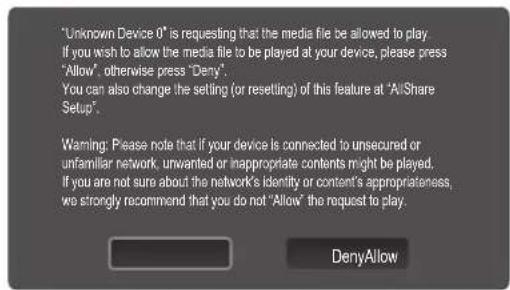

"Unknown Device 0" is requesting that the media file be allowed to play. If you wish to allow the media file to be played at your device, please press "Allow", otherwise press "Deny". You can also change the setting (or resetting) of this feature at "AllShare Setup". Warning: Please note that if your device is connected to unsecured or unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content's appropriateness, we strongly recommend that you do not "Allow" the request to play. DenyAllow

•To turn off the media contents transmission from the mobile phone, set Media to Off in the AllShare setup.

Contents may not be played on your TV depending on their resolution and format.

•The ENTER □ and ◀ / ▶ buttons may not work depending on the type of media content.

Using the mobile device, you can control the media playing. For details, refer to each mobile's user's guide.

When you want to play media contents from your PC, select the PC icon on the main display of AllShare. Then the TV's Media Play menu automatically changes. For more detail information, refer to "Media Play" (p. 32).

Using ScreenShare Function

Screenshare displays the same web page as provide in mobile. Using ScreenShare, you can open the various contents saved in a mobile phone. For example, the image below displays an access page for contents from a mobile. You can read the mobile's various files and view the phone book and calendar on the TV. Also, in phone book, you can make a call to other person, or can send to SMS.

NOTE

In Samsung mobile, ScreenShare must be installed and the supporting application must be executed; then you can use the ScreenShare function.

• Available buttons on your remote control may vary for each page.

Doc Viewer can read files in doc format, but cannot modify them.

•The screen display may differ depending on the connected device.

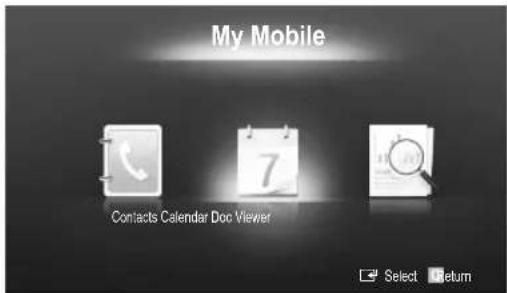

My Mobile Contacts Calendar Doc Viewer Select Return

Using your Samsung phone to control your TV Simply

Before you can use this feature, you must connect to a Samsung mobile phone that supports ScreenShare functions. When operating the TV with your mobile phone, only the POWER, -▲+, P^/∨ and MUTE buttons are supported.

Even if you keep pressing down on a control button (channel or volume) on the mobile phone, the value will only go up or down by one unit.

Analogue Channel Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

You can change Teletext pages by pressing the numeric buttons on the remote control.

1 ☐/☐ (Teletext on/mix): Activates the Teletext mode for the current channel. Press it twice to overlap the Teletext display onto the current broadcasting screen.
2 (store): Stores the Teletext pages.
3 (size): Displays the teletext on the upper half of the screen in double-size. To move the text to the lower half of the screen, press it again. For normal display, press it once again.
4 (≡) (hold): Holds the display at the current page, in the case that there are several secondary pages that follow automatically. To undo, press it again.
5 Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by the broadcasting company, the different topics on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press the colour corresponding to the topic of your choice. A new colour-coded page is displayed. Items can be selected in the same way. To display the previous or next page, press the corresponding coloured button.
6 (mode): Selects the Teletext mode (LIST/ FLOF). If pressed during LIST mode, switches the mode to List save mode. In List save mode, you can save a Teletext page into a list using the store button.
⑦ (sub-page): Displays the available sub-page.

SOURCE TTX/MIX PRE-CH CH LIST P MENU TOOLS INFO RETURN EXIT A B C D SAMSUNG

(1) (page up): Displays the next 8 Teletext page.
1-3 (page down): Displays the previous Teletext page.
(i) (index): Displays the index (contents) page at any time while you are viewing Teletext.
☐? (reveal): Displays the hidden text (answers to quiz games, for example). To display the normal screen, press it again.
(×) (cancel): Shrinks the Teletext display to overlap with the current broadcast.

Typical Tetetext page

A B C D E F

Part Contents
A	Selected page number.
B	Broadcasting channel identity.
C	Current page number or search indications.
D	Date and time.
E	Text.
F	Status information.FASTEXT information.

Assembling the Cables

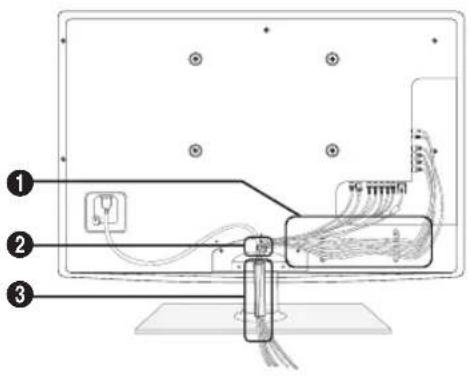

Stand Type

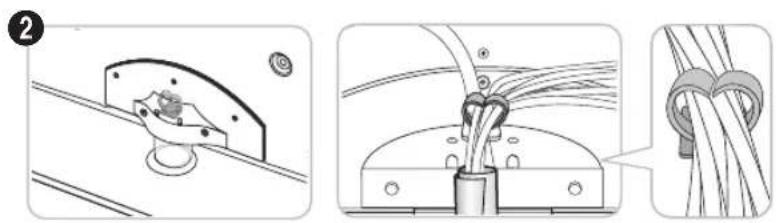

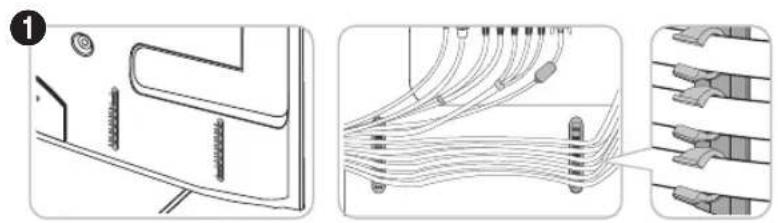

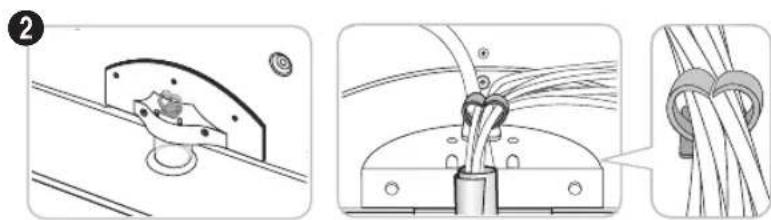

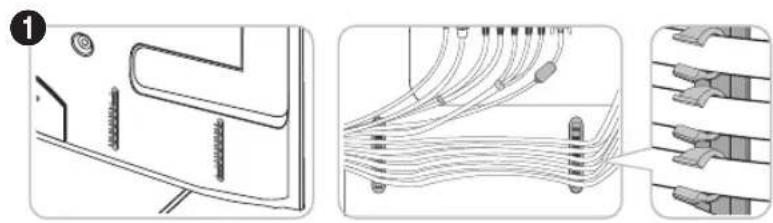

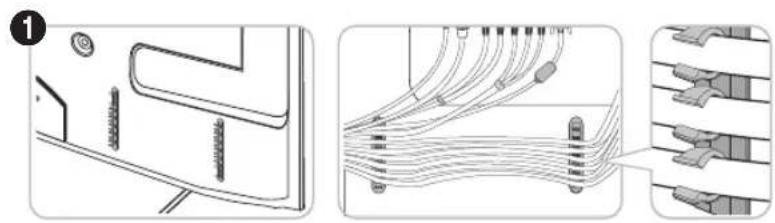

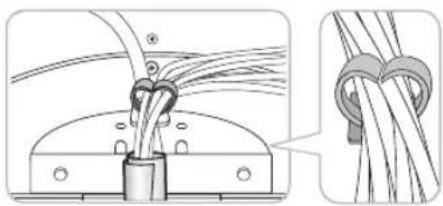

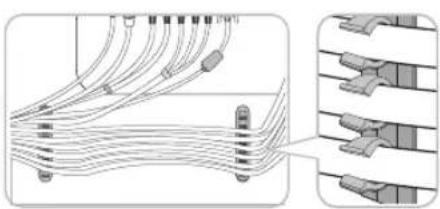

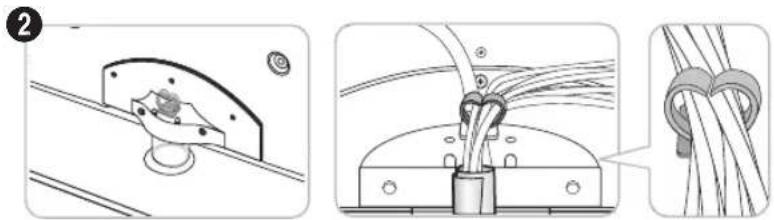

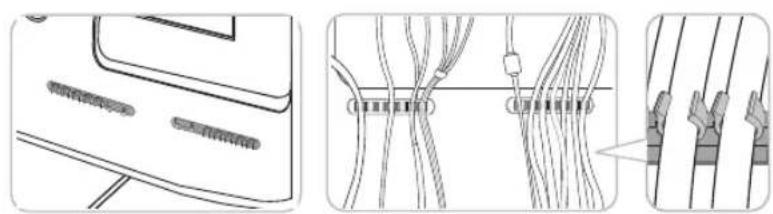

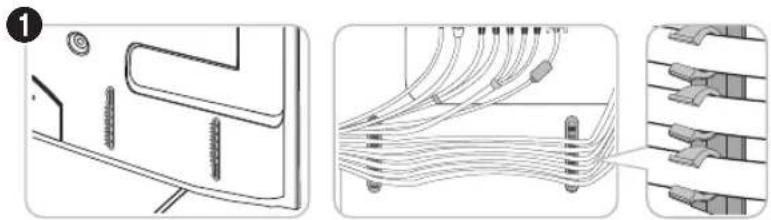

Enclose the cables in the Cable Tie so that the cables are not visible through the transparent stand.

Diagram of a cable or cable connector with labeled parts, showing connections and wiring paths on a screen.

Diagram of a door panel with screw holes and a knob, no text or symbols present

Diagram of cable routing or connector assembly with multiple wires and connectors (no text or labels)

Mechanical assembly diagram showing a rotating component mounted on a curved base with a circular knob (no text or symbols)

Diagram showing cable installation and knot assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

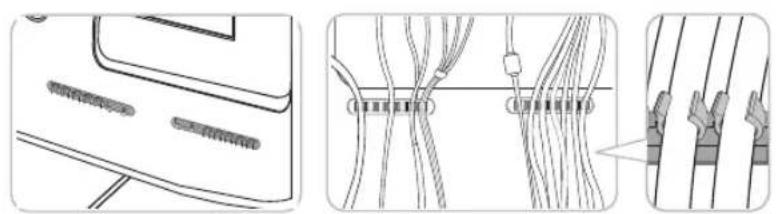

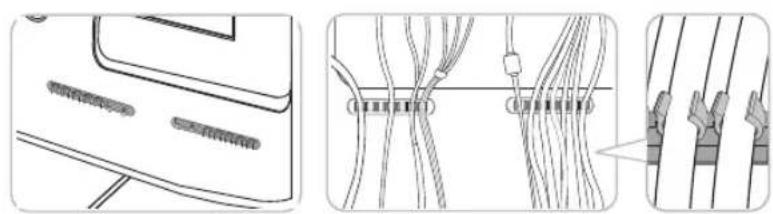

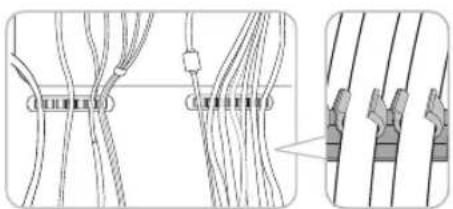

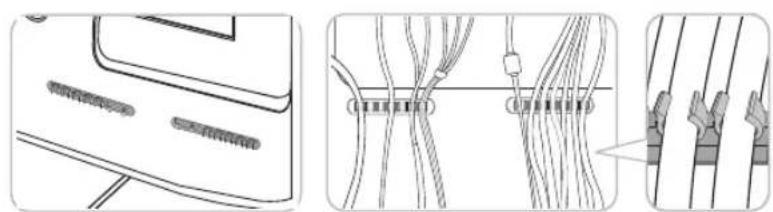

Wall-Mount Type

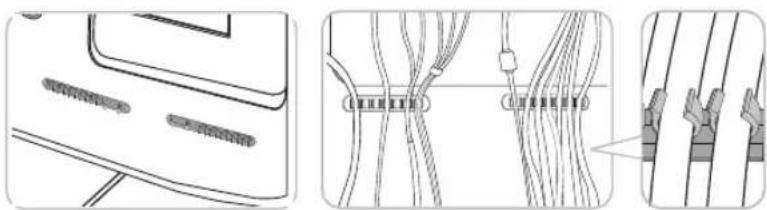

Pure electrical circuit lines without any symbols

Simple line drawing of a computer monitor with two buttons and a scroll wheel (no text or symbols)

Pure electrical circuit lines without any symbols

Do not pull the cables too hard when arranging them. This may cause damage to the product's connection terminals.

Installing the Wall Mount

Assembling the Blanking Bracket

When installing the TV onto a wall, attach the Blanking Bracket as shown.

Blanking Bracket

Assembling Power-Cord

When Installing the TV onto a wall, attach the Power-Cord as Shown.

Diagram showing a mechanical assembly with numbered parts and a magnified detail view highlighting a specific component.

Line drawing of a mechanical connector or clamp assembly (no text or symbols)

Mechanical diagram showing a lever mechanism with a magnified inset highlighting the pivot point (no text or labels)

1. Remove the screw shown in the first picture above.
2. Attach the power cord clamp to the power cord.
3. Mount the power cord clamp to the TV, using the removed screw, as shown.

Preparing before installing Wall-Mount

Case A. Installing the SAMSUNG Wall-Mount Case B. Installing another company's Wall-Mount

Diagram showing a computer monitor with labeled components and an inset magnified view highlighting a numbered component.

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view of a component

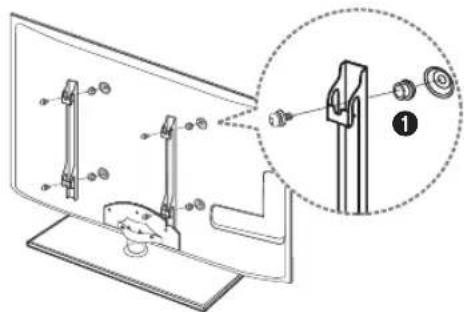

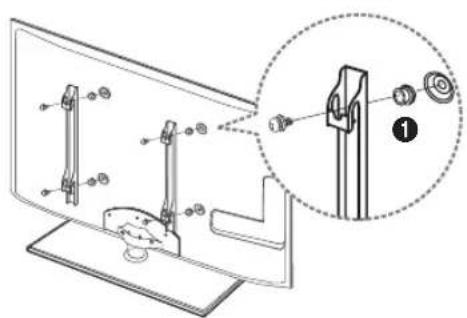

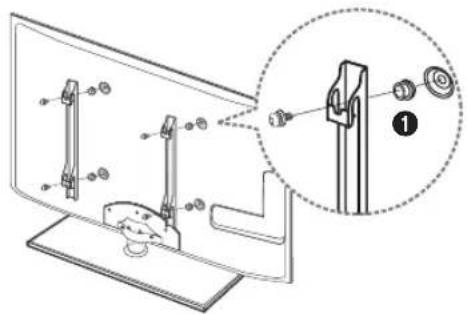

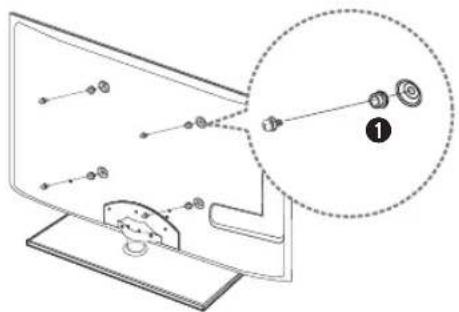

To install a wall-mount, use the Holder-Ring ①.

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Wall Mount Kit Specifications (VESA)

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

Standard dimensions for wall mount kits are shown in the table below.
- When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
Do not use screws that do not comply with the VESA standard screw specifications.
- Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
- Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
- Do not mount the TV at more than a 15 degree tilt.

Product Family	nches VESA	Spec. (A * B) Standard	Screw Quantity
LED-TV [Ultra-Slim]	19~22 75	X 75 M4		4
	23~29 200	X 100	M8
	32~37 200	X 200
	40~55 400	X 400
	56~65 600	X 400

A B

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Anti-theft Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use.

Please find a “☐” icon on the rear of the TV. A kensington slot is beside the “☐” icon.

1. Insert the locking device into the Kensington slot ① on the LED TV and turn it as shown ②.

2. Connect the Kensington Lock cable ③.

3. Fix the Kensington Lock to a desk or a heavy stationary object.

The locking device has to be purchased separately.

The location of the Kensington slot may be different depending on the TV model.

Securing the TV to the wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the included Safety Flyer. For added stability and safety, install the anti-fall device as follows.

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.

You may need additional material such as an anchor depending on the type of wall.
Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

1. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.
Screw Specifications

For a 19 \~ 22 inch : M4

For a 23 \~ 65 inch : M8

1. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong cable and then tie the string tightly.

NOTE

Install the TV near to the wall so that it does not fall backwards.
It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.
- Untie the cable before moving the TV.

1. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Diagram illustrating a mechanical assembly process with labeled components and motion arrows

Wall

Troubleshooting

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit "www.samsung.com," then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

Picture Quality	First of all, please perform the Picture Test and confirm that your TV is properly displaying test image.(go to MENU - Support - Self Diagnosis - Picture Test) (p. 23)If the test image is properly displayed, the poor picture may caused by the source or signal.
The TV image does not look as good as it did in the store.	· If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.· Cable/Satellite subscribers: Try HD stations from the channel line up.· Antenna connection: Try HD stations after performing Auto programme.Many HD channels are up scaled from SD(Standard Definition) contents.· Adjust the Cable/Set top box video output resolution to 1080i or 720p.· Make sure you are watching the TV at the minimum recommended distance based on the size and definition of the signal.
The picture is distorted: macro block error, small block, dots, pixelization	· Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action movies.· Low signal level or bad quality can cause picture distortion. This is not a TV issue.
Colour is wrong or missing.	· If you're using a component connection, make sure the component cables are connected to the correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.
There is poor colour or brightness.	· Adjust the Picture options in the TV menu. (go to Picture mode / Colour / Brightness / Sharpness)(p. 15)· Adjust Energy Saving option in the TV menu. (go to MENU - Picture - Eco Solution -Energy Saving) (p. 15)· Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset)(p.18)
There is a dotted line on the edge of the screen.	· If the picture size is set to Screen Fit, change it to 16:9 (p. 17).· Change cable/set top box resolution.
The picture is black and white.	· If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV.
When changing channels, the picture freezes or is distorted or delayed.	· If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes.· Set the output resolution of the cable box to 1080i or 720p.
Sound Quality	First of all, please perform the Sound Test to confirm that your TV audio is properly operating.(go to MENU - Support - Self Diagnosis - Sound Test) (p. 23)If the audio is OK, the sound problem may caused by the source or signal.
There is no sound or the sound is too low at maximum volume.	· Please check the volume the of external device connected to your TV.
The picture is good but there is no sound.	· Set the Speaker Select option to TV Speaker in the sound menu (p. 19).· If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.· If you are using an external device, check the device's audio output option (ex. you may need to change your cable box's audio option to HDMI when you have a HDMI connected to your TV).· If you are using a DVI to HDMI cable, a separate audio cable is required.· If your TV has a headphone jack, make sure there is nothing plugged into it.
The speakers are making an inappropriate noise.	· Check the cable connections. Make sure a video cable is not connected to an audio input.· For antenna or cable connections, check the signal strength. Low signal level may cause sound distortion.
No Picture, No Video
The TV won't turn on. · Make sure the AC	power cord is securely plugged in to the wall outlet and the TV.· Make sure the wall outlet is working.· Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to "The remote control does not work" below.
The TV turns off automatically.	· Ensure the Sleep Timer is set to Off in the Setup menu (p. 20).· If your PC is connected to the TV, check your PC power settings.· Make sure the AC power cord is plugged in securely to the wall outlet and the TV.· When watching TV from an antenna or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal.

Other Information

Issues Solutions and Explanations
There is picture/Video. • Check cable connections (remove and reconnect all cables connected to the TV and external devices).• Set your external devices' (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device's output is HDMI, it should be connect to an HDMI input on the TV.• Make sure your connected devices are powered on.• Be sure to select the TV's correct source by pressing the SOURCE button on the TV remote.
RF(Cable/Antenna) Connection
The TV is not receiving all channels. • Make sure the Antenna cable is connected securely.• Please try Plug & Play (Initial setup) to add available channels to the channel list. Go to MENU - Setup - Plug & Play (Initial setup) and wait for all available channels to be stored (p. 7).• Verify the Antenna is positioned correctly.
The picture is distorted: macro block error small block, dots, pixelization	• Compression of video contents may cause picture distortion, especially with fast moving pictures such as sports and action movies.• A low signal can cause picture distortion. This is not a TV issue.
PC Connection
A "Mode Not Supported" message appears.	• Set your PC's output resolution and frequency so they match the resolutions supported by the TV (p. 24).
"PC" is always shown on the source list, even if a PC is not connected.	• This is normal; "PC" is always shown on the source list, regardless of whether a PC is connected.
The video is OK but there is no audio. • If you are using a HDMI connection, check the audio output setting on your PC.
Network Connection (Depending on Models)
Wireless network connection failed. • Samsung Wireless USB dongle is required to use a wireless network.• Make sure the Network Connection is set to Wireless (p. 27).• Make sure the TV is be connected to a wireless IP sharer (router).
Others
The picture won't display in full screen.	• HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3) contents.• Black bars on the top and bottom will appear during movies that have aspect ratios different from your TV.• Adjust the picture size options on your external device or TV to full screen.
The remote control does not work. • Replace the remote control batteries with the poles (+/-) in the right direction.• Clean the sensor's transmission window on the remote.• Try pointing the remote directly at the TV from 5~6 feet away.
The cable/set top box remote control doesn't turn the TV on or off, or adjust the volume.	• Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.
A "Mode Not Supported" message appears.	• Check the supported resolution of the TV, and adjust the external device's output resolution accordingly. Refer to the resolution settings on page 24 of this manual.
There is a plastic smell from the TV. • This smell is normal and will dissipate over time.
The TV Signal Information is unavailable in the Self Diagnostic Test menu.	• This function is only available with digital channels from an Antenna / RF/Coax connection (p. 23).
The TV is tilted to the side. • Remove the base stand from the TV and reassemble it.
There are difficulties assembling the stand base.	• Make sure the TV is placed on a flat surface. If you can not remove the screws from the TV, use a magnetized screw driver.
The channel menu is greyed out.(unavailable)	• The Channel menu is only available when the TV source is selected.
Your settings are lost after 30 minutes or every time the TV is turned off.	• If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change the settings from Store Demo mode to Home Use mode in the Plug & Play (Initial setup) procedure. Press the SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play (Initial setup) → ENTER (p. 7).
You have intermittent loss of audio or video.	• Check the cable connections and reconnect them.• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.
You see small particles when you look closely at the edge of the frame of the TV.	• This is part of the product's design and is not a defect.
The PIP menu is not available.	• PIP functionality is only available when you are using a HDMI, PC or components source (p. 22).
The message “Scramble signal” or “Weak Signal/No Signal” appears.	• If you are using a CAM CARD (CI/CI+), check that it is installed into the common interface slot.• If there is still a problem, pull the CAM CARD out of the TV and insert it into the slot again.
You turned the TV off 45 minutes ago, and it turned on again.	• It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade firmware downloaded whilst your watching TV.
There are recurrent picture/sound issues.	• Check and change the signal/source.
A reaction may occur between the rubber cushion pads on the base stand and the top finish of some furniture.	• To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.

This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

TheaterSound, SRS and the Symbol are trademarks of SRS Labs, Inc.
TheaterSound technology is incorporated under license form SRS Lab, Inc.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Open Source Licence Notice

In the case of using open source software, Open Source Licences are available on the product menu.

Specifications

Panel native 1920 x 1080 @ 60 Hz
Environmental Considerations
Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Storage Humidity	5% to 95%, non-condensing
TV System Analogue: B/G, D/K, L, I (Depending on your country selection) Digital: DVB-T/DVB-C
Colour/Video System Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60 Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0
Sound System BG. OK NICAM. MPEG
HDMI IN 1 ~ 4 Video: 1080 24p, 1080p, 1080i, 720p 576p, 576i, 480p, 480i Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.Analogue audio input (HDMI IN1 only)PC input (HDMI IN1 only)
Stand Swivel (Left / Right) -20° ~ 20°
Model Name UE32C6000 UE37C6000
Screen Size (Diagonal) 32 inches 37 inches
Sound (Output) 10 W X 2
Dimensions (WxDxH)
Body	8.4 kg		10.6 kg
With stand	10.2 kg		13.3 kg
Weight
Without Stand	774 X 29.9 X 479 mm		897 X 29.9 X 549 mm
With Stand	774 X 242.2 X 542 mm		897 X 257.2 X 614 mm
Model Name UE40C6000 UE46C6000	UE55C6000
Screen Size (Diagonal) 40 inches	46 inches	55 inches
Sound (Output)	10 W X 2		15 W X 2
Dimensions (WxDxH)
Body	961 X 29.9 X 585 mm	1096 X 29.9 X 659 mm	1287 X 29.9 X 768 mm
With stand	961 X 257.2 X 650 mm	1096 X 277.2 X 724 mm	1287 X 307.2 X 833 mm
Weight
Without Stand	12.4 kg	16.1 kg	20.2 kg
With Stand	15.1 kg	20.8 kg	25.7 kg

Design and specifications are subject to change without prior notice.
For information about power supply, and more about power consumption, refer to the label attached to the product.

Index

A

AllShare 42

Amplify 18

Antenna 13

Anynet+ 39

Auto Adjustment 18

Auto Volume 19

B

Background Music 38

Balance L/R 18

Basic View 37

Batteries 6

Black Tone 16

Blanking Bracket 46

Brightness 15

C

Cable Tie 4, 45

Change PIN 21

Channel Manager 12

Channel Menu 13

Clock 20

Colour Tone 17

Component 8

Connecting to a PC 24

Connecting to an Audio Device 9

D

DIGITAL AUDIO OUT 9,39

DivX® VOD 38

D-sub 24

Dynamic 15

Dynamic Contrast 16

E

Eco Sensor 15

Edit Name 10

Editing Channels 14

Energy Saving 15

EPG (Electronic Programme Guide) 11

Equalizer 18

External Speaker 19

F

Film Mode 17

Fine Tune 15

Flesh Tone 16

Frequency 13

H

HDMI 8,39

Headphones 9

Home Theatre 9,39

|

Installation Space 2

L

Language 21

Licence 52

Lock 14

M

Media Play 32

Melody 22

Menu Transparency 22

Music 36

My Channels 13

N

Navigate 11

Network Connection 25

Network Setup 26

Now & Next guide 11

O

ON/OFF button 6

Optimal resolution 24

P

Photos 36

Picture Size 17,38

PIP (Picture in Picture) 22

Plug & Play 7

Power Indicator 5

R

Receiver 41

Recording 40

Remote Control 6

Repeat Mode 38

RGB Only Mode 16

Rotate 38

S

Select All 14

Self Diagnosis 23

Sharpness 15

Signal Information 23

Sleep Timer 20

Slide Show 36

Software Upgrade 23

Source List 10

Speaker Select 19

Specifications 53

Standby mode 5

Subtitle 21

Symbol 3

T

Timer 20

Title 37

Tools 3

Troubleshooting 49

TV Speaker 19

U

USB Drive 23,32

Using Channel View 11

Using Scheduled View 12

Using the Favourite Channels 13

V

VCR 8

Video Formats 35

Videos 34

Volume 5

W

Wall Mount 46

Warm 17

White Balance 16

This page is intentionally left blank.

46 Installation du support mural

48 Verrou antivol Kensington

Technical diagram showing a mechanical assembly with labeled components and a magnified inset view of the component.

REMARQUE

DIGITAL AUDIO OUT (OPTICAL)

Guide 2:10 Mar 1 Jul DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... Vue chaînes - TV Aujourd'hui 18:00 - 19:00 19:00 - 20:00 27 Discovery American Chopper Time Team 28 DiscoveryH&L Programmes resume at 06:00 800 five Home and... Family Affairs Fiv... Dark Angel 24 price-drop.tv No Information 16 QVC QVC Selection 6 R4DTT No Information Mode aff. 24 heures Mode CH Information Page Regarder

Fonctions de base

Guide 2:10 Mar 1 Jul DTV Air 800 five Family Affairs 18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear... Diffusion programmée 18:30 Aujourd'hui 19:15 Aujourd'hui Family Affairs 800 five Dark Angel 800 five Mode aff. Information Annuler

Diagram of a network device with two ports and connections (no text or symbols)

Diagram showing a monitor mounted on a stand next to a cylindrical device with an arrow pointing to a wall detail (no text or symbols present)

Diagram showing cable connection to a computer monitor with labeled components and output ports

Black-and-white photo of giraffes in a zoo enclosure, no visible text or symbols on the animals or background.

I Love You Jhon 1st Album Pop 2010 4.2MB 01:10 / 04:02 I Love you Jhon Music 1 No Singer Music 2 No Singer Music 3 No Singer Music 4 No Singer Music 5 No Singer

Black and white close-up photo of fresh apples with water droplets (no text or symbols visible)

Diagram of a TV cable connector with labeled parts including power, cable, and cable routing

Diagram showing cable routing between a computer interface and a network of cables (no text or symbols present)

Three-step diagram showing cable installation, wire termination, and cable knot (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Type montage mural

Pure electrical circuit lines without any symbols

Diagram showing three different cable or connector configurations with no visible text or symbols

Installation du support mural

Assemblage du cache

Diagram showing a mechanical device with numbered parts and a magnified inset highlighting a specific component.

Simple line drawing of a mechanical clamp or connector (no text or symbols)

Mechanical diagram showing a lever mechanism with a magnified inset (no text or symbols)

Diagram showing a computer monitor with labeled components and an inset diagram highlighting a connection point labeled '1'

Technical diagram showing assembly of a mechanical component with labeled parts and an inset detail view

Diagram illustrating a mechanical assembly or disassembly process on a computer monitor, with labeled components and directional arrows.

Mur

Dépannage

TheaterSound, SRS and the Symbol are trademarks of SRS Labs, Inc.
TheaterSound technology is incorporated under license form SRS Lab, Inc.

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

EPG (Electronic Programme Guide) 11

This page is intentionally left blank.

Diagram illustrating a mechanical assembly or disassembly process with labeled components and directional arrows

NOTA

DIGITAL AUDIO OUT (OPTICAL)

NOTA

Guía 2:10 Mar 1 Jun DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... Vista can - TV Hoy 18:00 - 19:00 | 19:00 - 20:00 ▲ 27 Discovery American Chopper | Tine Team 28 DiscoveryH&L Programmes resume at 06:00 800 five Home and... | Family Affairs | Fiv... | Dark Angel | 24 price-drop.tv No Information 16 QVC QVC Selection ▼ 6 R4DTT No Information ■ Modo Vista ■-24 horas Modo can Información ▼ Página ▼ Ver ① ② ③ ④ ⑤ ⑥

Funciones básicas

Guía 2:10 Mar 1 Jun DTV Air 800 five Family Affairs 18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear... Vista programada 18:30 Hoy 19:15 Hoy Family Affairs 800 five Dark Angel 800 five ▲ Modo Vista □ Información ▼ Cancelar

Diagram showing a wall-mounted device connected to a cylindrical device with a sensor, next to a separate wall-mounted panel (no text or symbols present)

Diagram showing cable connection to a monitor with cable connector and connected to a USB drive, illustrating cable routing or data transfer.

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

I Love You Jhon 1st Album Pop 2010 / 2MB 01:10 / D4:02 I Love you Jhon Music 1 No Singer Music 2 No Singer Music 3 No Singer Music 4 No Singer Music 5 No Singer

Black and white close-up photo of peaches with water droplets, no visible text or symbols

Diagram of a computer monitor with labeled parts including cable, cable connector, and cable spool

Diagram showing cable routing between a computer interface and a multi-chamber network (no text or symbols present)

Three-step diagram showing cable installation, wire meshing, and cable termination (no text or symbols)

Technical line drawing of a mechanical assembly with a central rod and flange (no text or symbols)

Tipo montaje mural

Pure electrical circuit lines without any symbols

Diagram showing three stages of cable or connector assembly: top view, middle section with connectors, and bottom view with connectors (no text or symbols)

Diagram showing a mechanical device with numbered parts and a magnified inset highlighting a specific component.

Line drawing of a mechanical clamp or connector (no text or symbols)

Mechanical diagram showing a lever mechanism with a magnified inset (no text or symbols)

Diagram showing a computer monitor with labeled components and an inset diagram highlighting a connection point labeled '1'

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view of a component

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or movement.

Pared

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Especificaciones

EPG (Electronic Programme Guide) 11

This page is intentionally left blank.

Technical diagram showing mechanical assembly with labeled parts and a magnified circular detail view

NOTA

DIGITAL AUDIO OUT (OPTICAL)

Se um sistema de áudio digital estiver ligado à tomada DIGITAL AUDIO OUT (OPTICAL), diminua o volume do televisor e do sistema.

Se o televisor estiver ligado a um dispositivo externo que suporte 5,1 canais, poderá usufruir de áudio de 5,1 canais.

Guia 2:10 Ter 1 Jun DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... Vis. Canal - TV Hoje 18:00 - 19:00 19:00 - 20:00 ▲ 27 Discovery American Chopper Tine Team 28 DiscoveryH&L Programmes resume at 06:00 800 five Home and... Family Affairs Fiv... Dark Angel 24 price-drop.tv No Information 16 QVC QVC Selection ▼ 6 R4DTT No Information ▲ Modo Vis. 24 horas Modo CH Informação Página Ver ① ② ③ ④ ⑤ ⑥

Funcionalidades básicas

Guia 2:10 Ter 1 Jun DTV Air 800 five Family Affairs 18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear... Vista Programada 18:30 Hoje 19:15 Hoje Family Affairs 800 five Dark Angel 800 five Modo Vis. Informação Cancelar

Channel List Transfer (Transfer. Lista Canais)

Diagram of a network device with two ports and connections (no text or labels)

Painel posterior do televisor

Cabo LAN Cabo do modem

USB 2~ USB 1 [100] OU

Adaptador de LAN sem fios da Samsung

Diagram showing a device mounted on a stand next to a cylindrical tank, with no visible text or symbols.

Diagram showing connection between a computer monitor and two electronic devices labeled 'ou', with one device connected to the other.

Black-and-white photo of giraffes in a zoo enclosure, no visible text or symbols on the animals or background.

I Love You Jhon 1st Album Pop 2010 4.2MB 01:10 / 04:02 I Love you Jhon Music 1 No Singer Music 2 No Singer Music 3 No Singer Music 4 No Singer Music 5 No Singer

Black and white close-up photo of fresh apples with water droplets (no text or symbols visible)

Diagram of a TV cable connector with labeled parts including power, cable, and cable routing

Diagram showing cable routing from a device to a multi-core cable connector (no text or symbols present)

Three-step diagram showing cable installation steps: mounting, connecting cable to a cable holder, and tying rope knot (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing three different cable or connector configurations with no visible text or symbols

Diagram showing a mechanical assembly with numbered parts and a magnified detail view highlighting a component.

Simple line drawing of a mechanical connector or clamp (no text or symbols)

Mechanical diagram showing a lever mechanism with a magnified inset highlighting the pivot point (no text or symbols present)

Diagram showing a computer monitor with labeled components and an inset magnified view of a device with numbered parts.

Technical diagram showing assembly of mechanical components with labeled parts and a magnified detail view

Diagram illustrating a mechanical assembly or disassembly process on a computer monitor, with labeled components and directional arrows.

Parede

TheaterSound, SRS and the Symbol are trademarks of SRS Labs, Inc.
TheaterSound technology is incorporated under license form SRS Lab, Inc.

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Especificações

PIP (Picture in Picture) 22

Plug & Play 7

Poupança Energ. 15

R

Receptor 41

Relógio 20

This page is intentionally left blank.

Technical diagram showing mechanical assembly with labeled parts and a magnified inset view

OPOMBA

DIGITAL AUDIO OUT (OPTICAL)

Če je digitalni avdio sistem povezan z vtičnico DIGITAL AUDIO OUT (OPTICAL), znižajte glasnost televizorja in sistema.

Guide 2:10 Tue 1 Jun DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... Channel View - TV Today 18:00 - 19:00 19:00 - 20:00 27 Discovery American Chopper Tine Team 28 DiscoveryH&L Programmes resume at 06:00 800 five Home and... Family Affairs Fiv... Dark Angel 24 price-drop.tv No Information 16 QVC QVC Selection 6 R4DTT No Information View Mode +24 Hours oh. Mode Information Page Watch

Osnovne funkcije

Uporaba možnosti Scheduled View

Guide 2:10 Tue 1 Jun DTV Air 800 five Family Affairs 18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear... Scheduled View 18:30 Today 19:15 Today Family Affairs 800 five Dark Angel 800 five View Mode Information Cancel

All 1futech 2 ♥ 24ore.tv TV 15 Radio 3 Data/Other 23 Analogue 33 32 5 4 ⏱ 27 Edit My Channels Lock Timer Viewing Edit Channel Number Delete Select All Coming Soon Discovery Air Antenna Zoom Select Sort Page Tools

Channel List

Antenna (Air / Cable)

Channel List Transfer

Backlight/Contrast/Brightness/Sharpness/Colour/Tint(G/R)

■Energy Saving (Off / Low / Medium / High /

Picture Off / Auto) TOOLS: ta funkcija prilagodi

■Colour Tone (Cool/Normal/Warm1/Warm2)

Auto Adjustment TOOLS

SRS TruSurround HD (Off / On) TOOLS

Auto Volume (Off / Normal / Night)

Speaker Select (External Speaker / TV Speaker)

•TV Speaker: Off, External Speaker: On

možnost Speaker Select nastavljena na peaker

•TV Speaker: On, External Speaker: On

ni video signala, sta oba zvočnika izklopljena.

Additional Setting

(samo pri digitalnih kanalih)

On Time
	Inactivate	0000
Off Time
	Inactivate	0000
Volume	Source	Antenna			Channel
10TVATV1
Repeat
Once	Sun	Mon	Tue	Wed	Thu	Fri	Sat

Wireless Remote Control

Software Upgrade Current Version 2010/01/18_000001 By USB ▶ By Online By Channel Standby Mode Upgrade : 45 Min Alternative Software 2010/01/15_00000 Move Enter Return

Diagram showing a device mounted on a wall-mounted panel connected to a cylindrical tank, with no visible text or symbols.

Diagram showing cable installation on a computer monitor with two connected cables and a separate connector labeled 'Samsung'.

Network Setup (Samsung Auto Configuration)

Network Setup (PBC (WPS))

Network Setup Security Key 0 entered A B C D E F G 0-9 Number H I J K L M N A Lower case O P Q R S T U B Delete VW X Y Z Space Move Enter Return

Rakaže se sporočilo The existing network system may have limited functionality. Do you want to change the network connection?.

1. V napravo, ki jo želite povezati, vnesite generirana Network Name (SSID) in Security Key.

Povezava obstoječe začasne naprave

Black-and-white photo of giraffes in a zoo enclosure, no visible text or symbols on the animals or background

00:04:03 / 00:07:38 1/1 Movie 01.avi D Play continuously Resumes playing from the last viewed scarc. SUN D Play continuously ▶ Chaptering ◄ Jump Tools Return

Music

Predvajanje glasbe

1. Pritisnite gumb ◀ ali ▶ in izberite možnost Music, nato pa pritisnite gumb ENTER v meniju Media Play.
2. S pritiskanjem gumba ◀ / ▶ / ▲ / ▼ izberite želeno datoteko na seznamu datotek.

3. Pritisnite gumb ENTER ← ali gumb ▶ (predvajanje).

4. Med predvajanjem glasbene lahko iščete z gumboma ◀ in ▶.

5. Gumba◀◀ (REW) in ▶▶ (FF) med predvajanjem ne delujeta.

Prikazane so samo datoteke s priponama MP3 in PCM. Datoteke z drugimi priponami niso prikazane, tudi će so shranjene v isti napravi USB.

I Love You Jhon 1st Album Pop 2010 4.2MB 01:10 / 04:02 I Love you Jhon Music 1 No Singer Music 2 No Singer Music 3 No Singer Music 4 No Singer Music 5 No Singer Pause Jump Tools Return

Black and white close-up photo of peaches with water droplets, no visible text or symbols

1. Pritisnite gumb TOOLS in izberite Play Selected Contents.

Predvajanje skupine video/glasbenih/slikovnih datotek

1. Ko je prikazan seznam datotek, se pomaknite na katero koli datoteko v želeni skupini.
2. Pritisnite gumb TOOLS in izberite Play Current Group.

Videos Movie 01.avi 2 files selected 1/1 Page Movie 01.avi Jan.10.2010 Movie 02.avi Jan.10.2010 Movie 03.avi Jan.10.2010 Movie 04.avi Jan.10.2010 Movie 05.avi Jan.10.2010 Movie 06.avi Jan.10.2010 Movie 07.avi Jan.10.2010 Movie 08.avi Jan.10.2010 Movie 09.avi Jan.10.2010 Movie 10.avi Jan.10.2010 SUM Change Device Select Sorting Tools

"Unknown Device 0" is requesting that the media file be allowed to play. If you wish to allow the media file to be played at your device, please press "Allow", otherwise press "Deny". You can also change the setting (or resetting) of this feature at "AI/Share Setup". Warning: Please note that if your device is connected to unsecured or unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content's appropriateness, we strongly recommend that you do not "Allow" the request to play. DenyAllow

Diagram of a TV cable connector with labeled parts including power outlet, cable routing, and cable attachment.

Diagram showing cable routing from a device to multiple cables (no text or symbols present)

Three-step diagram showing cable installation, wire termination, and cable knot (no text or symbols)

Technical line drawing of a mechanical assembly with a central cylindrical component and two vertical supports (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing cable connector connections with three views: top view, middle section with cable routing, and bottom view (no text or symbols)

Diagram showing a mechanical assembly with numbered parts and a magnified detail view highlighting a component.

Line drawing of a mechanical clamp or connector (no text or symbols)

Diagram showing mechanical linkage and force application (no text or symbols)

Diagram showing a computer monitor with labeled components and an inset diagram highlighting a component labeled '1'.

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view of a component.

Diagram illustrating a mechanical assembly or disassembly process on a computer monitor, with labeled components and directional arrows.

Stena

Odpravljanje težav

TheaterSound, SRS and the Symbol are trademarks of SRS Labs, Inc.
TheaterSound technology is incorporated under license form SRS Lab, Inc.

Izdelano pod licenco podjetja Dolby Laboratories. Dolby in simbol DD sta blagovni znamki podjetja Dolby Laboratories.

(Electronic Programme Guide) 11

Equalizer 18

External Speaker 19

F

Film Mode 17

Fine Tune 15

Flesh Tone 16

Frequency 13

G

This page is intentionally left blank.

Technical diagram showing mechanical assembly with labeled parts and a magnified inset view of a component detail

NOT

DIGITAL AUDIO OUT (OPTICAL)

Kilavuz 2:10 Sal 1 Haz DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... Kanal Gmm - TV Bugün 18:00 - 19:00 19:00 - 20:00 27 Discovery American Chopper Time Team 28 DiscoveryH&L Programmes resume at 06:00 800 five Home and... Family Affairs Fiv... Dark Angel 24 price-drop.lv No Information 16 QVC QVC Selection 6 R4DTT No Information Grnt Modu 24 Saat GH Modu Big Sayfa izle 1 2 3 4 5 6

Temel Özellikler

Kilavuz 2:10 Sel 1 Haz DTV Air 800 five Family Affairs 18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear... Programlanmış Gönünüm 18:30 Bugün Family Affairs 800 five 19:15 Bugün Dark Angel 800 five Grnt Modu t Bilgi iptal ① ④ ⑥

SRS TruSurround HD (Kapalı / Açık)

TOOLS

Diagram showing a wall-mounted device connected to a cylindrical tank, with an inset image of a monitor displaying a small object (no text or symbols present)

Black-and-white photo of giraffes in a zoo enclosure, no visible text or symbols on the animals or background.

I Love You Jhon 1st Album Pop 2010 / 2MB 01:10 / 04:02 I Love you Jhon Music 1 No Singer Music 2 No Singer Music 3 No Singer Music 4 No Singer Music 5 No Singer Dunakat Atla Araçar Don

Fotolar

Black and white close-up photo of a cluster of apples with water droplets (no text or symbols visible)

Diagram of a TV cable connector with labeled parts including power, cable, and cable routing

Diagram showing cable routing from a device to a multi-pin connector (no text or symbols present)

Three-step diagram showing cable installation steps: mounting, connecting cable to a base, and securing a rope knot (no text or symbols present)

Technical line drawing of a mechanical assembly with a central rod and base plate (no text or symbols)

Duvara Monteli Tip

Pure electrical circuit lines without any symbols

Diagram showing three different cable or connector configurations with no visible text or symbols

Diagram showing a mechanical assembly with numbered parts and a magnified detail view highlighting a component.

Technical line drawing of a mechanical component with a V-shaped notch and threaded end (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a magnified inset (no text or labels)

Diagram showing a computer monitor with labeled components and an inset magnified view highlighting a component labeled '1'.

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view of a component labeled '1'

Diagram illustrating a cable or connector assembly process with labeled components and directional arrows indicating movement.

Duvar

Sorun Giderme

TheaterSound, SRS and the Symbol are trademarks of SRS Labs, Inc.
TheaterSound technology is incorporated under license form SRS Lab, Inc.

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Teknik Özellikler

LVD EMC
KTL (Korea Testing Laboratory) DIGITAL EMC CO., LTD.
NEMKO Korea Co.,Ltd DIGITAL EMC CO., LTD.
KTL (Korea Testing Laboratory) Samsung Electronics Co., Ltd.

NEMKO Korea Co., Ltd 296, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, Korea 449-582

Tel: [phone] / Fax: [phone]

KTL(Korea Testing Laboratory) 222-13, Guro-3dong, Guro-gu, Seoul, 152-718, Korea

Tel: [phone] / Fax: [phone]

DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080

683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea

Tel: [phone] / Fax: [phone]

Samsung Electronics co., Ltd. Suwon EMC test Lab 416 Maetan-3 Dong, Yeongtong-Gu, Suwon-City Gyeonggi-Do, Korea, 443-742

Tel: [phone] / Fax: [phone]
