USER MANUAL HWJ6511 SAMSUNG

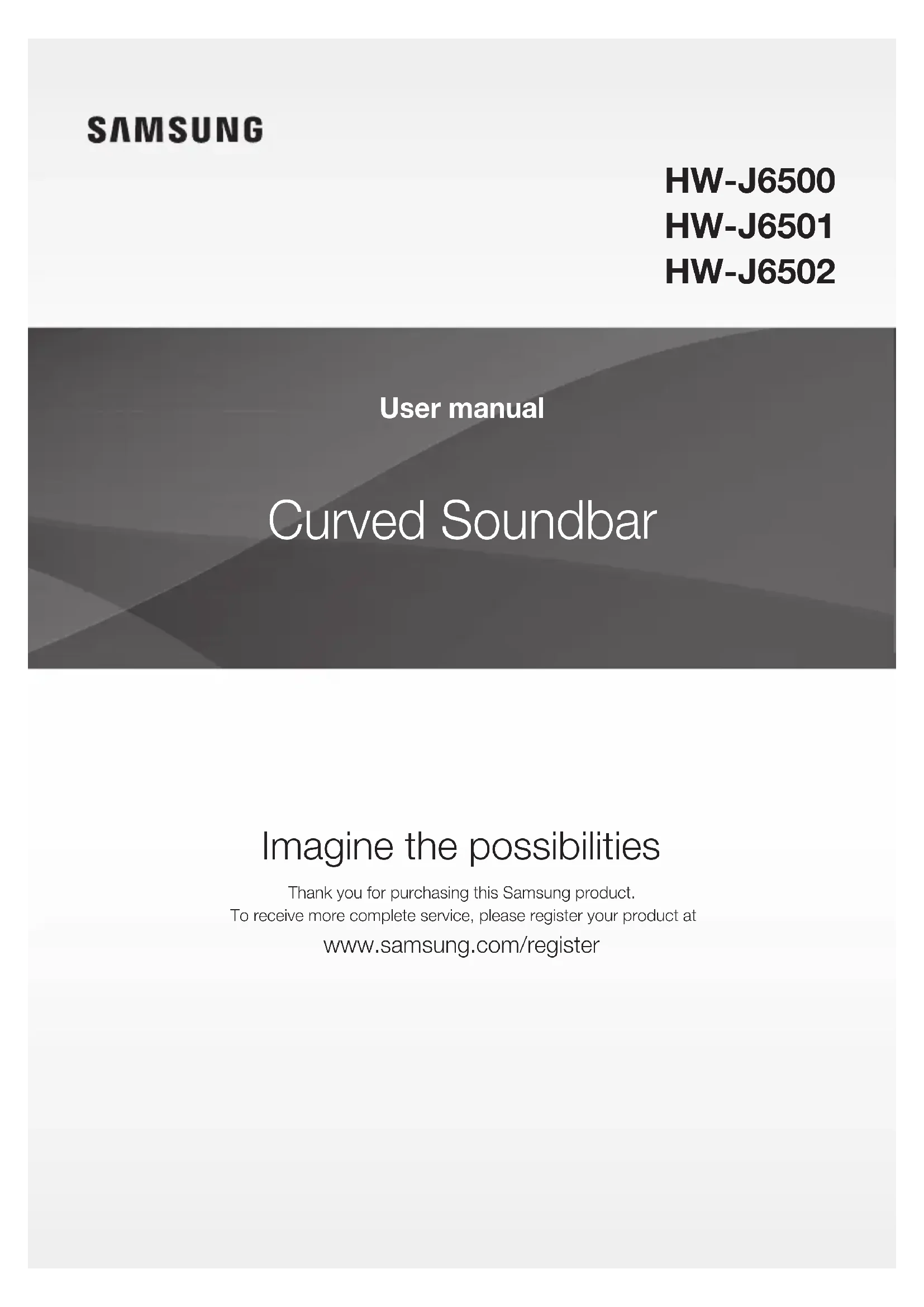

Curved Soundbar Imagine the possibilities Thank you for purchasing this Samsung product.To receive more complete service, please register your product at www.samsung.com/register User manual HW-J6500 HW-J6501 HW-J650232 GETTING STARTED FEATURES GETTING STARTED Streaming Music Services The Curved Soundbar makes diving into all your favourite music easier than ever before, thanks to its Wi-Fi capabilities. Simply access the Samsung Multiroom App to experience the best of the internet’s subscription streaming music services. Surround Sound Expansion The Surround Sound Expansion feature adds depth and spaciousness to your listening experience. TV SoundConnect Connect your TV and Soundbar easily through Bluetooth with TV SoundConnect. The absence of trailing wires between the Soundbar and TV allows you to showcase the slim and sleek design of both systems, while maintaining a clean look in your living environment. Easily control the Soundbar and TV from a single TV remote. Music Source Sharing (= Multiroom Play) Controlling and sharing one music source across multiple audio devices in various locations is made easy with Multiroom Link. The mobile app remotely controls volume and music on your system across different devices, including your TV, Soundbar, Home Entertainment System and Blu-ray Disc Player. Enjoy the audio you want, where you want. HDMI HDMI transmits video and audio signals simultaneously, and provides a clearer picture. The unit is also equipped with the ARC function which lets you listen to sound from your TV through the Soundbar via an HDMI cable. This function is only available if you connect the unit to an ARC compliant TV. USB Host Support You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Soundbar's USB HOST function. Bluetooth Function You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires! LICENCES Manufactured under Licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http://patents.dts.com. Manufactured under licence from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.3 ENG GETTING STARTED SAFETY INFORMATION SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPENThis symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.This symbol indicates important instructions accompanying the product.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.Wiring the Main Power Supply Plug (UK Only)IMPORTANT NOTICEThe mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.IMPORTANTThe wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.54 GETTING STARTED PRECAUTIONS 99.1mm 99.1mm

99.1mm Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction. The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit, disassemble, or overheat the batteries. There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING, DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD, The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.5 ENG GETTING STARTED ● Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. ● An administration fee may be charged if either (a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read). ● You will be informed of the administration fee amount before a technician visits. CONTENTS 2 GETTING STARTED 2 Features 3 Safety Information 6 What’s Included 7 DESCRIPTIONS 7 Top / Front Panel 8 Rear / Bottom Panel 9 Remote Control 11 INSTALLATION 11 Installing the Soundbar 11 Installing the Wall Mount14 Attaching the Soundbar to your TV's Stand14 Installing Soundbar to Free-Standing 15 CONNECTIONS 15 Connecting the Subwoofer 17 Connecting to a TV 17 TV SoundConnect 18 Connections with TV Using HDMI (Digital) Cable19 Connections with TV Using Optical (Digital) Cable 20 Connections with External Device 20 HDMI Cable20 Optical or AUX Cable21 USB 23 FUNCTIONS 23 Input Mode 24 Bluetooth 26 Using the Network Standby On Function 26 Using the Multiroom Link 28 Software Update 30 TROUBLESHOOTING 30 Troubleshooting 31 APPENDIX 31 Specifications76 GETTING STARTED

Note the following terms before reading the user manual. + Icons used in this manual Icon Term Definition Caution Indicates a situation where a function does not operate or settings may be cancelled. Note Indicates tips or instructions on the page that help you operate a function. Check for the supplied accessories shown below. Remote Control / Lithium Battery (3V : CR2032) Power Cord : 2EA DC Adapter USB Cable

Holder-Fix Mount : 2EA Bracket-Wall : 2EA Wall Mount Guide ● The appearance of the accessories may differ slightly from the illustrations above. ● Use the dedicated USB cable to connect external USB devices to the unit.7 ENG DESCRIPTIONS

(Power) Button Turns the power on and off. VOL. - / + Controls the volume level. The numeric value of the volume level appears in the front panel display. Display Displays the current mode. (Source) Button Selects the D.IN, AUX, HDMI, BT, TV, or USB input. ● While the unit is powered on, pressing the (Source) button for more than 3 seconds sets the button to act as the (Mute) button. To cancel the (Mute) button setup, press the (Source) button for more than 3 seconds again. ● When you plug in the AC cord, the power key will work in 4 to 6 seconds. ● When you turn on this unit, there will be a 4 to 5 second delay before it produces sound. ● If you want to enjoy the sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.DESCRIPTIONS98 DESCRIPTIONS

DC 14VAUX INOPTICAL INHDMI INHDMI OUT(TV-ARC)5V 0.5A LAN SPK ADDWi-Fi SETUP DC14V LAN 5V 0.5ASPK ADDWi-Fi SETUP DC 14V (Power Supply In) Connect the DC power adaptor to the power supply jack, and then connect the AC power adaptor plug to a wall outlet. (USB Port) Connect USB devices here to play files on the devices. OPTICAL IN (D.IN) Connect to the digital (optical) output of an external device. HDMI OUT (TV-ARC) Outputs digital video and audio signals simultaneously using an HDMI cable. HDMI IN Inputs digital video and audio signals simultaneously using an HDMI cable. Use when connecting a supported external device. AUX IN Connect to the Analogue output of an external device. LABEL SPK ADD Press the button to connect Soundbar to the HUB. (not supplied) Wi-Fi SETUP Press this button to connect your Soundbar to your network using Wi-Fi setup. LAN Lets you connect to a network using a LAN cable. ● When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug. Do not pull the cable. ● Do not connect this unit or other components to an AC outlet until all connections between components are complete.9 ENG DESCRIPTIONS REMOTE CONTROL Anynet+ Press the Anynet+ button to turn the Anynet+ function on or off. (Default : Auto Power Link OFF, ON - ANYNET+ / OFF - POWER LINK or OFF - ANYNET+ / ON - POWER LINK). The Anynet+ function lets you control the Soundbar with the remote from an Anynet+ compatible Samsung TV. The Soundbar must be connected to the TV via an HDMI cable.

• Auto Power Link Synchronizes the Soundbar to a connected Optical source via the Optical jack so it turns on automatically when you turn on your TV. (See page 19) You can also activate Wi-Fi SETUP function by pressing and holding Anynet+ button on the remote for over 7 seconds. Repeat Press to set the Repeat function during music playback from a USB device. OFF - REPEAT : Cancells Repeat Playback. TRACK - REPEAT : Repeatedly play a track. ALL - REPEAT : Repeatedly play all tracks. RANDOM - REPEAT : Plays tracks in random order. (A track that has already been played may be played again.) Mute You can turn the volume down to 0 with the push of a button. Press again to restore the sound to the previous volume level. SOURCE Press to select a source connected to the Soundbar. Skip Forward If there is more than one file on the device you are playing, and you press the ] button, the next file is selected. SOUND CONTROL (*Use the

buttons to adjust the Treble, Bass volume from -3 to +3. Press and hold the SOUND CONTROL button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz, and 10KHz are selectable and each can be adjusted to a setting between -6 and +6. If the Soundbar is connected to a digital TV and the video appears out of sync with the audio, press the SOUND CONTROL button to sync the audio with the video. Use the

buttons to set the audio delay between 0 ms and 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync function may not available. ● Soundbar is a Samsung proprietary name. ● Operate the TV using the TV's remote control.1110 DESCRIPTIONS STREAMING MUSIC Press STREAMING MUSIC button to listen to an Internet radio station. Each time you press this button, the Soundbar switches to the next default station, cycling through the 3 default stations. To use the STREAMING MUSIC function, the soundbar must be connected to the network. (See page 26) DRC (Dynamic Range Control) * Lets you apply dynamic range control to Dolby Digital. Press and hold the STREAMING MUSIC button, then the DRC (Dynamic Range Control) function toggles between ON and OFF. WOOFER (* Use the

buttons to adjust Subwoofer volume from -12, -6 to +6. You can also activate SPK ADD function of the soundbar by pressing and holding WOOFER button of the remote for over 5 seconds. SOUND Surr.Sound adds depth and spaciousness to the sound. Pressing the SOUND button repeatedly cycles through the Surr.Sound settings : ON - SURROUND SOUND, OFF - SURROUND SOUND Volume Adjusts the volume level of the unit. Power Turns the Soundbar on and off. SOUND EFFECT You can select the sound modes - STANDARD (Original Sound), MUSIC, CLEAR VOICE, SPORTS, MOVIE, and NIGHT MODE - depending on the content you want to listen to. Select the STANDARD mode if you want to enjoy the original sound. Play / Pause Press the

button to pause the playing of a file temporarily. Press the

button again to play the selected file. Skip Back If there is more than one file on the device you are playing, and you press the

button, the previous file is selected. INSTALLING THE BATTERY IN THE REMOTE CONTROL

1. Use a suitable coin to turn the

remote control's battery cover counterclockwise to remove it as shown in the figure above.

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '●' marks side by side as shown in the figure above.

3. Use a suitable coin to

turn the remote control battery cover clockwise as far as it will go to fix it in place.11 ENG INSTALLATION

+ Installation Precautions ● Install on a vertical wall only. ● For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set. ● Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit's weight. ● Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs. ● Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on. - Diameter : M5 - Length: L 35 mm or longer recommended. ● Connect cables from the unit to external devices before you install it on the wall. ● Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock. 5 cm or more1. Place the installation guide against the wall surface.• The installation guide must be level.• If the TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.INSTALLATION1312 INSTALLATION Center Line Center Line

2. Mark the location where the screws will go through on the wall, and then remove the installation guide. Next, drill

holes for the screws using an appropriately sized drill bit.

3. Fasten the Bracket-Wall (2ea) and screws to the marked locations.

4. Lift up the product after inserting the Bracket-Wall as shown.13

ENG INSTALLATION DC 14VAUX INOPTICAL INHDMI INHDMI OUT(TV-ARC)5V 0.5A LAN SPK ADD Wi-Fi SETUP

5. Insert and fasten Holder-Fix Mount into each hole on the product’s bottom side. The product is fixed to the

Bracket-Wall. ● Do not hang onto the installed unit and avoid striking or dropping the unit. ● Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product. ● When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as it may cause it to fall. ● For the optimal performance of a wall mount installation, install the speaker system at least 5 cm below the TV, if the TV is mounted on the wall. ● For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.1514 INSTALLATION ATTACHING THE SOUNDBAR TO YOUR TV'S STAND You can attach the Soundbar to your TV's stand if you have a Samsung TV that has a stand that is compatible with this Soundbar. ● This Soundbar is compatible with model JU6700, JU6500 and JU7500, 48 inch, 55 inch and 65 inch, JU6610 - 48 inch and 55 inch, 2015 Samsung curved TVs. Please visit the home page of Samsung Electronics (www.Samsung.com) to see a detailed list of the co

atible models. ● This Soundbar cannot be installed to a non-compatible TV, in either form of TV mount or TV stand.

1. Align the Soundbar’s centre with the centre of the base of the TV, and then carefully push it onto the stand as far

as it will go, as shown in the illustration. Be careful not to unbalance the TV.

INSTALLING SOUNDBAR TO FREE-STANDING

1. Centre the Soundbar on the flat area in front of the TV.

● Install it on a level and firm surface.15 ENG CONNECTIONS ● Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete. ● Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

CONNECTING TO THE SUBWOOFER AUTOMATICALLY

The main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on.• If it is completely connected, the blue LED in the subwoofer stops blinking.

CONNECTING TO THE SUBWOOFER MANUALLY

The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on. If the Link indicator does not light when the main unit and subwoofer are turned on, please set the ID by following the procedure below.POWER1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.

2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.

• The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.

3. While the main unit is powered off (in STANDBY mode), press and hold the (Mute) on the remote control for 5

4. The ID SET message appears on the Soundbar's display.

5. To finalise the link, turn the main unit’s power on while the subwoofer’s Blue LED blinks.

• The main unit and the subwoofer should now be linked (connected).• The Link indicator (Blue LED) on the subwoofer should be on.
• If the Link indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from Step 2.
• You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect. (See page 10)CONNECTIONS1716 CONNECTIONS ● Before moving or installing the product, be sure to turn off the power and disconnect the power cord. ● If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY LED on the front will come on after the Link indicator (Blue LED) blinks for 30 seconds. ● If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption. ● The transmission distance of the wireless signal between the main unit and subwoofer is about 10 meters, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal. ● If the main unit doesn't make a wireless connection, follow steps 1-5 on the previous page to re-set the connection between the main unit and wireless subwoofer. ● The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture. ● For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.17 ENG CONNECTIONS

TV SOUNDCONNECT You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.Connect1. Turn on the TV and Soundbar.• Turn on the menu of the TV.• Move to Speaker Settings on "Sound" tab.• Set the "Add New Device" menu to "On".

2. Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control to

select the TV mode.3. On the TV, a message asking whether to enable the TV SoundConnect function appears.

4. Select <Yes> to finish connecting the TV and Soundbar using the TV's remote control.

● Switching the Soundbar’s mode from TV to another mode automatically terminates TV SoundConnect. ● To connect the Soundbar to another TV, the existing connection must be terminated. ● Terminate the connection to the existing TV, and then press the

button on the remote control for 5 seconds to connect to another TV. ● The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on. Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin. (For further information, refer to the TV’s user manual.). ● If your Samsung TV was released before 2014, check the SoundShare setting menu. ● If the distance between the TV and Soundbar exceeds 10 meters, the connection may not be stable or the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then re-establish the TV SoundConnect connection. ● TV SoundConnect Operational Ranges: - Recommended pairing range: within 2 meters. - Recommended operational range: within 10 meters. ● The Play/Pause, Next, and Prev buttons on the Soundbar or Soundbar's remote do not control the TV.1918 CONNECTIONS CONNECTIONS WITH TV USING HDMI (DIGITAL) CABLE DC 14VAUX INOPTICAL INHDMI INHDMI OUT(TV-ARC)5V 0.5ALANSPK ADDWi-Fi SETUP HDMI IN HDMI OUT (TV-ARC) HDMI OUT(TV-ARC) HDMI Cable (not supplied)

1. Connect an HDMI cable (not supplied) from the HDMI OUT (TV-ARC) jack on the back of the product to the

HDMI IN jack on your TV.

2. Press the (Source) button on the top panel of Soundbar or the SOURCE button on remote control to select

the D.IN mode. ● HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. ● If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port. ● We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm. ● Anynet+ must be turned on. ● This function is not available if the HDMI cable does not support ARC.19 ENG CONNECTIONS CONNECTIONS WITH TV USING OPTICAL (DIGITAL) CABLE DC 14VAUX INOPTICAL INHDMI INHDMI OUT(TV-ARC)5V 0.5ALANSPK ADDWi-Fi SETUP OPTICAL IN OPTICAL OUT Optical Cable (not supplied)

1. Connect OPTICAL IN (Audio) on the Soundbar to the OPTICAL OUT jack of the TV.

2. Press the (Source) button on the top panel of Soundbar or the SOURCE button on remote control to select

the D.IN mode. + Auto Power Link If you have connected the main unit to a TV with a digital optical cable, set the Auto Power function ON to have the Soundbar turn on automatically when you turn the TV on. AUTO POWER LINK Display

1. Connect the Soundbar and

a TV with an Optical cable (not supplied).

2. Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control to

select the D.IN mode.

3. Press the Anynet+ button on the remote control to toggle the Auto Power Link function on and off.

● Depending on the connected device, Auto Power Link may not function.2120 CONNECTIONS

CONNECTIONS WITH EXTERNAL

DEVICE HDMI CABLE HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set top boxes, and more. HDMI prevents any degradation to the signal due to conversion to analogue and maintains the video and audio quality of the original digital source. Digital Devices DC 14VAUX INOPTICAL INHDMI INHDMI OUT(TV-ARC)5V 0.5ALANSPK ADDWi-Fi SETUP HDMI OUT HDMI INHDMI IN HDMI Cable (not supplied)

1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack

on your digital device.

2. Press the (Source) button on the top panel of Soundbar or the SOURCE button on remote control to select

This unit comes equipped with one optical in digital jack and one audio analogue in jack, giving you two ways to connect it to an External Devices. BD / DVD player / Set-top box / Game console DC 14VAUX INOPTICAL INHDMI INHDMI OUT(TV-ARC)5V 0.5ALAN SPK ADD Wi-Fi SETUP AUX IN AUX OUT OPTICAL IN OPTICAL OUT Optical Cable (not supplied) Audio Cable (not supplied)21 ENG CONNECTIONS + AUX Cable

1. Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device.

2. Press the (Source) button on the top panel of Soundbar or the SOURCE button on remote control to select

the AUX mode. + Optical Cable

1. Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the Source Device.

2. Press the (Source) button on the top panel of Soundbar or the SOURCE button on remote control to select

the D.IN mode. USB You can play music files located on USB storage devices through the Soundbar. DC 14VAUX INOPTICAL INHDMI INHDMI OUT(TV-ARC)5V 0.5A LAN SPK ADDWi-Fi SETUP

1. Connect the USB device to the USB port on the back of the product.

2. Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control to

select the USB mode.

3. USB appears on the display screen.

• The Soundbar connection to the USB device is complete.

• The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 15 minutes. + Before you connect a USB device Be aware of the following: ● If the file name of a file on a USB device exceeds 10 characters, it is not displayed on the Soundbar's display. ● This product may not be compatible with certain types of USB storage media. ● The Soundbar supports the FAT16 and FAT32 file systems. - The NTFS file system is not supported. ● Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem. ● Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.2322 CONNECTIONS ● Digital camera PTP protocols are not supported. ● Do not remove the USB device while it is transferring files. ● DRM-protected music files (MP3, WMA) from commercial web sites cannot be played. ● External HDDs are not supported. ● Mobile phone devices are not supported. ● File Format Type Compatibility list: Extension Codec Sampling Rate Bit rate *.mp3 MPEG 1 Layer1 32/44.1/48 32 ~ 448kbps MPEG 1 Layer2 32/44.1/48 32 ~ 384kbps MPEG 1 Layer3 32/44.1/48 32 ~ 320kbps MPEG 2 Layer3 16/22.05/24/32/44.1/48 8 ~ 160kbps MPEG 2.5 Layer3 8/11.025/12/16/22.05/24/32/44.1/48 8 ~ 160kbps *.wma Wave_Format_MSAudio1 - - Wave_Format_MSAudio2 - - WMA Professional Not Support - *.wav - 8 KHz ~ 192KHz ~ 8.8Mbps *.ogg - 8 KHz ~ 48KHz - *.flac - 8 KHz ~ 192KHz ~ 5.6Mbps *.m4a Alac (Apple lossless Audo codec) 8 KHz ~ 192KHz ~ 1Mbps *.aif Audio Interchange File Format 8 KHz ~ 192KHz ~ 4.4Mbps ● If there are too many folders and files stored in the USB device, reading may take some time.23 ENG FUNCTIONS INPUT MODE Press the (Source) button on the main unit’s top

The unit turns off automatically in the following situations. ● D.IN / HDMI / BT / TV / USB / ARC Mode - If there is no audio signal for 15 minutes. ● AUX Mode - If the AUX cable is disconnected for 15 minutes. - If there is no KEY input for 8 hours when the AUX cable is connected. (Auto Power Down function can be turned off only in that case.)To turn off Auto Power Down function, while in AUX mode, press and hold the button for 5 seconds. ON - AUTO POWER DOWN / OFF - AUTO POWER DOWN appears on the display.FUNCTIONS2524 FUNCTIONS BLUETOOTH You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires! TO CONNECT THE SOUNDBAR TO A BLUETOOTH DEVICE Check if the Bluetooth device supports the Bluetooth compliant stereo headset function. Bluetooth device Connect

1. Press the (Source) button on the main unit’s top panel or the

SOURCE button on the remote control to select the BT mode.

• You will see BT READY on the front display of the Soundbar.

2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user

3. Select "[Samsung] HW-Jxxxx" from the list.

• When the Soundbar is connected to the Bluetooth device, it will display [Bluetooth device name]

BT on the front display.

• The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in English.

• If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung] HW-Jxxxx" found by the Bluetooth device and have it search for the Soundbar again.

4. Play music on the connected device.

• You can listen to the music playing on the connected Bluetooth device over the Soundbar.

• In BT mode, the Play / Pause / Next / Prev functions are not available. However, these functions are available in Bluetooth devices supporting AVRCP. ● If asked for PIN code when connecting a Bluetooth device, enter <0000>. ● Only one Bluetooth device can be paired at a time. ● The Bluetooth connection will be terminated when you turn the Soundbar off. ● The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances: - If there is a strong electrical field around the Soundbar. - If several Bluetooth devices are simultaneously paired with the Soundbar. - If the Bluetooth device is turned off, not in place, or malfunctions. - Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.25 ENG FUNCTIONS ● The Soundbar supports SBC data (44.1kHz, 48kHz). ● Connect only to a Bluetooth device that supports the A2DP (AV) function. ● You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function. ● Once you have paired the Soundbar to a Bluetooth device, selecting "[Samsung] HW-Jxxxx" from the device's scanned devices list will automatically change the Soundbar to BT mode. ● Available only if the Soundbar is listed among the Bluetooth device’s paired devices. (The Bluetooth device and the Soundbar must have been previously paired at least once.) ● Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is displaying BT READY. ● In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device. TO DISCONNECT THE BLUETOOTH DEVICE FROM THE SOUNDBAR You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual. ● The Soundbar will be disconnected. ● When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display BT DISCONNECTED on the front display. TO DISCONNECT THE SOUNDBAR FROM THE BLUETOOTH DEVICE Press the SOURCE button on the remote control or the (Source) button on the product's top panel to switch from BT to another mode or turn off the Soundbar. ● The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device) ● In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters. ● The Soundbar automatically turns off after 15 minutes in the Ready state. + More About Bluetooth Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection. ● A Bluetooth device may cause noise or malfunction, depending on usage, when: - A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar. - It is subject to electrical variation from obstructions caused by a wall, corner, or office partition. - It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs. ● Pair the Soundbar with the Bluetooth device while they are close together. ● The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost. ● In poor reception areas, the Bluetooth connection may not work properly. ● The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors. ● This wireless device may cause electric interference during its operation.2726 FUNCTIONS

USING THE NETWORK STANDBY ON

FUNCTION The Network Standby On function becomes available if wireless connection was properly established between the smart device and Soundbar. This function turns on the Soundbar automatically when a smart device attempts to connect to the Soundbar via Bluetooth or Wi-Fi. If the Soundbar was turned on via Bluetooth connection, its input mode is set to BT automatically. Turning on the Soundbar via Wi-Fi is available only by using the App. For further information, refer to the Web manual.

1. Connect the Smart device to your Soundbar.

2. Turn the Network Standby On function on by pressing the ] button on the Soundbar remote for more than 5

seconds. You can turn the function off by pressing the ] button again for more than 5 seconds. ● Available only if the Soundbar is listed among the Smart device’s paired devices. (The Smart device and the Soundbar must have been previously paired at least once.) ● Soundbar will appear in the Smart device’s searched devices list only when the Soundbar is displaying [BT READY] or [WiFi READY]. ● In the TV SoundConnect mode, the Soundbar cannot be paired to another Smart device. ● If Network Standby On function did not work - The Network Standby On is set to Off. ● Wi-Fi connection to the Soundbar will be terminated if its power cord was disconnected or the power was cut off. Turn on the Soundbar and reconnect.

USING THE MULTIROOM LINK

Once the Soundbar is connected to a smart device with Multiroom App, you can connect multiple Samsung Multiroom devices together wirelessly.

1. Requirements: Wireless Router, Smart Device

2. The wireless router should be connected to the Internet.

3. The smart device should be connected to the router via a Wi-Fi connection.27

To use the Soundbar, you must download and then install the Samsung Multiroom App by accessing the app through Google play or the App Store. With the Samsung Multiroom App installed, you can play music stored in your smart device, from connected devices and other content providers, and from Internet radio stations. + Android or iOS Download the Samsung Multiroom app from Google Play or the App Store of your smart device.

+ Accessing the Samsung Multiroom App To access the Samsung Multiroom app, press the Multiroom app icon on your smart device.

CONNECTING THE SOUNDBAR TO YOUR NETWORK

On your Smart device, select the Samsung Multiroom app. Follow the directions on your smart device’s screen. ● Use Cat 7 (*STP Type) cable for the connection.

Samsung may offer updates for the Soundbar's system firmware in the future. If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar. Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time. Please visit samsung.com or contact the Samsung call centre to receive more information about downloading updates files.

1. While the Soundbar is turned off, connect the USB storage device that contains the updating firmware to the

Soundbar’s USB port.

2. Disconnect the power cord, reconnect it and turn it on.

3. Turn on the Soundbar UPDATE appears on the display and updating begins within 3 minutes.

• Upon completion of updating, the Soundbar turns off and on automatically. + If UPDATE was not displayed

1. Turn off the Soundbar, connect the USB storage device that contains update files to the Soundbar’s USB port.

2. Disconnect the power cord, reconnect it and turn it on.

● Insert a USB device containing the firmware update into the USB port on the main unit. ● Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device. ● Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.29 ENG FUNCTIONS ● After the update, all settings are reset to their factory default settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too. If connection to the subwoofer is not re-established automatically after the update, refer to page 15. If the firmware fails to update, we recommend formatting the USB device in FAT16 and trying again. ● Do not format the USB device in the NTFS format. The Soundbar does not support the NTFS file system. ● Depending on the manufacturer, some USB devices may not be supported. AUTO UPDATE Even when the Soundbar is turned off, the Soundbar will automatically check latest software version and continue to update if it was connected to the Internet. ● The Soundbar is configured to run auto update by default. ● To use auto update function, the Soundbar must be connected to the Internet. ● Wi-Fi connection to the Soundbar will be terminated if its power cord was disconnected or the power was cut off. Turn on the Soundbar and reconnect.3130 TROUBLESHOOTING TROUBLESHOOTING Before requesting service, please check the following. The unit will not turn on.

• Is the power cord plugged into the outlet? ¼ Connect the power plug to the outlet. A function does not work when the button is pressed.

• Is there static electricity in the air? ¼ Disconnect the power plug and connect it again. Sound is not produced.

• Is the Mute function on?

• Is the volume set to minimum? ¼ Press the (Mute) button to cancel the function. ¼ Adjust the Volume. The remote control does not work.

• Are the batteries drained?

• Is the distance between the remote control and main unit too far? ¼ Replace with new batteries. ¼ Move closer to the unit. The TV SoundConnect (TV pairing) failed.

• Does your TV support TV SoundConnect?

• Is your TV firmware the latest version?

• Does an error occur when connecting?

• Reset the TV mode and connect again. ¼ TV SoundConnect is supported by some Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect. ¼ Update your TV with the latest firmware. ¼ Contact the Samsung call centre. ¼ Press and hold the

button for 5 seconds to reset the TV SoundConnect connection. The red LED on the subwoofer blinks and the subwoofer is not producing sound.

• Your subwoofer may not be connected to the main body of the product. ¼ Try to connect your subwoofer again. (See Page 15) The subwoofer drones and vibrates noticeably.

• Try to adjust the vibration of your subwoofer. ¼ Press the WOOFER button on your remote control to adjust its value (between -12, -6 to +6). TROUBLESHOOTING31 ENG APPENDIX SPECIFICATIONS Model name HW-J6500 / HW-J6501/ HW-J6502 GENERAL USB 5V / 0.5A Weight Main Unit

• Design, specifications and App screen are subject to change without prior notice.

• S/N ratio, distortion, separation, and usable sensitivity are based on measurements using AES (Audio Engineering Society) guidelines.

• Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - For the power supply and Power Consumption, refer to the label attached to the product. a Precaution : The product will restart automatically if you turn on/off Wi-Fi/Ethernet. Overall Standby Power Consumption (W) (All the network ports are “ON” condition) 7.4W Wi-Fi/Ethernet Port deactivation method Press Wi-Fi SETUP button on the product for 30 seconds to turn Wi-Fi/Ethernet On / Off. Bluetooth Port deactivation method Press SPK ADD button on the product for 30 seconds to turn Bluetooth On / Off. a Open Source Licence Notice - To send inquiries and requests regarding open sources, contact Samsung via Email (oss.request@samsung.com).

Licence - The Spotify Software is subject to third party licences found here : www.spotify.com/connect/third-party-licenses. - For more information about Spotify Connect, please visit www.spotify.com/connect Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name. This equipment may be operated in all EU countries. This equipment may only be used indoors. APPENDIXContact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre. Area Contact Centre
