USER MANUAL ST418RS INVENTUM

Red and black vacuum cleaner with extended arm and black base (no visible text or symbols)

1. safety instructions page 14
2. product description page 17
3. before first use page 18
4. assembly page 18
5. using the vacuum cleaner page 19
6. maintenance page 20
7. frequently asked questions page 21
   general terms and conditions of service and warranty page 39

Deutsch

Inventum advises the use of original Inventum accessories. Any damages to the product or accessories are not covered by the warranty when non-original dust bags are used.

Filters and other accessories are available in the webshop of Inventum: https://www.inventum.eu/onderdelen/

Deutsch

Close-up of a black connector with an arrow pointing to its tip (no text or symbols visible)

Close-up of a black object with an arrow pointing to its length (no visible text or symbols)

Close-up of a black mechanical component with an arrow pointing to a section (no visible text or symbols)

HET OPLADEN VAN DE STOFZUIGER

Black silhouette of a vacuum cleaner with handle and base (no text or symbols visible)

Two black plastic components with a curved arrow indicating rotation (no text or symbols)

BETEKENIS VAN DE INDICATIEVERLICHTING

Black-and-white photo of a vacuum cleaner with a pointed tip and base mount (no visible text or symbols)

Black mechanical component with labeled part (1), no visible text or symbols

Close-up of a mechanical component with a numbered label pointing to a section (no readable text or symbols)

4 3

Attentie

Black plastic object with a numbered label pointing to a feature (no text or symbols on the object itself)

Black mechanical component with labeled parts (6 and 5), no visible text or symbols beyond labels

7 storingen en oplossingen

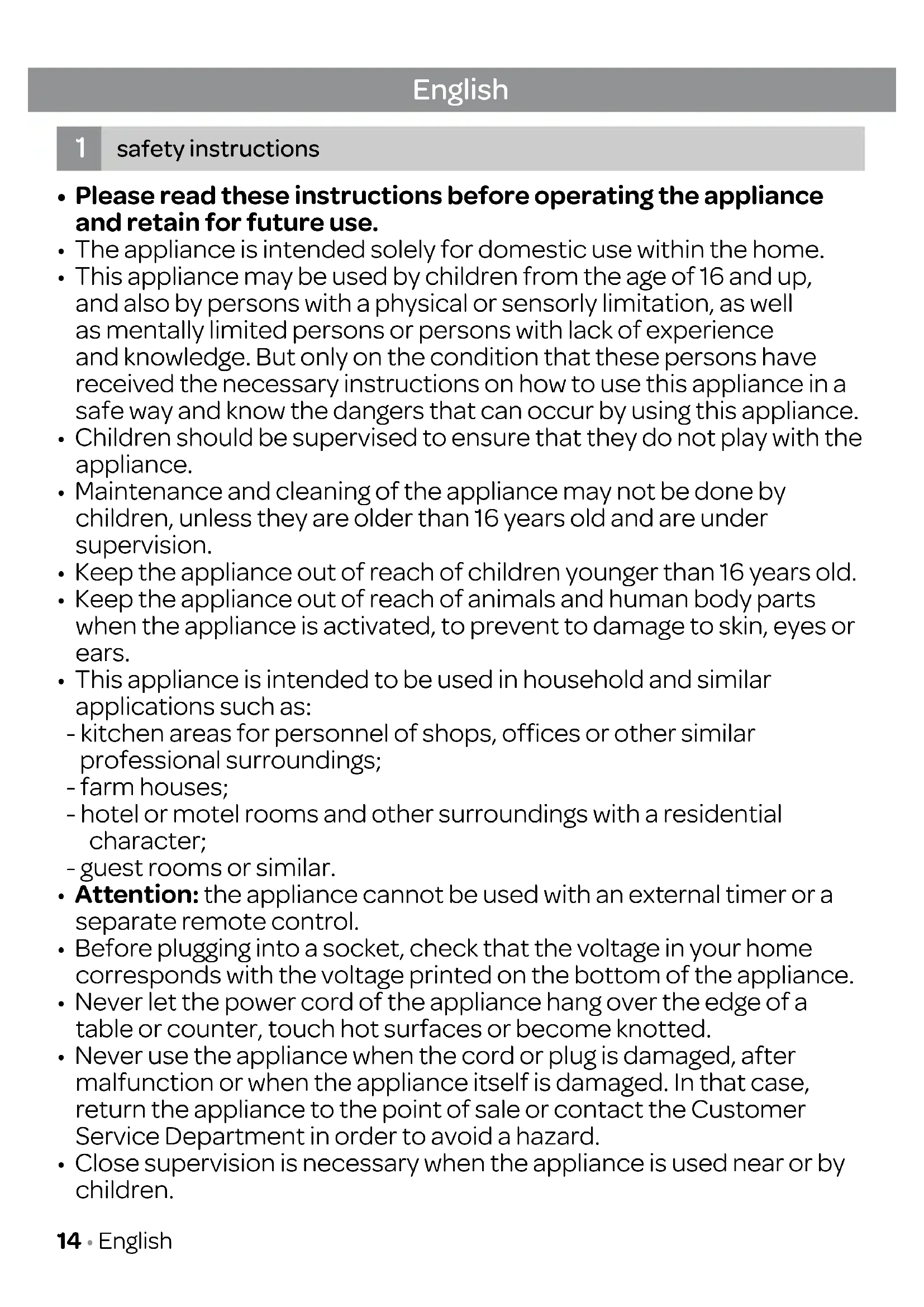

1 safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision.
• Keep the appliance out of reach of children younger than 16 years old.
• Keep the appliance out of reach of animals and human body parts when the appliance is activated, to prevent to damage to skin, eyes or ears.
• This appliance is intended to be used in household and similar applications such as:
• kitchen areas for personnel of shops, offices or other similar professional surroundings;
• farm houses;
• hotel or motel rooms and other surroundings with a residential character;
• guest rooms or similar.
• Attention: the appliance cannot be used with an external timer or a separate remote control.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, return the appliance to the point of sale or contact the Customer Service Department in order to avoid a hazard.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by Inventum can cause fire, electrical shock or injuries.

- The brush and vacuum cleaner are specially designed for use on carpet and hard floors. In some cases, and depending on the type of floor, scratches can occur on the surface which is cleaned. Inventum can not be held responsible for damage to the floor.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

- Never leave the appliance unattended when in use.

- Never place this appliance on or near a hot gas stove or electric burner or where it could touch a heated oven or microwave oven.

- Do not vacuum water and inflammable materials.

- Do not vacuum burning materials and ashes.

- Do not use the appliance outdoors.

- Keep hands, feet, loose clothing and hair out of reach of the rotating brushes.

- Only use the original adaptor which is included. The technical details can be found on the rating label of the appliance.

• Make sure the vacuum cleaner is off, when you charge it.

- Do not charge the battery at temperatures above 37^ or below 0^ .

- Static electricity: some types of carpet can cause static electricity. A discharge of static electricity is not dangerous.

- Do not use the appliance for cleaning wet surfaces or to vacuum wet substances.

• Always use the appliance on a secure, dry, level surface.

- When the appliance is used for other purposes than intended, or is when it is not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or accessories are not covered by the warranty.

- Correct placement and maintenance of the motor filter and the dust collector as described in this manual is necessary to avoid any damages to the appliance. Any damages caused by improper use or missing dust collector or filters are not covered by the warranty.

- Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment.

- Never immerse any part of the main body, power cord and plug into water or any other liquid to protect yourself against electrical hazards.

• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Always ensure that your hands are dry before handling the plug, switch or power cord.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with them.
• Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

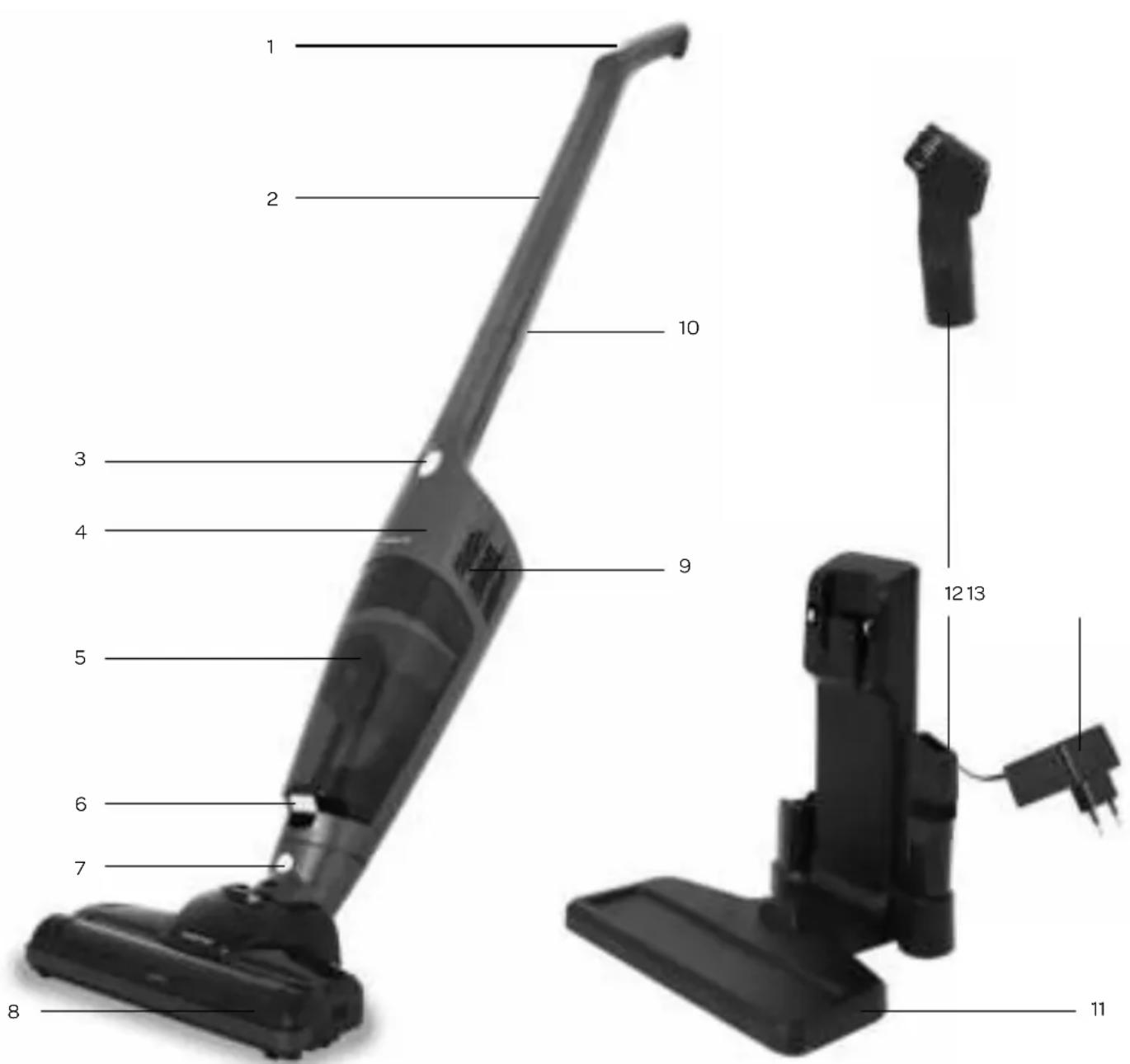

2 product description

1. On/off button
   ① / suction power control
2. Handle
3. On/off button
   ① with indication light
4. Hand vacuum cleaner
5. Dust collector
6. Button to unlock the dust collector
7. Button to disconnect the turbo brush
8. Turbo brush
9. Air outlets
10. Button to disconnect the handle
11. Charging stand
12. Crevice nozzle
13. Adaptor

1 2 3 4 5 6 7 8 9 10 11 12 13

3 before first use

Follow these instructions when using the vacuum cleaner for the first time: Carefully remove the vacuum cleaner from the packaging and remove all traces of packaging from the device and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the vacuum cleaner, check the device for external damage that may have occurred during transport. Place the vacuum cleaner on a secure, dry and level surface.

4 assembly

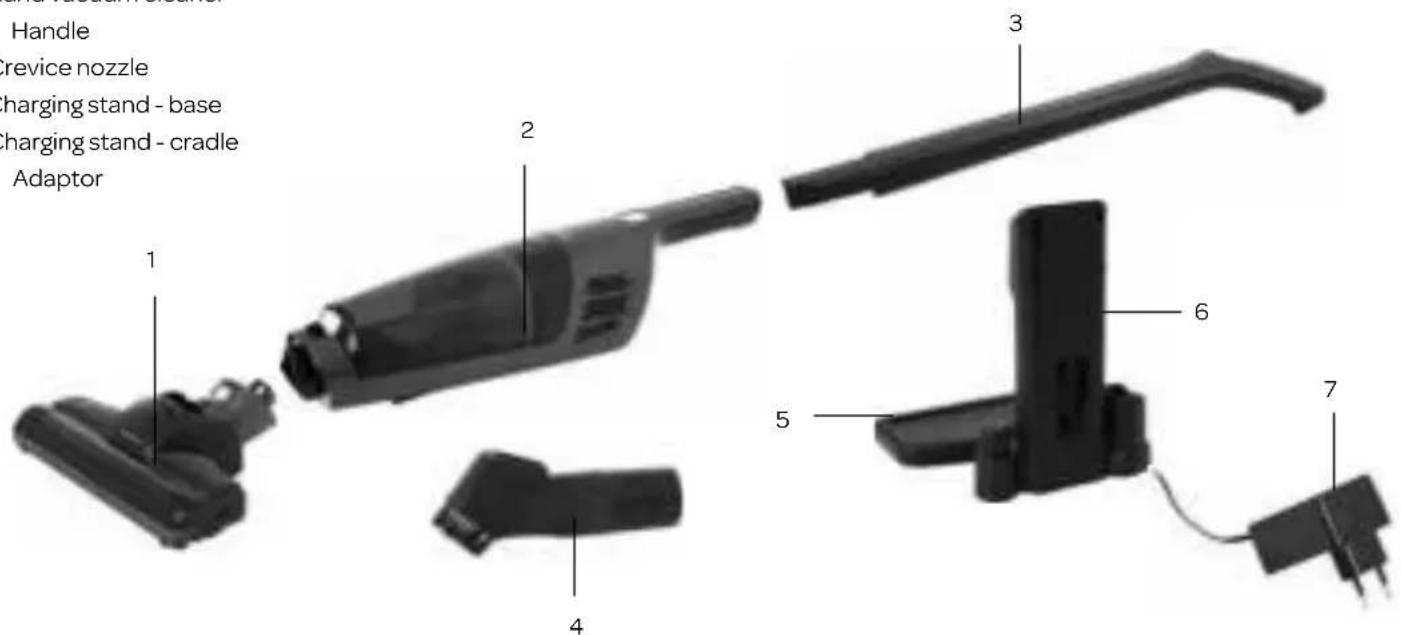

The following parts can be found in the giftbox:

1. Turbo brush
2. Hand vacuum cleaner
3. Handle
4. Crevice nozzle
5. Charging stand - base
6. Charging stand - cradle
7. Adaptor

Handle revice nozzle harging stand - base harging stand - cradle Adaptor 1 2 3 4 5 6 7

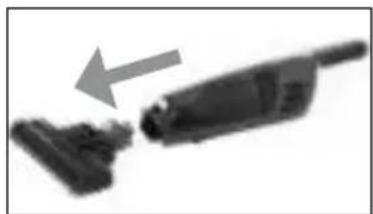

CONNECTING AND DISCONNECTING THE TURBO BRUSH

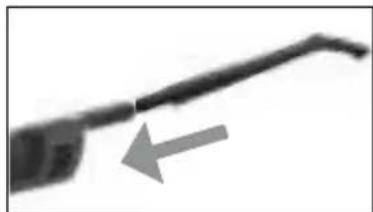

Align the connection of the turbo brush with the connection of the hand vacuum cleaner and connect the two parts.

Press the button [7] to disconnect the turbo brush.

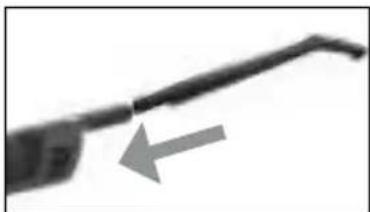

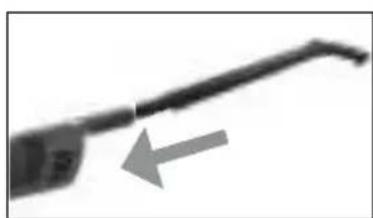

CONNECTING AND DISCONNECTING THE HANDLE

Align the connection of the hand vacuum cleaner with the connection of the handle and connect the two parts.

Press the button [10] at the back to disconnect the handle.

ASSEMBLING THE CHARGING STAND AND ADAPTOR

Connect the cradle of the charging stand to the base of the charging stand. Plug the connector of the adaptor in at the back of the charging stand. Plug in the adaptor.

Close-up of a black electronic component with an arrow pointing to it, no visible text or symbols.

Close-up of a black mechanical component with an arrow pointing to its length (no visible text or symbols)

Close-up of a black mechanical device with a gray arrow pointing to its side (no visible text or symbols)

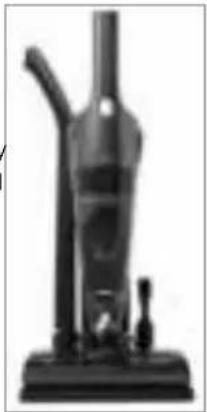

CHARGING THE VACUUM CLEANER

Place the vacuum cleaner on the base of the charging stand. Make sure you align the connection points at the back of the vacuum cleaner with the connection points of the charging stand. As soon as the adaptor is plugged in, the vacuum cleaner will charge. The indicator light is red.

When the battery of the vacuum cleaner is empty, the charging will take 4½ hours. When the battery is completely charged, the charging will stop. The indicator ligth will turn green and after a while it will be off.

Unplug the adaptor when the vacuum cleaner is left on the charging stand for a longer period of time without being used.

Black industrial vacuum cleaner with attached pipe and base (no visible text or symbols)

Warning! Always ensure your hands are dry before placing the appliance on the charging stand.

Warning! Never touch the brush inside the turbo brush when the appliance is on.

Waarschuwing! Only use the original included adaptor to charge the vacuum cleaner. Ohter adaptors can damage the appliance and even be dangerous.

5 using the vacuum cleaner

SWITCHING THE VACUUM CLEANER ON

Press the on/off button Ⓐ [1] on the handle of the vacuum cleaner to switch the vacuum cleaner on. The suction power control can be set to MIN - MAX with the button MIN - MAX on the handle.

The turbo brush will rotate automatically when the vacuum cleaner is switched on.

USING THE VACUUM CLEANER AS A HAND HELD

The vacuum cleaner can also be used as a hand vacuum cleaner.

Remove the handle by pressing the button to disconnect the handle [10]. Press the on/off button Ⓞ[3]on the handle of the hand vacuum cleaner to switch it on.

The hand vacuum cleaner can be used with of without the turbo brush or crevice nozzle.

Place the crevice nozzle in the opening of the hand vacuum cleaner.

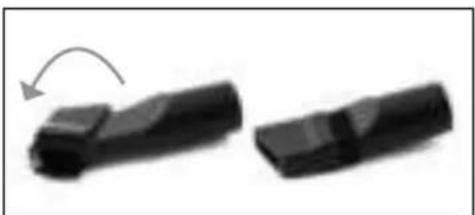

The crevice nozzle can be used in two ways: folded in as a crevice nozzle or folded out with a brush.

Two black rectangular objects with a curved arrow indicating rotation or change (no text or symbols)

INDICATION OF THE INDICATION LIGHT

The on/off button ① [3] has a indication light.

During the use of the vacuum cleaner, the indication light is green. When the battery is almost empty, it will flash green, indicating the battery needs to be charged.

When the vacuum cleaner is connected to the charging stand, the indication ligth is red. When the battery is completely charged, the charging will stop. The indicator ligth will turn green and after a while it will be off.

STORAGE

Put the vacuum cleaner on the charging stand after every use. For compact storing, unloch the handle and place it on the charging stand next to the vacuum cleaner.

When the vacuum cleaner needs to charged, make sure the adaptor is plugged in.

Always unplug the adaptor when the vacuum cleaner is left on the charging stand for a longer period of time without being used.

Black-and-white photo of a vacuum cleaner with a pointed tip and base mount (no visible text or symbols)

Check the dust collector and filters regularly to prevent any problems. Empty the dust collector when it is full and clean or replace the filters when they are dirty.

EMPTYING AND CLEANING THE DUST COLLECTOR

Empty the dust collector after every use.

• Press the button [1] to unlock the dust collector and take it out of the vacuum cleaner.
• Hold the wide opening up and take with your thumb and index finger the complete filter system [2] out of the dust collector.
• Hold the dust collector upside down while holding it above a dust bin. To fully empty the dust collector, calmly shake it above the dust bin.

• Clean the filters after every four times of emptying the dust collector:

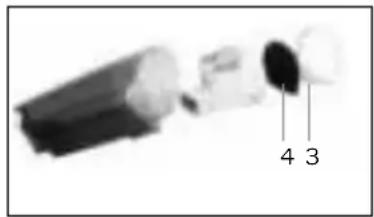

• Open the filter system by carefully pulling the latch [3] [open].

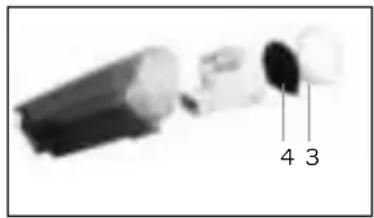

  • Take the dark coloured filter [4] out of the holder.

• Clean the dark coloured filter [4] and the white filter [3] under lukewarm water and let them air dry completely. Do not use any cleaning agents or brushes. Cleaning the filter will remove the dirt, but will not restore the original white color of the filter. The color of the filter is not of any influence to the performance.
• Only assemble the filter system when all the filters are completely dry. You will hear a click when they are placed correctly.

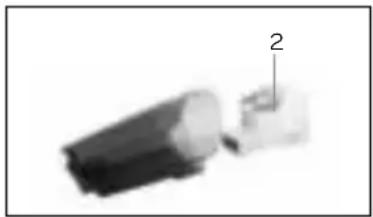

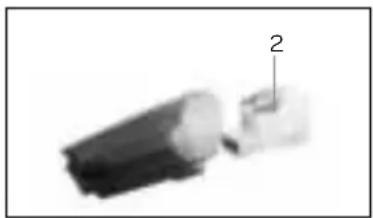

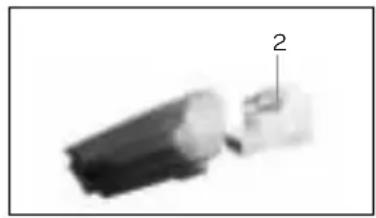

- Place the filter system [2] back in the dust collector. It only fits in one way inside the dust collector.

Black mechanical component with labeled part '1' (no text or symbols on body)

Close-up of a mechanical component with a numbered label pointing to a section (no readable text or symbols)

4 3

Attentie

• Use the vacuum cleaner only when the filters are in place. If not, it can lead to loss of suction power or damage to the motor.
- Torn filters or filters that do not fit properly can cause damage to the engine. Replace a damaged filter by an original new one.

CLEANING THE TURBO BRUSH

Hair and /or other dirt can be stuck in the brush of the turbo brush. Therefore clean the turbo brush regularly to ensure efficiency of the vacuum cleaner.

• Make sure the vacuum cleaner is switched off and disconnect the turbo brush.

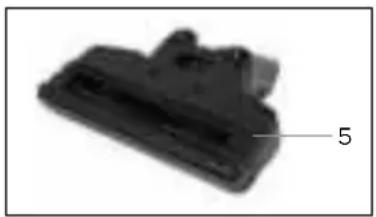

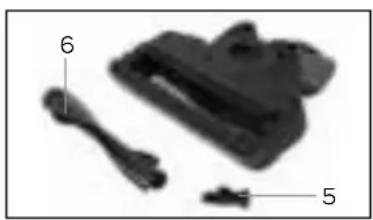

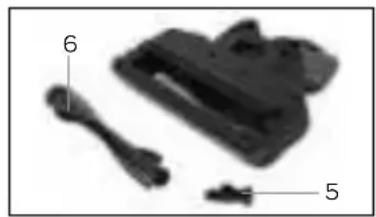

• Unlock the tab [5] at the bottom of the turbo brush with a coin or flat screwdriver and remove it.
• Carefully pull out the brush [6].
• Clean the brush under lukewarm water and let the brush air dry.
• Place the brush back in the turbo brush.
• Replace the tab [5] and lock it with a coin or flat screwdriver.

Close-up of a black plastic component with a numbered label pointing to a feature (no text or symbols on the object itself)

Black mechanical component with labeled parts (6 and 5), no visible text or symbols beyond labels

7 frequently asked questions

Problem Possible cause Solution
The vacuum cleaner does not switch on.	The battery is empty. Charge the battery. The	indication light is red while charging.
	The battery does not charge (indication light does not light up red when charging).	Replace the vacuum cleaner on to the charging stand and make sure the connection points connect.
	The adaptor is defect. Contact the customer service of Inventum.
The suction power is decreased.	The dust collector is full. Empty the dust collector.
	The filters are clogged. Clean the filters or replace them when they are worn or damaged.
The vacuum cleaner makes more noise.	The dust collector is full. Empty the dust collector.
	The filters are clogged. Clean the filters or replace them when they are worn or damaged.
The brush of the turbo brush no longer rotates.	Dirt or hair block the brush Clean the turbo brush according to the instructions.

Close-up of a black mechanical component with an arrow pointing to it, no visible text or symbols.

Close-up of a black mechanical component with an arrow pointing to it (no visible text or symbols)

Close-up of a black mechanical device with a gray arrow pointing to its side (no visible text or symbols)

AUFLADEN DES STAUBSAUGERS

Black-and-white photo of a vacuum cleaner on a stand (no visible text or symbols)

Two black mechanical components with curved arrows indicating rotation (no text or symbols)

Black-and-white photo of a vacuum cleaner on a stand, no visible text or symbols

Black mechanical component with labeled part 1, no visible text or symbols

Close-up of a mechanical component with a numbered label pointing to a section (no readable text or symbols)

4 3

Achtung

Close-up of a black plastic component with a numbered label pointing to it (no text or symbols on the object itself)

Black mechanical component with labeled parts (6 and 5), no visible text or symbols beyond labels

Close-up of a black plastic connector with an arrow pointing to it, no visible text or symbols.

MONTER ET DÉMONTER LE MANCHE

Close-up of a black mechanical component with an arrow pointing to it (no visible text or symbols)

MONTER LA STATION DE CHARGE ET L'ADAPTATEUR

Close-up of a black mechanical component with an arrow pointing to it, no visible text or symbols.

Black-and-white photo of a vacuum cleaner with attached tubing and base mount (no visible text or symbols)

Two black mechanical components with curved arrows indicating motion (no text or symbols)

SIGNIFICATION DU VOYANT

Black-and-white photo of a vacuum cleaner with attached mechanical components (no visible text or symbols)

Black mechanical component with a labeled arrow pointing to a feature (no text or symbols visible)

Close-up of a mechanical component with a numbered label pointing to a section (no readable text or symbols)

4 3

- Attention

Close-up of a black plastic component with a numbered label pointing to a feature (no text or symbols on the object itself)

Black mechanical component with labeled parts (6 and 5), no visible text or symbols beyond labels

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908
