Product Type	Modular electrical enclosure
Brand	Kramer
Model	TBUS5XL
Top plate dimensions	17.6 cm × 14.0 cm (W × D)
Enclosure dimensions	15.4 cm × 10.2 cm × 13.0 cm (W × D × H)
Enclosure weight	Approximately 0.9 kg
Table clamp weight	Approximately 0.25 kg
Required table cutout	158 mm × 123 mm
Available colors	Black sandblasted anodized (TBUS5xlB), Silver sandblasted anodized (TBUS5xlBC)
Material	Sandblasted anodized aluminum
Cover type	Manually retractable cover
Connector depth	Adjustable
Insert capacity	Up to 4 power outlets, 6 cable passages or connector inserts, 1 long insert and up to 3 Kramer tools (depending on the inner frame)
Inner frame options	Two different T5F models
Power outlet options	8 different TS models for worldwide use
Power cable	8 different C-AC cables, sold separately
Optional accessories	TBUS brackets, K-Able Box, Step-In modules, controllers
Included accessories	6 self-tightening ties, cutout template, template screws
Maintenance and cleaning	Clean with a soft, dry cloth; do not use abrasive products or solvents
Safety instructions	Do not exceed the maximum electrical load of the installed outlets; disconnect before any intervention
Repairability and spare parts	Inner frames, outlets, cables, inserts and other accessories available separately
Warranty	See manufacturer's conditions (not specified in the manual)

Frequently Asked Questions - TBUS5XL Kramer

What is the product type of the Kramer TBUS5XL?

It is a modular electrical enclosure designed to be embedded in a table, allowing connection of various equipment via inserts and power outlets.

What are the cutout dimensions required for installation?

The required table cutout is 158 mm × 123 mm.

What accessories are included with the TBUS5XL?

Included are: 6 self-tightening ties, a cutout template and template screws. Inner frames, outlets and cables are sold separately.

How many power outlets can I install?

Depending on the chosen inner frame (T5F), you can install up to 4 power outlets (TS models) in combination with other inserts.

How to clean the TBUS5XL enclosure?

Use a soft, dry cloth. Avoid abrasive products, solvents or liquid cleaners that could damage the anodized finish.

Is the cover motorized?

No, the cover is manually retractable: it slides by hand to access the connectors.

Can I use the TBUS5XL with a standard power cable?

Yes, but the power cable must be purchased separately. Kramer offers 8 different C-AC cables suited to the corresponding outlets.

What is the maximum accepted connector depth?

The connector depth is adjustable; it can be adapted according to the inserts used.

Where can I find spare parts or accessories?

Spare parts (inner frames, outlets, cables, inserts) are available from Kramer or its authorized dealers. Refer to the list of options in the manual.

Is the enclosure compatible with all types of tables?

It is designed to be embedded in a table with a cutout of 158 mm × 123 mm. The tabletop thickness must be sufficient to accommodate the enclosure (depth 13 cm). Fixation clamps are provided as an option.

USER MANUAL TBUS5XL Kramer

Table Mount Modular Multi-Connection

Solution - Manually Retracting Lid

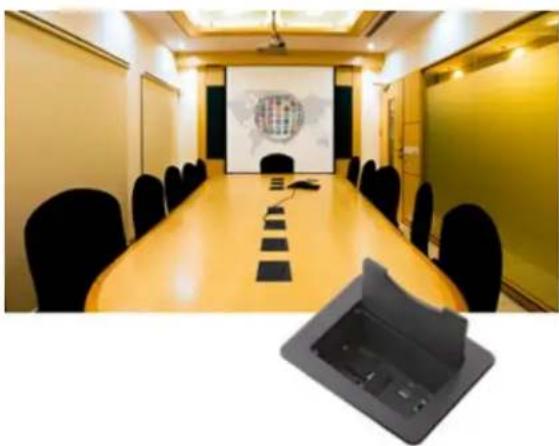

The TBUS-5xl is the enclosure of a new modular system with a retractable lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately

FEATURES

Inner Frame - 2 different "T5F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS

Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide

Power Cord - 8 different "C-AC" single power cords for each power socket

Optional Accessories - TBUS Brackets, K-Able Box Cable Reels, Step-In Modules and Controllers are available

Retractable Lid - Manually slides into unit

Connector Depth - Adjustable

Installation Requirement - Table cutout of 158mm x 123mm (6.23" x 4.85")

Dimensions - Top plate: 17.6cm x 14.0.4cm (6.9" x 5.5") W, D; Enclosure: 15.4cm x 10.2cm x 13.0cm (6.1" x 4.0" x 5.1") W, D, H

Weight - 0.9kg (2.0lbs) approx.; table clamps: 0.25kg (0.55lbs) approx

TECHNICAL SPECIFICATIONS

INCLUDED ACCESSORIES:

6 self-locking ties, cut out template, template screws

OPTIONS:

Inner frames, passive wall plates and interfaces, T-2INSERT kit, power socket kits, power cord, Kramer K-Able Box (furniture-mounted cable extension)

CONFIGURATIONS

TBUS-5xl(B)

Enclosure - Black Sand Blasted Anodized Aluminum Top

TBUS-5x1(BC)

Enclosure - Silver Sand Blasted Anodized Aluminum Top
