USER MANUAL ZB0146 RC4WD
Hex Drivers (1.5mm,2mm,2.5mm)

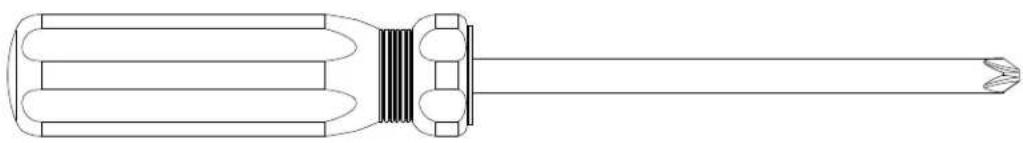

Cross Screwdrivers (small)
Side Cutter Pliers
Long Nose Pliers
Modeling/Craft knife
Plastic cement/glue (non-whitening CA glue)
Hex Drivers (1.5mm,2mm,2.5mm)
Tips for Assembly
Use good quality hex drivers to avoid stripping screws heads. Do not over tighten screws otherwise you may strip the thread.
RC4WD Limited Warranty
All RC4WD products are warranted to be free of defects in materials and workmanship when new. Our limited warranty does not cover damages due to normal wear and tear, user error of assembly or installation, user modifications, user's failure to perform routine maintenance, addition of aftermarket parts or option parts. This warranty lasts 30 days after arrival for original purchaser. In the event of a defect under this warranty, RC4WD will at our discretion, replace the product, provided our inspection indicates that an original defect exists. RC4WD reserves the right to replace any product which is no longer available with a product of comparable value and function. If RC4WD determines the repair is not covered under warranty guidelines, we will contact you to discuss your options. If you have any questions, please contact us via email at support@rc4wd.com.

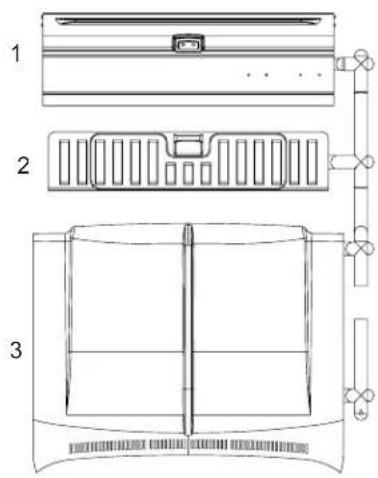

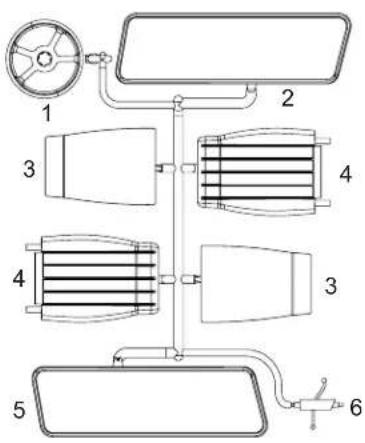

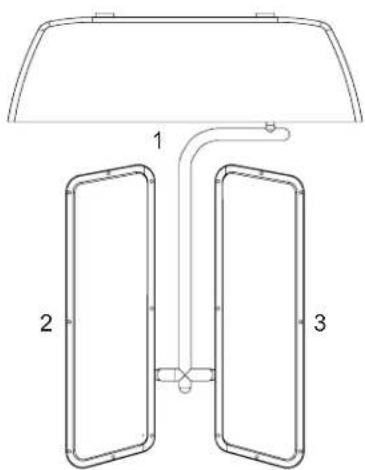

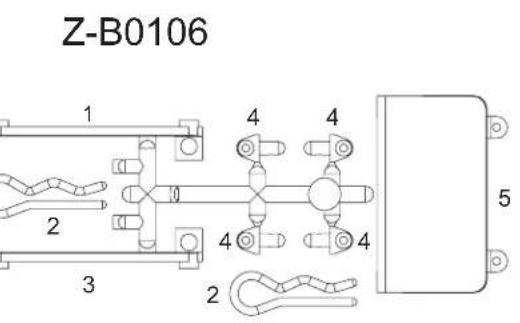

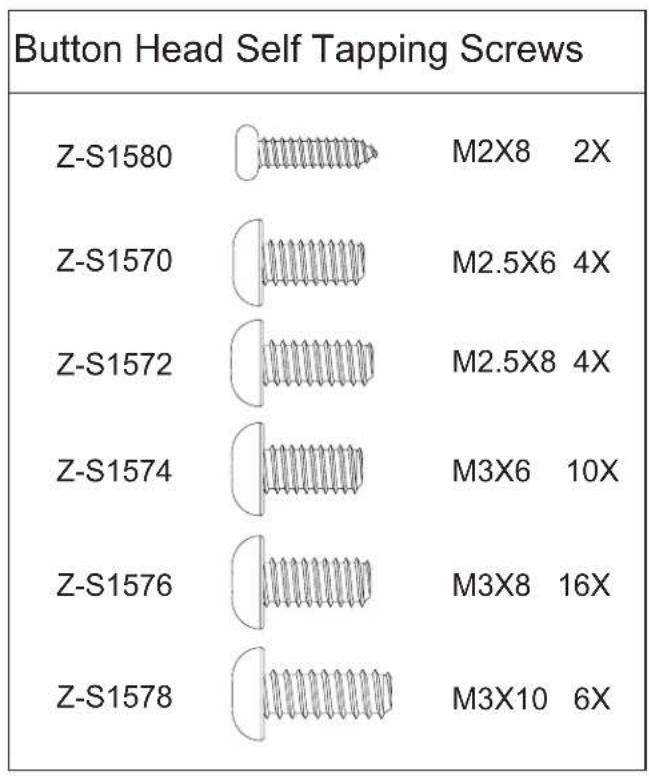

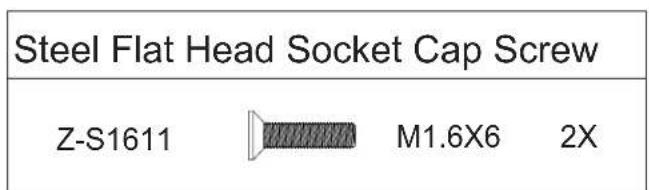

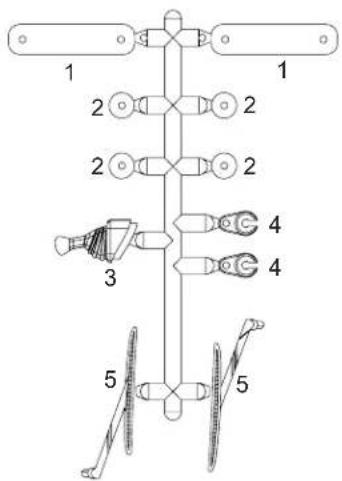

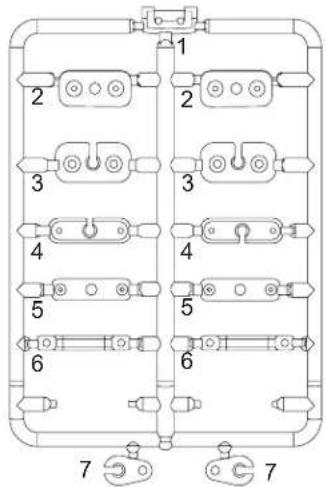

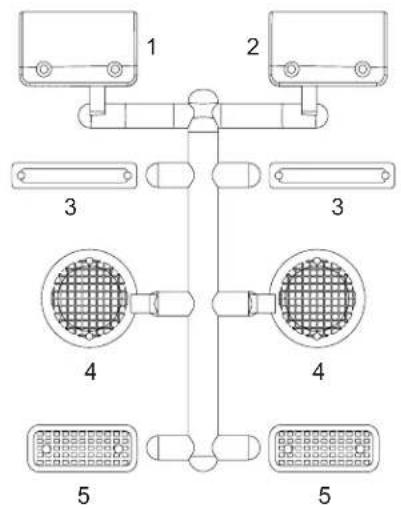

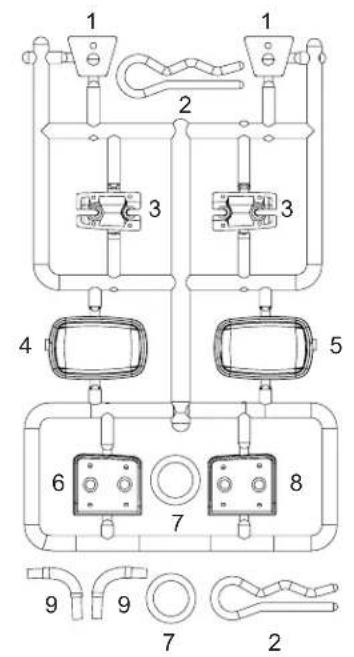

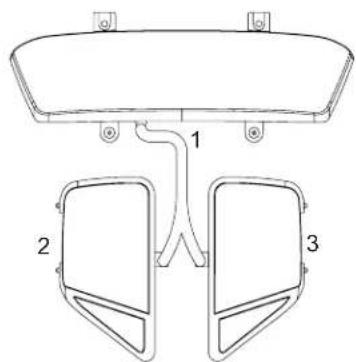

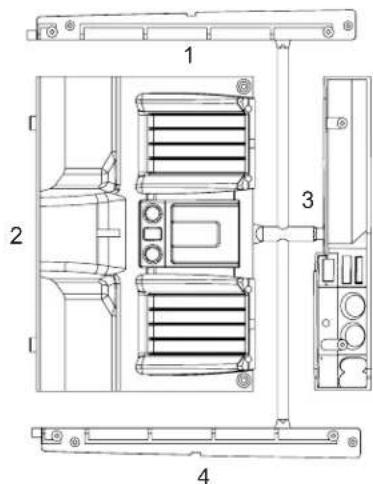

Z-B0094
Z-B0096
Z-B0098
Z-B0100
Z-B0102
Z-B0104
Z-B0108
Z-B0110
Z-B0114
Z-B0112

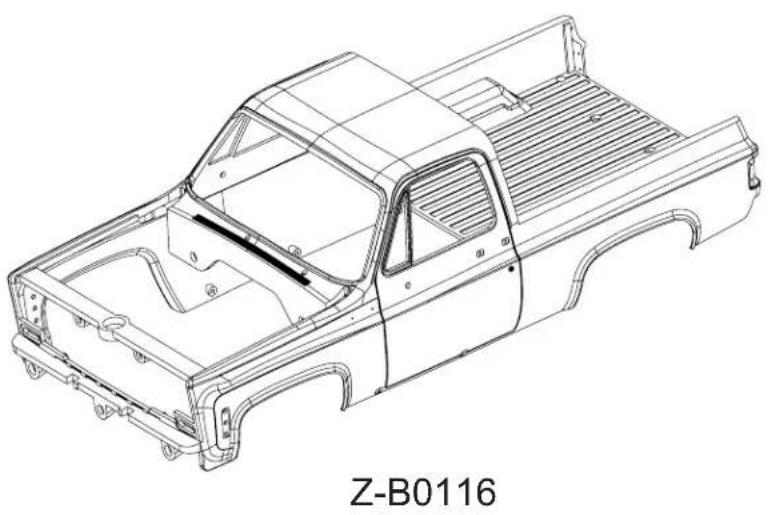

Z-B0118
Z-S1564
Z-S1562

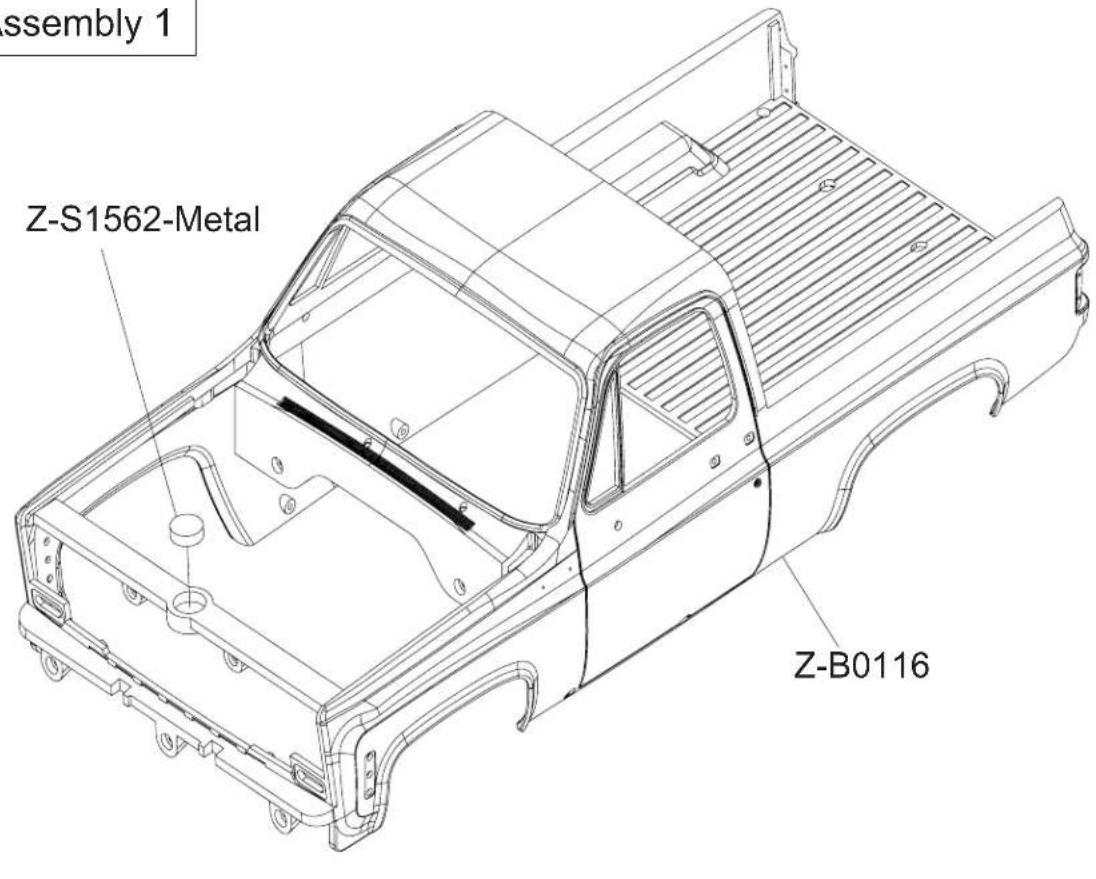

Assembly 1
Assembly 2
Assembly 3

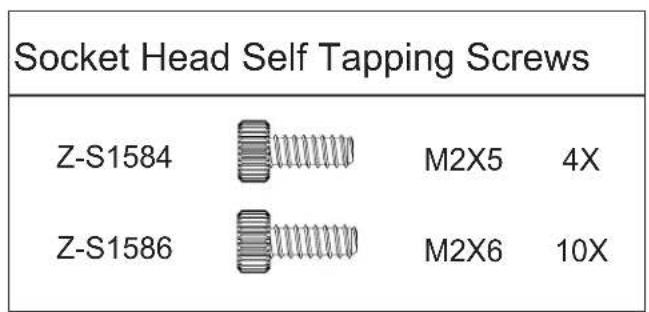

Z-S1586
M2X6 Tapping Screw

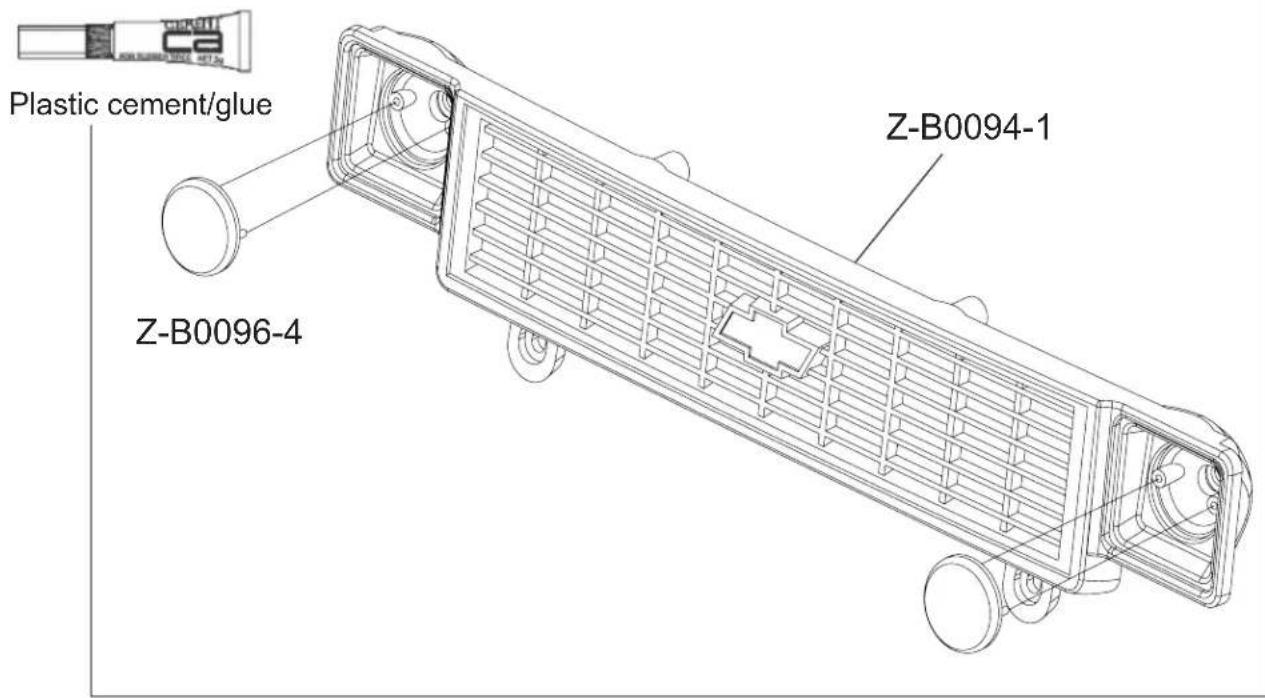

Z-B0094-1
Z-B0104-7
Z-B0108-4(Black)

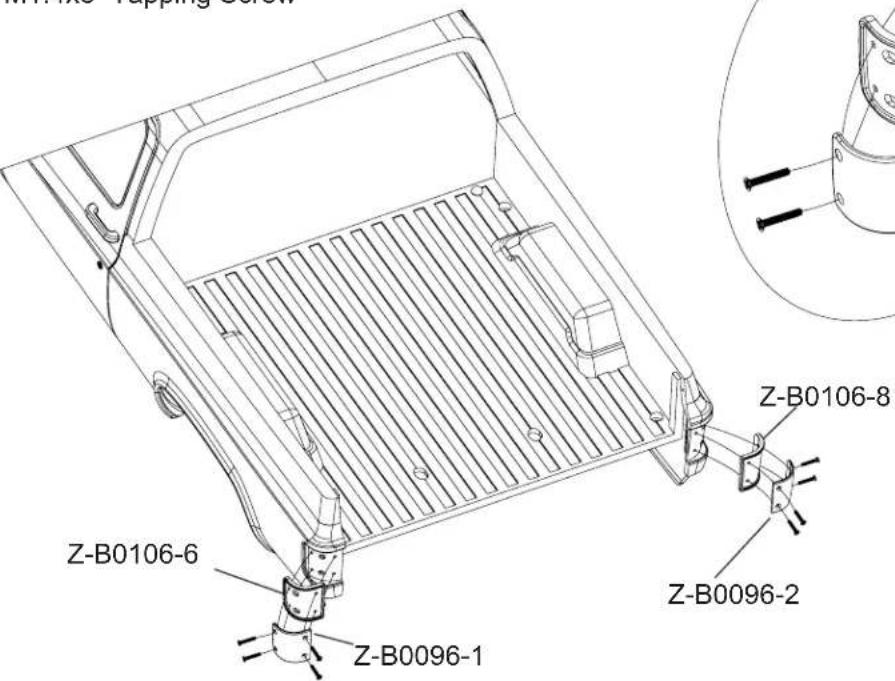

Assembly 4
Plastic cement/glue
M2X6 Tapping Screw
Z-B0104-2
Z-B0096-5
Z-S1574

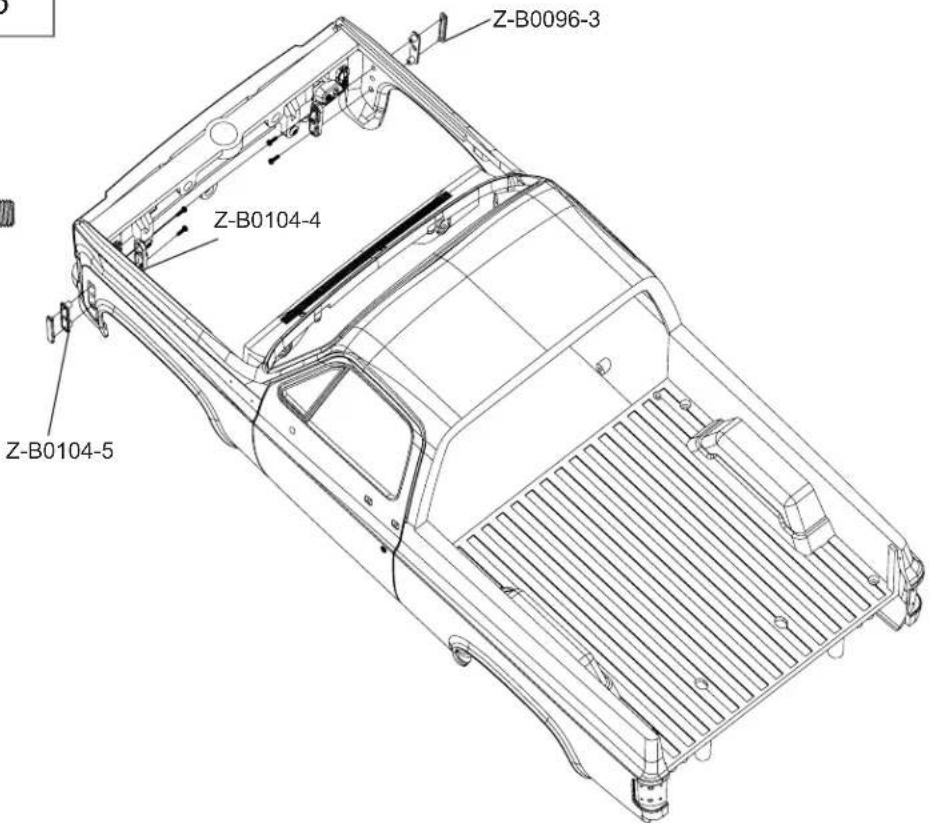

Assembly 5
M3X6 Tapping Screw
Z-S1578
M3X10 Tapping Screw
Assembly 6
Plastic cement/glue

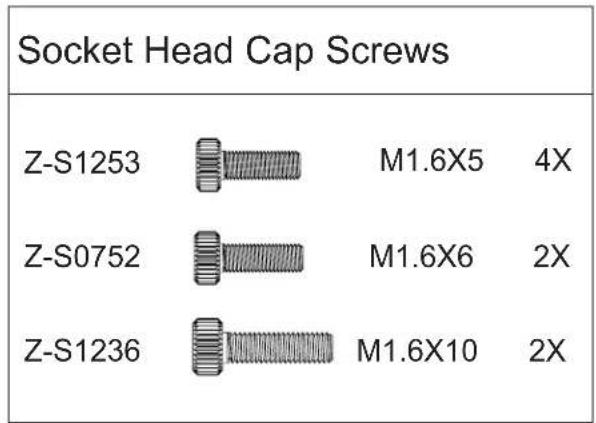

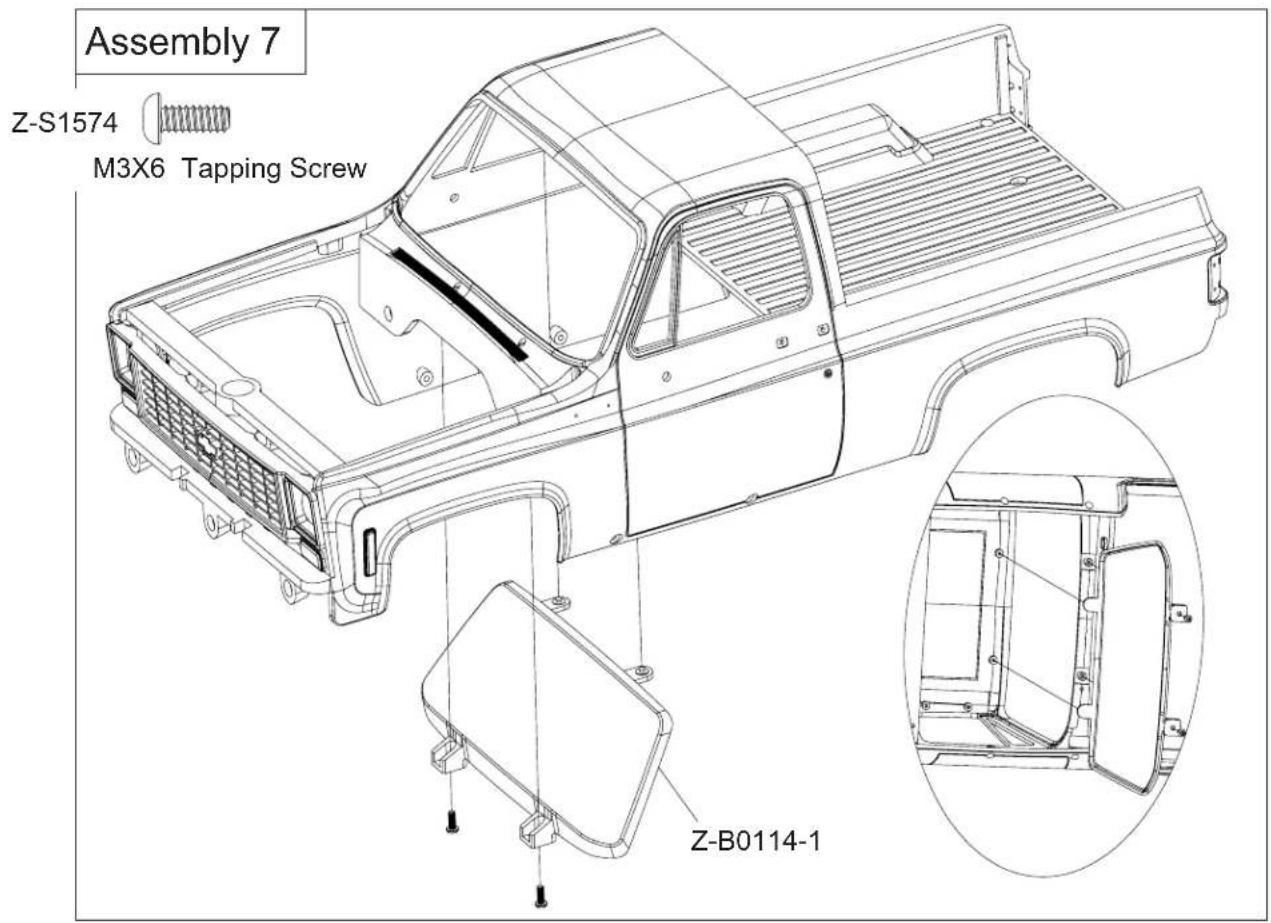

Z-S1253
M1.6x5

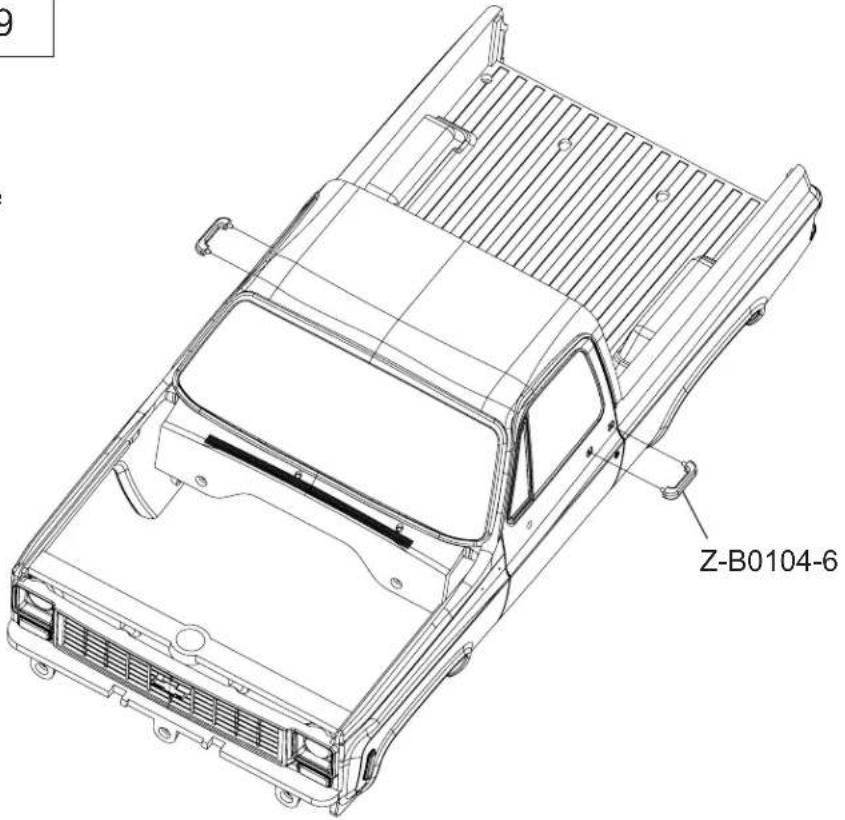

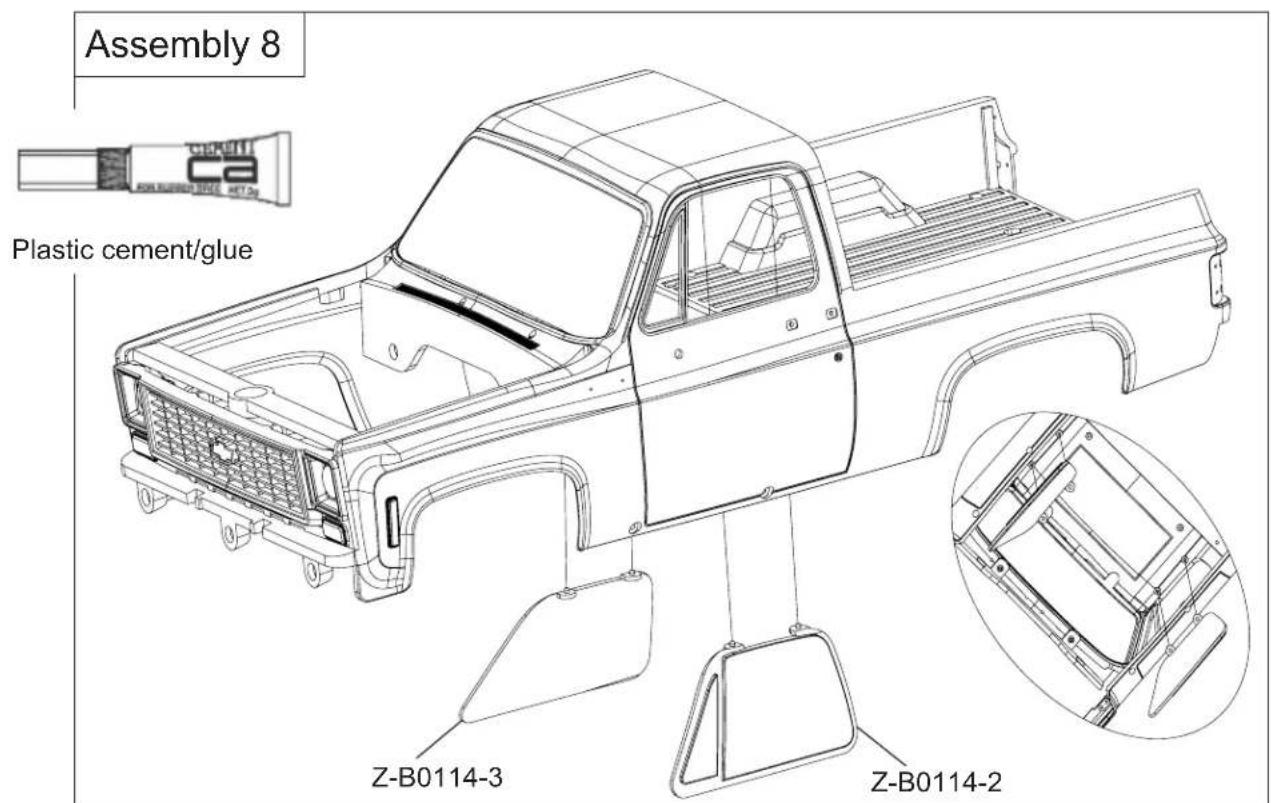

Assembly 9
Plastic cement/glue
Assembly 10

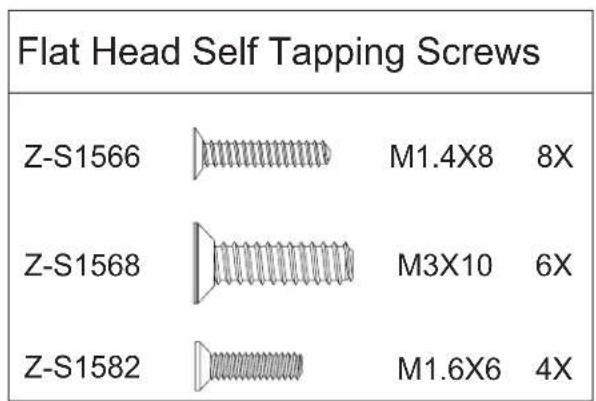

Z-S1566
M1.4x8 Tapping Screw

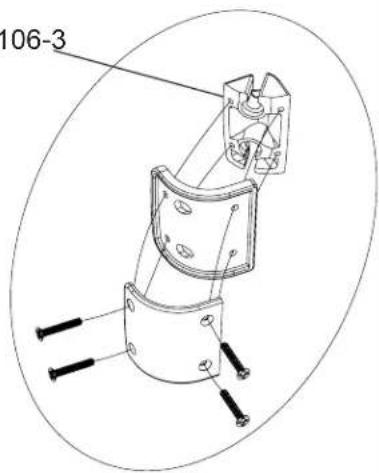

Z-B0106-3

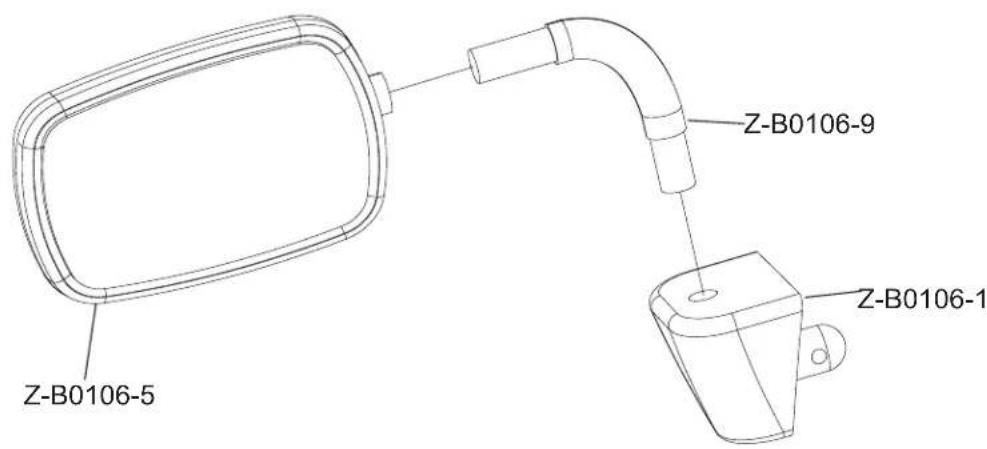

Assembly 11
Notice: Make left and right.

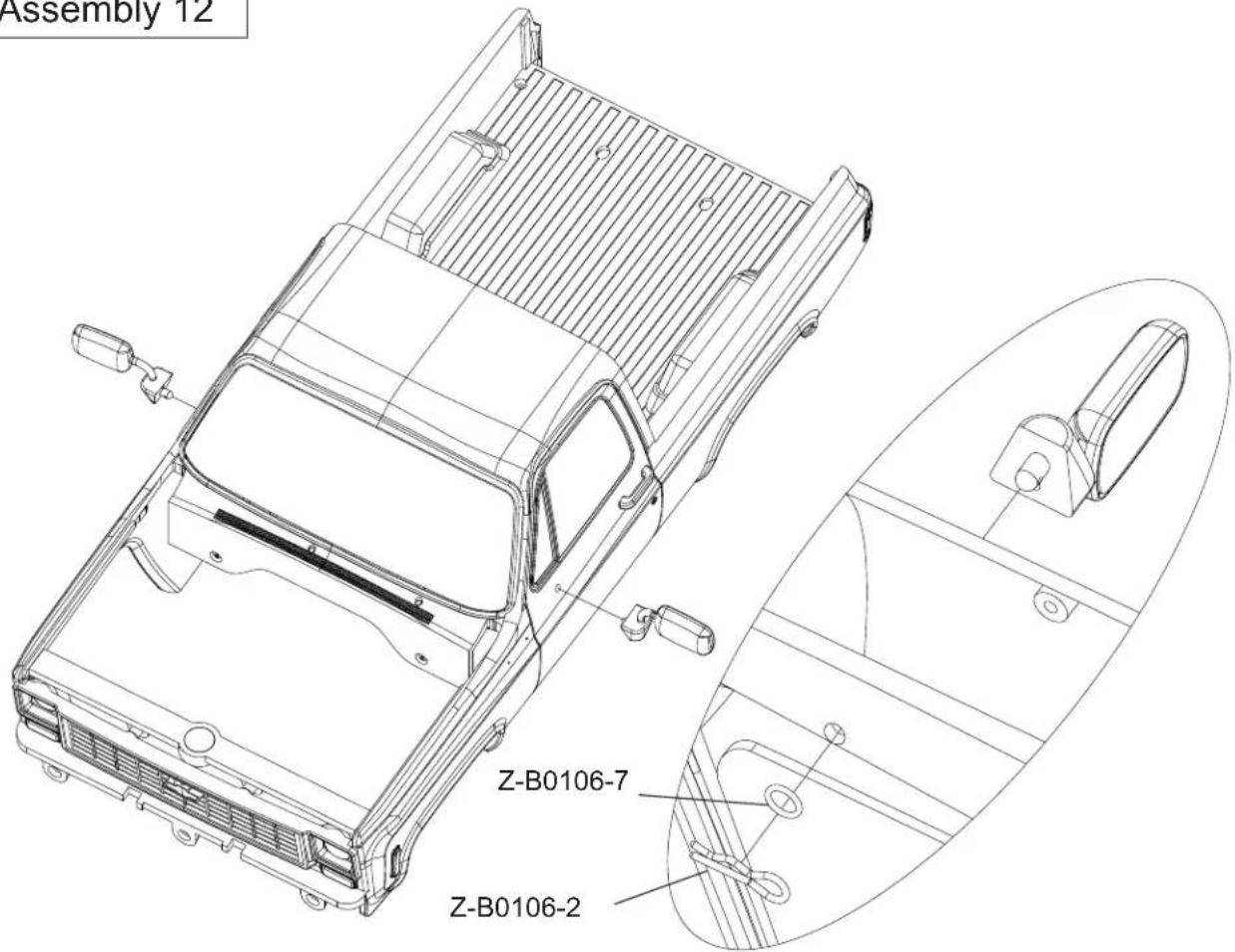

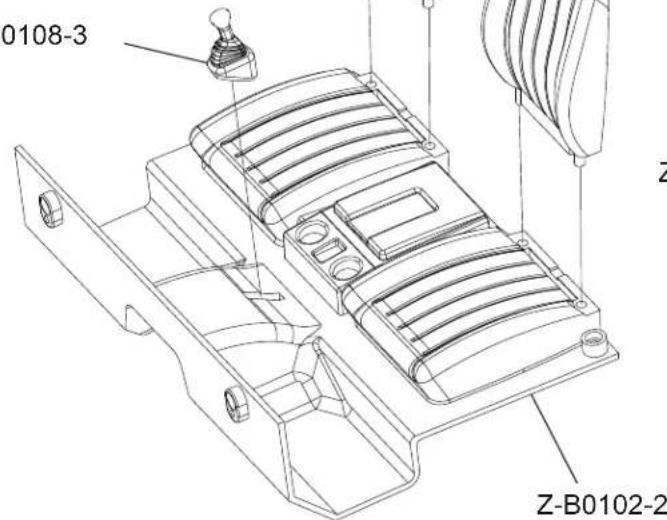

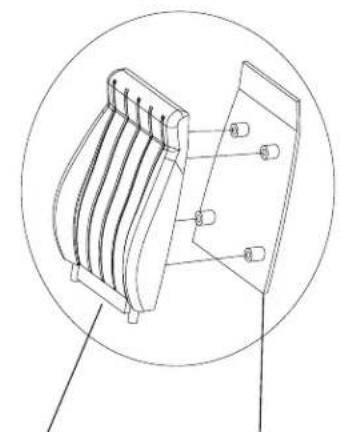

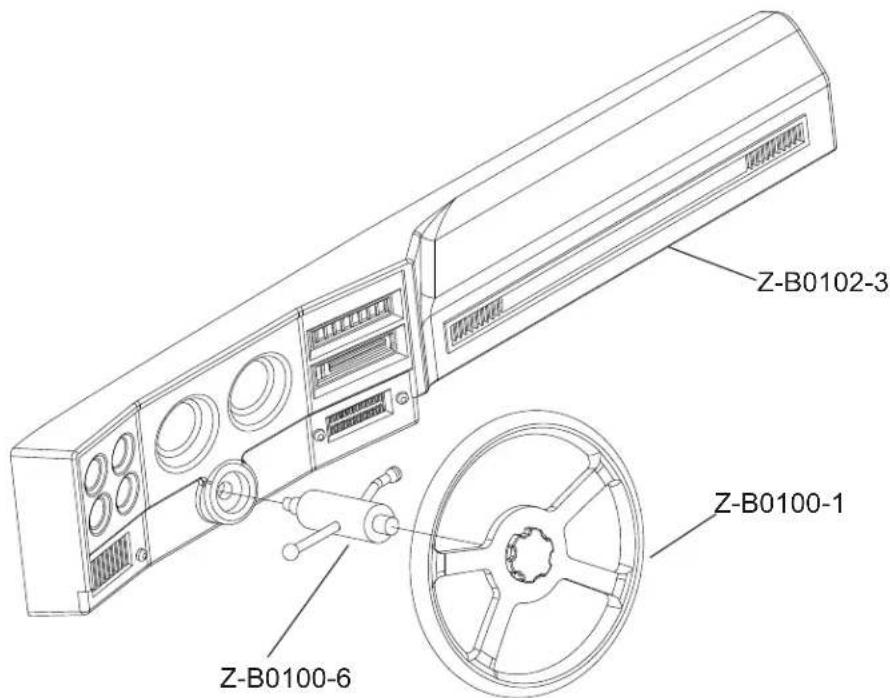

Assembly 12
Assembly 13
Plastic cement/glue
Z-B0108-3
Z-B0100-4 Z-B0100-3
Assembly 14
Plastic cement/glue
Z-S1568

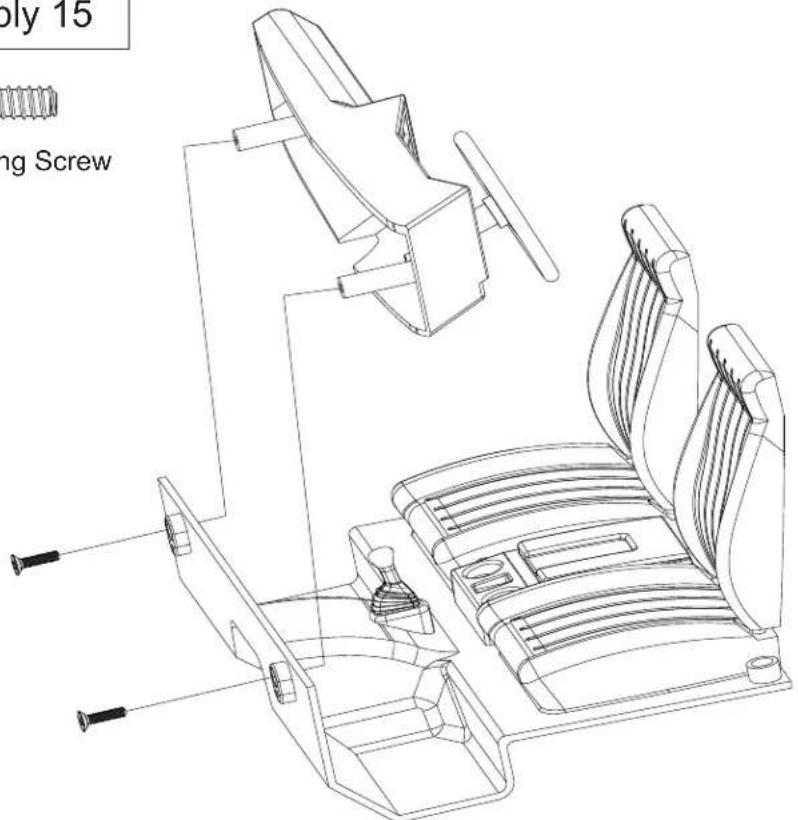

Assembly 15
M3X10 Tapping Screw

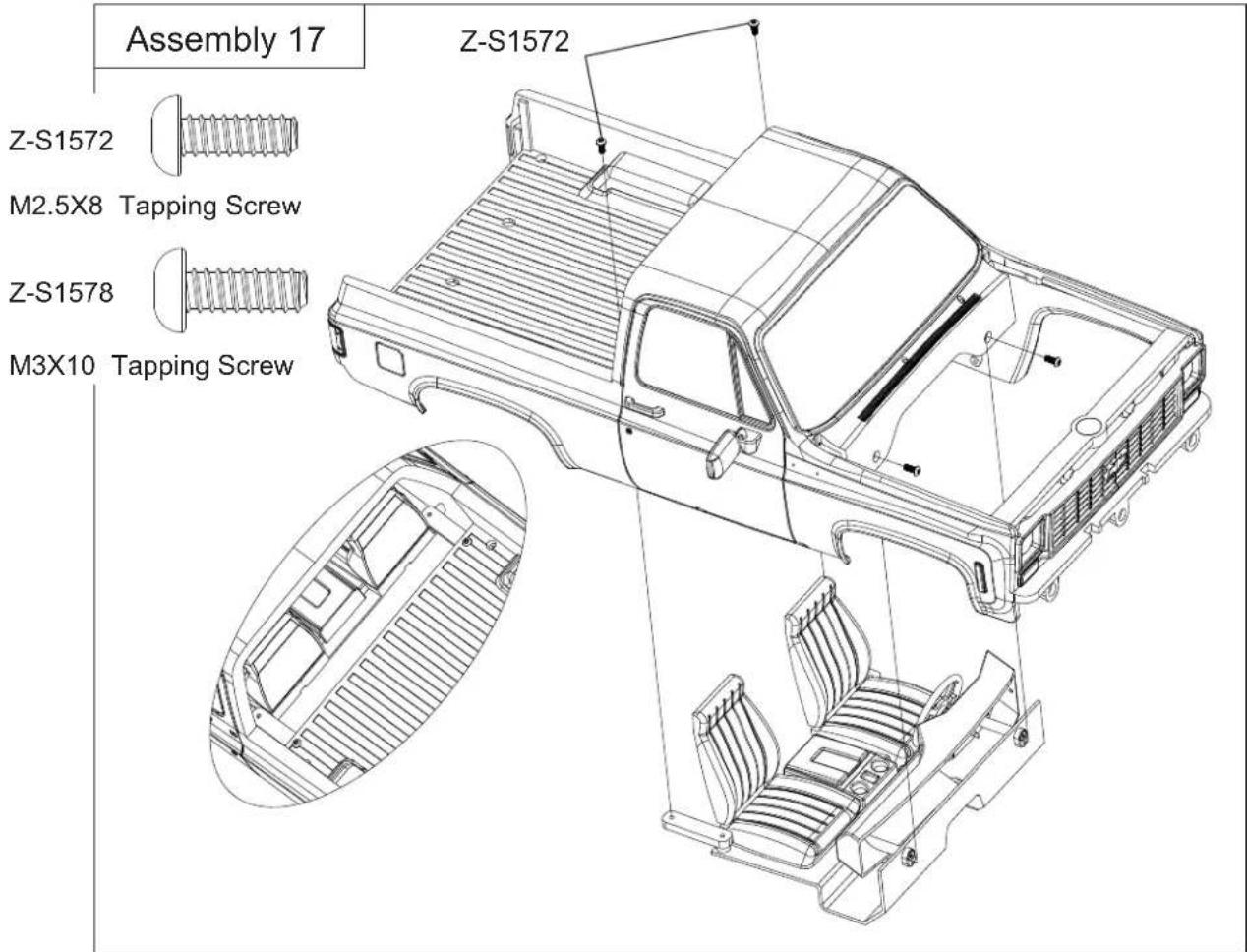

Assembly 16
Z-S1572
M2.5X8 Tapping Screw

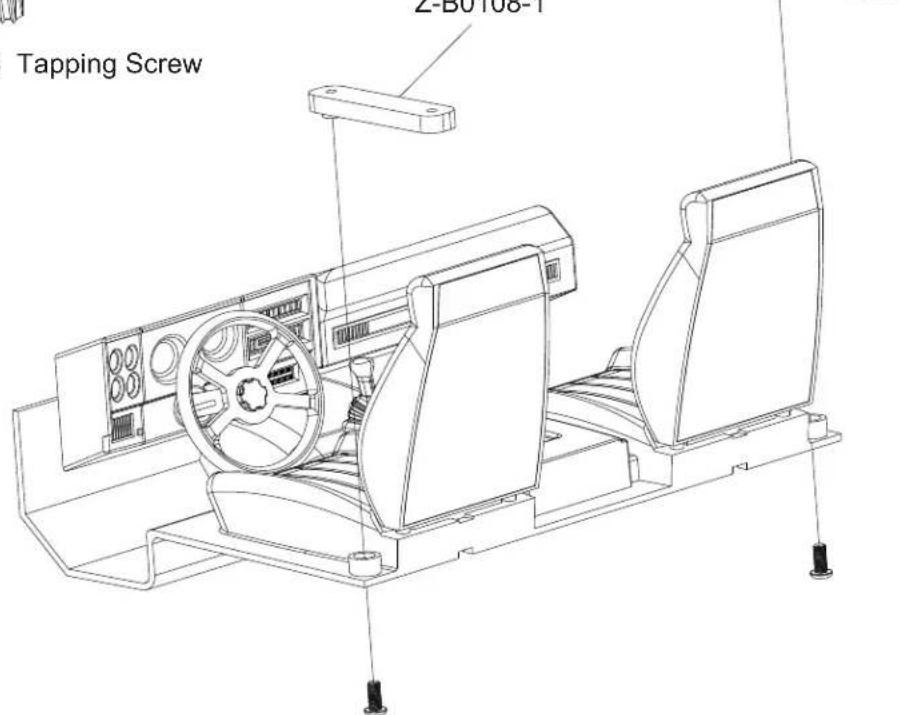

Z-B0108-1

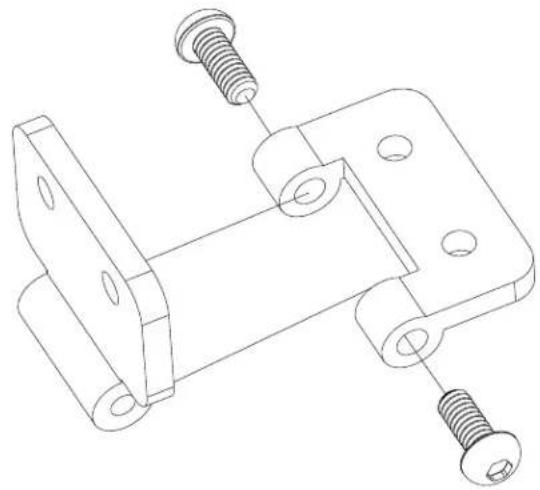

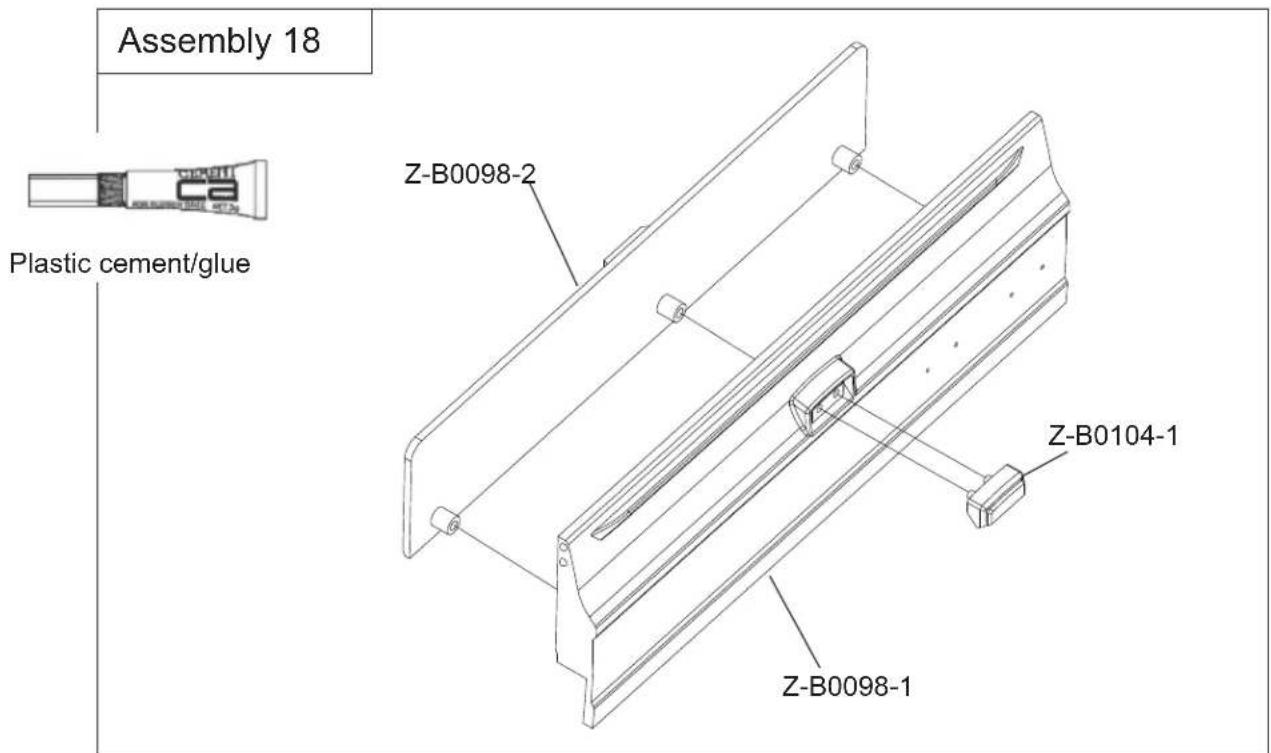

Assembly 19
Notice: This step just shows how to assemble. These come pre-assembled.
Z-S0933
M2X6
Z-S1564-3

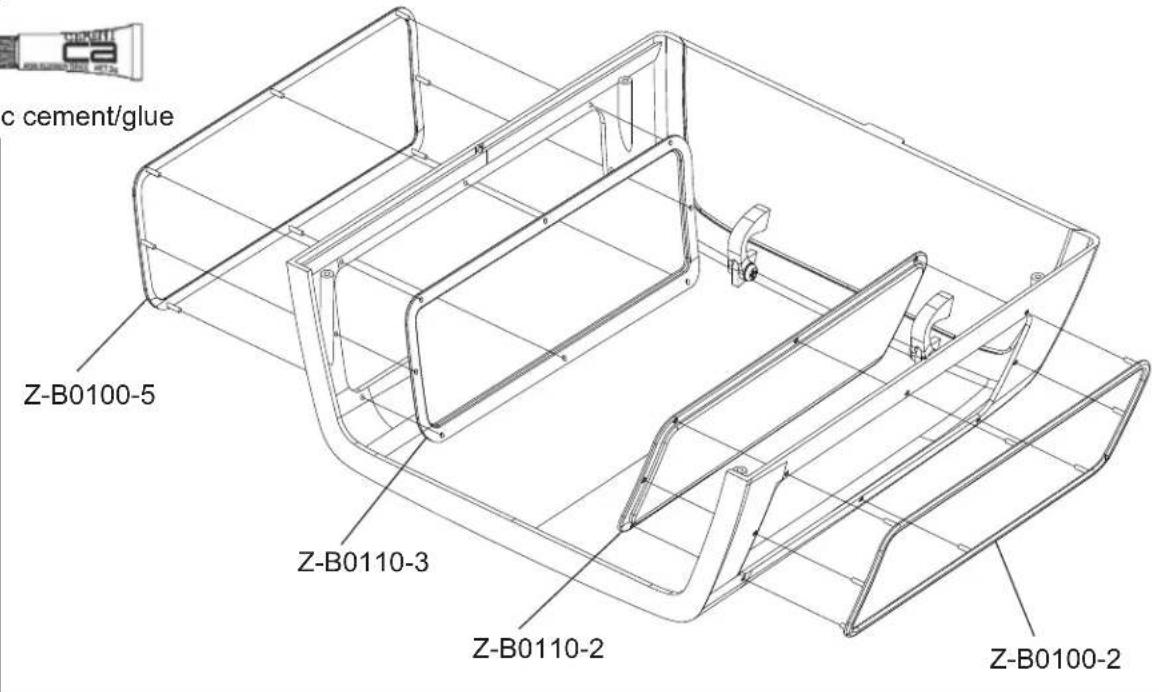

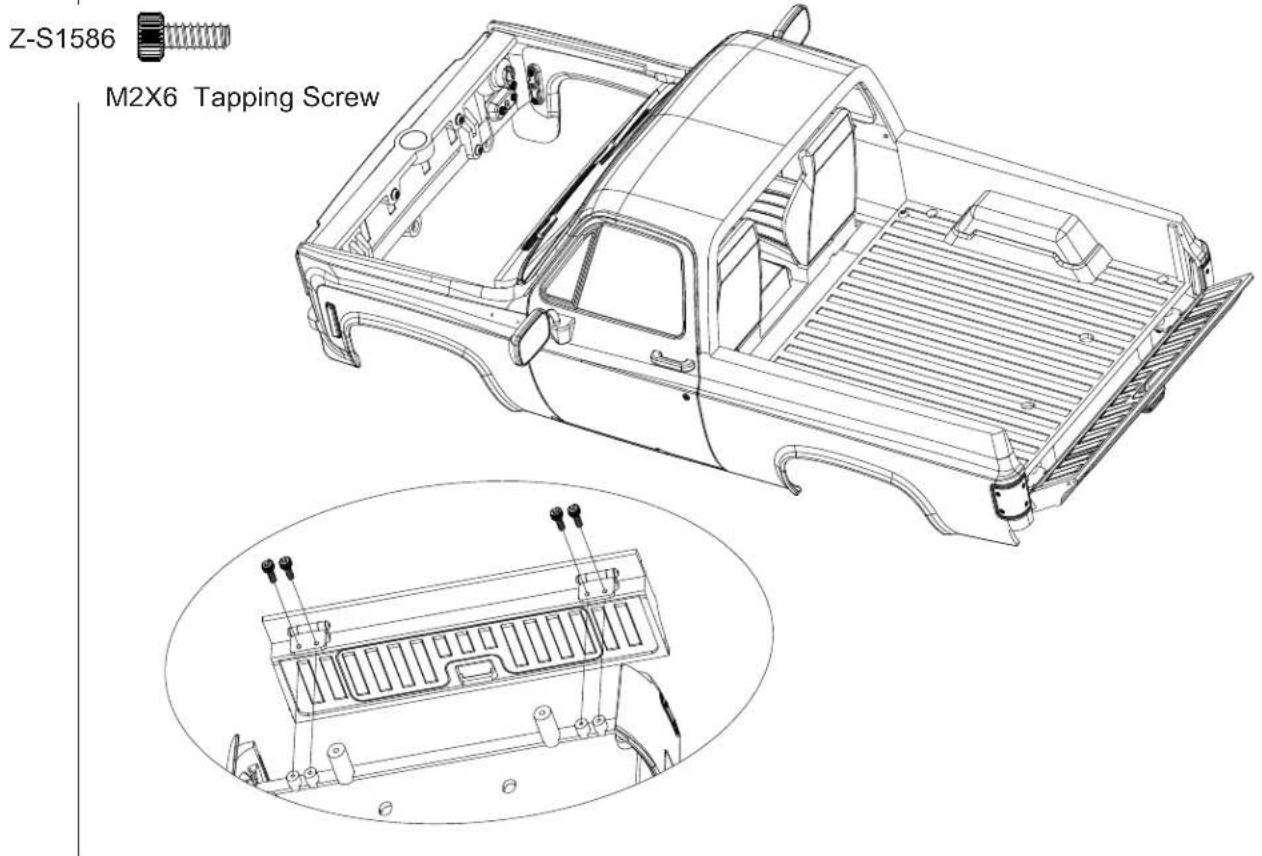

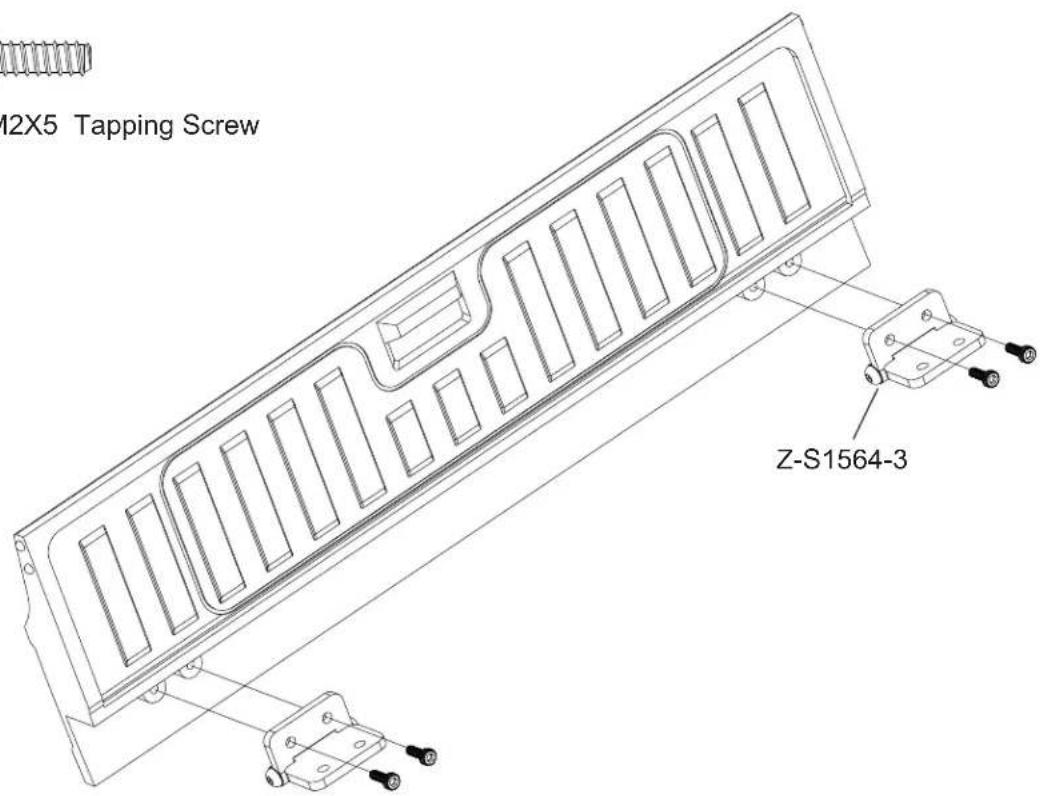

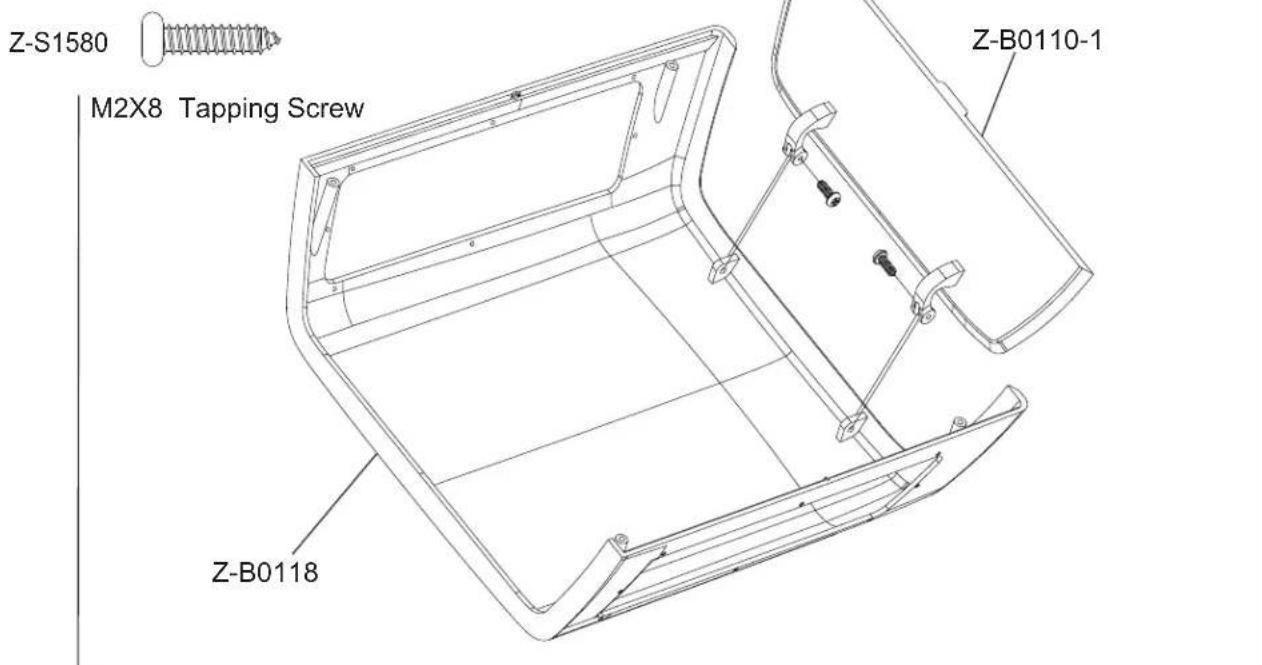

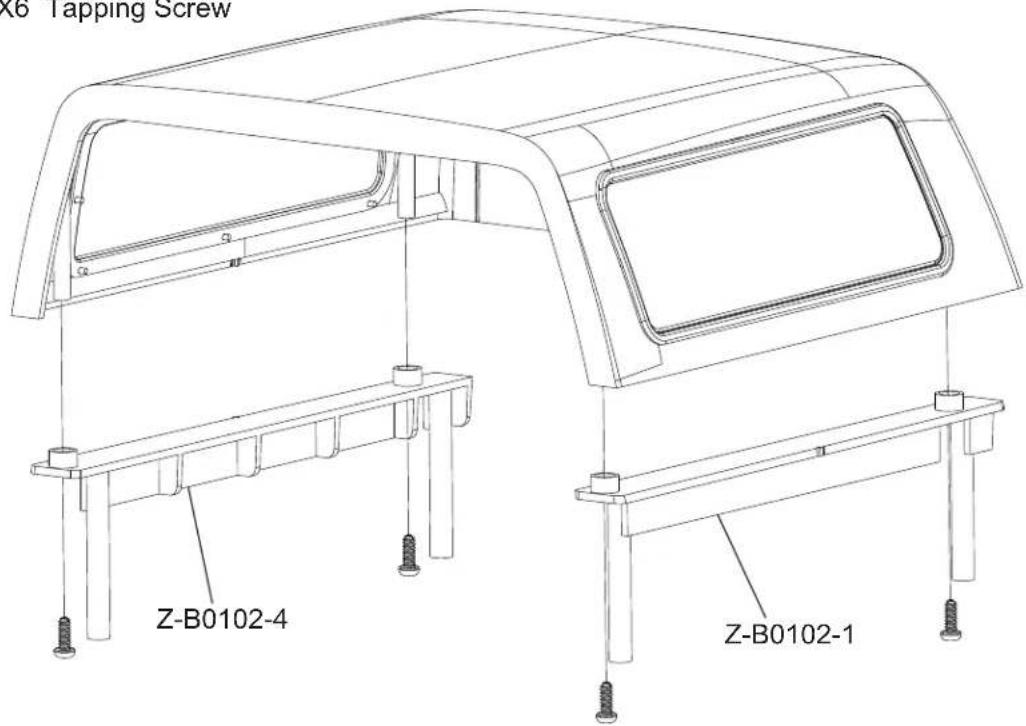

Assembly 20
Z-S1584
Assembly 21
Assembly22
Assembly 23
Plastic cement/glue
Assembly 24
Z-S1570
M2.5X6 Tapping Screw

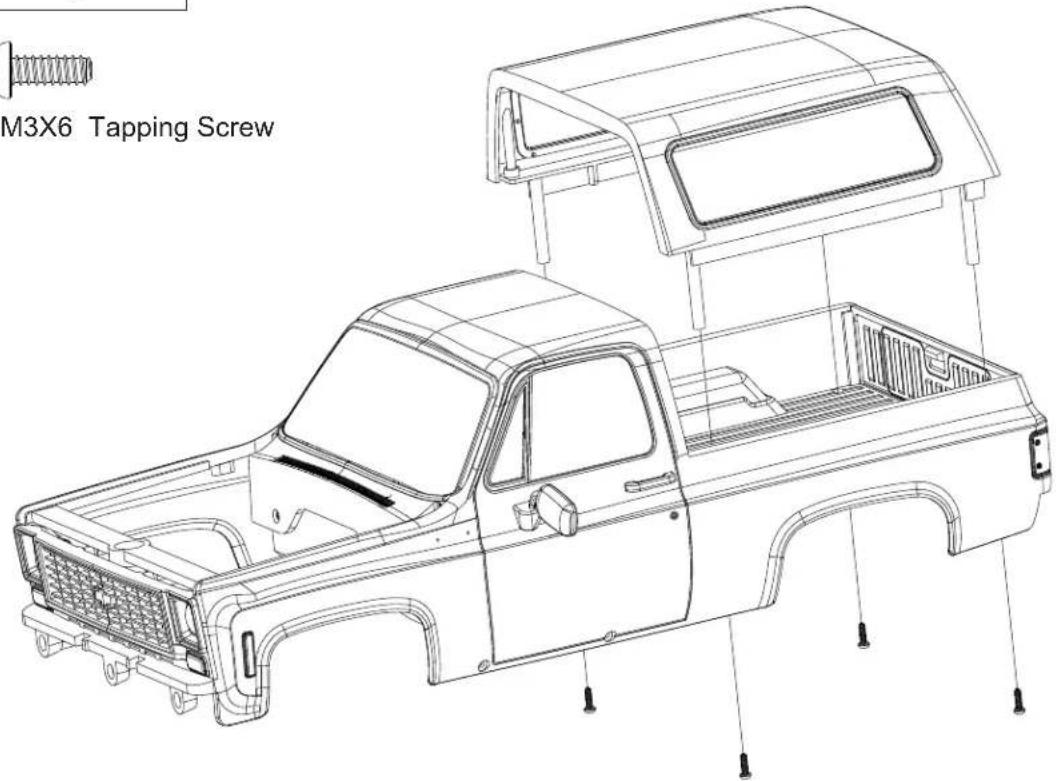

Assembly 25
Z-S1574
M3X6 Tapping Screw

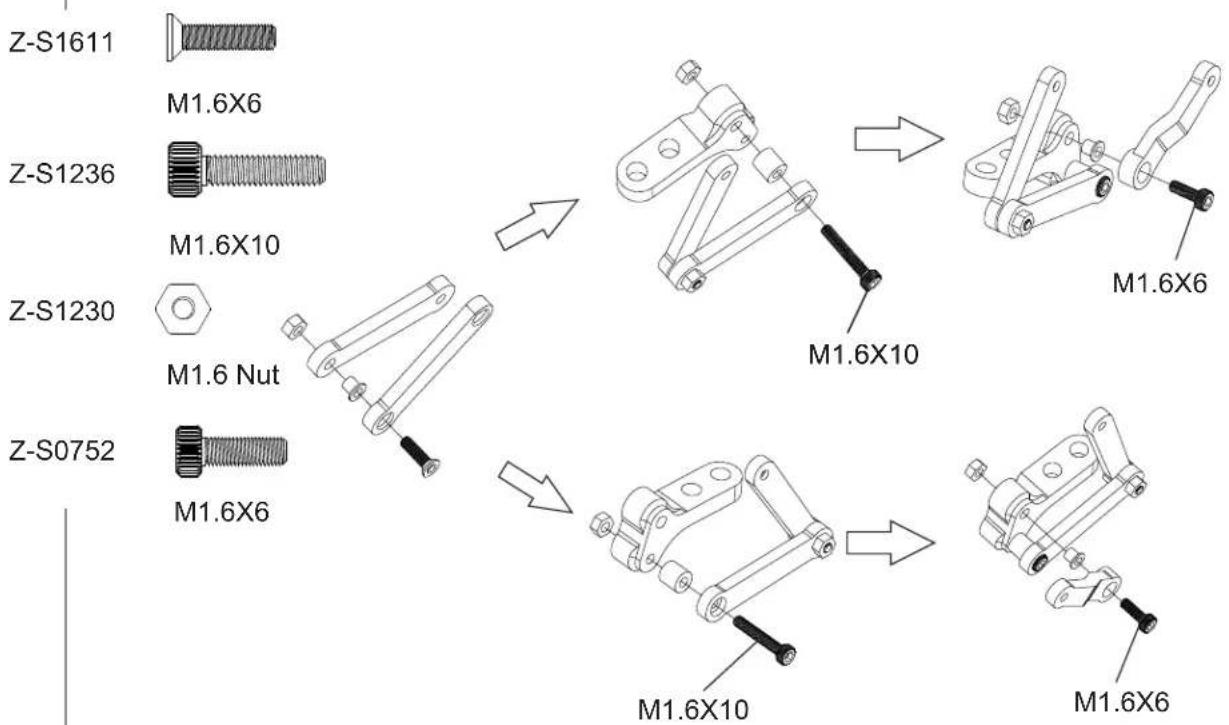

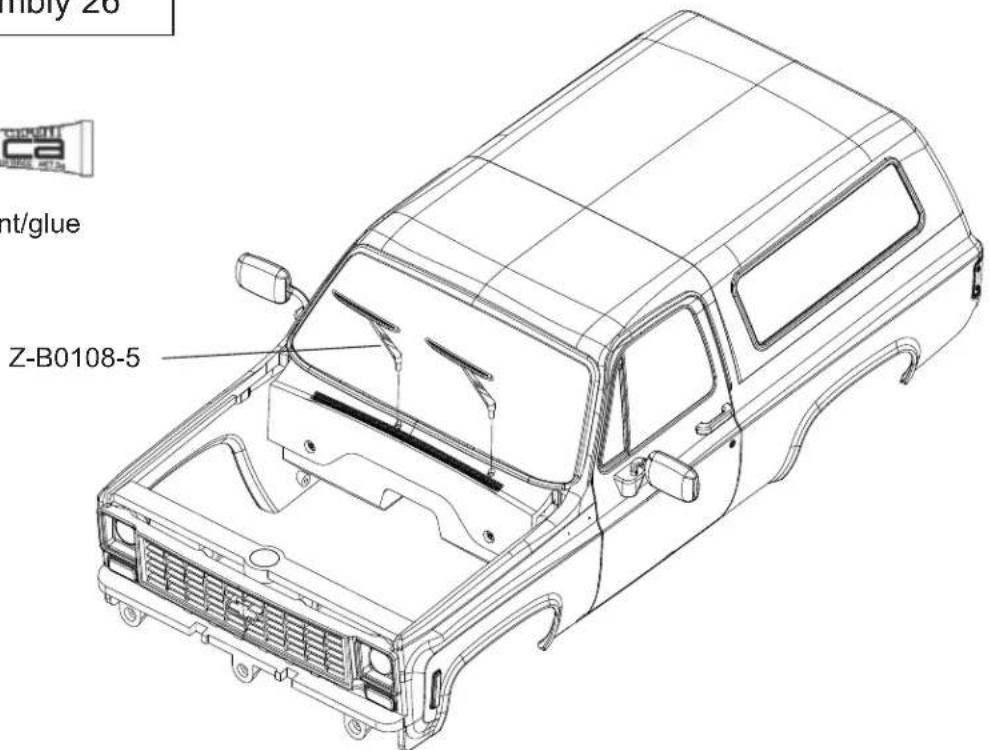

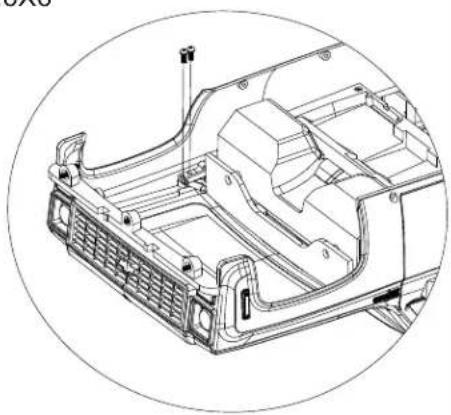

Assembly 26
Plastic cement/glue
Assembly 27
Notice: This step just shows how to assemble. These come pre-assembled.

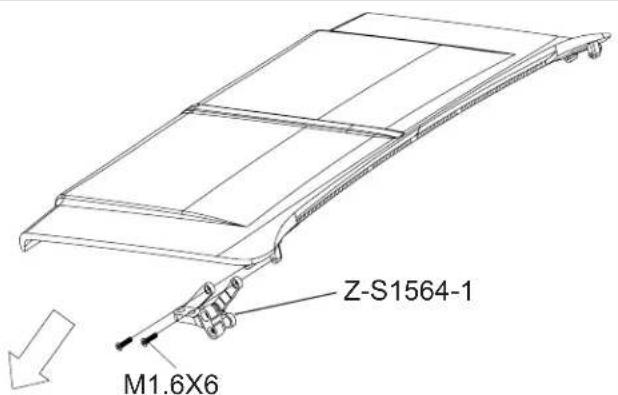

Assembly 28
Z-S1582
M1.6X6 Tapping Screw
Z-S1576
M3X8 Tapping Screw

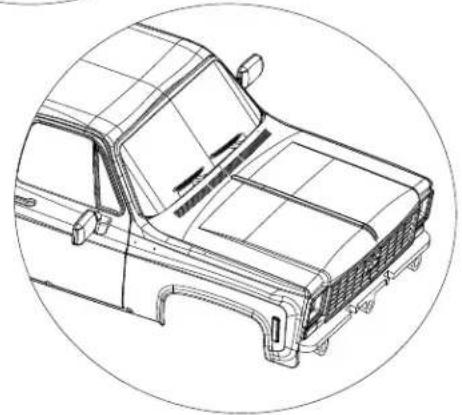

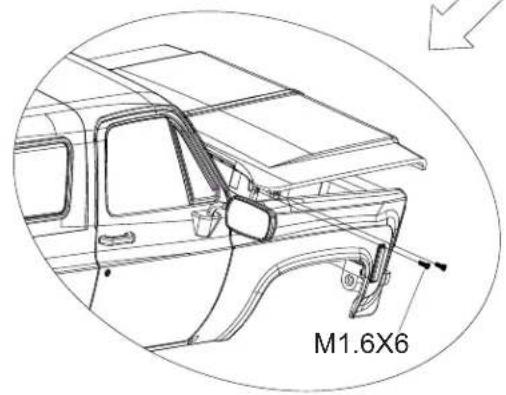

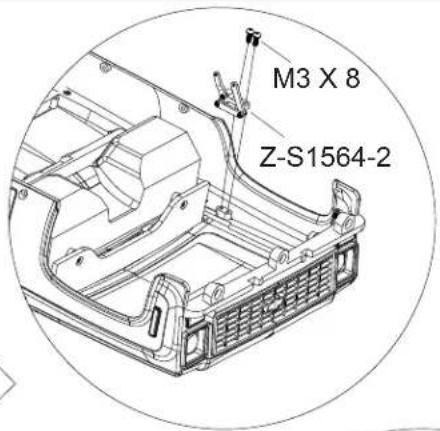

Assembly 29
Z-S1576
M3X8 Tapping Screw
Z-S1582
M1.6X6 Tapping Screw

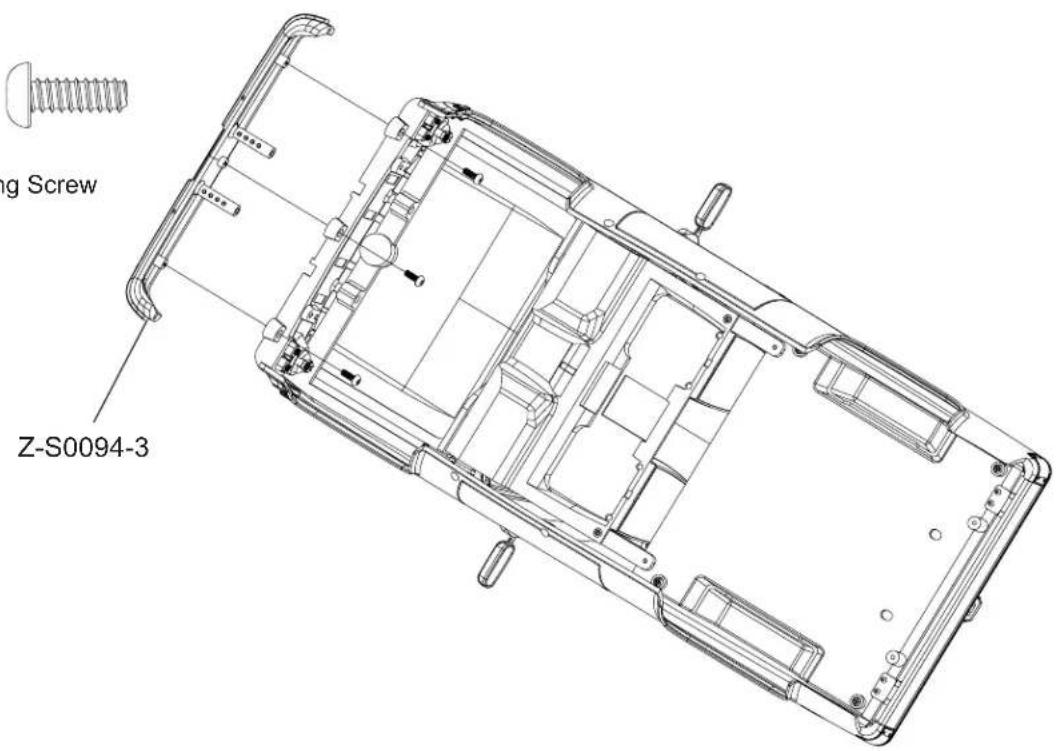

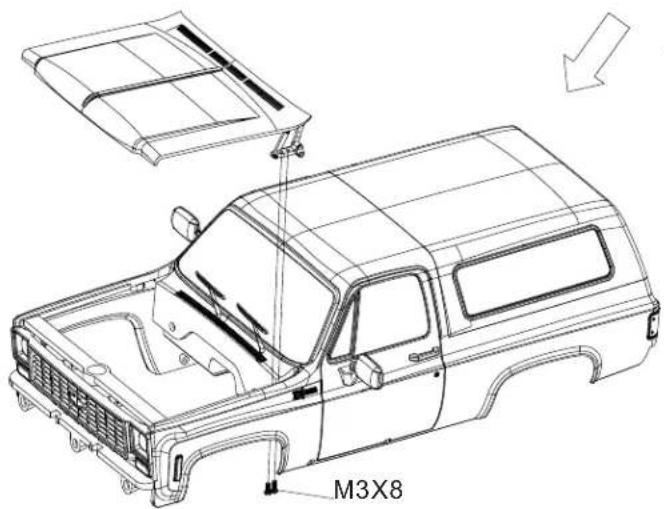

Assembly 30
Z-S1576
M3X8 Tapping Screw

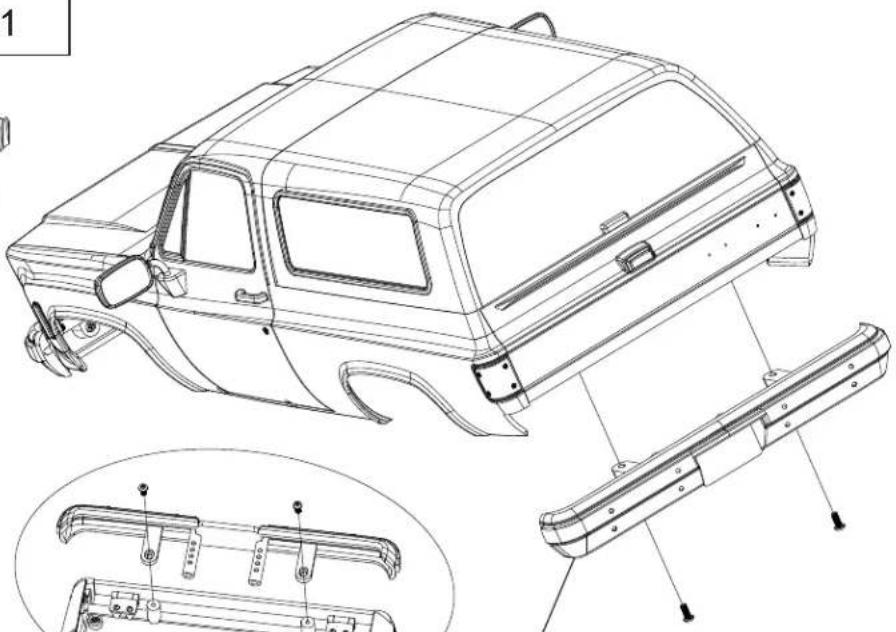

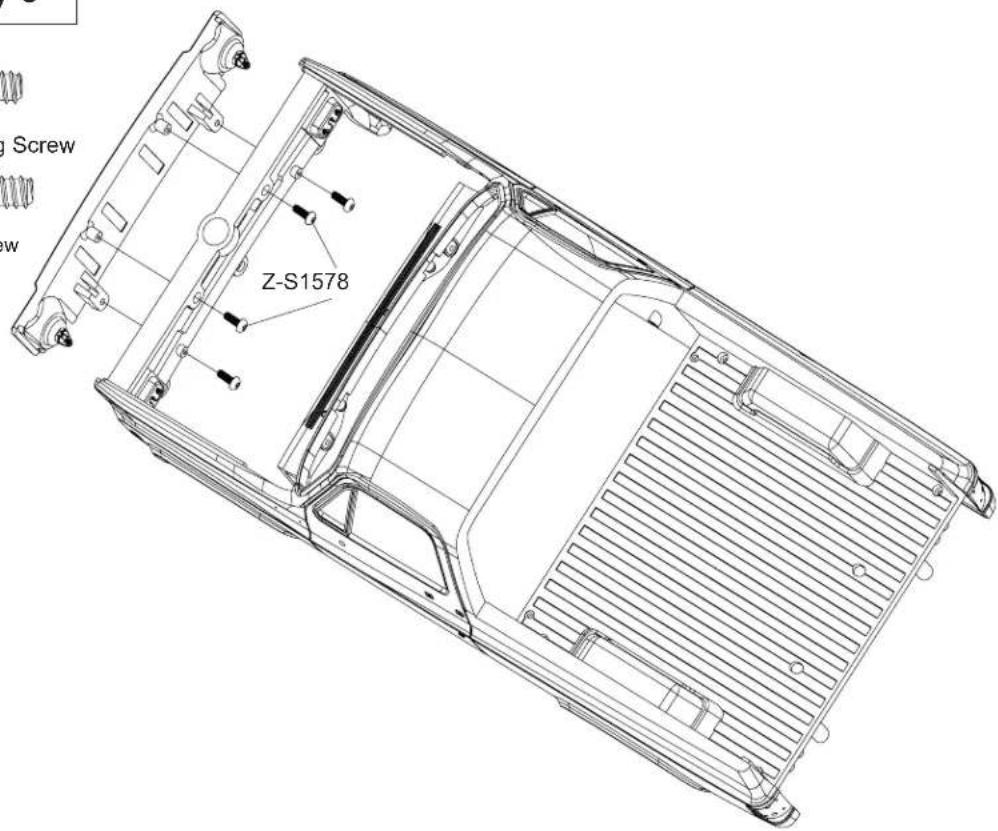

Assembly 31
Z-S1578
M3X10 Tapping Screw
Z-S0094-2

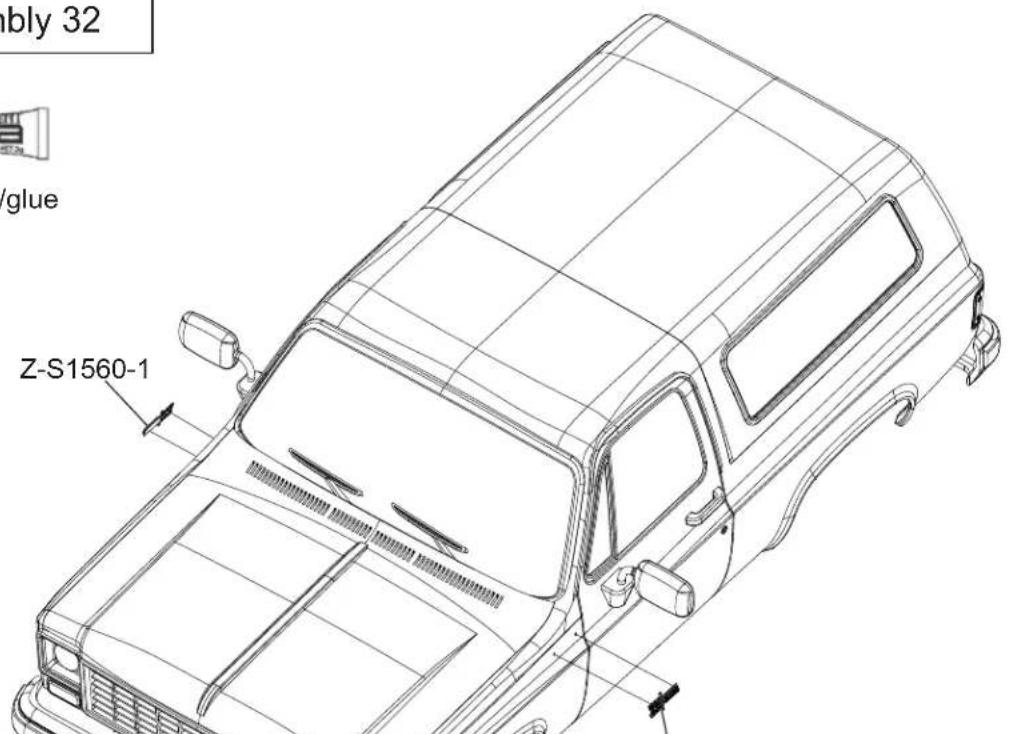

Assembly 32
Plastic cement/glue
Z-S1560-1
Notice:Pin holes in the body are for alignment of the metal emblems. The metal emblems do not have any mounting tabs or pins. You will need glue to adhere the emblems to the body.

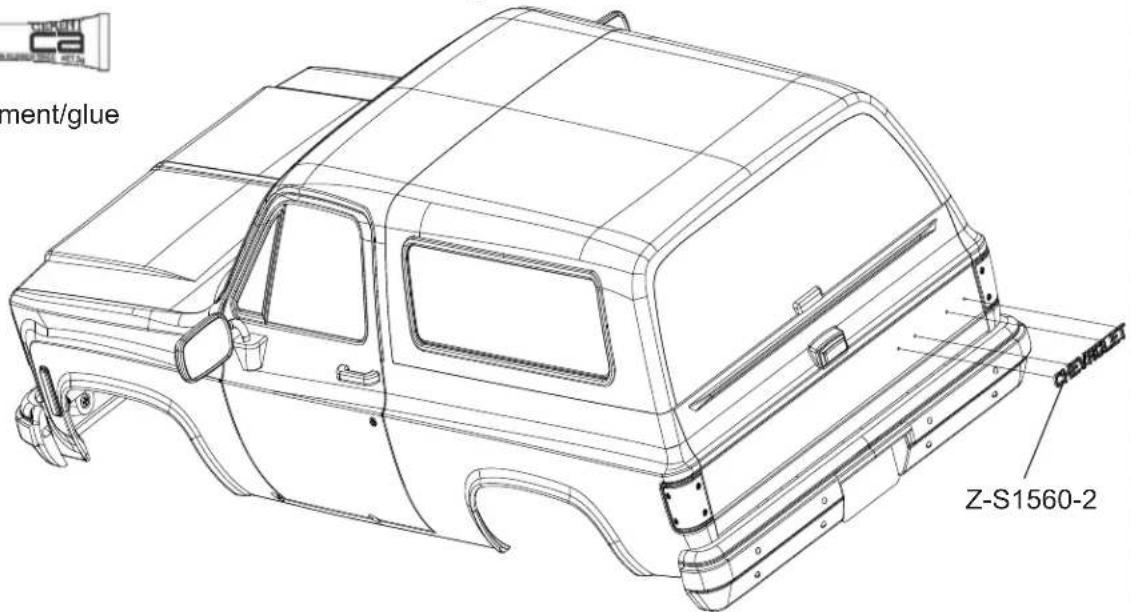

Assembly 33
Notice: Pin holes in the body are for alignment of the metal emblems. The metal emblems do not have any mounting tabs or pins. You will need glue to adhere the emblems to the body.
Plastic cement/glue

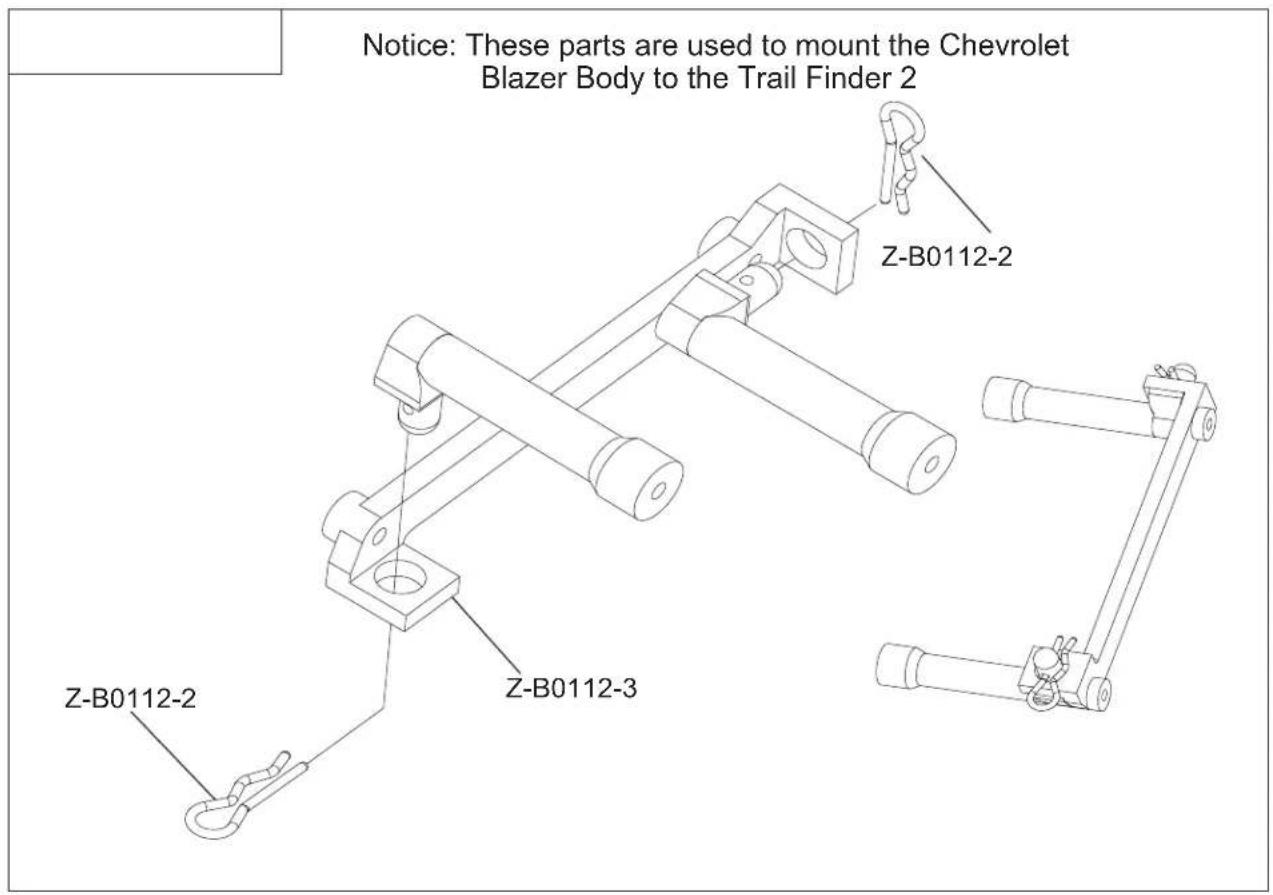

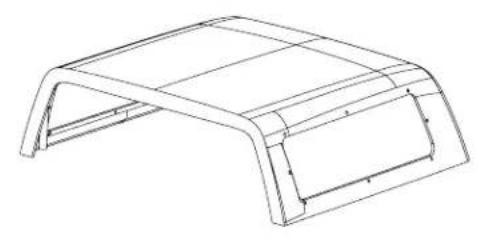

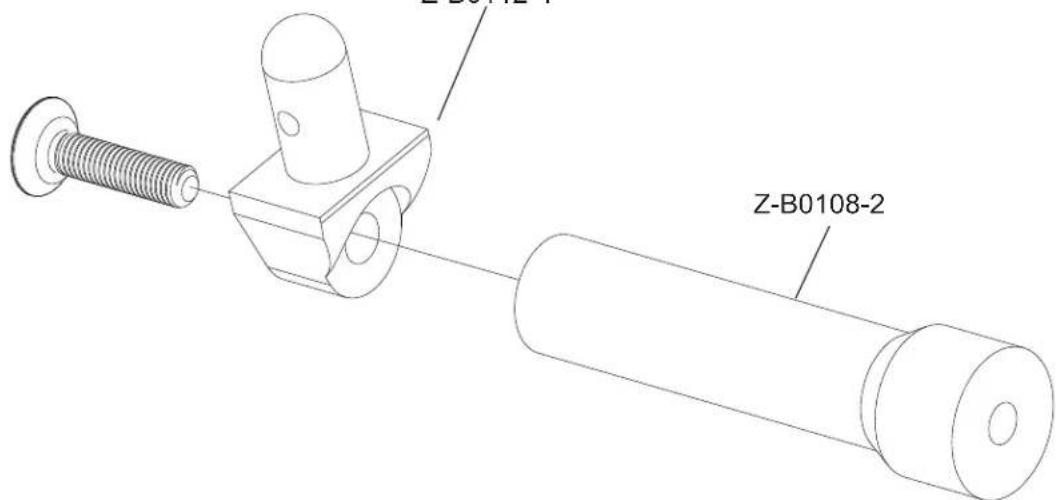

Assembly 34
Notice: These parts are used to mount the Chevrolet Blazer Body to the Trail Finder 2
Z-S1568
M3X10 Tapping Screw

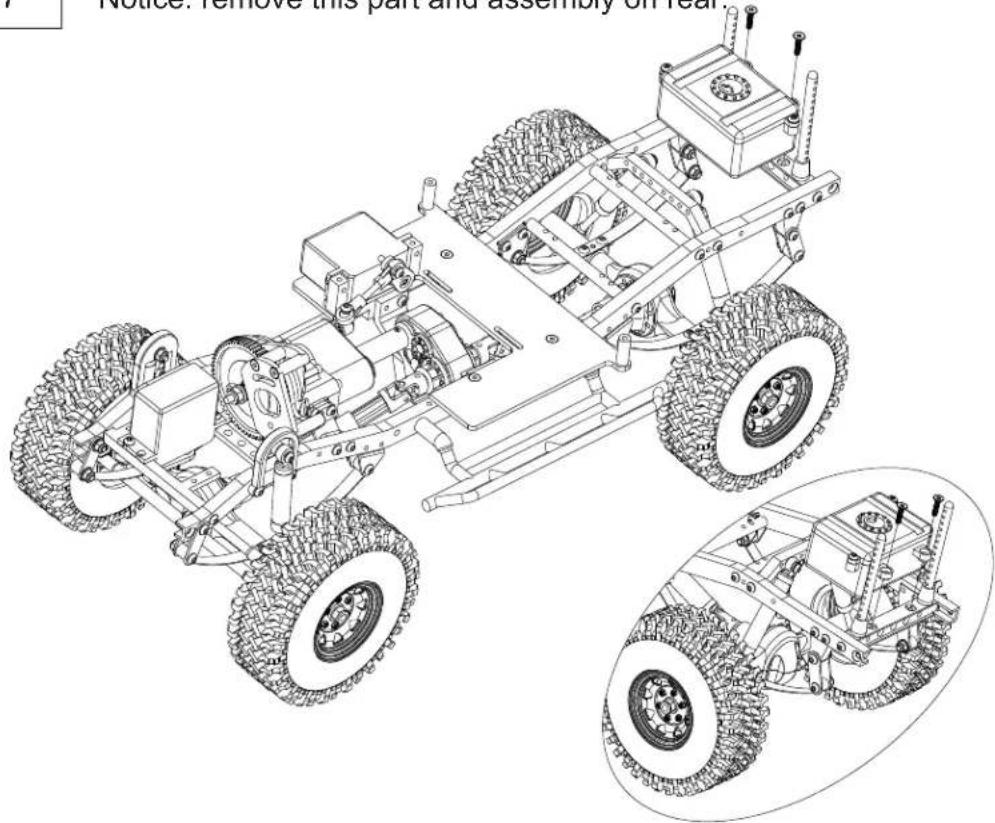

Assembly 37
Notice: remove this part and assembly on rear.

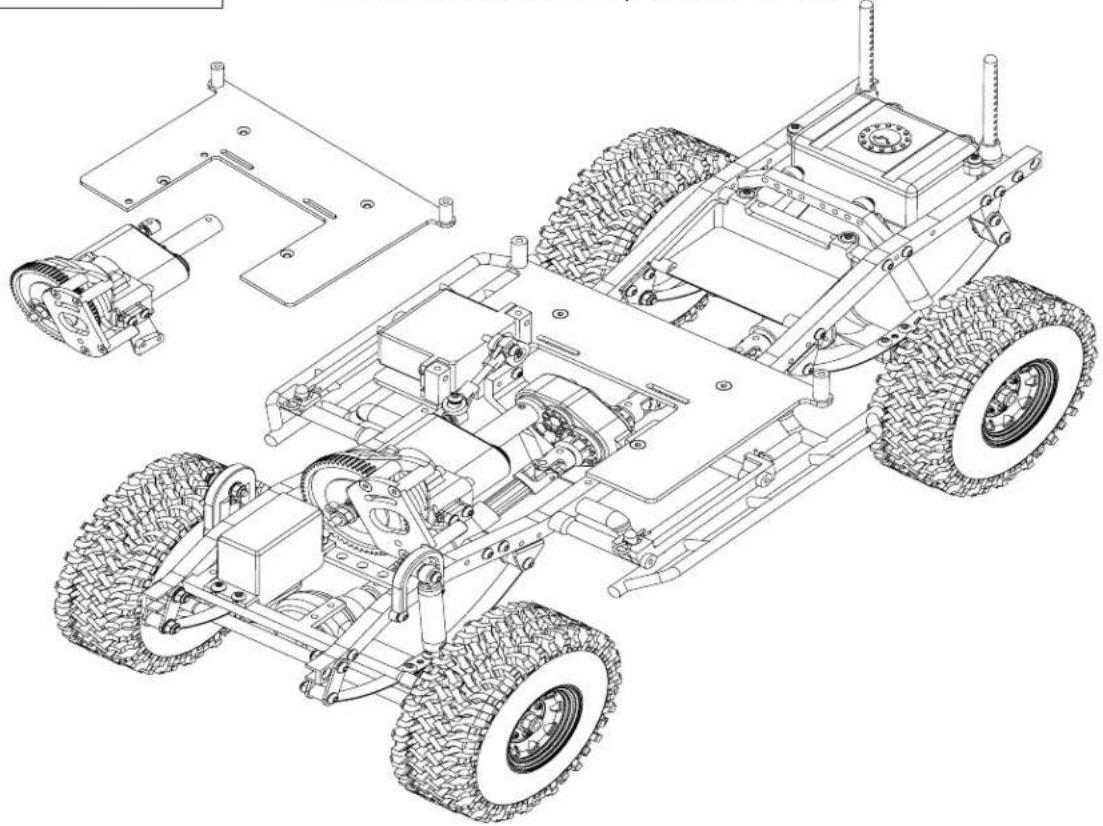

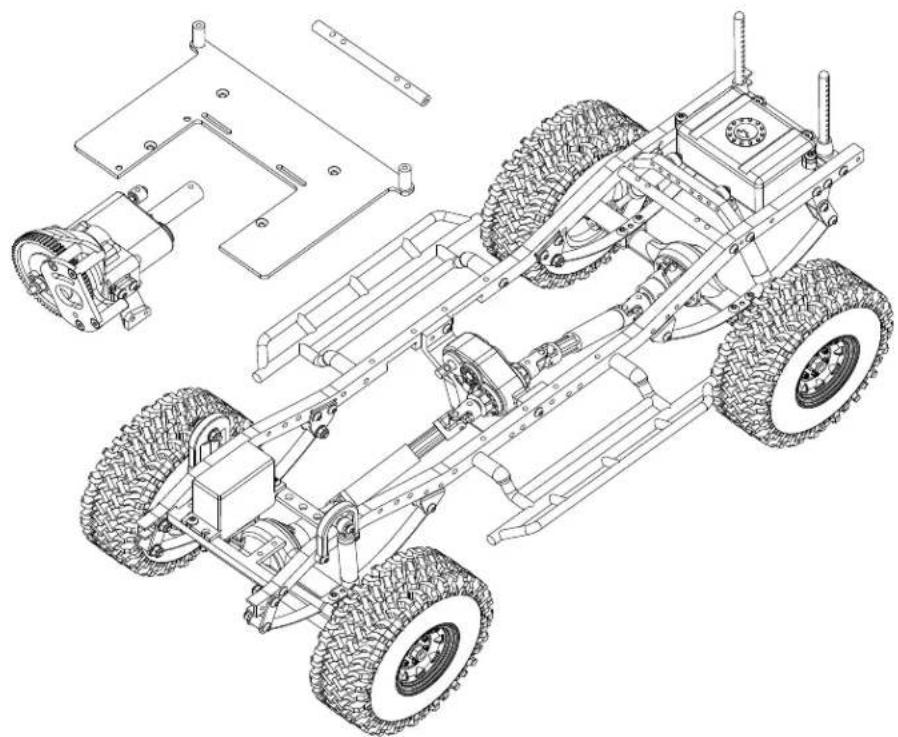

Assembly 38

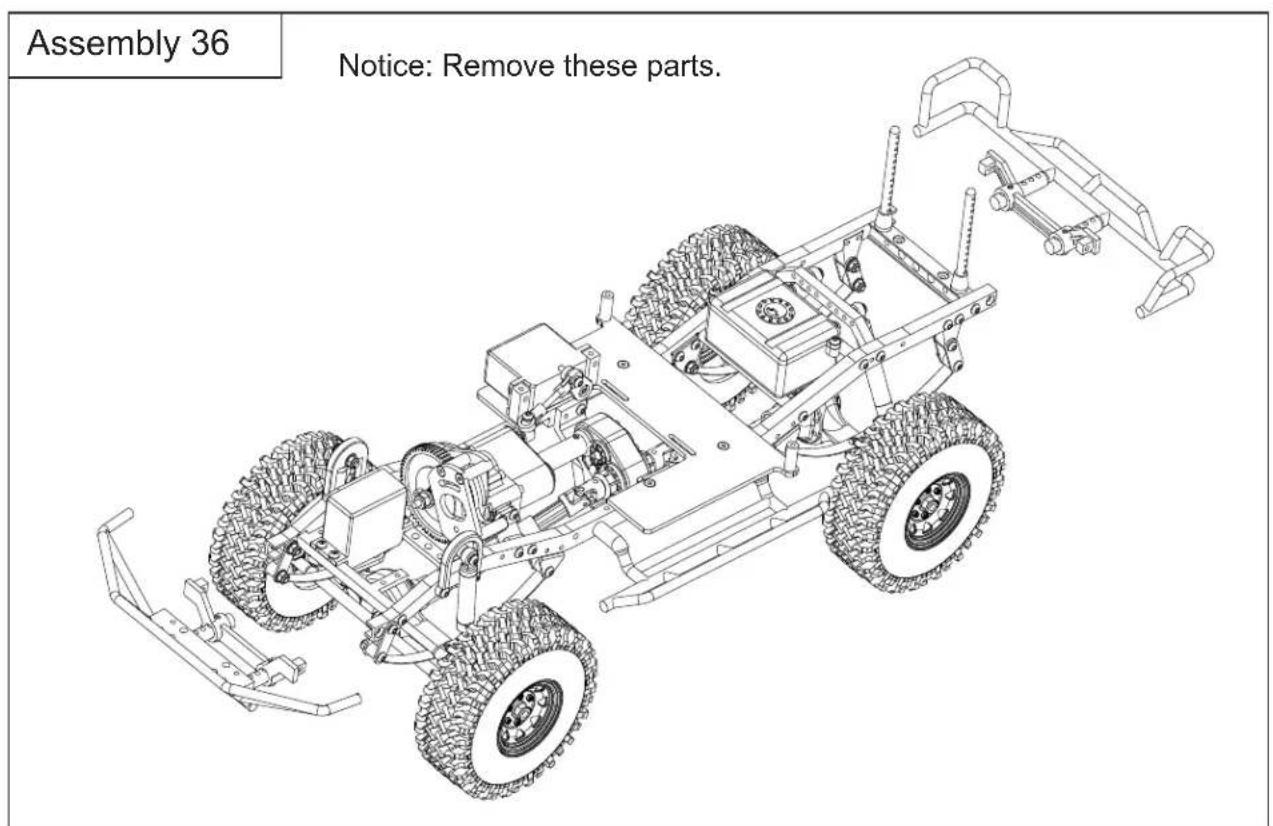

Notice: Remove these parts.

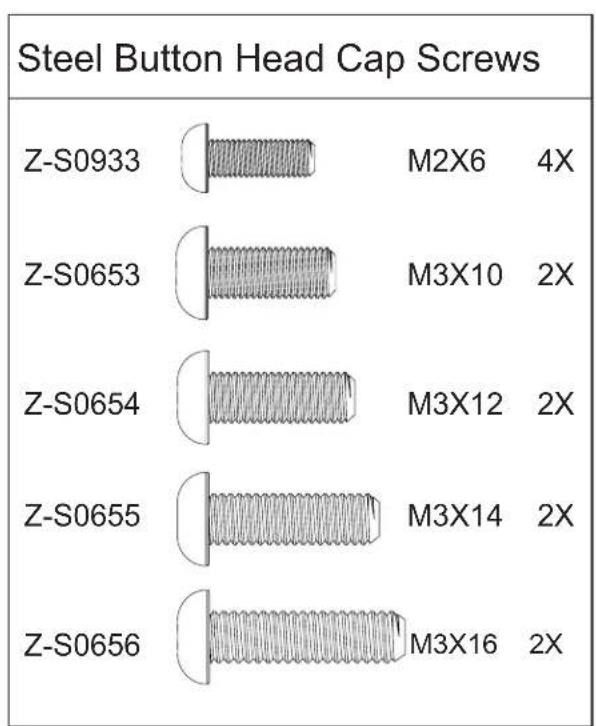

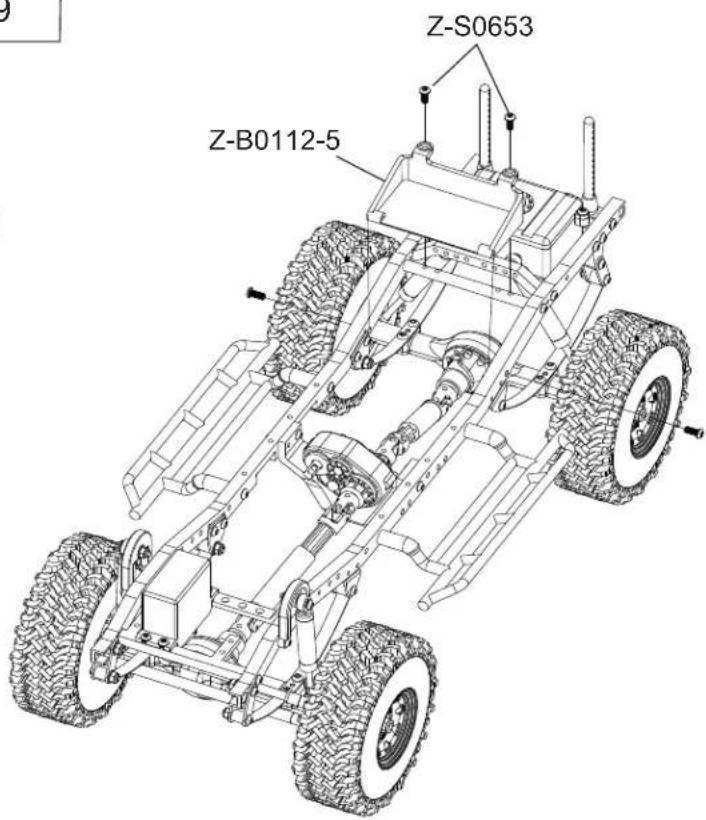

Z-S0653
Assembly 39
M3X10
Z-S0654
M3X12

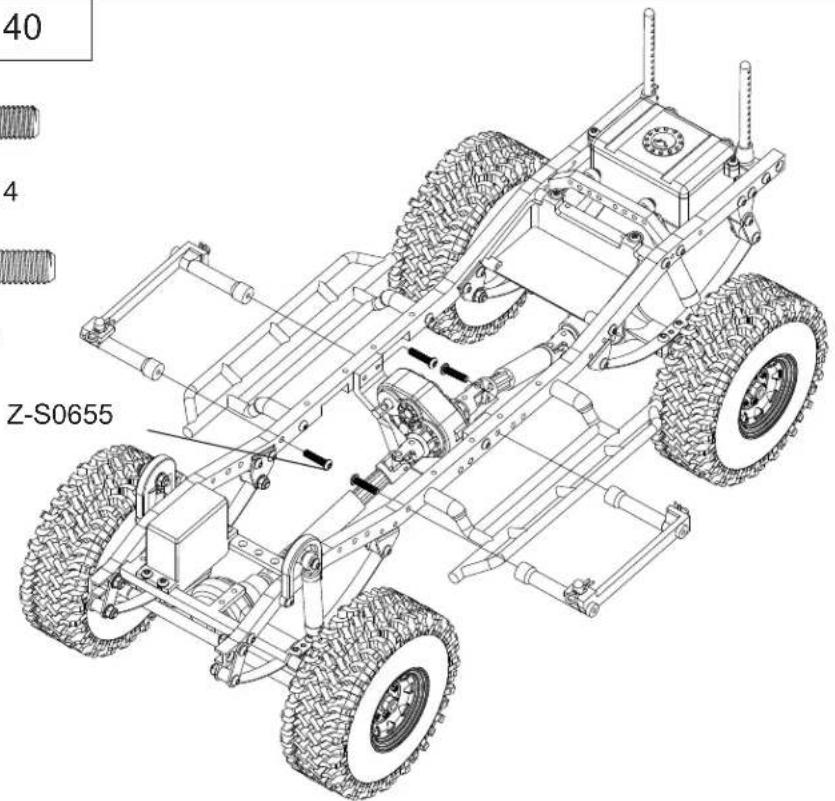

Assembly 40
Z-S0655
M3X14
Z-S0656
M3X16
Assembly 41
Notice: Assemble the parts shown below.

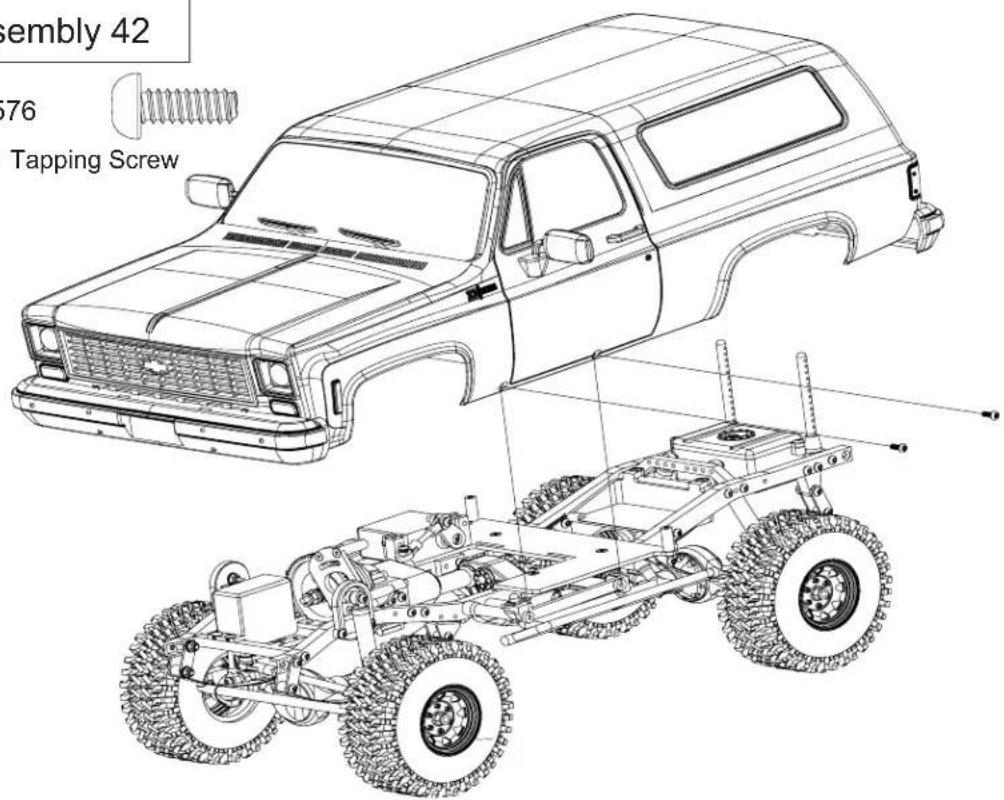

Assembly 42
Z-S1576
M3X8 Tapping Screw

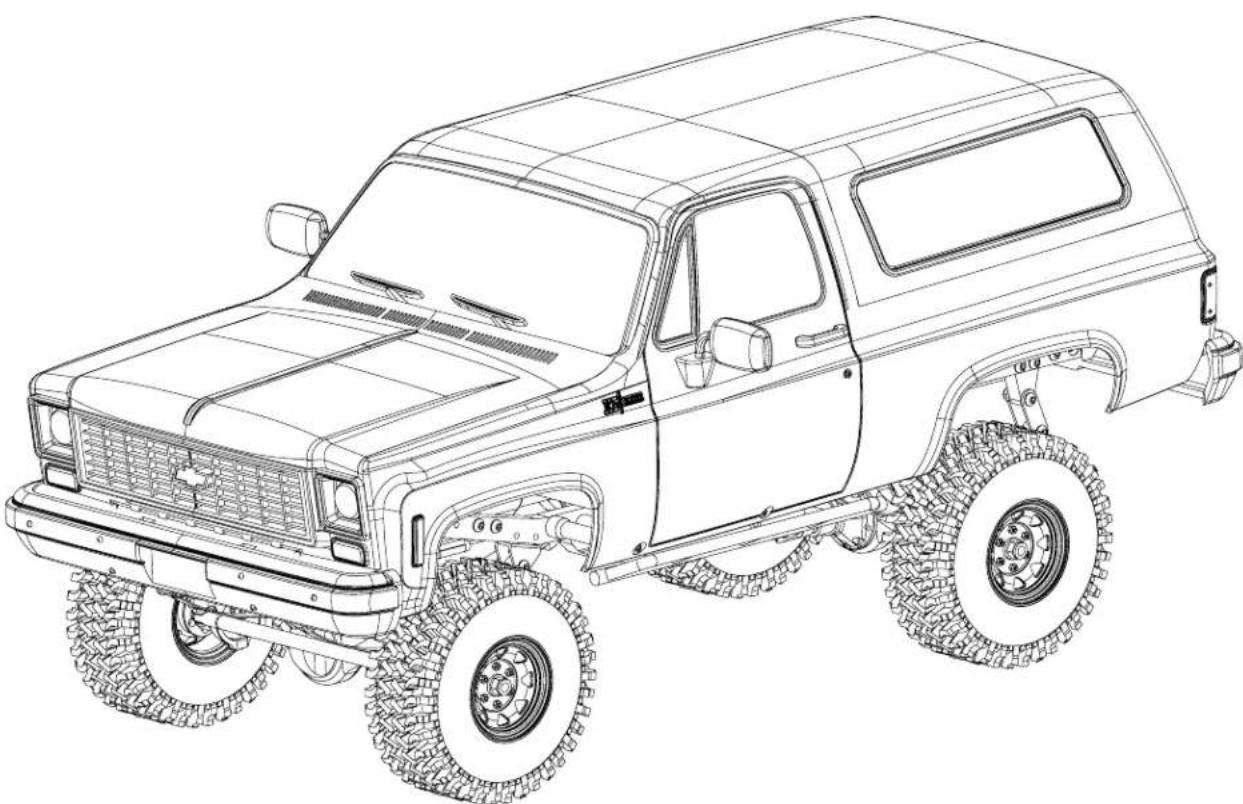

Drive it like you built it!
