USER MANUAL RSB1360 Royal Sovereign

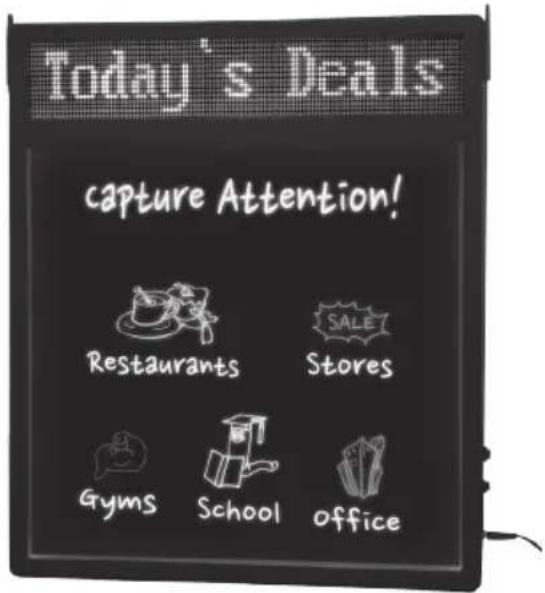

REWRITEABLE SIGN BOARD WITH

SCROLLINGMESSAGE

Page en français 7

Please read and retain these instructions. To register your product, please go to www.royalsovereign.com

www.royalsovereign.com

Because our products are subject to continuous improvement, RS reserves the right to modify product design and specifications without notice and without incurring any obligation. E&OE

Royal Sovereign International, Inc.

2014.07

CONTENTS

1. Illuma-write™ Rewriteable Sign Board with Scrolling Message
2. 12V DC, power adapter
3. Scrolling Message remote control (batteries included)
4. Hang chain, mounting bracket
5. Illuma-write™ Wet Erase Markers and cleaning cloth
6. Owner's manual

1

5

3

4
6

OPERATION

Programmable 3 color scrolling message - Up to 99 separate messages

Hang Chain, Wall Mount

Re-writable board allows user to customize message

Use remote control to program scrolling message (Animation, Speed, Order, Color)

Function control

Speed control slow / medium / fast DC power port

Rewriteable Sign Board

1. Plug the 12V DC Power Adapter into an electrical outlet, the other end into the Message Board.
2. A default message scrolling left on the display stating: "Say it with Messenger".
3. Press top button on the right side of the board to turn ON.

Remote control on writing board center

Pressing [M] key on the remote control, the following functions of writing board will display in sequence Static---- White/Green/Blue/Red/Purple/Turquoise/yellow

Flashing--- White/Green/Blue/Red/Purple/Turquoise/yellow

7 Colors fast alternately running
7 Colors fade in and fade out

Flashing Speed control of the writing board center

Press the UP/DOWN Arrows key on the remote control to change the speed while flashing.

Scrolling Messenger Remote Control

Use the [Exit] button on the remote control to turn on/off the scrolling message.

[EXIT] key also acts as ON/OFF key

[EDIT] key acts as EDIT

[SHIFT] key acts as the function to switch upper case, lower case and punctuation

[SPACE] Key provides a space between words within a message

[COLOR] Key to change scrolling letters of message board from red to green to yellow

Left or Right Arrows key to locate the cursor to the desired place on the message

Color of Letter / character

A total of 3 colors are available: green, red and yellow. The default color is red. To change the letter/character color, move the cursor to the letter you wish to change, and press the [COLOR] key.

Entering / Programming a message

STEP 1: Inserting Message

After you press [Edit] key. The Edit Ins Del screen will appear. Press the left or right arrow button followed by pressing on the remote the [ENTER] key.

Edit=Edits existing message / Ins=Creates new message / Del=Deletes existing message.

NOTE: When the cursor is flashing, it is waiting for the user to select an option. The programming will 'time out' if you do not select an option and return to the main screen setting.

STEP 2: Storing Message

Ins>1 will appear on the screen. Input a number to store your message (1 to 99). To save, press [ENTER]

STEP 3: Setting Display direction

1>M: To Left will appear on the screen. Use the right/left arrows on the remote control to select the desired directional setting:

To save, press [ENTER]

Down= Message scrolls down / Up= Message scrolls upward / Steady=Message to stay fixed on the display.

STEP 4: Setting display speed

1>Speed: F will appear on the screen. To change setting use the left and right arrow on the remote control to select Fast or Slow.

To save, press [ENTER].

"F" = fast / "S" = slow

STEP 5: Setting delay time

1>Delay: 5 will appear on the screen. Press the number key [#] to select delay time of 0 to 9 seconds. To save, press [ENTER].

STEP 6: Entering Message

B1> will appear on the screen. Type in your message (up to 98 characters). To save,press [ENTER].

NOTE: FRENCH CHARACTER

To access the French Characters, please enter the English Character and then use the left arrow direction key (▲) and ensure that the cursor is flashing over the character to be modified. Press the Up arrow directional key (▲) to obtain the symbol desired.

For example to get the E character, press E. Press the left arrow direction key ( ) once to have the cursor flashing over the character E.

Press the up arrow direction key once to obtain the French character .

A can be modified to A,A C can be modified to C O can be modified to O,O

a can be modified to a,a,a c can be modified to C o can be modified to 0,0

E can be modified to ,, I can be modified to , U can be modified to U,U,

STEP 7 (Optional): Viewing Message

You have the choice now of either entering additional messages by following steps 1-6 above, or to view the message just entered.

To review your message, press the [Exit] button.

Editing a Stored Message

Press the [Edit] button. Edit Ins Del will appear on the screen. Press the left arrow button on the remote control. Press the message number you wish to edit (1 to 99). Press the. [ENTER] button. Follow steps 3-7 above to complete your editing.

Deleting a stored message

Press the [Edit] button. Edit Ins Del will appear on the screen. Press the right arrow button on the remote control. Press the message number you wish to delete (1 to 99). Press the. [ENTER] button. Press the [EXIT] button to return to the messenger.

To check the number of messages stored

Press the letter [T] button on the remote control. If, for example, you have stored 10 messages, after you press [T] button, the display will show: "10 messages" Note: if there are just 10 messages stored, but you input number [12], then the system will remind you "No Message"

To have a specific sequence display

Press [Number key] + [,] + [Number key] + [ENTER], For example if you want to display message 2 and 5 only.

For example, Press number key [2], then press comma [,] key(letter I), then press number key [5].

Cleaning the Illuma-write™ Sign Board

Please ensure that only wet erase markers are being used with the Illuma-write™ sign board. This will help ensure that the board does not get scratched by using other types of markers.

There are two ways of cleaning the Illuma-write™ sign board.

1. Using the supplied cleaning cloth, simply wipe clean the board. Ensure you remove the pigment 'dust' residue of the marker to ensure the board is fully clean.
2. Using a damp cloth, loosen up the dry ink for easier and complete removal. This will cause some "smearing" which is easily buffed clean with the supplied dry cloth.

SPECIFICATIONS

Description of Product RSB-1360
Illuma-Write™ Sign Board 7 colors (red, green, blue, yellow, purple, turquoise, white)
Sign Board Settings Color settings, flash and flash speed
Markers Illuma-write™ Fluorescent Wet Erase Markers included
Messenger 1-99 up to 98 characters per message
Messenger Settings	Programmable entry animation (up, down, left, right) speed (for flash & scroll), color (green, red, yellow) and series
Remote Control Included (CR2025L battery - included)
Adaptor 12V DC 2mA CUL included
Material High quality ABS plastic
Installation Hang chain included

LIMITED 12 MONTHS WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for 12 months from the date of the original purchase. This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www. royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

Return defective product to the following address with a detailed description of the problem. If possible, pack in original carton. Please prepay shipping charges.

For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA- Customer Support Tab.

For sales of product, parts or accessories please visit us at www.royalsovereign.com.

For service or sales please contact your local Royal Sovereign Office.

ROYAL SOVEREIGN INTERNATIONAL, INC. RS CANADA INC.

2 Volvo Drive Rockleigh, NJ 07647 USA 5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA
TEL: [phone] FAX: [phone] TEL: [phone] TF: [phone] FAX: [phone]
