DVDUSB01 - External DVD Player Gembird - Free user manual and instructions

Brand	Gembird
Model	DVDUSB01
Product type	External DVD drive
Interface	USB 2.0
Supported formats	DVD, DVD±R, DVD±RW, CD, CD-R, CD-RW
Power supply	Via USB port (bus-powered)
Dimensions (approx.)	145 x 140 x 18 mm
Weight (approx.)	300 g
Maintenance and cleaning	Clean with a soft dry cloth. Do not use solvents.

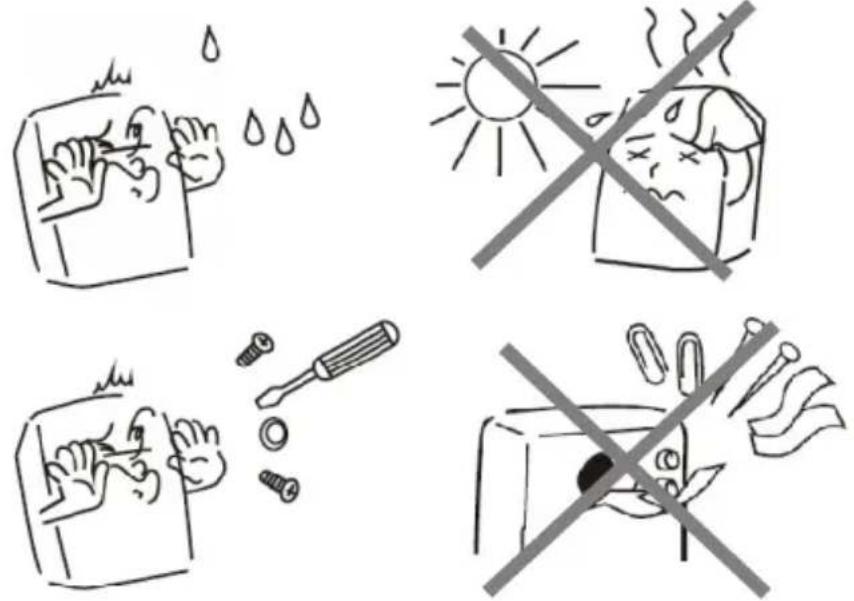

Safety	Do not expose to moisture, shocks, or extreme temperatures.
Spare parts and repairability	Contact Gembird after-sales service for spare parts or repair.
General information	Designed for reading optical discs on a laptop or desktop computer.
Compatible operating systems	Windows, macOS, Linux (driverless reading)

Frequently Asked Questions - DVDUSB01 Gembird

What types of discs can this DVD drive read?

The Gembird DVDUSB01 reads DVD, DVD±R, DVD±RW, CD, CD-R, and CD-RW.

Does the drive require an external power supply?

No, it is powered directly via your computer's USB port (bus-powered).

Is it compatible with my laptop?

Yes, it connects via USB and works with Windows, macOS, and Linux. No driver needed for basic reading.

Can I burn discs with this drive?

This model is a reader only, it does not allow burning. Check the datasheet to confirm.

What to do if the drive is not recognized by my computer?

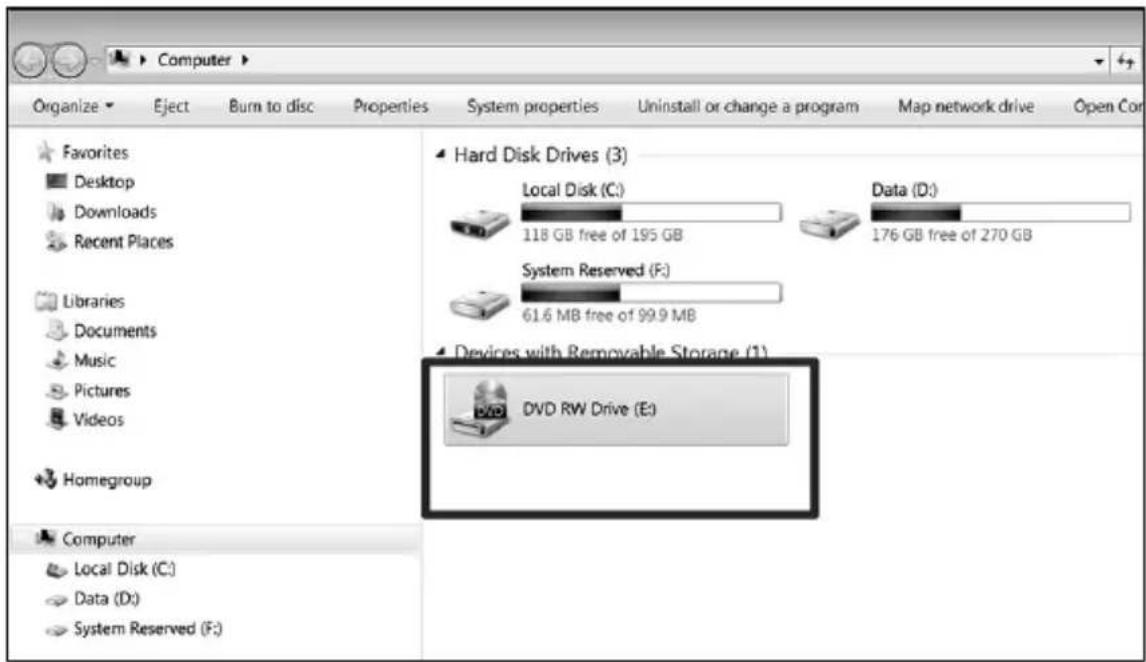

Make sure the USB cable is properly connected. Try another USB port. On Windows, check Device Manager; on macOS, the drive should appear in Finder.

What is the warranty period?

The warranty is 24 months from the date of purchase, subject to presentation of the receipt.

Can I use this drive with a USB-C adapter?

Yes, if your computer only has USB-C ports, use a USB-A to USB-C adapter. The drive will work normally.

The drive makes noise during reading, is that normal?

A slight rotational noise is normal. If the noise is abnormal or there are vibrations, check that the disc is properly inserted and not damaged.

How to clean the drive?

Use a soft dry cloth to wipe the exterior. For the lens, use a special cleaning disc or consult a professional.

What to do if the tray doesn't open?

Try using a straightened paperclip inserted into the small manual ejection hole next to the tray. If the problem persists, contact Gembird support.

USER MANUAL DVDUSB01 Gembird

• External CD/DVD reader/ recorder with USB interface
• Enables rapid burning of CD/DVD media with 24x write speed for CD and 8x for DVD
• High-speed USB 2.0 interface for reliable use with transfer rates up to 480 Mbps
• Silent play, smart disc read speed control reduces operational noise.

Specifications

• Interface: USB 2.0
  Maximum Read Speeds: 24x: CD-R, CD-RW, CD-ROM, CD-DA; 8x: DVD-ROM, DVD+/-R, DVD+/-RW, M-Disc; 6x: DVD-RAM; 4x: DVD-Video
  Maximum Write Speeds: 24x: CD-R, CD-RW; 8x: DVD+/-RW, DVD+/-R; 6x: DVD-RW, DVD+/-R DL; 5x: DVD-RAM; 4x: M-Disc
  Supports: CD-DA, CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM, DVD-ROM DL, DVD-RW, DVD-Video
  Supported disc diameter: 80~mm 120~mm
  Dual Layer Media Supported: Yes
• Dimensions: 140 × 140 × 14 mm
  Net weight: 0.3kg

GEMBIRD

DVD-USB-01

EXTERNAL USB DVD DRIVE

(1)

2

3

GEMBIRD

DVD-USB-01

EXTERNAL USB DVD DRIVE

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu	(NL/BE) Verklaring van overeenstemming Dit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot EMC(2004/108/EC). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op unsere website: www.gembird.eu
(FR/BE) Déclaration de conformité Le produit est contrôle et rempli les exigences des directives nationales et de la directive EMC(2004/108/EC). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) Konformitätserklärung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2004/108/EC) überein. Die Konformitätserklärung kann auf unserer Website www.gembird.eu heruntergeladen werden.
Deklaracja zgodność Ten produkt zostal przytestowy i jest zgodny z zasadniczymi wymaganiani przechów ustawychych polstaw członkowsich dotycznych EMC(2004/108/EC). Deklaracja CE znejduje są pod adresem www.gembird.eu

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

YMOBNI TAPAHINTIHORO OBCJNYTOBYBAHH

1. rapantiihe obcnyrobyBaHHaHaTbCnpoTgrom TepmiHy rapaTii, npn HaeBHOCTI rapaHTiHoro TaHOy, 3aONBHeHOro HAnExHM uHOM, Ta BPO6y B NobHi KOMJIeKtaJIi.
   2.「apantiHe 6cnyoByaHH He niTpmyeTbca B pa3i npuyenHn npabn EKcnnyatau, 3epiranHn ao nepeBe3eHHBnpoby, 30 3a3naehi BInctpykui no eKcnnyatauBnpoby.
2. rapaHTiHHe o6cnyroByBaHHcKacOByTbCay y BunaKaX: -HaBHOCTI MExaHiuHX NOUKOJxHb a6o CJIiDIB CTOPOHBoTO BTPyAHH;
3. NOUKOJKeHHB NKNIKAHCTNXIINHM NIXOM a6o HeuacnM BnnaKOM, BKJIouaOuH N 6NcKaBky, noTpanlaHHm y BnpiCSTOPOHHIX PpeMetIB, pIDH, KOMAX, TOIO;
4. NOUKOJXEHH BKNKNAH 3acTocyBaHHM a6o NiDKIIOueHHM HeCTaHapTHHX a6o HecnpabHnX nepupepiHnX npucptoiB, akcecyapib;
5. rapaHTi He nouHPOeTbCra Ha BnTpAHi MaTePiAn Ta daTkOBI akcecyap;
   3 rapaHTiHmM yMOBaM 3rOHe.

Пдпс поуц:

TAPAHNTIHHN TAIOH No

Tobap/Moienb

CepiHnH Homep

TepmiH rapaHII

Дата пожу
