Product Type	Solar Shower System
Brand	GRE
Model	70.250.34.003
Tank Capacity	34 L
Hose Material	PVC free of harmful substances
Power Supply	Solar energy (sunlight)
Heating Time	4 to 6 hours of sunlight
Maximum Water Pressure	6 kg/cm²
Mounting	Screws provided, concrete or solid floor
Usage	Outdoor, sunny location
Maintenance	Clean shower head regularly with mild detergent; drain in winter
Safety	Risk of burns in summer; open cold water first
Warranty	2 years (according to manual conditions)
Storage	Dry place, frost-free
Supplied Parts	Shower head, tap, hose, quick-connect adapter, screws

Frequently Asked Questions - 70.250.34.003 GRE

How to install the GRE 70.250.34.003 solar shower?

Drill holes in a solid floor (concrete) and fix the shower with the provided screws. Place it in a sunny location. Use a flexible hose that can withstand 6 kg/cm². Check for leaks after installation.

How to adjust the water temperature?

Turn the tap. The blue side gives cold water, the red side hot water. In summer, open cold water first then adjust gradually to avoid burns.

How long does it take to heat the water?

Hot water is available after 4 to 6 hours of sunlight. Once the hot water is used up, you need to wait for this duration again.

What to do in case of water leakage?

Loosen the affected parts to resolve leaks. Check that all connections are tight. Leaks can be due to transport or incorrect handling.

How to clean the shower head?

Clean it regularly with a mild household cleaning product to avoid water outlet issues.

Is it safe to use the shower in summer?

In summer, water in the hose can become very hot. Always open cold water first then adjust temperature gradually to avoid burns.

How to drain water in winter?

Close the water supply, tilt the shower towards the connection to empty the tank. Store it in a dry, frost-free place. Freeze damage is not covered by warranty.

What type of flexible hose to use?

Use a flexible hose capable of withstanding a pressure of at least 6 kg/cm². The quick-connect adapter is provided for the water inlet.

Can children use the shower?

Children should not use the solar shower without adult supervision due to burn risks.

What to do if water does not heat?

Ensure the shower is exposed directly to sunlight and the hose is filled with water. Turn the lever to the hot water position. Check for leaks or blockages.

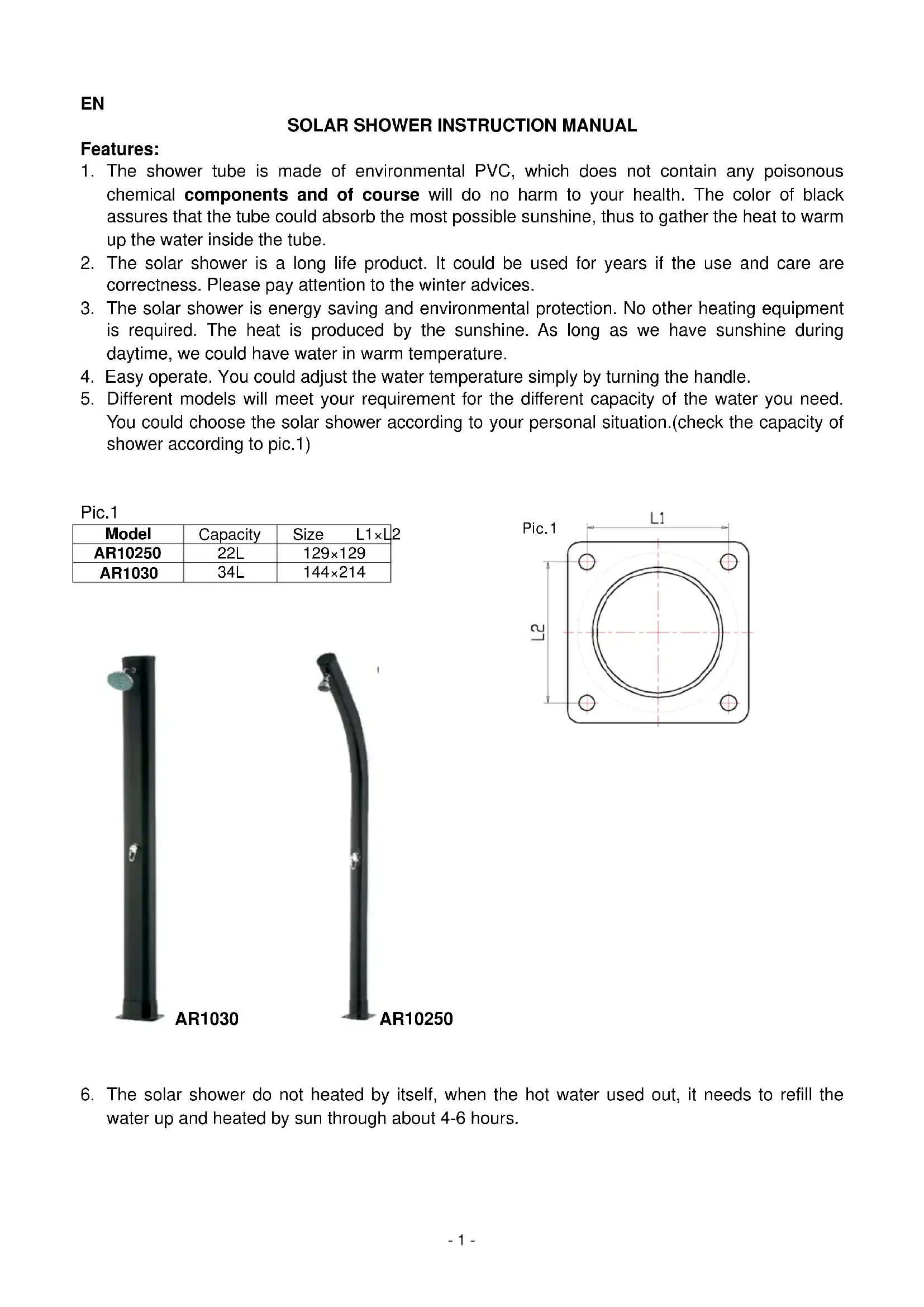

USER MANUAL 70.250.34.003 GRE

We reserve to change all of part of the articles or contents of this document, without prior notice.

1. The shower tube is made of environmental PVC, which does not contain any poisonous chemical components and of course will do no harm to your health. The color of black assures that the tube could absorb the most possible sunshine, thus to gather the heat to warm up the water inside the tube.
2. The solar shower is a long life product. It could be used for years if the use and care are correctness. Please pay attention to the winter advices.
3. The solar shower is energy saving and environmental protection. No other heating equipment is required. The heat is produced by the sunshine. As long as we have sunshine during daytime, we could have water in warm temperature.
4. Easy operate. You could adjust the water temperature simply by turning the handle.

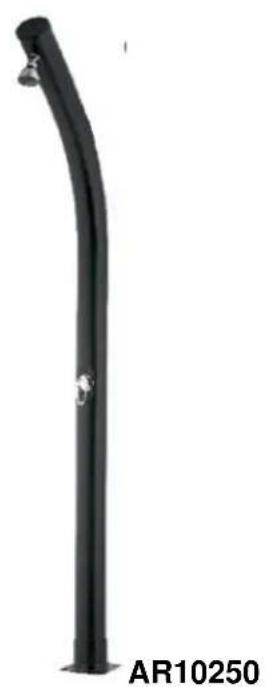

5. Different models will meet your requirement for the different capacity of the water you need. You could choose the solar shower according to your personal situation.(check the capacity of shower according to pic.1)

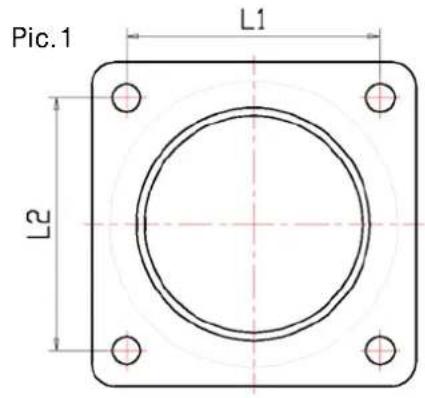

Pic.1

Model	Capacity	Size L1×L2
AR10250	22L	129×129
AR1030	34L	144×214

1. The solar shower do not heated by itself, when the hot water used out, it needs to refill the water up and heated by sun through about 4-6 hours.

INSTALLATION

1. Drill holes in the concrete floor or other solid ground, fix the solar shower to the ground by the bolts in the parts bag, and make sure the solar shower will not collapse due to the strong wind and other external forces.
2. It is much better to install the solar shower in the places where the sunshine will last much longer than others. It could help to have the right temperature of water while in use.
3. Quick connect adaptor is used for the water inlet. We suggest using the flexible hoses. Make sure this flexible hose would bear the pressure of 6kgs / cm^2
4. Please ask professionals to install the solar shower to avoid any injury.
5. Have a testing after all the components are installed to check whether there are leaking problems. Transportation and any improper operation during installation will make the parts loose thus cause leaking. Tightly screw the leaking part may help solving the leaking problems.

NOTES

1. When the sunshine is strong, especially in summer, the water inside the tube will reach a very high temperature, so please do not stand under the solar head when you use it. Otherwise you will be scalded by the hot water, please turn on the cold water first then adjust the water temperature by the handle gradually.
2. Do not remove or add any parts, otherwise leaking would be easily caused.
3. Clean the shower head periodically to make sure the water sprays without resistance.
4. Children are not allowed to use the solar shower alone.
5. Fill up the tube after the shower is installed. You should turn the adjusting handle to the position of hot water, when the shower head have water spray, the tube is fully filled

The foot shower does not have hot water.

Turn on the cold water first then adjust the water temperature by the handle gradually.

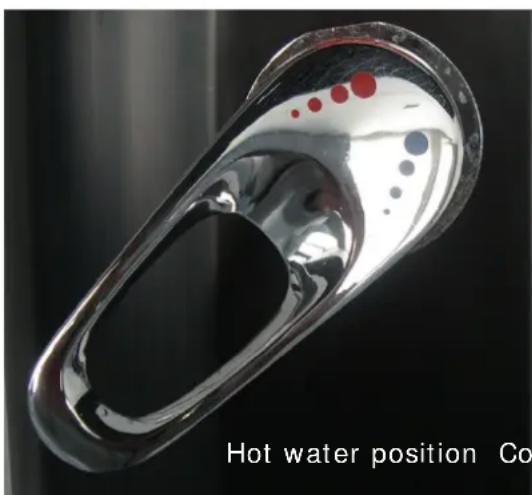

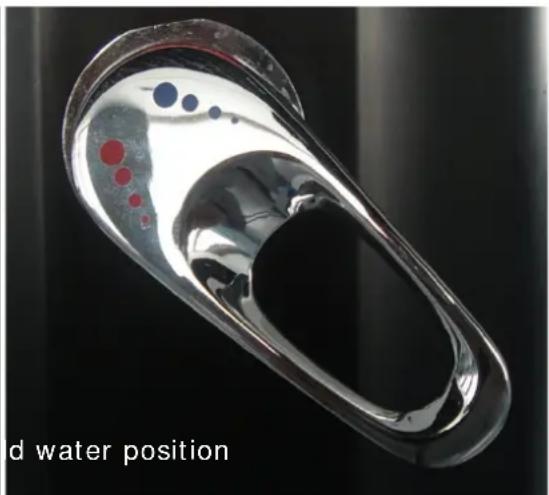

Flowing pictures show you the hot and cold water handle position, Turn to blue side, it is cold water, and turn to red side, and it is hot water.

WINTERB

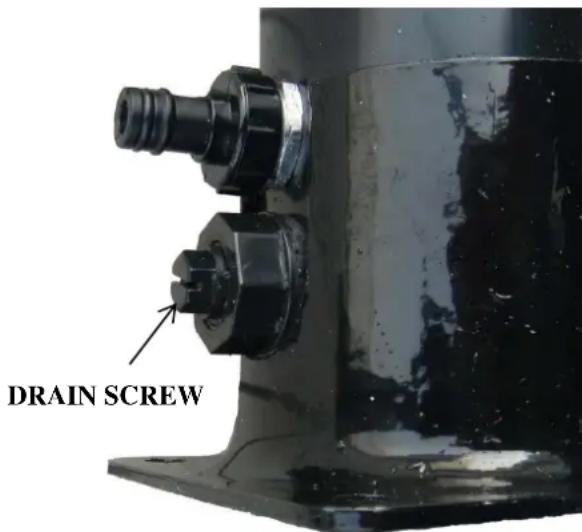

When in winter, empty the water in the tube by drainage to avoid frozen inside the tube.

When finished bathing season, it is absolutely necessary to clean the shower with a mild household cleaner.
Close the water inlet pipe and empty the shower tilting to the connection.
The solar shower must be stored empty and in a dry place safe from frost. The damage caused by freezing is not covered by warranty.

WARNING: This product warranty does not include damage caused by hard water, salt water or frost.

ES

MANUAL DE INSTRUCCIONES DE LA DUCHA SOLAR

Characteristicas:

1.1 In accordance with these provisions, the seller guarantees that the product corresponding to this guarantee ("the Product") is in perfect condition at the time of delivery.
1.2 The Guarantee Term for the Product is two (2) years from the time it is delivered to the purchaser.
1.3 In the event of any defect in the Product that is notified by the purchaser to the seller during the Guarantee Term, the seller will be obliged to repair or replace the Product, at his own cost and wherever he deems suitable, unless this is impossible or unreasonable.
1.4 If it is not possible to repair or replace the Product, the purchaser may ask for a proportional reduction in the price or, if the defect is sufficiently significant, the termination of the sales contract.
1.5 The replaced or repaired parts under this guarantee, will not extend the guarantee period of the original Product, but will have a separate guarantee.
1.6 In order for this guarantee to come into effect, the purchaser must provide proof of the date of purchase and delivery of the Product.
1.7 If, after six months from the delivery of the Product to the purchaser, he notifies a defect in the Product, the purchaser must provide proof of the origin and existence of the alleged defect.
1.8 This Guarantee Certificate is issued without prejudice to the rights corresponding to consumers under national regulations.

2 INDIVIDUAL TERMS

2.1 This guarantee covers the products referred to in this manual.
2.2 This Guarantee Certificate will only be applicable in European Union countries.
2.3 For this guarantee to be effective, the purchaser must strictly follow the Manufacturer's instructions included in the documentation provided with the Product, in cases where it is applicable according to the range and model of the Product.
2.4 When a time schedule is specified for the replacement, maintenance or cleaning of certain parts or components of the Product, the guarantee will only be valid if this time schedule has been followed.

3 LIMITATIONS

3.1 This guarantee will only be applicable to sales made to consumers, understanding by "consumer", a person who purchases the Product for purposes not related to his professional activities.
3.2 The normal wear resulting from using the product is not guaranteed. With respect to expendable or consumable parts, components and/or materials, such as batteries, light bulbs, etc. the stipulations in the documentation provided with the Product, will apply.
3.3 The guarantee does not cover those cases when the Product; (I) has been handled incorrectly; (II) has been repaired, serviced or handled by nonauthorised people or (III) has been repaired or serviced not using original parts. In cases where the defect of the Product is a result of incorrect installation or start-up, this guarantee will only apply when said installation or start-up is included in the sales contract of the Product and has been conducted by the seller or under his responsibility.

ES-CERTIFICADO DE GARANTÍA

We reserve the right to change all or part of the articles or contents of this document, without prior notice
