WPG300C - Grill plate Waring Commercial - Free user manual and instructions

Brand	Waring Commercial
Model	WPG300C
Product type	Double grill / Panini press
Plate type	Grooved plates (grill)
Number of plates	2 (upper and lower)
Power supply voltage	240 V
Power	3200 W
Dimensions (W x D x H)	475 x 395 x 260 mm
Color	Stainless steel
Housing material	Stainless steel
Insulated handles	Yes
Temperature adjustment	Yes (adjustable thermostat)
Preheat indicator light	Yes
Grease drip tray	Yes, removable
Automatic safety shut-off	Yes (in case of overheating)
Cleaning tool included	Hard bristle brush and scraper
Usage	Professional use
Warranty	Manufacturer's warranty (see manual)
Power plug	3-pin grounded plug
Grounding required	Yes

Frequently Asked Questions - WPG300C Waring Commercial

How to clean the plates after use?

Clean the plates before they cool completely with warm water and detergent, using the included cleaning brush. Never pour cold water on hot plates. Remove and wash the grease drip tray.

What to do if the appliance shuts off automatically?

The appliance is equipped with a safety mechanism that turns it off in case of overheating. Turn off the appliance, unplug it, and let it cool completely before plugging it back in and reusing.

What is the power of the Waring Commercial WPG300C?

The power is 3200 W at 240 V, allowing fast and even cooking.

Can I use this appliance without grounding?

No, the appliance is equipped with a three-prong grounded plug. It must be plugged into a properly grounded outlet to avoid any risk of electric shock.

How to adjust the temperature?

Use the temperature adjustment knob located on the appliance to select the appropriate temperature for the food you are grilling.

Are the plates removable?

The plates are not mentioned as removable in the manual. For cleaning, use the provided tool without removing them.

What types of food can I cook?

This appliance is designed for grilling meats, vegetables, paninis, sandwiches, and any food suitable for a grill/panini press.

Is there a risk of burns?

Yes, the surfaces get very hot. Use the insulated handles and do not touch the hot plates. The appliance remains hot for a long time after use.

How to know if the appliance is ready?

The preheat indicator light turns on when the set temperature is reached, usually after about 10 minutes of heating.

Can I use non-Waring accessories?

It is not recommended to use accessories not recommended by Waring, as this may pose a risk of fire, electric shock, or injury.

USER MANUAL WPG300C Waring Commercial

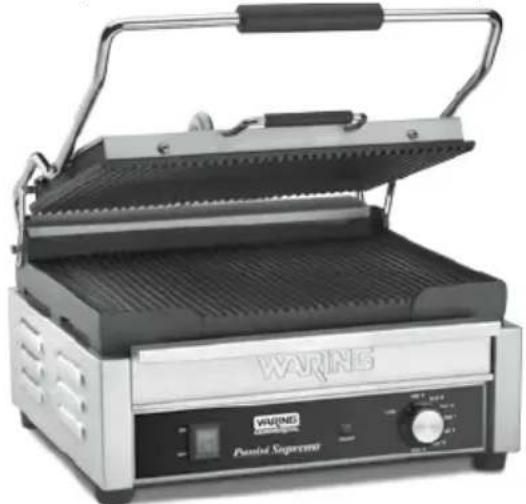

Exterior view of a stainless steel grating with open lid and control knobs (no visible text or symbols)

WPG300 WFG300/WDG300/WPG300C (not shown/ no ilustrado/ non illustré)

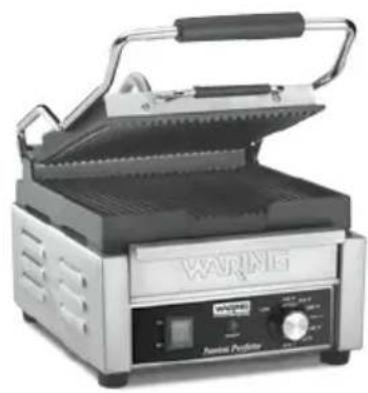

Exterior view of a KARING stainless steel grating with open lid and control panel (no visible text or symbols)

WPG150 WFG150/WPG150B/WPG150C (not shown/ no ilustrado/ non illustré)

Exterior view of a Waring Kiosk grater with open lid and control panel (no visible text or symbols on main body)

WPG250 WFG250/WDG250/WPG250B/WPG250C (not shown/ no ilustrado/ non illustré)

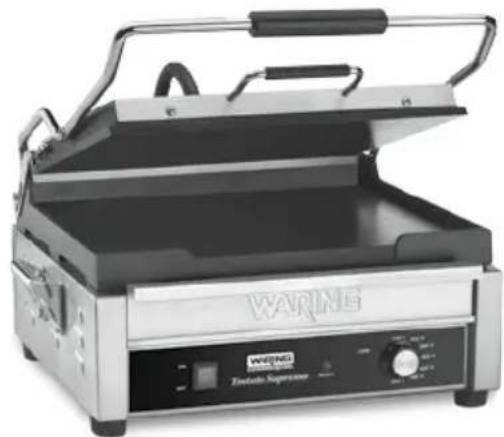

Exterior view of a Waring stainless steel grating appliance (no visible text or symbols on body)

WFG275

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
3. Always unplug from outlet prior to handling or cleaning.
4. To protect against risk of electric shock, do not put appliance in water or other liquids.
5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

6. Do not touch surfaces that may be hot. Use handles and knobs provided.

7. Avoid contact with moving parts.

8. Do not operate the Waring® Commercial Panini/Toasting Grill or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions or is dropped or damaged in any manner. Return it to the nearest authorized service center for examination, repair, and/or adjustment.

9. The use of attachments not recommended or sold by Waring may cause fire, electric shock, or injury.

10. Do not use outdoors.

11. Always check that the control is off before plugging cord into wall outlet. To disconnect, turn the control knob to OFF, then remove plug from wall.

12. Do not place near a hot gas or electric burner or heated oven.

13. Do not let cord hang over edge of table or counter, or touch hot surfaces.

14. When ON, the Waring® Commercial Panini/Toasting Grill should always be on a stable countertop or table.

15. Close supervision is necessary when any appliance is used by or near children.

16. Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS

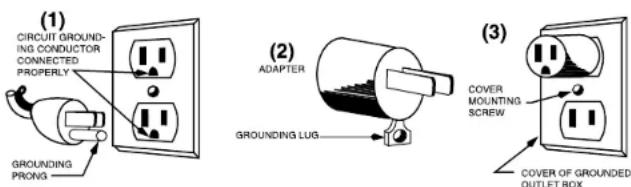

This appliance must be grounded while in use to protect the operator from electric shock. The appliance is equipped with a 3-conductor cord and 3-prong grounding-type plug to fit the proper grounding-type receptacle. The appliance has a plug that looks like the plug in drawing (1). An adapter, as in drawing (2), should be used for connecting the appliance plug to two-prong receptacles. The grounding tab that extends from the adapter must be connected to a permanent ground such as a properly grounded outlet box as shown in drawing (3) using a metal screw.

CAUTION: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician. Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada and Europe.

(1) CIRCUIT GROUND- ING CONDUCTOR CONNECTED PROPERLY GROUNDING PRONG (2) ADAPTER GROUNDING LUG (3) COVER MOUNTING SCREW COVER OF GROUNDED OUTLET BOX

WARNING RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

GROUNDING METHOD

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

SAFETY AND TROUBLESHOOTING

Please note that the Waring® Commercial Panini/Toasting Grill will be too hot to handle immediately after use.

The panini grill has a thermal cutoff safety device to avoid overheating. If panini grill shuts off automatically, unplug it and allow it to cool. Plug back in and continue use.

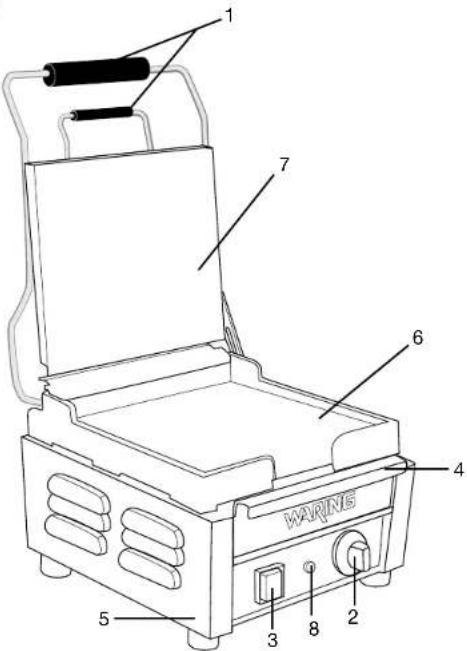

PARTS

1 7 6 4 WARSING 5 3 8 2

1. Thermo-insulated handles
2. Temperature dial
3. ON/OFF power switch
4. Removable oil tray
5. Stainless steel housing
6. Bottom grill plate (ribbed or flat)
7. Top grill plate (ribbed or flat)
8. Ready indicator light
9. Cleaning tool (not shown)
10. Power cord (not shown)

Model Description Voltage Power				Dimensions (mm)
WPG150	Compact Panini Grill with Ribbed Plates	120 Volt	1800 Watt	350 (W) x 395 (D) x 260 (H)
WFG150	Compact Panini Grill with Flat Plates	120 Volt	1800 Watt	350 (W) x 395 (D) x 260 (H)
WFG150C	Compact Panini Grill with Flat Plates	120 Volt	1800 Watt	350 (W) x 395 (D) x 260 (H)
WPG150B	Compact Panini Grill with Ribbed Plates	208 Volt	2400 Watt	350 (W) x 395 (D) x 260 (H)
WPG150C	Compact Panini Grill with Ribbed Plates	120 Volt	1800 Watt	350 (W) x 395 (D) x 260 (H)
WPG250	Large Panini Grill with Ribbed Plates	120 Volt	1800 Watt	410 (W) x 450 (D) x 260 (H)
WPG250B	Large Panini Grill with Ribbed Plates	208 Volt	2400 Watt	410 (W) x 450 (D) x 260 (H)
WPG250C	Large Panini Grill with Ribbed Plates	120 Volt	1800 Watt	410 (W) x 450 (D) x 260 (H)
WFG250	Large Panini Grill with Flat Plates	120 Volt	1800 Watt	410 (W) x 450 (D) x 260 (H)
WFG250C	Large Panini Grill with Flat Plates	120 Volt	1800 Watt	410 (W) x 450 (D) x 260 (H)
WDG250	Large Panini Grill with Ribbed Top and Flat Bottom Plates	120 Volt	1800 Watt	410 (W) x 450 (D) x 260 (H)
WPG300	Double Panini Grill with Ribbed Plates	240 Volt	3200 Watt	475 (W) x 395 (D) x 260 (H)
WPG300C	Double Panini Grill with Ribbed Plates	240 Volt	3200 Watt	475 (W) x 395 (D) x 260 (H)
WFG300	Double Panini Grill with Flat Plates	240 Volt	3200 Watt	475 (W) x 395 (D) x 260 (H)
WDG300	Double Panini Grill with Flat and Ribbed Plates	240 Volt	3200 Watt	475 (W) x 395 (D) x 260 (H)
WFG275	Full-Size Panini Grill with Flat Plates	120 Volt	1800 Watt	512 (W) x 635 (D) x 349 (H)

INSTRUCTIONS FOR USE

1. RemoveWaring packaging. ^® Commercial Panini/Toasting Grill from

2. Place on a firm and stable surface.

3. Remove all packaging and instruction book.
4. Please read all instructions before you begin to grill.
5. Keep this instruction book in a safe location for future reference.
6. It is highly recommended that you clean the grids before first use.
7. Warm up unit for 10 minutes. This will allow all oils and other sediment to burn off.
8. After cleaning (see below), the Waring™ Commercial Panini/Toasting Grill is ready for use.
9. Turn unit on. Allow grill to warm up. This will take about 10 minutes. The READY indicator light will illuminate once temperature is reached.
10. Lift the handle to open panini grill.
11. Carefully place food on bottom plate.
12. Push handle down; this will press top plate down on food and begin cooking.

CLEANING AND MAINTENANCE

For best results, your panini grill must be cleaned thoroughly after each use. Daily buildup of sediment left over from cooking can affect the performance of the grill plates.

The Waring Commercial Panini Grills come with a cleaning brush (CAC105). The cleaning brush features heavy-duty bristles for initial removal of sediment from the cast iron plates and also features a scraper custom designed to clean in between the ribs as well as the flat surfaces.

The Waring® Commercial Panini/Toasting Grill should be cleaned after each use, with warm soapy water.

The exterior of unit may be cleaned by carefully wiping with a damp cloth.

Clean plates while the unit is warm, using warm soapy water and the cleaning tool provided DO NOT USE COLD WATER ON WARM PLATE.

To clean drip tray, carefully remove tray, wash with warm soapy water and dry. Tray must be completely dry before putting back into the unit.

©2014 Waring Commercial

314 Ella T. Grasso Avenue

Torrington, CT 06790

www.waringcommercialproducts.com

Printed in China

Impreso en la China

Imprimé en Chine

14WC007485

WPG/WPF/WDG Series IB
